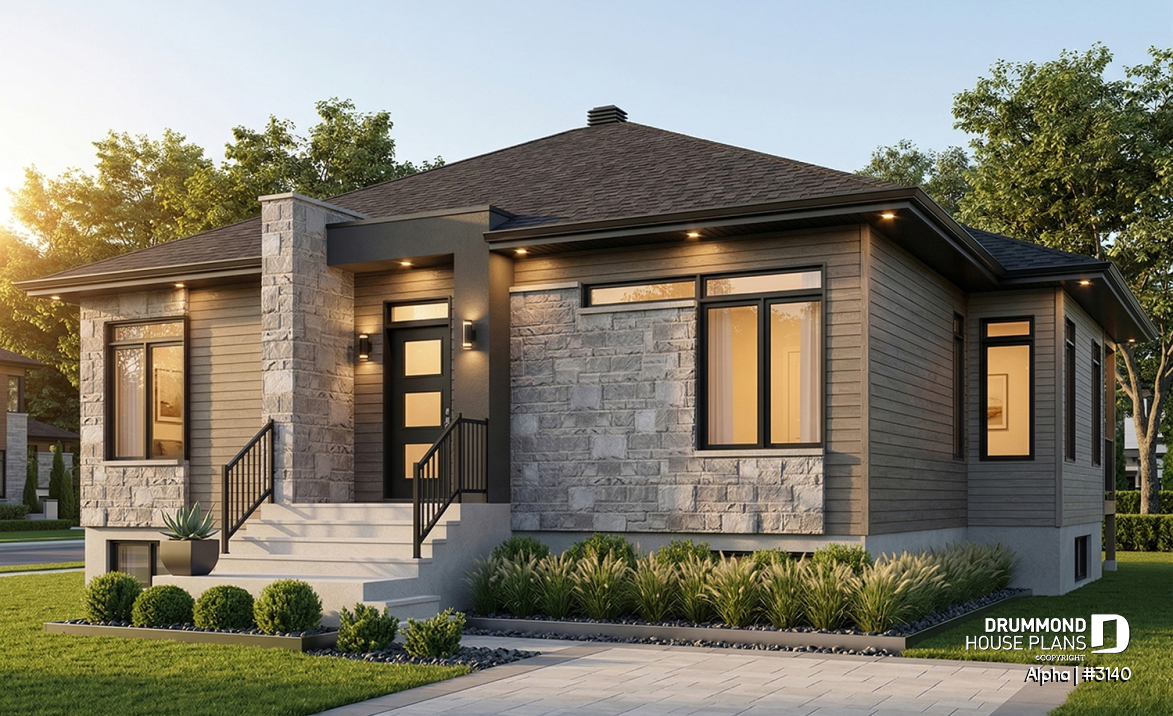

House plan Alpha (3140)
Small 2 bedroom Modern Mid-Century house plan, open space, laundry on main, mud room, built-ins
View the size of the rooms and height of the ceilings

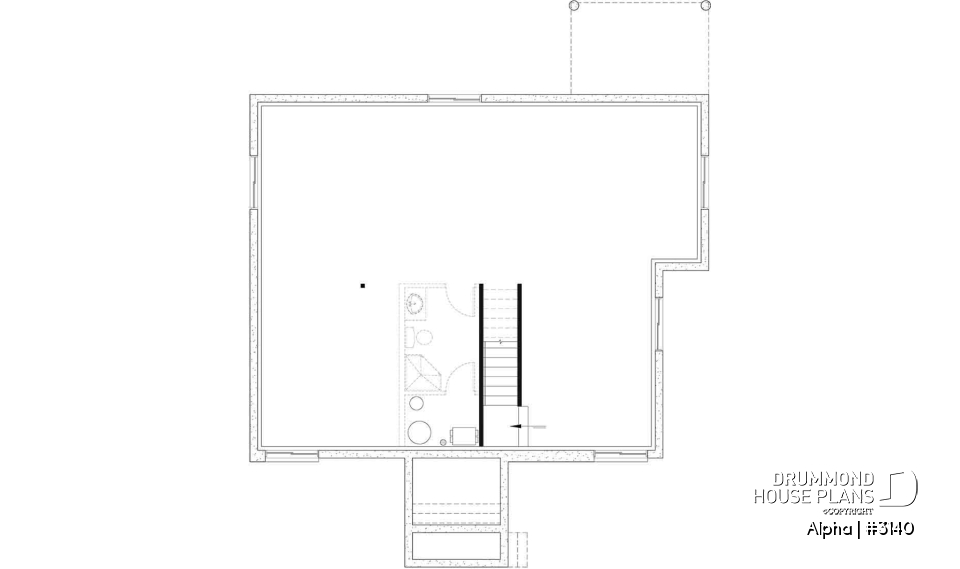

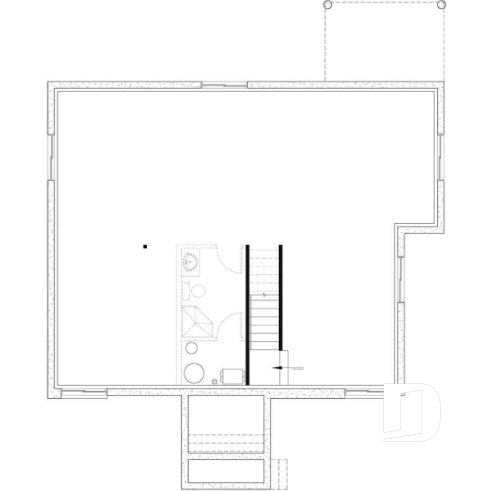

| Basement |
|---|

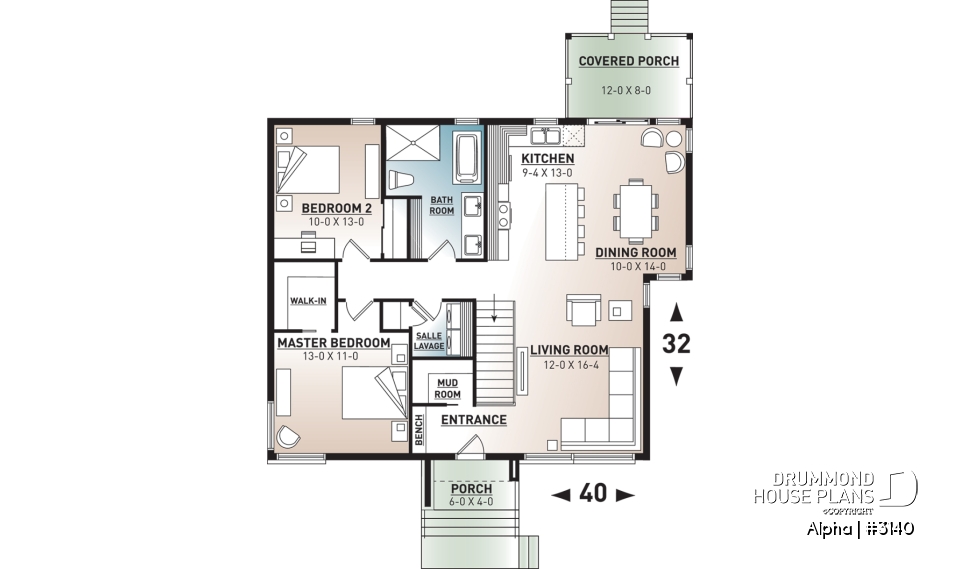

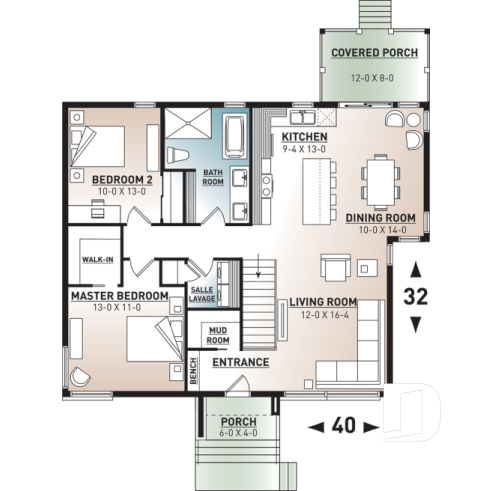

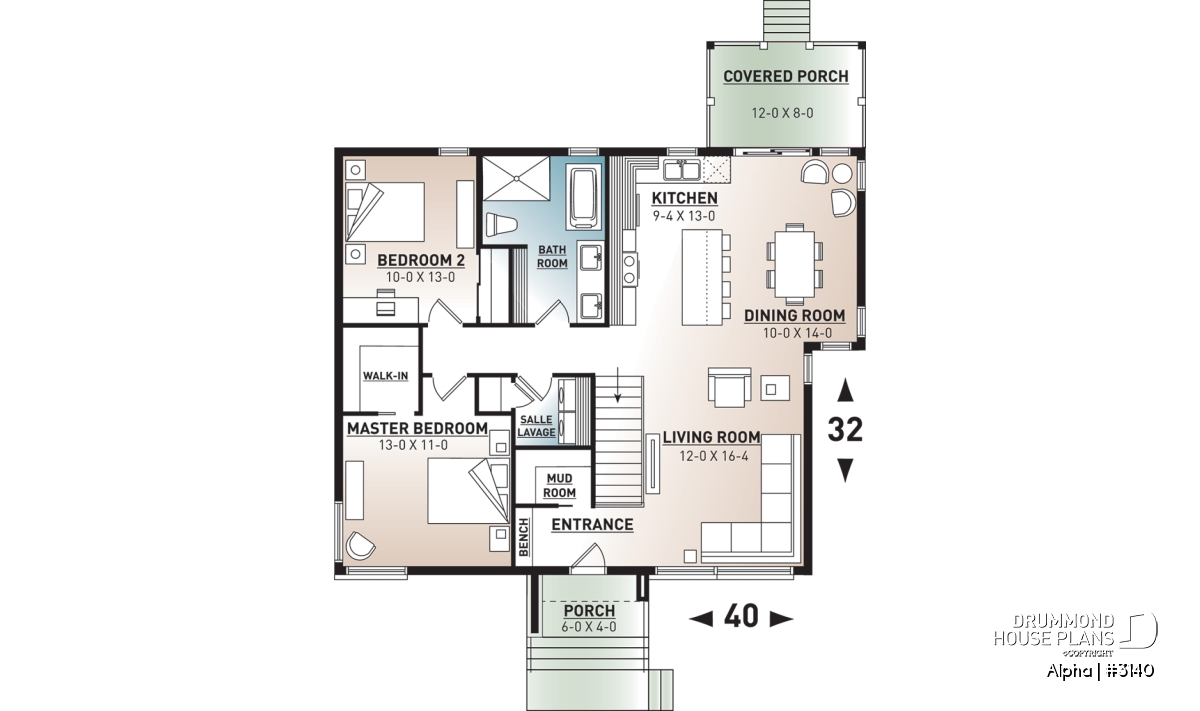

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 11'0" | ~ 9'0" |
| Walk-in closet | 6'4" x 5'8" | ~ 9'0" |
| Bedroom | 10'0" x 13'0" | ~ 9'0" |
| Closet | 2'0" x 5'8" | ~ 9'0" |
| Laundry room | 5'8" x 5'4" | ~ 9'0" |
| Linen | 2'8" x 2'0" | ~ 9'0" |
| Foyer | 9'4" x 4'2" | ~ 9'0" |
| Walk-in closet | 6'0" x 3'8" | ~ 9'0" |
| Living room | 12'0" x 16'4" | ~ 9'0" |
| Kitchen | 9'4" x 13'0" | ~ 9'0" |
| Dining room | 10'0" x 14'0" | ~ 9'0" |
| Full bathroom | 8'6" x 13'0" | ~ 9'0" |
| Covered deck | 12'0" x 8'0" | ~ 9'0" |
| Covered porch | 7'6" x 4'0" | ~ 9'0" |
General specifications
| Total living area | 1207 sq.ft. |
| Basement | 1207 sq.ft. |
| 1st level | 1207 sq.ft. |
| Width | 40'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 19'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan

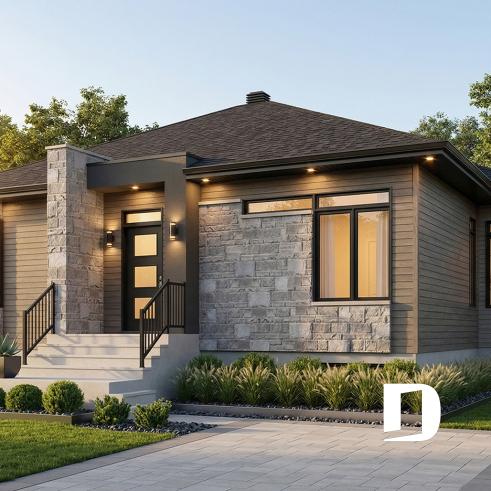

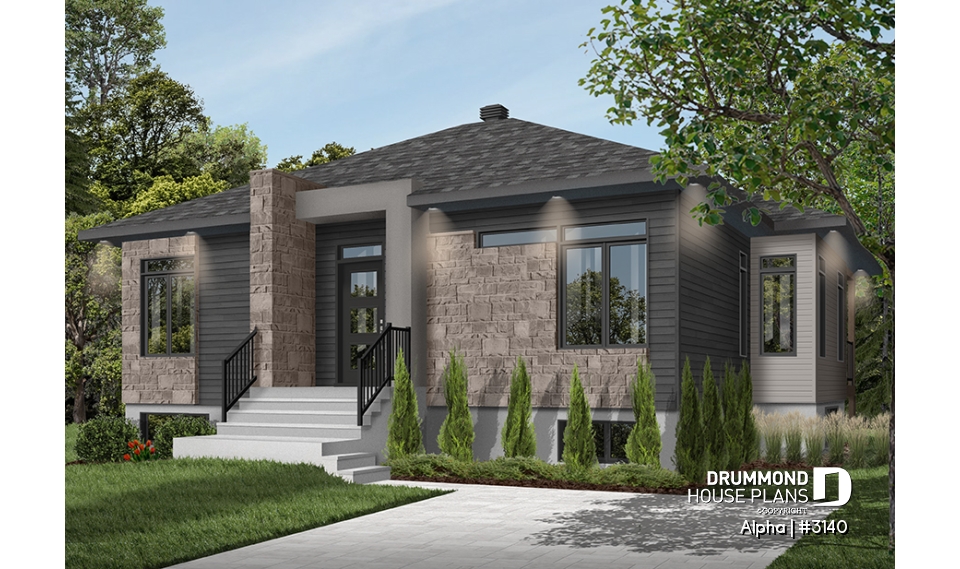

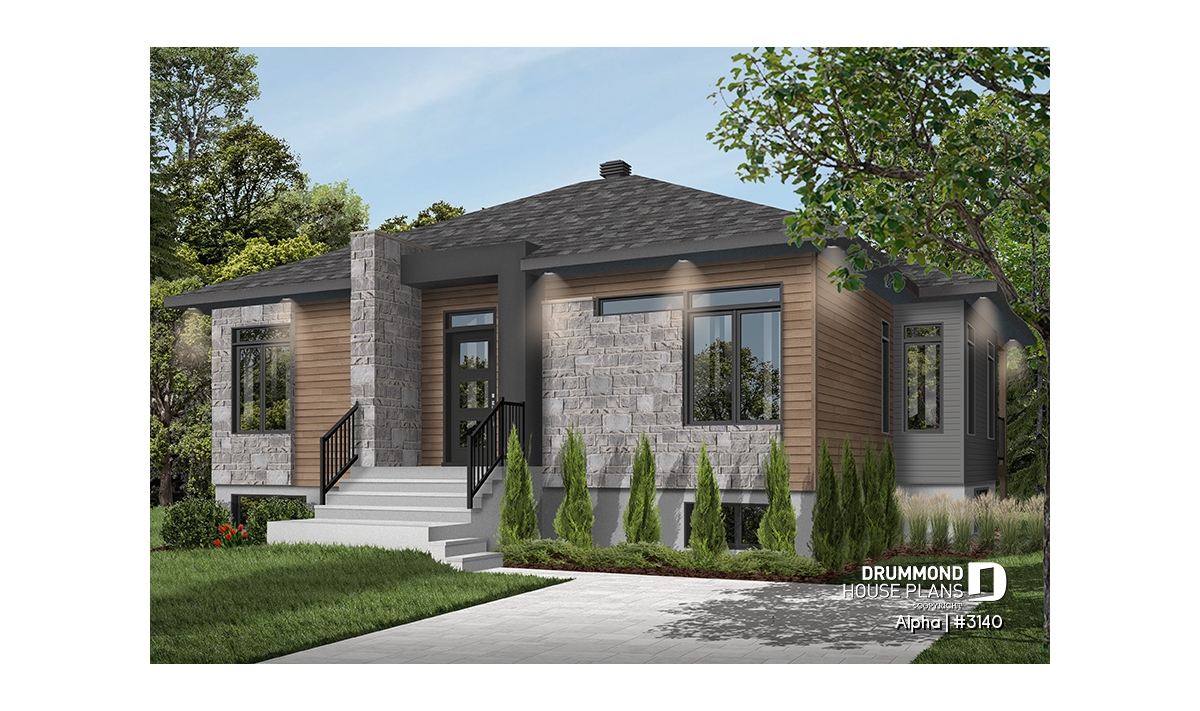

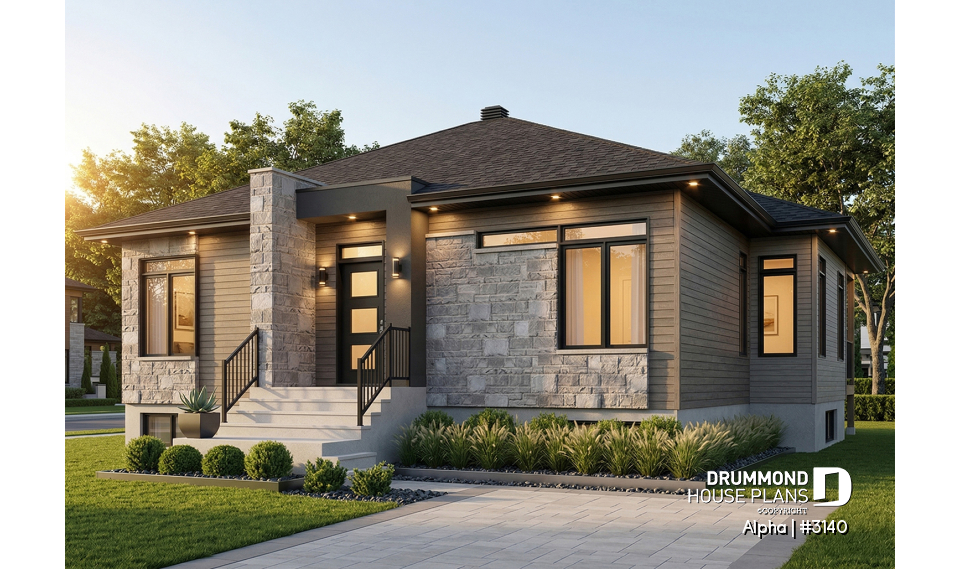

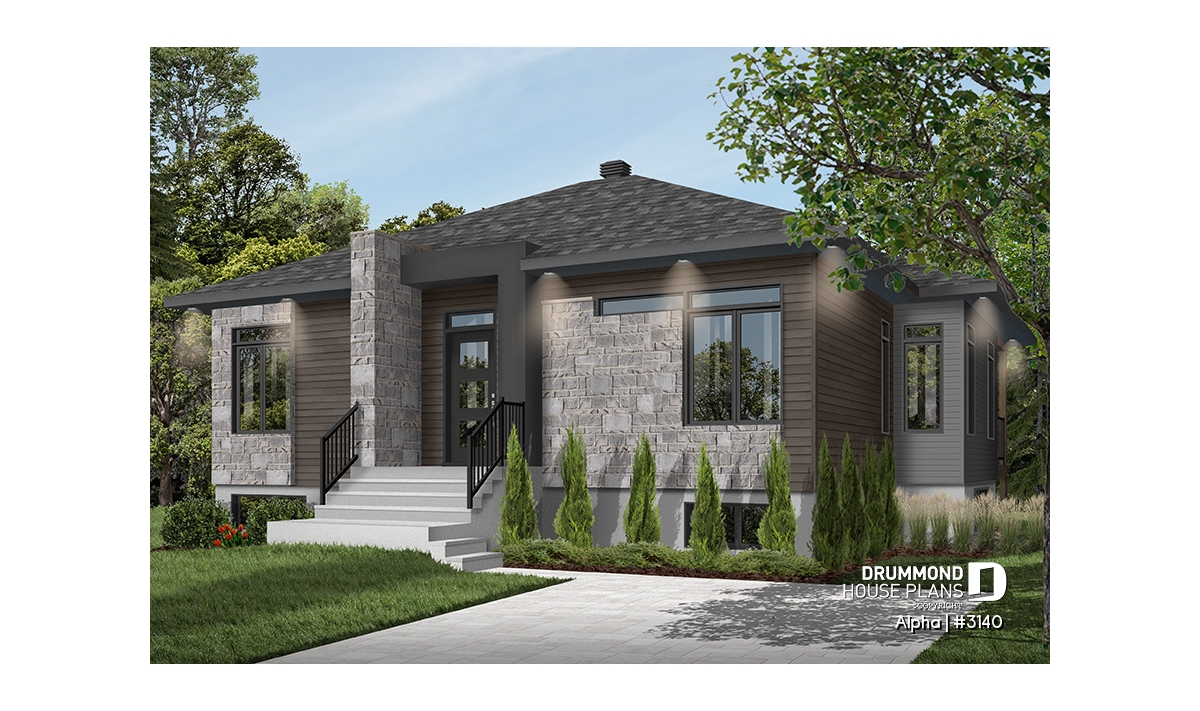

Small Modern Mid-Century 2-Bedroom House Plan.
Plan no. 3140 offers 2 bedrooms on the same floor and 1207 heated sq. ft. The parents' bedroom, 13 'x 11', has a large walk-in closet. The large family bathroom with separate bath and shower, has double sinks. A laundry room near the bedrooms, will be convenient and highly appreciated. The kitchen is open to the dining room, and includes a large island that can easily accommodate 4 guests. A small reading area is set back in the dining room. The living room is open on the kitchen / dining area. The entrance is spacious and has a large walk-in closet and a sitting area. The 1207 sq.ft. unfinished daylight basement can be finished later. Many other foundation options are available.
Any house plan changes are possible, simply contact us for your free estimate: 1-800-567-5267.
Distinctive elements
Small Modern Mid-Century House Plan with 2 Bedrooms.
9' ceiling throughout the main floor.
2 good size bedrooms.
Master bedroom with walk-in closet.
Laundry room on main floor.
Large full bathroom with dual sinks.

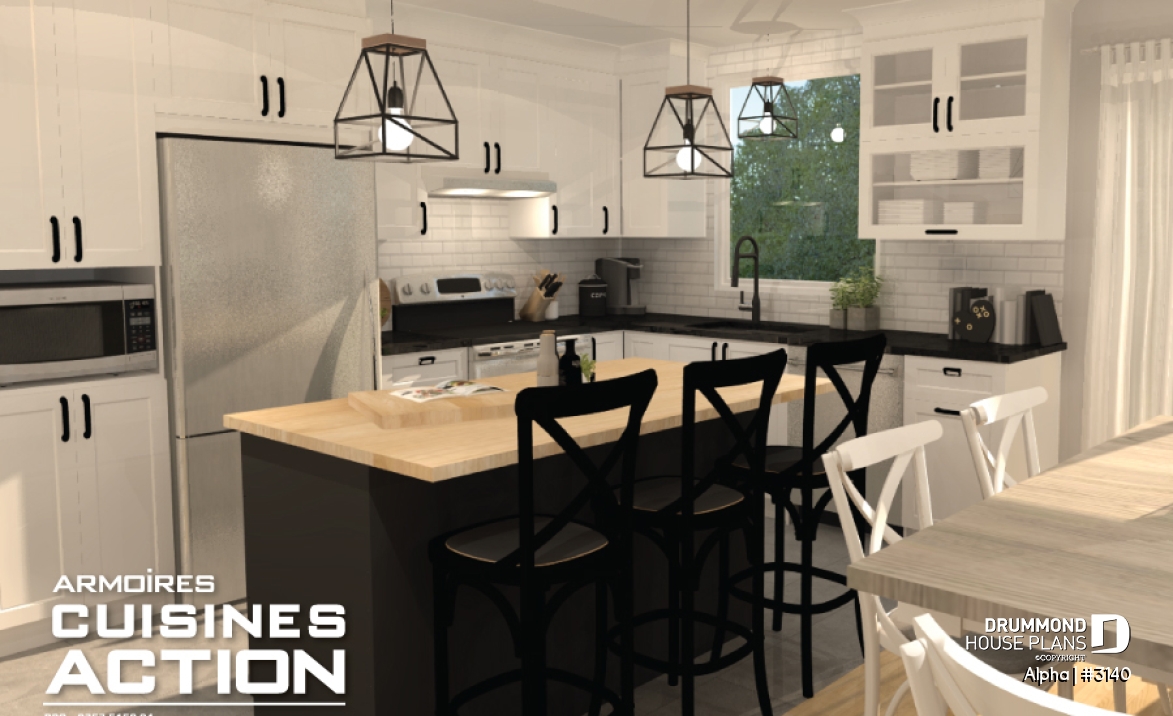

Kitchen with island and open to dining area.
Open floor concept.
Entrance with walk-in closet.

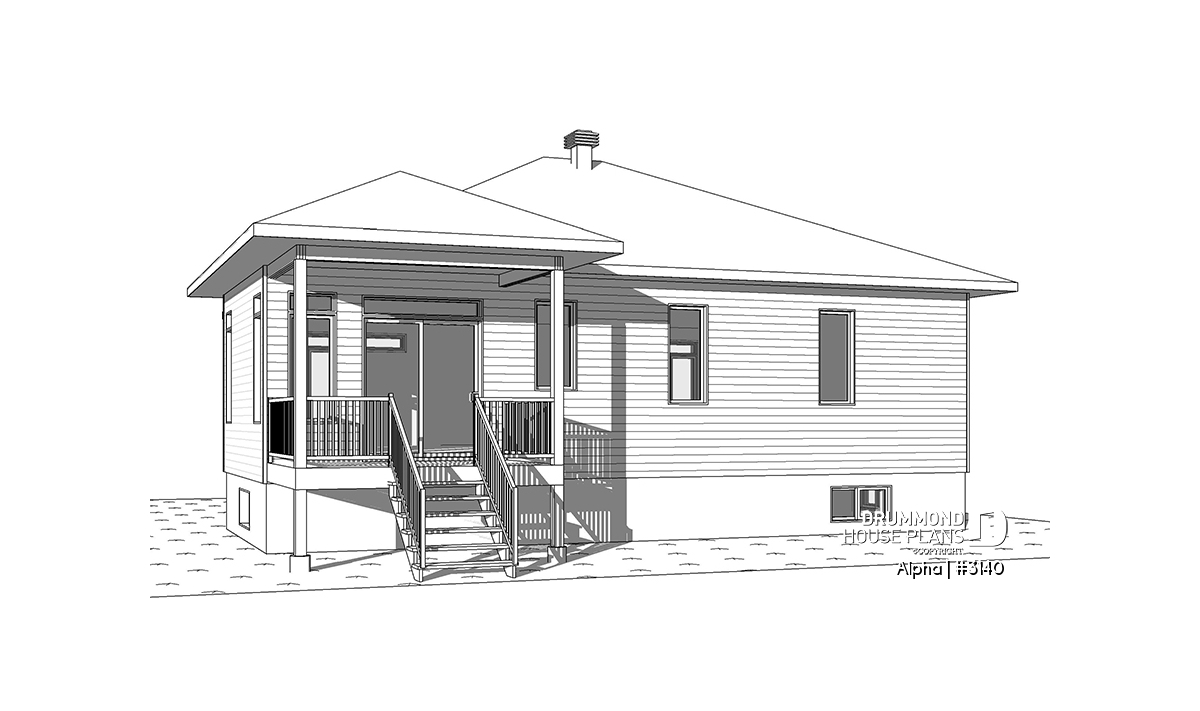

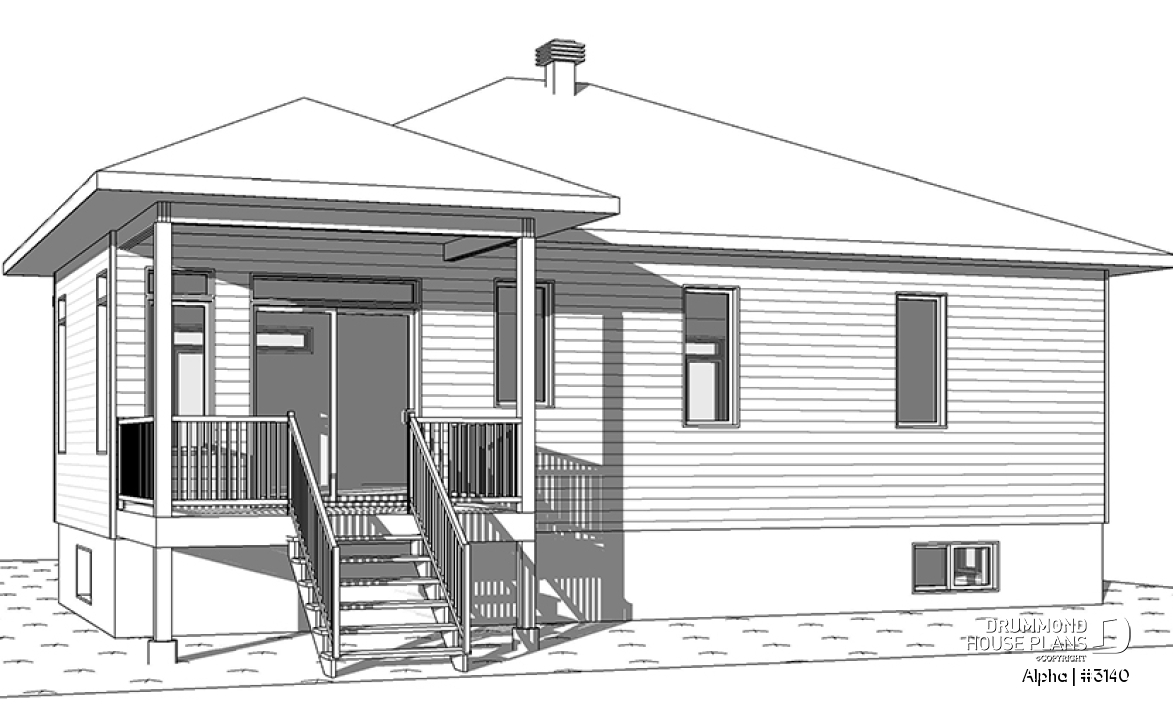

Sheltered rear balcony.
Plan feature(s)
Open floor layout, Gound floor laundry room, Lunch counter, Ceiling over 8', Deck, Walk-in master bed., Bench seat(s), Separate bath and shower, Double sinks, Mud room, Island
Plan architectural style(s)
. Contemporary, . Mid-century, . Modern rustic, . Modern / Design
