House plan Lotus 2 (3128-V1)

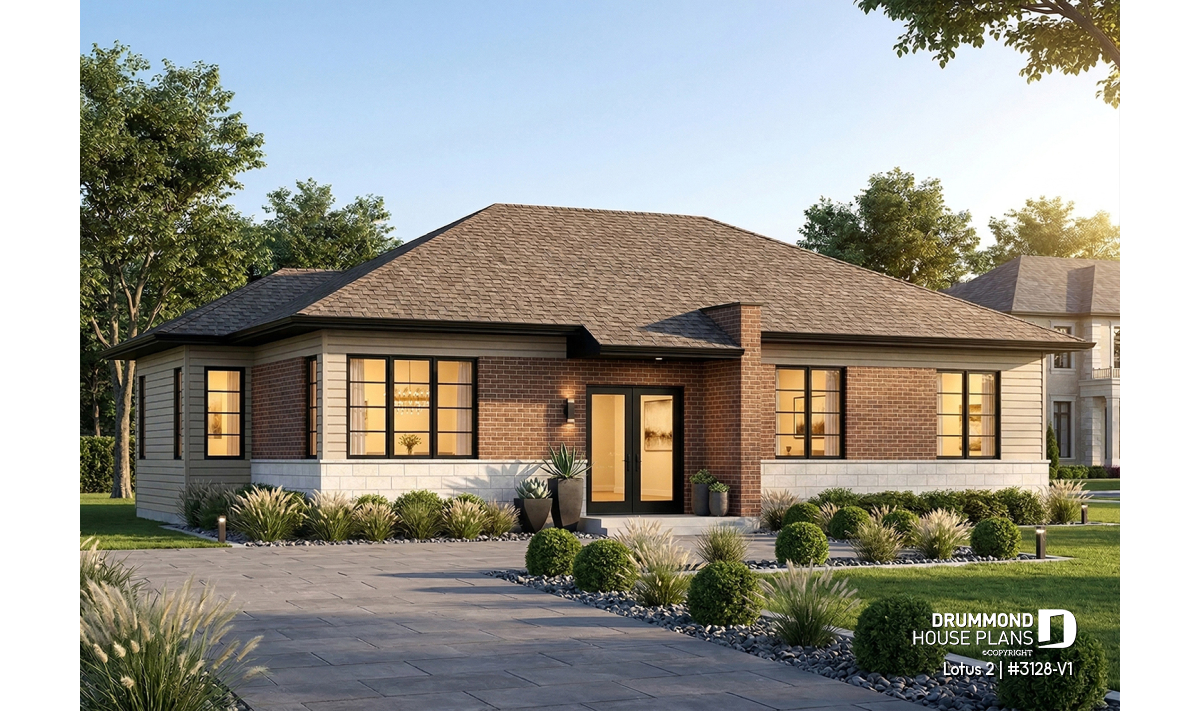

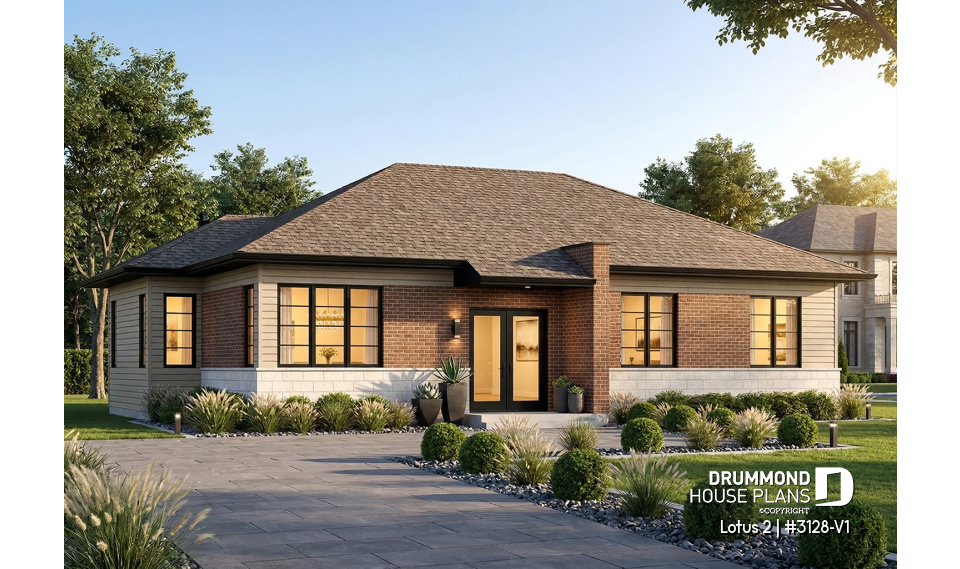

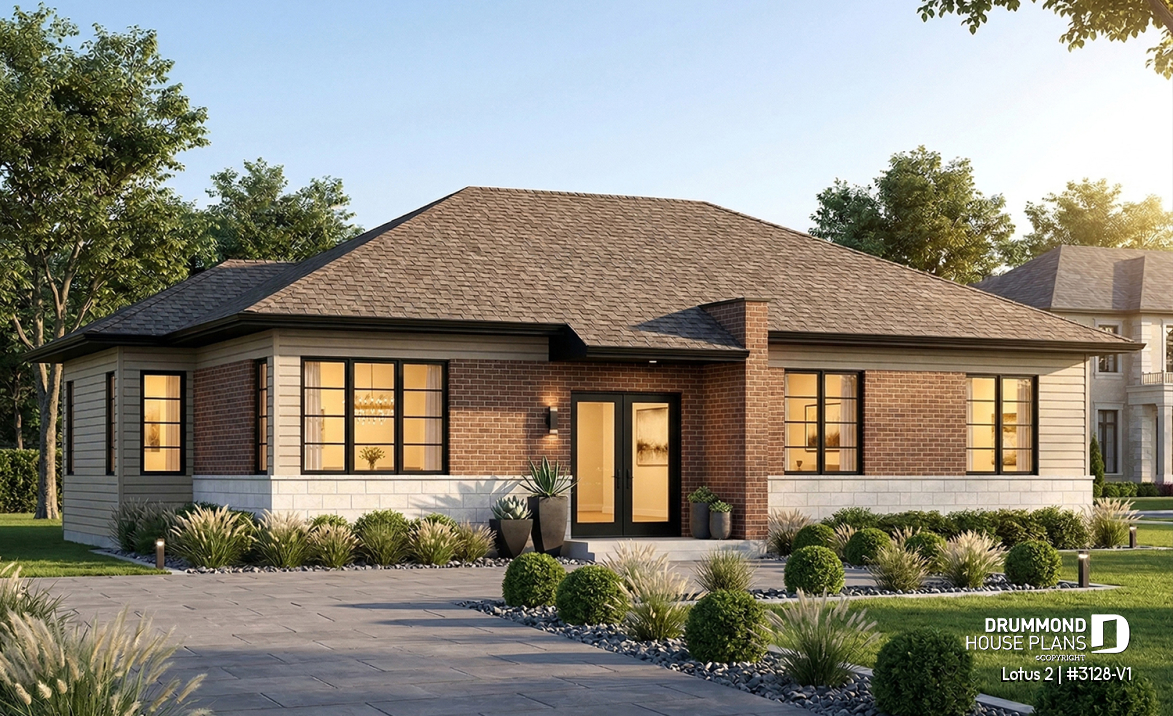

3 bedroom modern house plan, open living space, affordable to build, great look

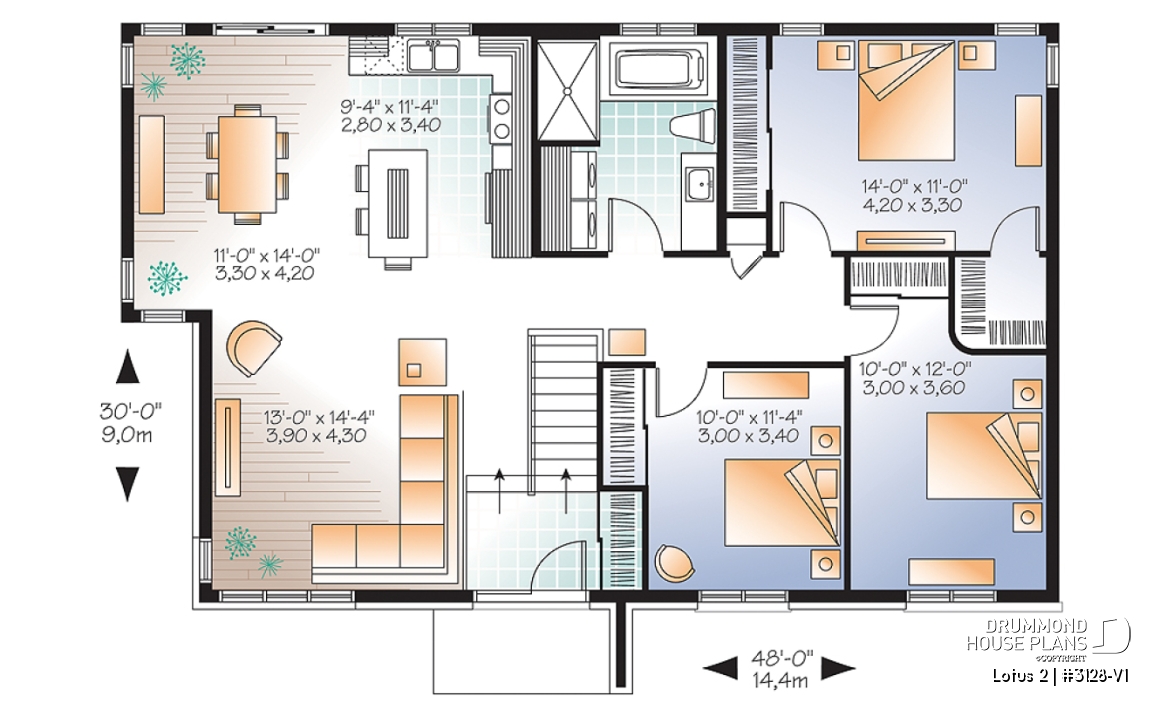

View the size of the rooms and height of the ceilings

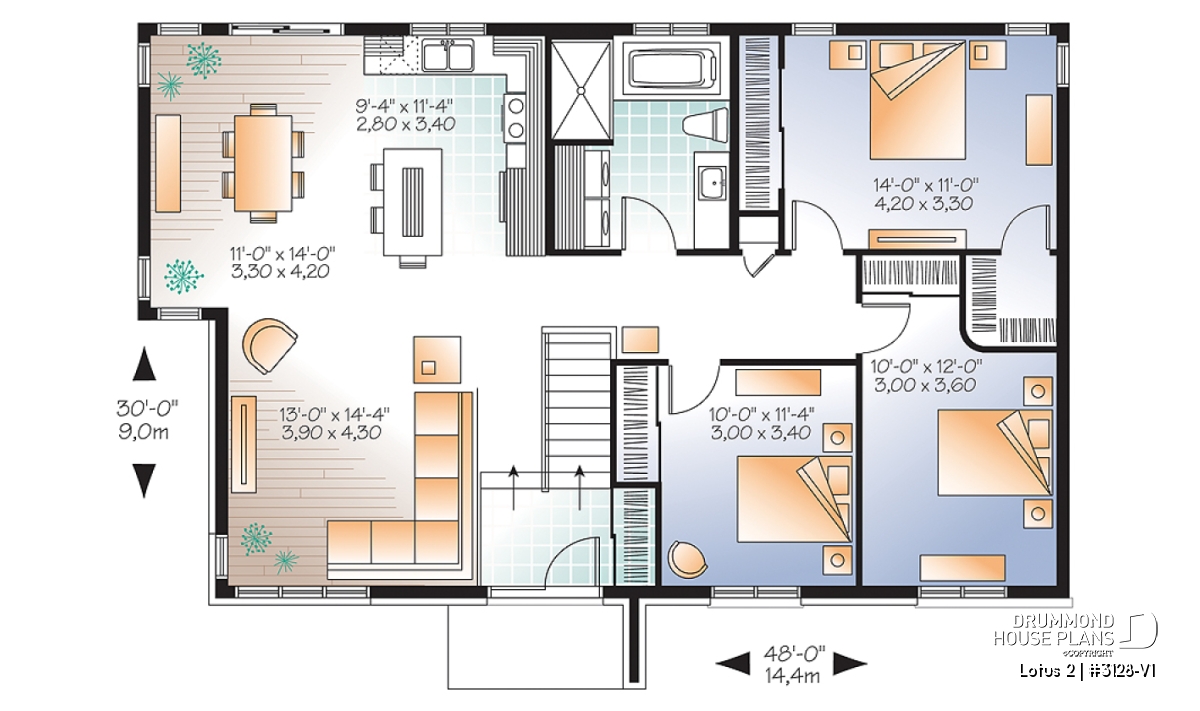

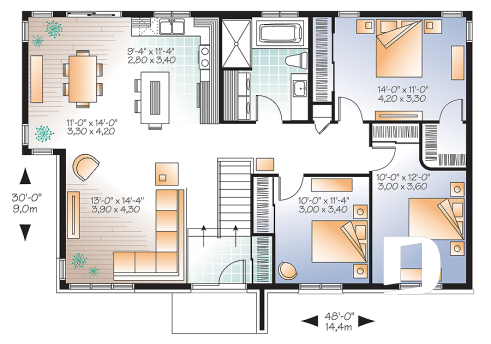

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 6'8" x 5'0" | ~ 9'2" |
| Closet | 2'0" x 5'0" | ~ 9'2" |
| Living room | 13'0" x 14'4" | ~ 8'0" |
| Dining room | 11'0" x 14'0" | ~ 8'0" |
| Kitchen/dinette | 9'4" x 11'4" | ~ 8'0" |
| Pantry | 2'0" x 1'8" | N/A |
| Bathroom/laundry room | 9'0" x 11'0" | ~ 8'0" |
| Shower | 3'0" x 5'0" | N/A |
| Linen | 1'6" x 5'4" | N/A |
| Bedroom | 14'0" x 11'0" | ~ 8'0" |
| Closet | 2'0" x 9'0" | ~ 8'0" |
| Walk-in closet | 4'8" x 4'8" | ~ 8'0" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Closet | 5'0" x 1'10" | ~ 8'0" |
| Bedroom | 10'0" x 11'4" | ~ 8'0" |
| Closet | 2'0" x 6'0" | ~ 8'0" |
| Linen | 2'0" x 1'8" | ~ 8'0" |
General specifications
| Total living area | 1392 sq.ft. |
| 1st level | 1392 sq.ft. |
| Width | 48'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 18'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | C |
Rooms specifications

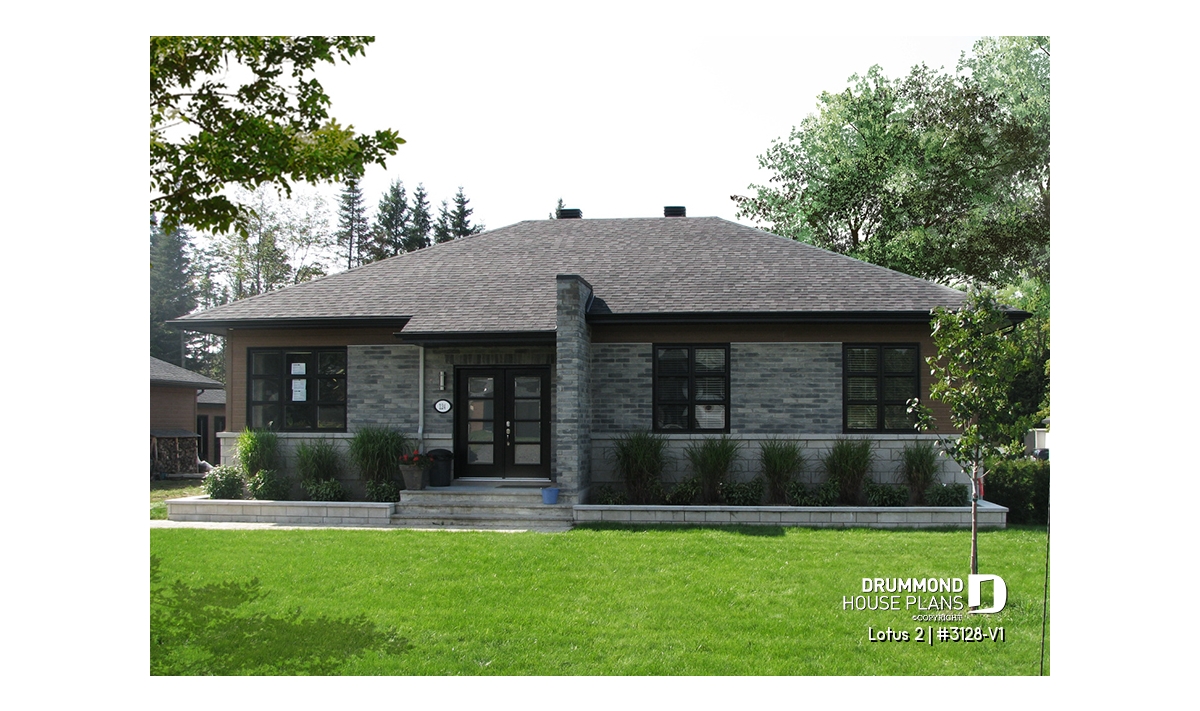

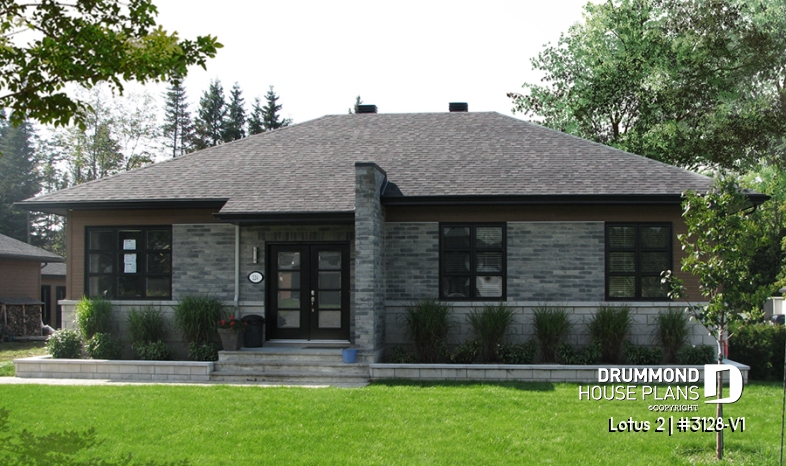

front

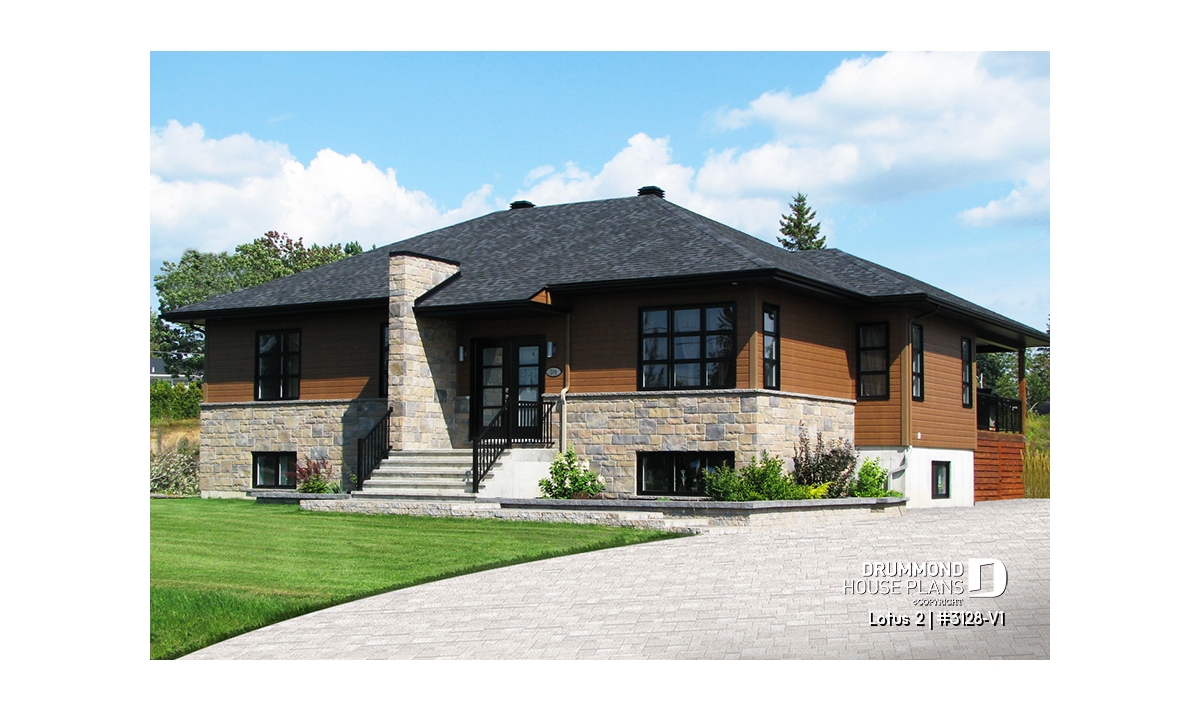

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

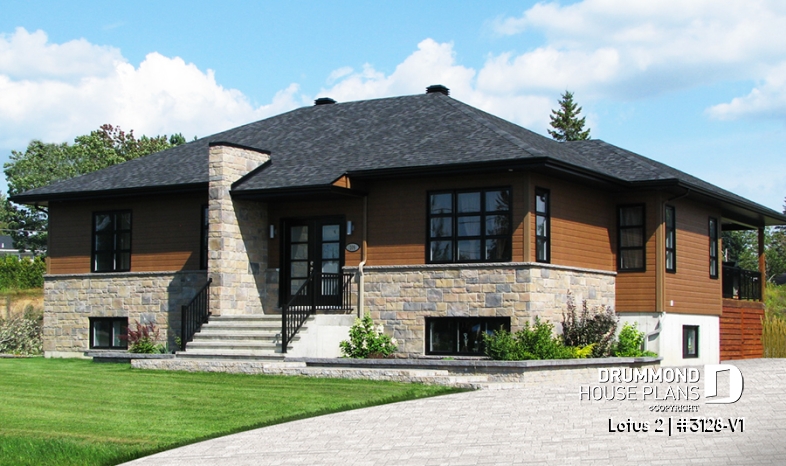

front

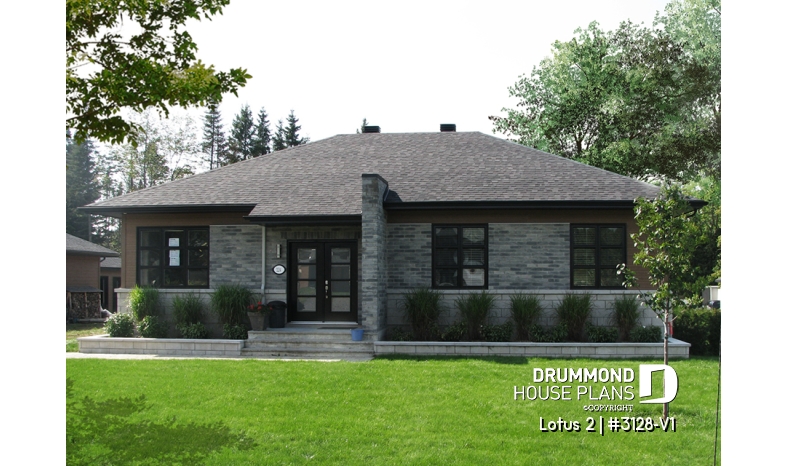

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Elegantly Simple Modern Bungalow, 3 bedroom on same floor
The simple lines of this three-bedroom bungalow are elevated in style by the use of contemporary windows and exterior finishes. Even though under 1400 square feet, there are no missing amenities!

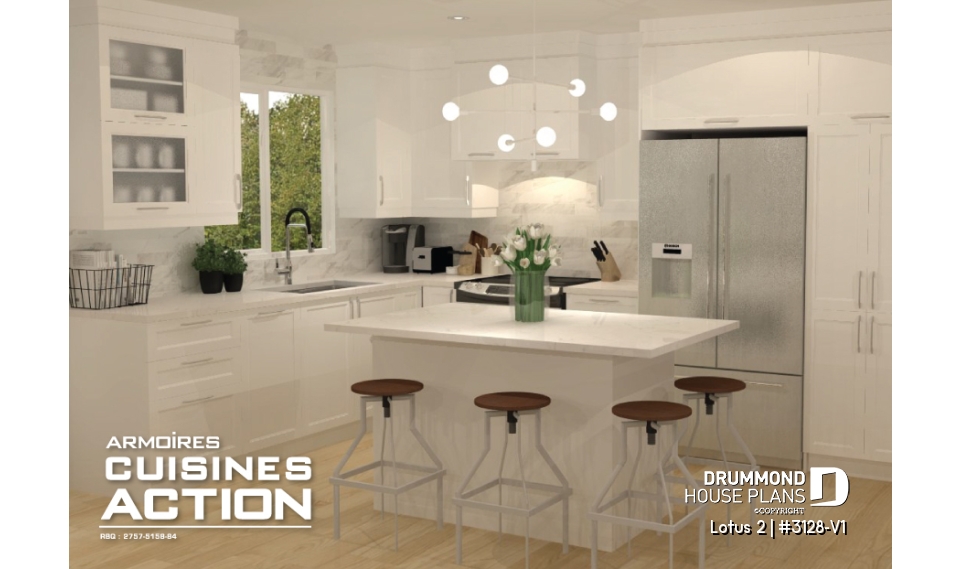

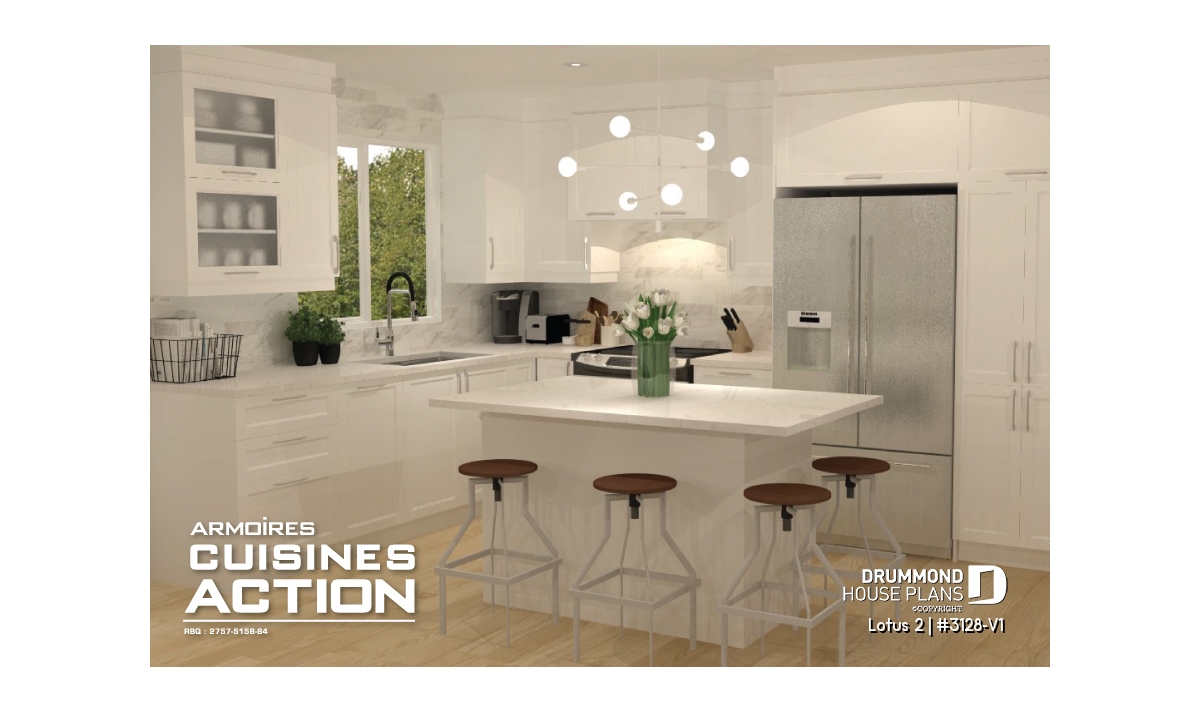

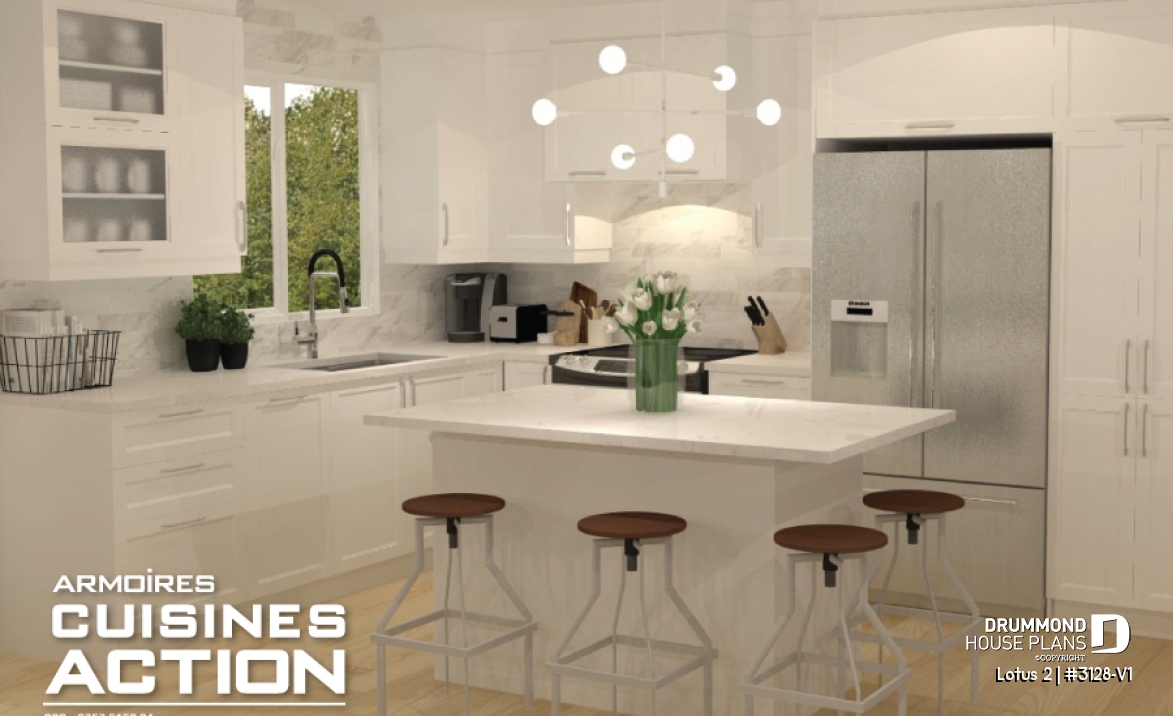

An open concept living area is anchored by a kitchen with large island. The adjoining dining and living rooms are within conversation’s reach and the patio door is perfectly located to skip out to the barbeque or herb garden!
A generous bathroom includes both a soaker tub and spacious independent shower plus a laundry closet. No fighting over closet space in the master bedroom, thanks to his and hers closets. Two additional bedrooms round off the main level.
If more space is required, the plan includes and unfinished basement, ready for your inspiration.
A versatile plan for families or empty nesters sure to be liveable through all of life’s stages.
Distinctive elements
3 bedroom Contemporary house plan, open living space, affordable to build, great look. Three bedrooms on the ground level. Well-windowed activities area. Kitchen with central eating island. Bathroom with 3 ft x 5 ft shower and laundry closet. Master bedroom with two large closets.
Plan feature(s)
Gound floor laundry room, Island, Walk-in master bed., Separate bath and shower
Plan architectural style(s)
. Contemporary, . Modern / Design, . Ranch, . Mid-century
