House plan Sadoques (4459)

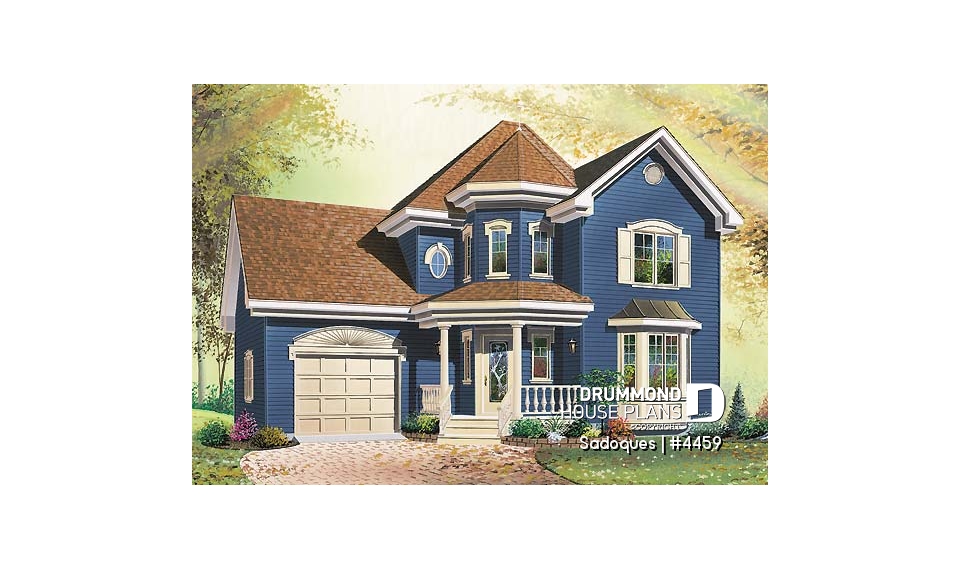

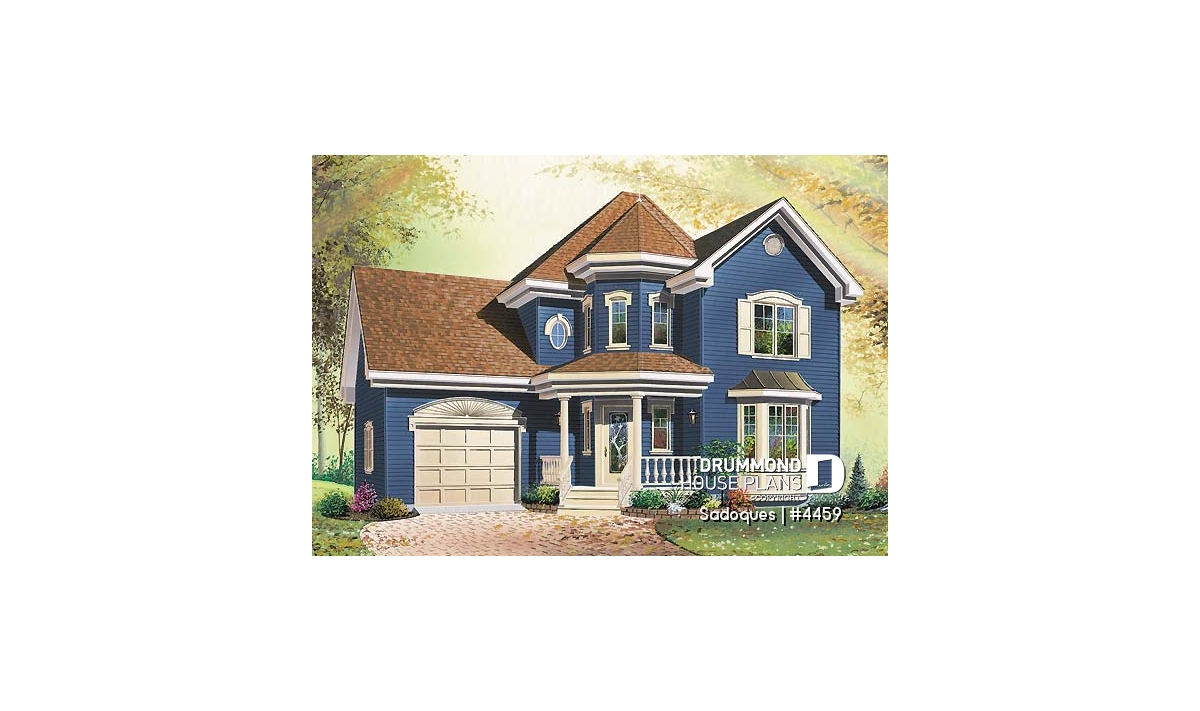

Victorian inspired cottage house plan with 3 bedrooms, garage
View the size of the rooms and height of the ceilings

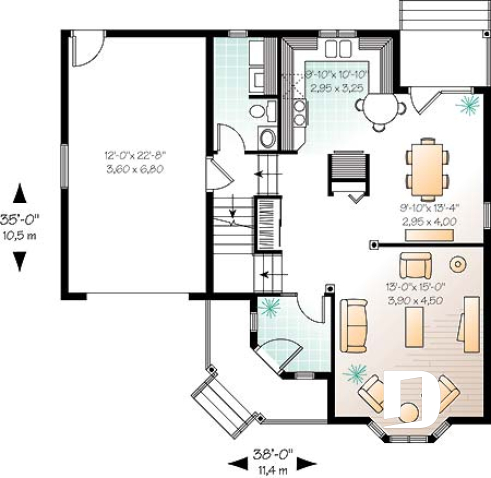

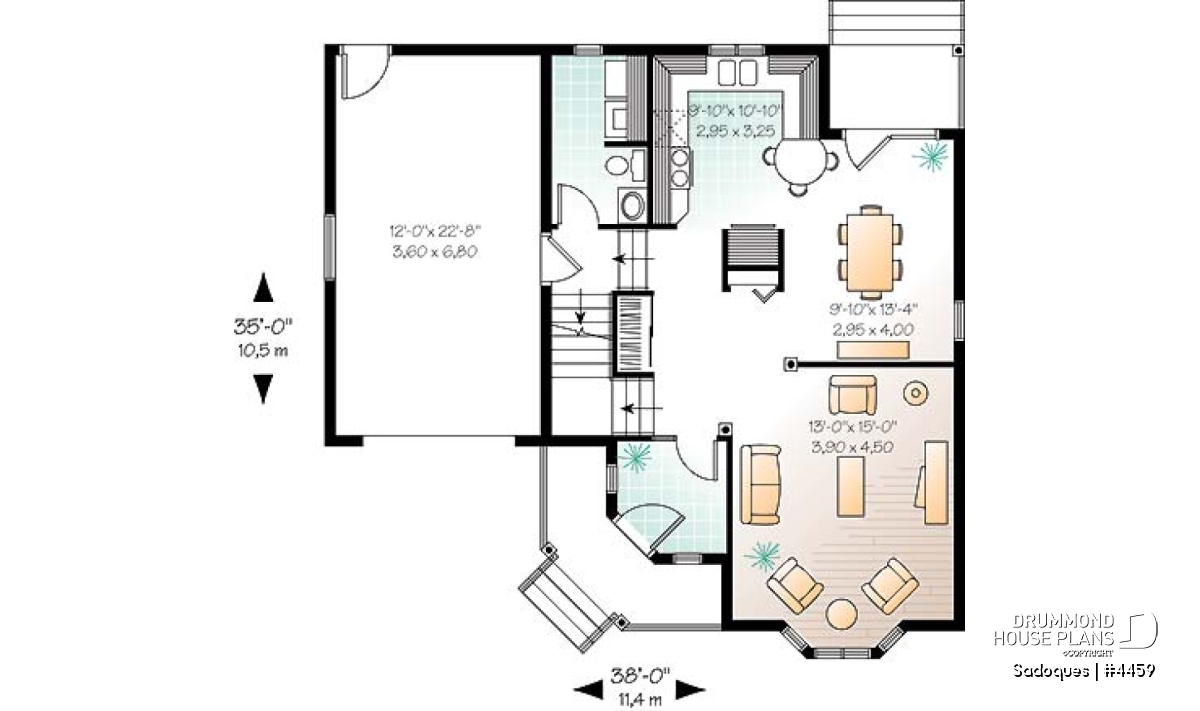

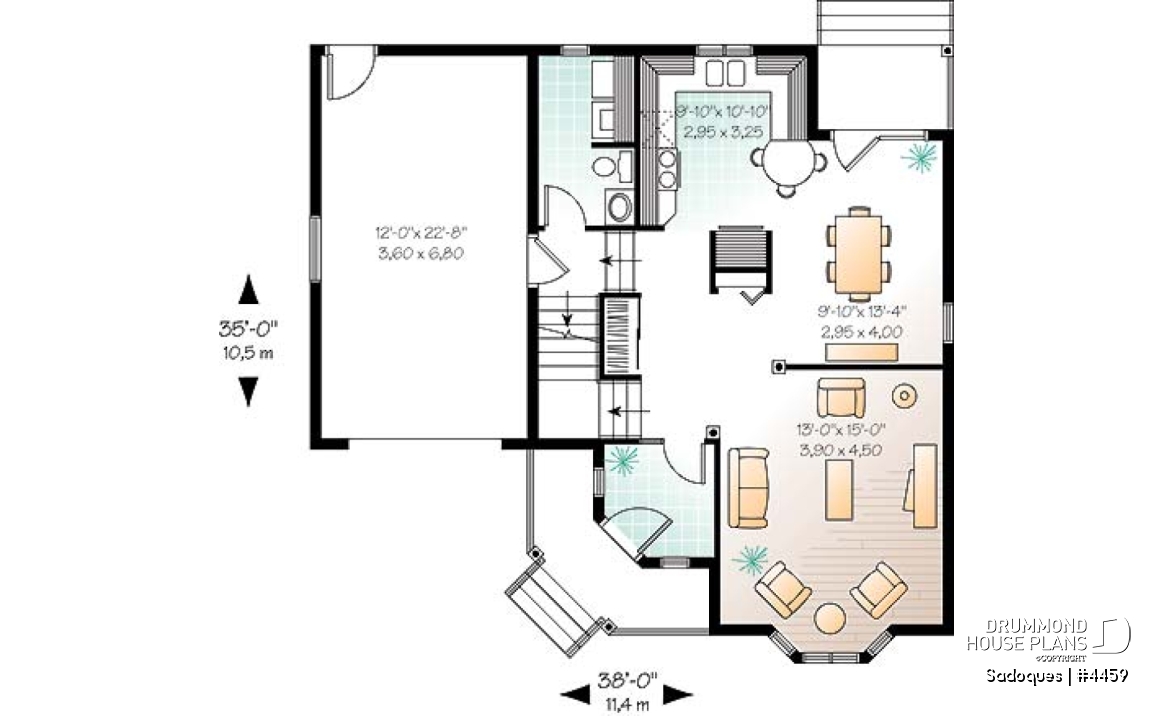

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 5'10" x 10'0" | ~ 8'0" |
| Kitchen | 9'10" x 10'10" | ~ 8'0" |
| Dining room | 9'10" x 13'4" | ~ 8'0" |
| Living room | 13'0" x 15'0" | ~ 8'0" |
| Foyer | 6'8" x 6'6" | ~ 8'0" |
| Closet | 4'8" x 2'0" | ~ 8'0" |
| Garage | 12'0" x 22'8" | ~ 8'6" |
| Covered porch | 11'0" x 11'0" | N/A |
| Covered deck | 8'0" x 5'0" | N/A |
| Storage | 3'0" x 1'4" | ~ 8'0" |

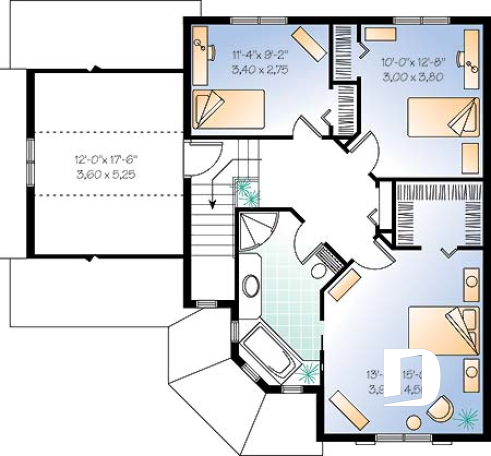

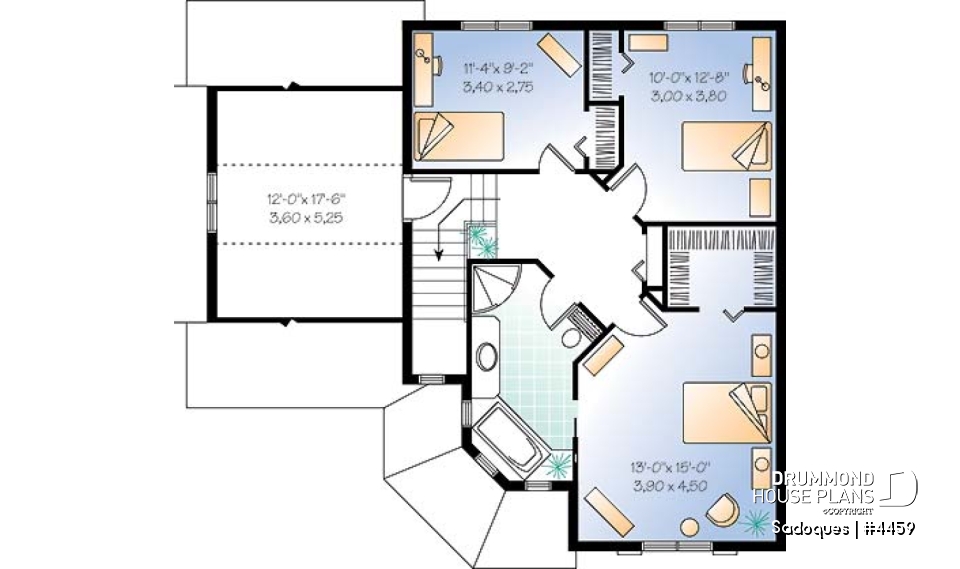

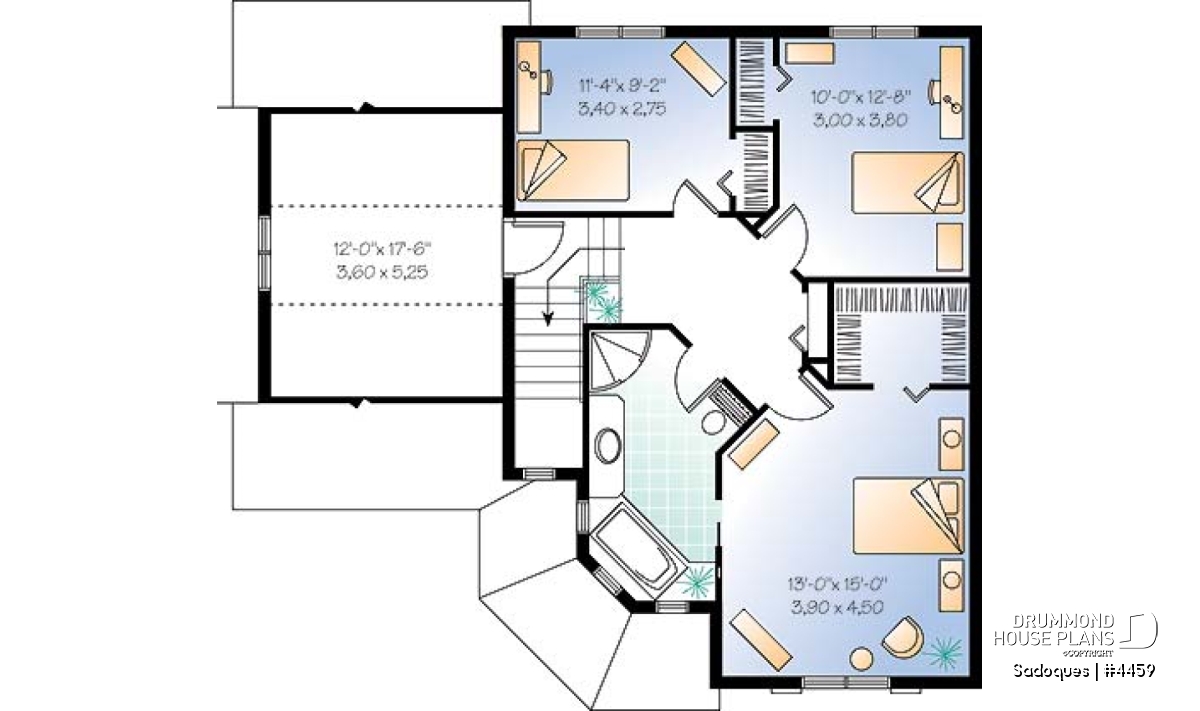

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'8" x 14'4" | ~ 8'0" |
| Bedroom | 13'0" x 15'0" | ~ 8'0" |
| Walk-in closet | 7'0" x 5'4" | ~ 8'0" |
| Bedroom | 10'0" x 12'8" | ~ 8'0" |
| Closet | 4'6" x 2'0" | ~ 8'0" |
| Bedroom | 11'4" x 9'2" | ~ 8'0" |
| Closet | 4'4" x 2'0" | ~ 8'0" |
| Living bonus room | 12'0" x 17'6" | ~ 9'0" |
| Linen | 3'10" x 1'0" | ~ 8'0" |
General specifications
| Total living area | 1588 sq.ft. |
| 1st level | 778 sq.ft. |
| 2nd level | 810 sq.ft. |
| Width | 38'0" |
| Depth | 35'0" |
| Ridge height from top of foundation | 30'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Attractive Cottage of Victorian Spirit
This attractive cottage, designed for narrow lots, will surely delight many future homeowners.

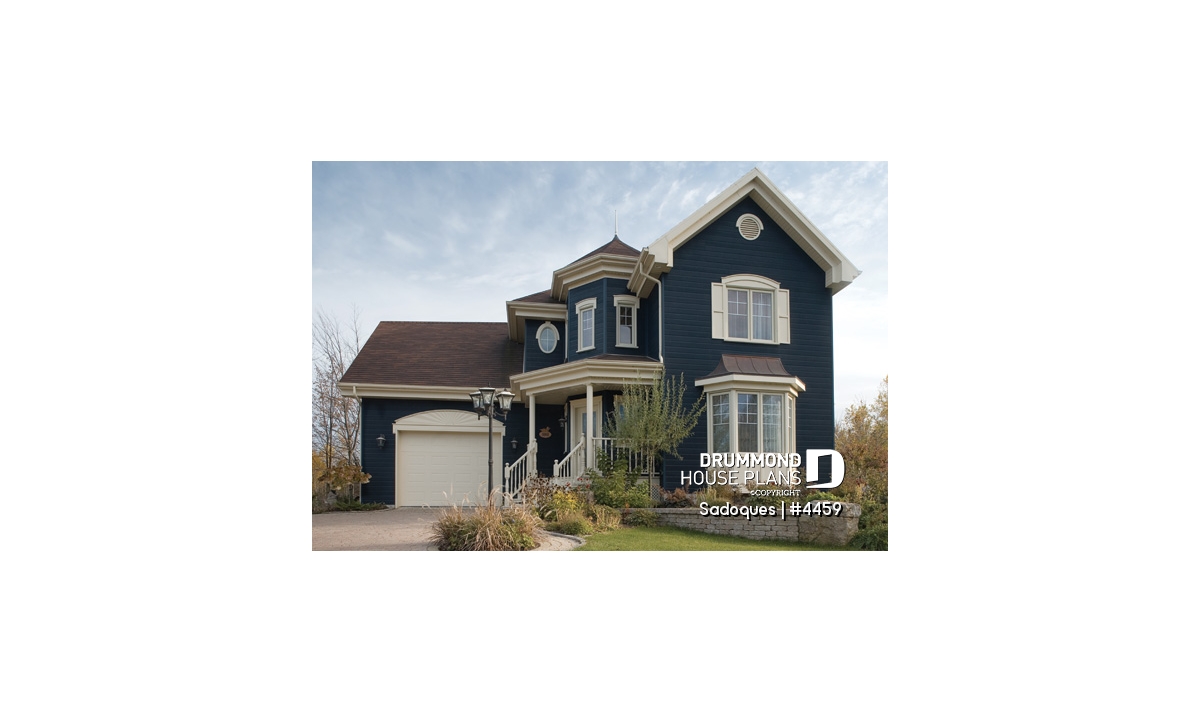

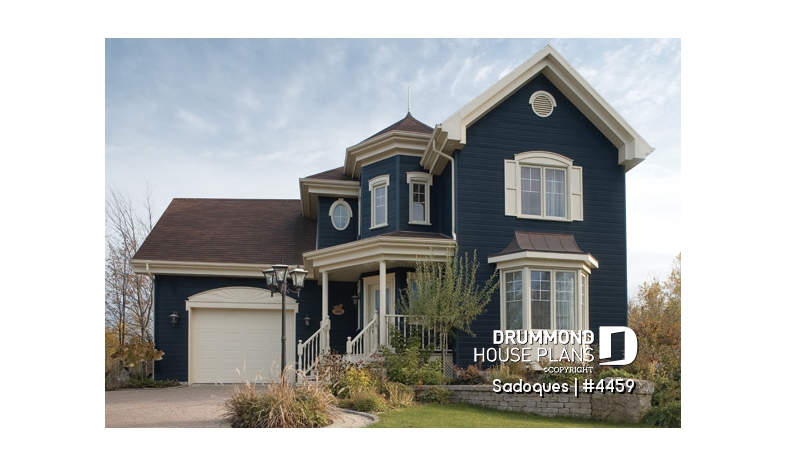

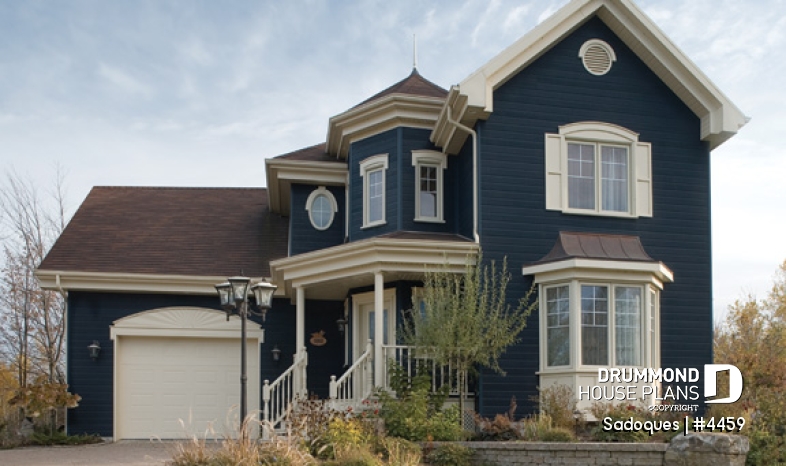

With its particular charm, this cottage offers, at once a turret and a balcony which are in perfect harmony, generous fenestration and just the right amount of mouldings, not to mention a well-integrated garage with bonus space above.
Inside, a large entry hall opens up to beautiful open spaces, with a coat closet within easy reach of the two main entrances. A very comfortable family room of good dimension and the kitchen with lunch counter and dining room are most functional. Worthy of mention is an exterior covered area, covered by the volume of the second level, where snacks can be taken, sheltered from the elements and the hot sun.
On the second level, good sized bedrooms with good storage and an original bathroom located in the turret area, thus maximizing floor space, as well as the bonus area which you can customize to your needs.
Distinctive elements
Abundant fenestration, covered front balcony.
Plan feature(s)
Living bonus space, Breakfast nook, Gound floor laundry room, Entrance hall, Walk-in master bed., Separate bath and shower, Deck, Sloped ceiling
