House plan Rosehill 2 (2439)
Split-level house plan with 3 bedrooms, good size family room with fireplace, unfinished daylight basement

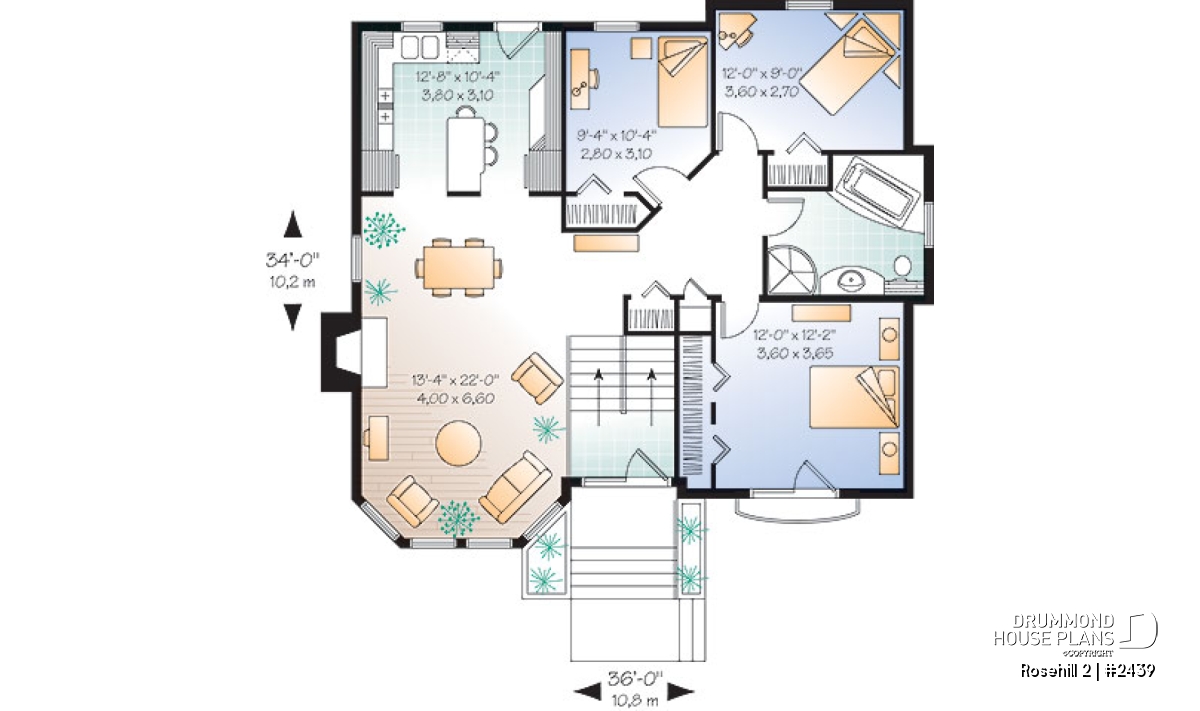

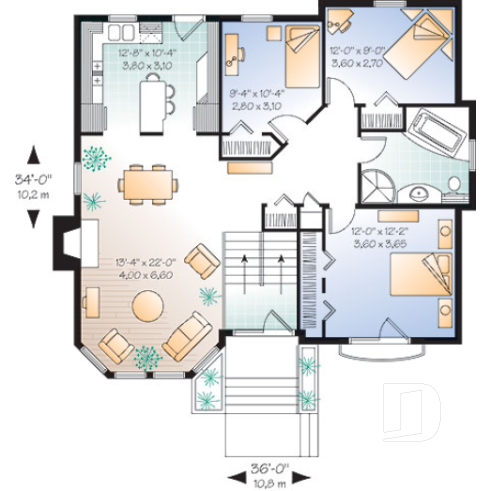

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'0" x 9'0" | ~ 8'0" |
| Kitchen | 12'8" x 10'4" | ~ 8'0" |
| Dining room | 13'4" x 22'0" | ~ 8'0" |
| Bedroom | 12'0" x 12'2" | ~ 8'0" |
| Bedroom | 12'0" x 9'0" | ~ 8'0" |
| Bedroom | 9'4" x 10'4" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Garage | 13'10" x 20'0" | ~ 8'0" |
| Closet | 3'0" x 2'0" | ~ 8'0" |
| Porch | 7'0" x 3'8" | N/A |
| Porch | 8'0" x 5'0" | N/A |
| Utility room | 8'10" x 7'0" | ~ 8'0" |
| Balcony | 8'0" x 1'6" | N/A |
| Foyer | 6'8" x 4'6" | ~ 12'4" |
General specifications
| Total living area | 1174 sq.ft. |
| 1st level | 1174 sq.ft. |
| Width | 36'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 28'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
3 bedroom Victorian inspired house plan
.
Distinctive elements
Master bedroom has access to private balcony. Abundant windowing.
Plan feature(s)
Fireplace, Separate bath and shower, Island
Plan architectural style(s)
. Victorian, . American, . Traditional, . Country
Previously Viewed Plans
Questions and comments
August 27
natasha
does this plan come with a finished basement?
August 27
Customer service
Good day and thank you for your interest in this plan.
Since the foundation included with this plan is a full, unfinished basement we would be happy to provide a free estimate for the customization of the basement according to your requirements within two business days after receipt of this on line form.
Please let me know if I can further assist you
Regards
Deb
August 08
s
are counters, flooring, bathroom facilities, furnace, hot water tanks, etc included or do I have to put this in myself
August 08
Customer service
Good day and thank you for taking the time to write
We do no actual construction but would be happy to provide the plans, materials list and BCIN certification for this plan.
You will however need to consult local contractors and materials suppliers to get an idea of the actual costs to build in your area.
Please feel free to contact me if you have any other questions or comments
Regards
Deb
January 14
miriam zenda
I am in Zimbabwe .I am interested in this one but I wanted to know if you do all the legal procedures before I get it.thank you.
January 14
Customer service
Good day Ms. Zenda and thank you for taking the time to write.
Since we sell only the plans and related documents, there are no legal procedures with which to deal on our end.
We suggest purchase of an electronic file, such as CAD, which can be modified to conform to your regional requirements and for which there are no additional customs or shipping charges because the file is sent to you via Email.
Please let me know if you have any other questions or comments.
Regards
Deborah
