Cabot (3436)
European 5 bedroom with master suite & great room
View the size of the rooms and height of the ceilings

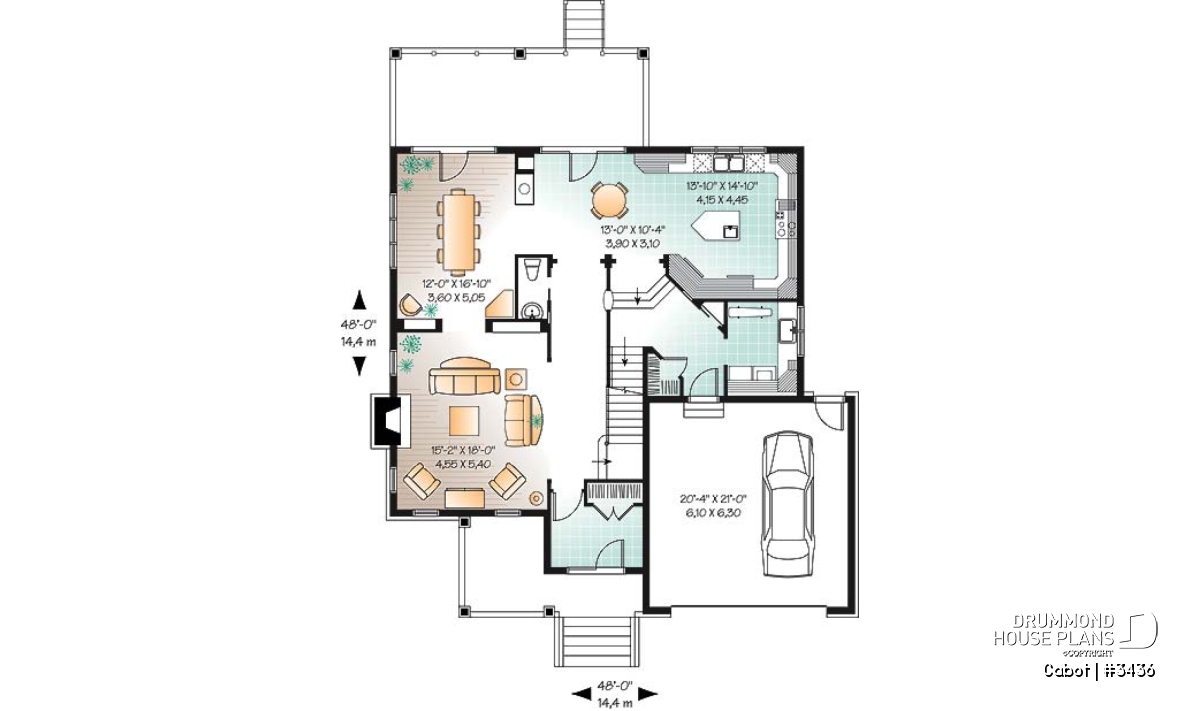

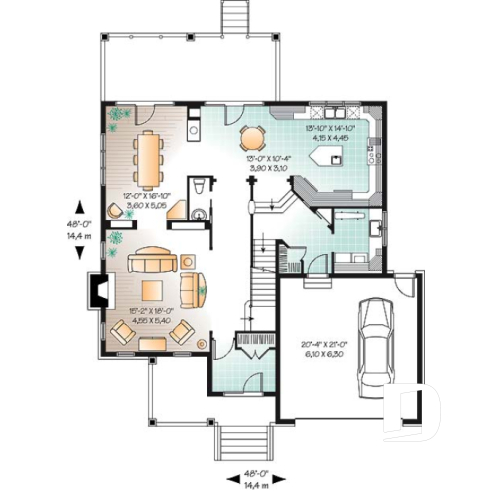

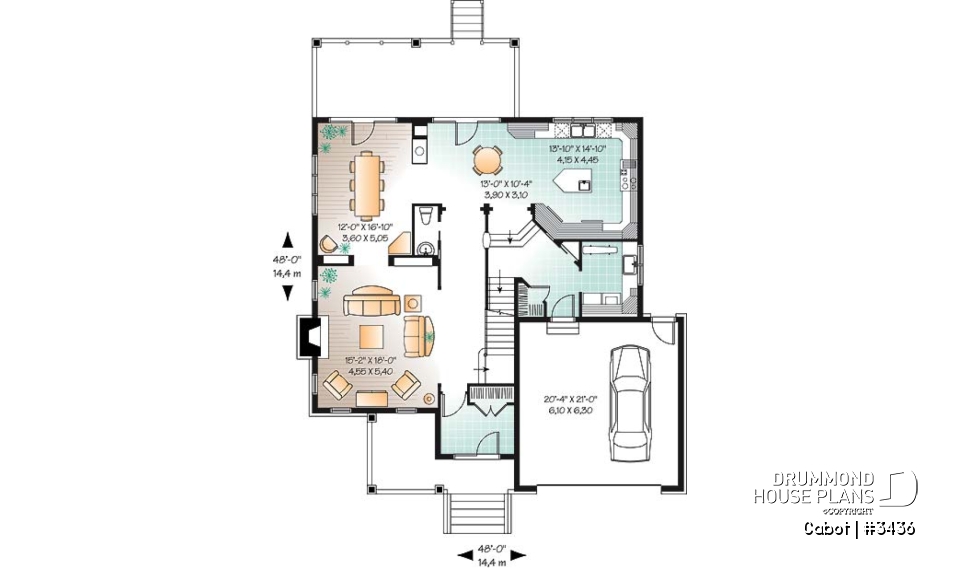

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 3'0" x 6'0" | ~ 9'0" |
| Kitchen | 13'10" x 14'10" | ~ 9'0" |
| Dinette | 13'0" x 10'8" | ~ 9'0" |
| Dining room | 12'0" x 16'10" | ~ 9'0" |
| Living room | 15'4" x 18'0" | ~ 9'0" |
| Foyer | 9'4" x 6'4" | ~ 9'0" |
| Utility room | 7'2" x 9'2" | ~ 11'0" |
| Garage | 20'4" x 21'0" | ~ 12'5" |
| Closet | 3'6" x 4'2" | ~ 11'0" |
| Porch | 18'8" x 10'4" | N/A |
| Porch | 26'4" x 10'0" | N/A |
| Storage | 2'10" x 1'10" | ~ 11'0" |

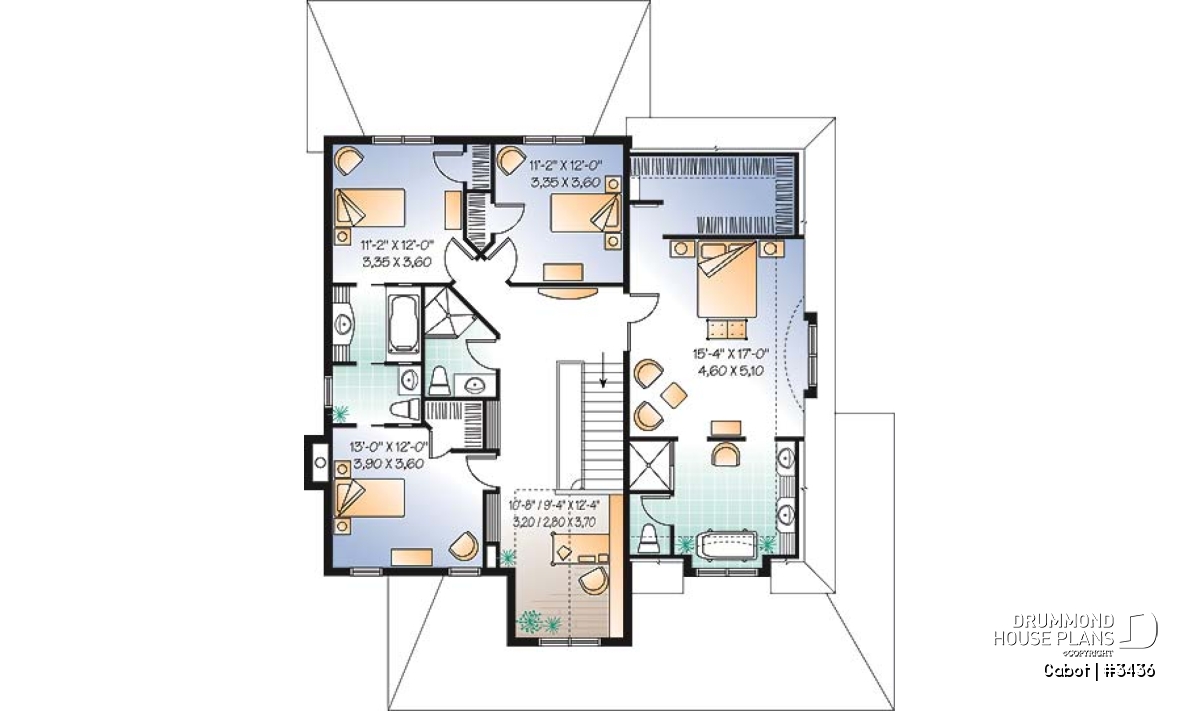

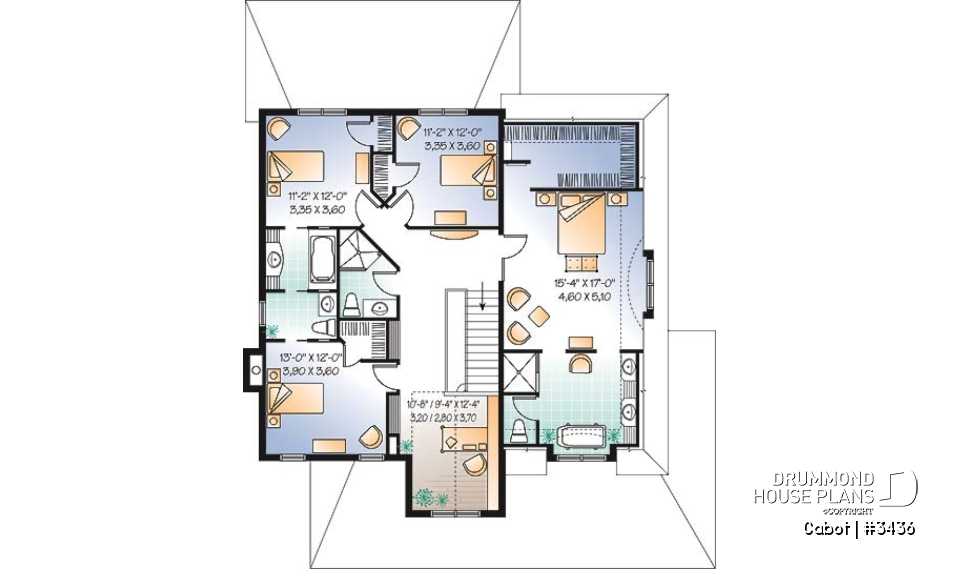

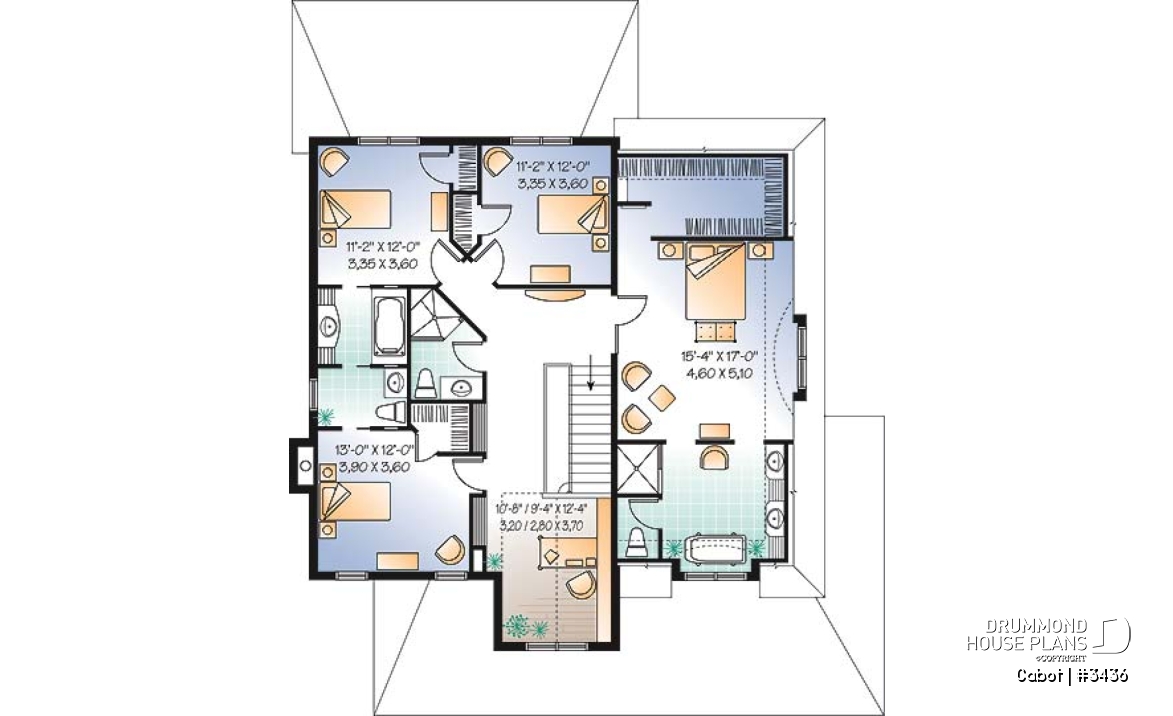

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'8" x 11'8" | ~ 8'0" |
| Full bathroom | 6'0" x 9'4" | ~ 8'0" |
| Home office | 10'8" x 12'4" | ~ 10'6" |
| Master suite | 15'6" x 17'0" | ~ 8'0" |
| Bedroom | 13'0" x 12'0" | ~ 8'0" |
| Bedroom | 11'2" x 12'0" | ~ 8'0" |
| Bedroom | 11'2" x 12'0" | ~ 8'0" |
General specifications
| Total living area | 3037 sq.ft. |
| 1st level | 1468 sq.ft. |
| 2nd level | 1569 sq.ft. |
| Width | 48'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 48'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Classic european large home with superb master suite, home office, and much more!
.
Distinctive elements
Large covered balcony at rear. Comfortable family room and spacious well-lit dining room. Superb kitchen with plenty of storage, central island and independant breakfast area. Enviable laundry room. Large bedrooms on second level, versatile office space and remarquable master suite.
Plan feature(s)
Ceiling over 8', Cathedral ceiling, Jack & Jill bath, Breakfast nook, Island, Gound floor laundry room, Formal dining room, Entrance hall, Fireplace, Deck, Master suite upstairs, Walk-in master bed., Separate bath and shower, Double sinks, Office / Study / Den
