Garage plan The Townside 3 (2981-28)
2-car garage with second floor storage room
View the size of the rooms and height of the ceilings

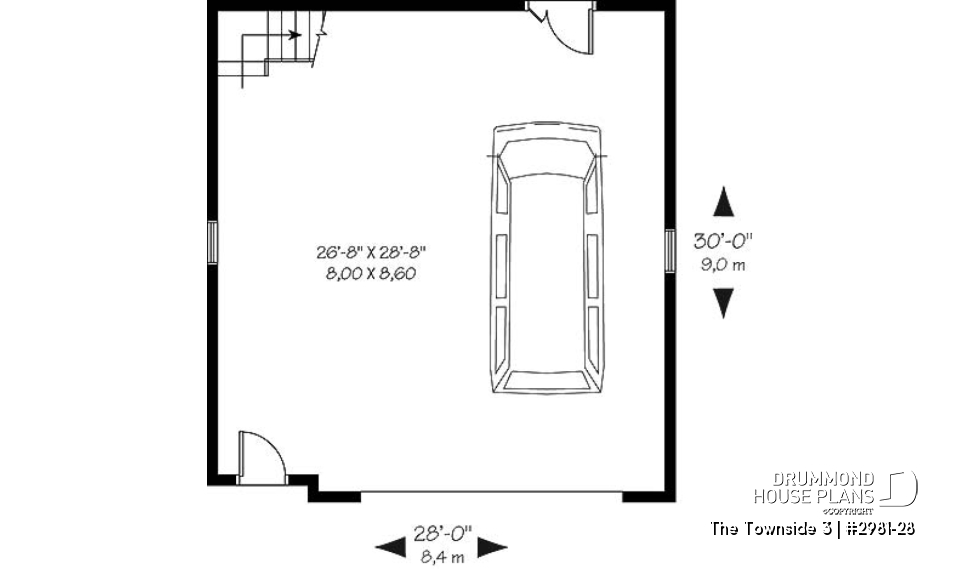

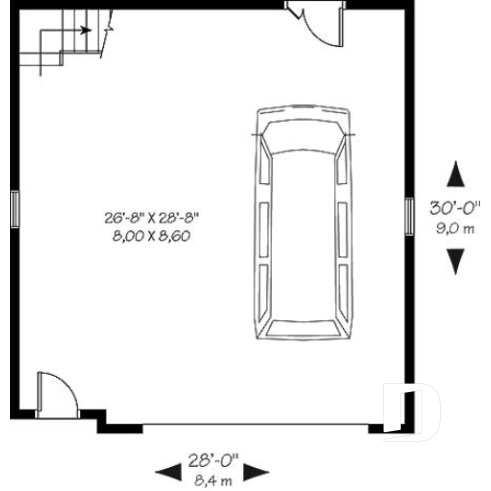

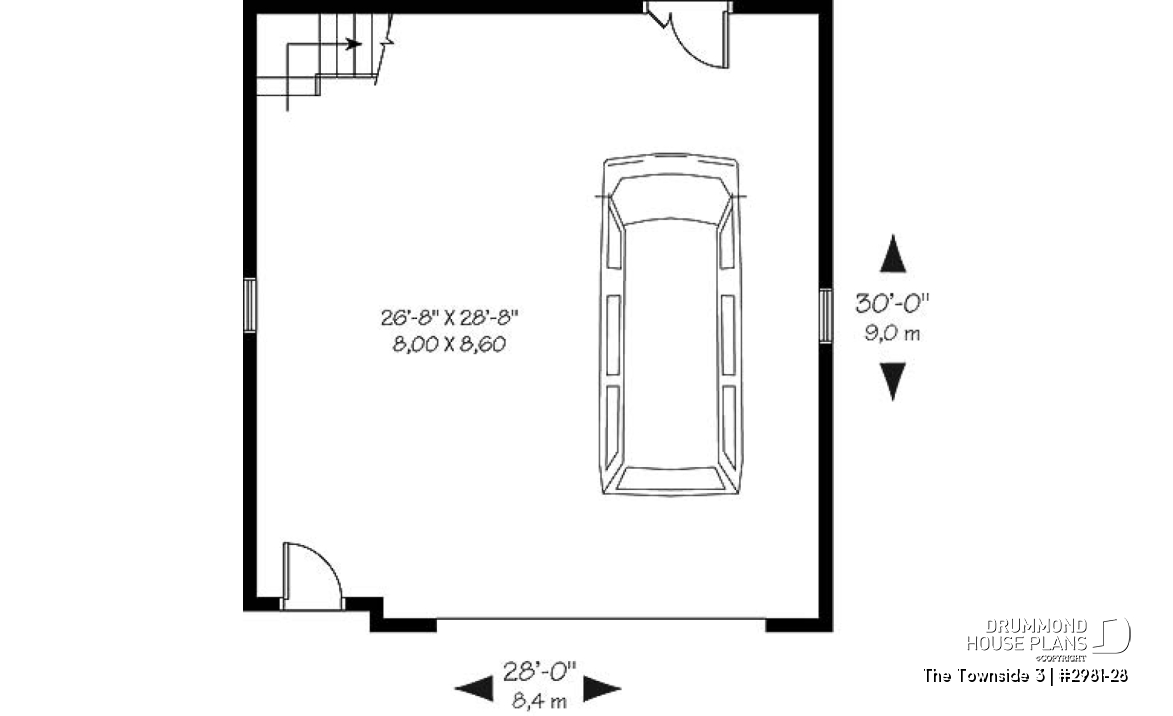

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 26'8" x 28'8" | ~ 8'6" |

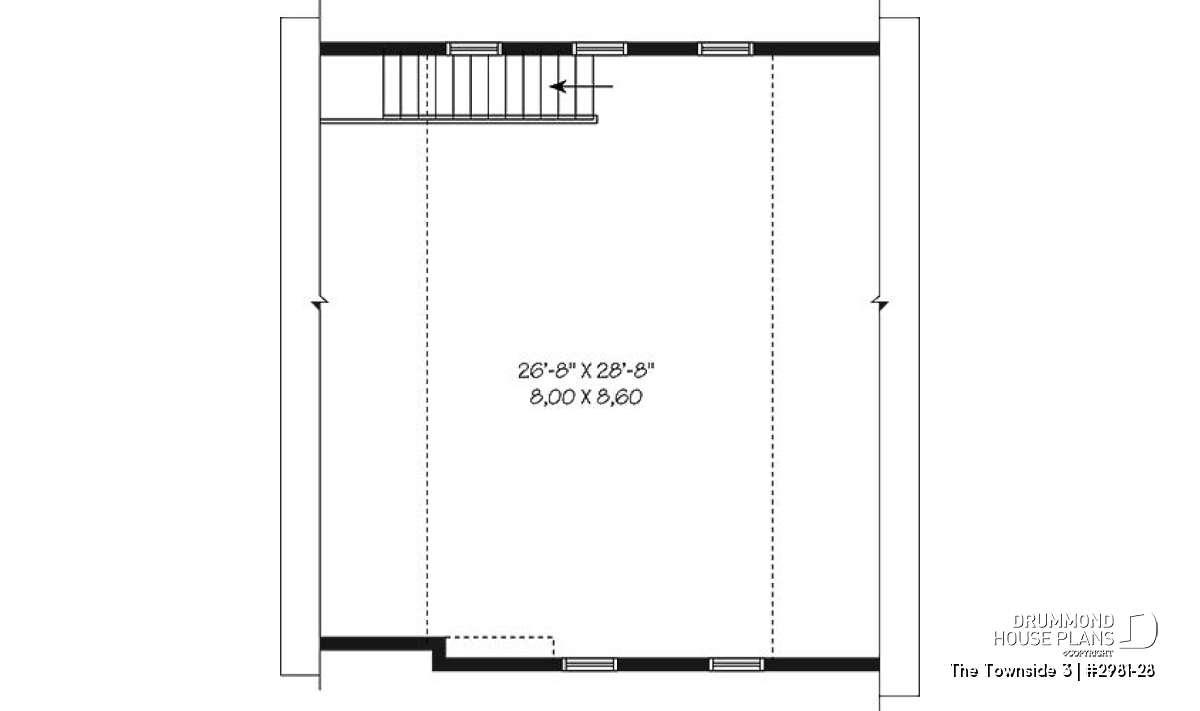

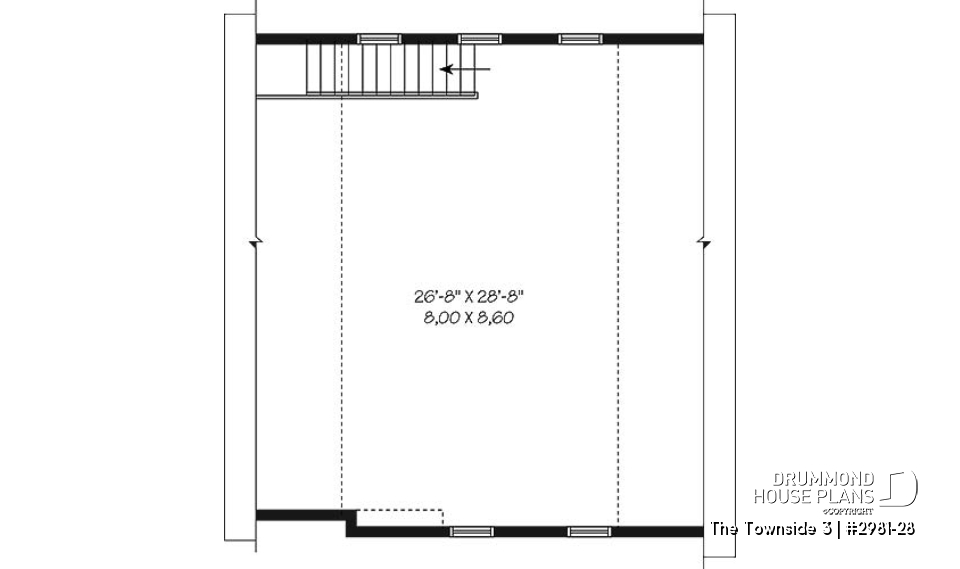

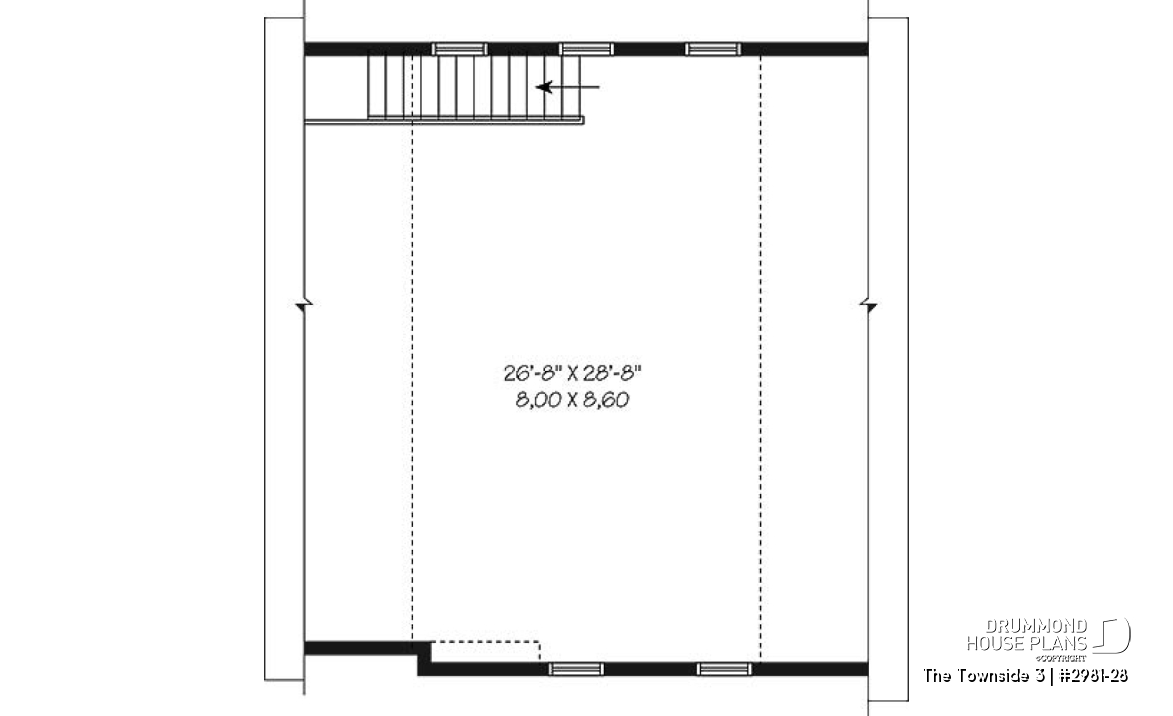

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living bonus room | 26'8" x 28'8" | ~ 8'0" |
General specifications
| Total living area | 1668 sq.ft. |
| 1st level | 834 sq.ft. |
| 2nd level | 834 sq.ft. |
| Width | 28'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 26'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2C |
Rooms specifications
Other useful information on this plan
Large 2-car garage plan with flex room on second floor and lots of natural light!
.
Distinctive elements
Second level storage area of 834 sq.ft.
Plan architectural style(s)
. American, . Country, . Traditional
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
