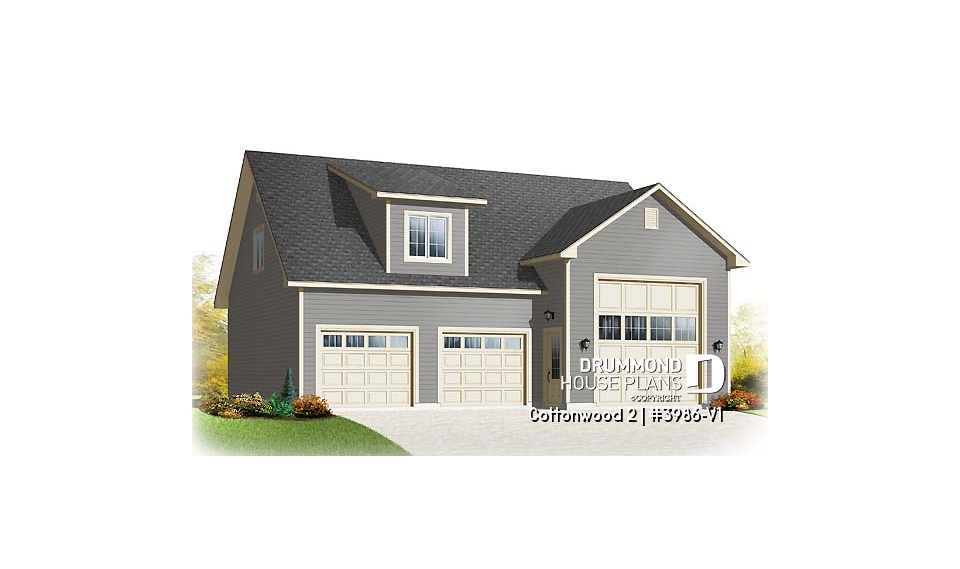

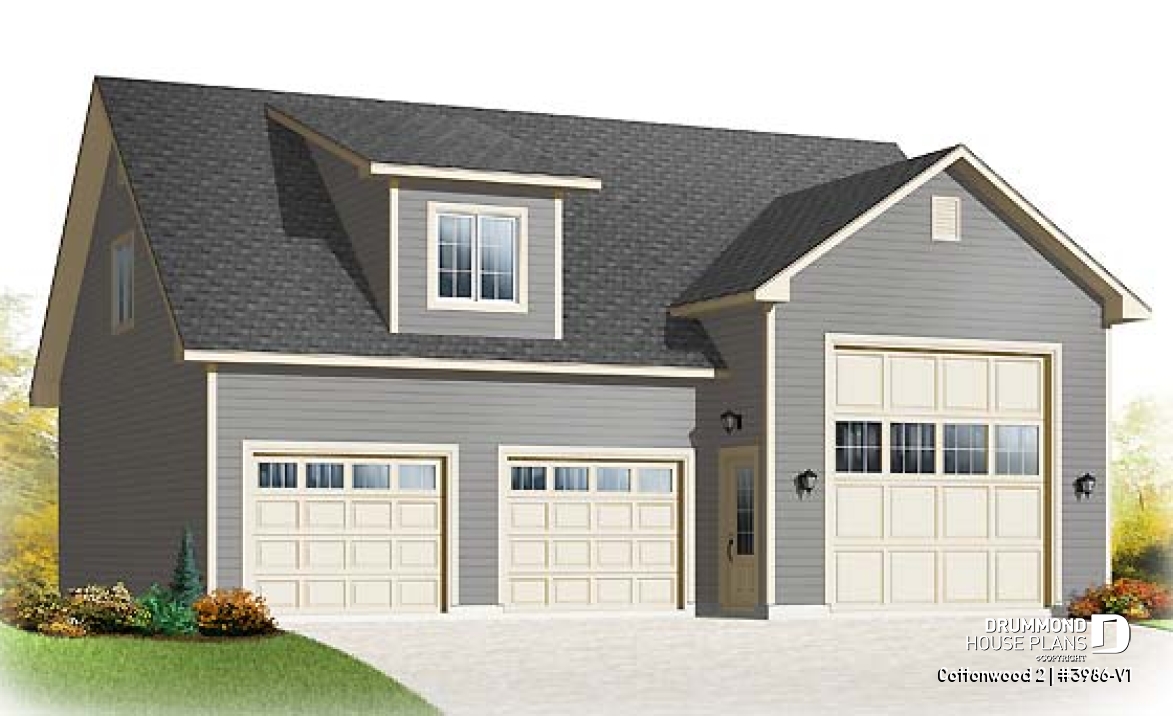

front - BASE MODEL

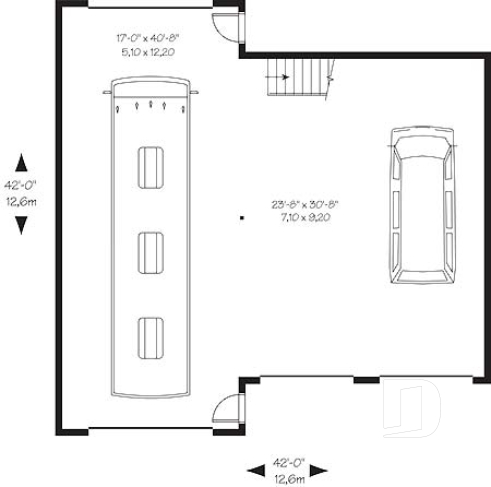

1st level

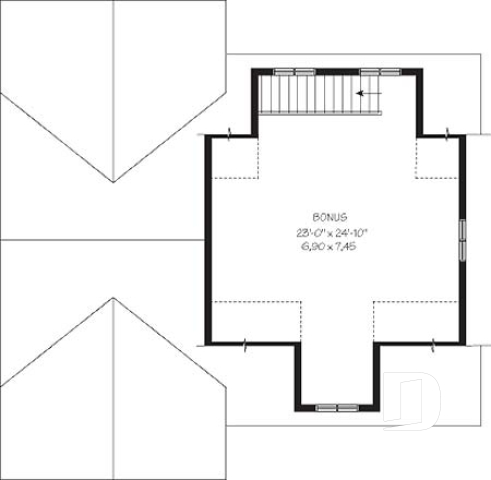

2nd level

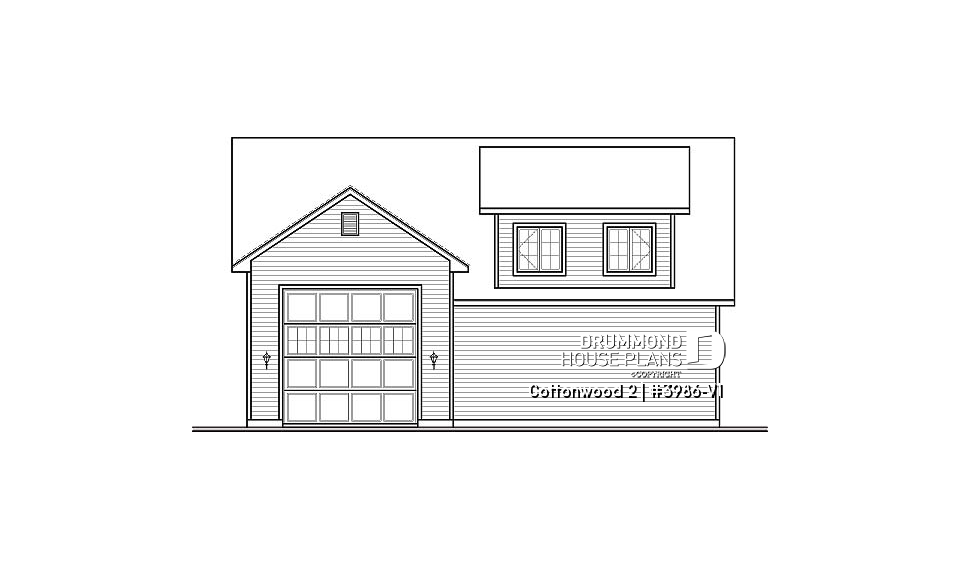

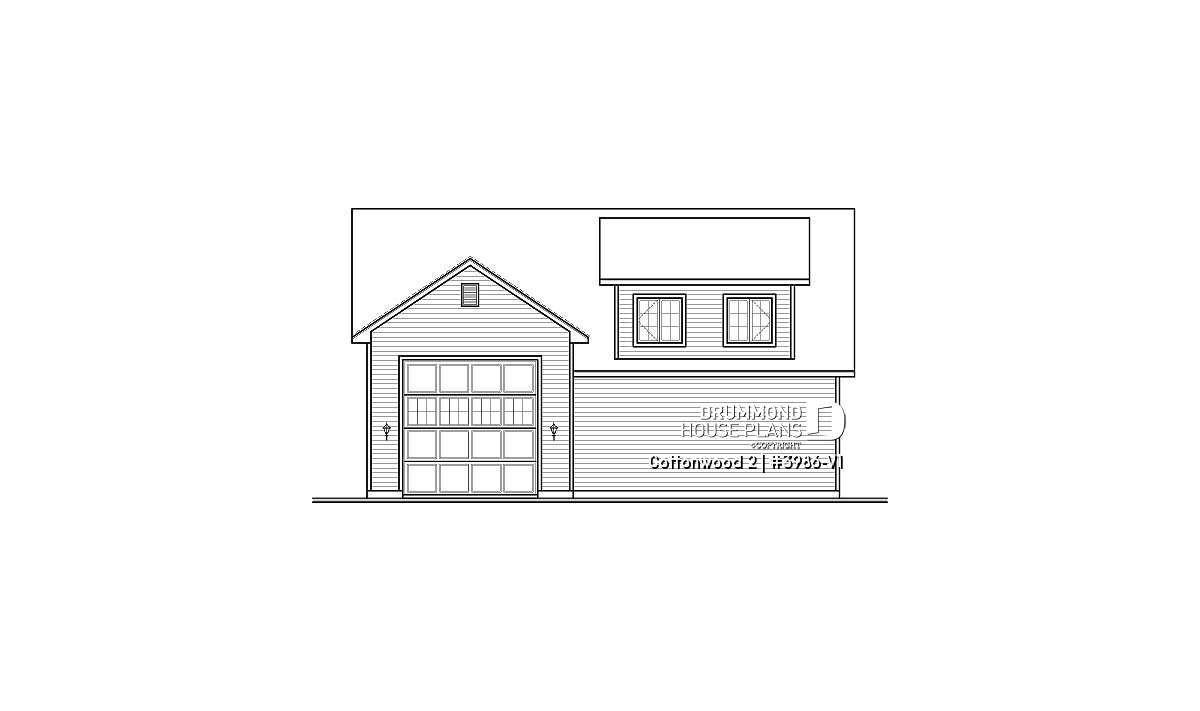

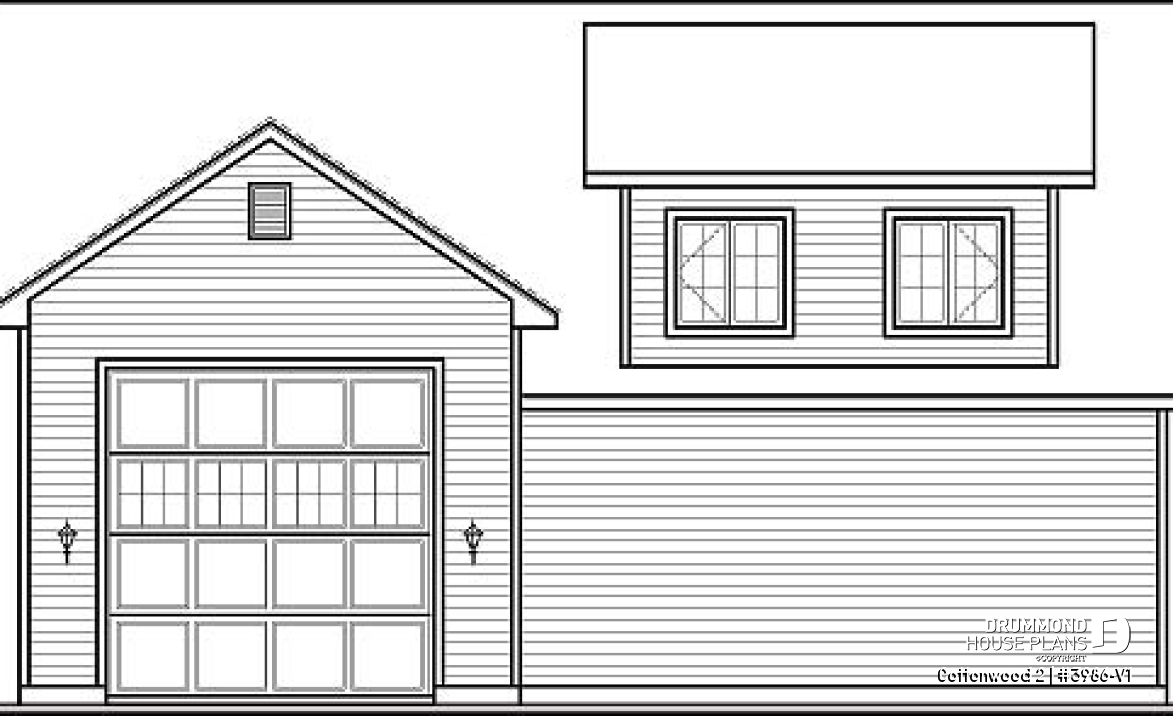

rear elevation
Cottonwood 2 Garage plan 3986-V1
RV garage plan with 2-car garage, or three-car garage plan, with bonus room on second floor
Starting from
820$
| Technical details summary | Plan #3986-V1 | ||
|---|---|---|---|
| Total living area | 2154 sq.ft. | Bedroom | - |
| Full baths | - | Half baths | - |
| Foundation included | Floating Slab | Garage | Three-car garage |
| Width | 42'0" | Depth | 42'0" |

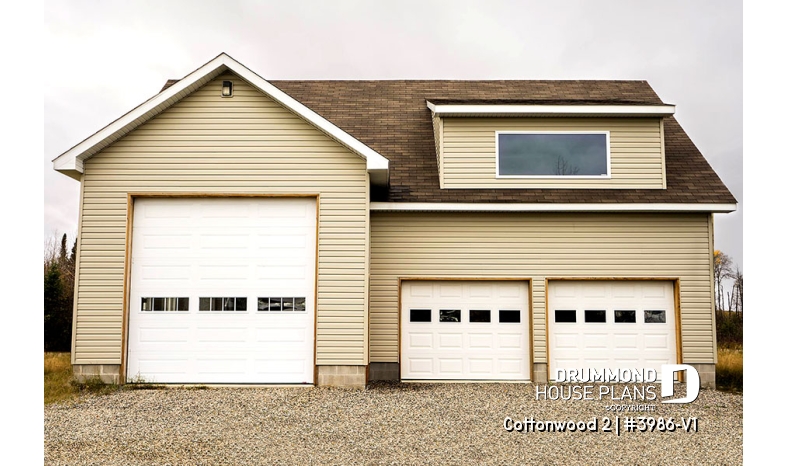

Photos of the plan Cottonwood 2
Additional details
General specifications
Total living area
2154 sq.ft.
1st level
1527 sq.ft.
2nd level
627 sq.ft.
Width
42'0"
Depth
42'0"
Ridge height from top of foundation
25'1"
Exterior wall
2 X 6
Floating Slab
Other available foundations (a fee may apply)
Monolithic Slab
Builder price code
GVR3
Rooms specifications
Bedroom(s)
-
Full baths
-
Half baths
-
Garage type
Three-car garage (1527 sq.ft.)
627 sq.ft.
Covered porch area
-
1st level
Rooms
Sizes
Ceiling
Garage
23'8" x 30'8"
~ 9'2"
Garage
17'0" x 40'8"
~ 13'2"
2nd level
Rooms
Sizes
Ceiling
Living bonus room
23'0" x 24'10"
~ 8'0"
3-car garage plan for cars and RV
Two deep auto bays plus an RV or truck bay will keep your favourite vehicles safe and dry. This RV garage plan features 1527 square feet on the main level and 627 square feet of bonus space above.
An over-sized shed dormer provides light and openness to the upper level which could be developed as a business office or studio.
Distinctive elements
Very roomy garage with space for RV or workshop. Easy to extend if more depth is required for the recreational vehicle portion.
Dimension: 42' x 42'
1st level floor: Triple Garage space which allows storage for a a recreational vehicle.
2nd floor: Flexible space convertible to the owner's needs.
Foundation: floating slab.
Insulated walls.
Ceiling height: 9'2'' for the car area, 13'2'' for the RV area, and 8' for the second floor, with sloping ceiling.
Plan feature(s)
Ceiling over 8', Living bonus space
Plan architectural style(s)
The plan Cottonwood 2 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
