Alloway (3987)

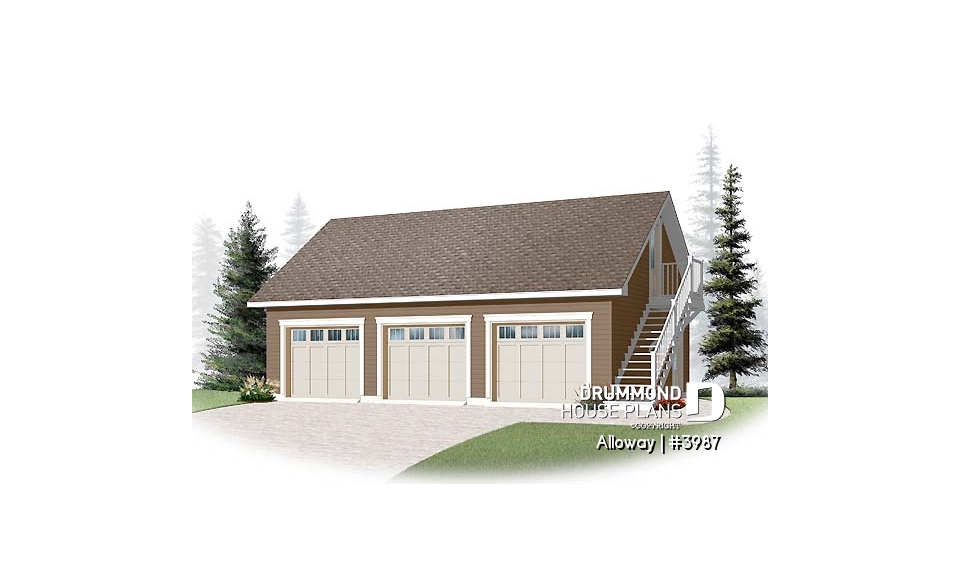

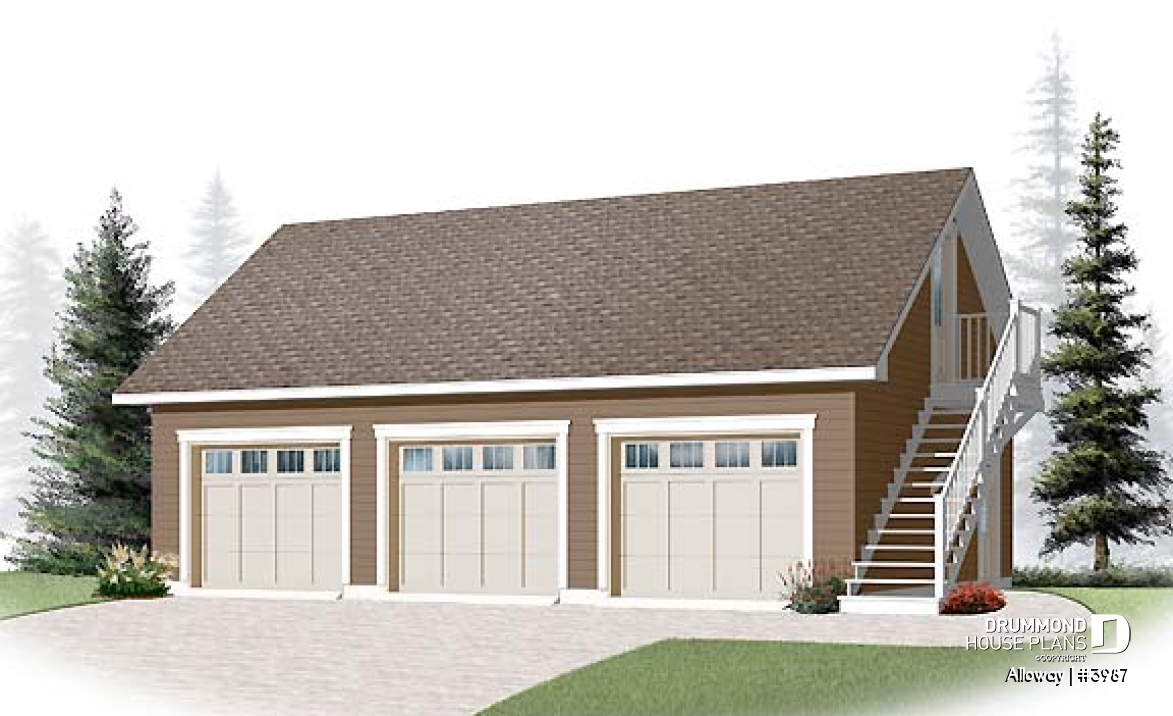

3-car garage plan with bonus room to be finished on second floor
View the size of the rooms and height of the ceilings

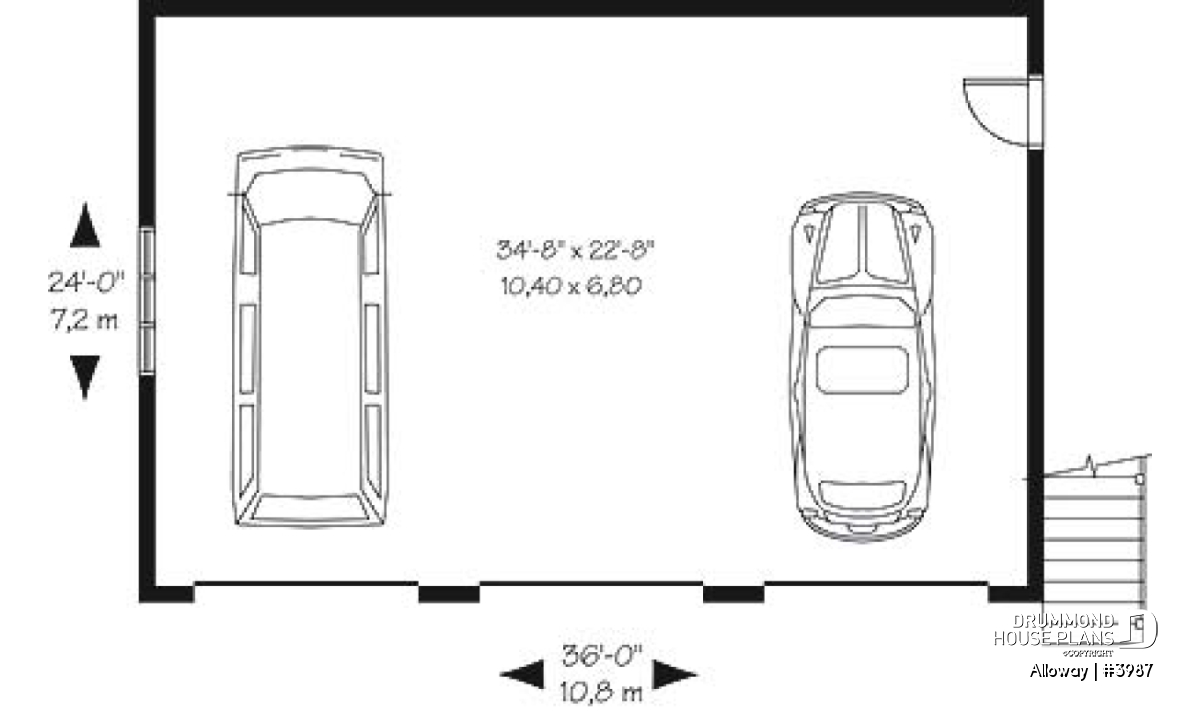

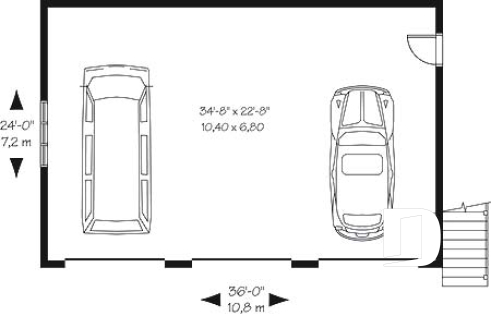

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

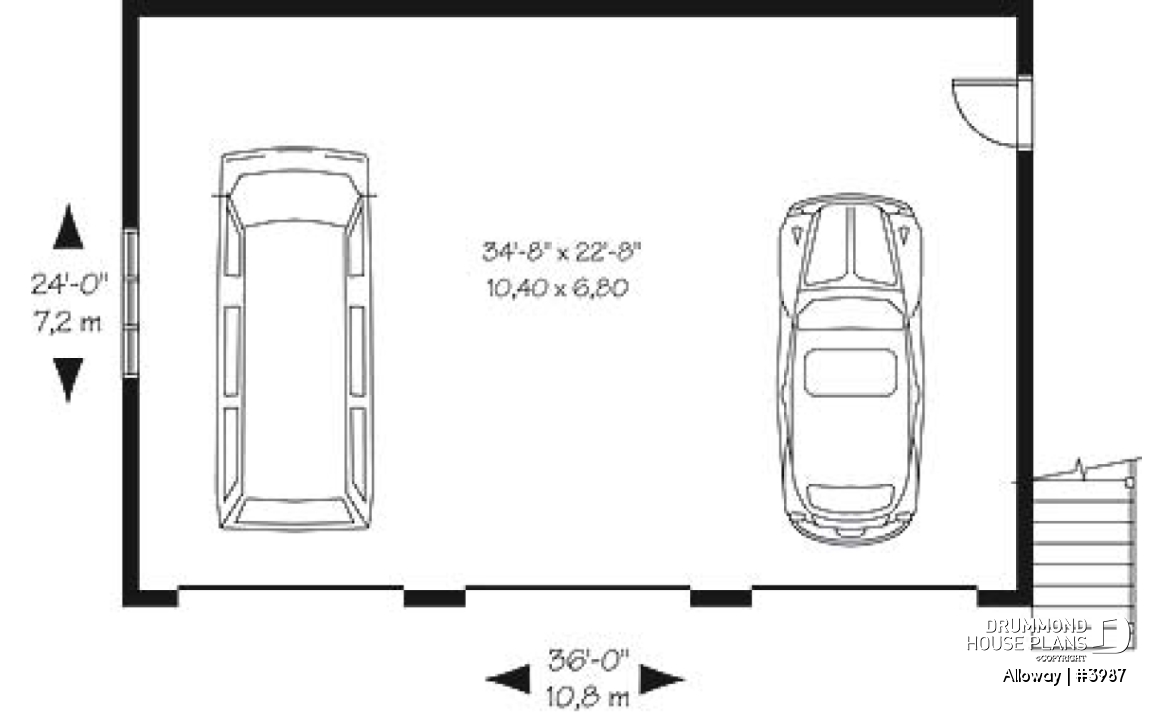

| Garage | 34'8" x 22'8" | ~ 8'8" |

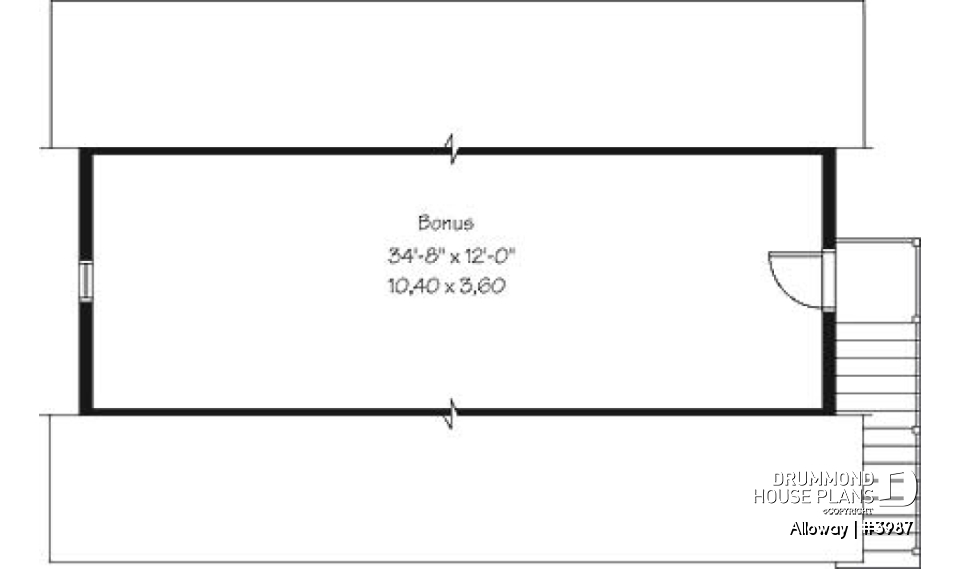

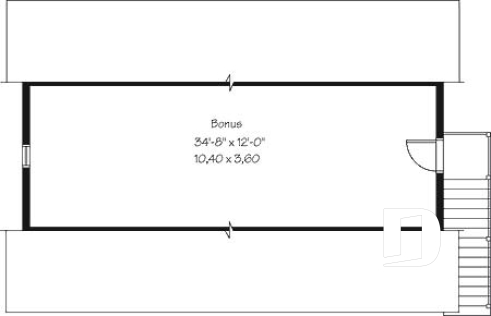

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

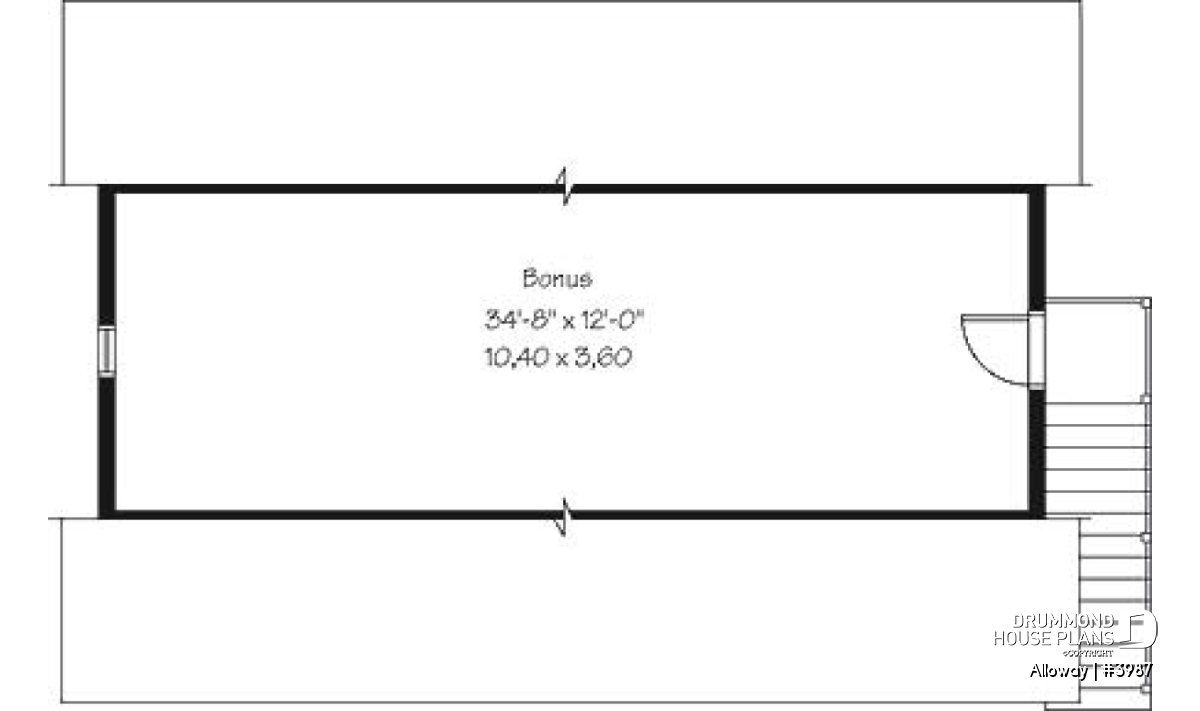

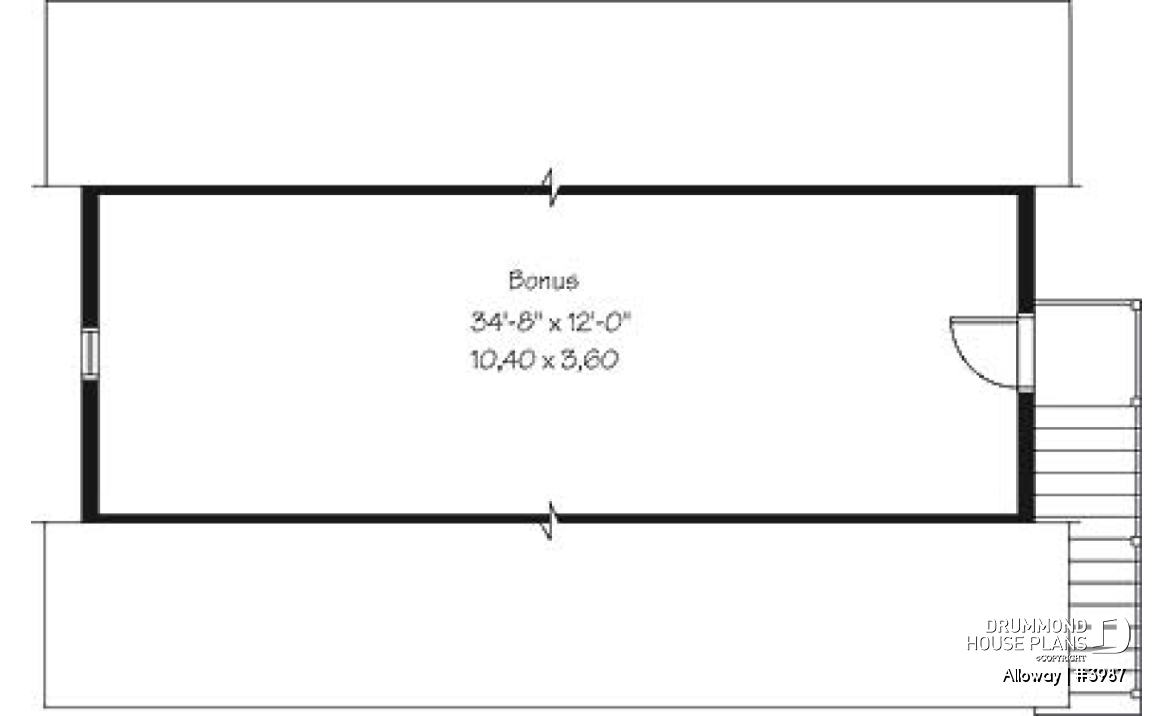

| Bonus storage | 34'8" x 12'0" | ~ 7'0" |
General specifications
| Total living area | 1320 sq.ft. |
| 1st level | 864 sq.ft. |
| 2nd level | 456 sq.ft. |
| Width | 36'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 19'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Monolithic Slab i |
| Other available foundations (a fee may apply) | Floating Slab |
| Builder price code | G3B |
Rooms specifications
Other useful information on this plan
3-car garage and large unfinished bonus room on second floor

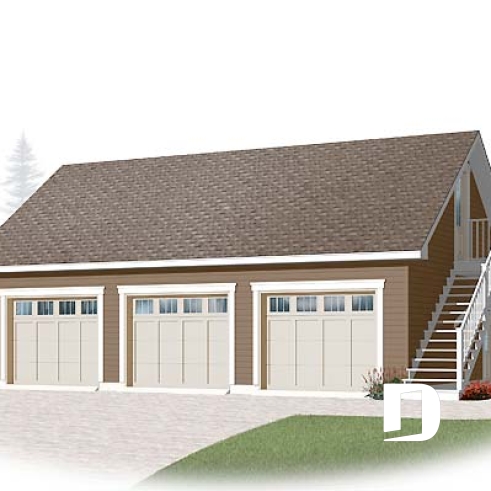

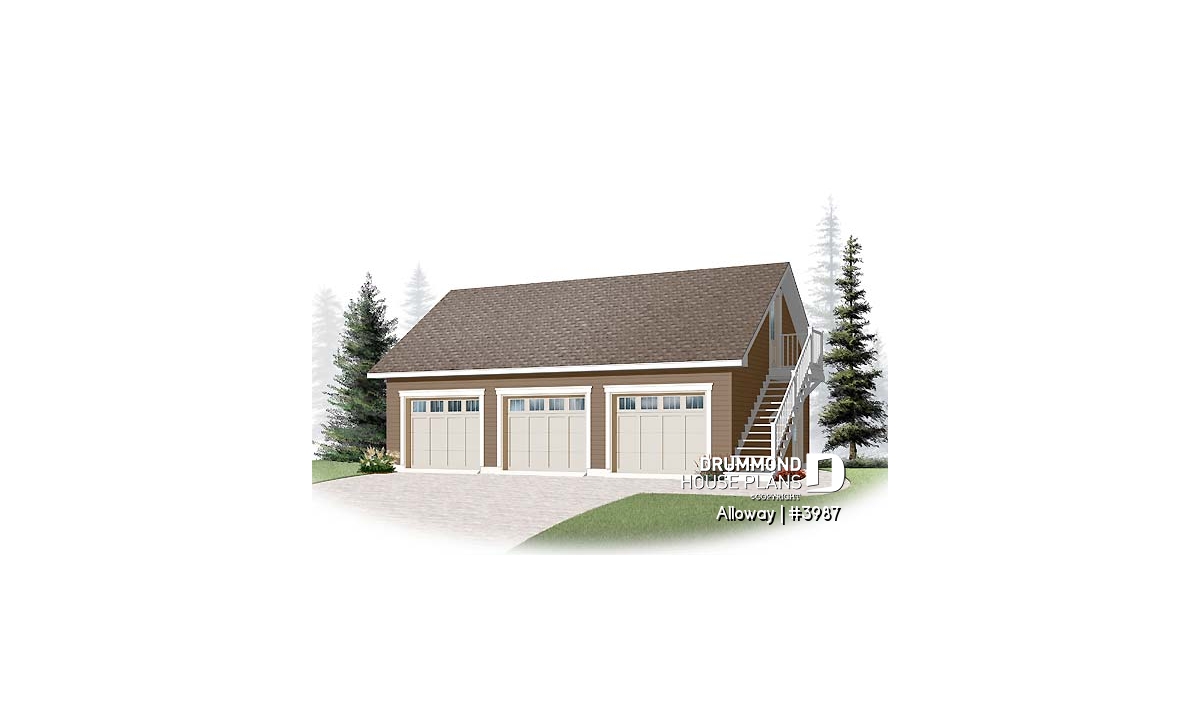

This simple, three-stall garage provides generous space for parking vehicles and bonus storage space above. An exterior staircase ensures all interior space is useable for storage.
Plan feature(s)
Ceiling over 8', Living bonus space
Plan architectural style(s)
. American, . Country, . Rustic, . Traditional, . Farmhouse
