Garage plan Alloway (3987)
3-car garage plan with bonus room to be finished on second floor
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

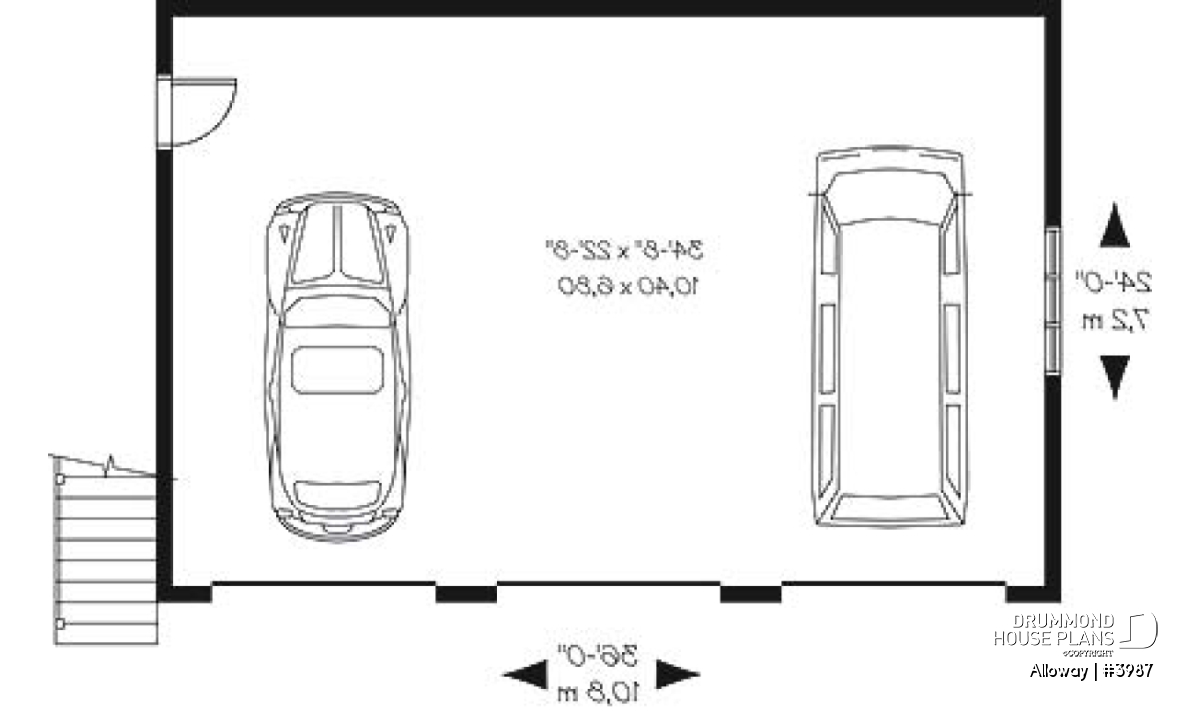

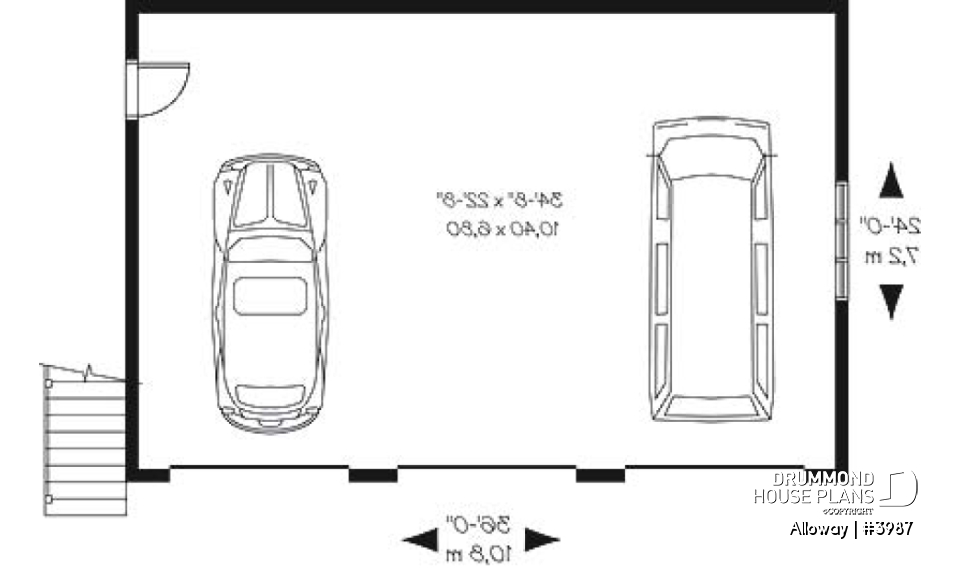

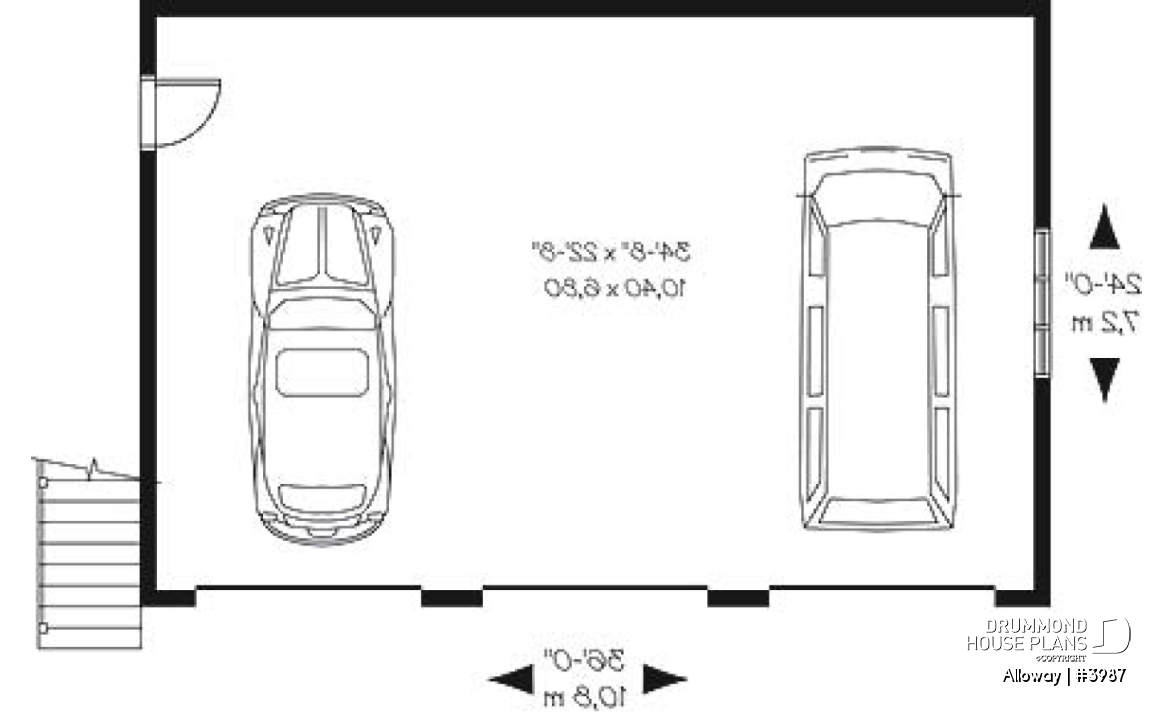

| Garage | 34'8" x 22'8" | ~ 8'8" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

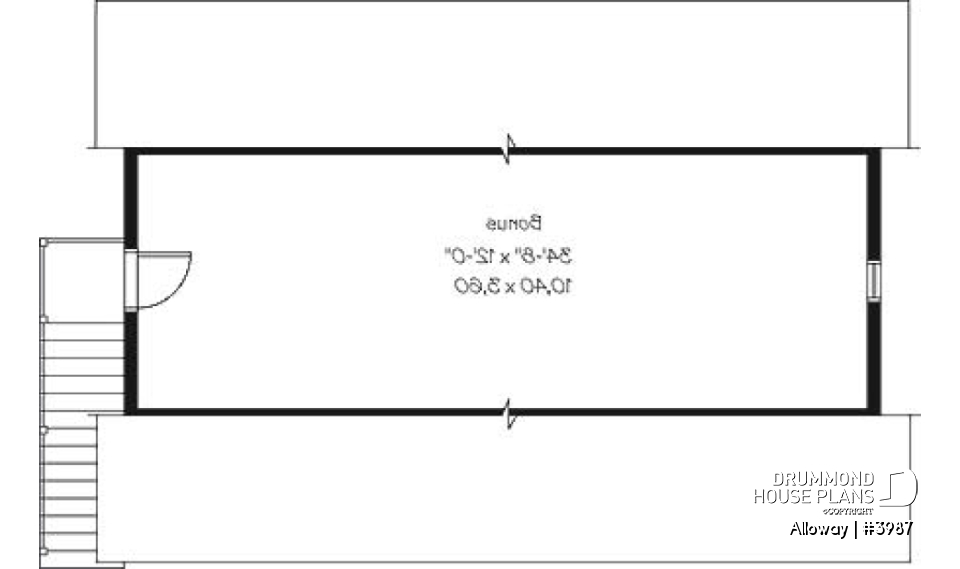

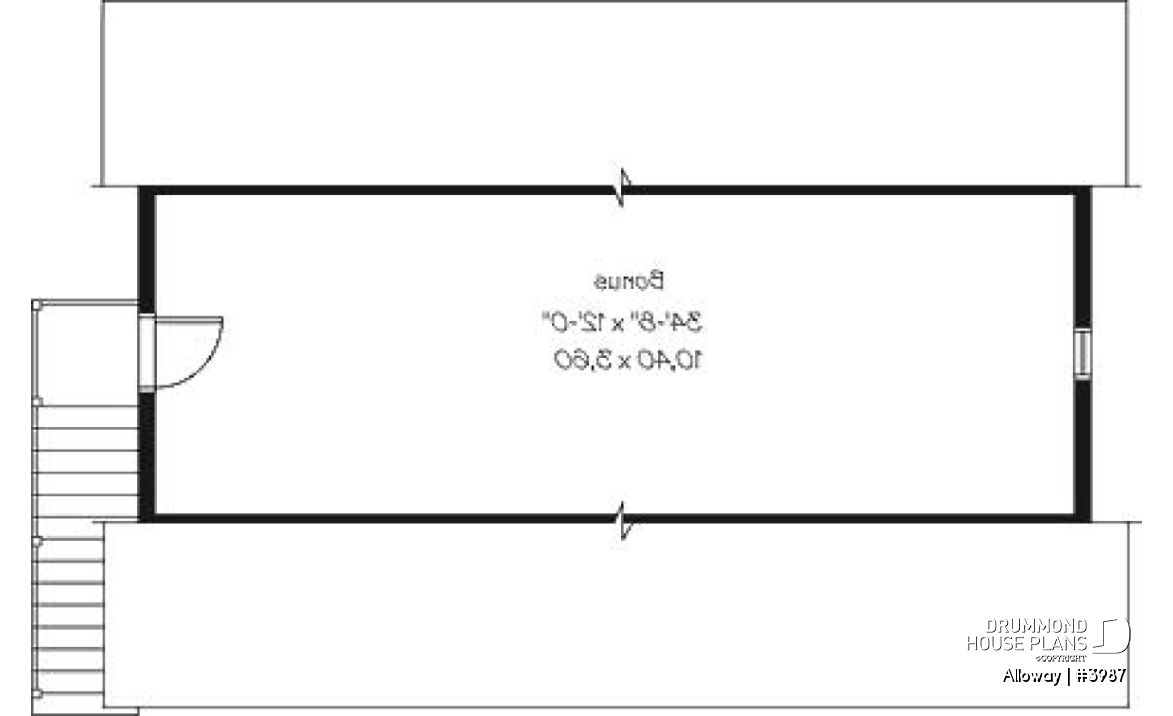

| Bonus storage | 34'8" x 12'0" | ~ 7'0" |
General specifications
| Total living area | 1320 sq.ft. |
| 1st level | 864 sq.ft. |
| 2nd level | 456 sq.ft. |
| Width | 36'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 19'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Monolithic Slab i |
| Other available foundations (a fee may apply) | Floating Slab |
| Builder price code | G3B |
Rooms specifications
Other useful information on this plan
3-car garage and large unfinished bonus room on second floor
This simple, three-stall garage provides generous space for parking vehicles and bonus storage space above. An exterior staircase ensures all interior space is useable for storage.
Distinctive elements
3-car garage with bonus room on second floor.
864 sq.ft. on the ground floor.
456 sq.ft. upstairs.
Size of 36' x 24'.
Foundation: monolithic slab.
Insulated walls.
A service door and a side window.
Outdoor service stairs.
