Garage plan Glide-away (3980)
Large 3-car garage with bonus room on second floor
View the size of the rooms and height of the ceilings

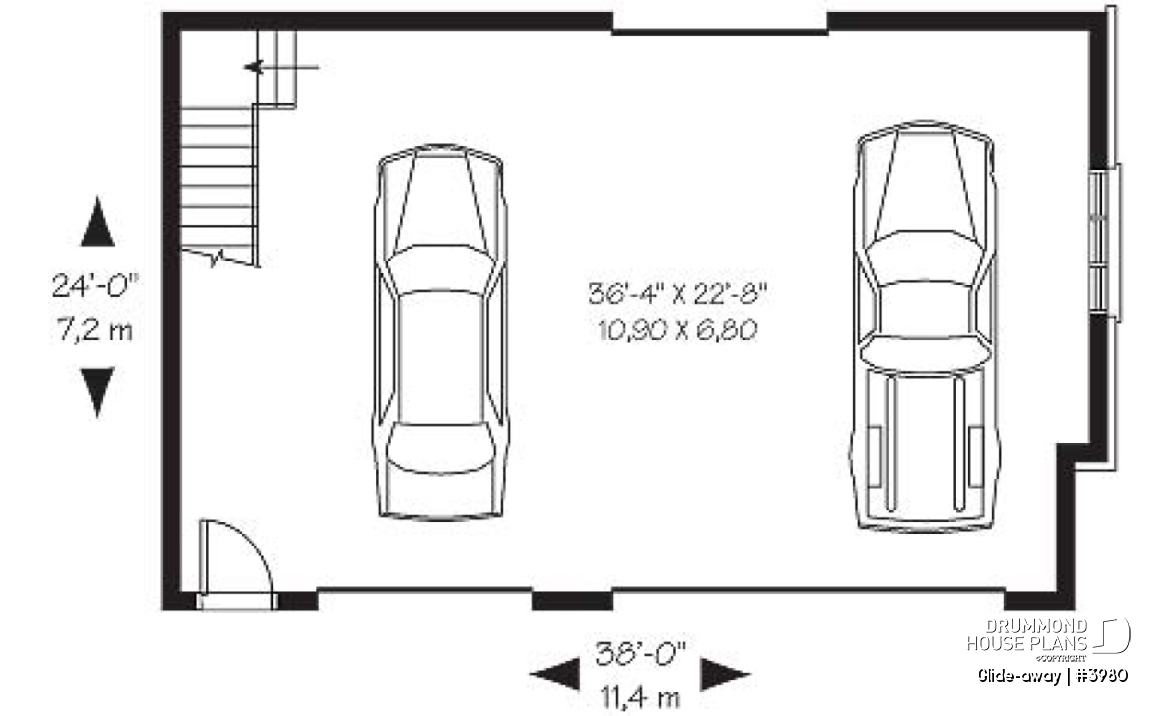

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 22'8" x 36'4" | ~ 8'9" |

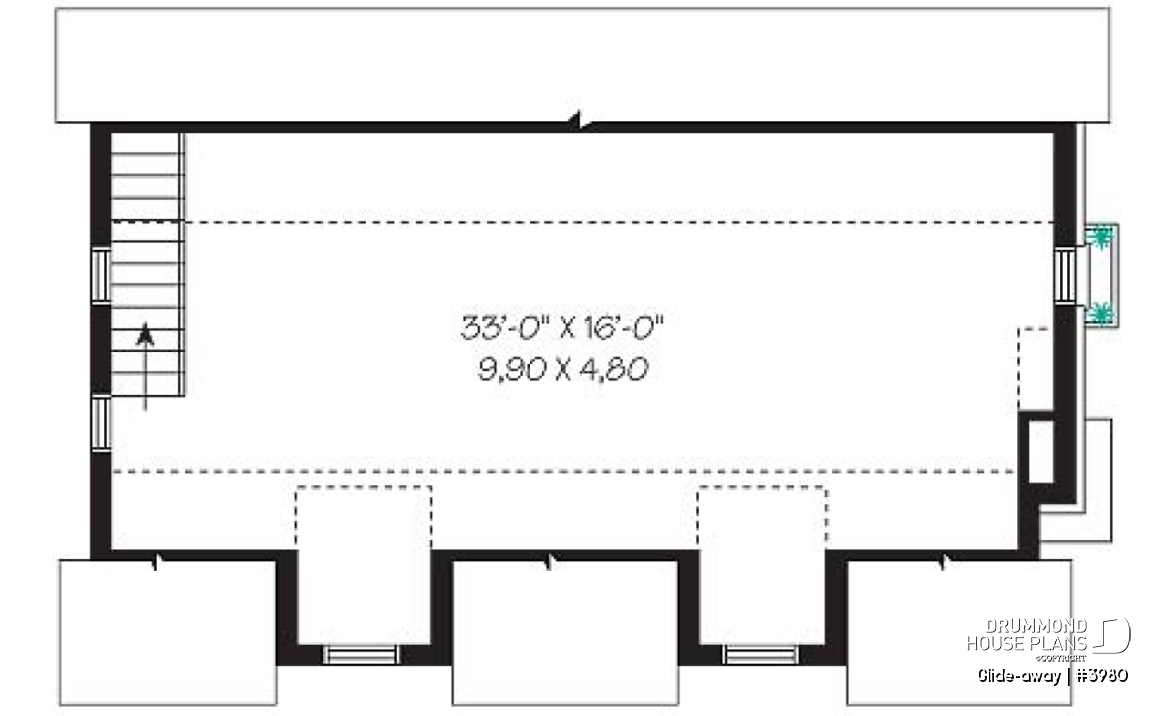

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 16'0" x 33'0" | ~ 8'0" |
General specifications
| Total living area | 1576 sq.ft. |
| 1st level | 903 sq.ft. |
| 2nd level | 673 sq.ft. |
| Width | 38'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 25'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G3C |
Rooms specifications
Other useful information on this plan
Large 3-car garage plan with bonus room in second floor
.
Distinctive elements

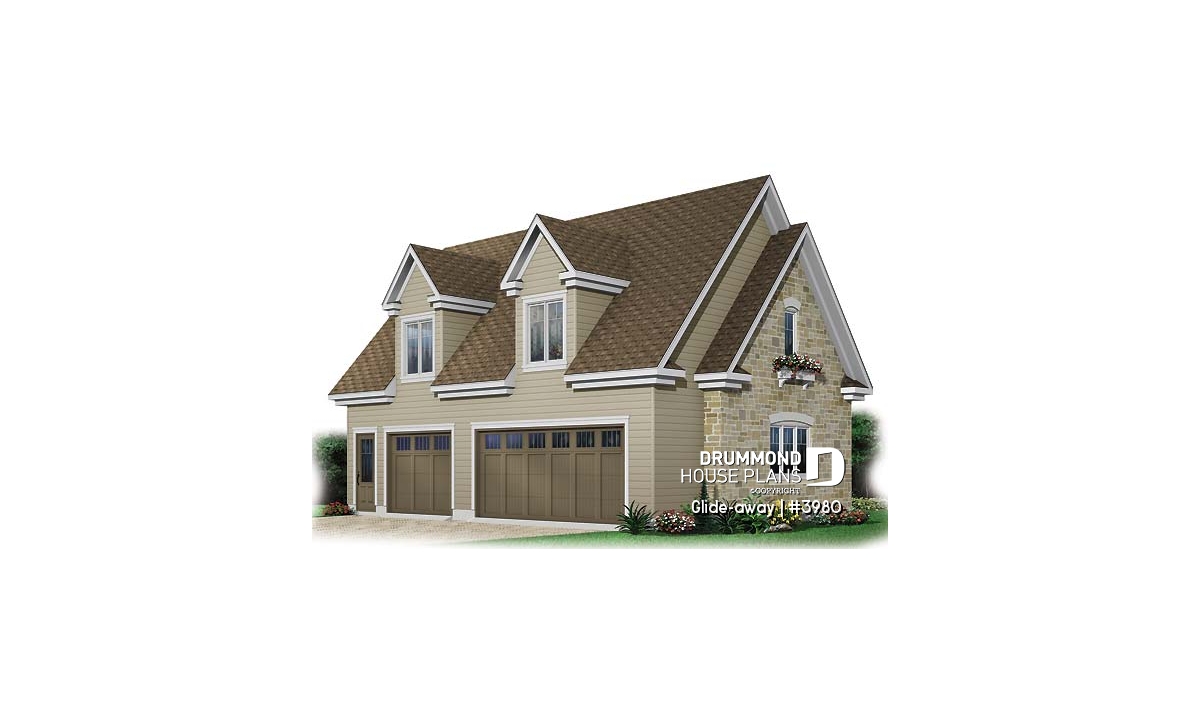

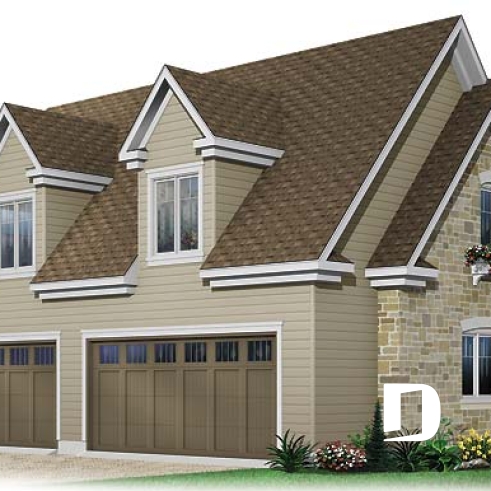

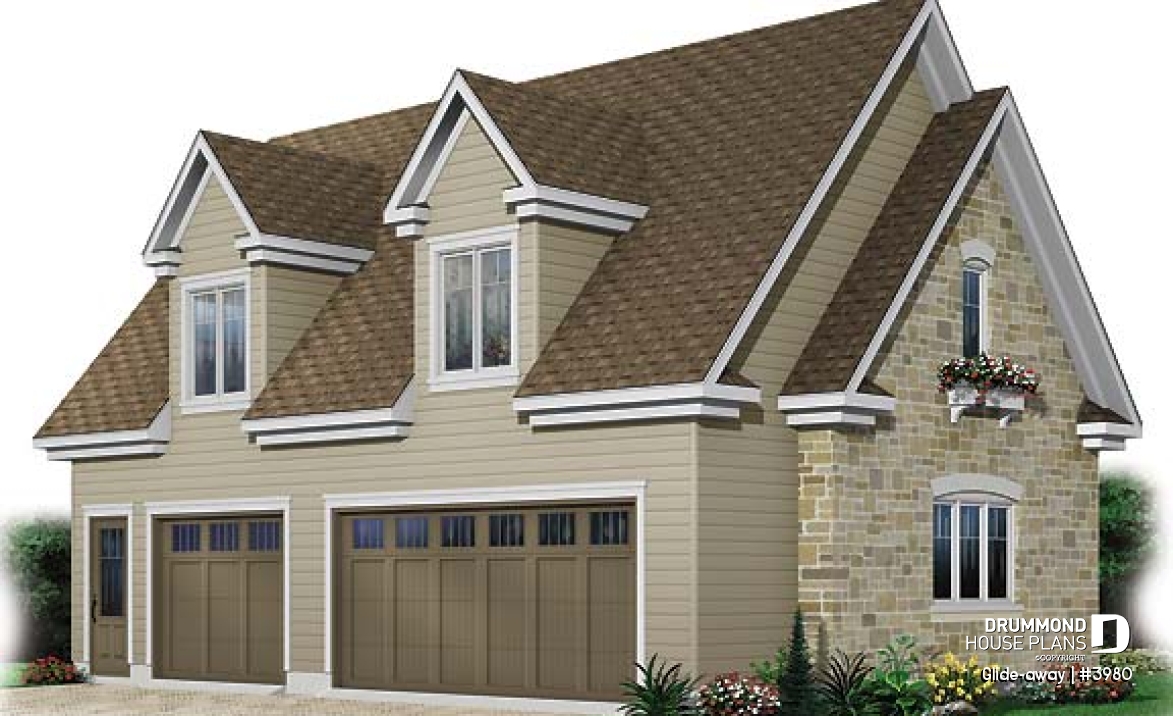

Beautiful country style garage plan.
38' x 24' triple garage plan, two-storey.
Total of 1576 sq.ft, 903 sq.ft. on main floor and 673 sq.ft. on second floor for storage.
8'9'' ceiling height.
Insulated walls and on floating slab.

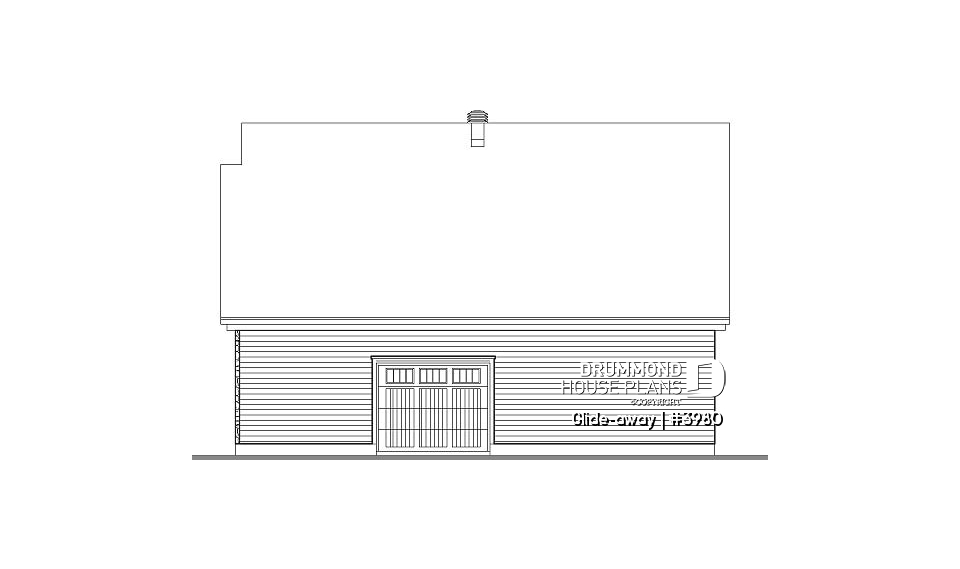

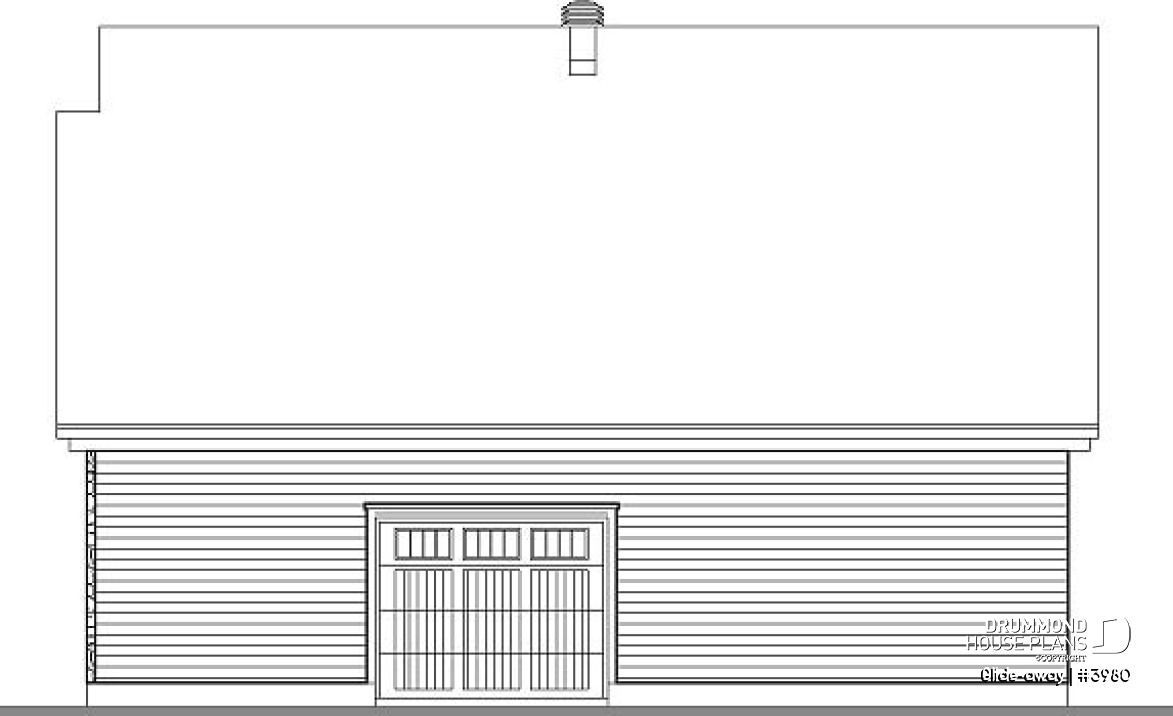

Front and rear garage doors.
Front door and lateral window.
Plan feature(s)
Oversized garage, Sloped ceiling
Plan architectural style(s)
. American, . European, . Craftsman / Northwest, . Country, Classic
Similar plans
Previously Viewed Plans
Questions and comments
March 31
Mr. Tatta
I am interested in this plan for my garage. I have a couple questions. What is the wall height for the first floor? If it's 8ft, can it be increased to 10' or 12'? What's the pitch of the roof? Is there a complimentary house plan that matches this garage?
Thanks
March 31
Customer service
Good day Mr. Tatta and thank you for taking the time to write.
The ceiling height of the first floor is 8'9" but we would be happy to send you a free estimate to change it to 10' or 12' (according to your requirements) within two business days after receipt of this on line form.
The roof pitch is 14/12
You may want to check with your municipality before choosing a house plan with regards to the size of the house required and what is allowed on your lot. There are two models which stand out as complementing the design of this garage
2808
2896
Since they already have attached garages, you might want to modify the house plans according to your needs and you can request the changes using the on line form provided in the above link.
Please let me know if I can further assist you.
Regards
Deb
July 15
Ian Mockett
i do like this plan, would like to know if it can be increased to 28 x 42, have 3 seperate garage doors, and will your plans show the centre supports for the joices? will your plans come with truss designs? and plans for footings and foundation walls?
July 18
Customer service
Dear Mr Mockett,
Thank you for your interest in Drummond House Plans.
Yes, this garage can be enlarged to the dimensions you specified and the facade could have three garage doors (depending on their size).
Our plans show the centre support for the joists (beams). We also provide truss diagrams and complete information for the roof, but you must go to a truss manufacturer to have the trusses produced. We also include a foundation plan with footings and foundation walls.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan Customization Services" section of our website or contact our Modification Department at 1-800-567-5267.
If you have other questions, do not hesitate to contact me.
Sincerely,
France, Customer Service Department
March 25
Perry Meeker
It shows on your plan that the second floor it 641 sq ft but it is only 33x16, thats only 528, less the area for stairs, whats the true area?
March 26
Customer service
Dear Mr Meeker,
Thank you for your interest in Drummond House Plans.
The correct square footage for the second floor is actually 673 sq.ft, including the staircase area and the areas where the gables are.
Please contact us again if you need further information.
Best Regards,
Customer Service Department
