Jackson (3111)
Cape Cod style home plan with side veranda, 3 bedrooms, formal dining room or home office, kitchen island
View the size of the rooms and height of the ceilings

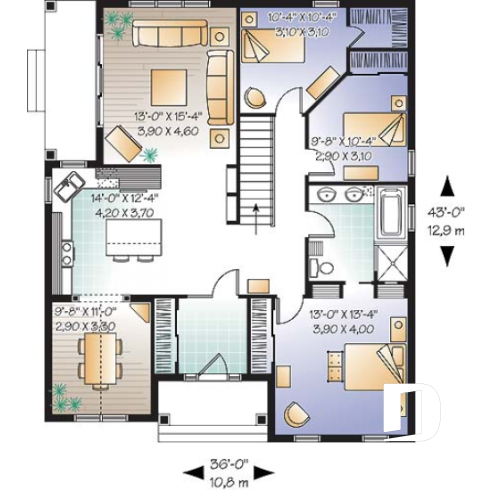

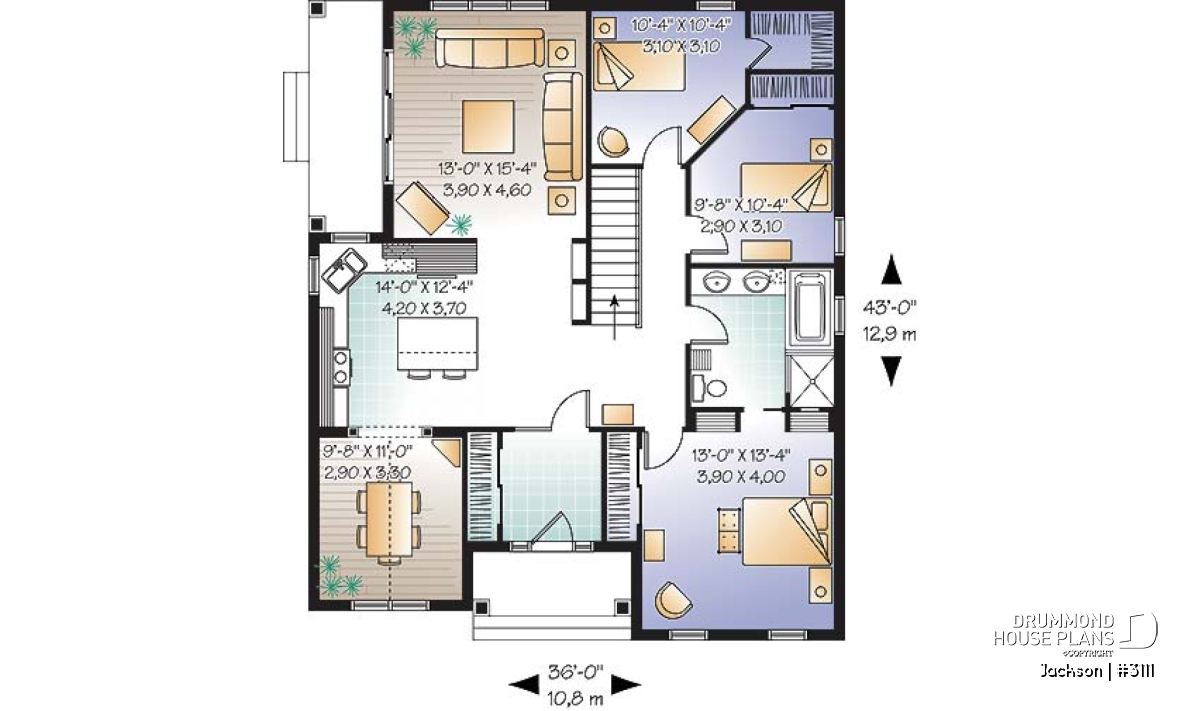

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'0" x 12'4" | ~ 8'0" |
| Dining room | 9'8" x 11'0" | ~ 11'7" |
| Living room | 13'0" x 15'4" | ~ 8'0" |
| Foyer | 6'8" x 7'4" | ~ 8'0" |
| Full bathroom | 9'8" x 9'4" | ~ 8'0" |
| Bedroom | 13'0" x 13'4" | ~ 8'0" |
| Bedroom | 10'4" x 10'4" | ~ 8'0" |
| Bedroom | 9'8" x 10'4" | ~ 8'0" |
| Porch | 5'0" x 15'8" | N/A |
General specifications
| Total living area | 1384 sq.ft. |
| 1st level | 1384 sq.ft. |
| Width | 36'0" |
| Depth | 43'0" |
| Ridge height from top of foundation | 25'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Cape Cod style budget friendly 3 bedroom bungalow house plan
.
Distinctive elements
Charming Cape cod small home with 3 bedrooms.
Front stoop and covered lateral gallery. Original interior design.
Three bedrooms with ample storage.
Very distinct dining room.
Good-sized family room with triple patio door to lateral gallery and window at rear.
Plan feature(s)
Cathedral ceiling, Island, Entrance hall, Deck, Separate bath and shower, Double sink vanity, Formal dining room, Built-ins
Plan architectural style(s)
. Country, . Cape Cod, . American, . Ranch, . Traditional, . Colonial, . Transitional
