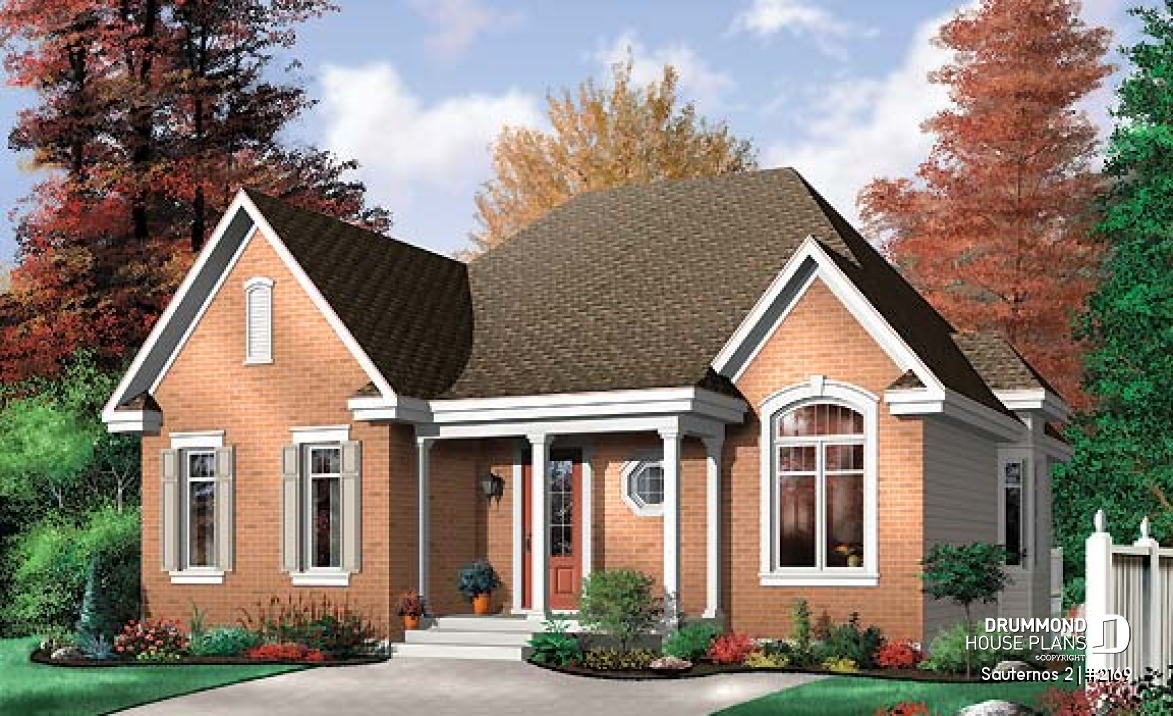

House plan Sauternos 2 (2169)
3 bedroom ranch style house plan with open concept, pantry in kitchen
View the size of the rooms and height of the ceilings

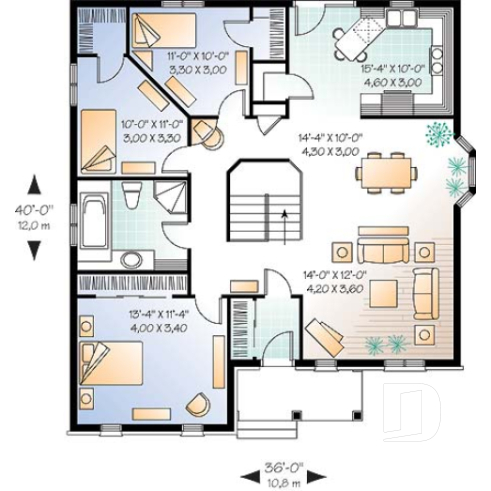

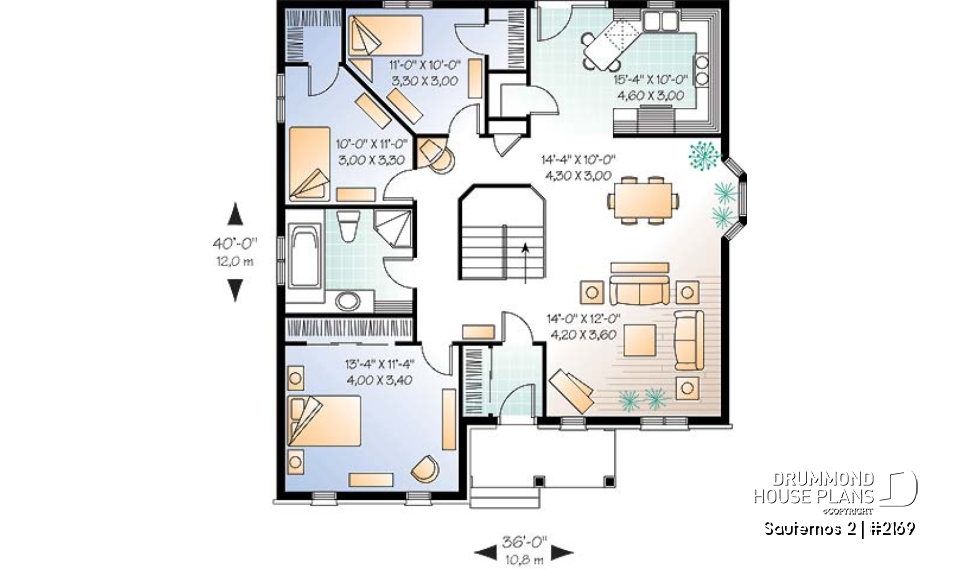

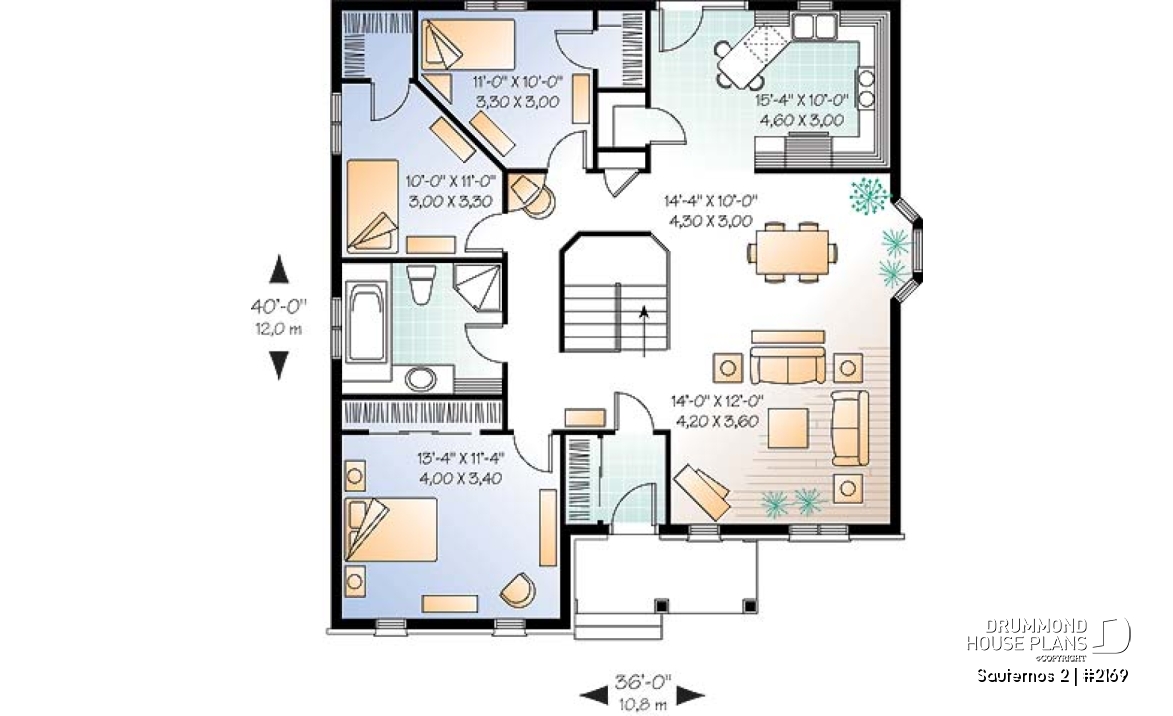

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'0" x 8'4" | ~ 8'0" |
| Kitchen | 15'4" x 10'0" | ~ 8'0" |
| Dining room | 14'4" x 10'0" | ~ 8'0" |
| Living room | 14'0" x 12'0" | ~ 8'0" |
| Bedroom | 13'4" x 11'4" | ~ 8'0" |
| Bedroom | 10'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Linen | 3'0" x 1'0" | ~ 8'0" |
| Foyer | 4'4" x 5'4" | ~ 8'0" |
| Porch | 11'8" x 5'0" | N/A |
General specifications
| Total living area | 1321 sq.ft. |
| 1st level | 1321 sq.ft. |
| Width | 36'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 24'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Ranch style 3 bedroom house plan
.
Distinctive elements
Walk-in closets in 2 secondary bedrooms, bay window in dining room, covered front porch, shutters, decorative decorative mouldings.
Plan feature(s)
Separate bath and shower, Planning desk, Lunch counter, Pantry, Entrance hall
