Starting from $695

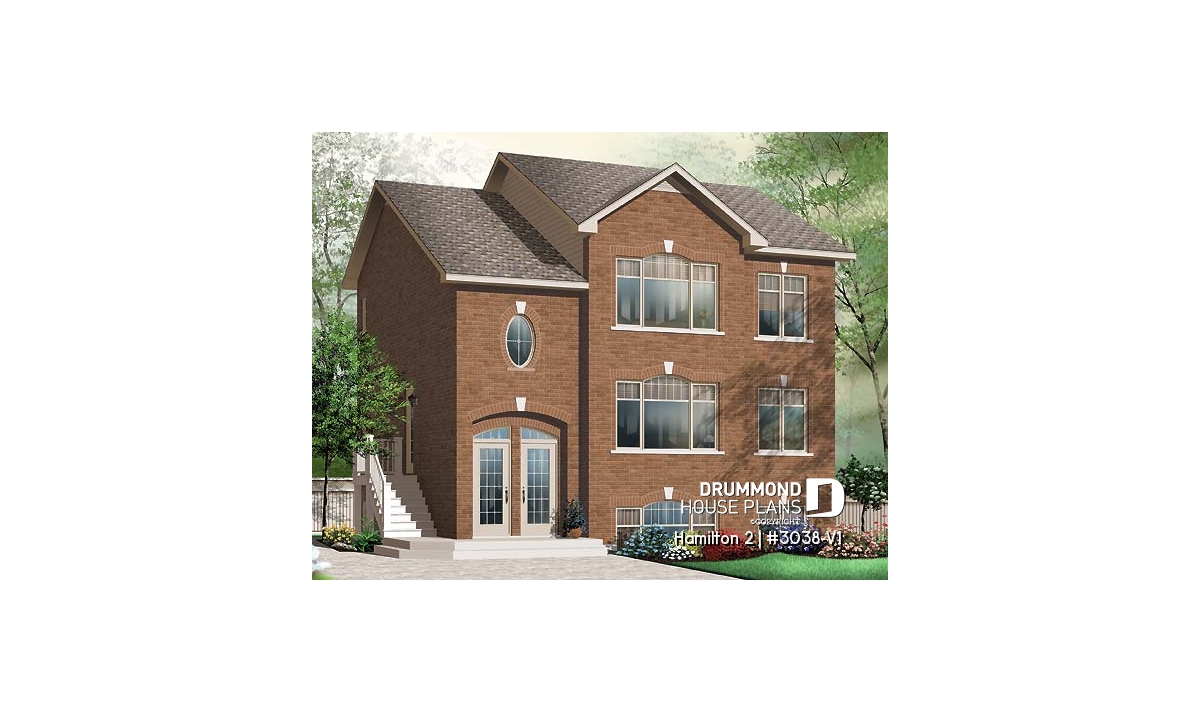

front - BASE MODEL

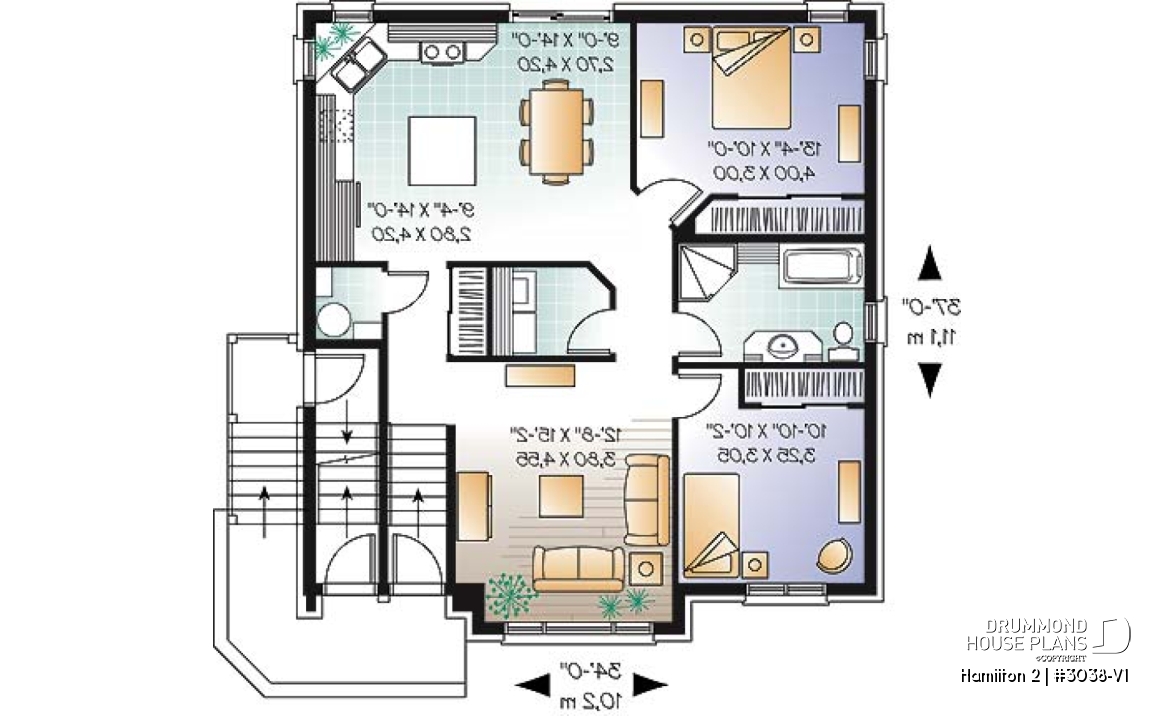

1st level

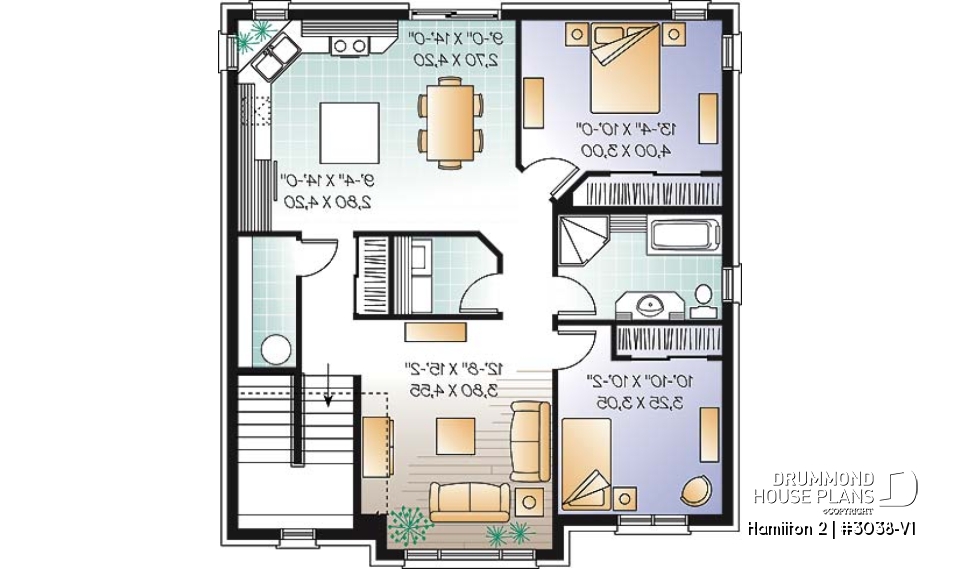

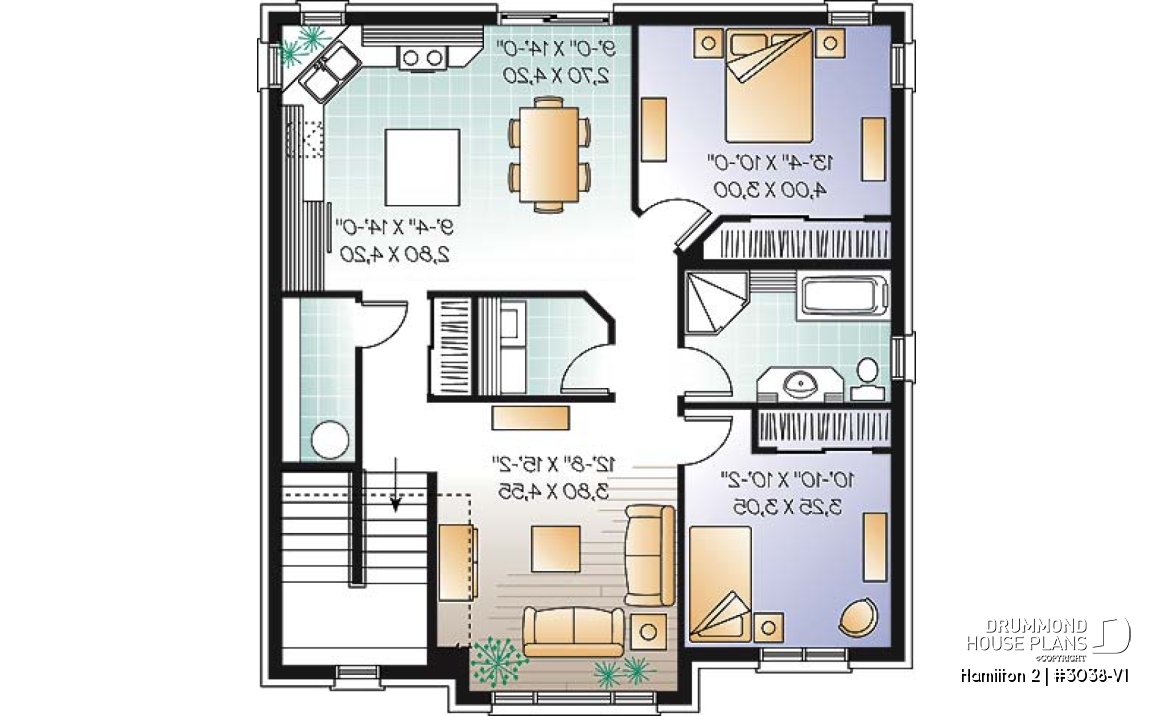

2nd level

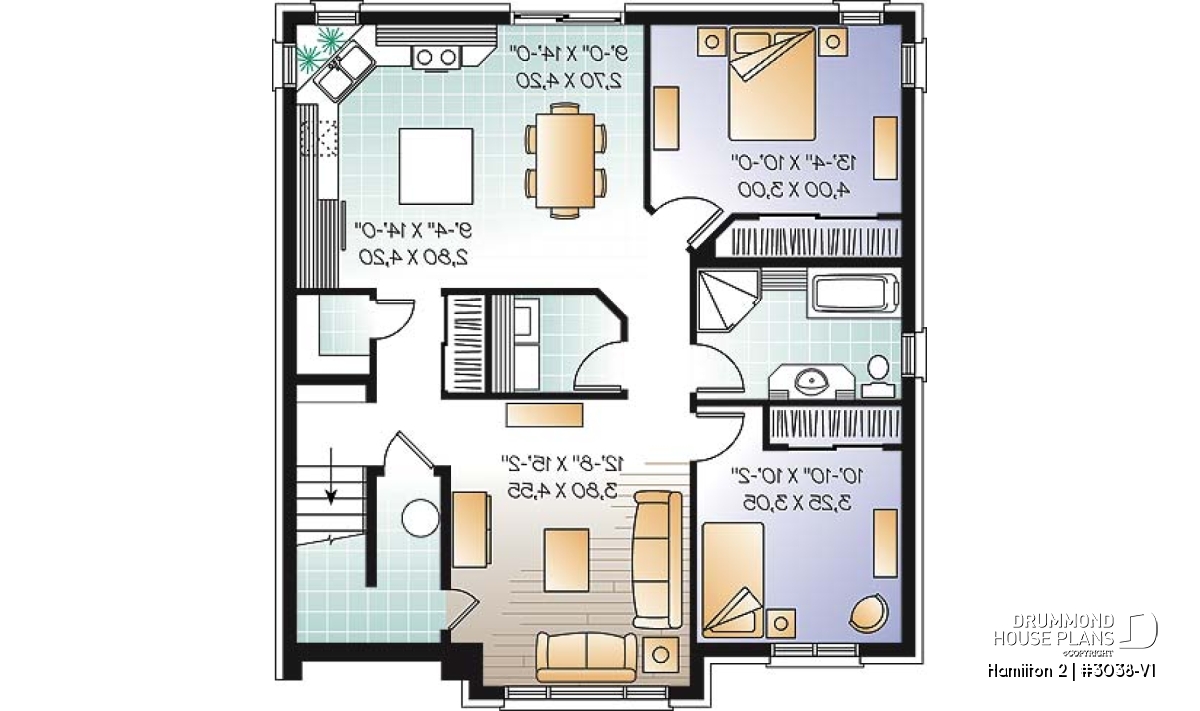

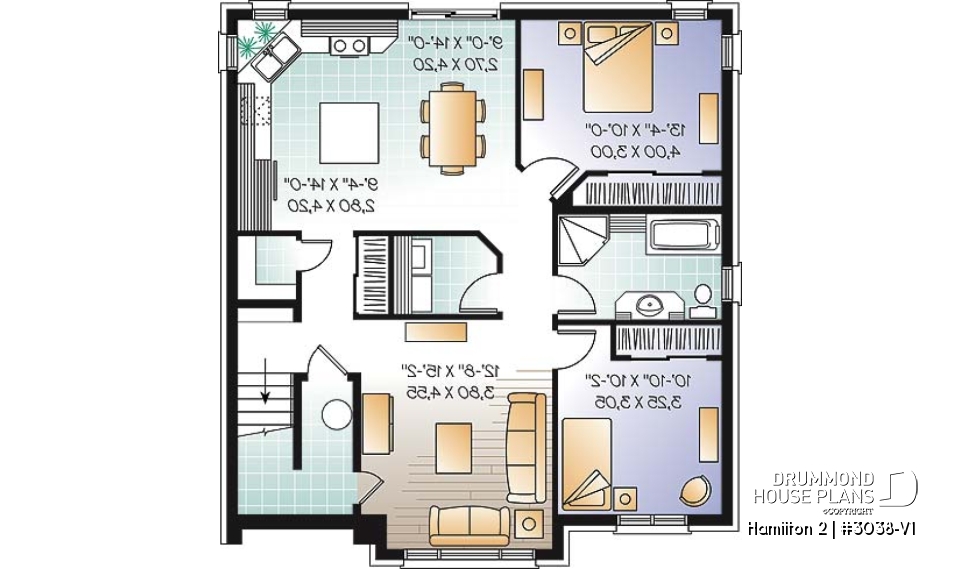

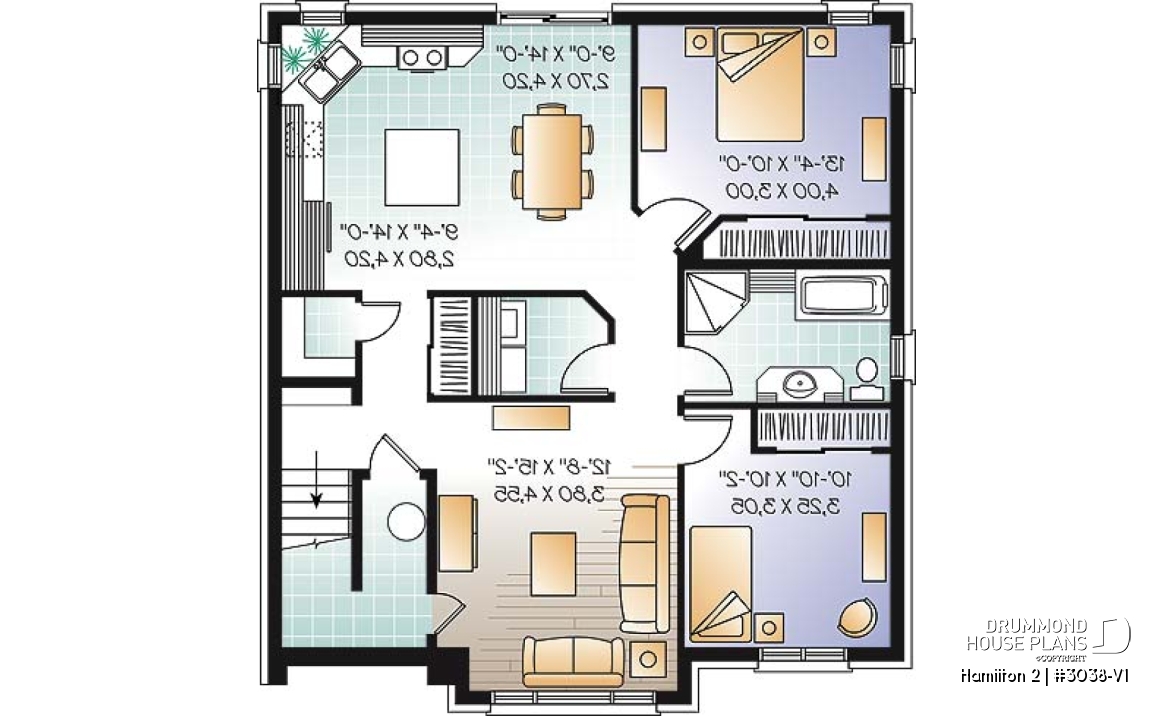

Basement

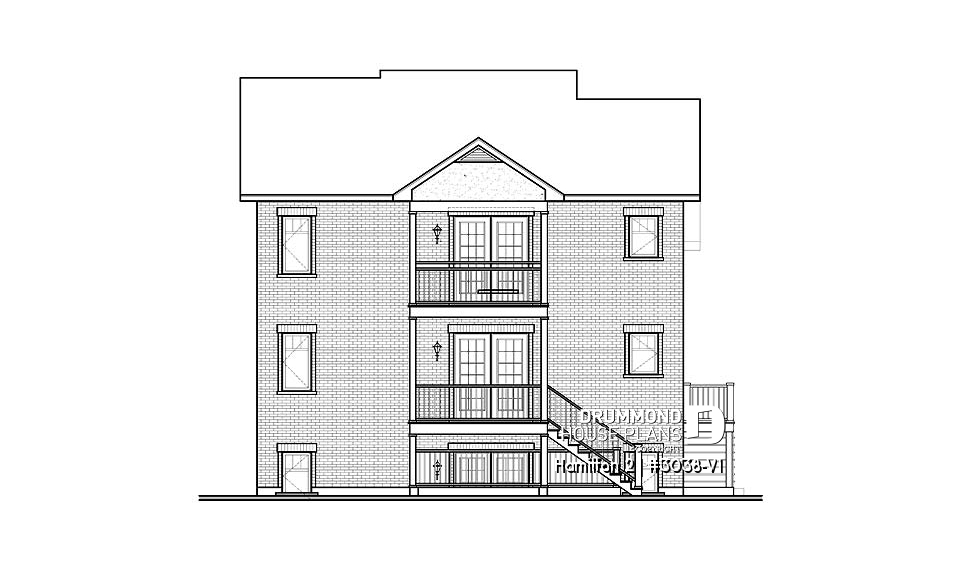

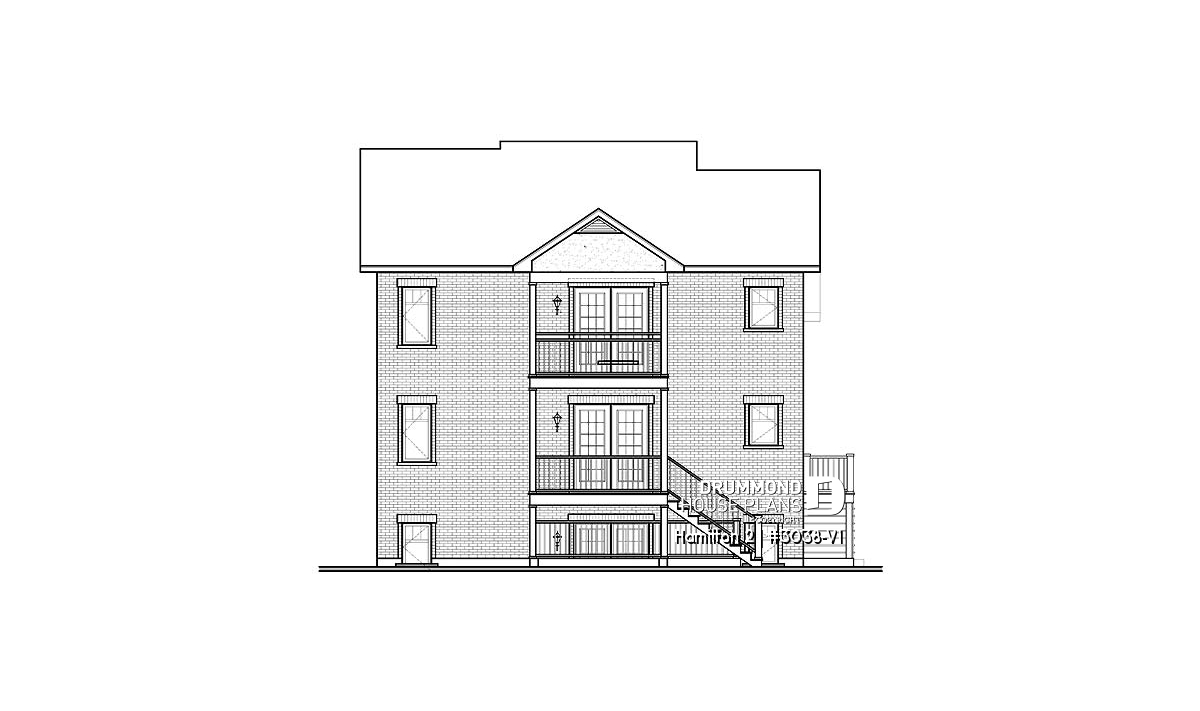

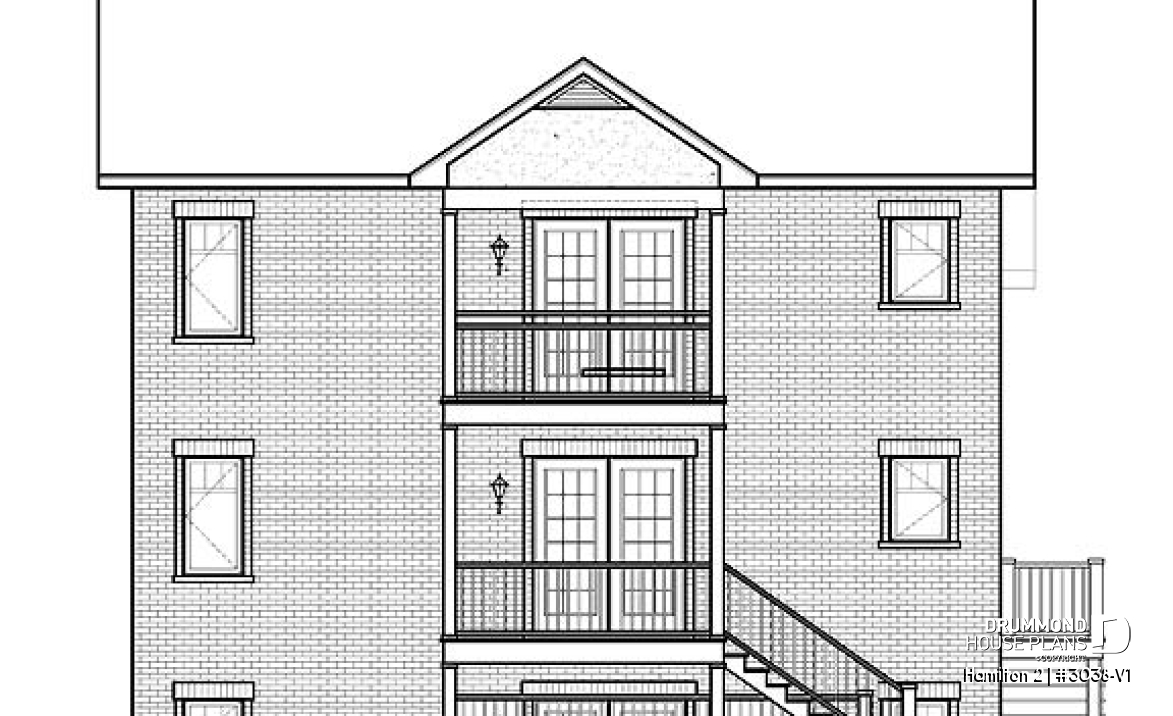

rear elevation
Hamilton 2 House plan 3038-V1
Large 3 unit apartment building plan, 2 bedrooms, laundry room, sheltered terrace, kitchen island
Starting from
2615$
| Technical details summary | Plan #3038-V1 | ||
|---|---|---|---|
| Total living area | 3640 sq.ft. | Bedroom | 2 |
| Full baths | 1 | Half baths | - |
| Foundation included | Finished basement | Garage | - |
| Width | 34'0" | Depth | 37'0" |
Additional details
General specifications
Total living area
3640 sq.ft.
1st level
1211 sq.ft.
2nd level
1219 sq.ft.
Basement
1210 sq.ft.
Width
34'0"
Depth
37'0"
Ridge height from top of foundation
33'3"
Exterior wall
2 X 6
Finished basement
Builder price code
ME
Rooms specifications
Bedroom(s)
2
Full baths
1
Half baths
-
Garage type
-
Covered porch area
145 sq.ft.
Units specifications
UNIT 1
UNIT 2
UNIT 3
Total living area
605 sq.ft.
605.5 sq.ft.
609.5 sq.ft.
Basement
605 sq.ft.
1st level
605.5 sq.ft.
2nd level
609.5 sq.ft.
Width
34' 0"
34' 0"
34' 0"
Depth
37' 0"
37' 0"
37' 0"
Ridge height from top of foundation
33' 3"
33' 3"
33' 3"
Exterior wall
2 X 6
2 X 6
2 X 6
Foundation type
Finished basement
Finished basement
Finished basement
Bedroom(s)
2
2
2
Full baths
1
1
1
Half baths
-
-
-
Garage type
-
-
-
Living bonus space
-
-
-
Bonus storage
-
-
-
Basement
Rooms
Sizes
Ceiling
Kitchen
9'4" x 14'0"
~ 8'0"
Dining room
9'0" x 14'0"
~ 8'0"
Living room
12'8" x 15'2"
~ 8'0"
Foyer
3'5" x 3'9"
~ 8'0"
Full bathroom
10'10" x 7'0"
~ 8'0"
Bedroom
13'4" x 10'0"
~ 8'0"
Bedroom
10'10" x 10'2"
~ 8'0"
Laundry room
6'8" x 5'2"
~ 8'0"
Storage
3'11" x 4'2"
~ 8'0"
Storage
3'5" x 5'6"
N/D
Terrace
9'8" x 7'4"
N/D
1st level
Rooms
Sizes
Ceiling
Kitchen
9'4" x 14'0"
~ 8'0"
Dining room
9'0" x 14'0"
~ 8'0"
Living room
12'8" x 15'2"
~ 8'0"
Foyer
3'5" x 3'8"
~ 8'0"
Full bathroom
10'10" x 7'0"
~ 8'0"
Bedroom
13'4" x 10'0"
~ 8'0"
Bedroom
10'10" x 10'2"
~ 8'0"
Laundry room
6'8" x 5'2"
~ 8'0"
Storage
3'11" x 4'2"
~ 8'0"
Porch
13'10" x 9'3"
N/D
Porch
4'0" x 5'2"
N/D
Covered deck
11'0" x 8'0"
N/D
2nd level
Rooms
Sizes
Ceiling
Kitchen
9'4" x 14'0"
~ 8'0"
Dining room
9'0" x 14'0"
~ 8'0"
Living room
12'8" x 15'2"
~ 8'0"
Foyer
3'5" x 3'8"
~ 8'0"
Full bathroom
10'10" x 7'0"
~ 8'0"
Bedroom
13'4" x 10'0"
~ 8'0"
Bedroom
10'10" x 10'2"
~ 8'0"
Laundry room
6'8" x 5'2"
~ 8'0"
Storage
3'11" x 8'9"
~ 8'0"
Balcony
11'0" x 8'0"
N/D
Large triplex house plan with sheltered balconies
.
Distinctive elements
Elegant front elevation for this triplex. Covered terrace in the back, for each appartement. Nice bathroom with separate shower for each appartement. Nice living room and infatuating kitchen with corner fenestration amplifying the lighting in this area. Storage and laundry area in each appartment.
Plan feature(s)
Island, Panoramic view, Separate bath and shower
Plan architectural style(s)
The plan Hamilton 2 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
