House plan Walter (3807)

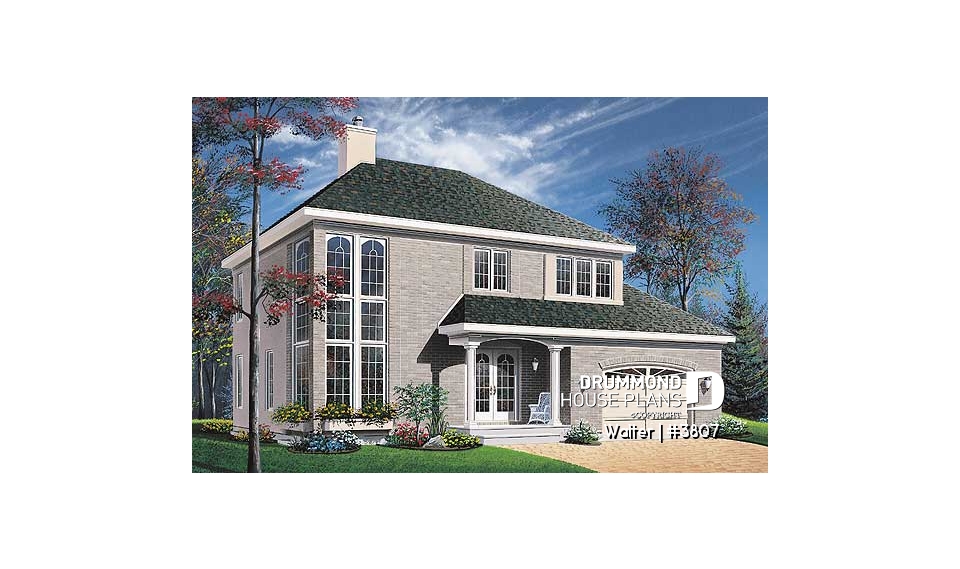

2 storey 4 bedrooms house plan with 2-car garage, fireplace
View the size of the rooms and height of the ceilings

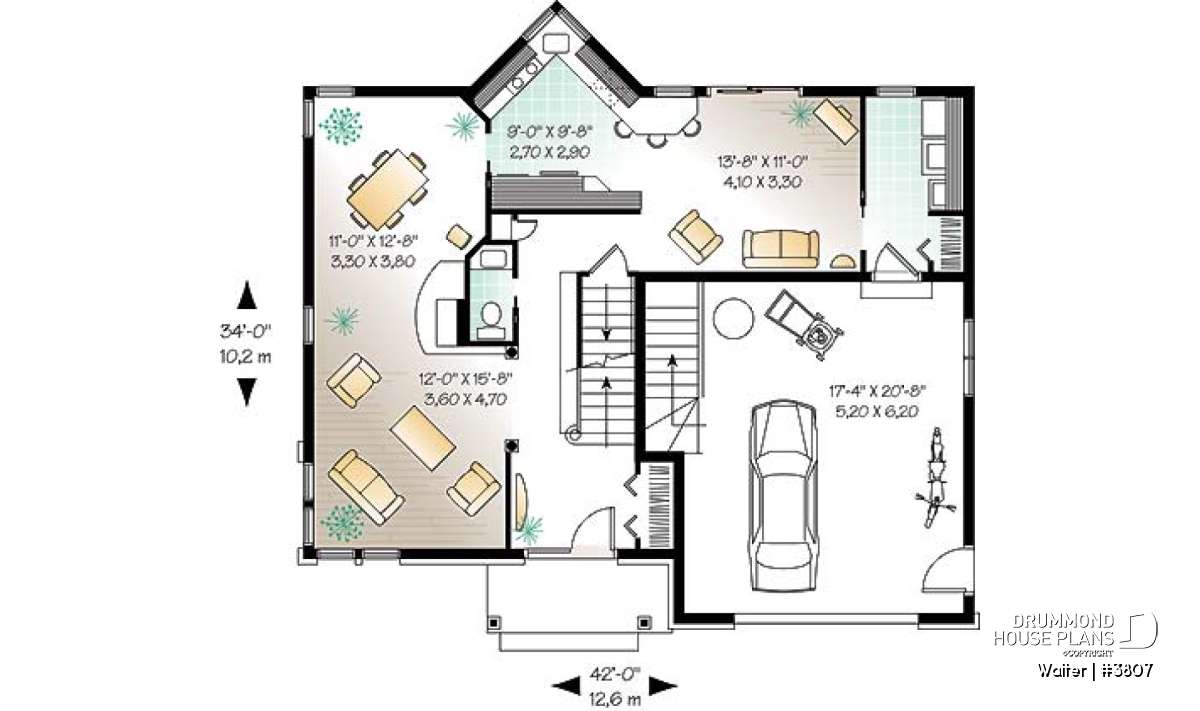

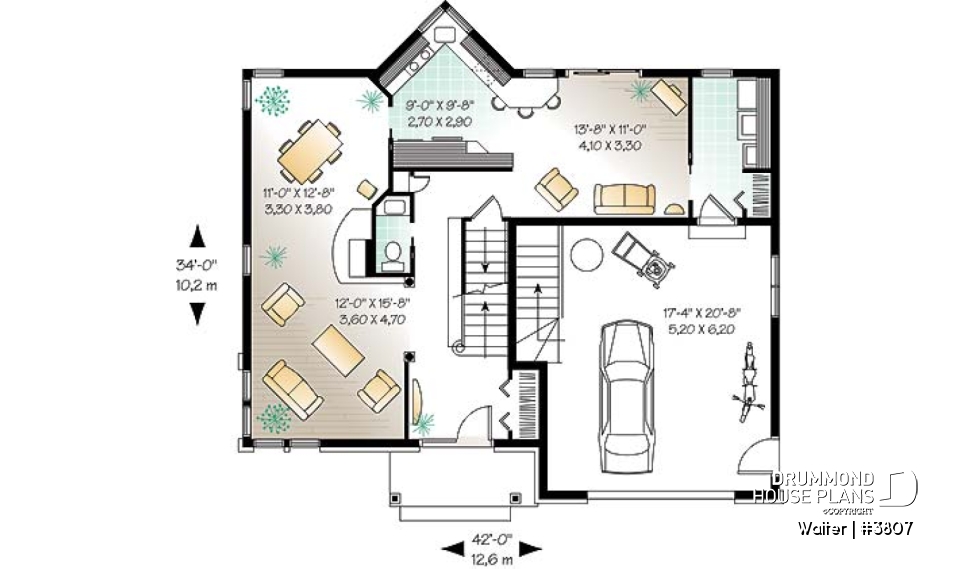

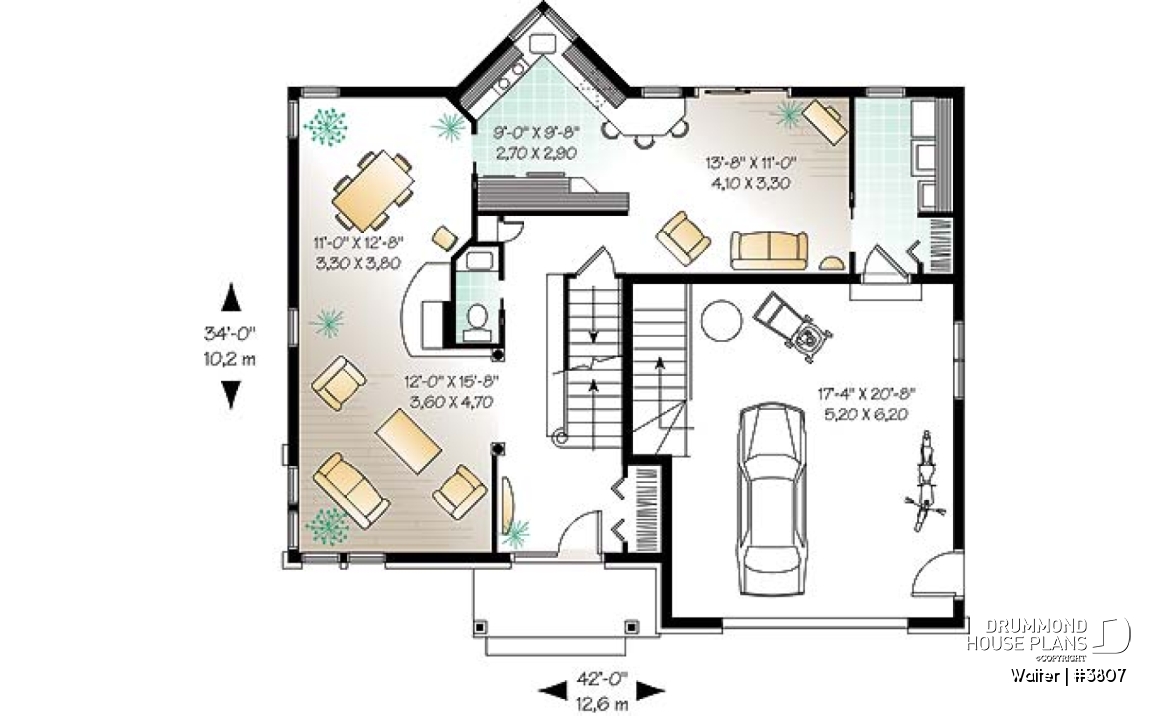

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'0" x 9'8" | ~ 8'0" |
| Dining room | 11'0" x 12'8" | ~ 8'0" |
| Living room | 12'0" x 15'8" | ~ 8'0" |
| Great room or Family room | 13'8" x 11'0" | ~ 8'0" |
| Linen | 1'4" x 1'6" | ~ 8'0" |
| Foyer | 7'8" x 7'4" | ~ 8'0" |
| Utility room | 6'0" x 7'2" | ~ 8'0" |
| Garage | 17'4" x 20'8" | ~ 8'0" |
| Porch | 10'8" x 4'0" | N/A |
| Half bath or powder room | 3'0" x 6'0" | ~ 8'0" |

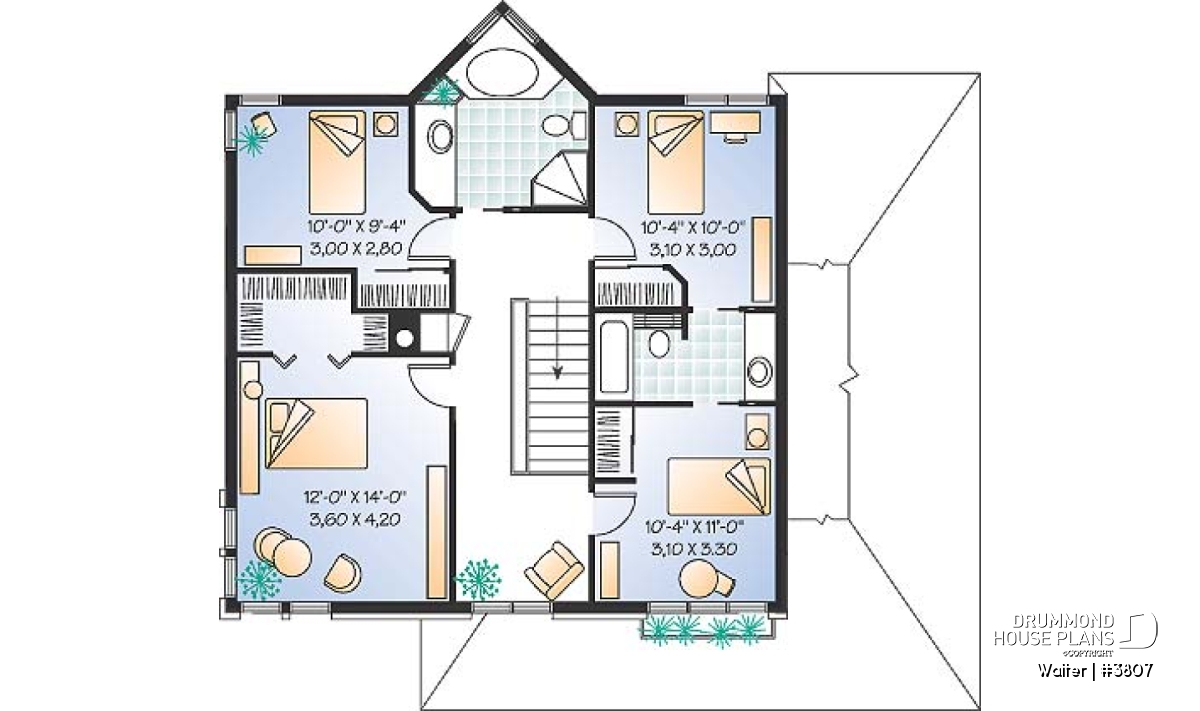

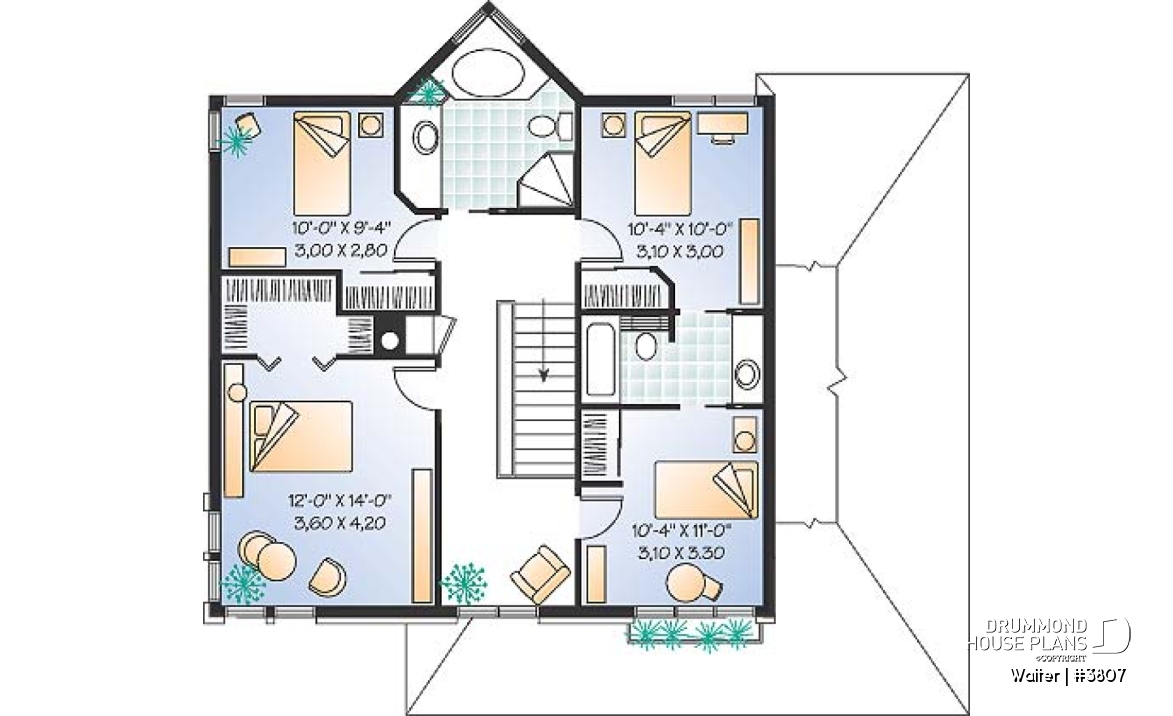

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'6" x 8'0" | ~ 8'0" |
| Full bathroom | 10'4" x 5'0" | ~ 8'0" |
| Bedroom | 12'0" x 14'0" | ~ 8'0" |
| Bedroom | 10'4" x 11'0" | ~ 8'0" |
| Bedroom | 10'4" x 10'0" | ~ 8'0" |
| Bedroom | 10'0" x 9'4" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1929 sq.ft. |
| 1st level | 938 sq.ft. |
| 2nd level | 991 sq.ft. |
| Width | 42'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 28'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
2-Storey home with formal dining room, family + living rooms
.
Distinctive elements
Abundant windowing.
Plan feature(s)
Fireplace, Gound floor laundry room, Lunch counter, Basement access from garage, Jack & Jill bath, Separate bath and shower, Panoramic view, Sitting area, Formal dining room
