The Touchstone 5 (2957-V1)
Lakefront cottage plan, walkout basement, 3 to 4 bedrooms, open floor plan layout, fireplace
View the size of the rooms and height of the ceilings

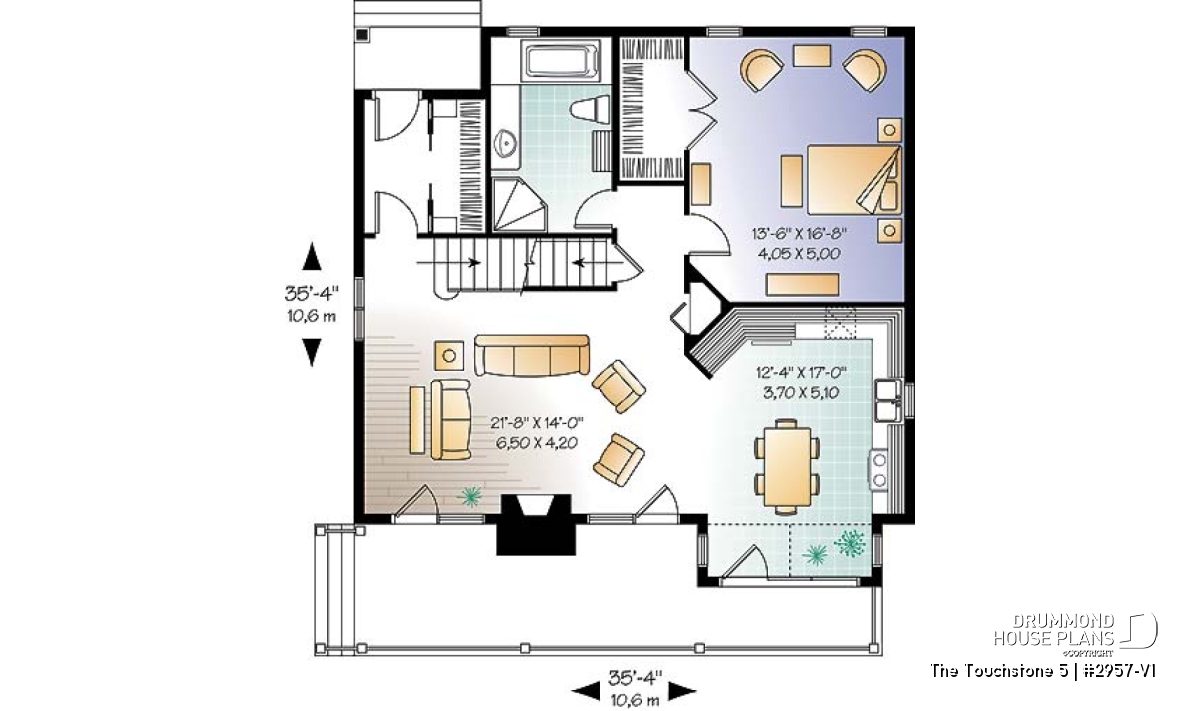

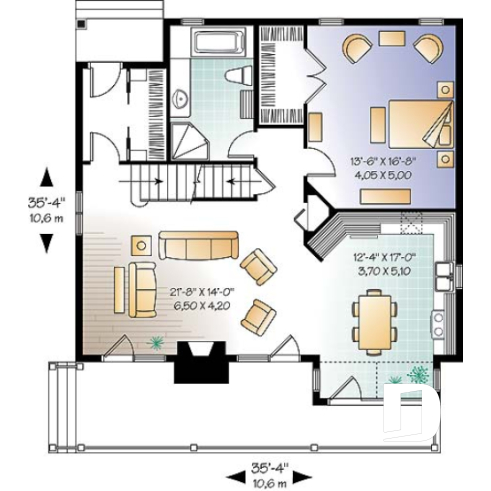

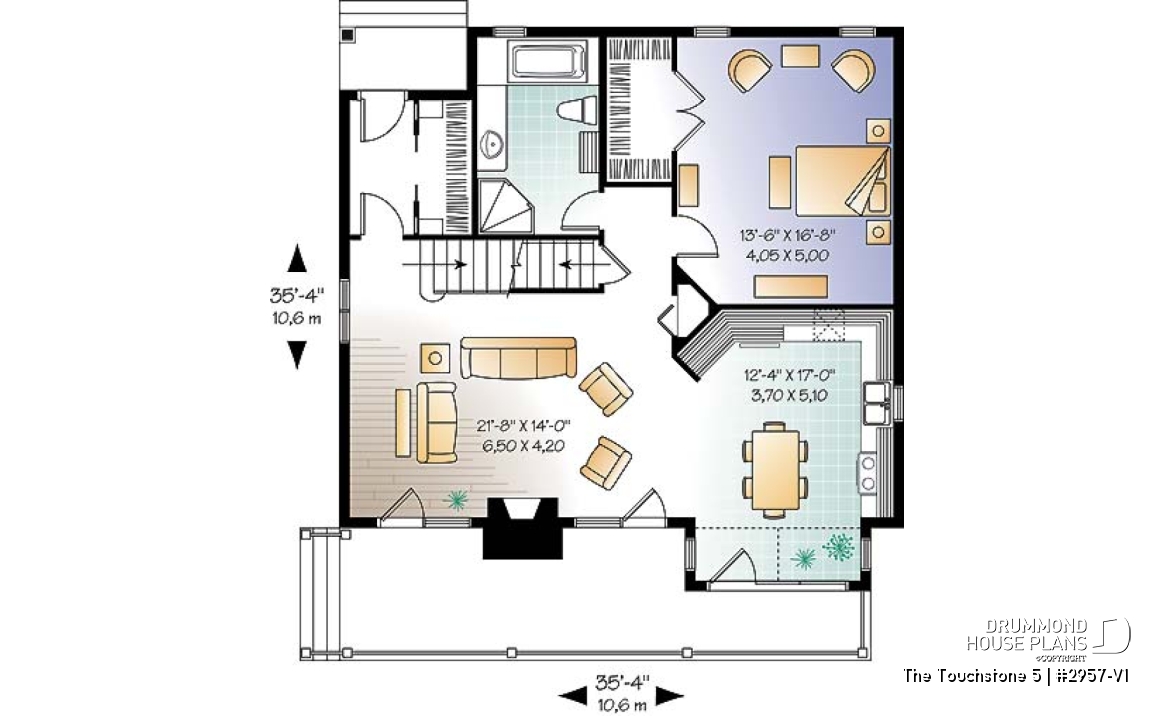

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room | 21'8" x 14'0" | ~ 8'0" |
| Foyer | 4'0" x 8'4" | ~ 8'0" |
| Bedroom | 13'6" x 16'8" | ~ 8'0" |
| Storage | 2'0" x 3'4" | ~ 8'0" |
| Porch | 8'0" x 4'0" | N/A |
| Deck | 33'2" x 8'4" | N/A |
| Kitchen/dining room | 12'4" x 17'0" | ~ 8'0" |
| Full bathroom | 7'7" x 12'4" | ~ 8'0" |

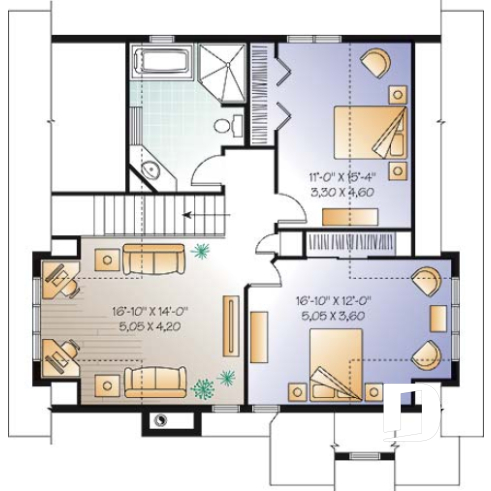

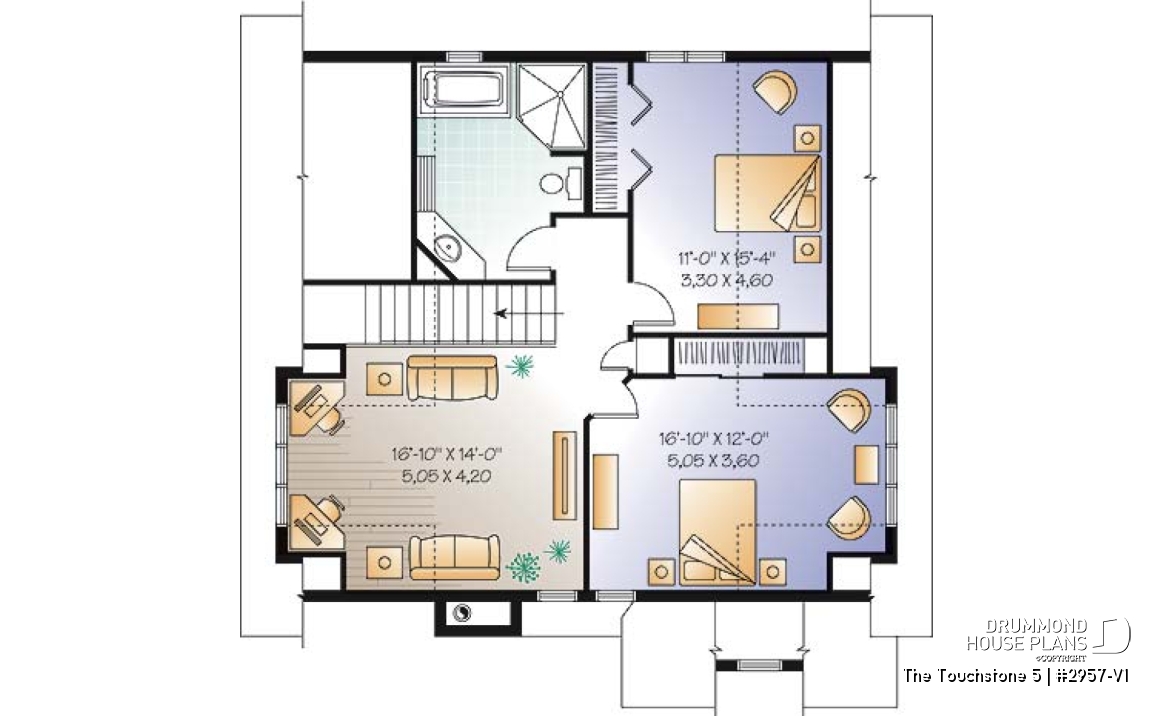

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 16'10" x 12'0" | ~ 8'0" |
| Bedroom | 11'0" x 15'4" | ~ 8'0" |
| Full bathroom | 9'6" x 12'4" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 2021 sq.ft. |
| 1st level | 1122 sq.ft. |
| 2nd level | 899 sq.ft. |
| Width | 35'4" |
| Depth | 35'4" |
| Ridge height from top of foundation | 35'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Cottage plan with walkout basement and 3 to 4 bedrooms
A sloped lot is the ideal place to nestle this stylish but casual cottage. Abundant windows and full width deck provide ideal vantage points from inside or out. A casual floorplan includes a generous eat-in kitchen and the great room for memorable gatherings. Retreat to the main level master which includes a generous walk-in closet and semi-private access to a relaxing four-fixture bathroom.
The upper level includes two additional bedrooms and a secluded family room and bathroom with soaker tub and large independent shower.
A daylight basement with garden door exit is a blank canvas to be developed as desired.
Distinctive elements
Remarkable living room on main floor with two patio doors and a fireplace. Master bedroom on main level with walk-in closet. Game room or bedroom #4 on 2nd level.
Plan feature(s)
Walk-in master bed., Master suite on main, Fireplace, Sitting area, Open floor layout, Panoramic view, Game room, Sloped ceiling
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Craftsman / Northwest, . Ski chalets, . American, . A-Frame, . Country, . Cape Cod, . Mountain, . Transitional
