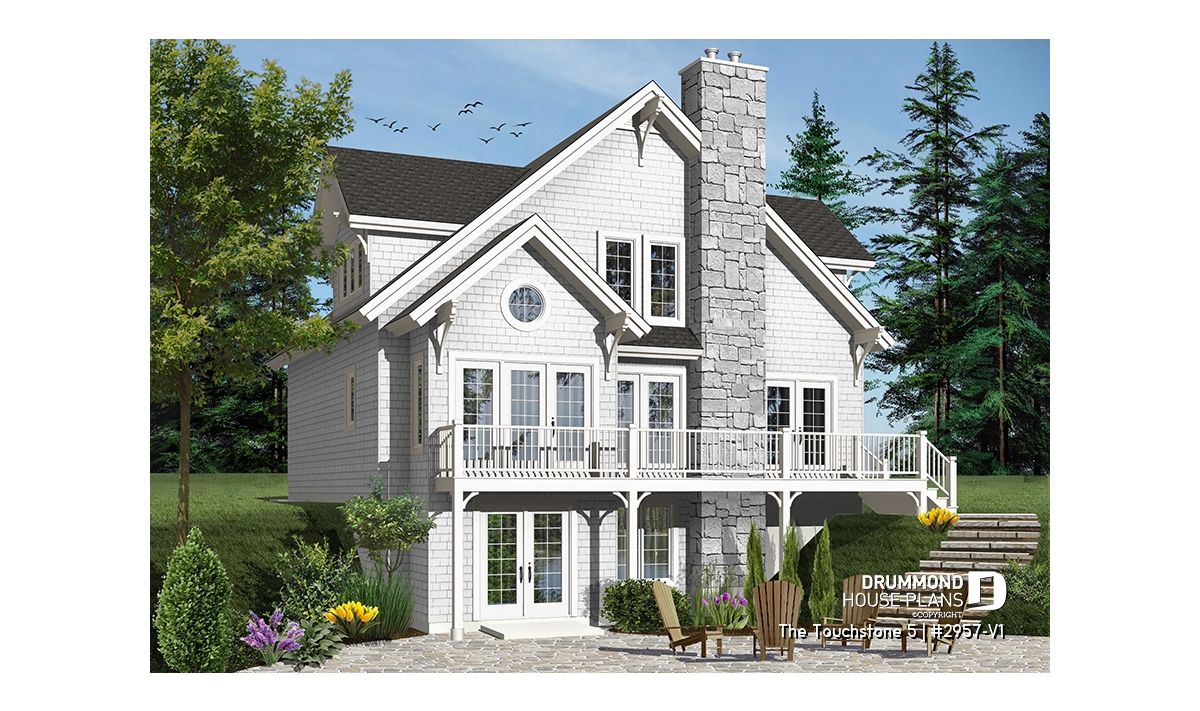

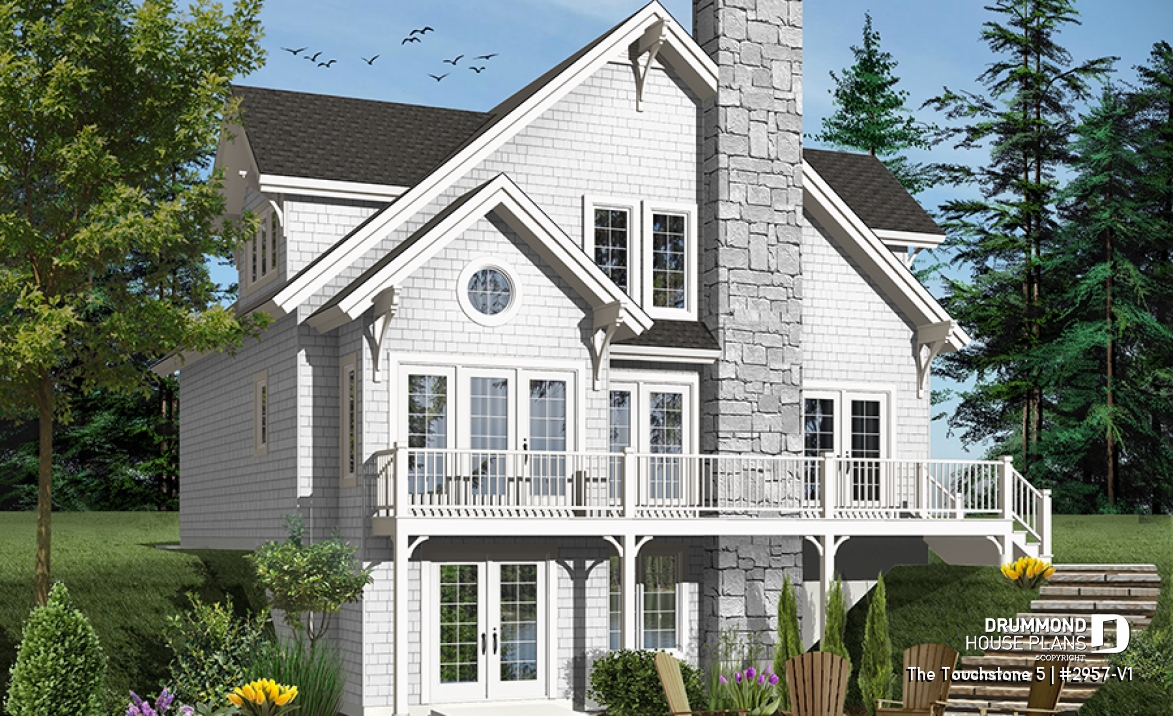

Color version 5 - Rear

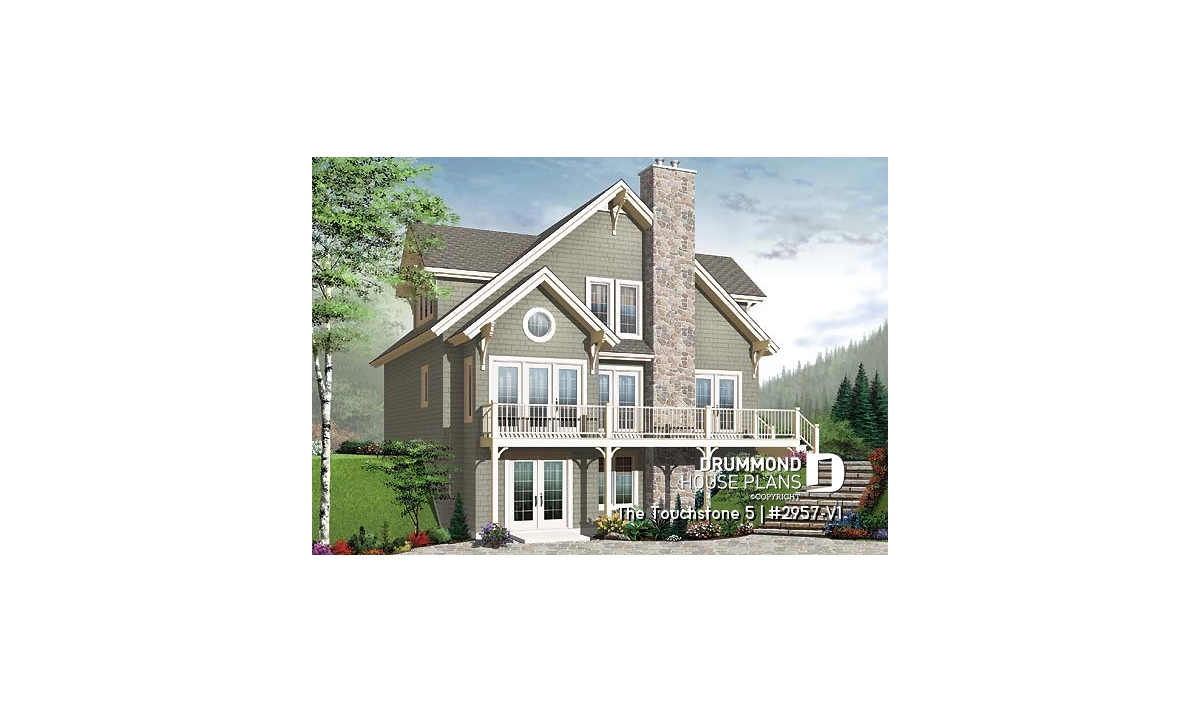

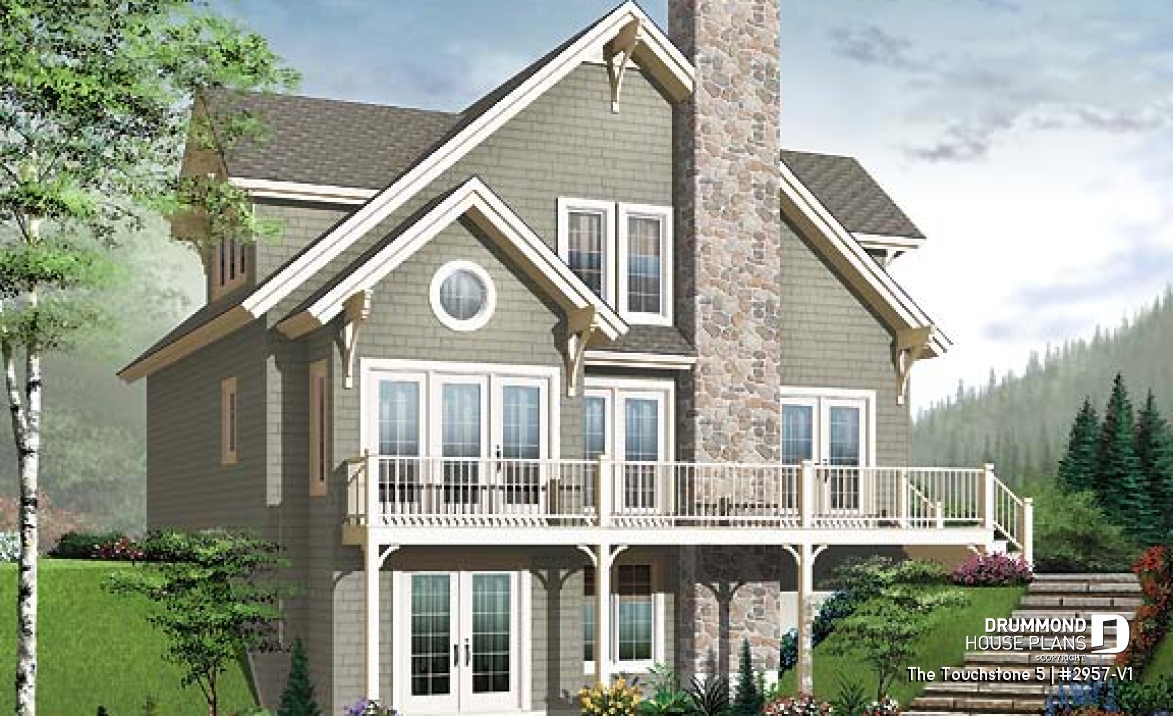

Rear view - BASE MODEL

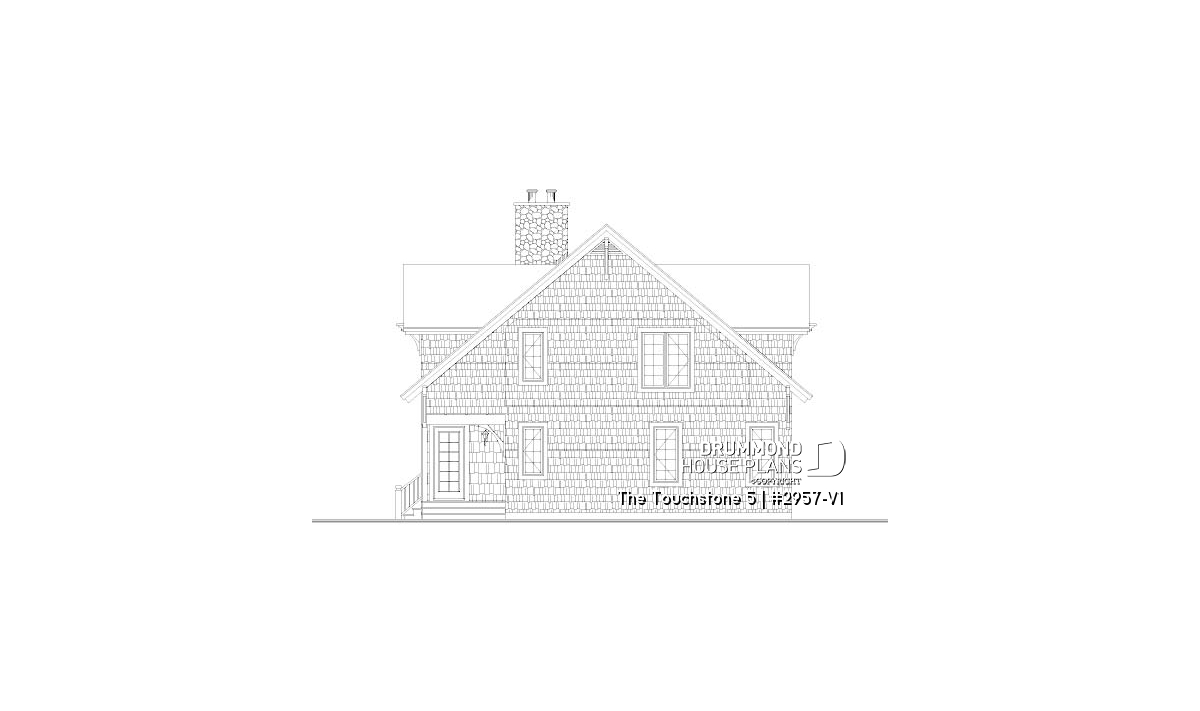

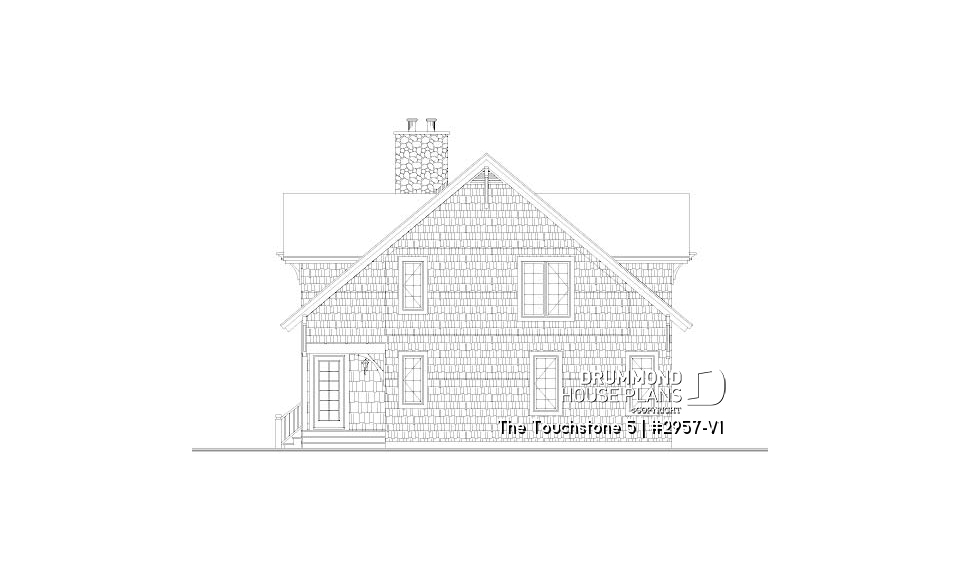

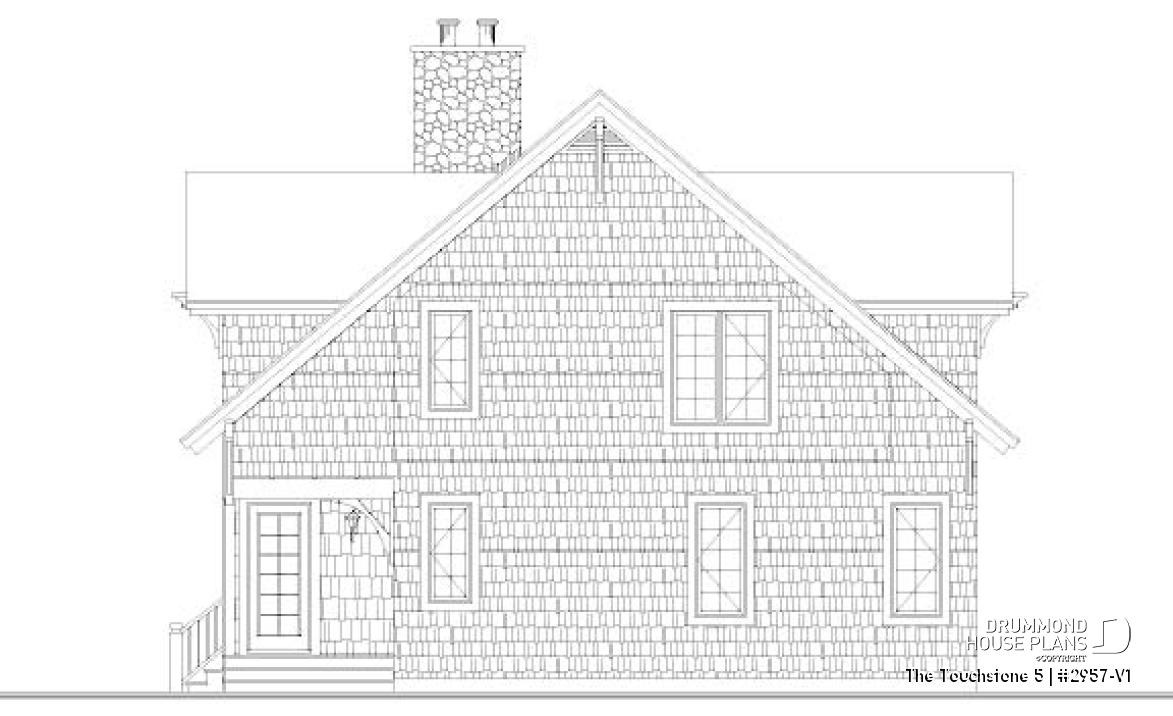

front elevation

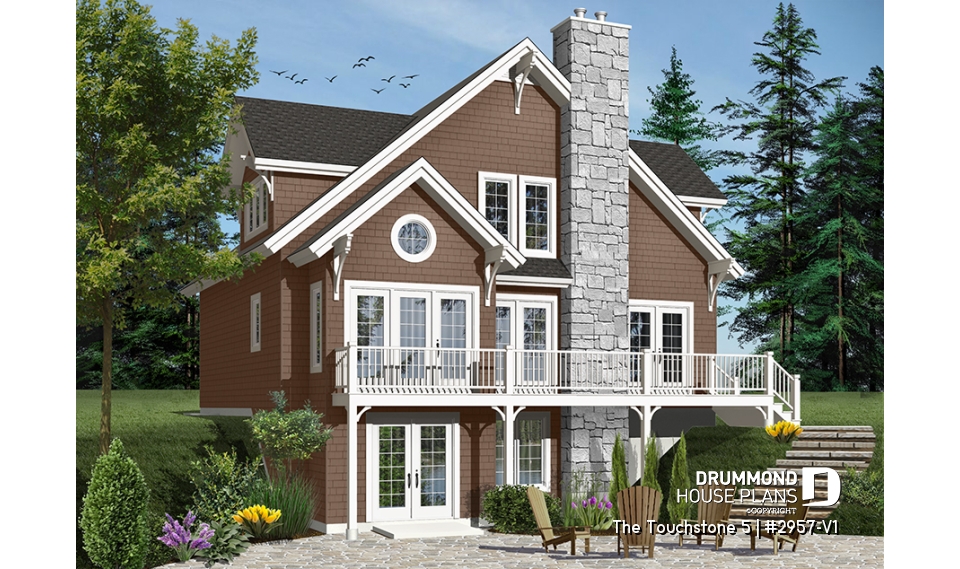

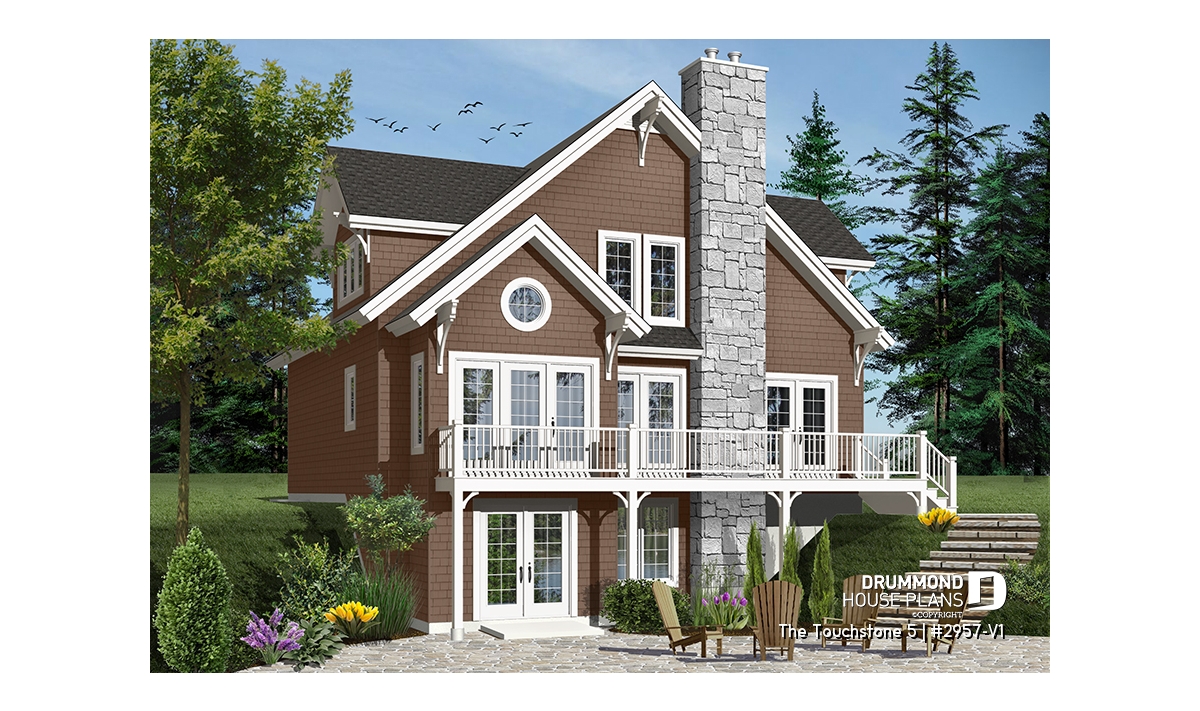

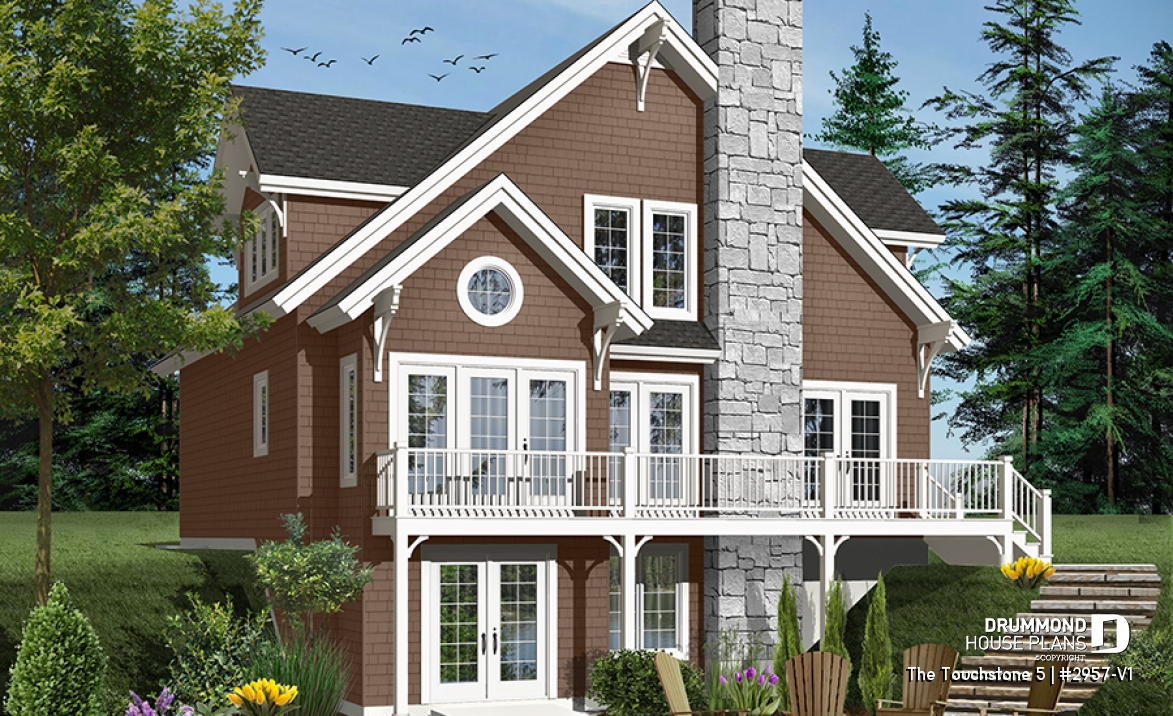

Color version 1 - Rear

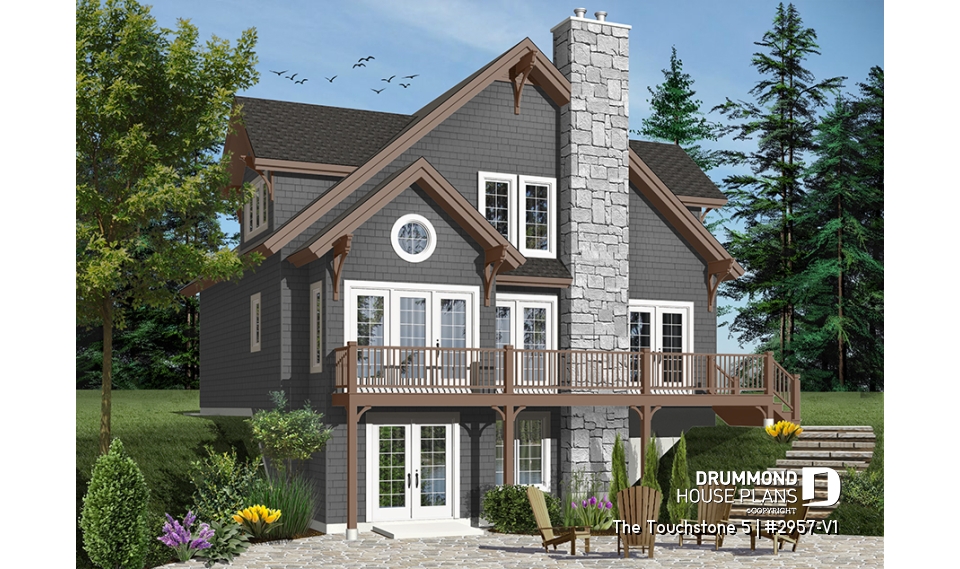

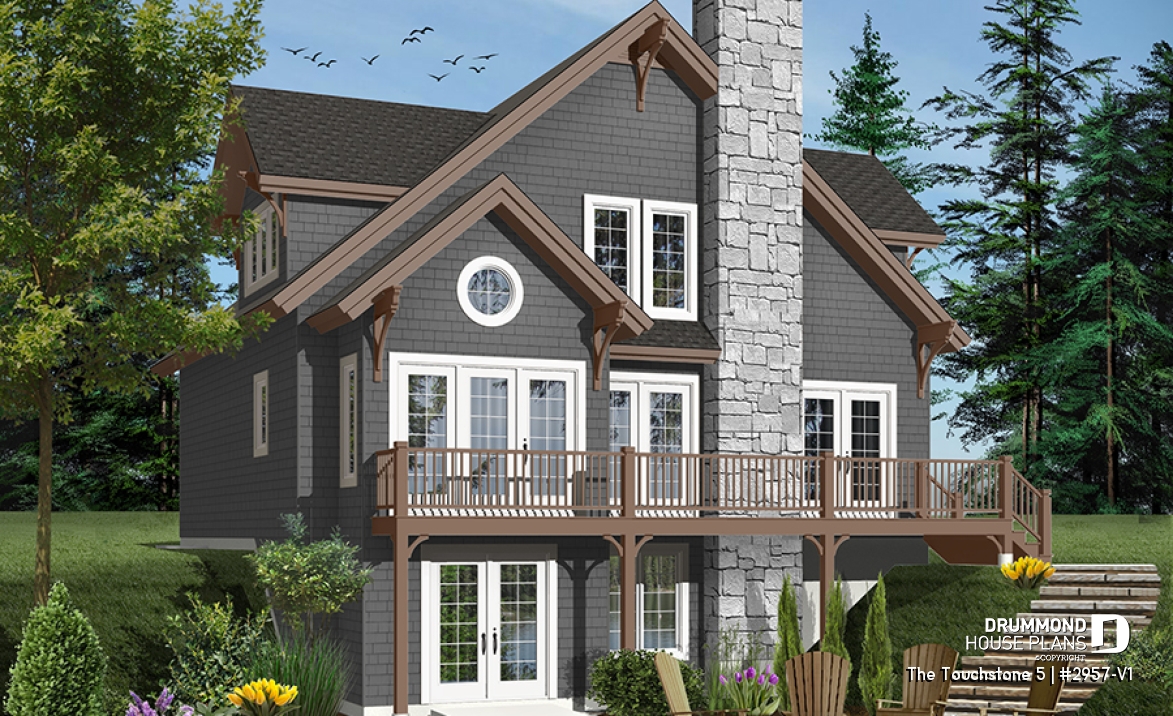

Color version 2 - Rear

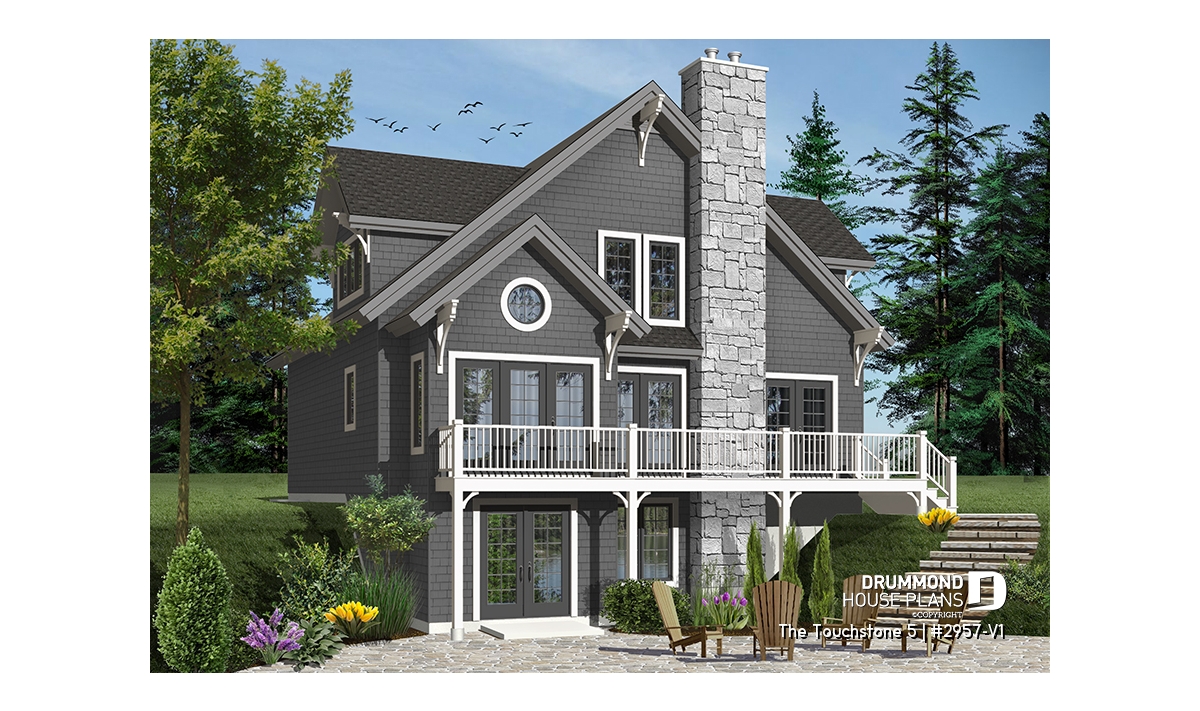

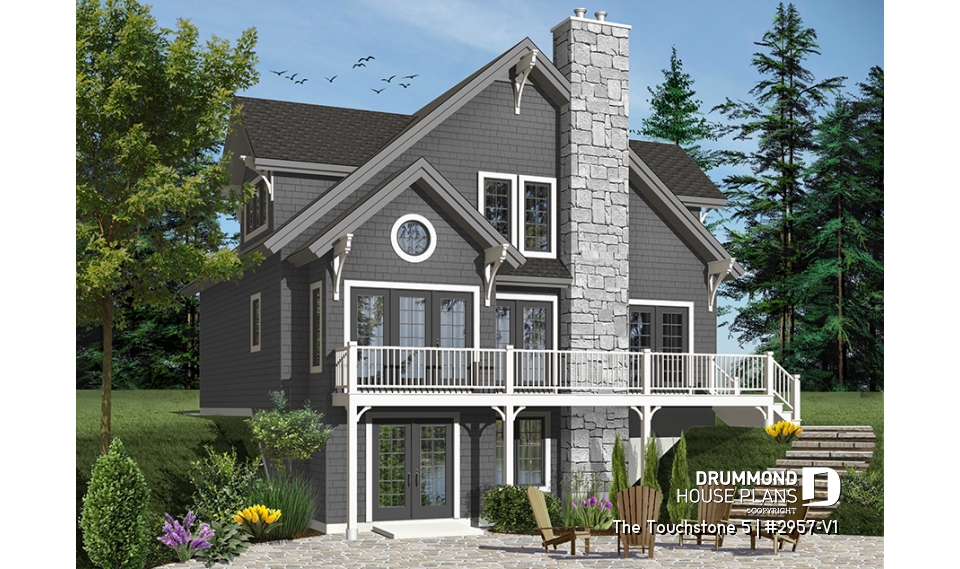

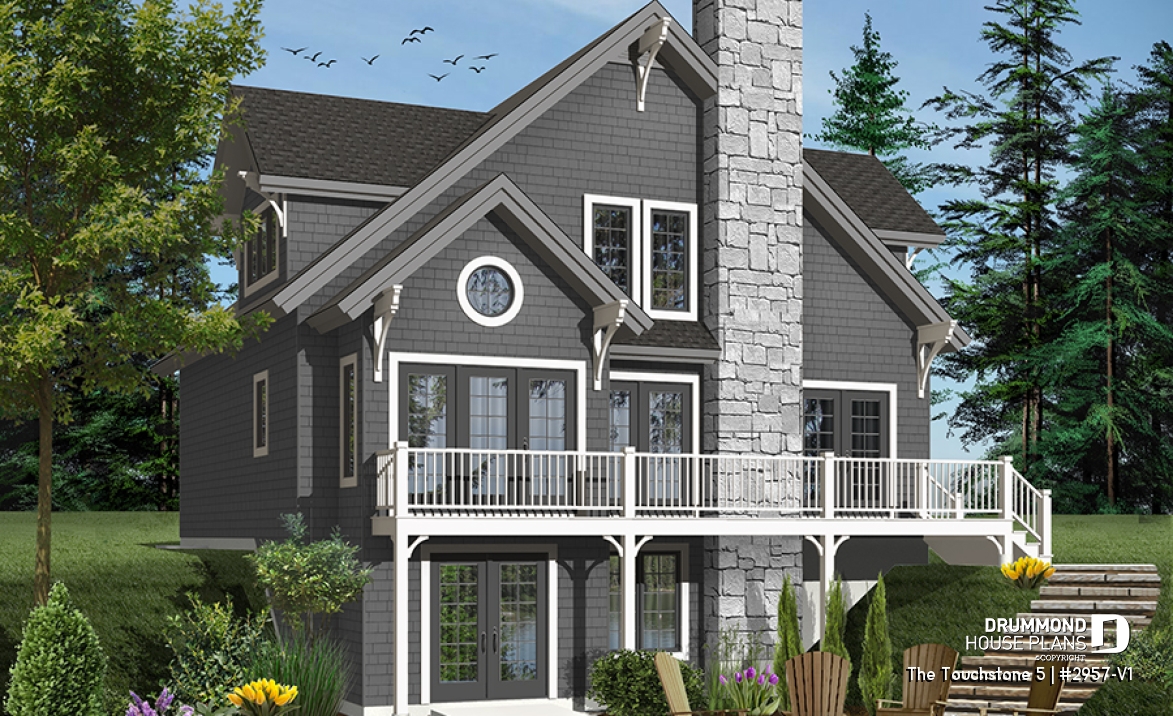

Color version 3 - Rear

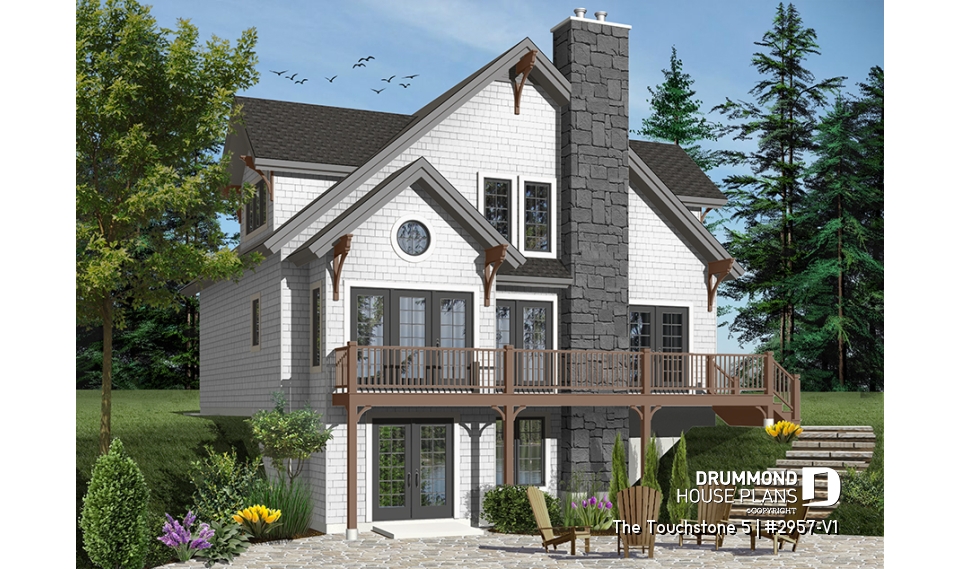

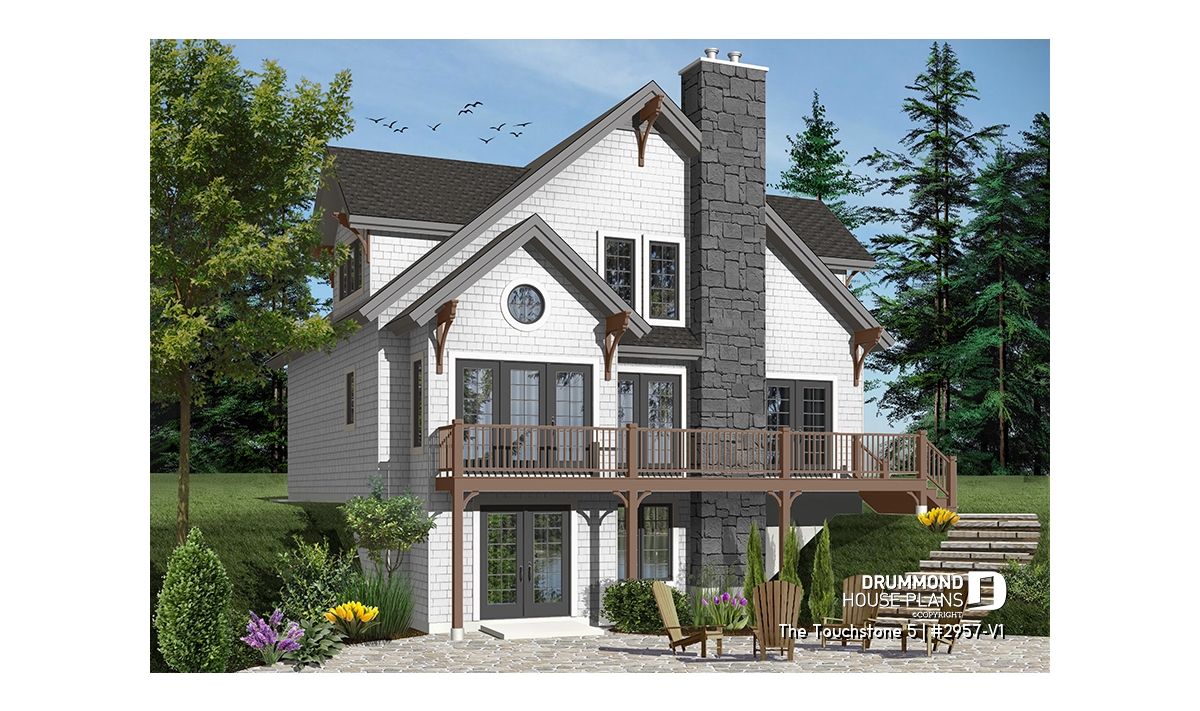

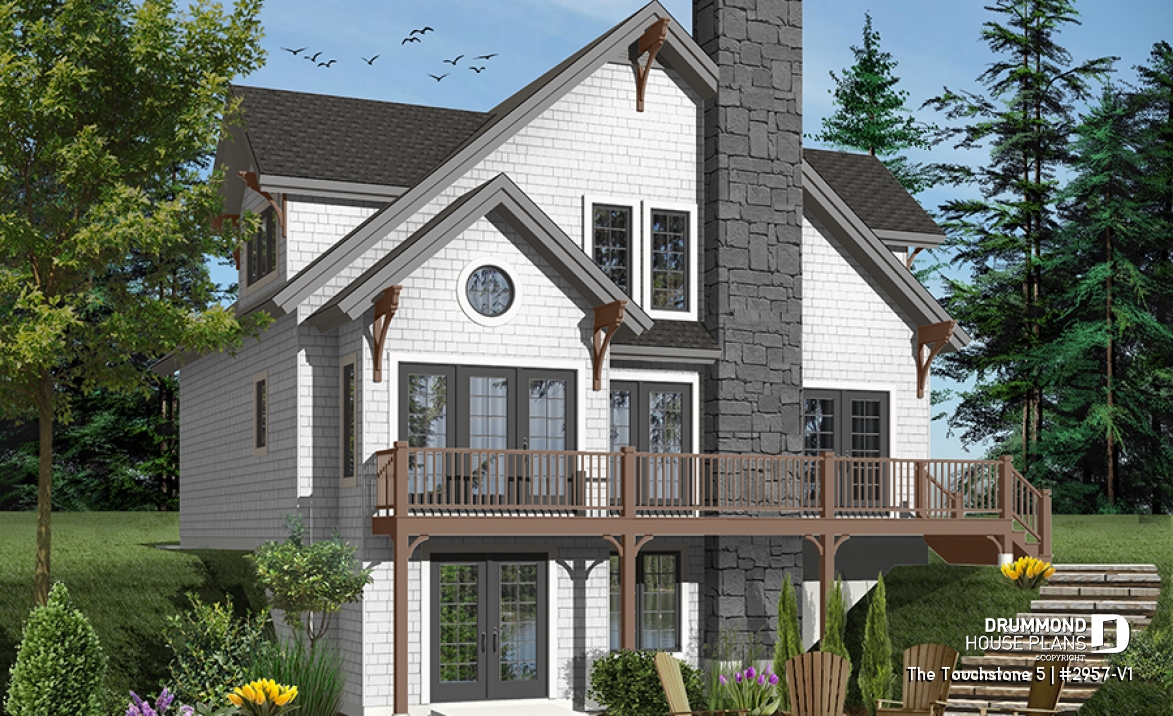

Color version 4 - Rear

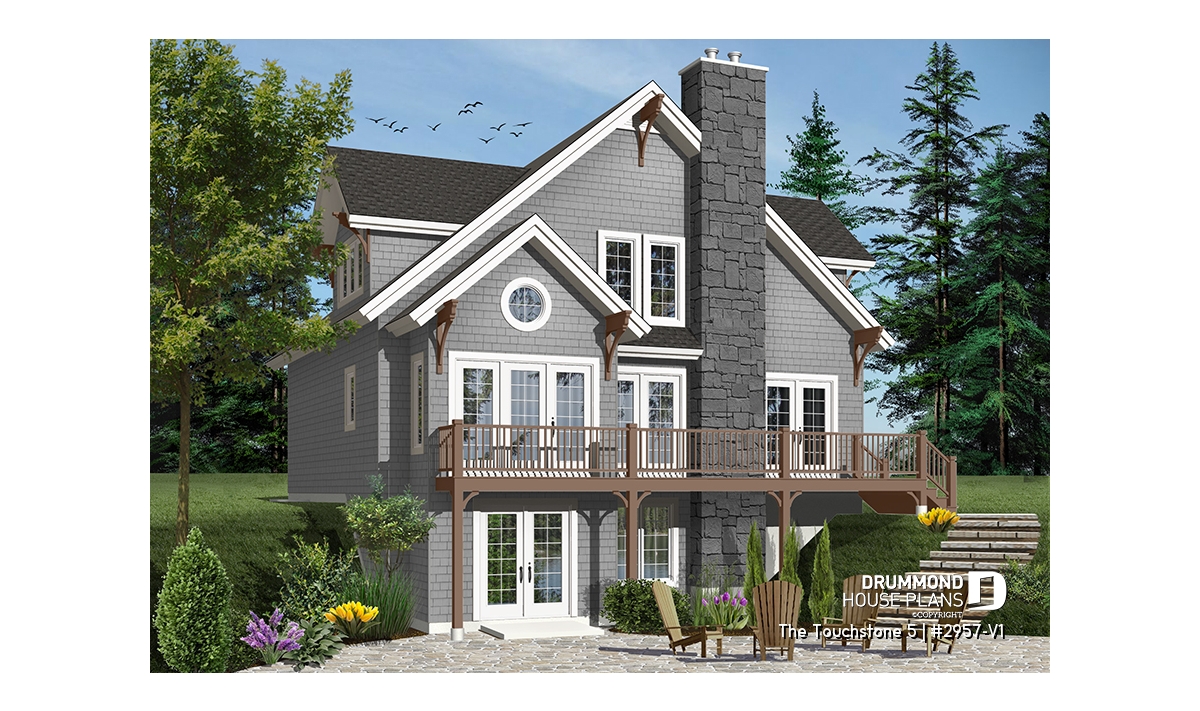

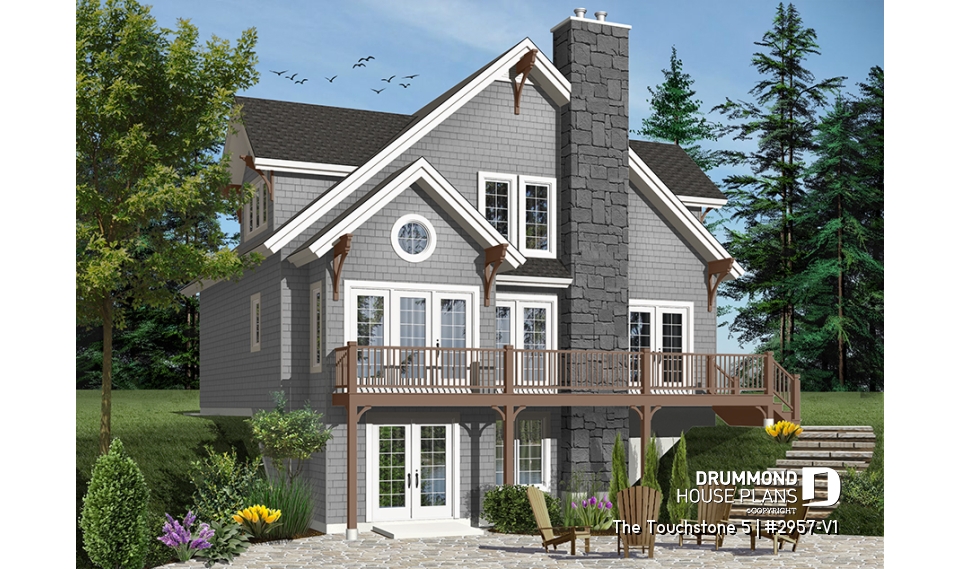

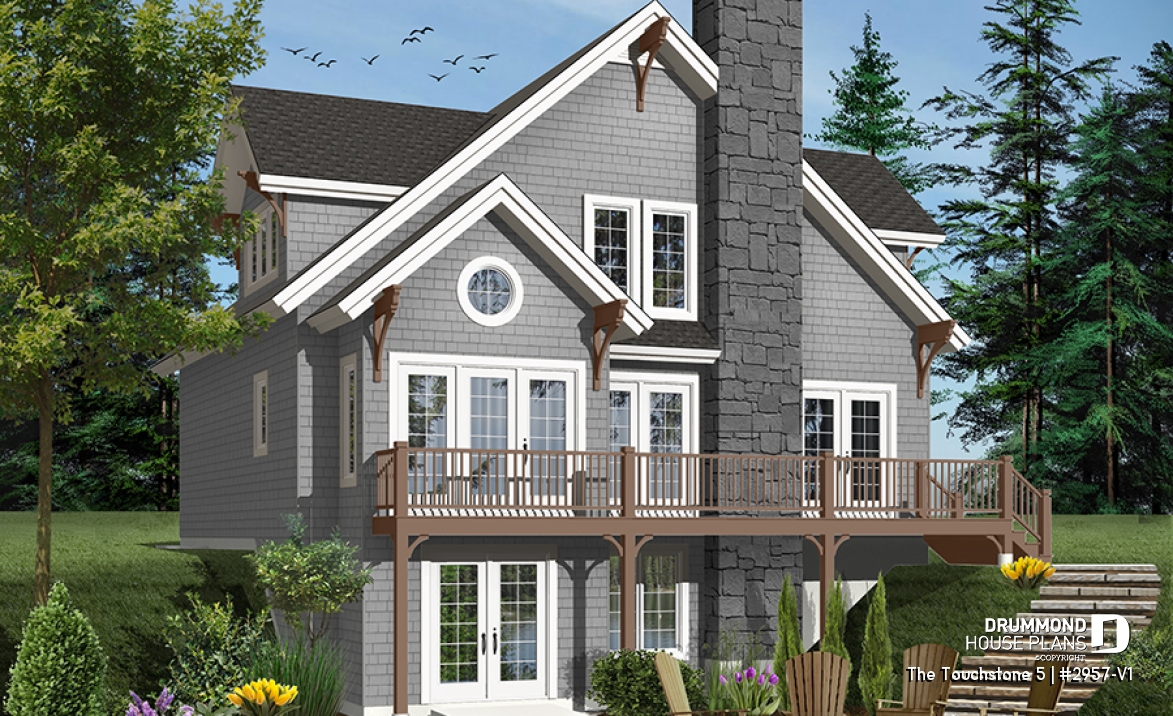

Color version 6 - Rear

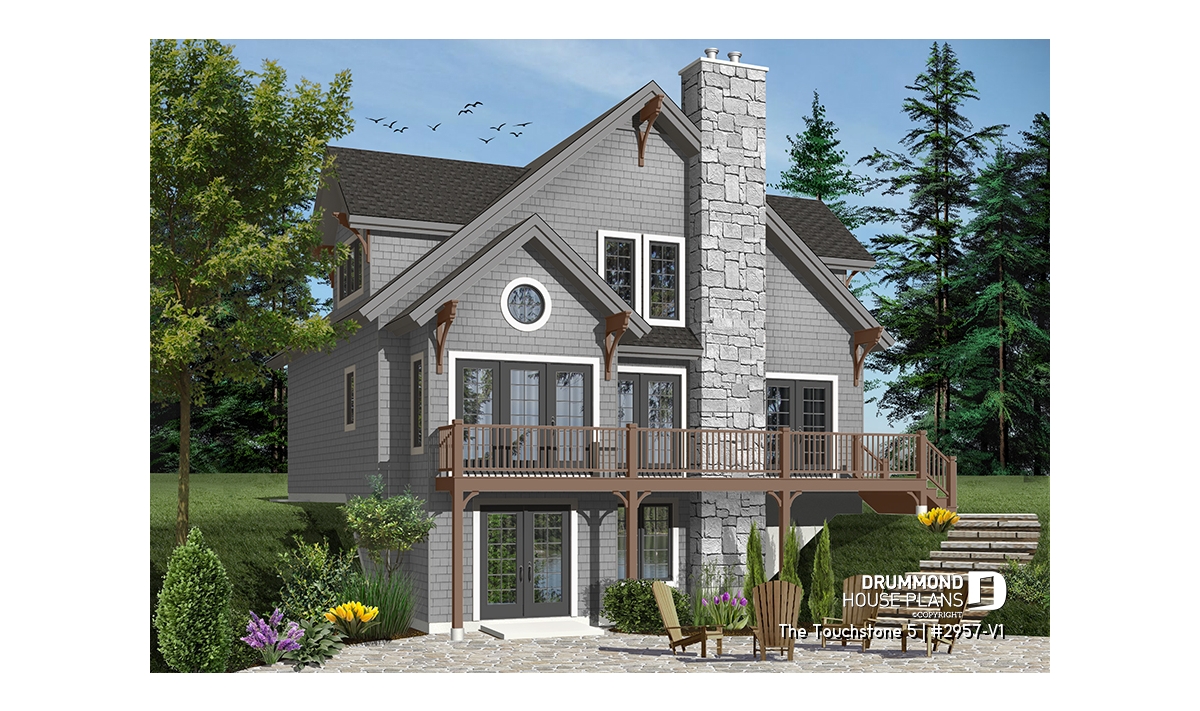

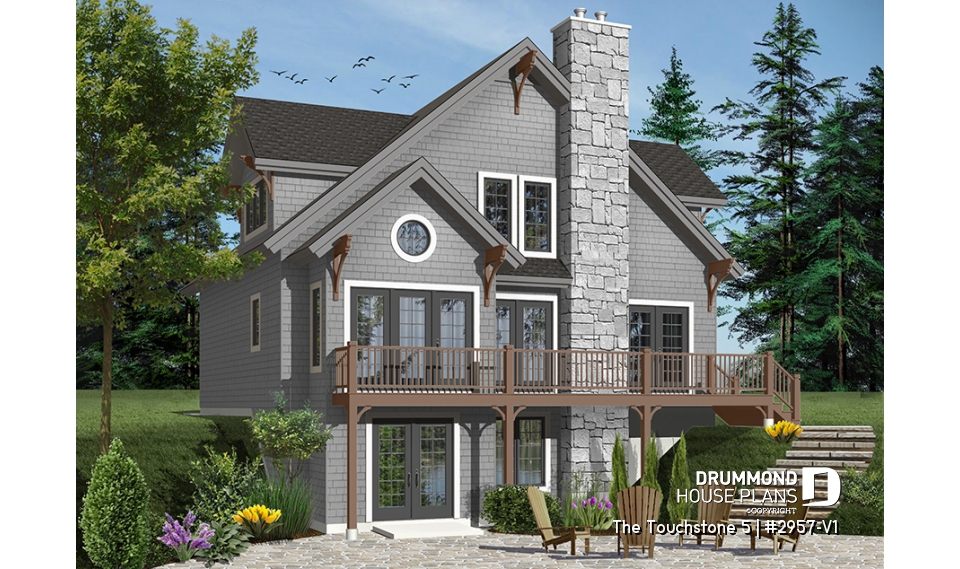

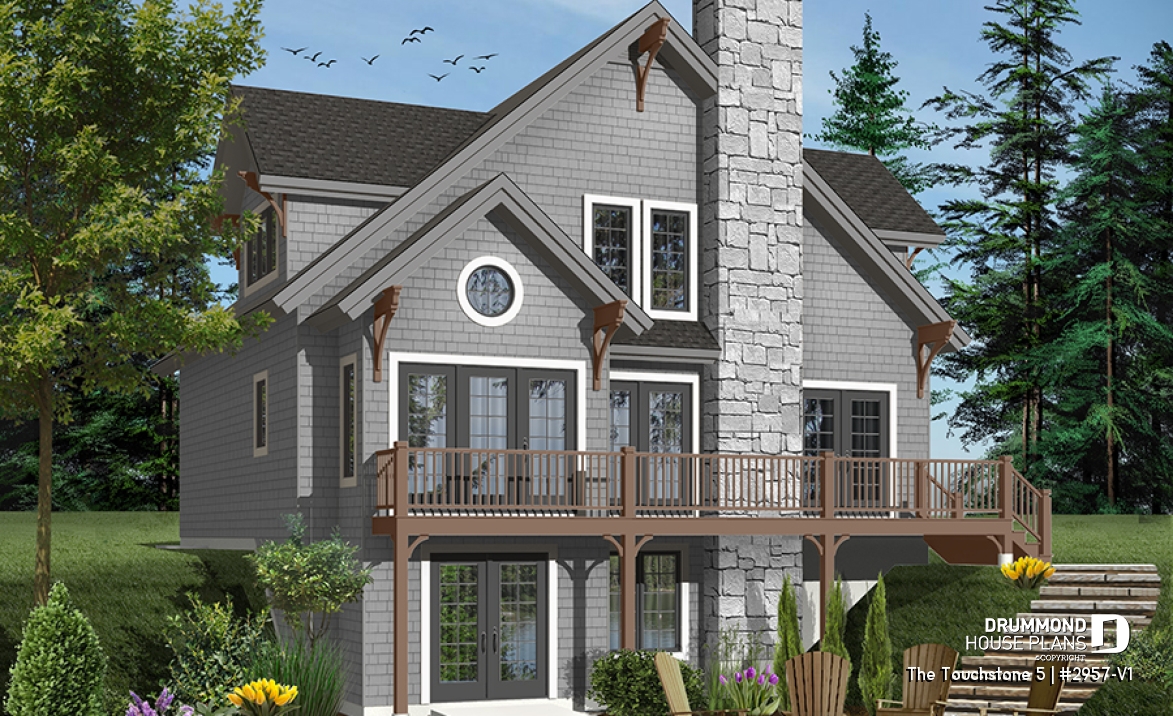

Color version 7 - Rear

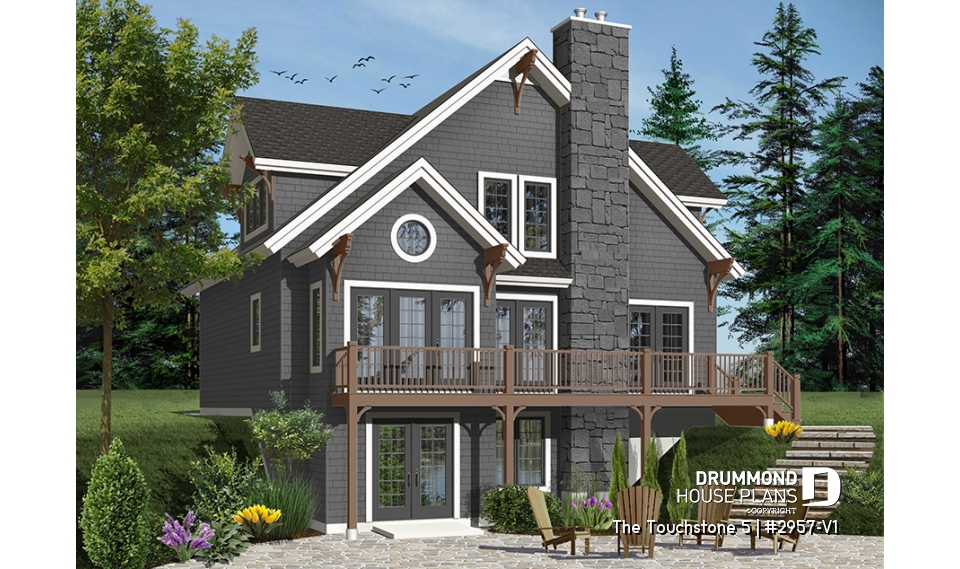

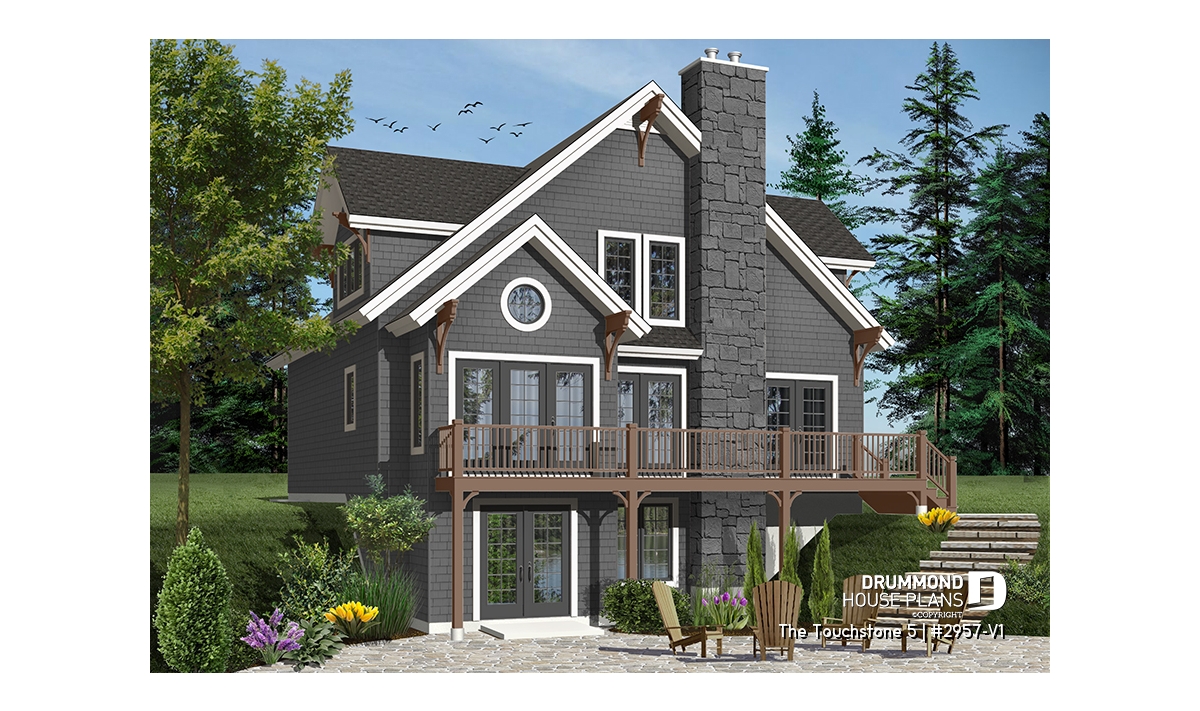

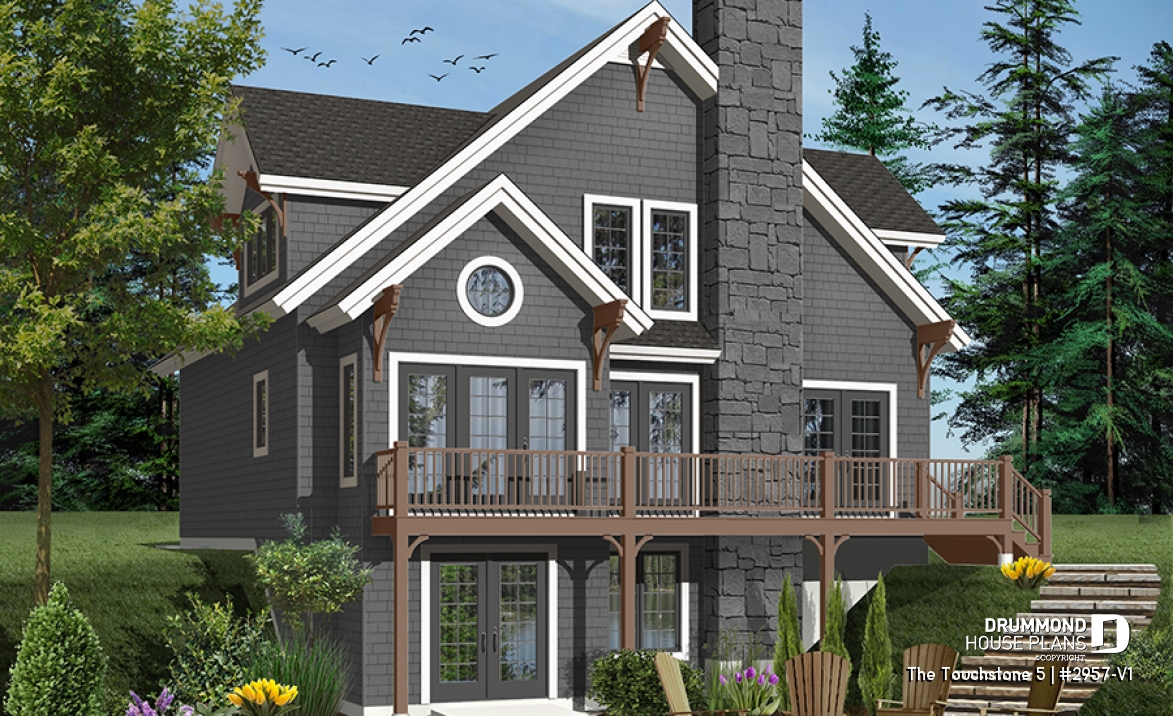

Color version 8 - Rear

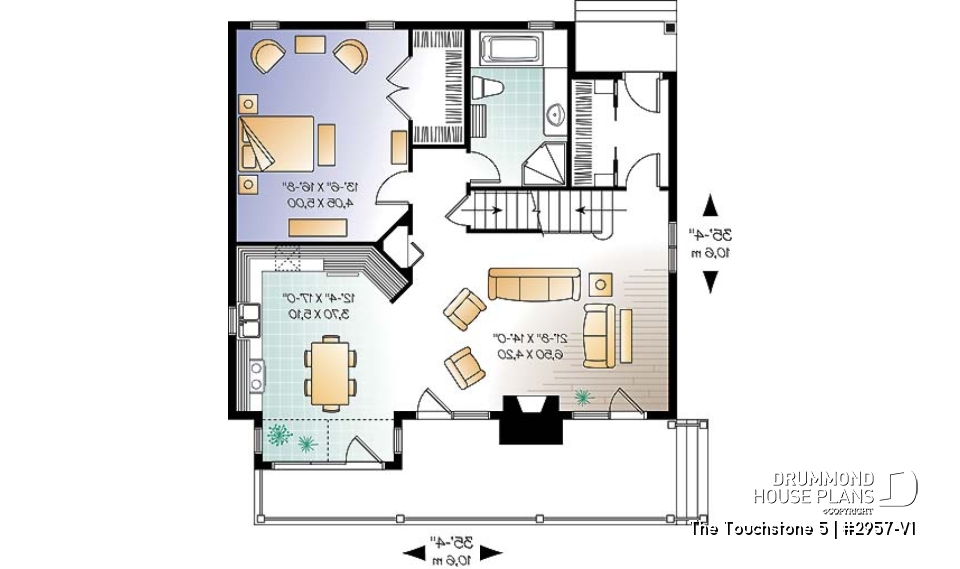

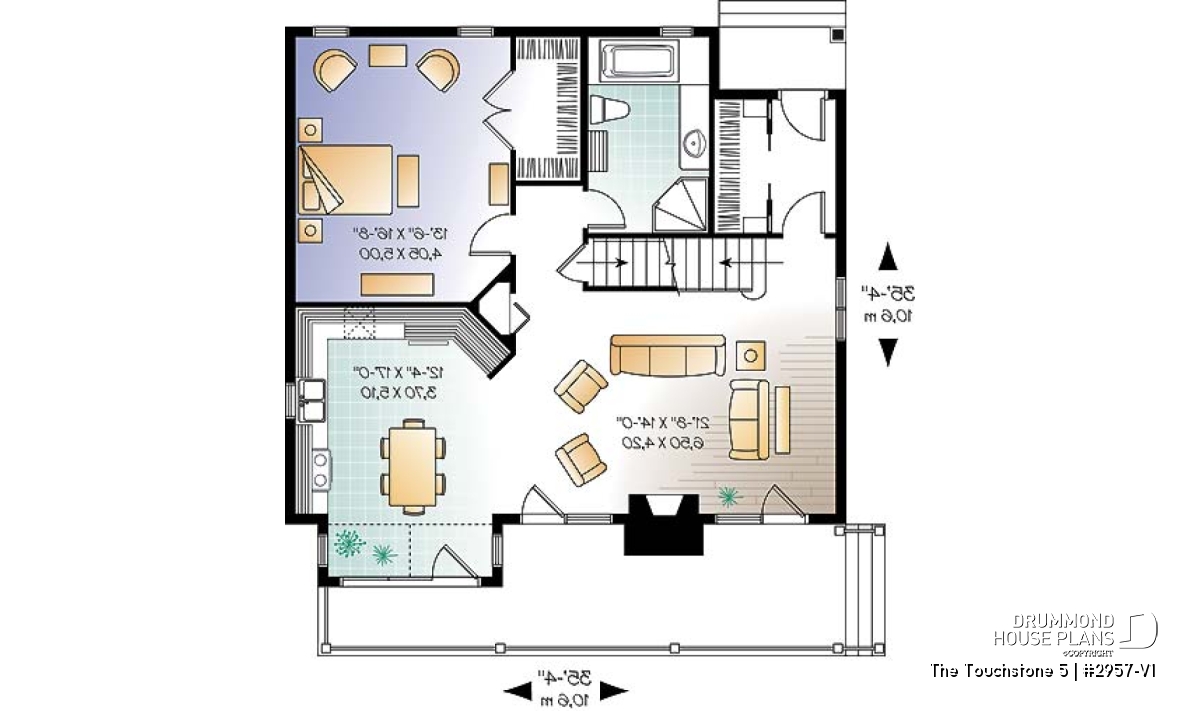

1st level

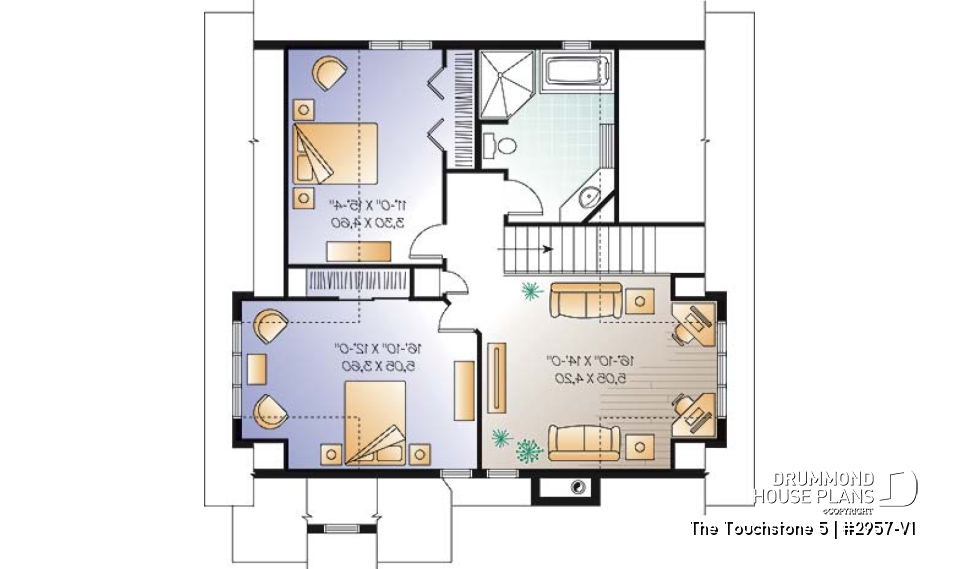

2nd level
Color version 5 - Rear
Rear view - BASE MODEL
front elevation
Color version 1 - Rear
Color version 2 - Rear
Color version 3 - Rear
Color version 4 - Rear
Color version 6 - Rear
Color version 7 - Rear
Color version 8 - Rear
1st level
2nd level
House plan The Touchstone 5 (# 2957-V1) Lakefront cottage plan, walkout basement, 3 to 4 bedrooms, open floor plan layout, fireplace
3, 4
2
2021 sq.ft.
-
Starting from
1740$
Photos of the plan The Touchstone 5
Additional details
General specifications
Total living area
2021 sq.ft.
1st level
1122 sq.ft.
2nd level
899 sq.ft.
Width
35'4"
Depth
35'4"
Ridge height from top of foundation
35'2"
Exterior wall
2 X 6
Full basement with walkout
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
E
Rooms specifications
Bedroom(s)
3, 4
Full baths
2
Half baths
-
Garage type
-
Covered porch area
32 sq.ft.
1st level
Rooms
Sizes
Ceiling
Bedroom
13'6" x 16'8"
~ 8'0"
Kitchen/dining room
12'4" x 17'0"
~ 8'0"
Foyer
4'0" x 8'4"
~ 8'0"
Porch
8'0" x 4'0"
N/D
Storage
2'0" x 3'4"
~ 8'0"
Full bathroom
7'7" x 12'4"
~ 8'0"
Living room
21'8" x 14'0"
~ 8'0"
Deck
33'2" x 8'4"
N/D

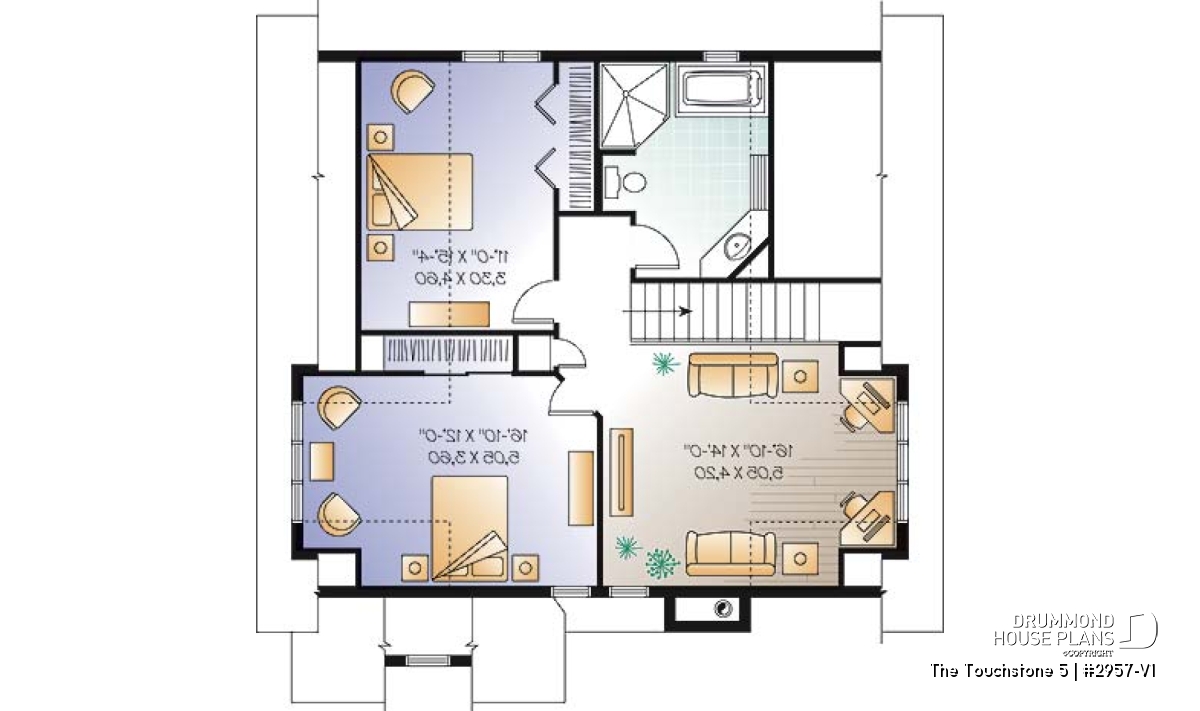

2nd level
Rooms
Sizes
Ceiling
Bedroom
16'10" x 12'0"
~ 8'0"
Bedroom
11'0" x 15'4"
~ 8'0"
Linen
2'0" x 2'0"
~ 8'0"
Full bathroom
9'6" x 12'4"
~ 8'0"
Cottage plan with walkout basement and 3 to 4 bedrooms
A sloped lot is the ideal place to nestle this stylish but casual cottage. Abundant windows and full width deck provide ideal vantage points from inside or out. A casual floorplan includes a generous eat-in kitchen and the great room for memorable gatherings. Retreat to the main level master which includes a generous walk-in closet and semi-private access to a relaxing four-fixture bathroom.
The upper level includes two additional bedrooms and a secluded family room and bathroom with soaker tub and large independent shower.
A daylight basement with garden door exit is a blank canvas to be developed as desired.
The upper level includes two additional bedrooms and a secluded family room and bathroom with soaker tub and large independent shower.
A daylight basement with garden door exit is a blank canvas to be developed as desired.
Distinctive elements
Remarkable living room on main floor with two patio doors and a fireplace. Master bedroom on main level with walk-in closet. Game room or bedroom #4 on 2nd level.
Plan feature(s)
Open floor layout, Sitting area, Fireplace, Sloped ceiling, Game room, Master suite on main, Panoramic view, Walk-in master bed.
Plan architectural style(s)
Cottage, chalet, cabin, Vacation and waterfront, Craftsman / Northwest, Ski chalets, American, A-Frame, Country, Cape Cod, Mountain, Transitional
The plan The Touchstone 5 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
