House plan The Touchstone (2957)
Mountain style cottage house plan, 3 beds, large terrace, mezzanine, fireplace and open floor plan concept
View the size of the rooms and height of the ceilings

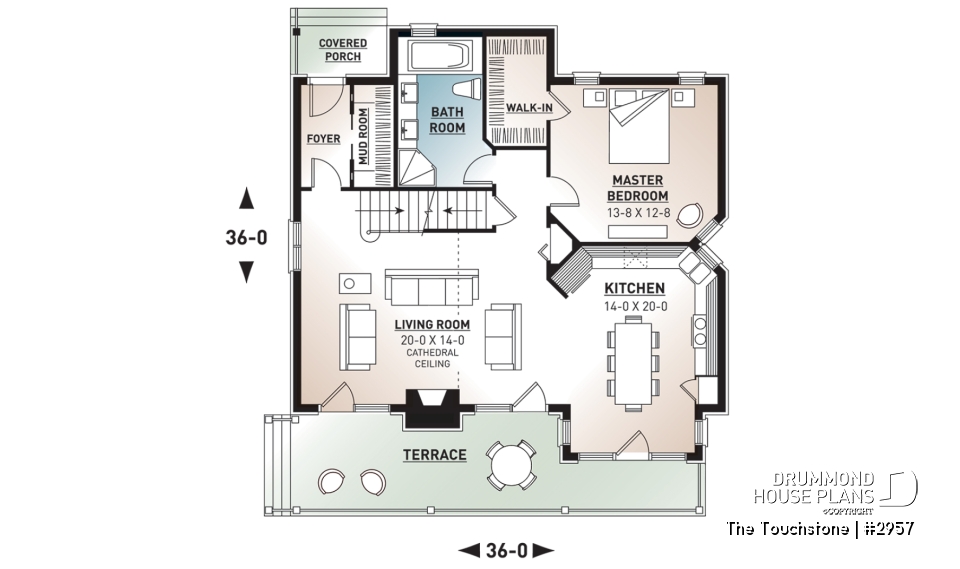

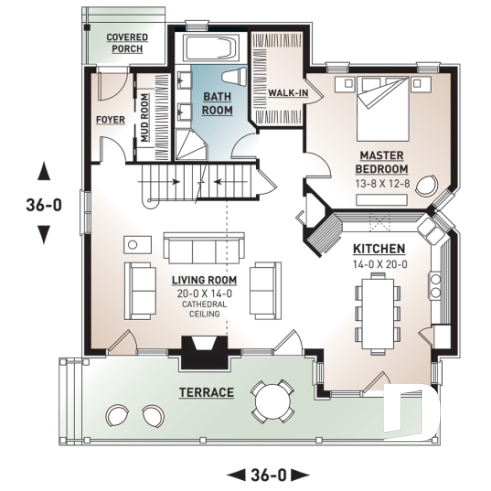

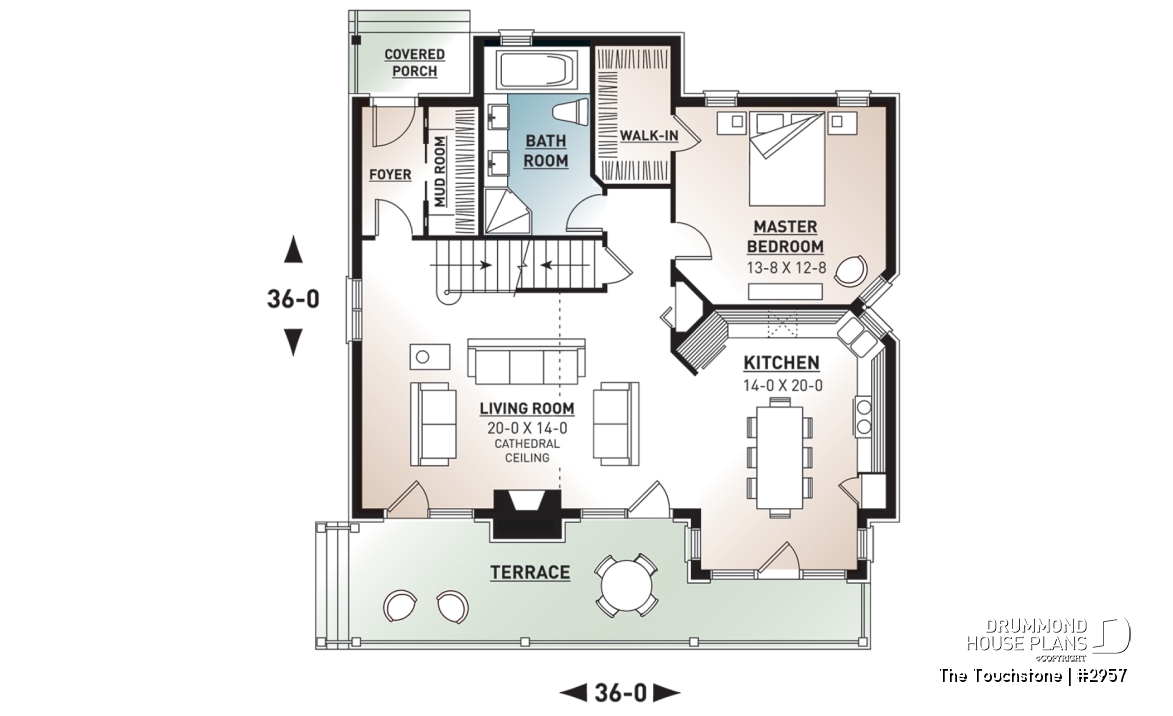

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'8" x 12'4" | ~ 8'0" |
| Living room | 20'0" x 14'0" | ~ 17'2" |
| Bedroom | 13'8" x 12'8" | ~ 8'0" |
| Linen | 2'0" x 3'4" | ~ 8'0" |
| Foyer | 4'0" x 8'4" | ~ 8'0" |
| Porch | 7'7" x 3'8" | N/A |
| Terrace | 33'4" x 8'0" | N/A |
| Kitchen/dining room | 14'0" x 17'0" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |

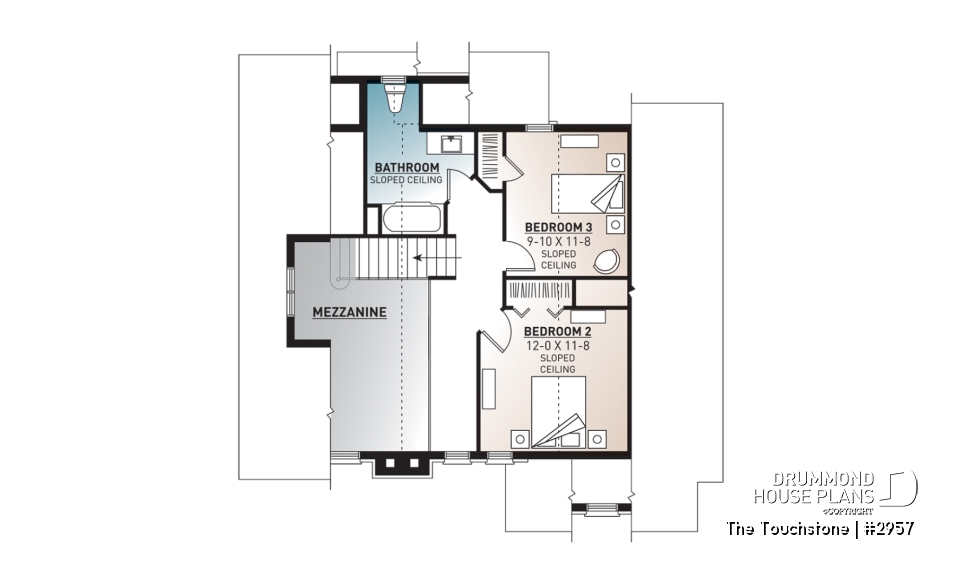

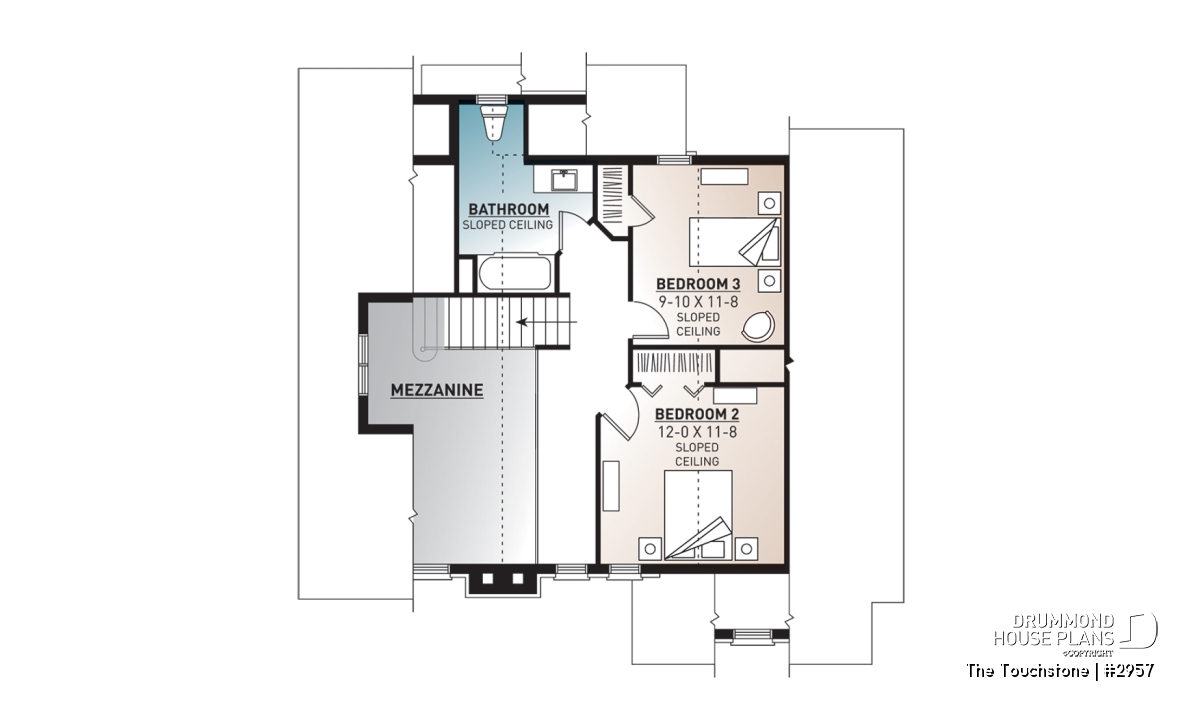

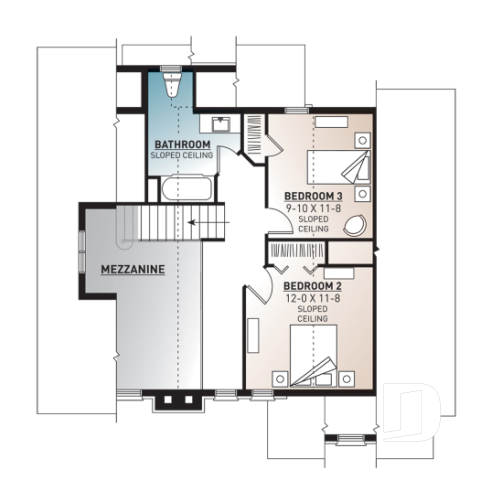

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'6" x 12'4" | ~ 8'0" |
| Bedroom | 12'0" x 11'8" | ~ 8'0" |
| Bedroom | 9'10" x 11'8" | ~ 8'0" |
| Basement |
|---|
General specifications
| Total living area | 1625 sq.ft. |
| 1st level | 1108 sq.ft. |
| 2nd level | 517 sq.ft. |
| Basement | 1108 sq.ft. |
| Width | 36'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 25'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications

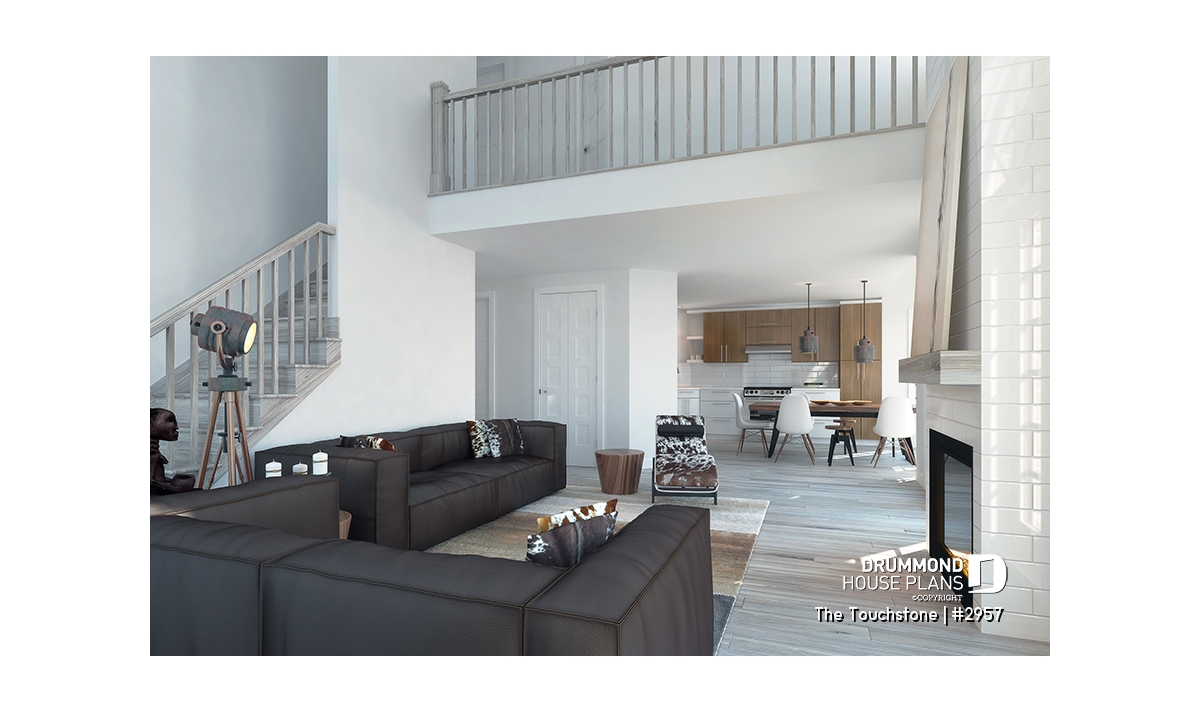

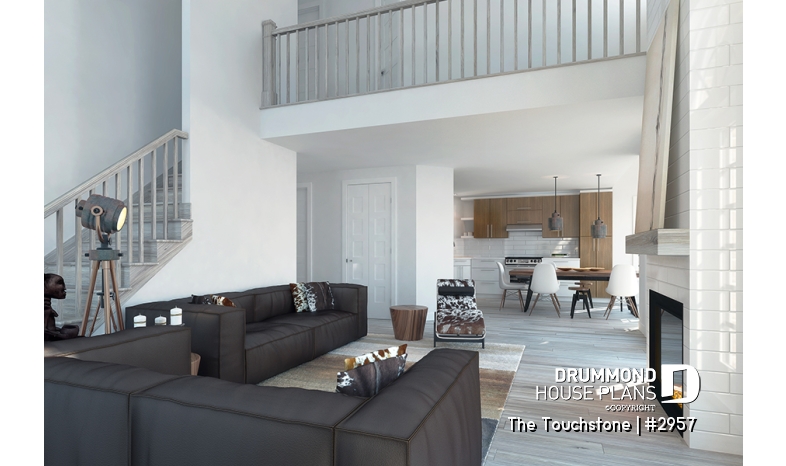

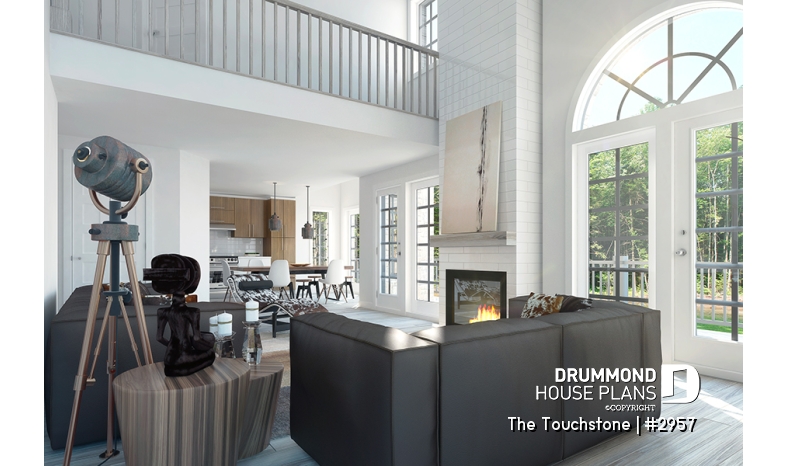

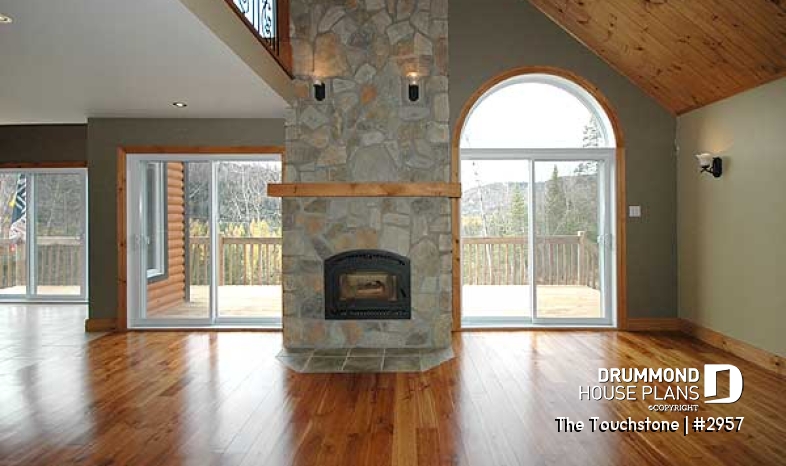

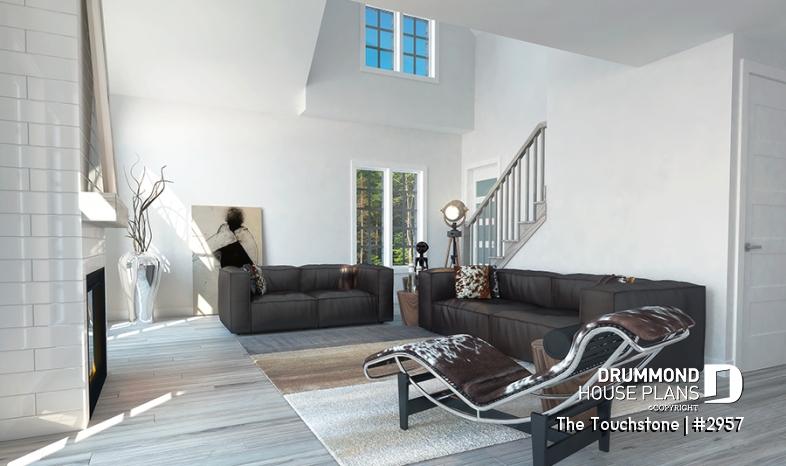

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

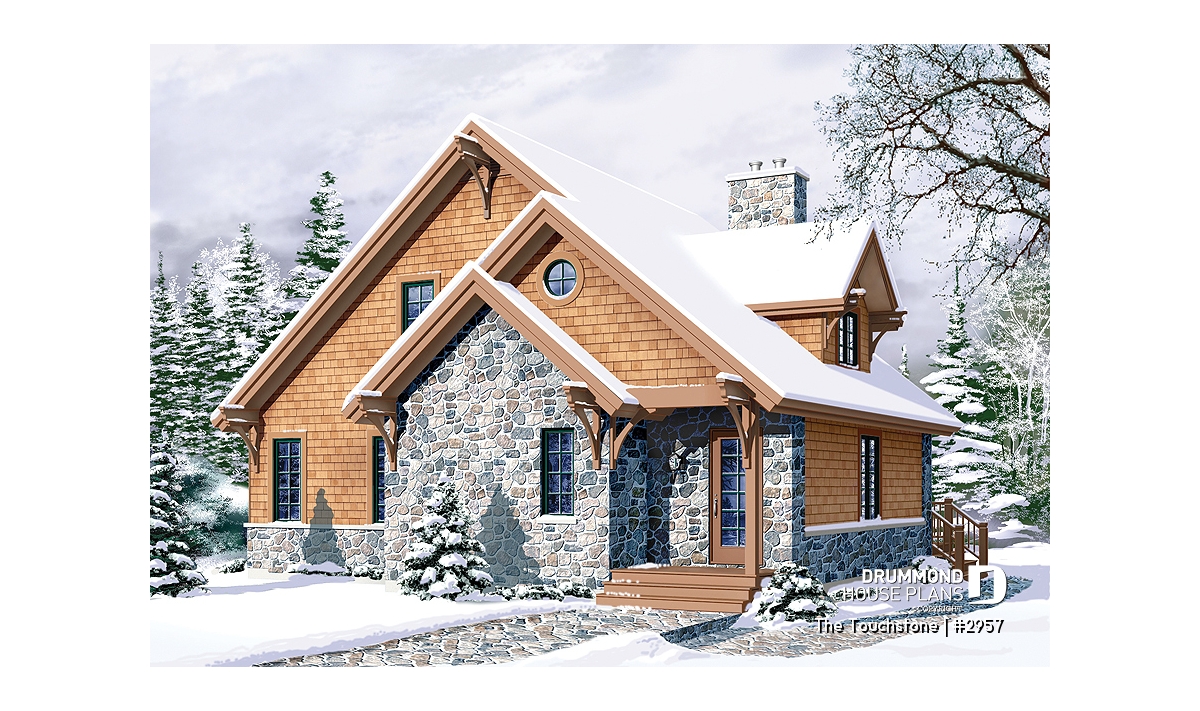

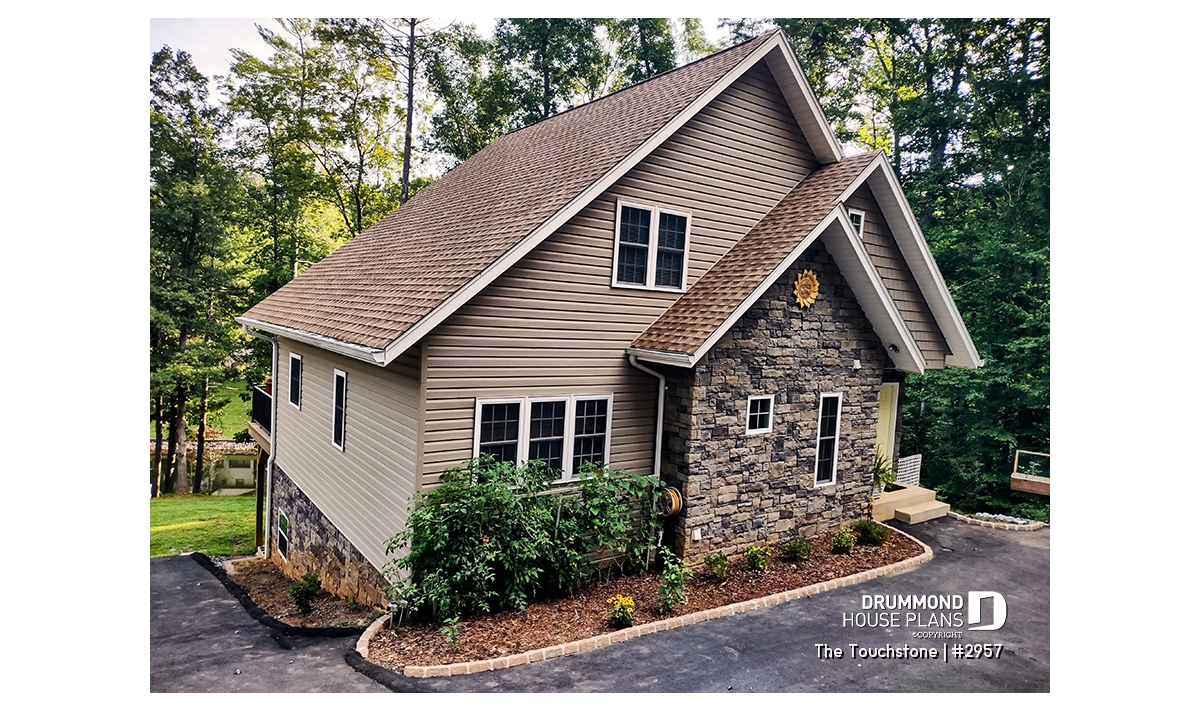

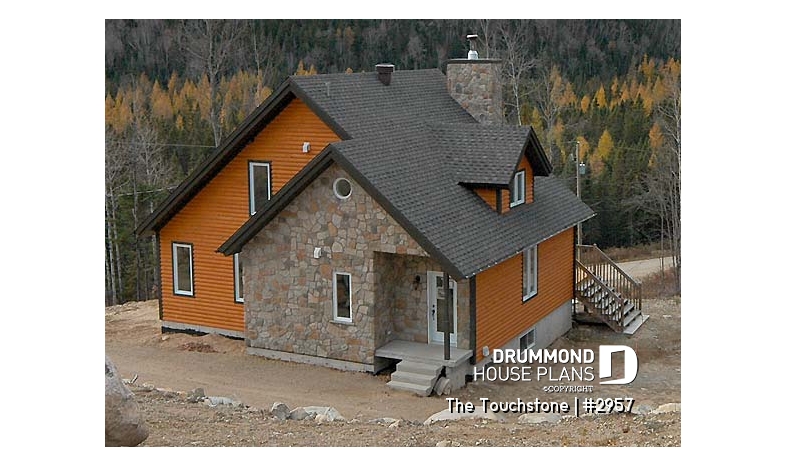

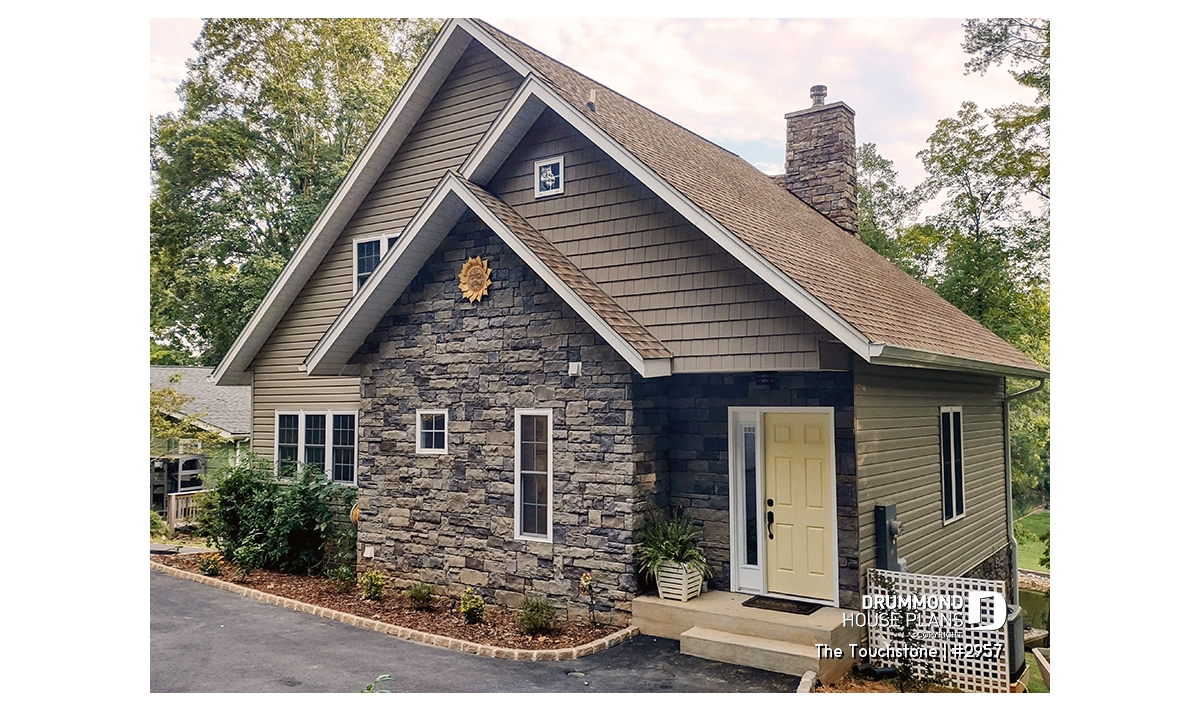

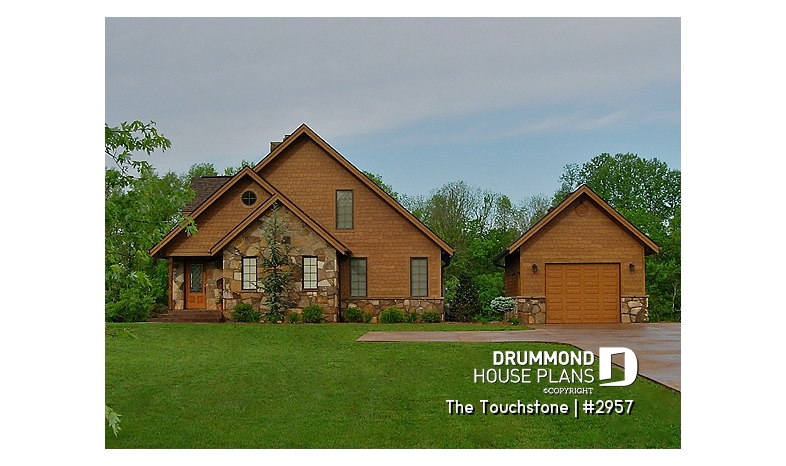

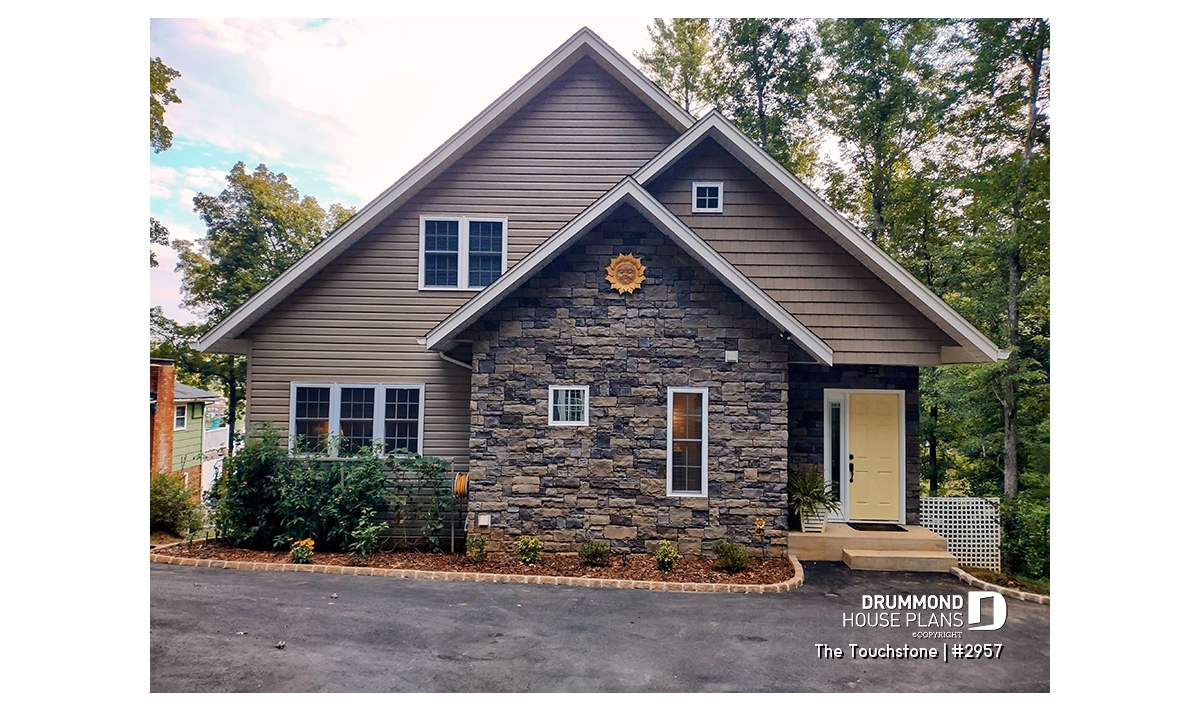

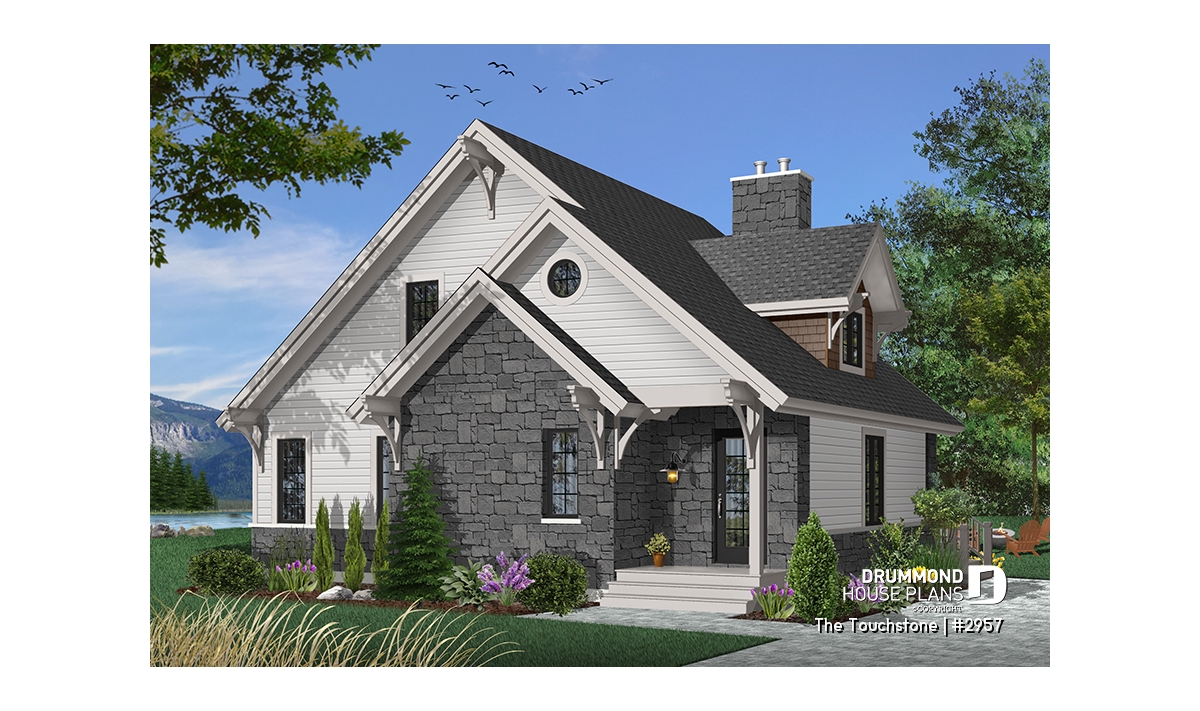

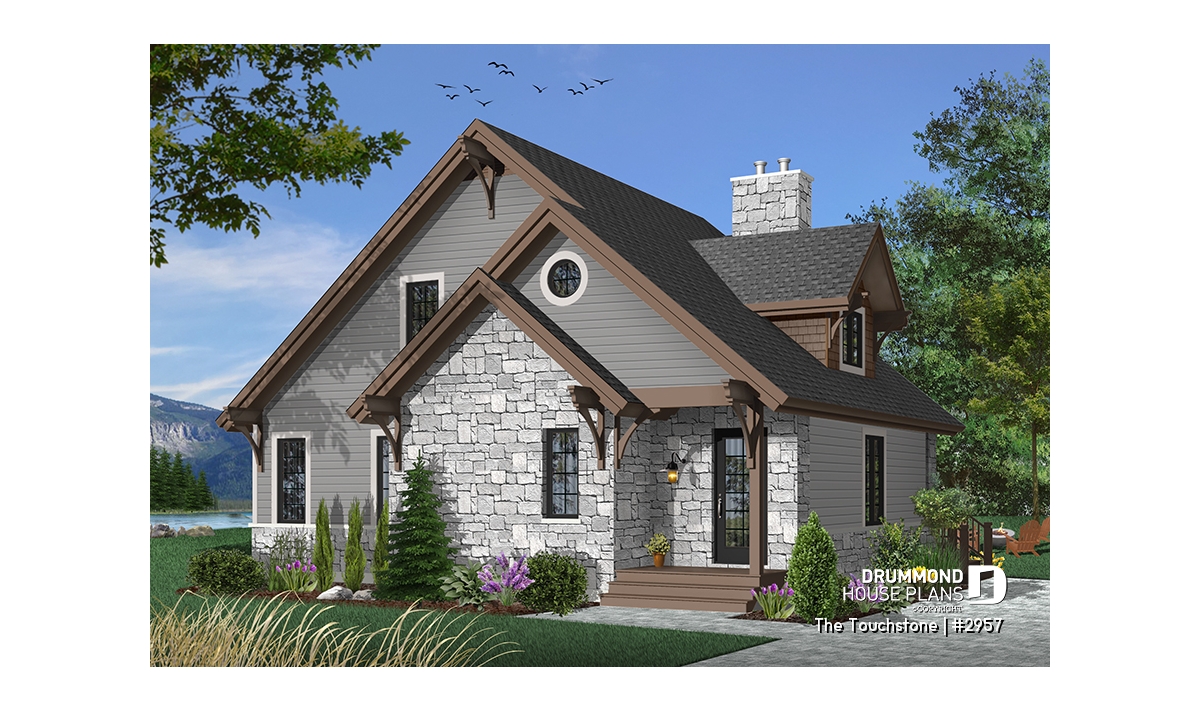

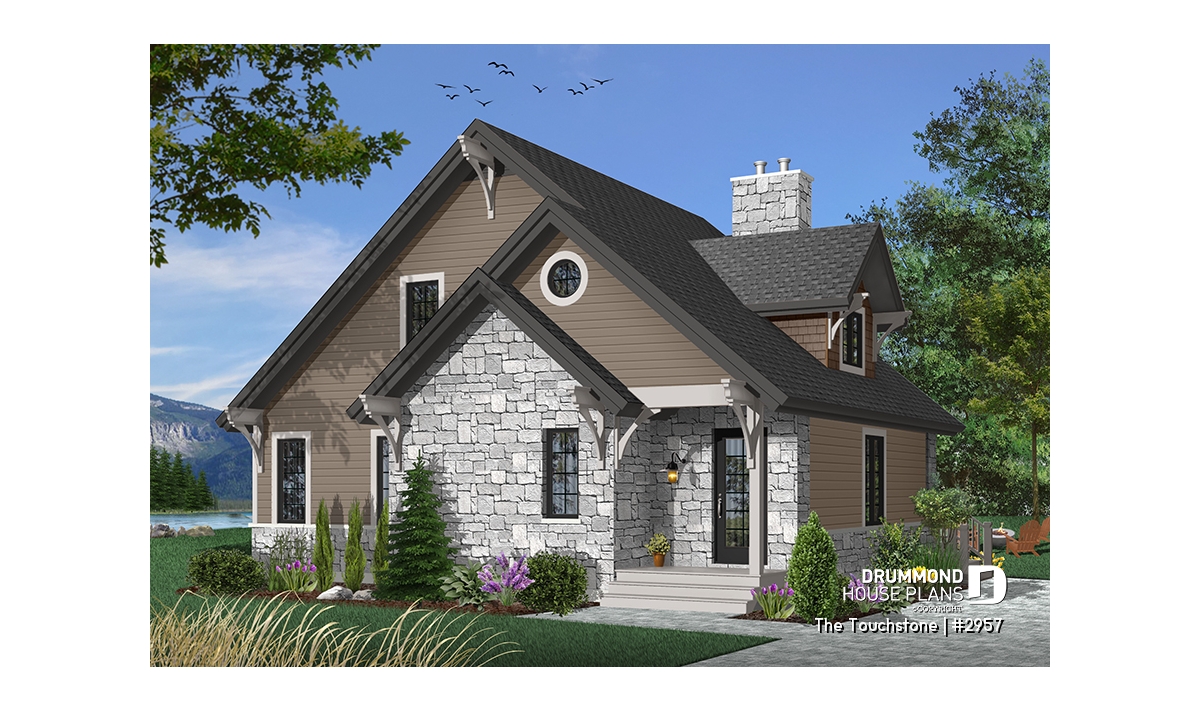

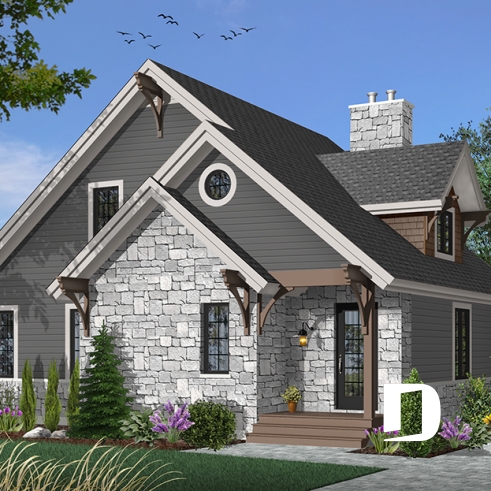

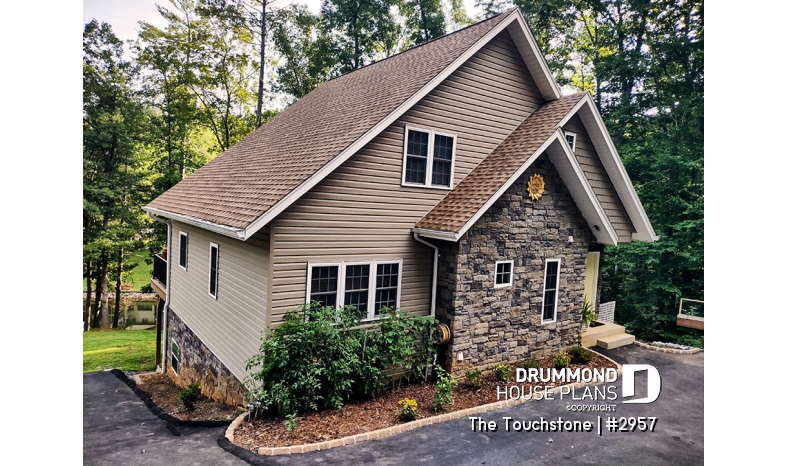

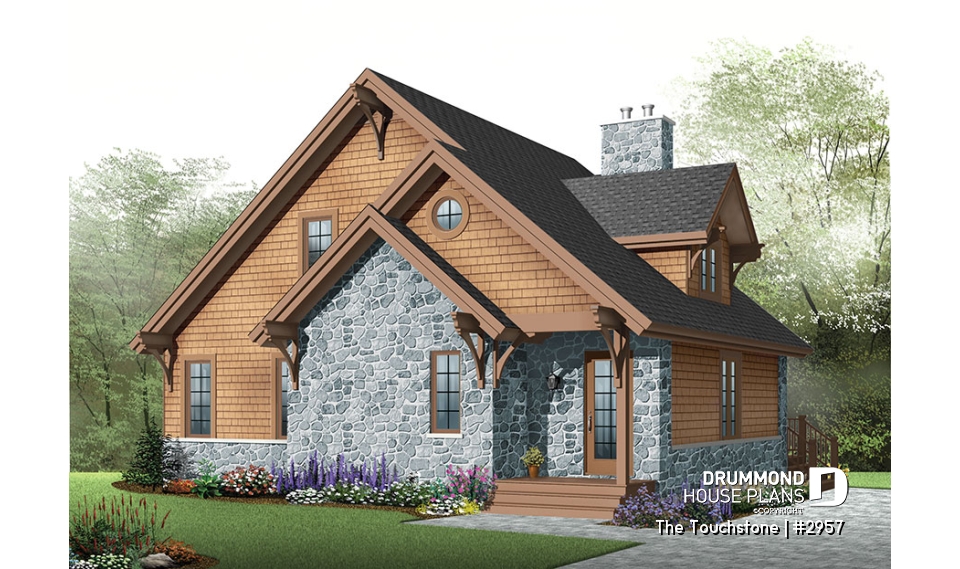

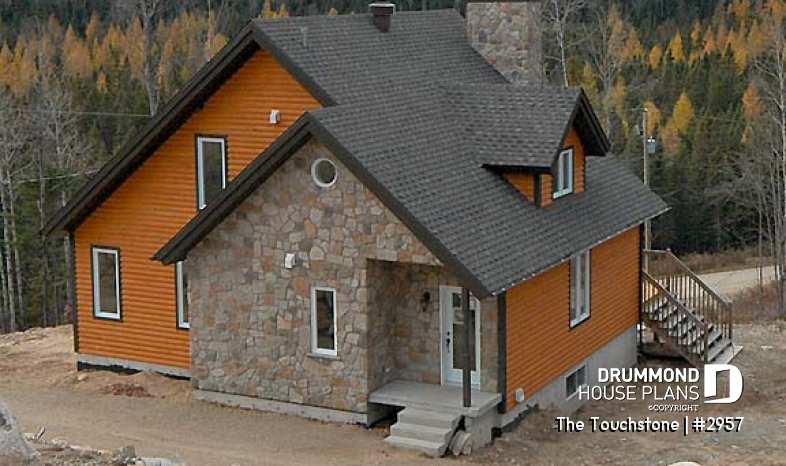

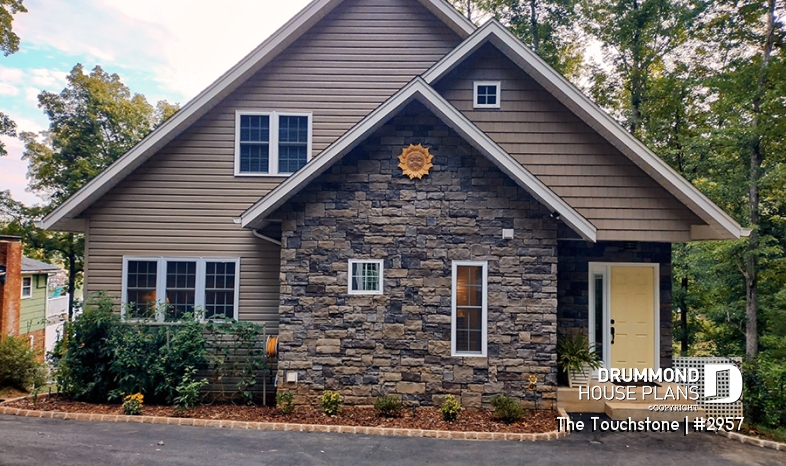

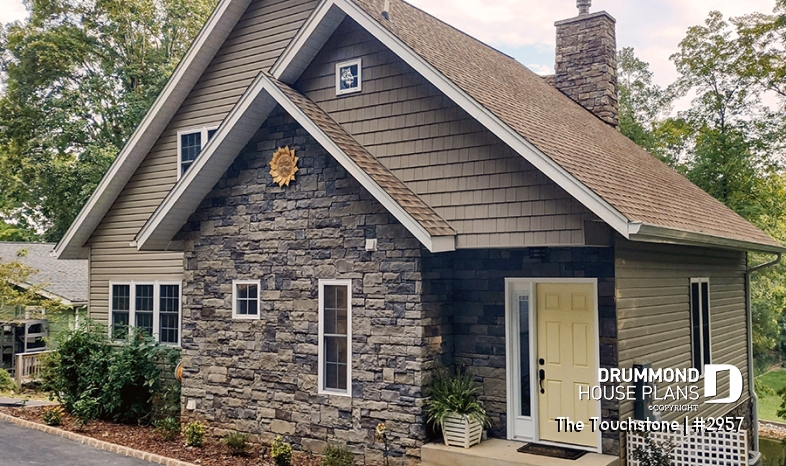

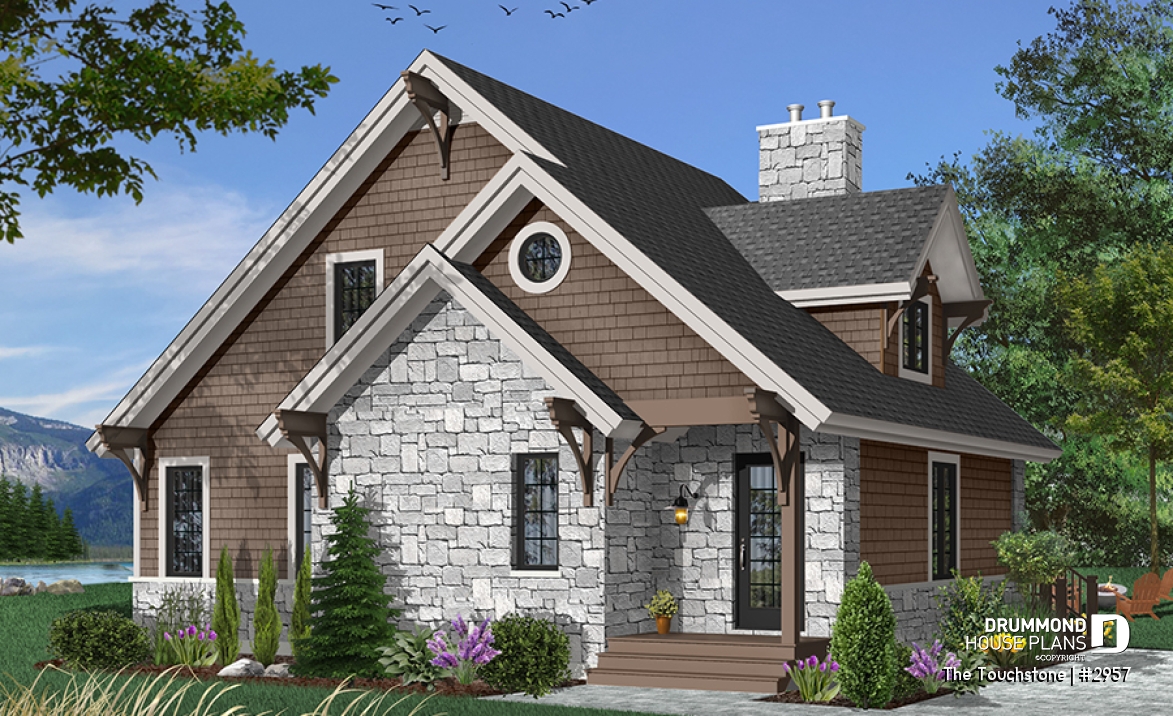

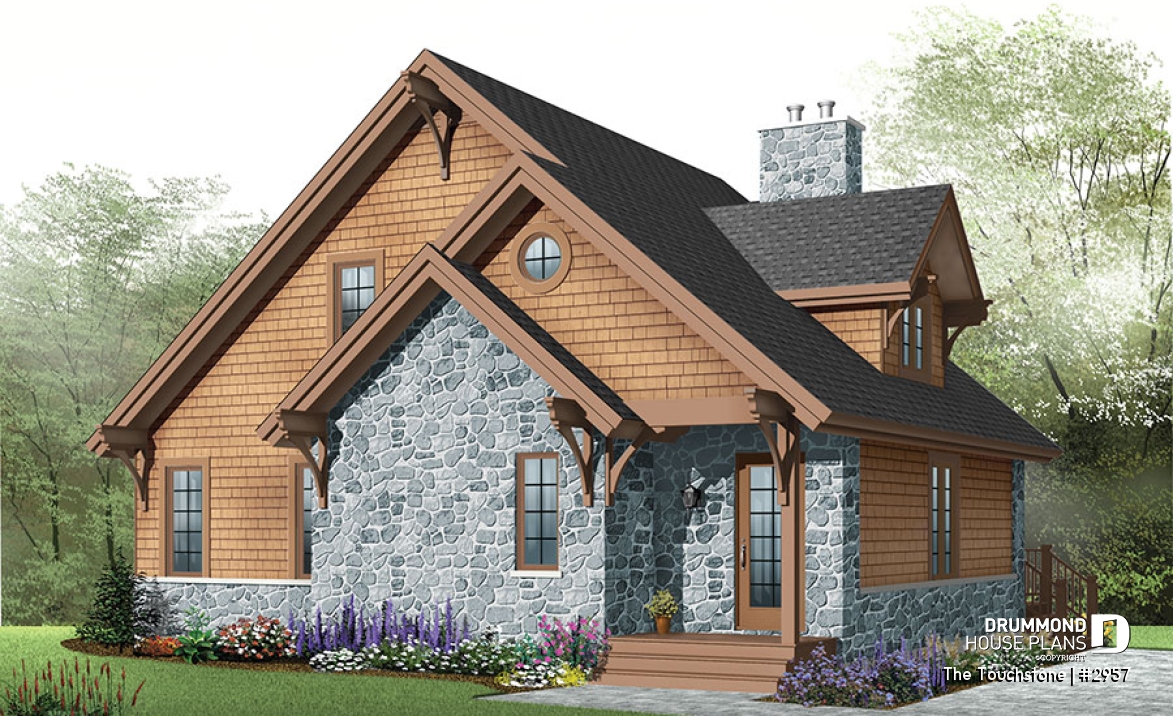

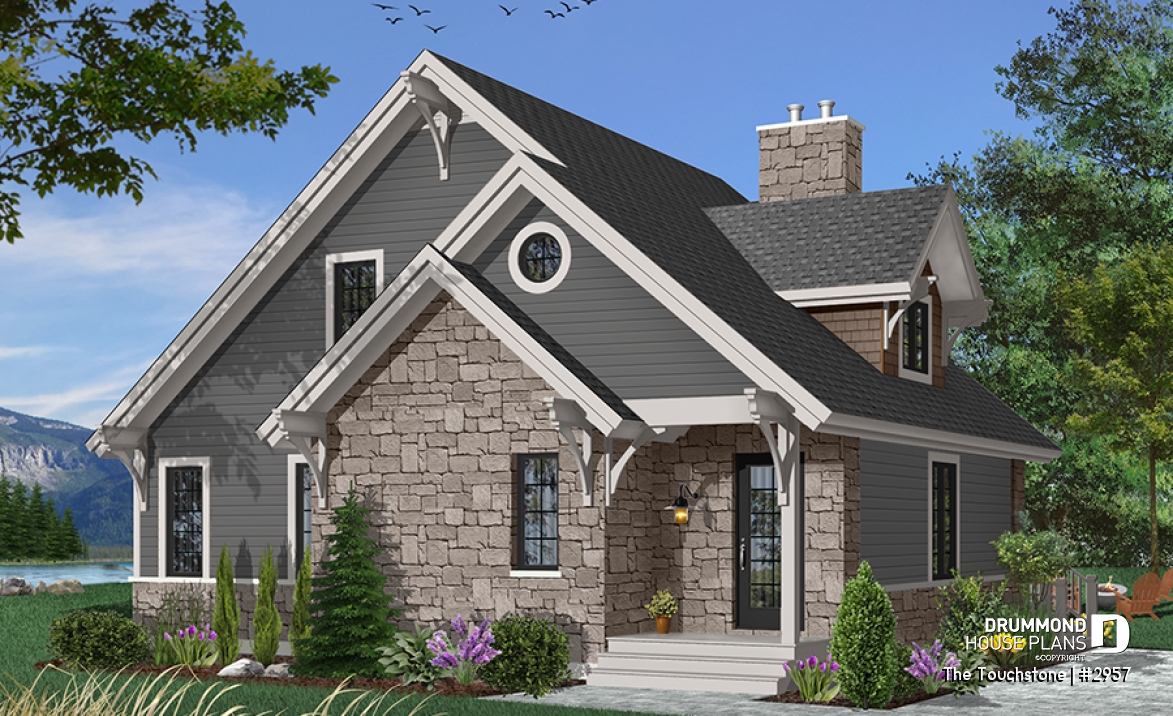

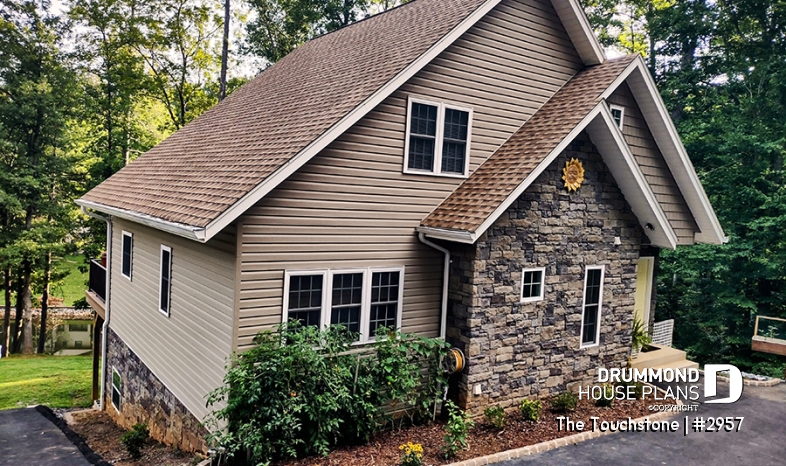

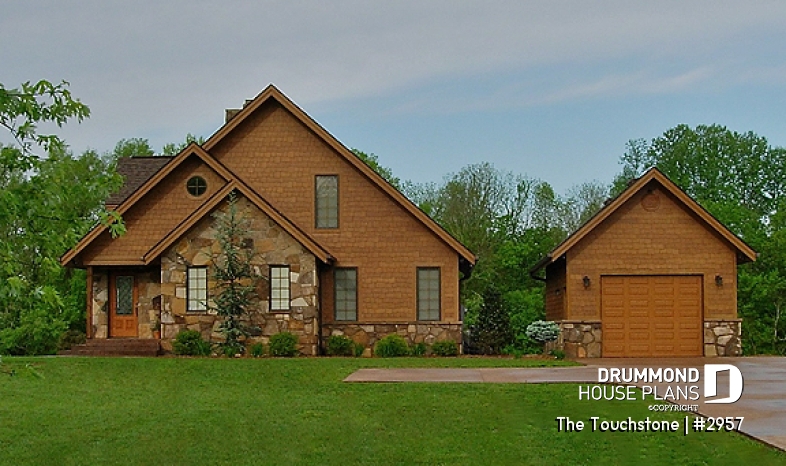

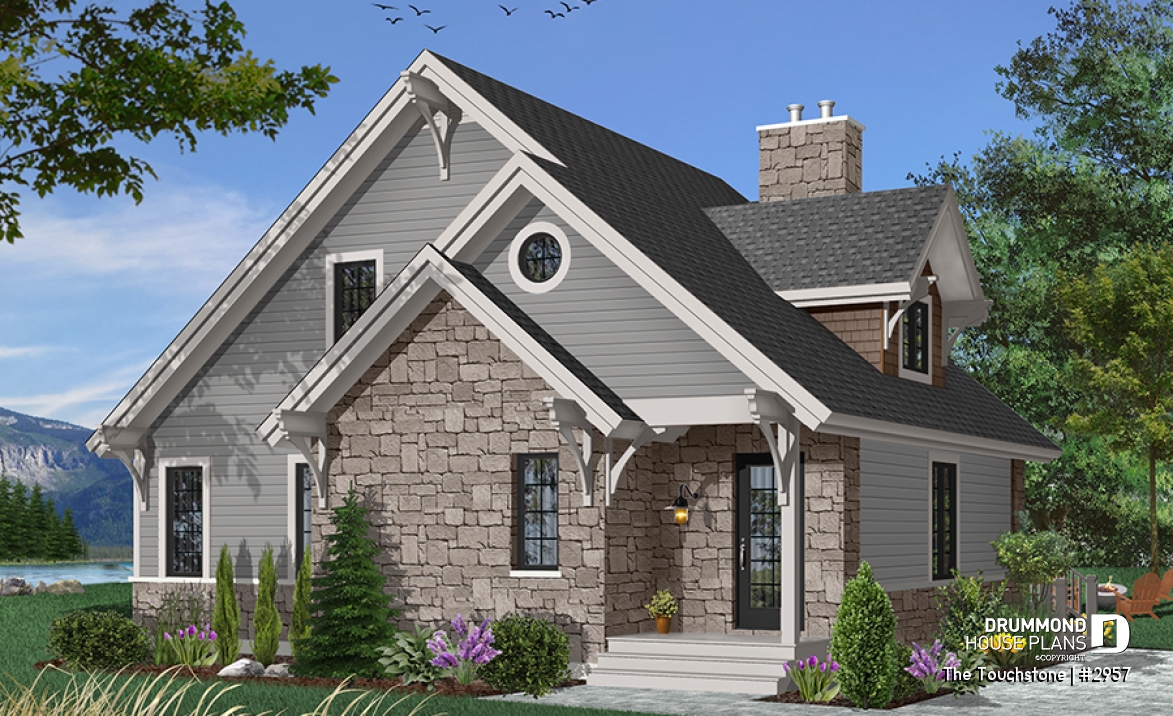

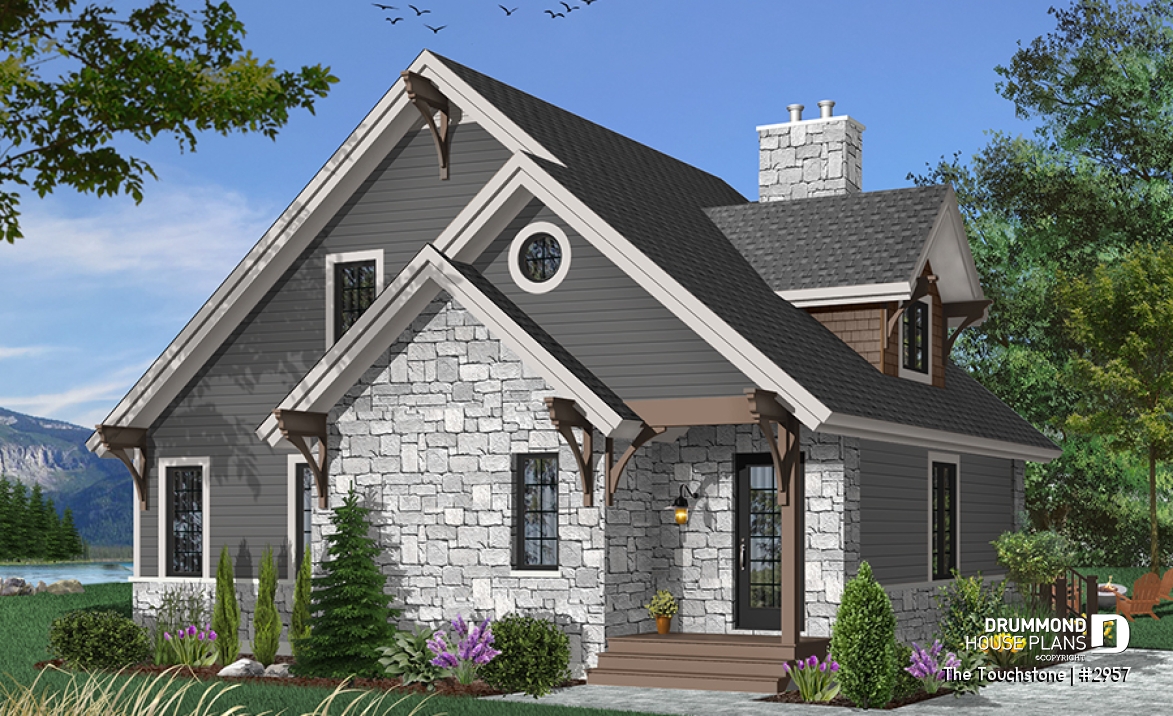

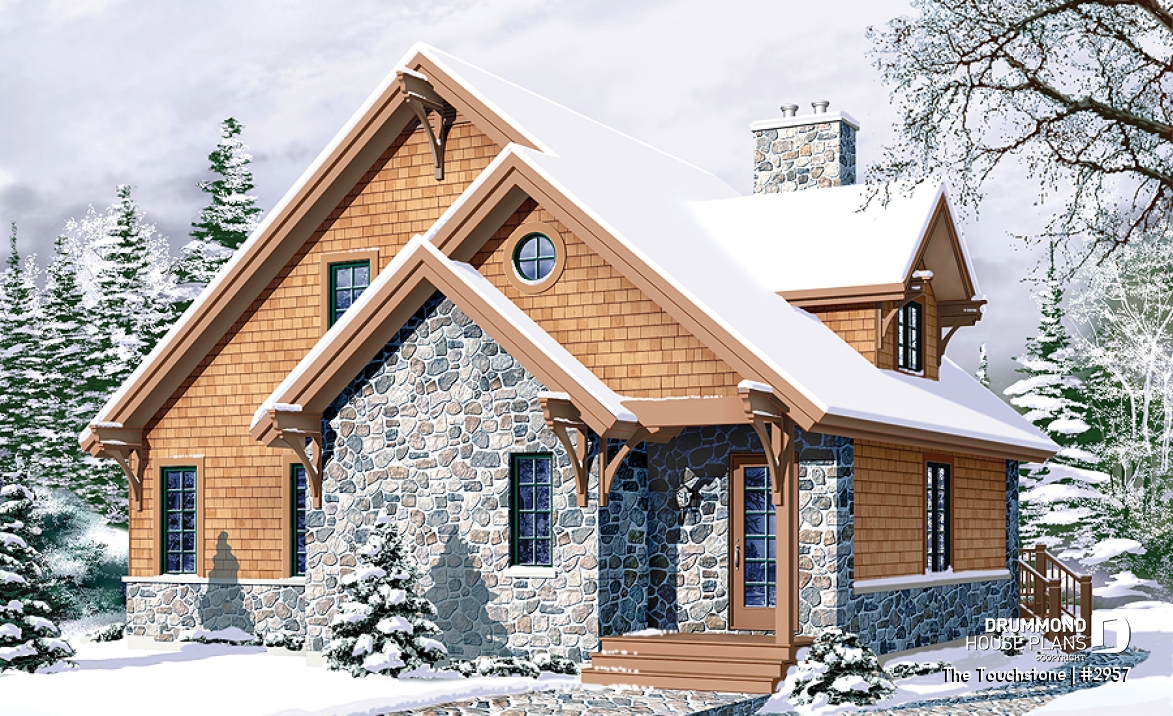

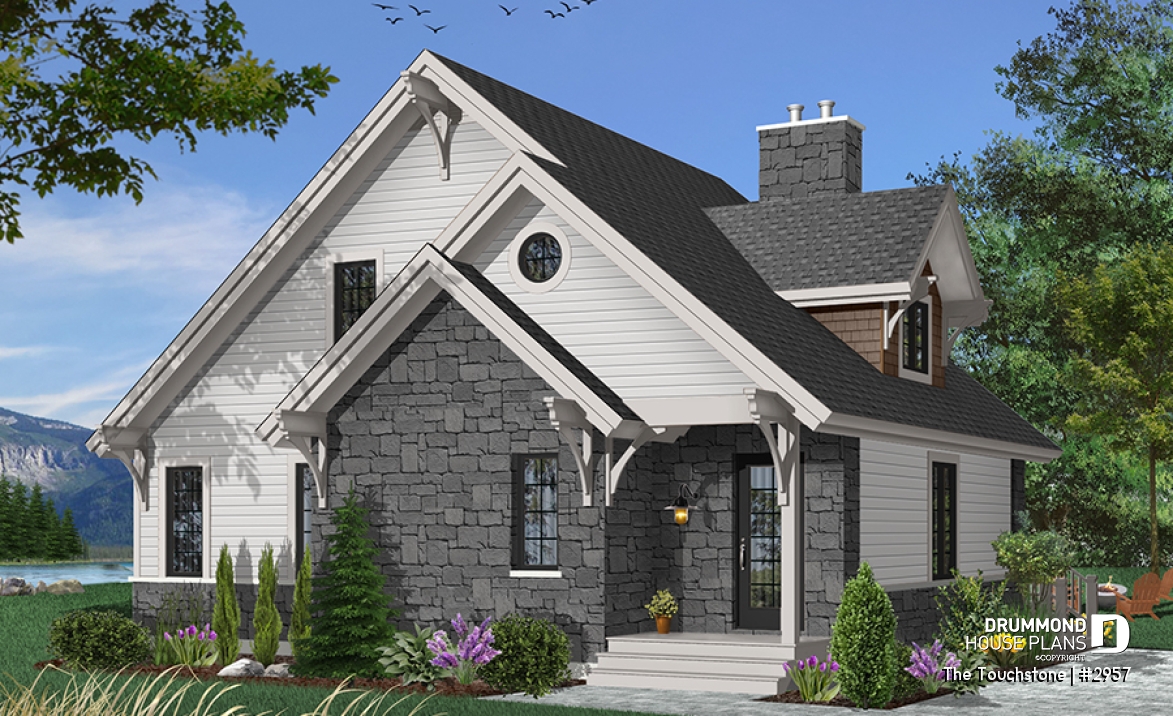

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

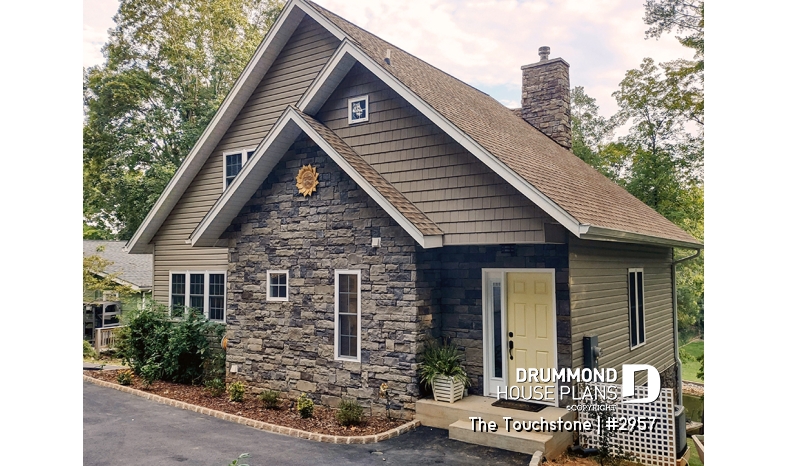

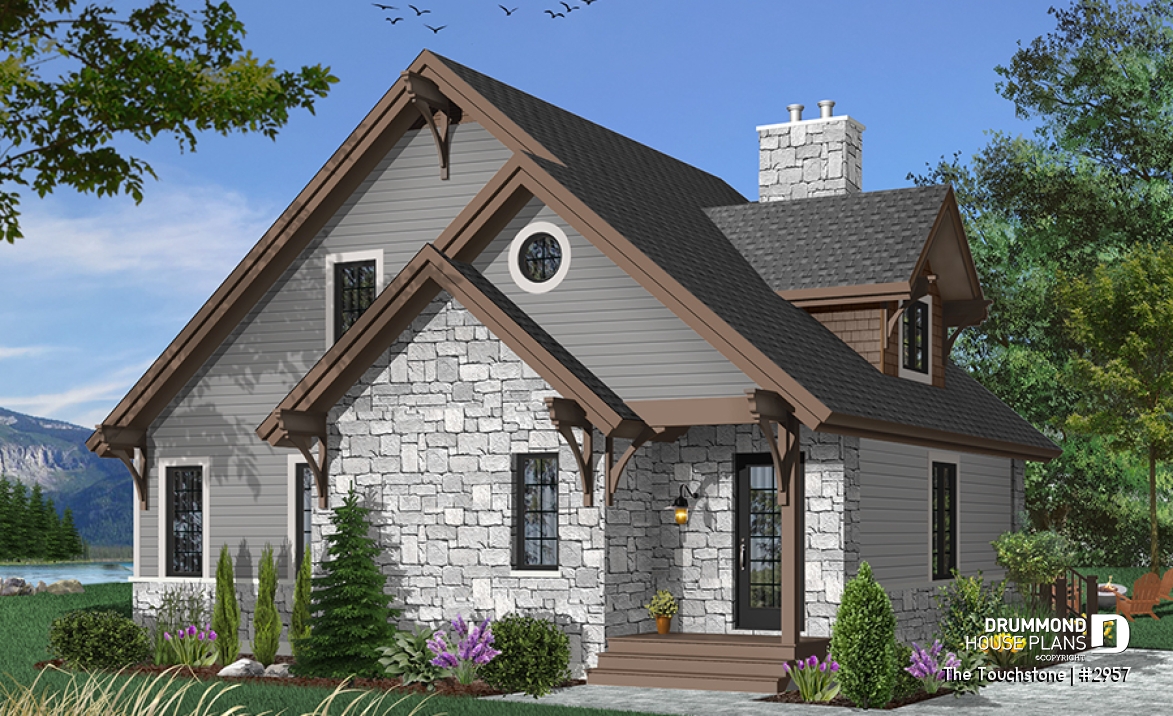

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Porch
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

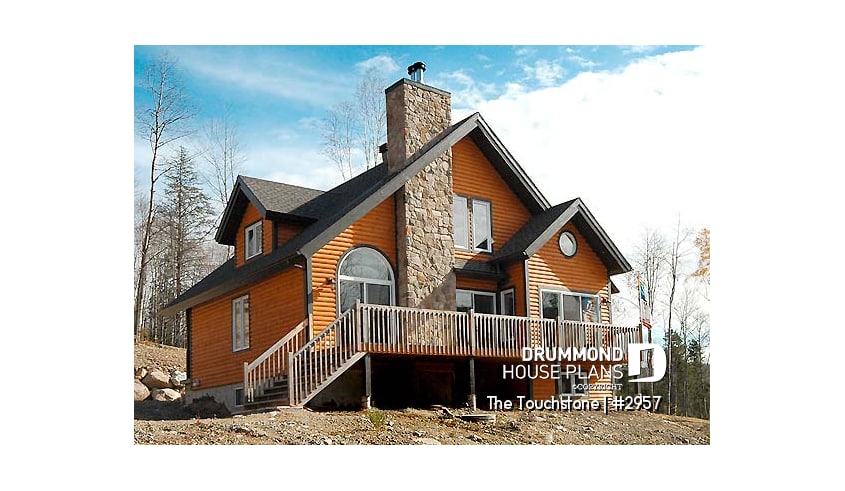

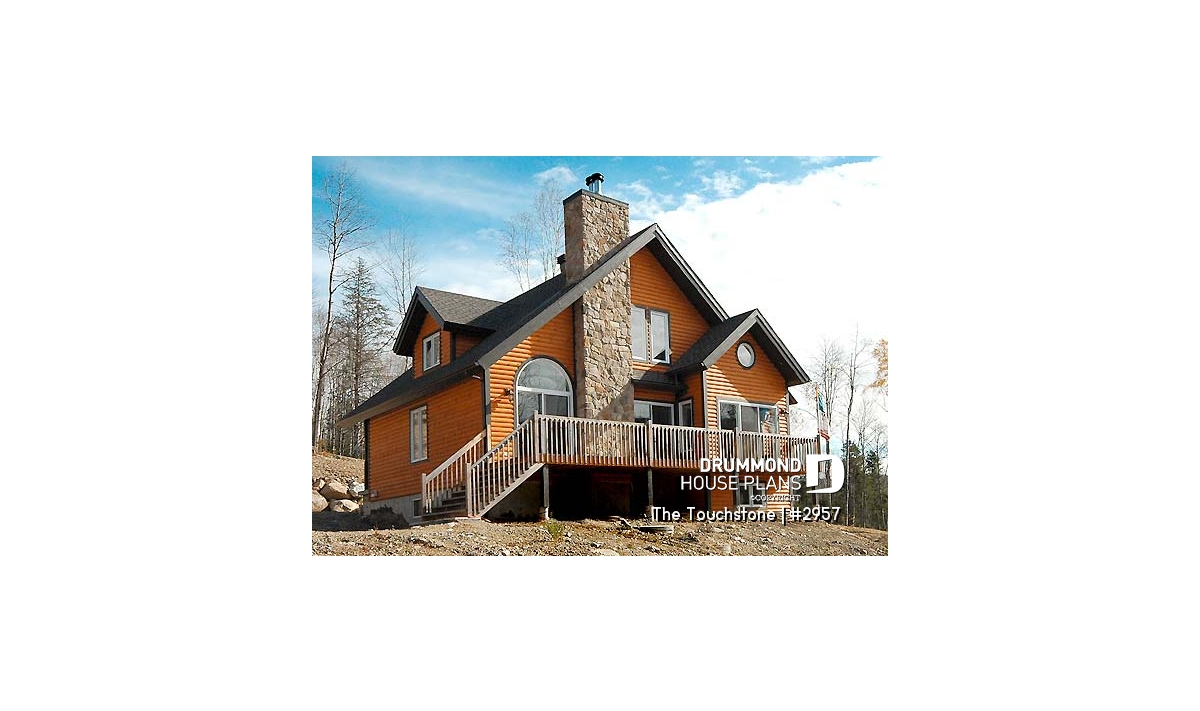

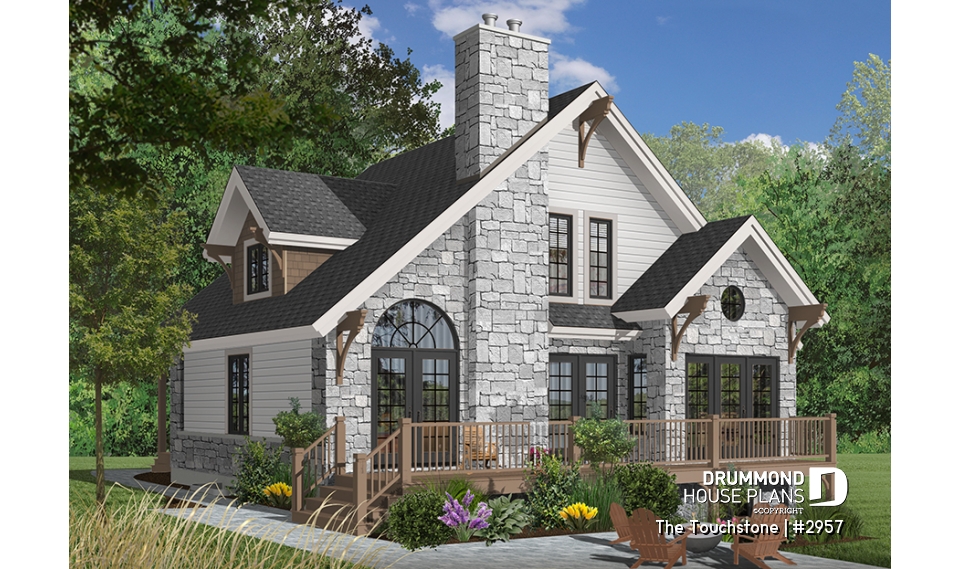

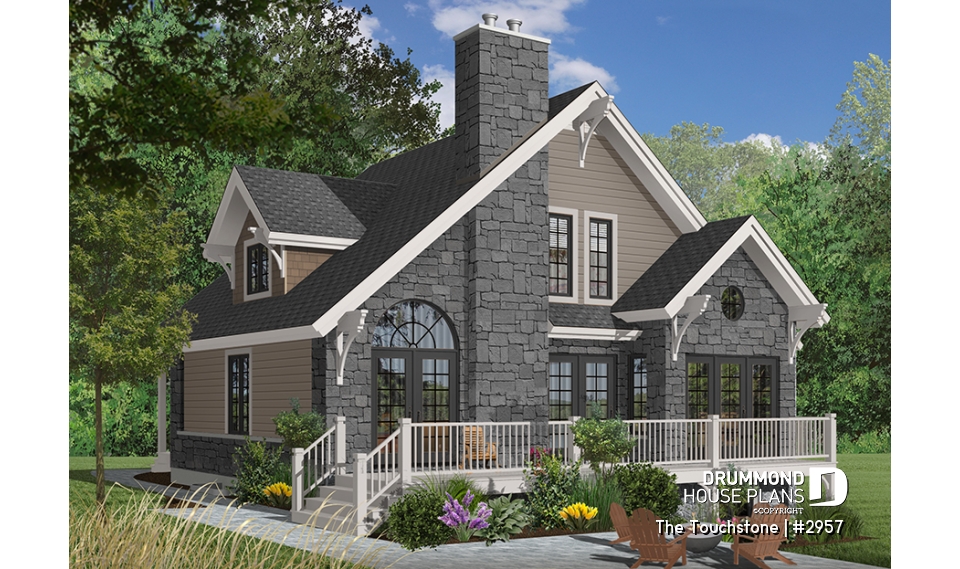

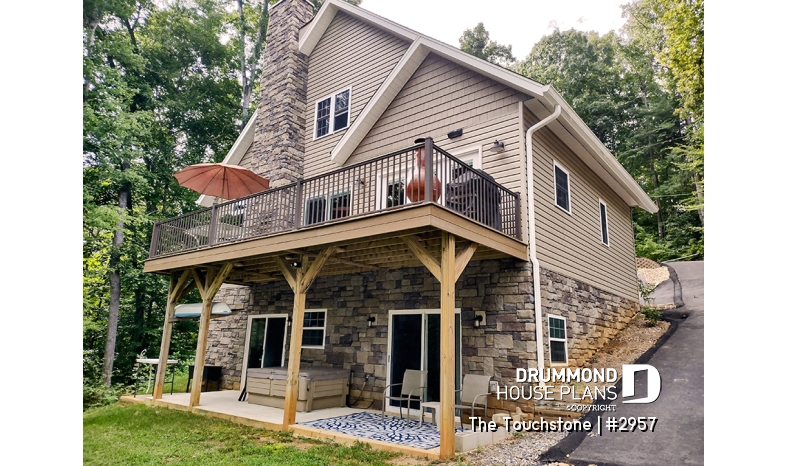

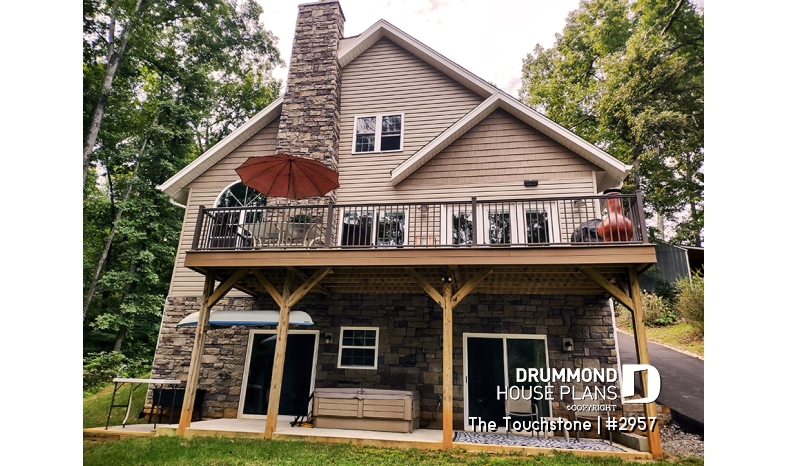

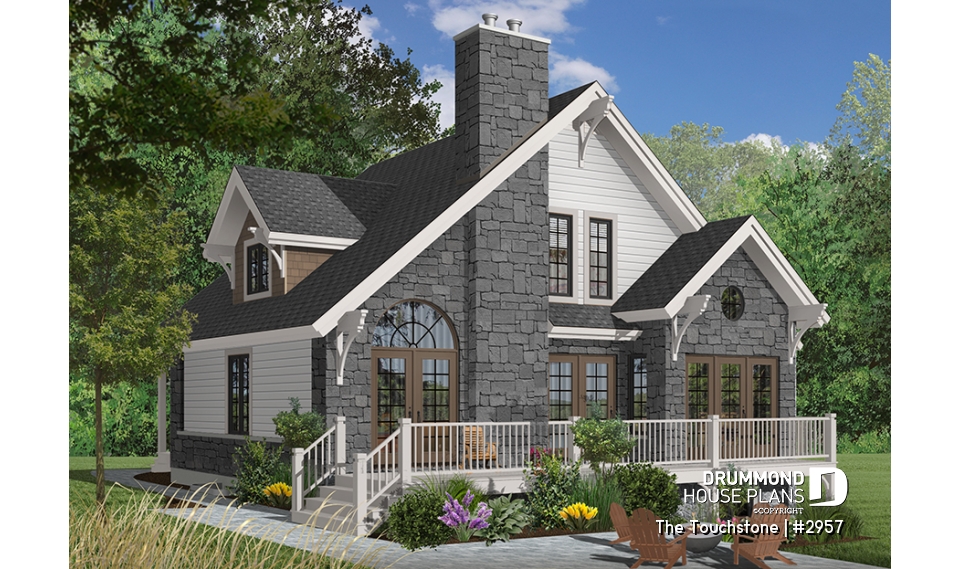

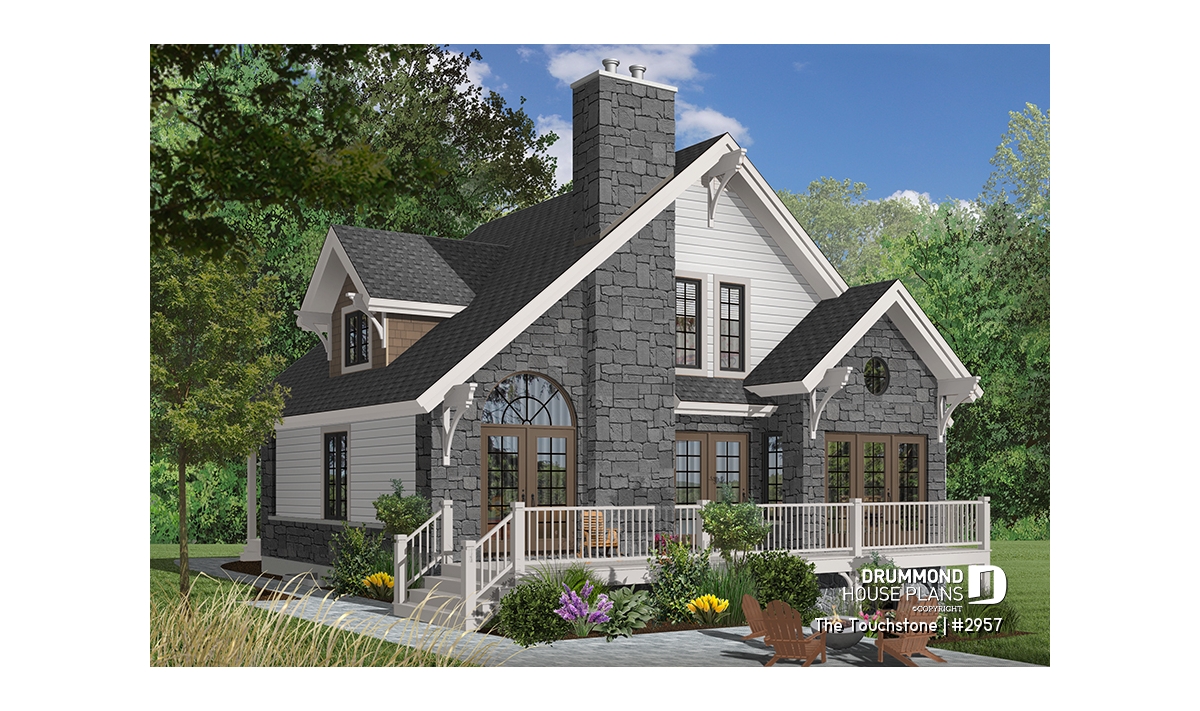

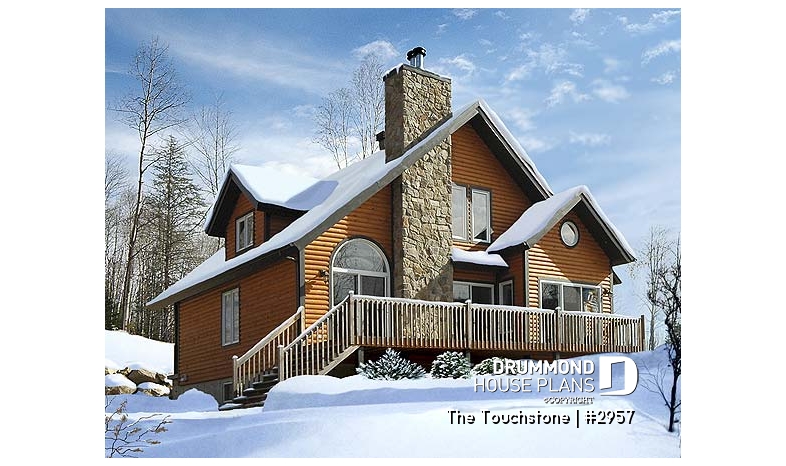

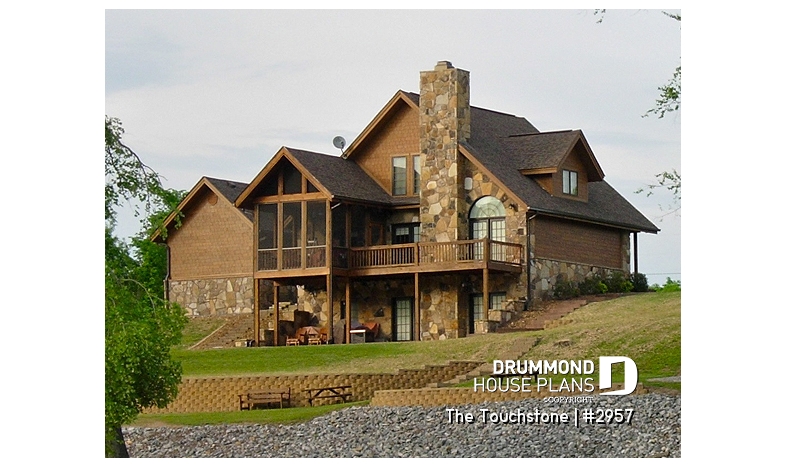

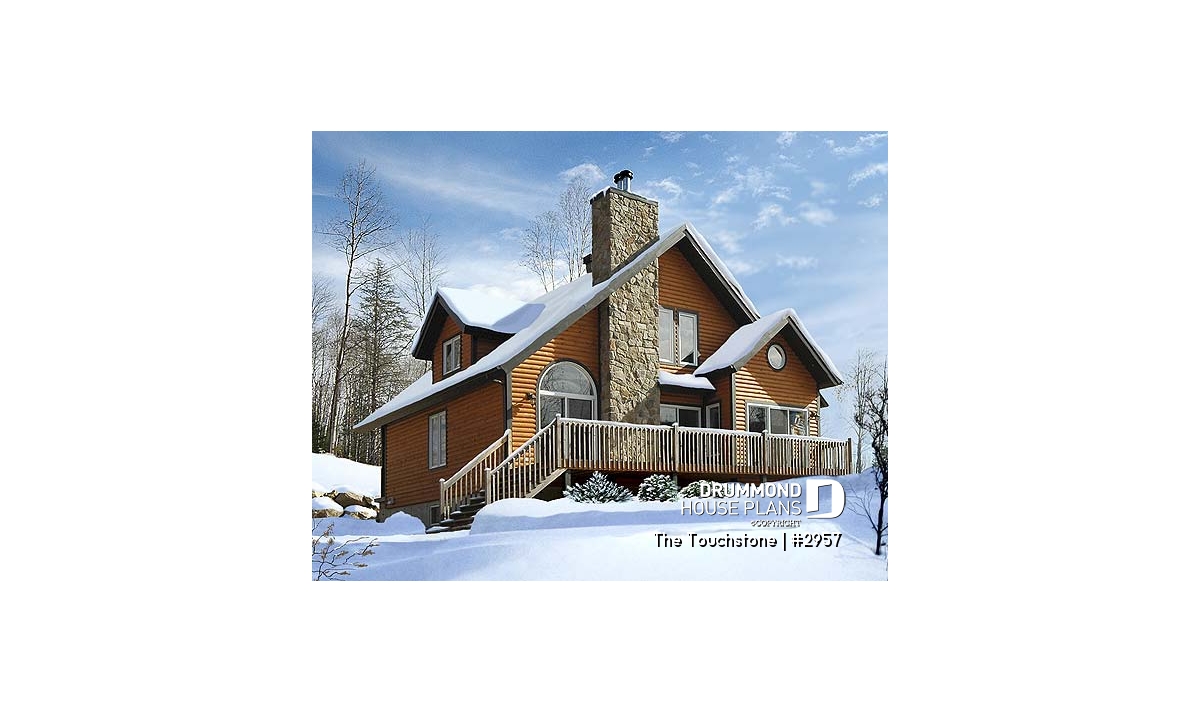

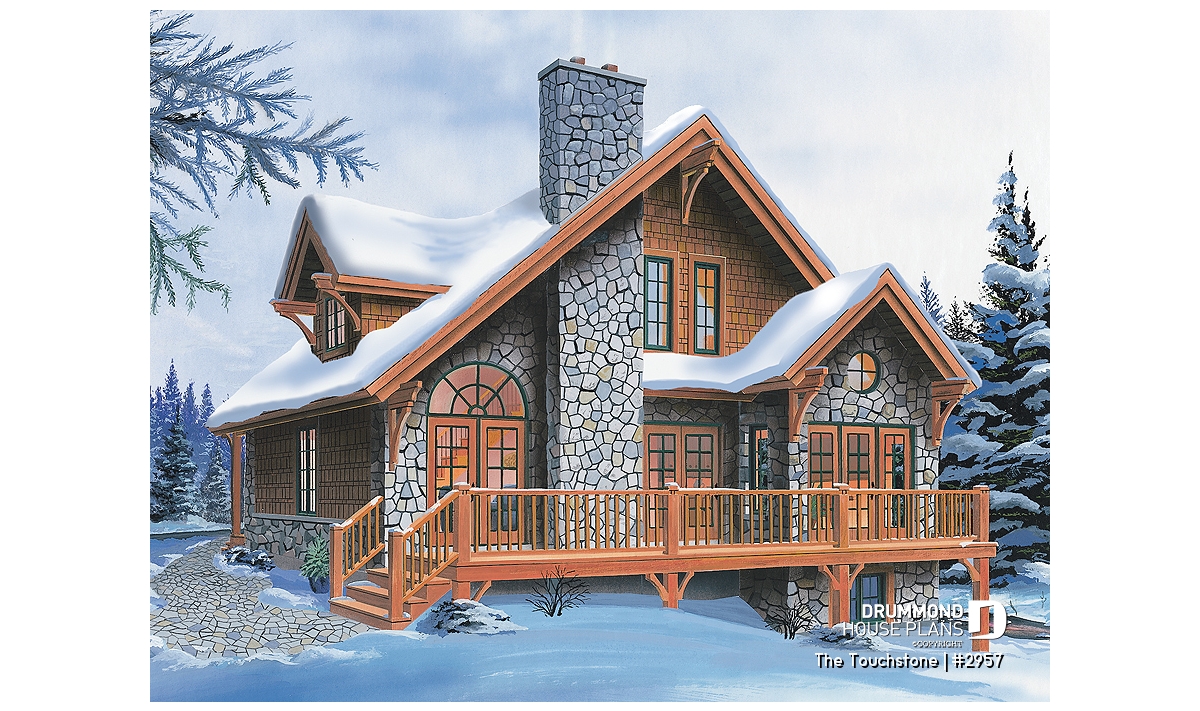

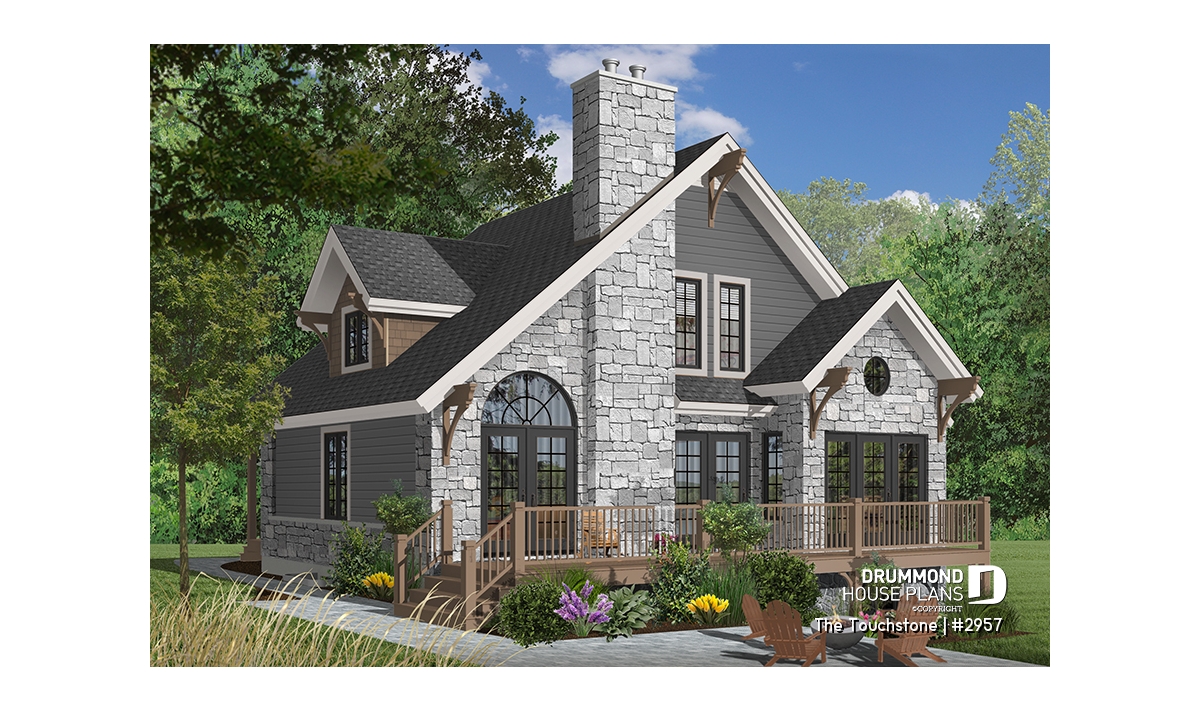

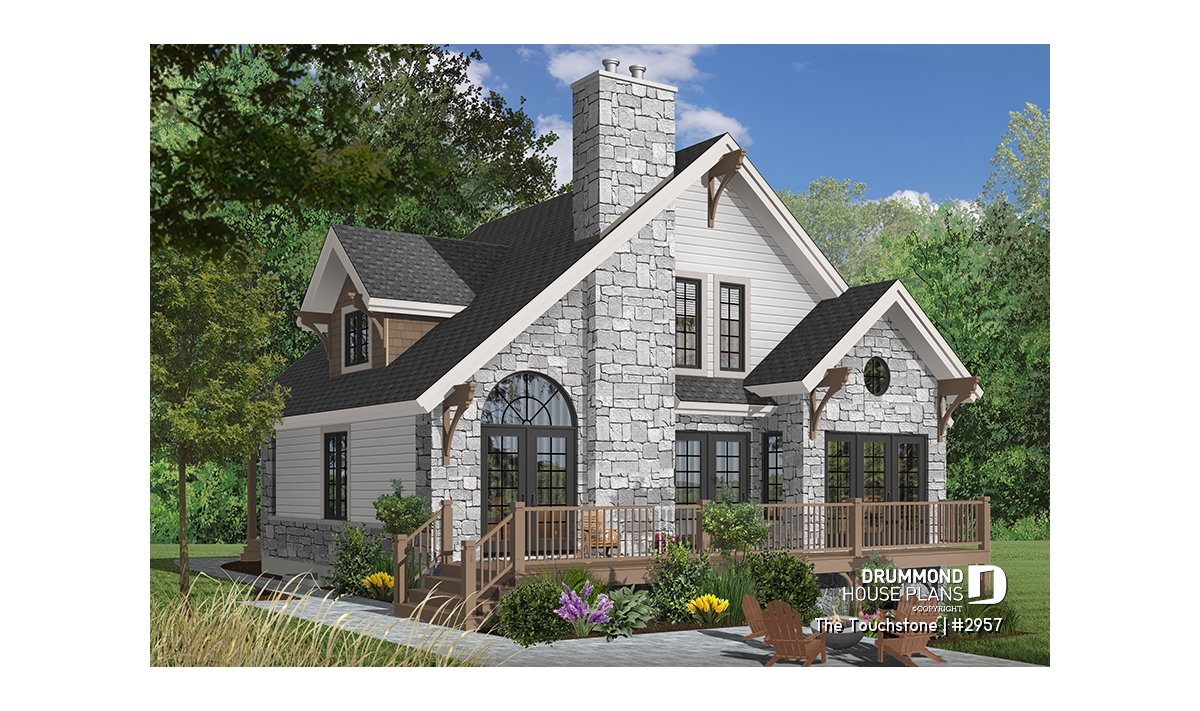

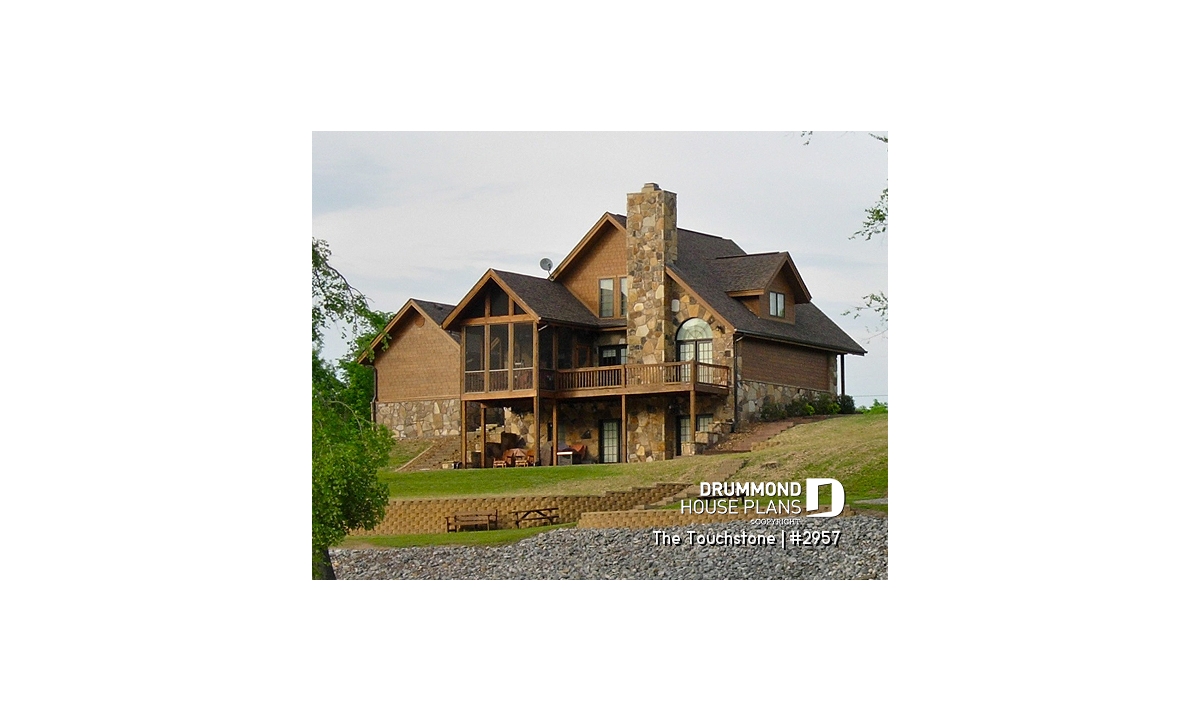

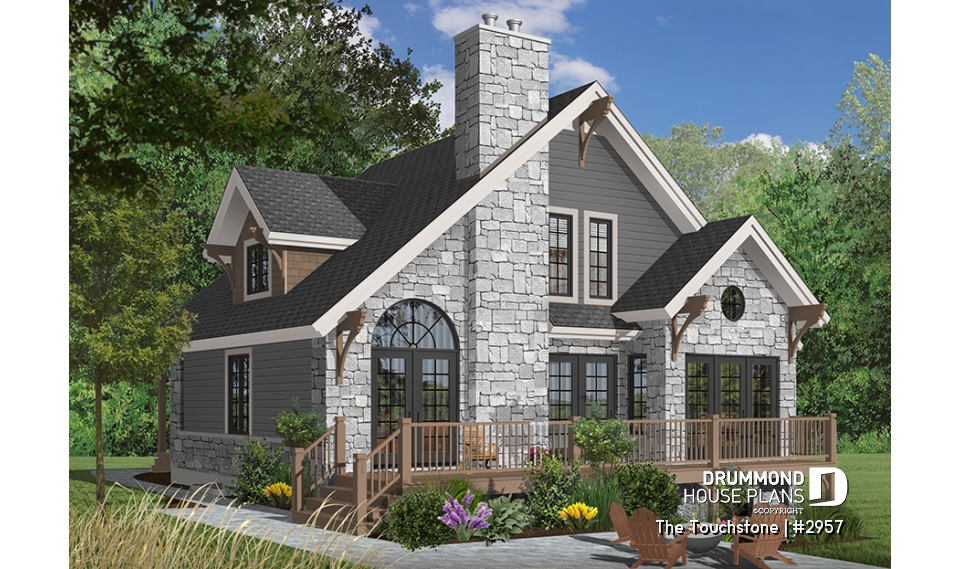

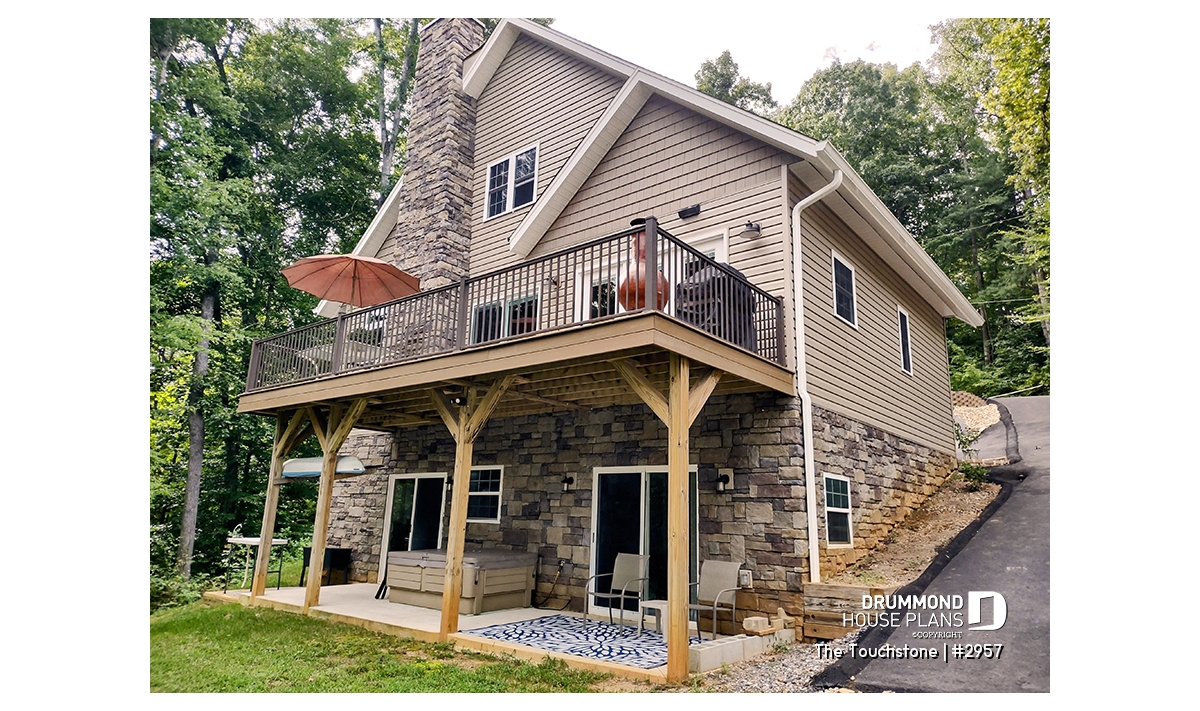

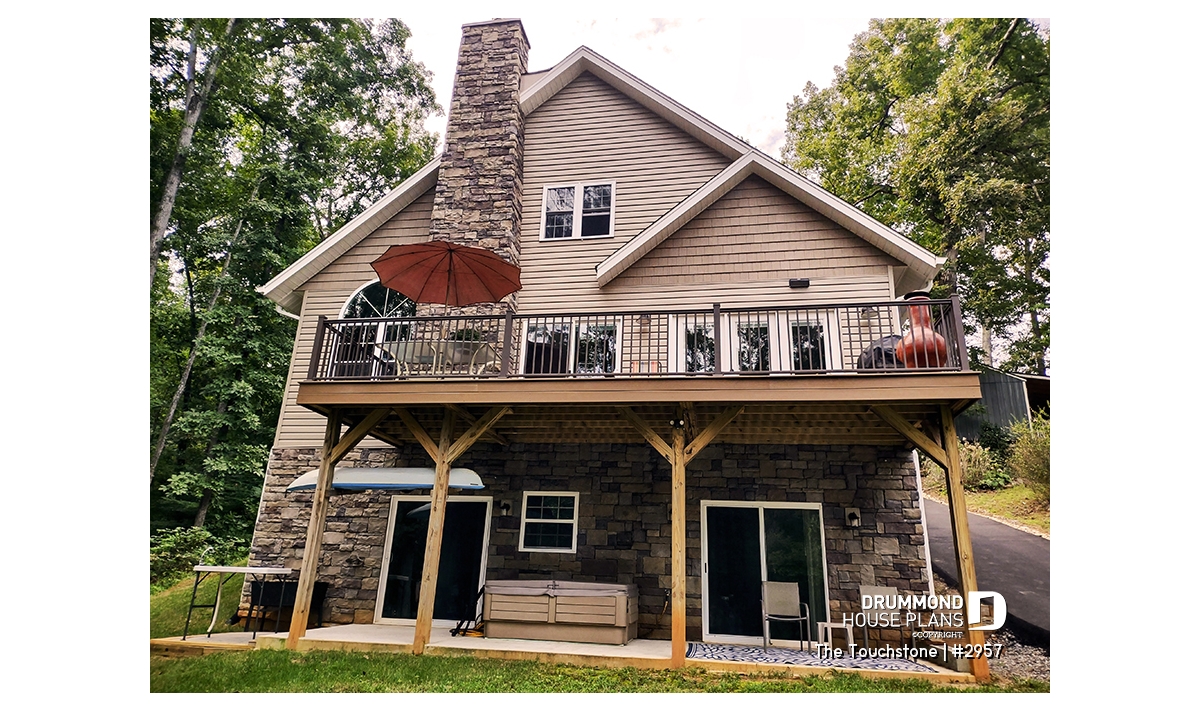

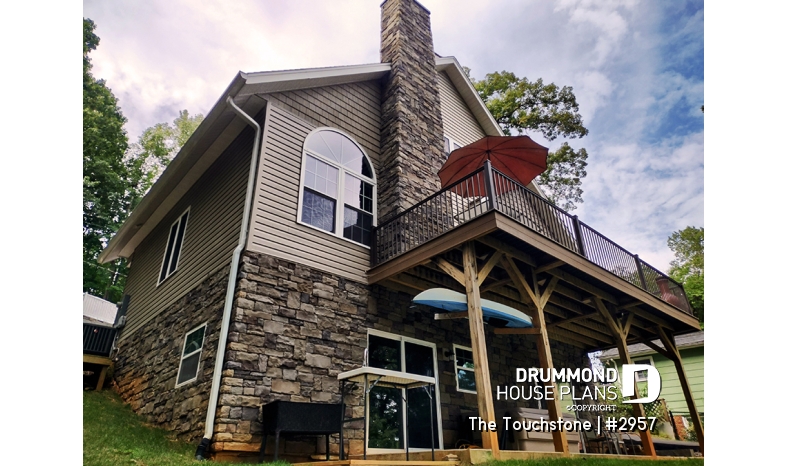

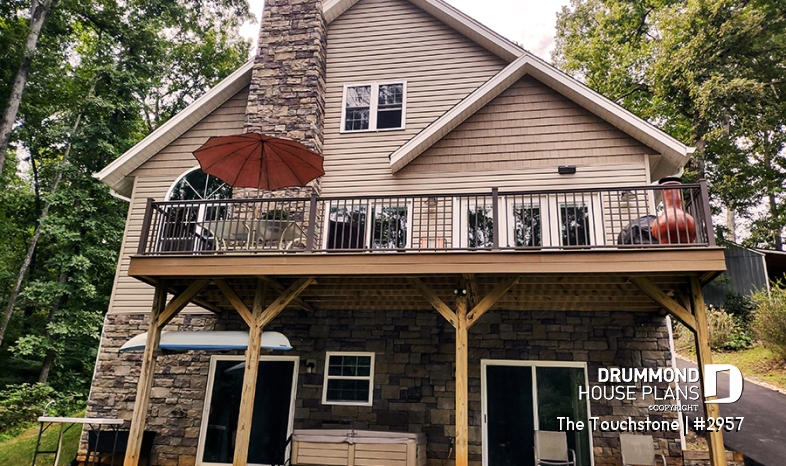

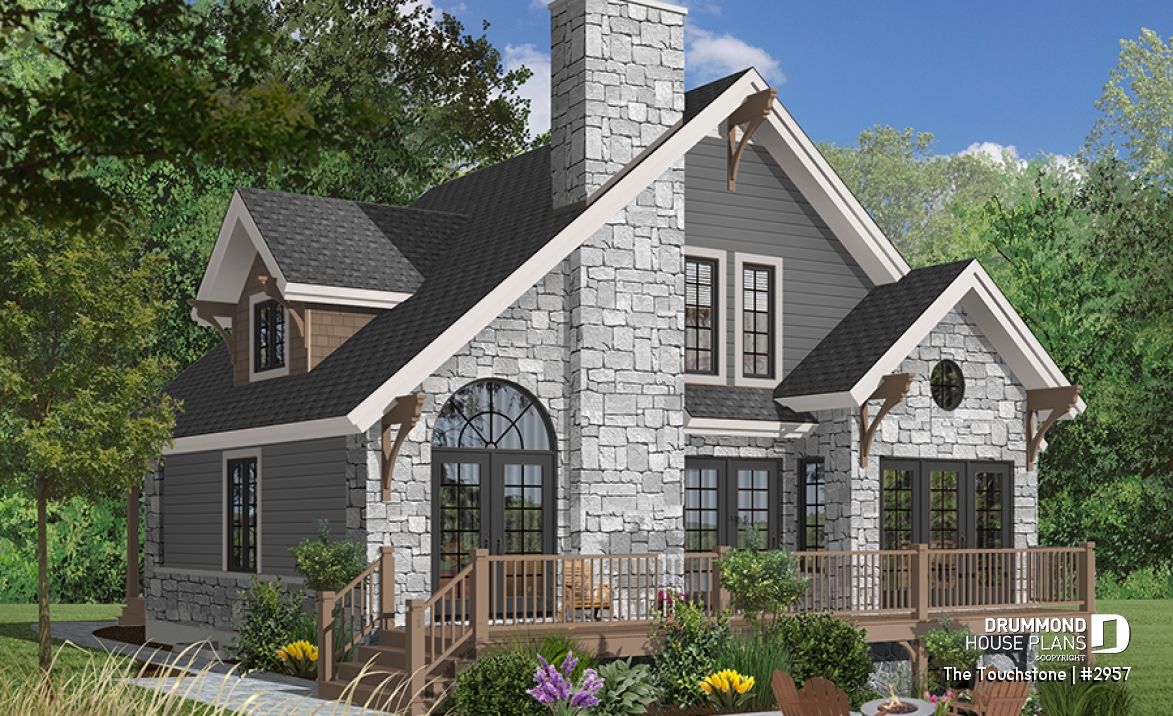

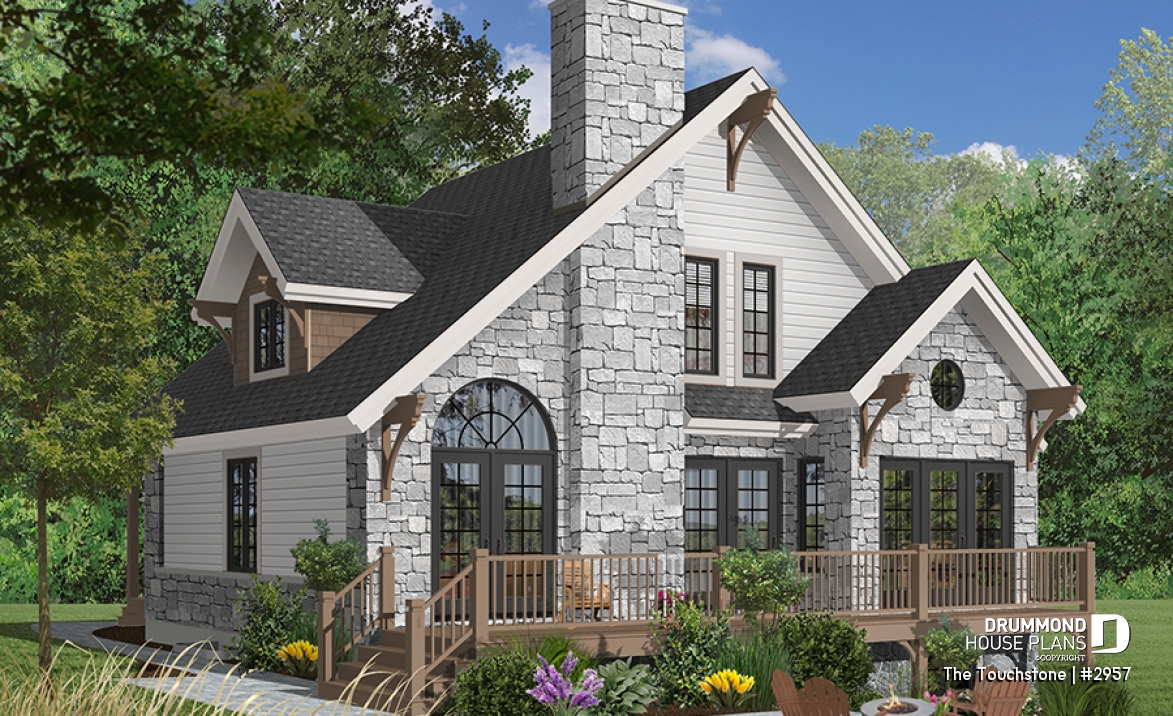

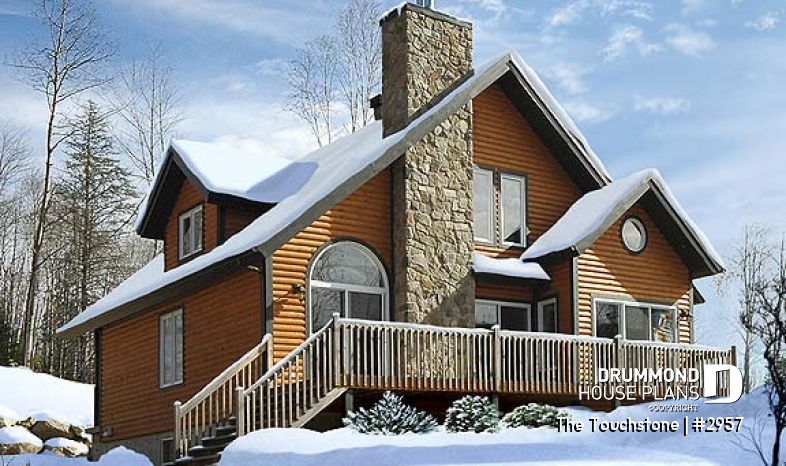

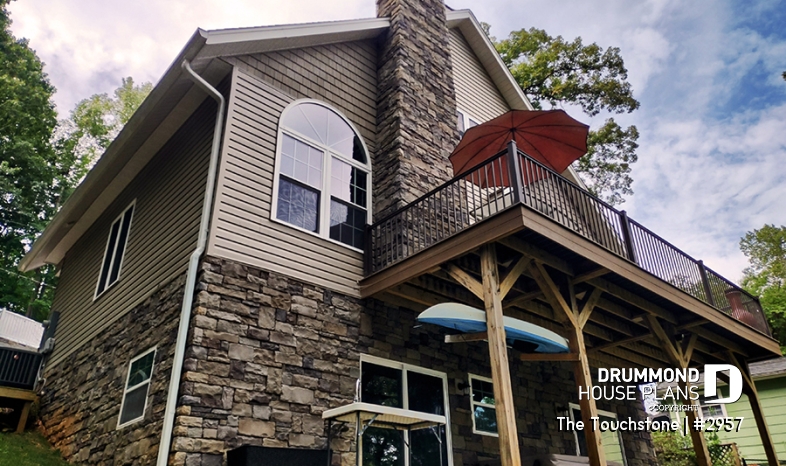

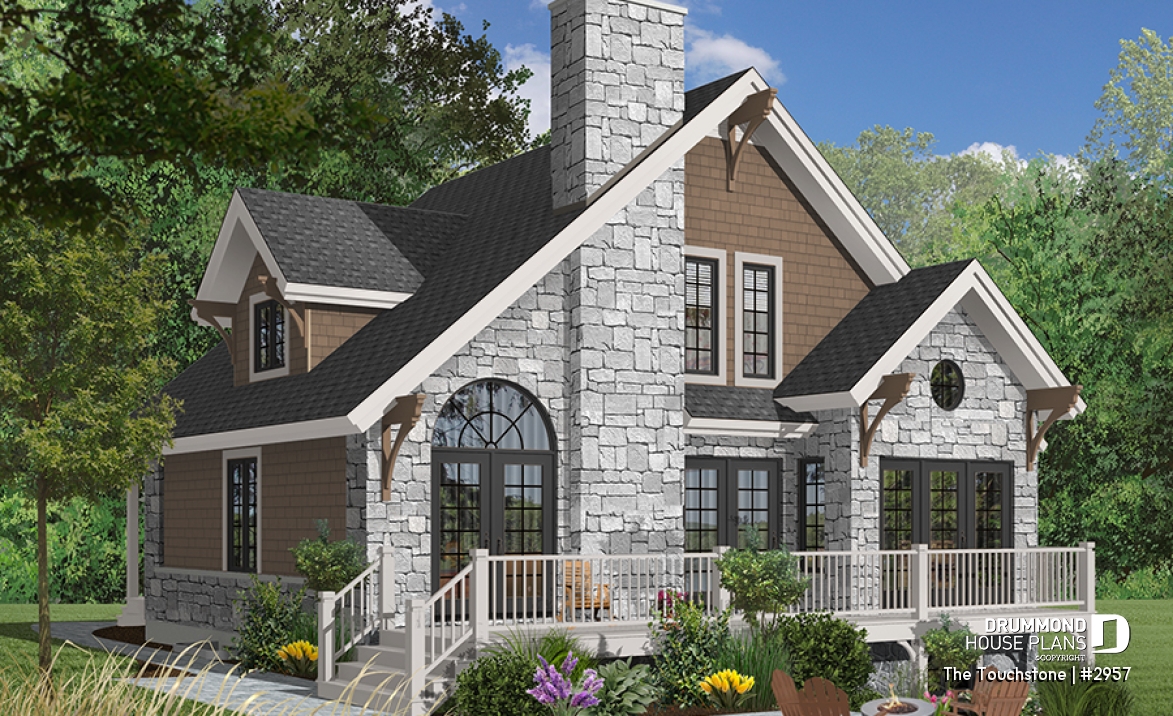

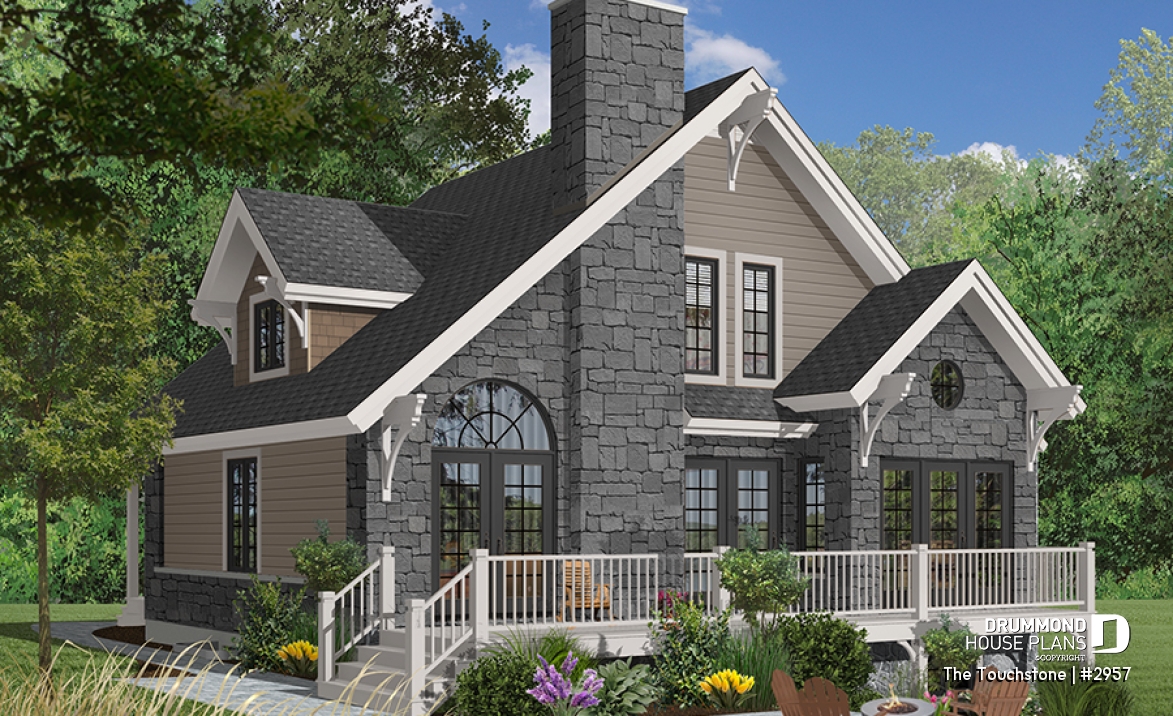

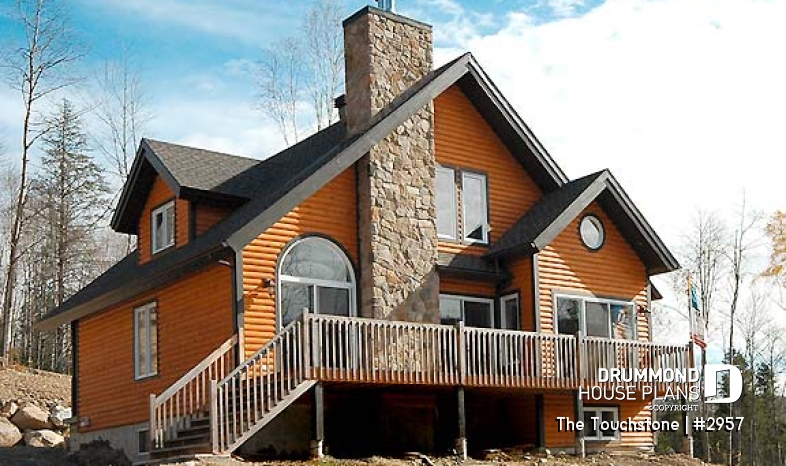

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

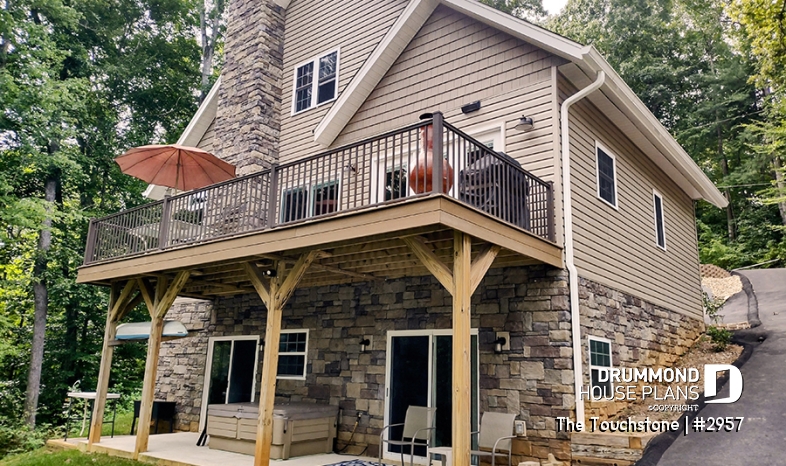

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

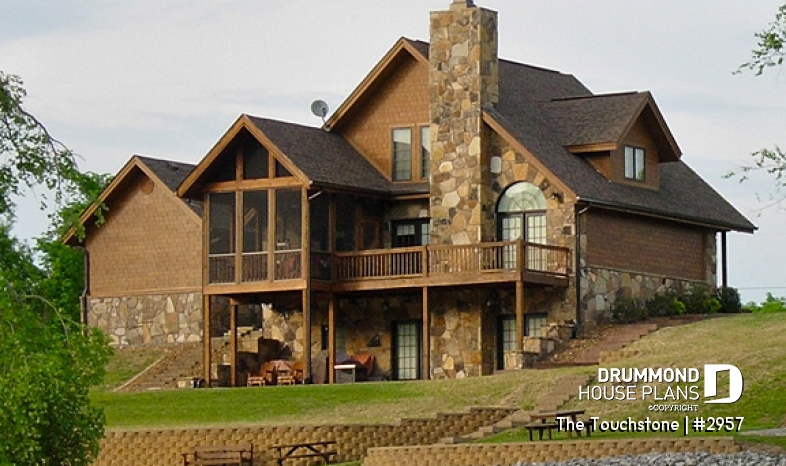

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

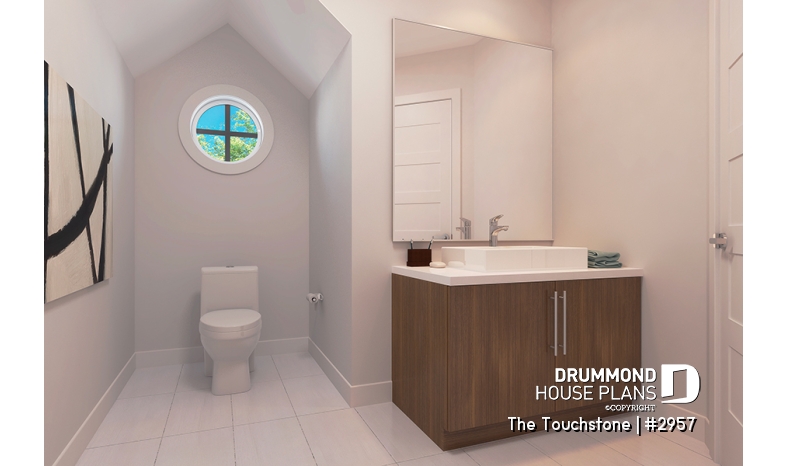

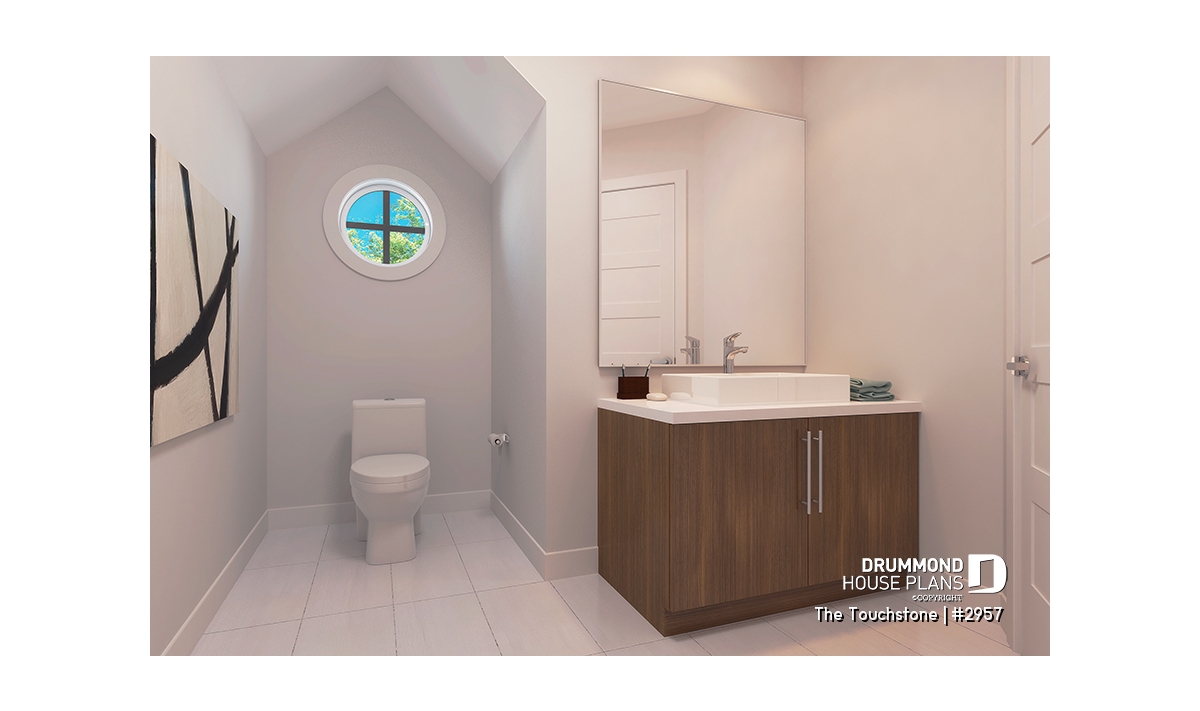

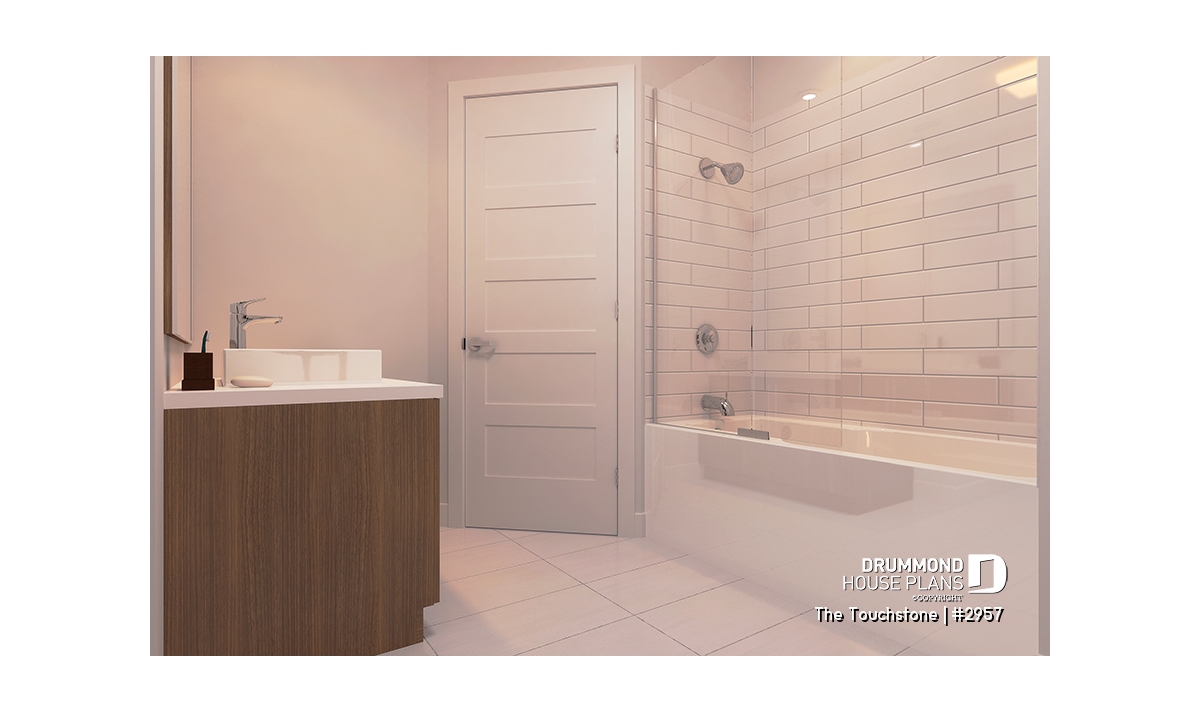

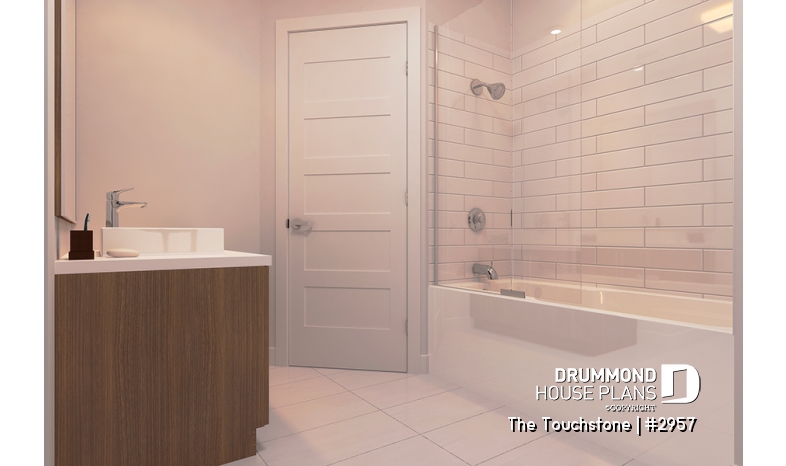

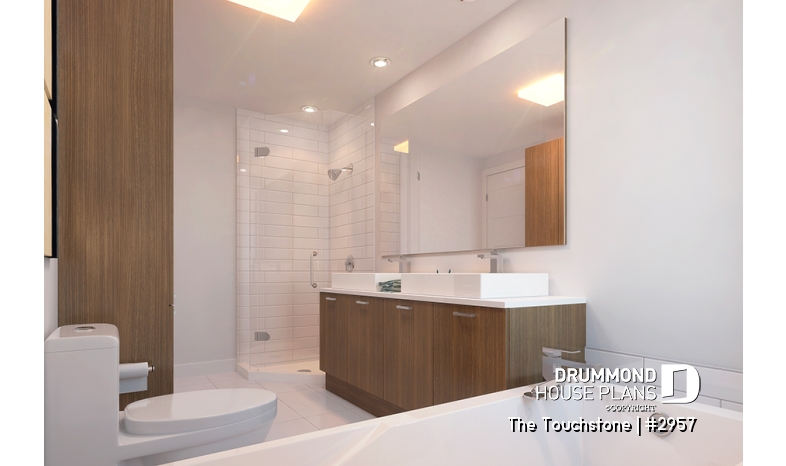

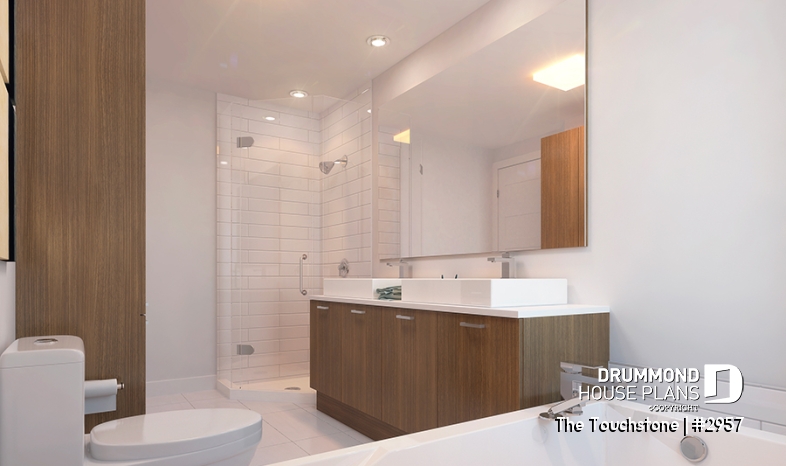

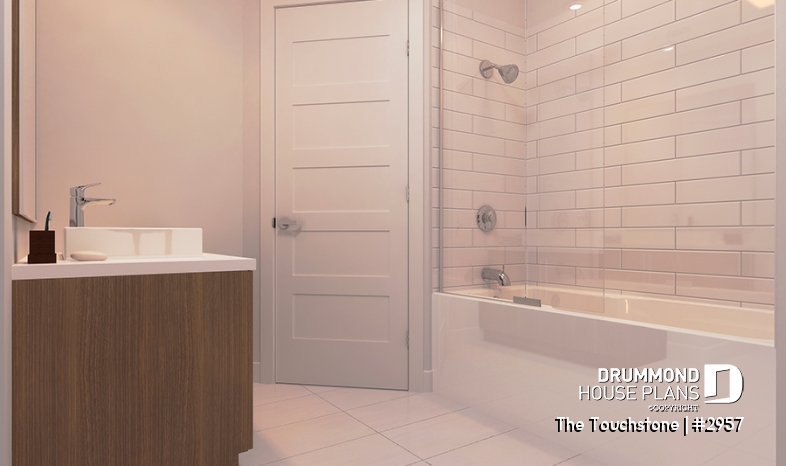

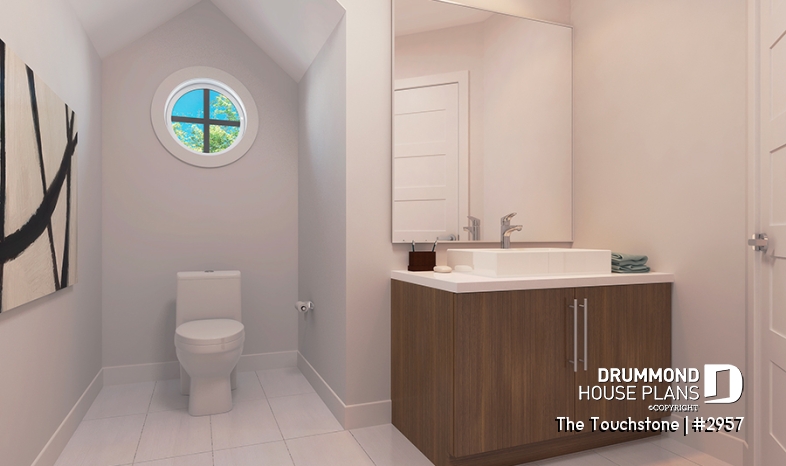

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

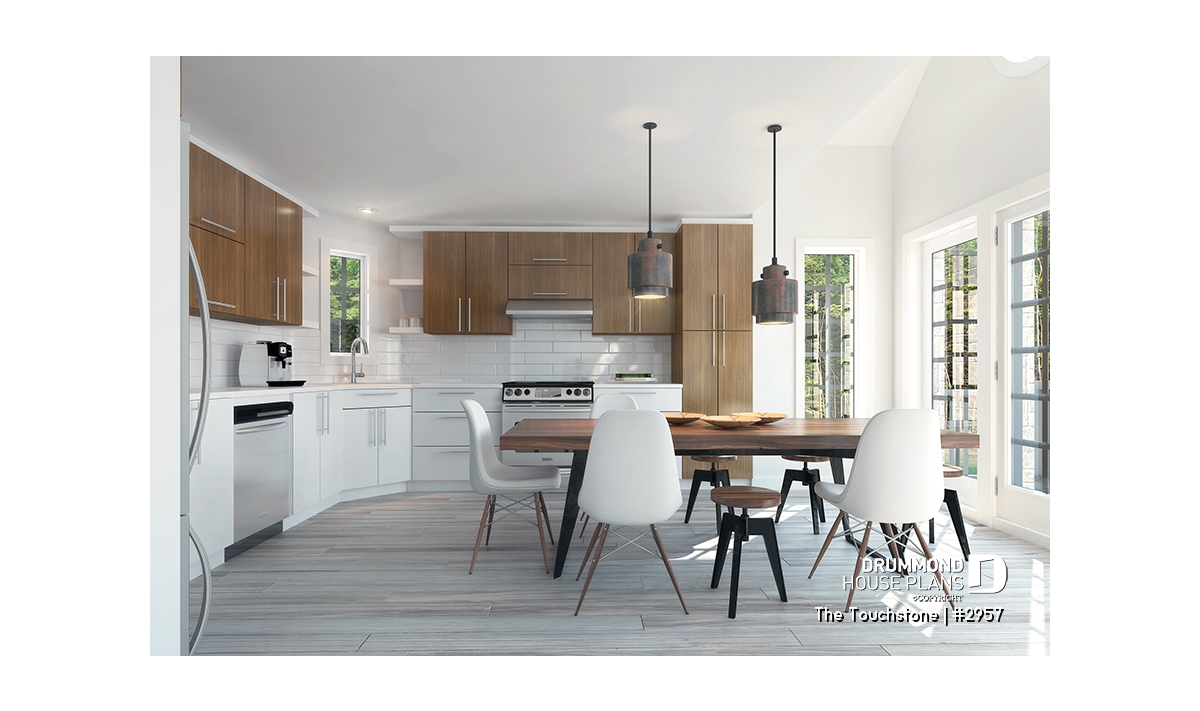

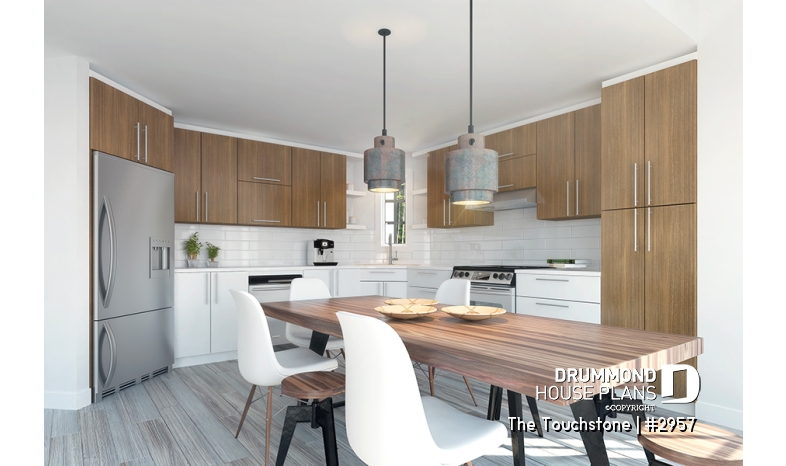

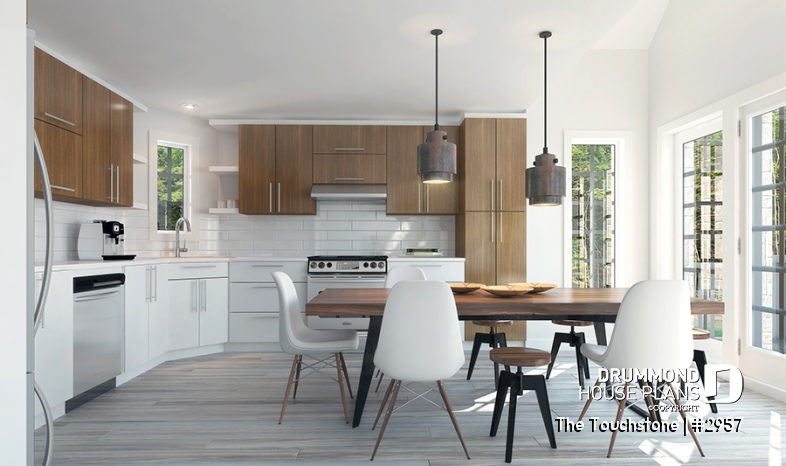

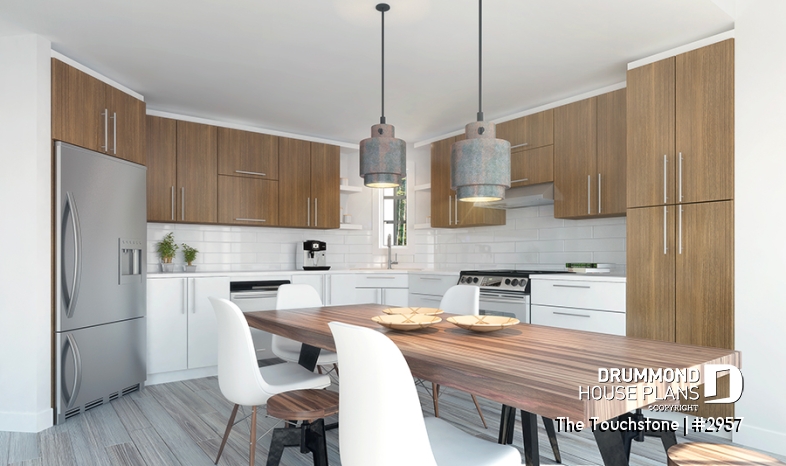

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

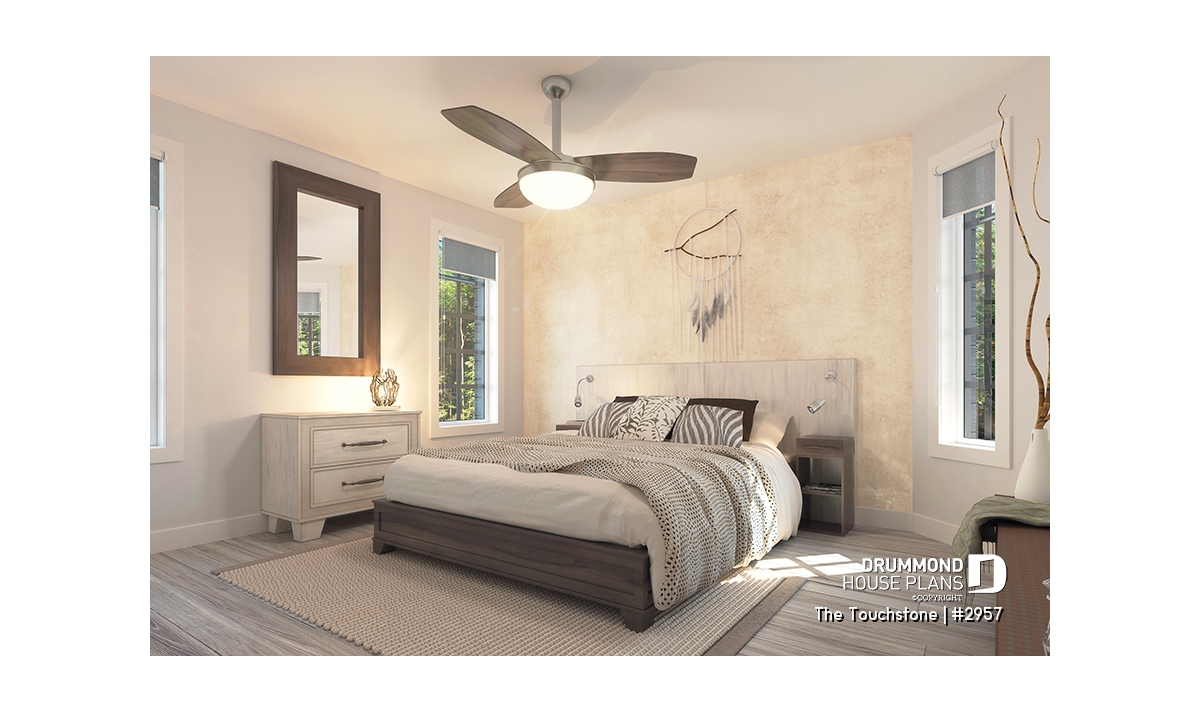

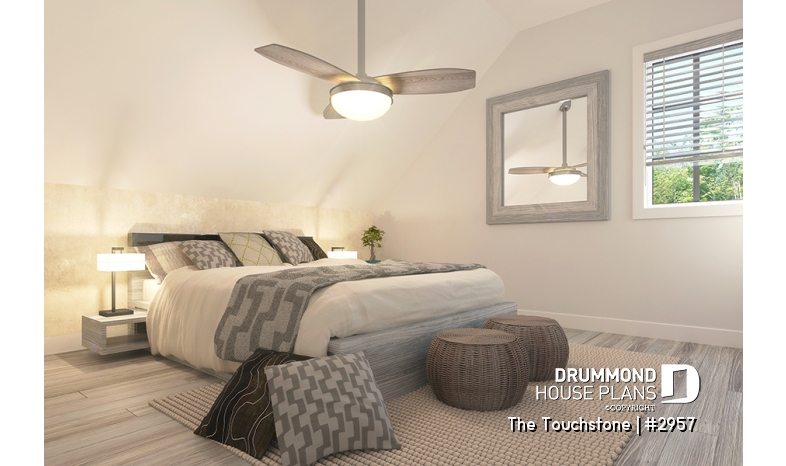

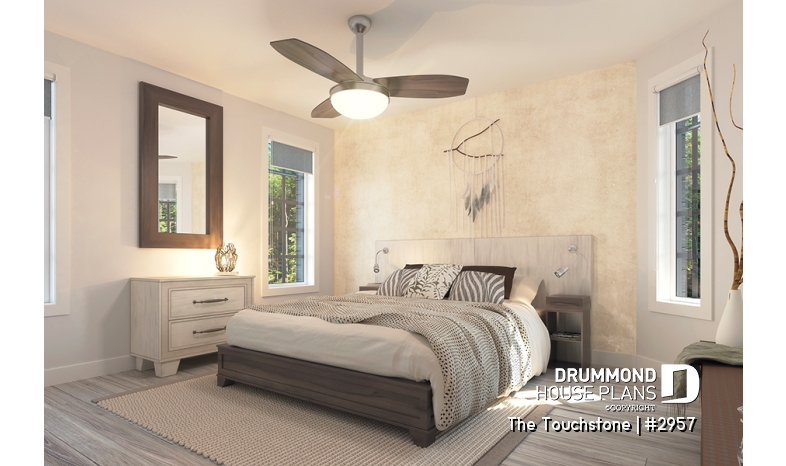

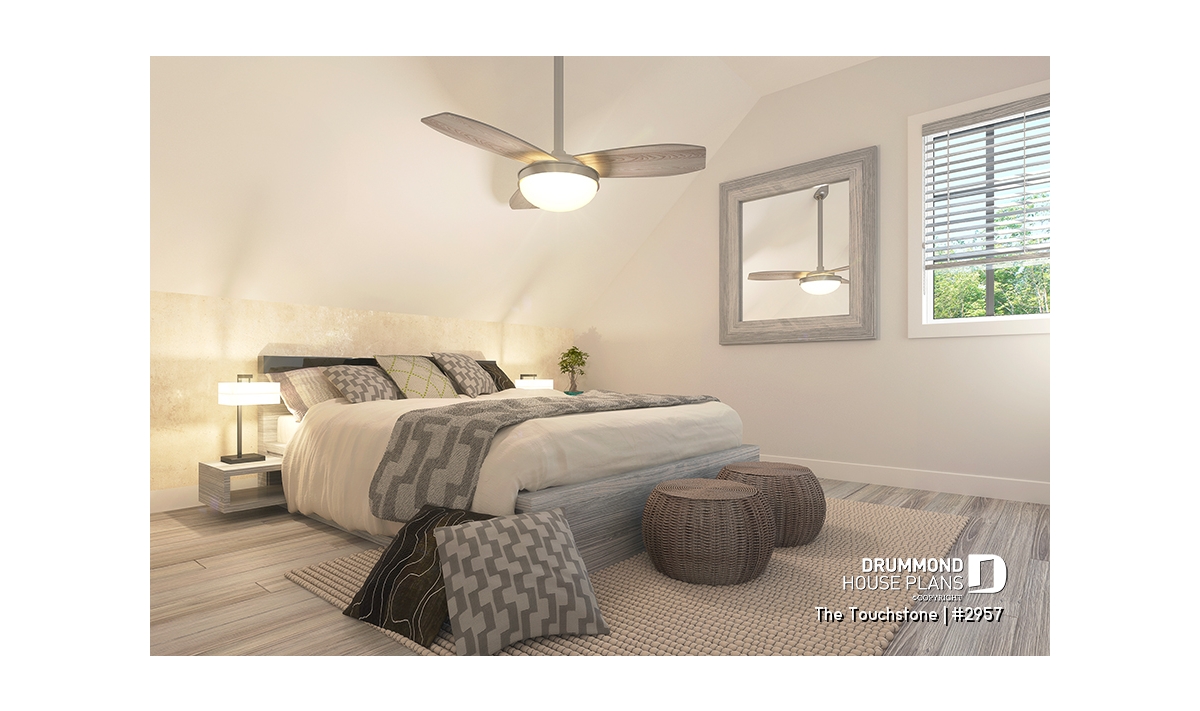

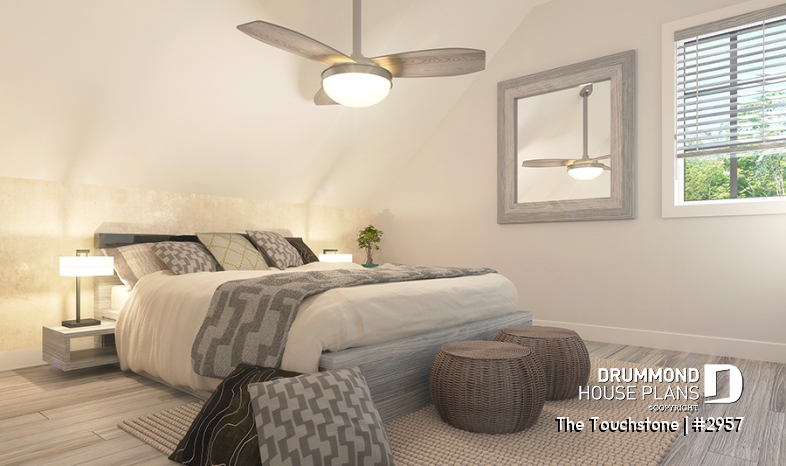

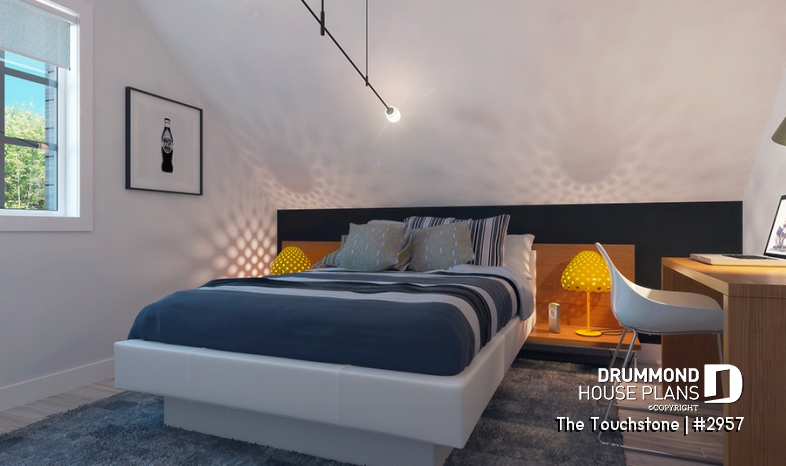

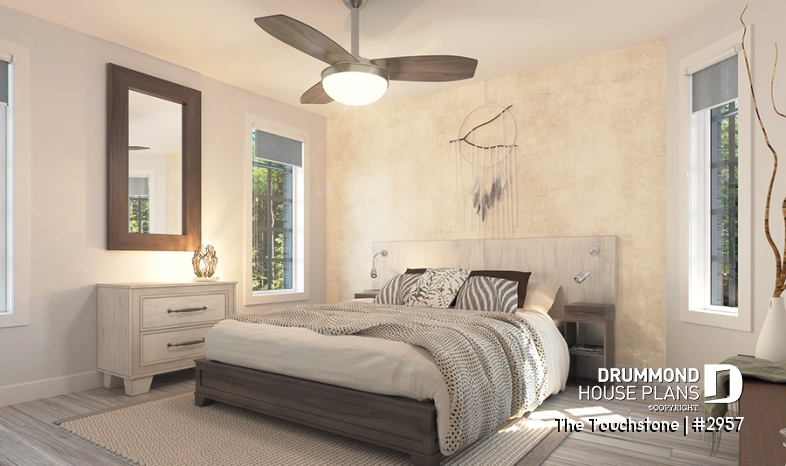

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

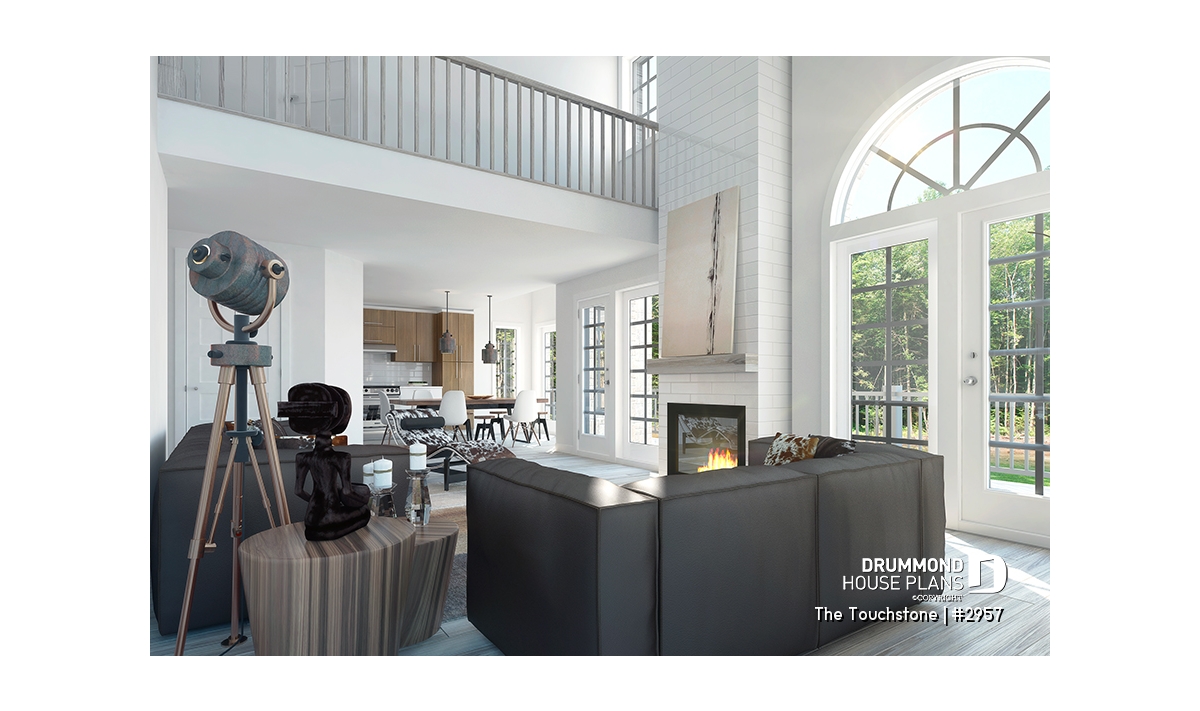

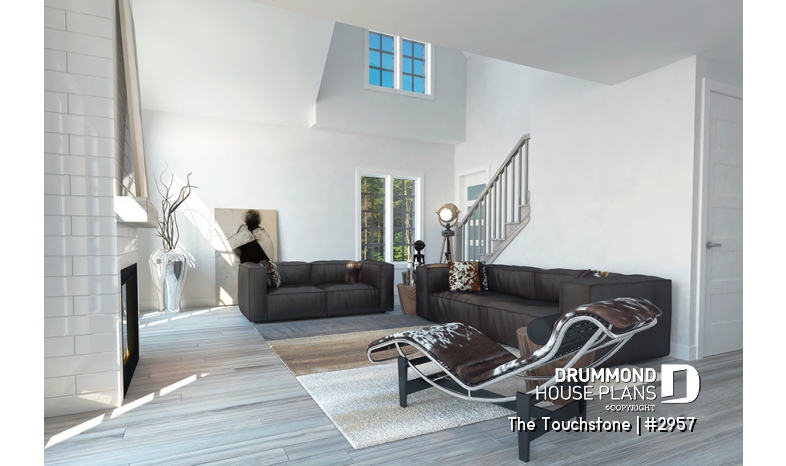

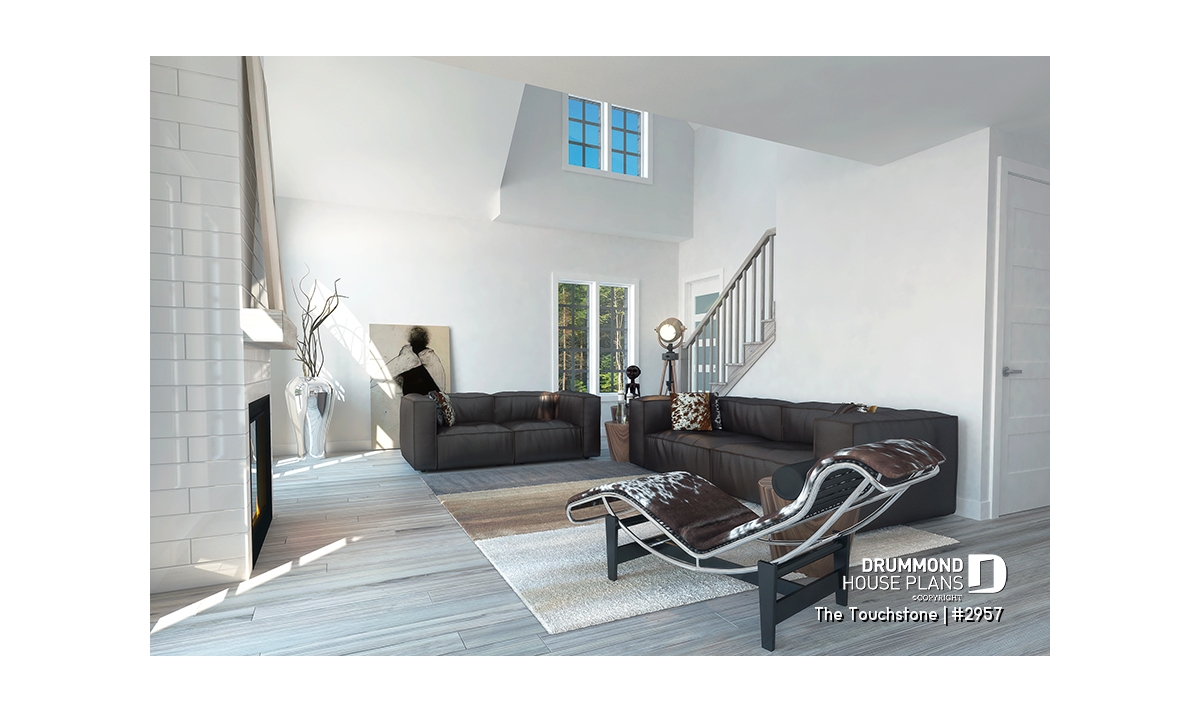

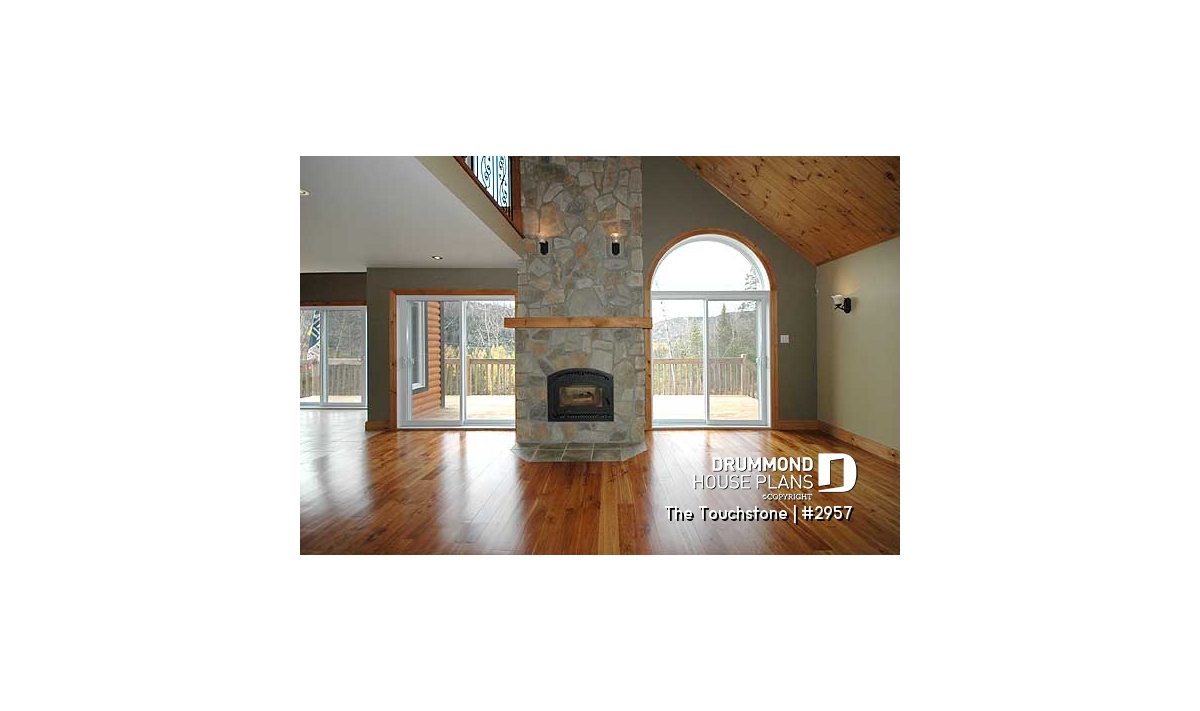

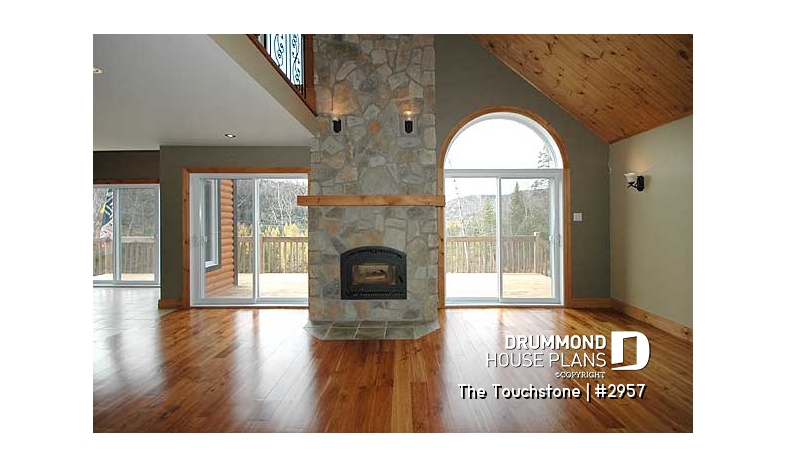

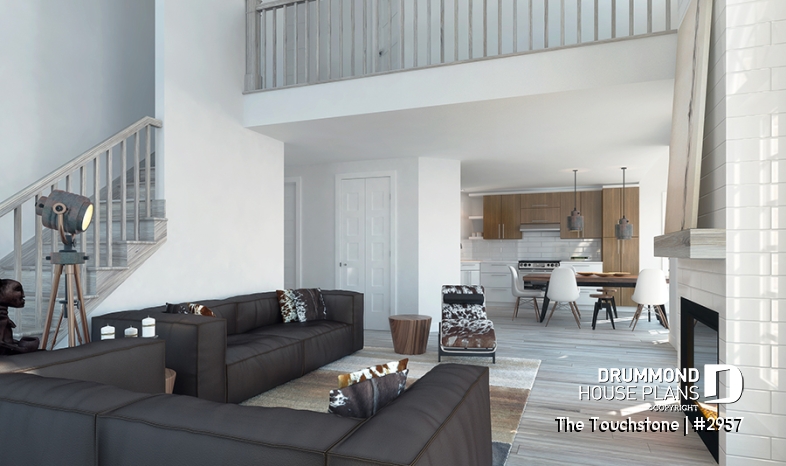

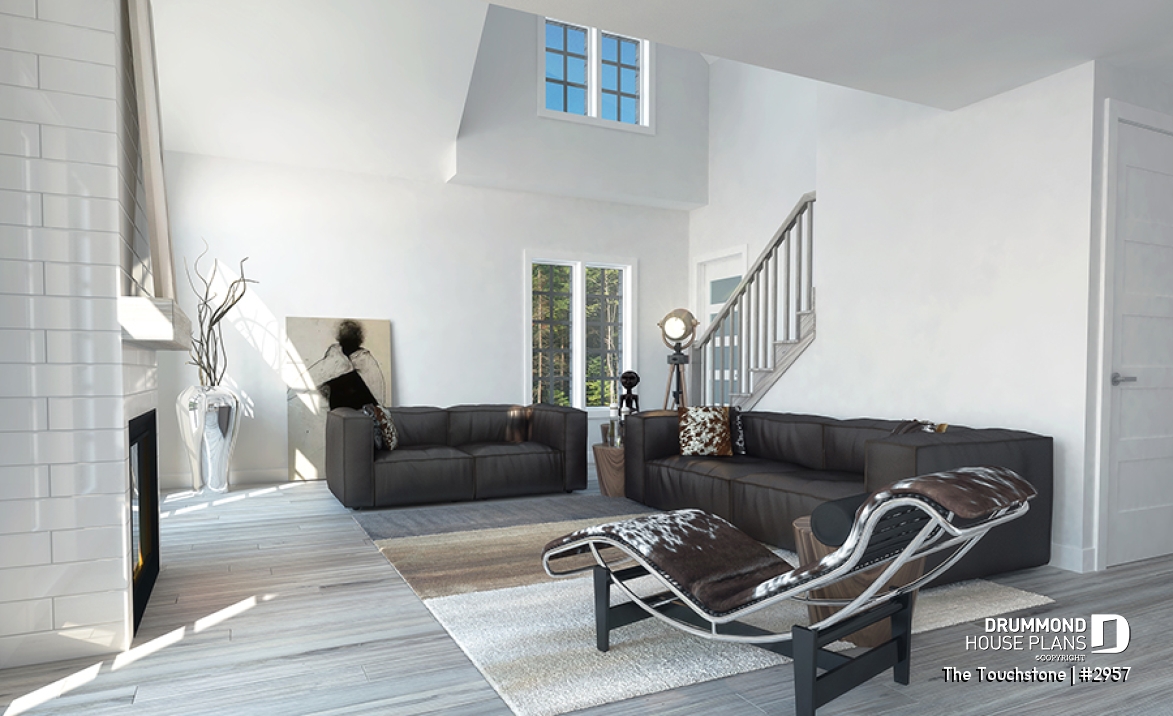

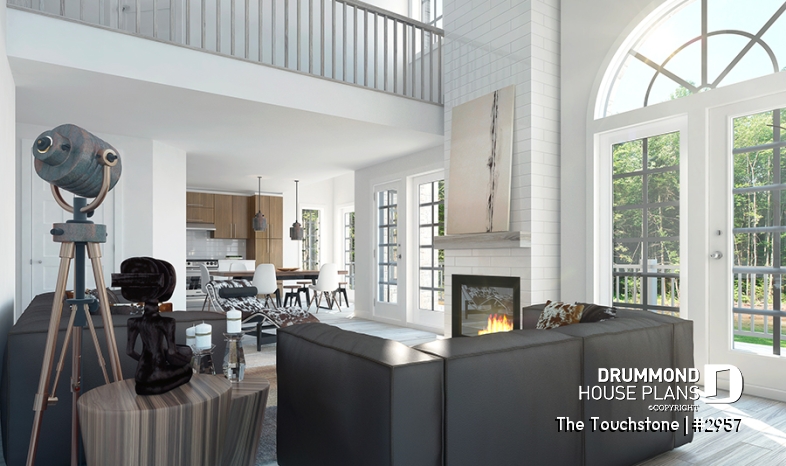

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Superb Mountain style cottage plan with 3 bedrooms
The cozy comfort of this home, especially at this time of the year, offers warmth and takes advantage of the limited light through the many large windows. A combination of materials, decorative touches and roof slopes adds to the inviting feeling of this beautiful model.
The entrance foyer has a large walk-in storage space is wonderfully convenient and opens onto the welcoming living area that’s complete with a central fireplace, french doors to the terrace and a cathedral ceiling that adds to the allure. The large kitchen/dining area has room for a table that seats six and breathtaking views beyond the abundant fenestration. The master bedroom on this level also has a partial view of the back and a large walk-in closet.
Upstairs, two other bedrooms share a full bathroom and a mezzanine within the cathedral space for a delightful view from above the main living area. This chalet is an absolute ‘must’ for those interested in a 4 season home that really takes advantage of everything there is to offer.
Distinctive elements
Foyer with large closet. Remarkable living room with cathedral ceiling, mezzanine, fireplace and abundant windows. Master bedroom with a walk-in closet and an adjoining full bathroom. Large kitchen with room for a dining table or banquet table plus island. Two other lovely bedrooms on the second level with a bathroom and mezzanine overlooking living room.
Plan feature(s)
Fireplace, Mezzanine, Walk-in master bed., Mud room, Panoramic view, Cathedral ceiling, Open floor layout, Separate bath and shower, Double sinks, Sloped ceiling
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Craftsman / Northwest, . Ski chalets, . Rustic, . Country, . A-Frame, . Modern rustic, . Transitional, . Mountain
Similar plans
Previously Viewed Plans
Questions and comments
January 01
Ashley Clopton
Do you offer your services and do you offer home and land packages? I have some land in mind but have not made the purchase yet. We have a budget of 140k. Can you give me all the options please?
January 07
Customer Service - Drummond House Plans
Hello Ashley,
unfortunately we do not offer home and land packages. We only sell house plans that you can build on your own land and with the home builder of your choice.
I do not know in what city you are located so it is difficult to evaluate the building costs. It normally vary (in the US) from $90/sq.ft to $200/sq.ft depending on the quality of your finishes.
Therefore for you 140K budget, if we take an average of $100/sq.ft. the house should be at around 1400 square feet in total living space, excluding garage.
Here are our house plan collections, organized by square footage:
drummondhouseplans.com/collections-en/square-footage-house-plan-collections
There are some very nice and interesting house plans in there for you and your family!!
PLEASE TAKE NOTE that there is a 30% OFF any stock plan purchase + FREE Shipping from Jan 6 - 13, 2020, incl.
Let us know if you have any more questions by emailing:
[email protected]
or call us: 1-800-567-5267 ext. 109
Good luck with your project!!!
Customer service
DrummondHousePlans.com
June 14
Pat
On the previous website there used to be a price range estimate tool based on the state location. Is that still available?
January 07
Customer Service
Hello,
we have removed the tool and are currently searching for a better option.
However, here an article that I reffer to our customers, it might help: www.thumbtack.com/p/home-building-cost-by-sqft
PLEASE TAKE NOTE that there is a 30% OFF any stock plan purchase + FREE Shipping from Jan 6 - 13, 2020, incl.
Let us know if you have any more questions by emailing:
[email protected]
or call us: 1-800-567-5267 ext. 109
Regards,
DrummondHousePlans.com
April 08
Bobbi Pearcey
HAPPY EASTER 2015 ?!!! ....from NL Canada
We are in the NEW stages of "down-sizing"...having decided only YESTERDAY (...a day of REST to catch your BREATH ...!!!! LOL ) ..
We seem to keep returning to this particular PLAN ... However ...is there a LAUNDRY that I am "missing" ?? ... And I noticed in OTHER plans that people have inquired about .... Could your give us a "close" ... Within 15% .... ESTIMATE what this particular house would cost ?? It just gives us some "idea" when we decide on a contractor .... Thanks SO much ....and ENJOY this weekend ... Knowing SPRING is HERE and SUMMER is APPROACHING !!!! ;)
Sincerely ....Bobbi P.
April 08
Customer service
Good day Ms. Pearcey and thank you for your interest in this plan.
The location of the laundry area is actually in the basement, below the living room between the fireplace and the left wall on the main level. Since the basement is not finished, there is no floor plan visible on this web page and that's why you were unable to see the washer and dryer.
Although I am not able to give you an estimate that is guaranteed to be within 15% of target because we do no actual construction, the ballpark cost to build this home in Quebec (Canada) with the standard foundation starts at around $307,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms.
The kitchen cabinetry is wood grain melamine. This construction estimate is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.
I hope that this provides some helpful information and I invite you to contact me if I can further assist you.
Regards
Deb
April 23
Dwight
Hello! We are looking for a 2 story lake place plan 30x40 with the front ( main side towards lake with upper and lower deck areas. Also the 2nd story to be full to side walls. The plan should have great room towards lake which opens to kitchen. Also 2 bedrooms down with at least 3 up and a smaller great room up....Thanks
April 23
Customer service
Good day and thank you for taking the time to write
The following are links to several of our plans which you may find interesting...
The first of my suggestions more closely respect the 30' maximum width but do not have everything that you are looking for on the upper level
4542
6901
4908
4916A
3906
The following have many of the features that you need but have a somewhat larger footprint
2837
3832
2688
2611
3931
3918
These or any of our other plans can be modified to conform to your requirements and we would be happy to return a free estimate for any changes within two business days after receipt of this on line request.
Please let me know if you have any other questions or comments
Regards
Deb
January 24
Mike J
Would it be possible to send me a simple drawing of how the trusses look for this roof? I am thinking of ordering these plans, and I would like to know what the truss or collar tie? looks like?
A simple hand drawing is ok. I am not looking for exact dimensions.
January 24
Customer service
Good day and thank you for your interest in this plan.
What is included with the plan set is a schematic of the roof but the truss work will be done by a local manufacturer due to the engineering calculations required for the roof trusses to conform to your local and regional requirements.
Your best resource for this would then be a local manufacturer but we cannot send partial plan sets so you will need to purchase the plan in order to obtain the information required.
Please let me know if I can further assist you
Regards
Deborah
