House plan Heidi (4932)
Swiss chalet or mountain style cottage plan, 3 bedrooms, 2 bathroo, open floor layout with large fireplace
View the size of the rooms and height of the ceilings

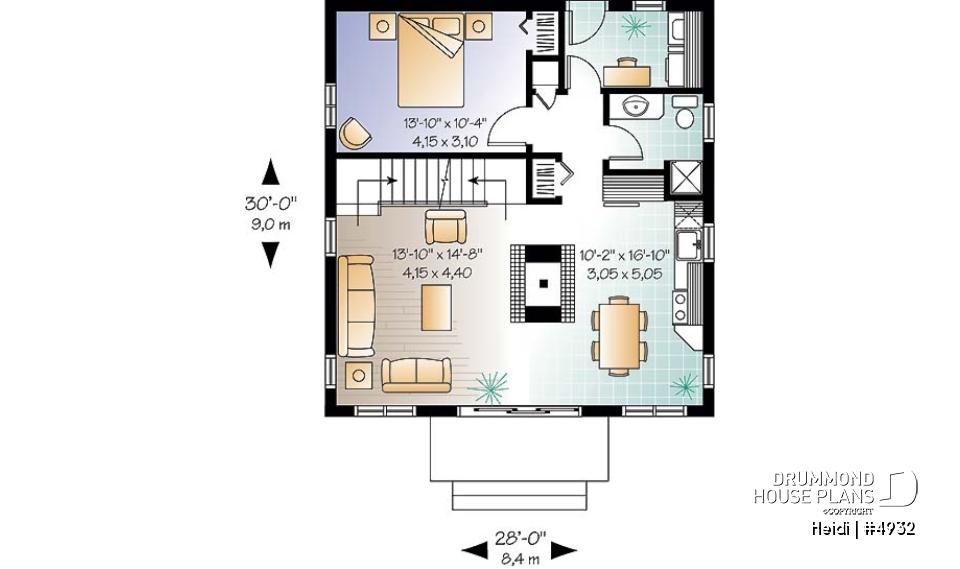

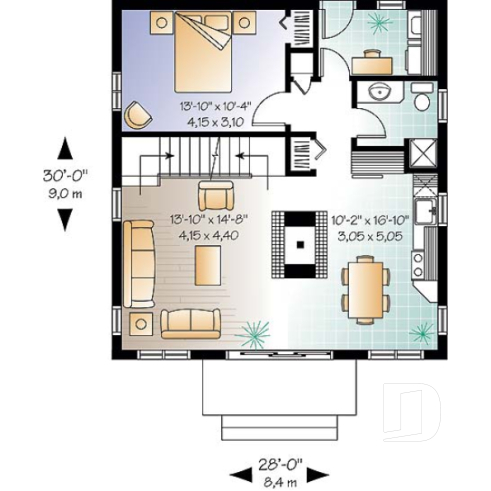

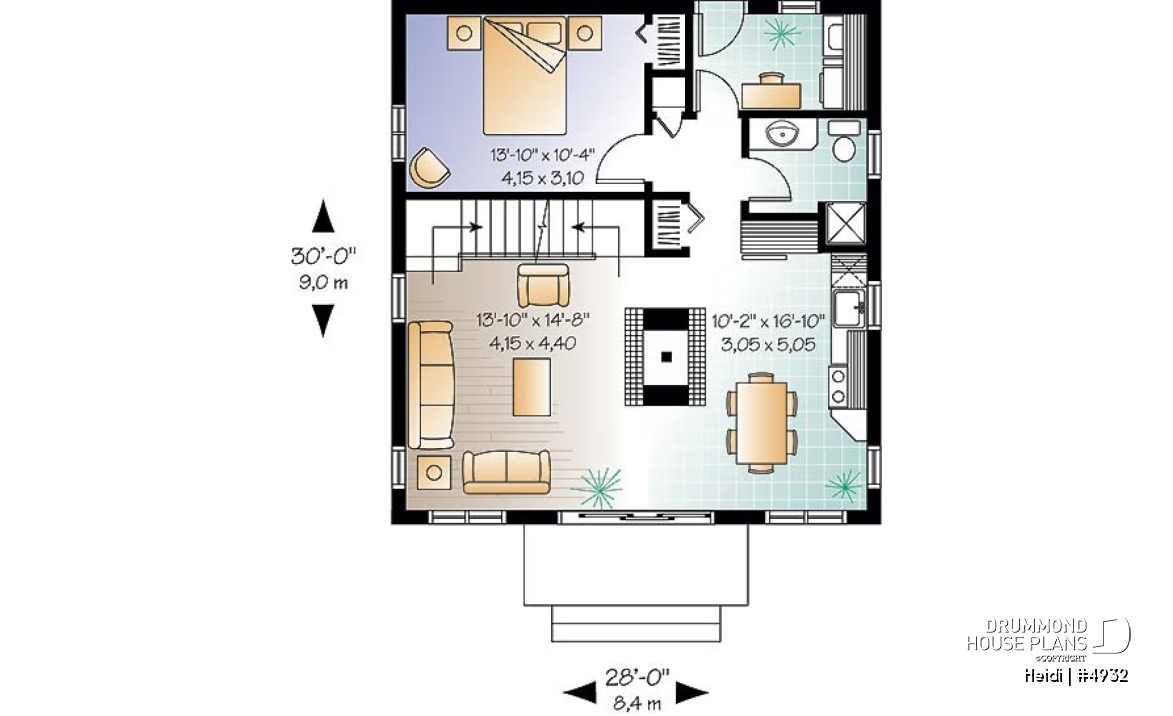

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'8" x 5'4" | ~ 8'0" |
| Kitchen/dining room | 10'2" x 16'10" | ~ 8'0" |
| Living room | 13'10" x 14'8" | ~ 8'0" |
| Bedroom | 13'10" x 10'4" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Laundry room | 10'2" x 5'10" | ~ 8'0" |
| Closet | 2'0" x 3'0" | ~ 8'0" |
| Deck | 10'0" x 5'0" | N/A |
| Porch | 12'10" x 5'0" | N/A |

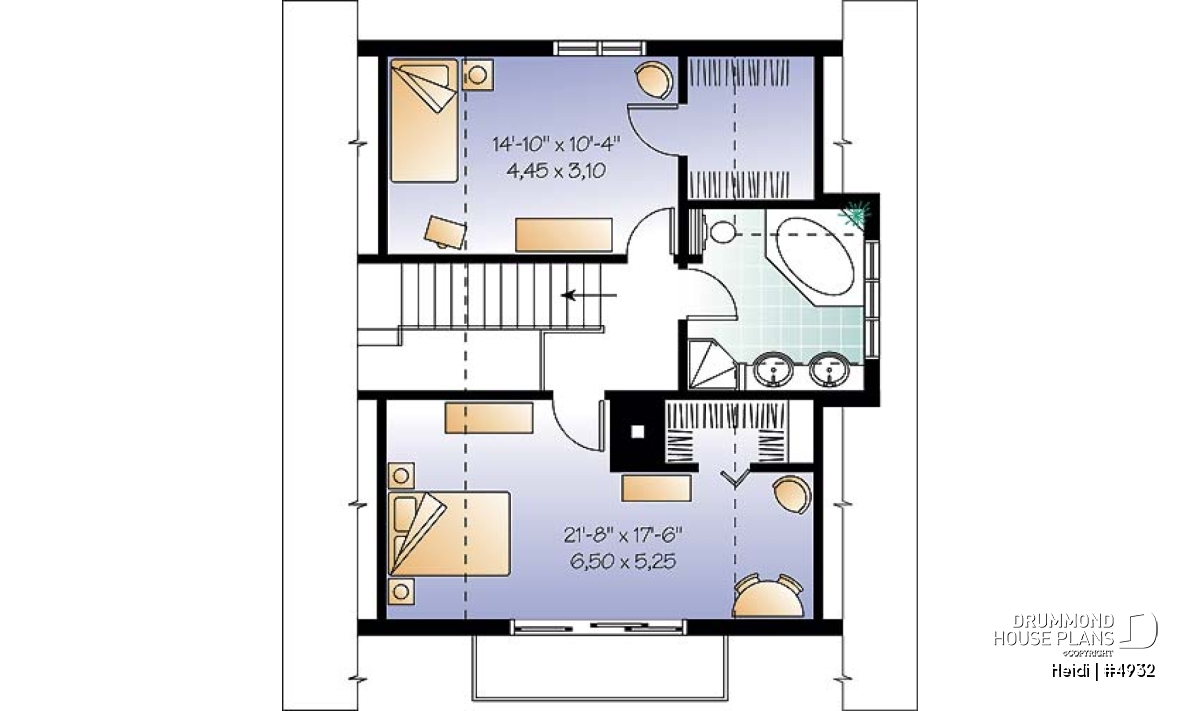

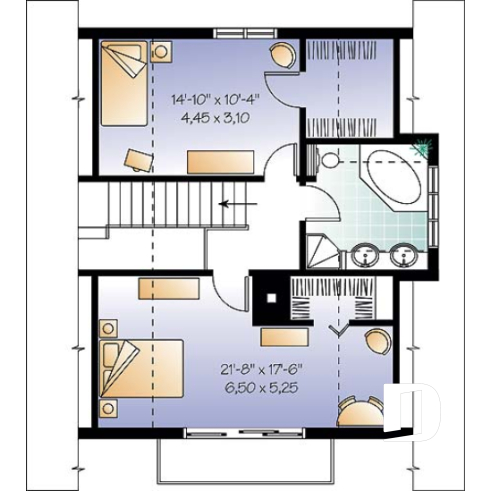

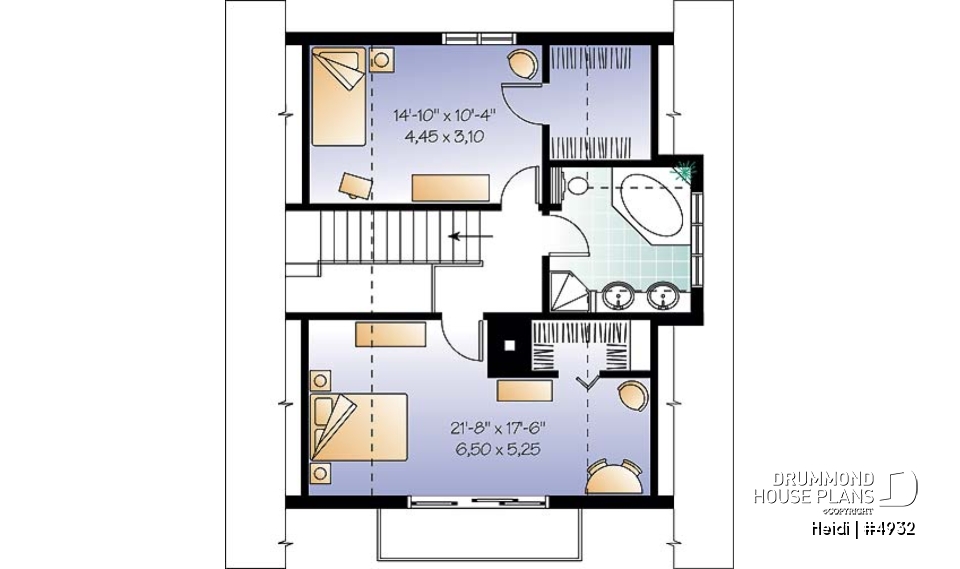

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'0" x 9'4" | ~ 8'0" |
| Bedroom | 21'8" x 11'2" | ~ 8'0" |
| Bedroom | 14'10" x 10'4" | ~ 8'0" |
| Balcony | 12'10" x 3'6" | N/A |
General specifications
| Total living area | 1510 sq.ft. |
| 1st level | 840 sq.ft. |
| 2nd level | 670 sq.ft. |
| Width | 28'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 28'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan

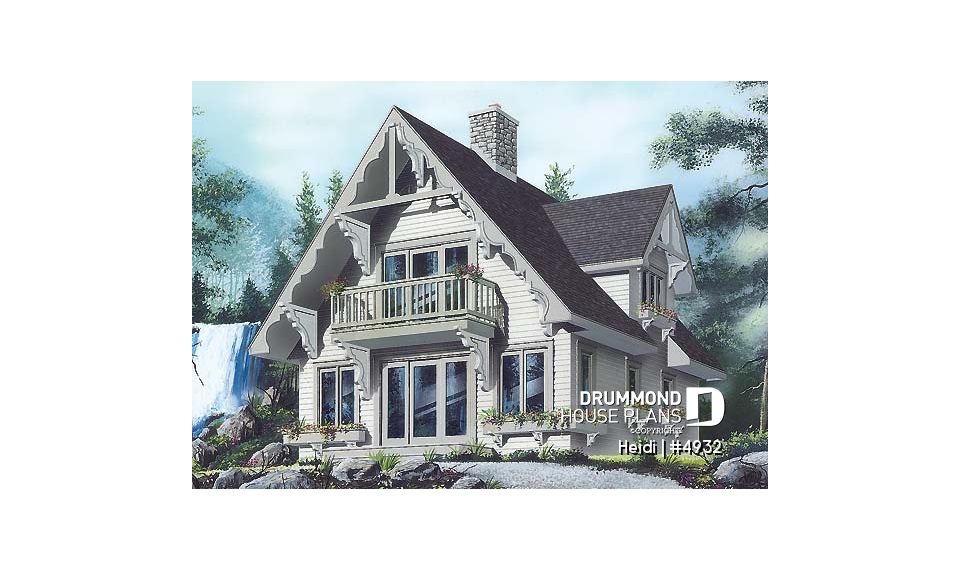

Charming Swiss chalet house plan with balcony on second floor and huge central fireplace
.
Distinctive elements
Master bedroom with walk-in closet and private balcony, walk-in closet in secondary bedroom at second level, special ceiling treatments.
Plan feature(s)
Fireplace, Gound floor laundry room, Panoramic view, Open floor layout, Separate bath and shower, Double sinks
Plan architectural style(s)
. Cottage, chalet, cabin, . Ski chalets, . Country, . Vacation and waterfront, . A-Frame, . Mountain, . European
