front - BASE MODEL - Swiss chalet or mountain style cottage plan, 3 bedrooms, 2 bathroo, open floor layout with large fireplace - Heidi

front - BASE MODEL

1st level - Swiss chalet or mountain style cottage plan, 3 bedrooms, 2 bathroo, open floor layout with large fireplace - Heidi

1st level

2nd level - Swiss chalet or mountain style cottage plan, 3 bedrooms, 2 bathroo, open floor layout with large fireplace - Heidi

2nd level

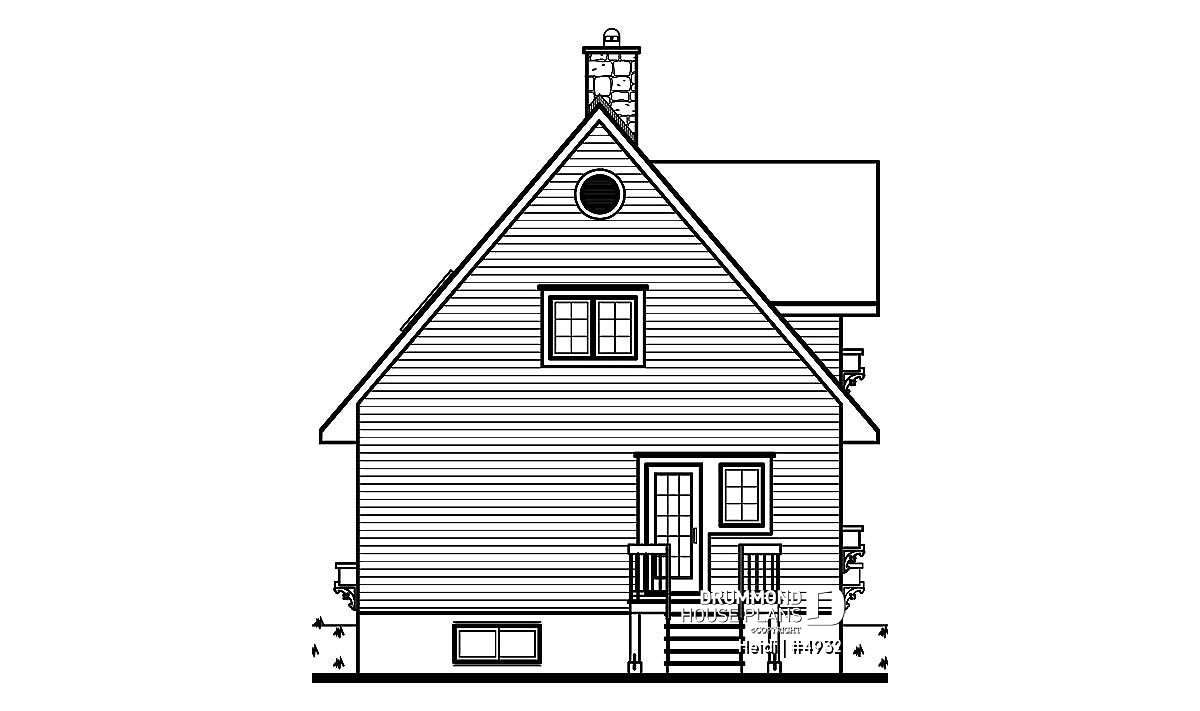

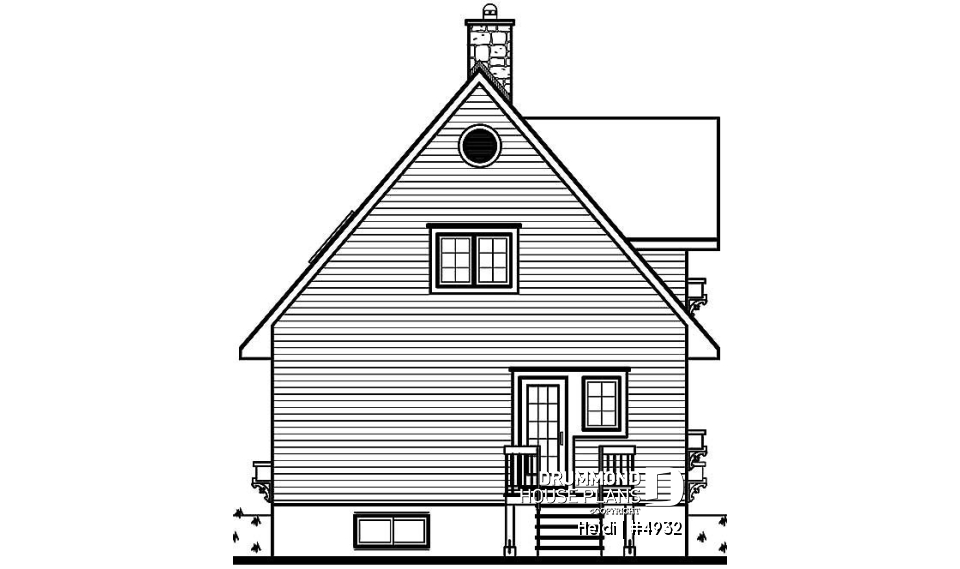

rear elevation - Heidi

rear elevation

Heidi House plan 4932

Swiss chalet or mountain style cottage plan, 3 bedrooms, 2 bathroo, open floor layout with large fireplace

Starting from

1680$

Technical details summary Plan #4932
Total living area 1510 sq.ft. Bedroom 3
Full baths 2 Half baths -
Foundation included Unfinished Basement Garage -
Width 28'0" Depth 30'0"

Need help ?

Our experts are here to guide you to make your dream project come to life.

Contact us

Come see us

Visit one of our 30 regional offices.

Our offices

Personalized support

From plan modifications to fully custom designs, we guide you every step of the way.

Discover our services

Additional details

General specifications

Total living area
1510 sq.ft.
1st level
840 sq.ft.
2nd level
670 sq.ft.
Width
28'0"
Depth
30'0"
Ridge height from top of foundation
28'9"
Exterior wall
2 X 6
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
D

Rooms specifications

Bedroom(s)
3
Full baths
2
Half baths
-
Garage type
-
Covered porch area
64 sq.ft.

1st level

Rooms
Sizes
Ceiling
Full bathroom
6'8" x 5'4"
~ 8'0"
Kitchen/dining room
10'2" x 16'10"
~ 8'0"
Living room
13'10" x 14'8"
~ 8'0"
Bedroom
13'10" x 10'4"
~ 8'0"
Linen
2'0" x 2'0"
~ 8'0"
Laundry room
10'2" x 5'10"
~ 8'0"
Closet
2'0" x 3'0"
~ 8'0"
Deck
10'0" x 5'0"
N/D
Porch
12'10" x 5'0"
N/D

2nd level

Rooms
Sizes
Ceiling
Full bathroom
9'0" x 9'4"
~ 8'0"
Bedroom
21'8" x 11'2"
~ 8'0"
Bedroom
14'10" x 10'4"
~ 8'0"
Balcony
12'10" x 3'6"
N/D

Charming Swiss chalet house plan with balcony on second floor and huge central fireplace

.

Distinctive elements

Master bedroom with walk-in closet and private balcony, walk-in closet in secondary bedroom at second level, special ceiling treatments.

Plan feature(s)

Fireplace, Gound floor laundry room, Panoramic view, Open floor layout, Separate bath and shower, Double sinks

Plan architectural style(s)

Cottage, chalet, cabin, Ski chalets, Country, Vacation and waterfront, A-Frame, Mountain, European

Similar plans
Logo Drummond House Plans image drummond house plans
The plan Heidi is protected by the copyright law.

The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.

Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
