House plan Touchstone - Eco (90113)
Eco-friendly Cottage plan, panoramic view, 3 to 5 beds, cathedral ceiling, finished basement (*optional $)
View the size of the rooms and height of the ceilings

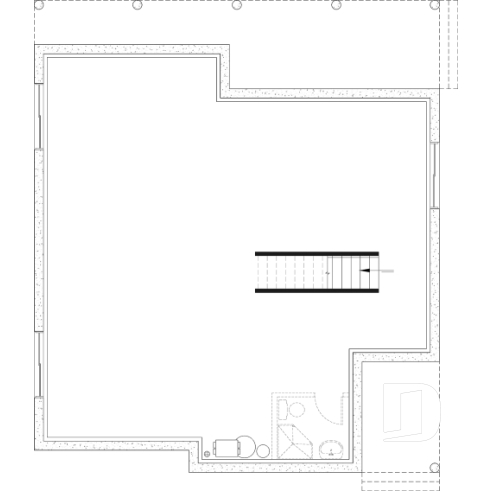

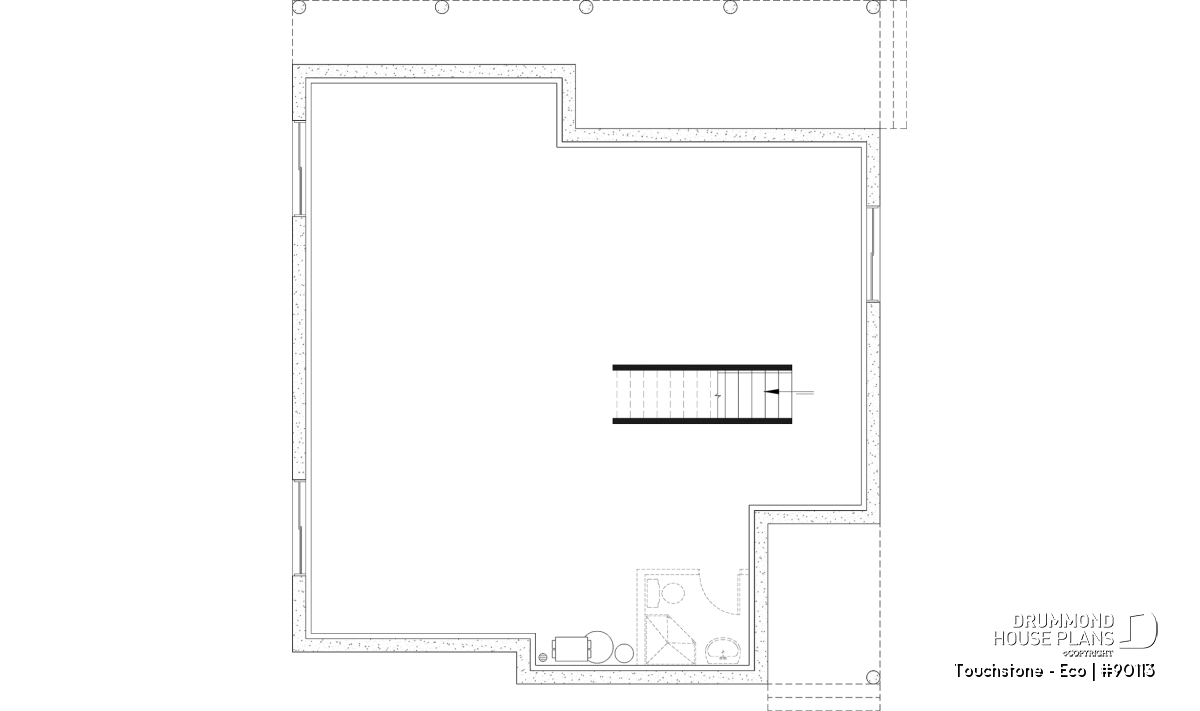

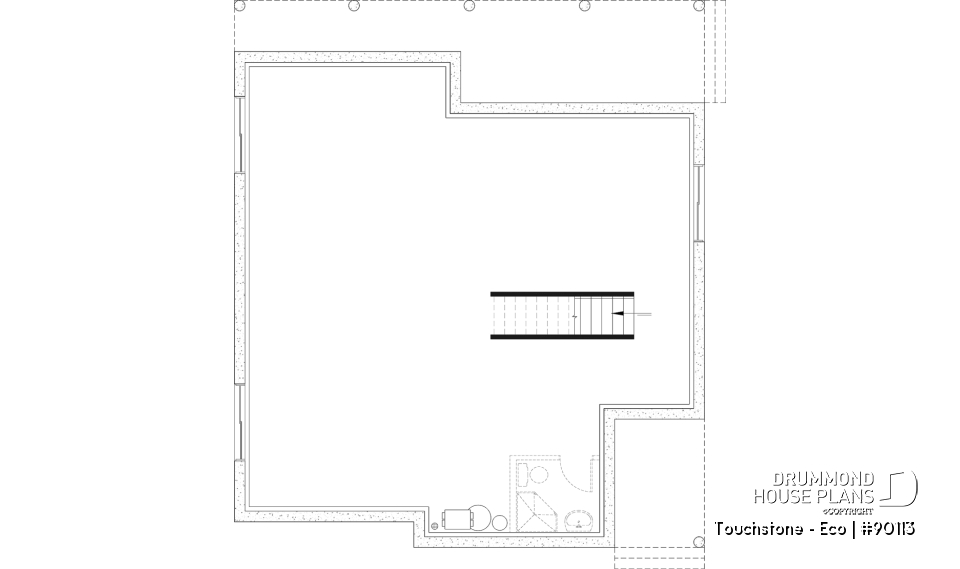

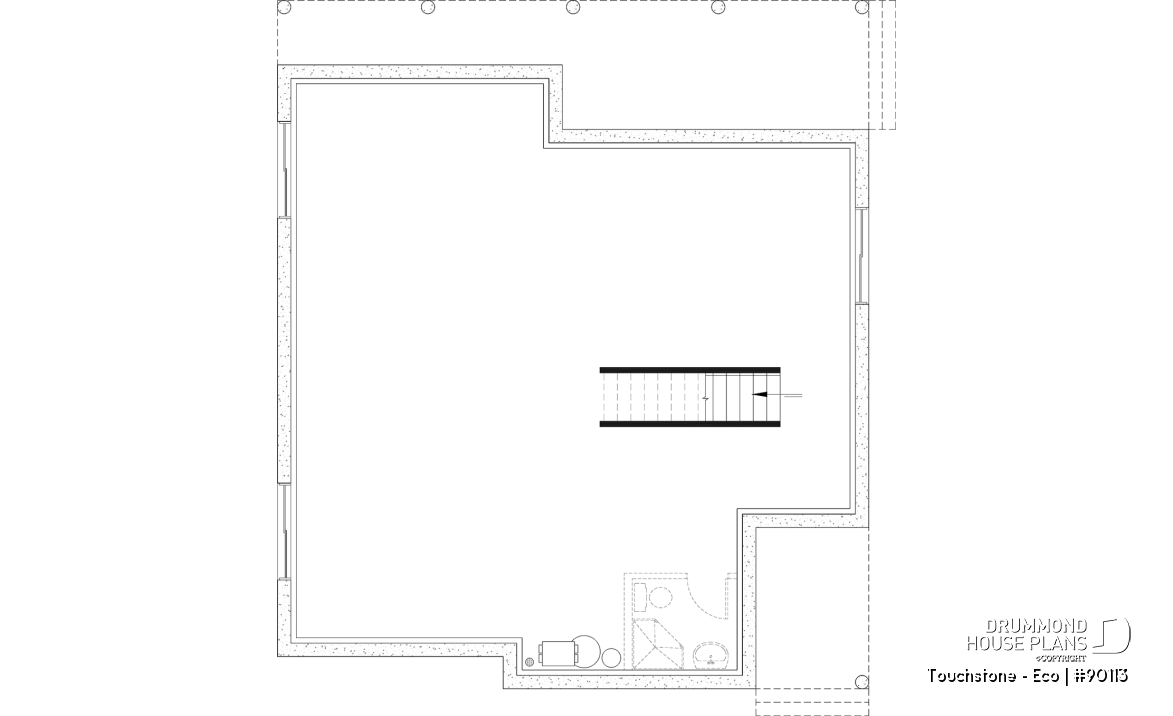

| Unfinished basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

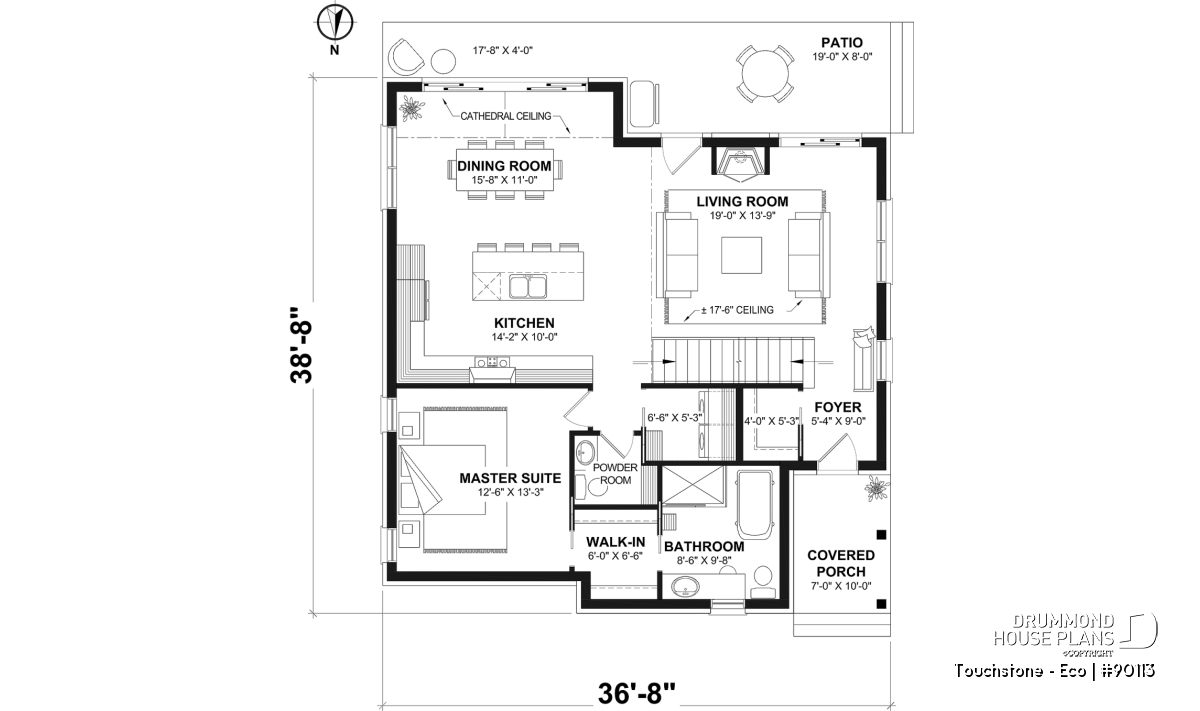

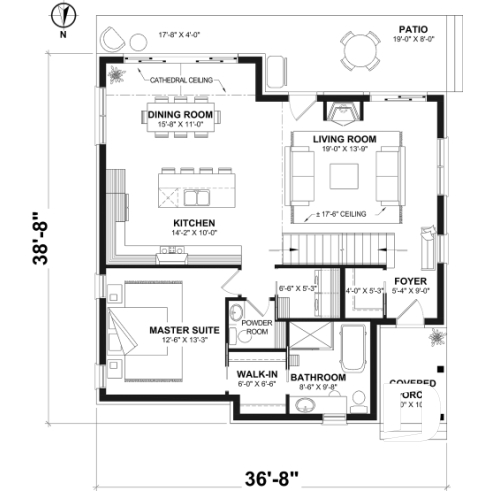

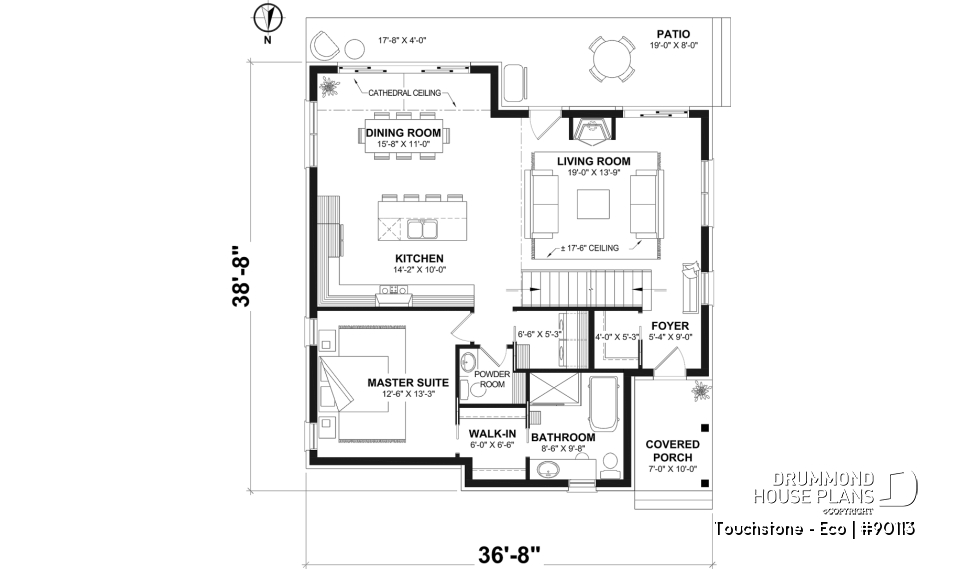

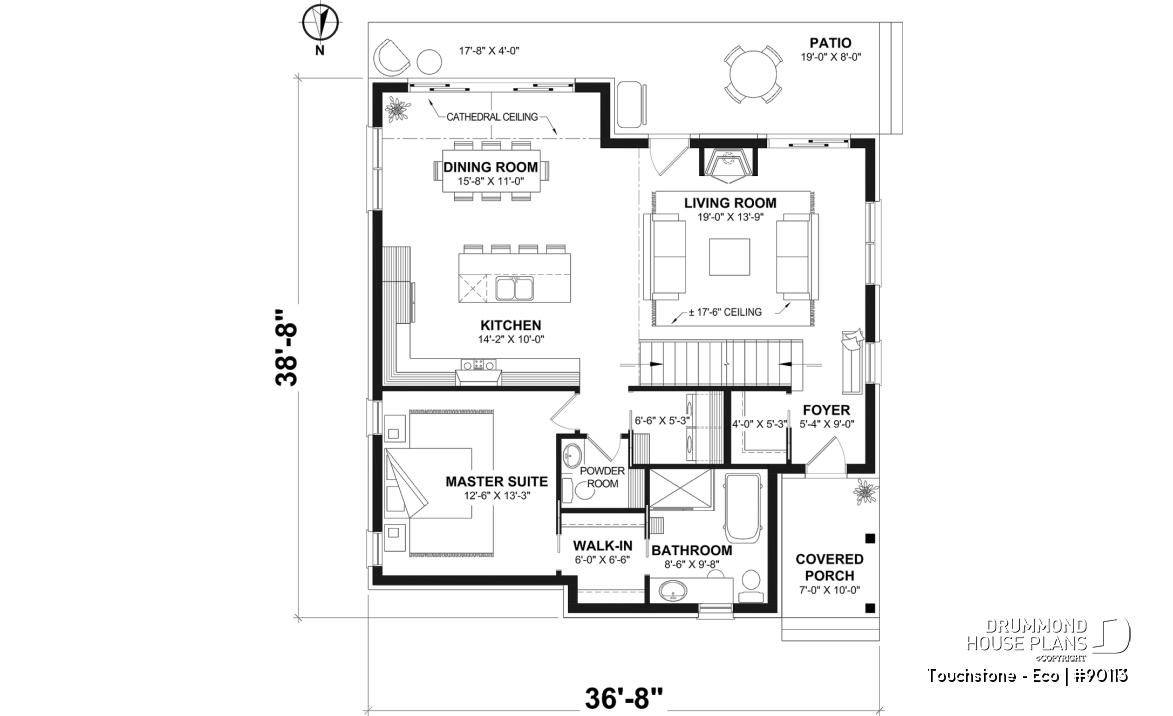

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'2" x 10'0" | ~ 8'0" |
| Kitchen island | 8'0" x 3'6" | N/A |
| Living room | 19'0" x 13'9" | ~ 17'6" |
| Foyer | 5'4" x 9'0" | ~ 8'0" |
| Dining room | 15'8" x 11'0" | ~ 16'0" |
| Master suite | 12'6" x 13'3" | ~ 8'0" |
| Full bathroom | 8'6" x 9'8" | ~ 8'0" |
| Walk-in closet | 6'0" x 6'6" | ~ 8'0" |
| Shower | 4'8" x 3'0" | N/A |
| Covered porch | 7'0" x 10'0" | ~ 9'6" |
| Terrace | 19'0" x 8'0" | N/A |
| Terrace | 17'8" x 4'0" | N/A |
| Laundry room | 6'6" x 5'3" | ~ 8'0" |
| Linen | 2'2" x 1'2" | N/A |
| Powder room | 6'0" x 5'0" | ~ 8'0" |
| Linen | 2'10" x 1'2" | N/A |
| Mud room | 4'0" x 5'3" | ~ 8'0" |

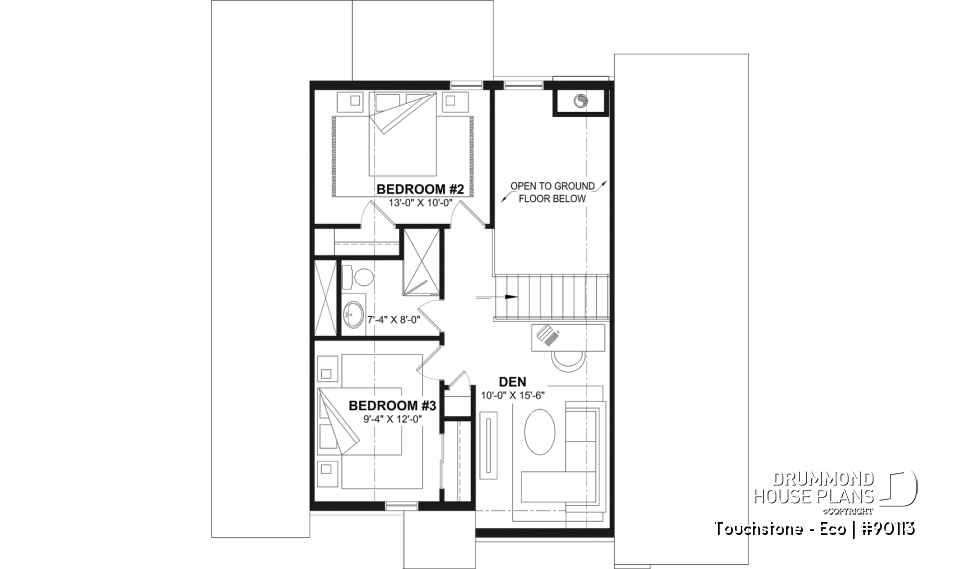

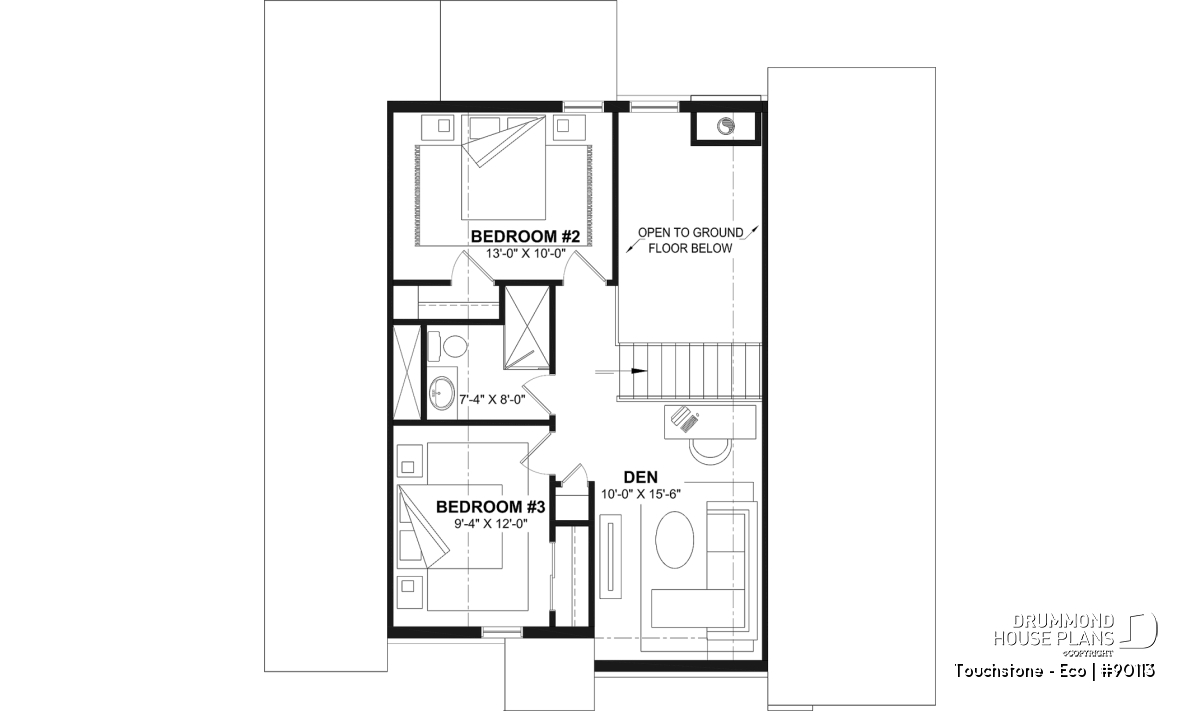

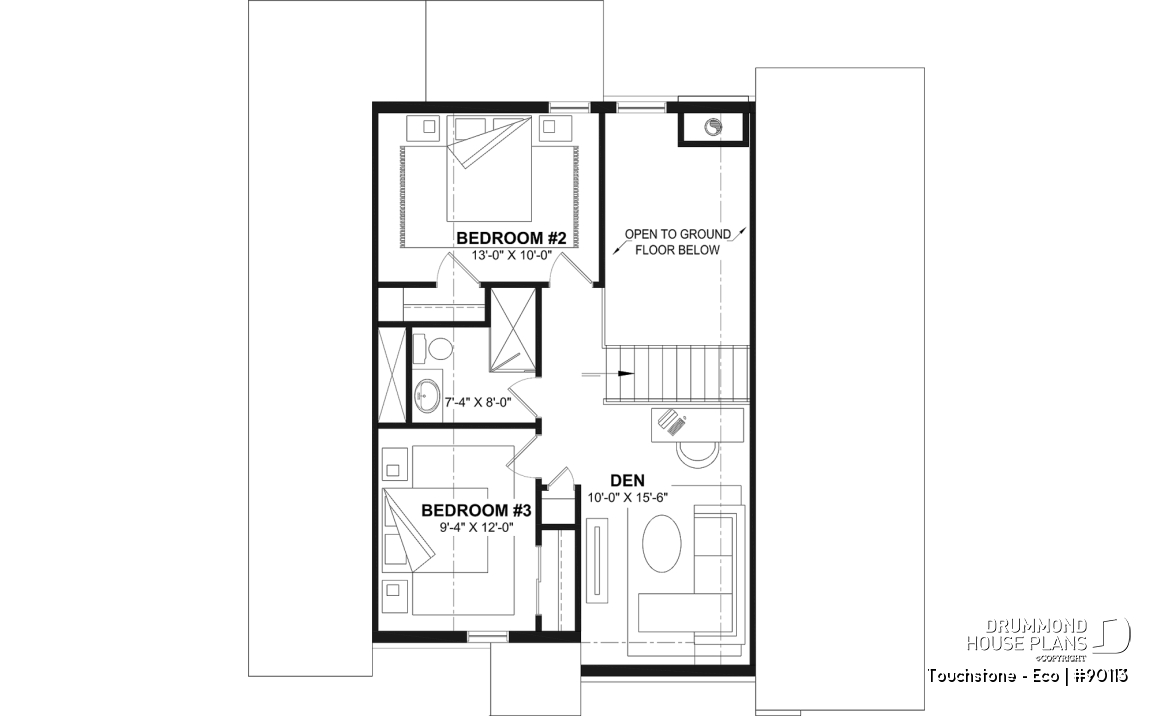

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'1" x 12'2" | ~ 8'0" |
| Walk-in closet | 4'11" x 5'0" | ~ 8'0" |
| Bedroom | 9'9" x 12'2" | ~ 8'0" |
| Closet | 2'0" x 5'11" | ~ 8'0" |
| Mezzanine | 11'11" x 7'0" | ~ 8'0" |
| Shower room or three quarter bath | 9'6" x 5'11" | ~ 8'0" |

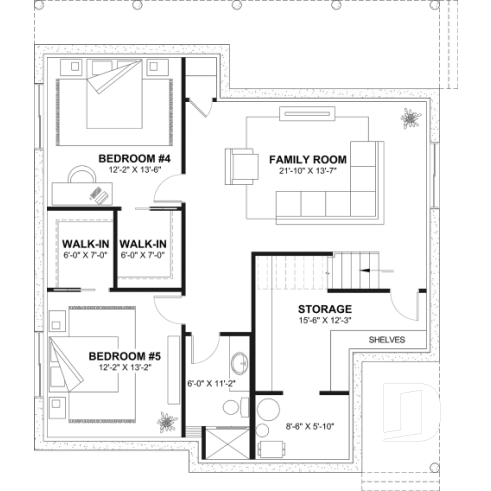

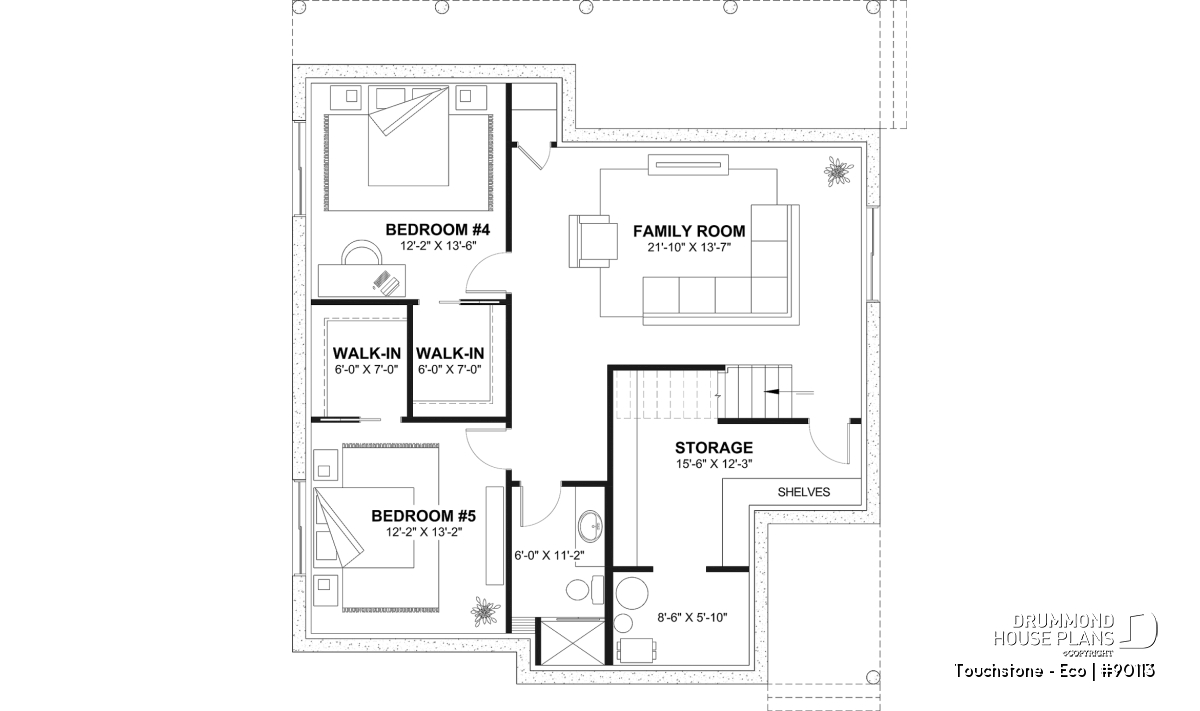

| Finished basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'2" x 13'6" | ~ 8'0" |
| Walk-in closet | 6'0" x 7'0" | ~ 8'0" |
| Bedroom | 12'2" x 13'2" | ~ 8'0" |
| Walk-in closet | 6'0" x 7'0" | ~ 8'0" |
| Bathroom | 6'0" x 11'2" | ~ 8'0" |
| Shower | 4'0" x 3'0" | N/A |
| Linen | 1'6" x 1'0" | N/A |
| Storage | 15'6" x 12'3" | ~ 8'0" |
| Mechanical room | 8'6" x 5'10" | ~ 8'0" |
| Linen | 2'10" x 3'8" | ~ 8'0" |
| Great room or Family room | 21'10" x 13'7" | ~ 8'0" |
General specifications
| Total living area | 1819 sq.ft. |
| Unfinished basement | 1243 sq.ft. |
| 1st level | 1243 sq.ft. |
| 2nd level | 576 sq.ft. |
| Finished basement | 1243 sq.ft. |
| Width | 36'8" |
| Depth | 38'8" |
| Ridge height from top of foundation | 28'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Finished basement, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

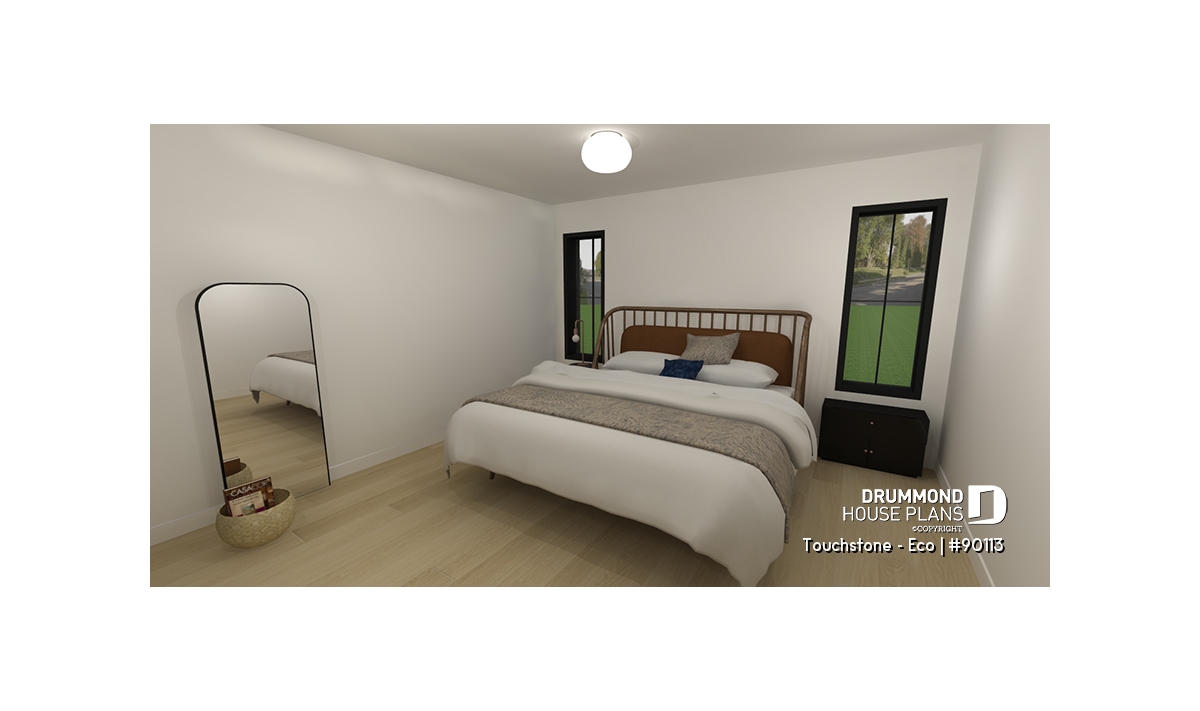

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

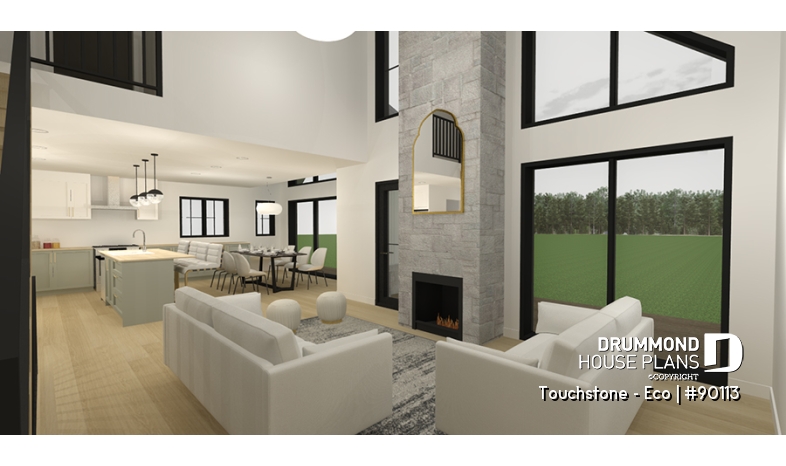

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

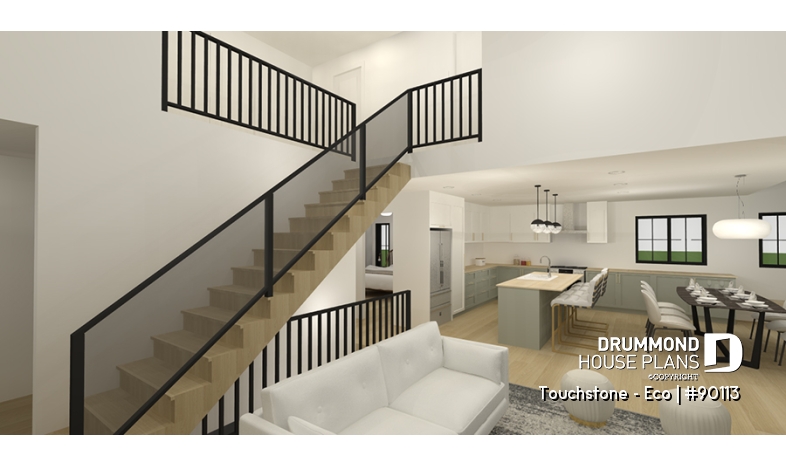

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Superb eco-friendly family cottage plan offering 3 to 5 bedrooms and up to 3 family rooms!
Inspired by our Touchstone 3 (plan 2957-V3) house plan, the Touchstone-Eco is an eco-friendly and revised version. The windows have been updated to make it a passive solar house.

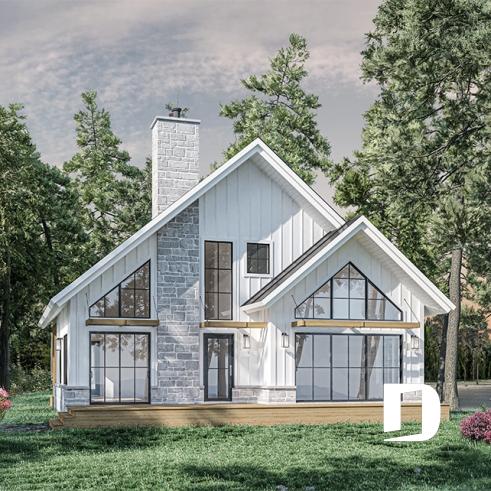

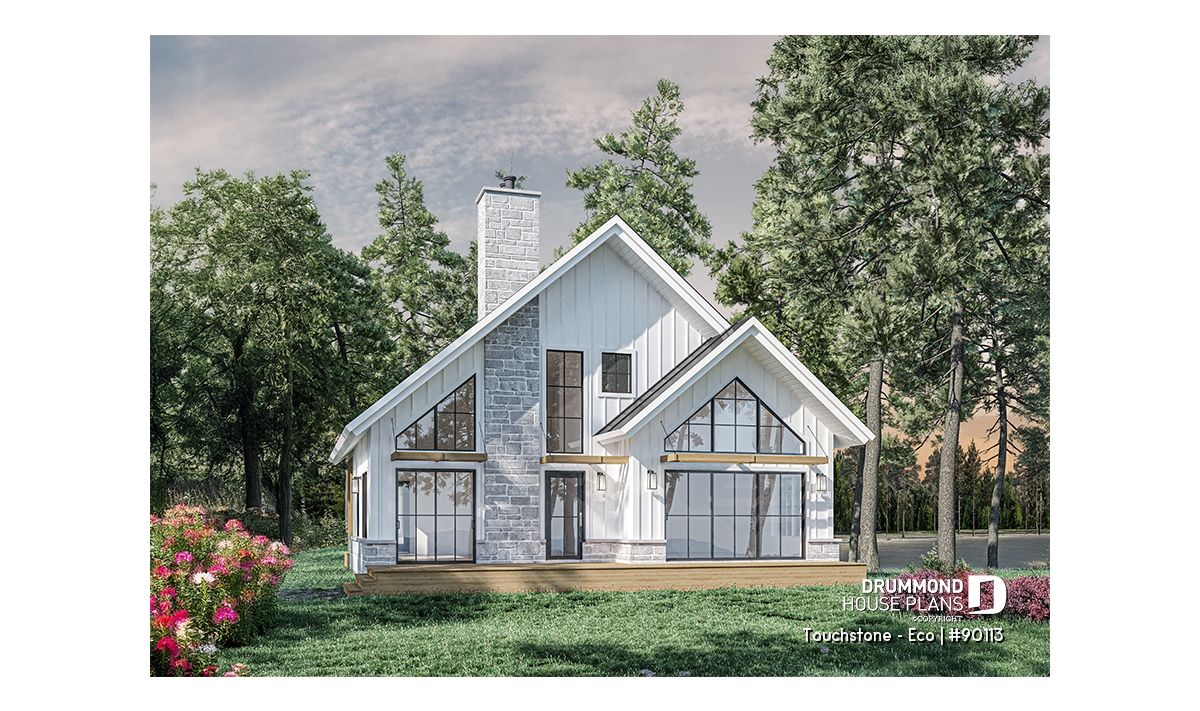

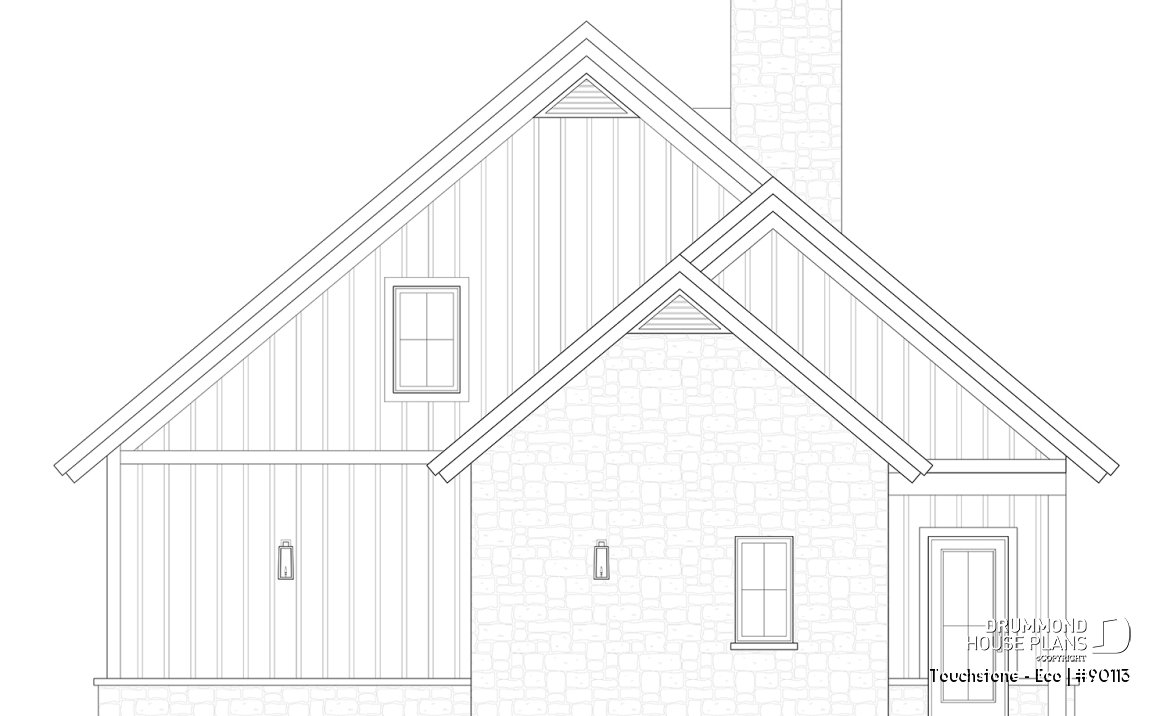

Best suited for a southern backyard orientation, this home preserves the defining features of the original plan while offering new, more optimal and eco-friendly ideas. First of all, on the ground floor we find the entrance followed by a large open area with cathedral ceiling. The back of the house has a generous number of windows to welcome natural light coming from the south. In front of the house there is the master suite with a walk-in closet and an ensuite.

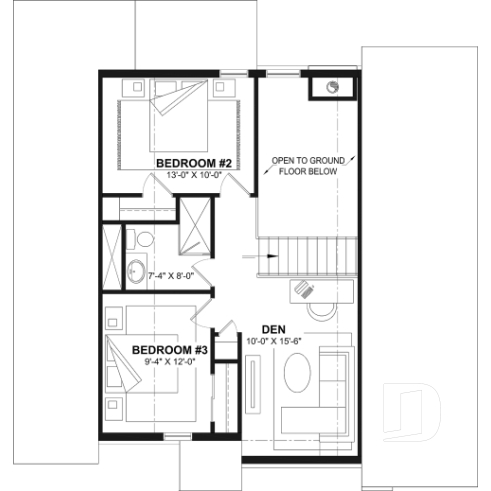

Upstairs, a beautiful mezzanine with an office space overlooks the living room. We also find two large bedrooms and a bathroom.

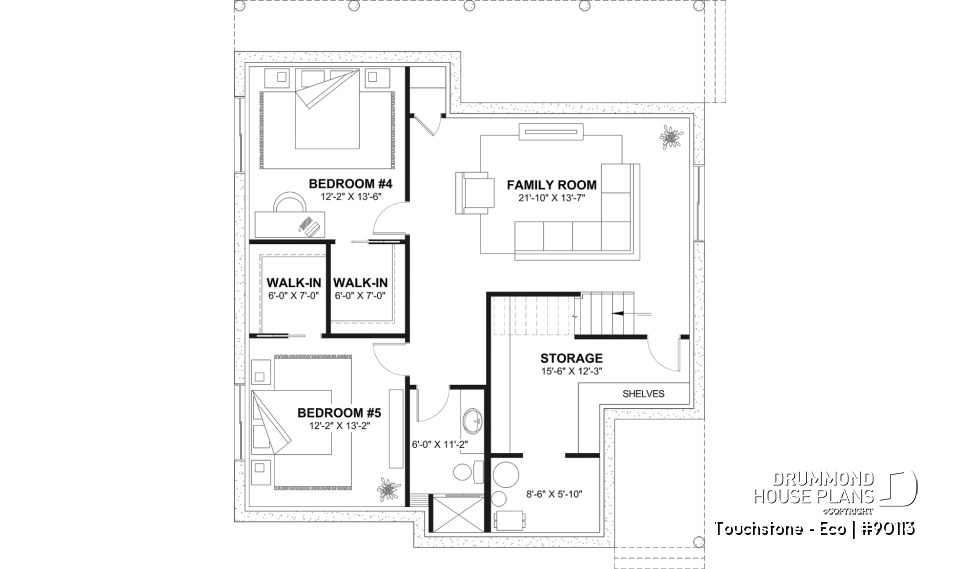

* Finished basement (optional $):
If you decide to finish the basement, we offer the addition of two additional large bedrooms of good size (possibility of 5 bedrooms) each with a walk-in closet. Then a spacious family room (the 3rd), a storage room with shelves and mechanical room area, and a shower room to complete this basement development proposal which is optional.
Several types of foundations available for all our plans.
*If you wish to purchase the finished basement plan, please select this option in the shopping cart, in the "Selection of foundation type" section. If you do not select this option, you will receive the unfinished full basement option, at no extra charge.
Let yourself be charmed by this mountain style home which is sure to impress you with its cathedral ceiling.
---
Ecological house plan
There are many elements that can be added to a home to make it eco-friendly. For all the plans in our ecological collection, we identify the intended orientation of the house on the ground (see the logo in the image). In addition, all the plans in this collection include a wall section specific to this type of construction. Therefore, to ensure superior insulation, the walls are made of a double frame of 2x4 spaced 24 inches apart. The amount of wood needed is therefore similar to that of a traditional house that uses 2x6 spaced every 16 inches. In addition, these two walls are also staggered in order to cut thermal bridges as much as possible, that is to say the continuous elements that create heat losses from the inside to the outside of the house. The insulation material used in this wall cut is squirt cellulose. This is a 100% recycled material that perfectly hugs each of the cavities in the wall for optimal insulation. You have questions? Please contact our customer service.
Distinctive elements
**Eco-friendly Mountain style cottage house plan.
3 bedrooms and 2.5 bathrooms.
Master bedroom on the main floor with private ensuite and walk-in closet.
Lots of natural light in the back.
Imposing central fireplace.
Living room open on two floors.
Mezzanine upstairs and cathedral ceiling in the dining room.
Practical laundry room located on the ground floor, near the master bedroom.
2 secondary bedrooms with family room (and office area) and shower room upstairs.
*Finished basement (optional $):
Two additional large bedrooms of good size each with a walk-in closet.
Spacious family room.
Storage with shelves and mechanical room area.
Several types of foundations available for all our plans.
---
*If you wish to purchase the finished basement plan, please select this option in the shopping cart, in the "Selection of foundation type" section. If you do not select this option, you will receive the unfinished full basement option, at no extra charge.
---
This house plan is part of our “Eco-friendly house plan’ collection” and here is what distinguishes all the plans included in this selection:
SUN:
The orientation of the house according to the sun’s daily path, combined with the thermal capture of the sun's rays using optimal fenestration, minimizing heating costs and maximizing the presence of natural light.
SIMPLICITY:
A house with modest volumes ensuring simplified construction, while favoring the maximization of interior spaces, to reduce the number of square feet and the construction cost.
SOUND MIND & BODY:
A home designed to promote the well-being and health of its occupants by being well ventilated, using durable and non-toxic materials (steel, wood, lightweight cladding, fiber cement, among others) and maximizing natural light.
Plan feature(s)
Separate bath and shower, Fireplace, Ceiling over 8', Walk-in master bed., Sloped ceiling, Cathedral ceiling, Mud room, Open floor layout, Gound floor laundry room, Panoramic view, Planning desk, Shelves
Plan architectural style(s)
. Cottage, chalet, cabin, Modern Craftsman, . Mountain, . Farmhouse, Modern farmhouse, . Ski chalets, . Vacation and waterfront, . Modern rustic, . Transitional, . Contemporary
