House plan Havre (90117)
Eco-friendly house plan with one bedroom, beautiful natural light in the back, and upstairs mezzanine
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'0" x 7'0" | ~ 8'0" |
| Closet | 5'8" x 2'8" | ~ 8'0" |
| Bathroom/laundry room | 6'10" x 13'0" | ~ 8'0" |
| Shower | 3'0" x 3'0" | N/A |
| Linen | 1'10" x 2'0" | N/A |
| Exterior storage | 6'4" x 3'8" | ~ 8'0" |
| Bedroom | 11'8" x 10'8" | ~ 8'0" |
| Mechanical room | 2'8" x 6'10" | ~ 8'0" |
| Porch | 12'0" x 4'0" | N/A |
| Activity room | 26'2" x 13'2" | ~ 14'10" |
| Kitchen island | 6'2" x 2'0" | N/A |

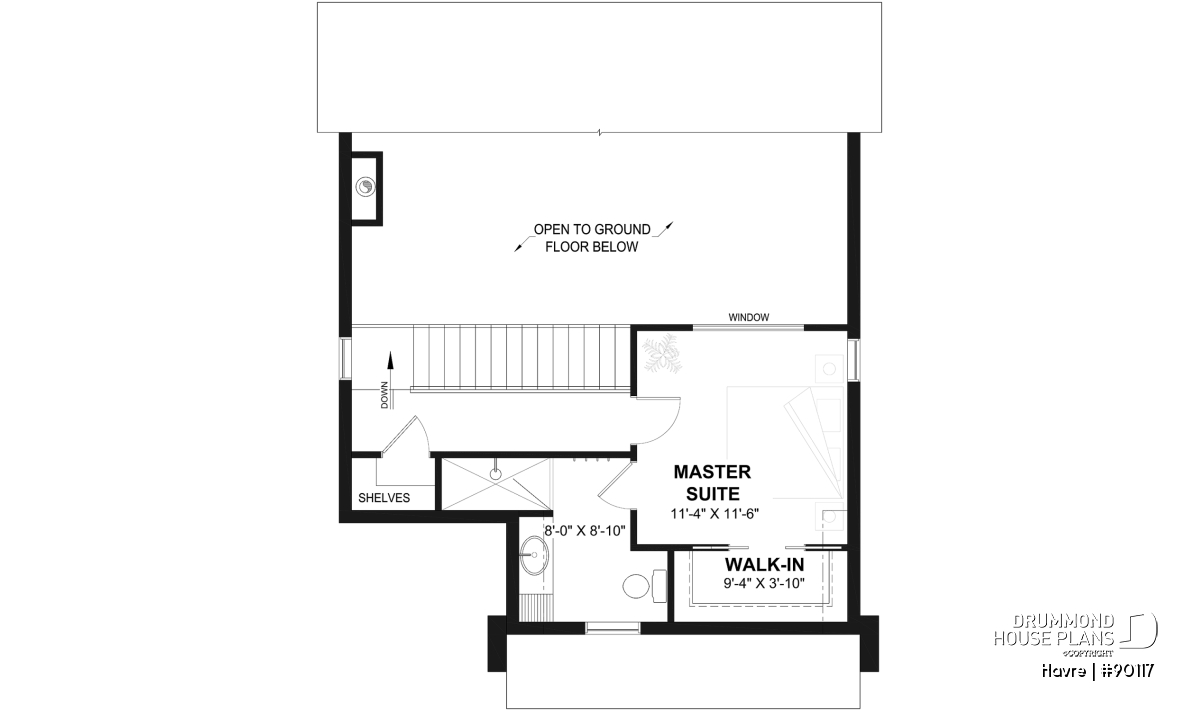

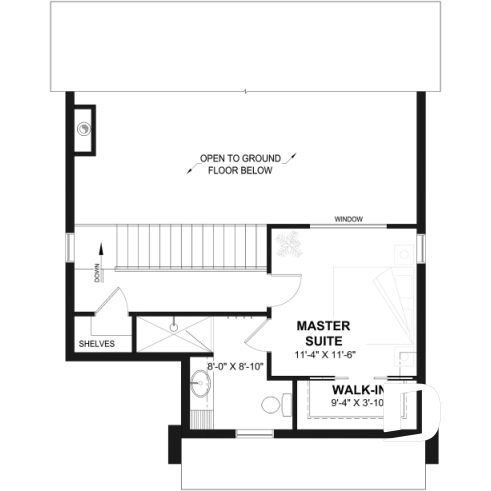

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Mezzanine | 26'2" x 17'0" | ~ 8'0" |
General specifications
| Total living area | 1290 sq.ft. |
| 1st level | 842 sq.ft. |
| 2nd level | 448 sq.ft. |
| Width | 28'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 28'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Eco-friendly house plan offering a beautiful, versatile mezzanine upstairs!

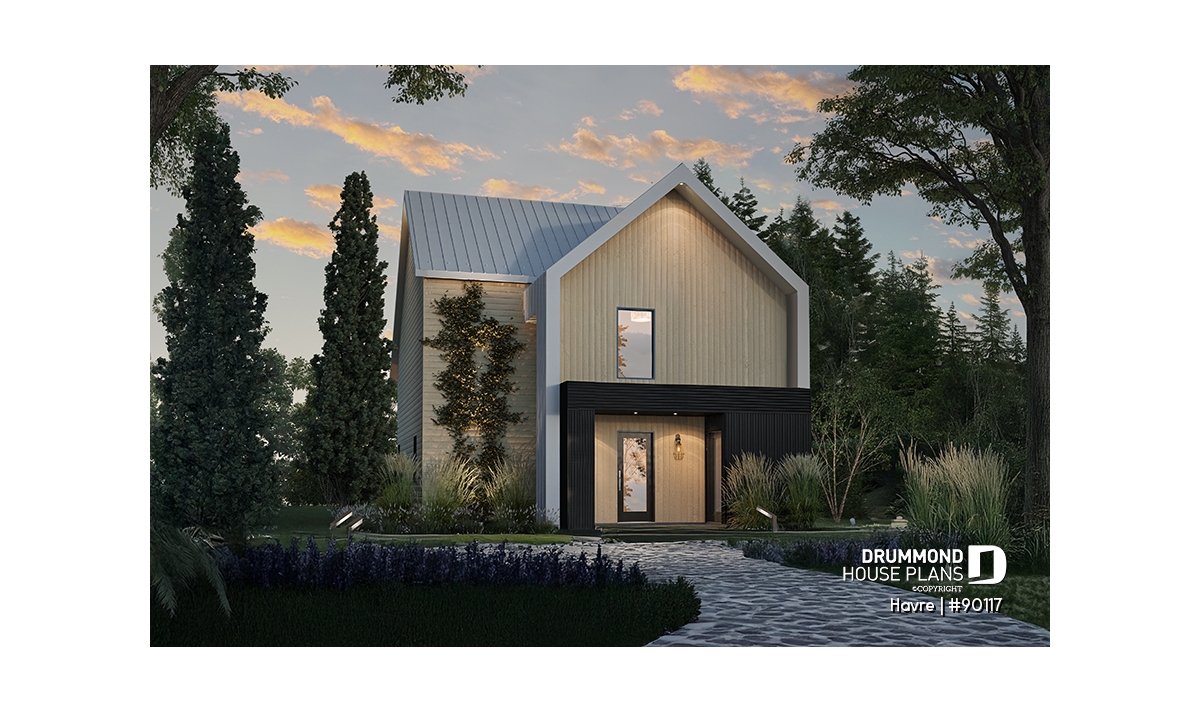

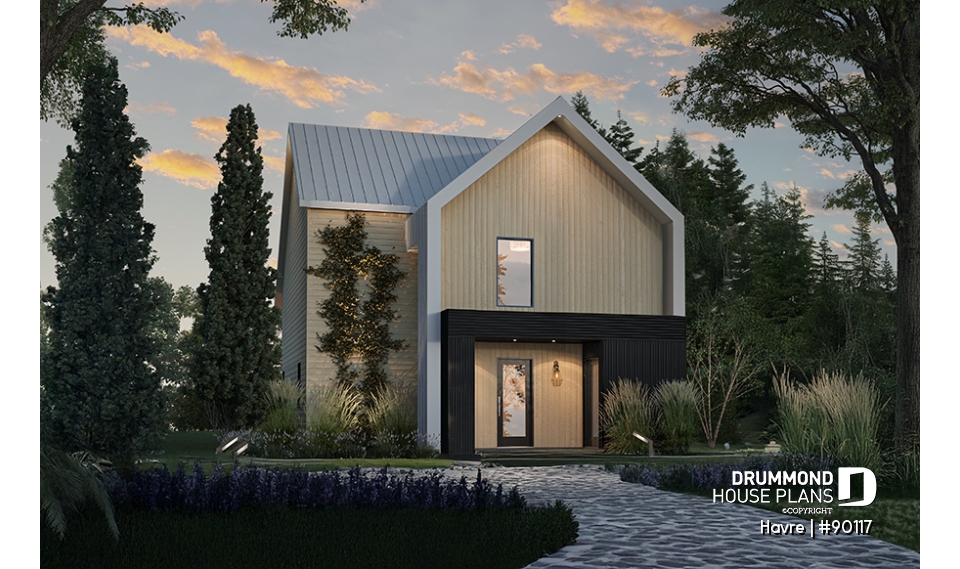

It is in a spirit of simplicity and peace that this chalet was created. Who doesn’t want to have their own little haven in the mountains, in the forest or on the edge of a lake to take refuge in?

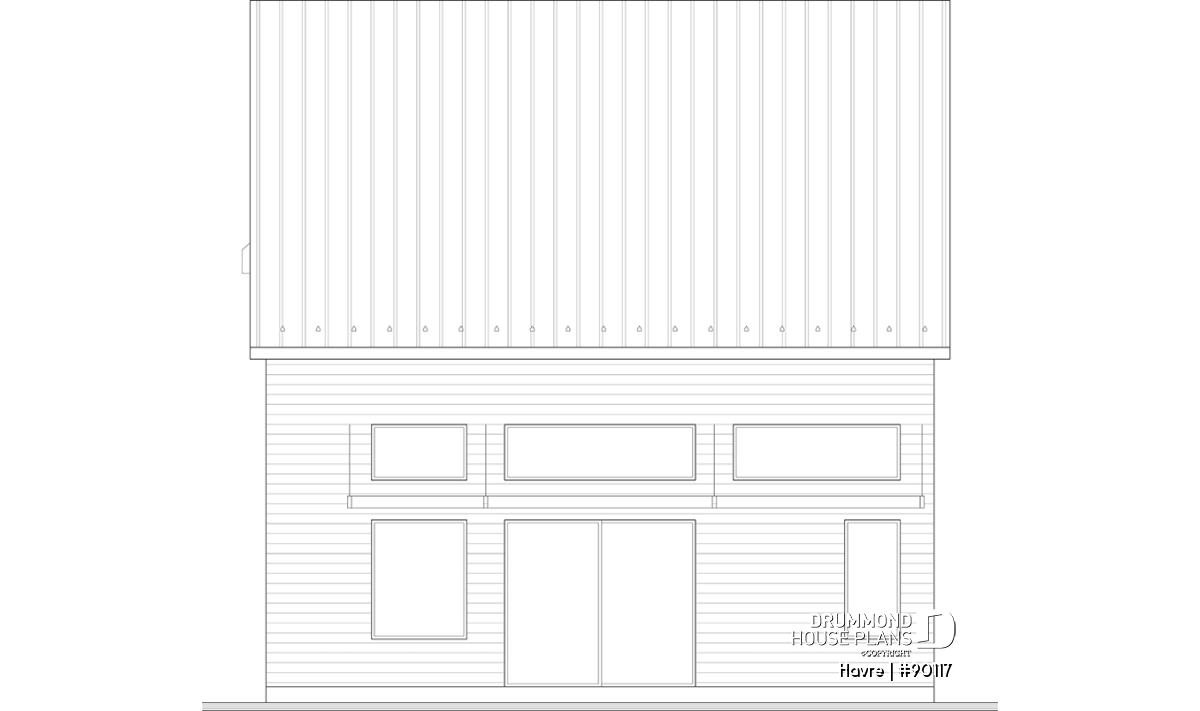

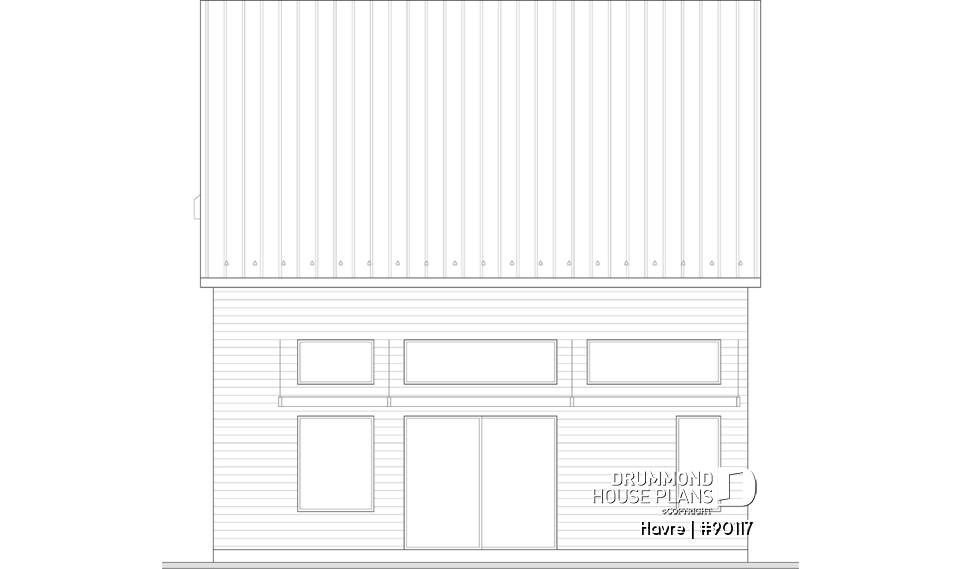

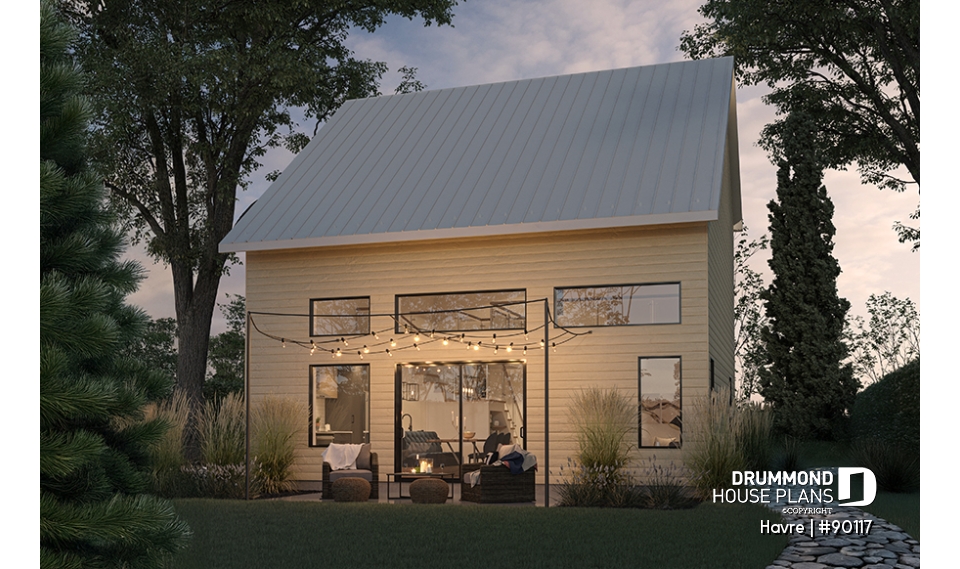

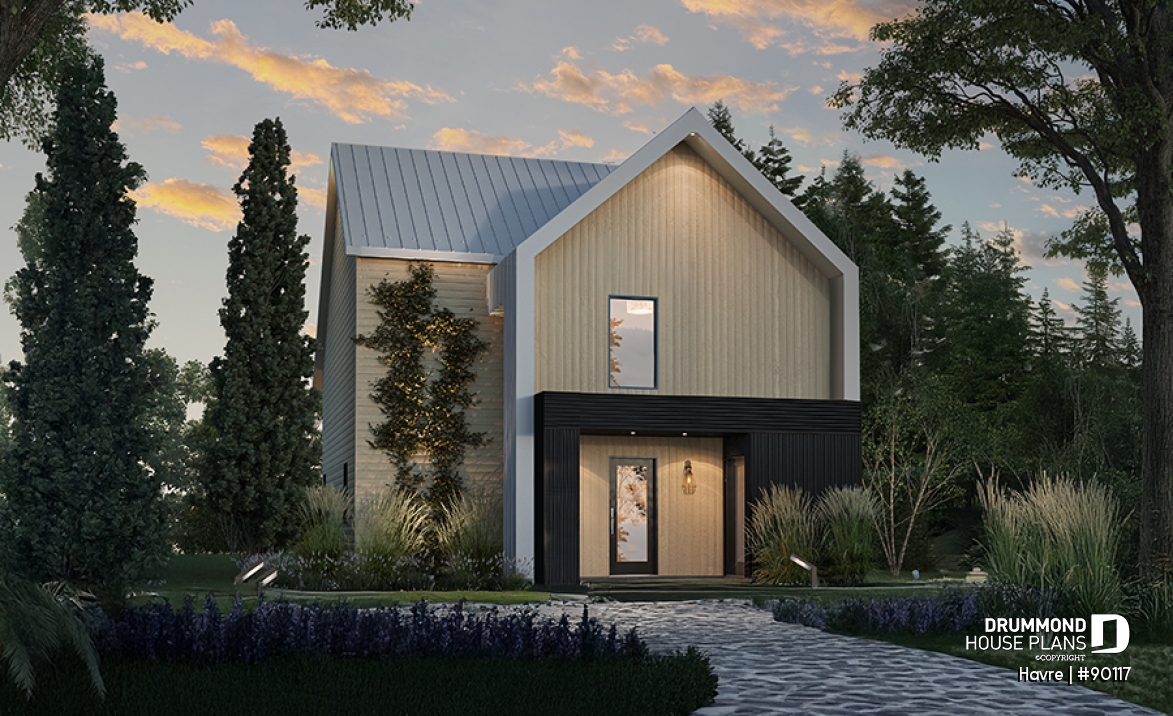

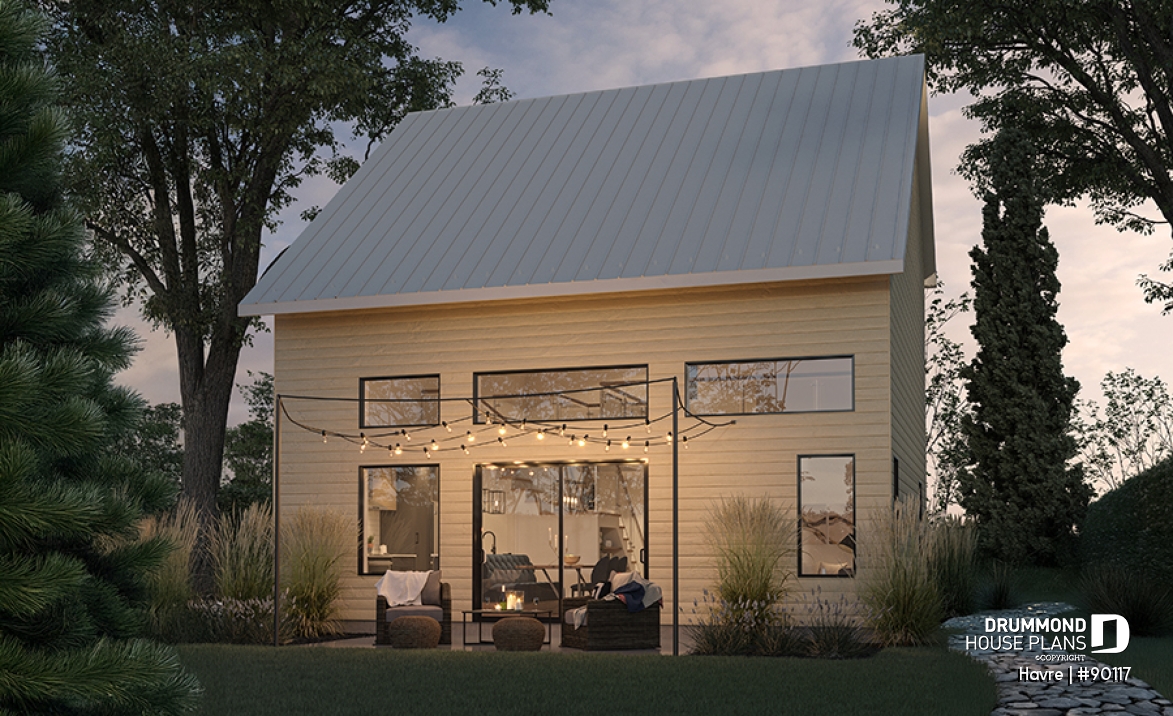

The large windows at the rear of the chalet provide a south-facing courtyard. The fenestration was calculated to respect the principles of passive solar energy while maximizing natural ventilation. At the front there is practical exterior storage for storing sports or outdoor equipment. As you enter Havre, you will find the bathroom on the right and a bedroom on the left, to the east, to enjoy the sunrises. The entire back of the chalet is reserved for the open area which includes the kitchen, dining room and living room. Equipped with a cathedral ceiling, this space will be submerged in delightful natural light coming directly from the south.
Upstairs, a large area gives you free rein to have fun. Perhaps it will be a space for yoga, a playroom for the children or a place for sleepovers? You are free to decide what you are going to do with it, the possibilities are endless. One thing is certain, it will be a very pleasant place for you to enjoy.
Havre is a small chalet that will allow you to enjoy every moment. Thanks to its simple shape, well-thought-out spaces and the feeling of lightness that reigns in this chalet, you will want to be there all year round.
---
* For more information or to buy a traditional construction version, please contact our customer service.
Ecological house plan
There are many elements that can be added to a home to make it eco-friendly. For all the plans in our ecological collection, we identify the intended orientation of the house on the ground (see the logo in the image). In addition, all the plans in this collection include a wall section specific to this type of construction. Therefore, to ensure superior insulation, the walls are made of a double frame of 2x4 spaced 24 inches apart. The amount of wood needed is therefore similar to that of a traditional house that uses 2x6 spaced every 16 inches. In addition, these two walls are also staggered in order to cut thermal bridges as much as possible, that is to say the continuous elements that create heat losses from the inside to the outside of the house. The insulation material used in this wall cut is squirt cellulose. This is a 100% recycled material that perfectly hugs each of the cavities in the wall for optimal insulation. You have questions? Please contact our customer service.
Distinctive elements
Plan with ecological thinking:
wall composition with better energy efficiency;
---
Minimalist Scandinavian cottage house plan.
Superb windows at the rear, throughout the activity center.
Flex room can be found in the mezzanine upstairs allowing the addition of an additional bedroom or office, or other type of room of your choice.
Main floor master bedroom.
Kitchen Island backed by a bench, serving as the main table for meals.
Living room open to the kitchen, and with ceilings of nearly 15' high.
Shower room with laundry room area.
Large coat closet at the front entrance.
Foundation included: floating slab. Other foundation types available.
---
To ensure superior insulation for each of our ecological homes, the walls are made of a double frame of 2x4 spaced 24 inches apart. The amount of wood needed is therefore similar to that of a traditional house that uses 2x6 spaced every 16 inches. In addition, these two walls are also staggered in order to cut thermal bridges as much as possible, that is to say the continuous elements that create heat losses from the inside to the outside of the house. The insulation material used in this wall cut is squirt cellulose. It is a 100% recycled material that perfectly hugs each of the wall cavities for optimal insulation.
* For more information or to buy a traditional construction version, please contact our customer service.
Plan feature(s)
Bench seat(s), Mezzanine, Open floor layout, Ceiling over 8', Panoramic view, Island, Built-ins
Plan architectural style(s)
