House plan La Baie (90116)
Eco-friendly single-storey plan, 3 bedrooms, mudroom, open floor plan, sheltered terrace
View the size of the rooms and height of the ceilings

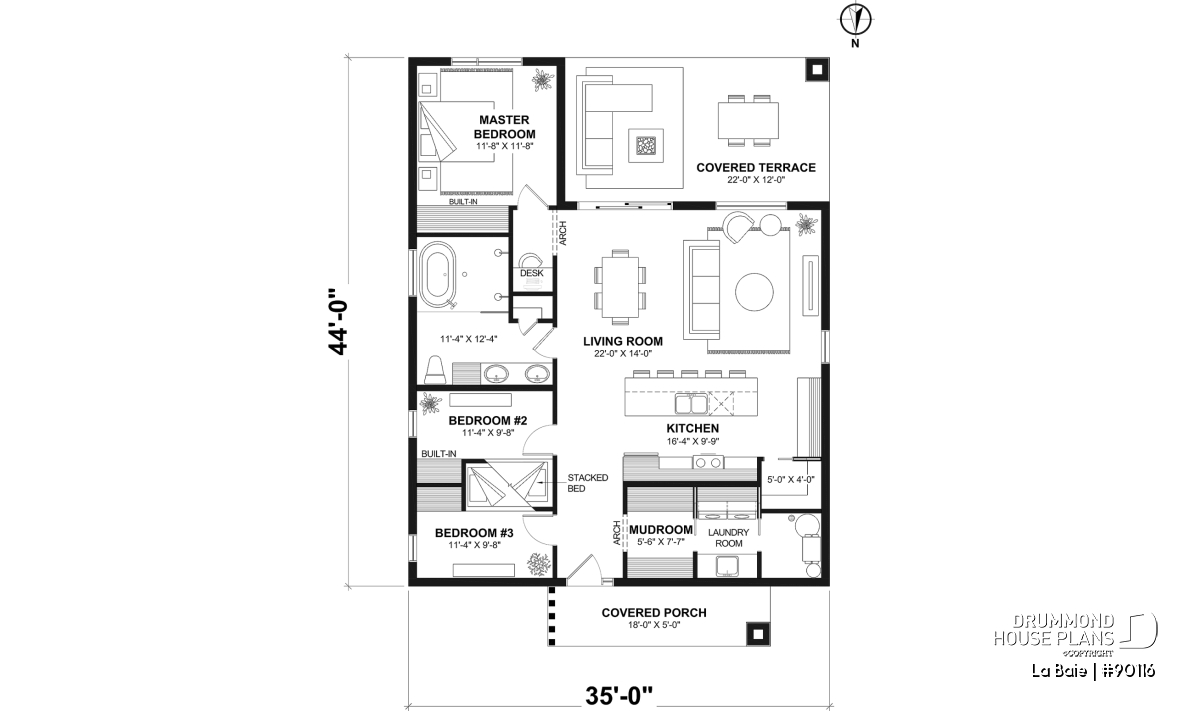

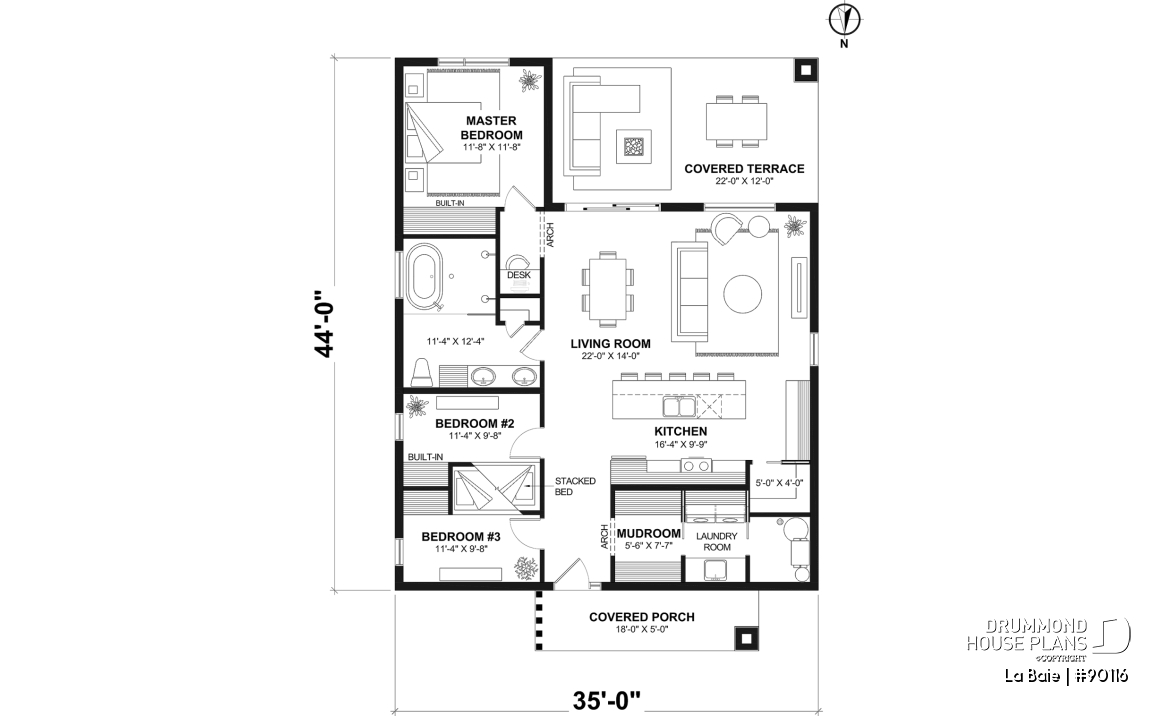

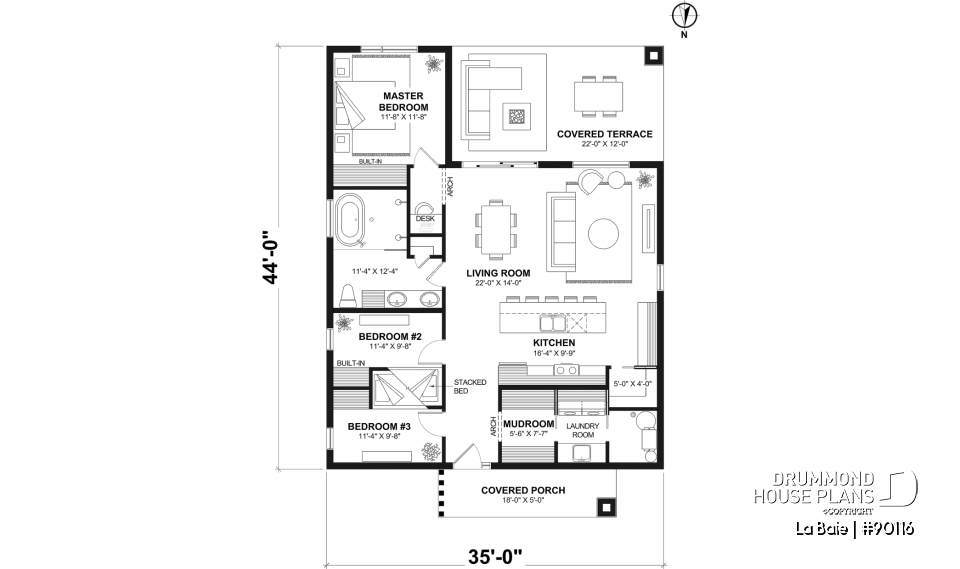

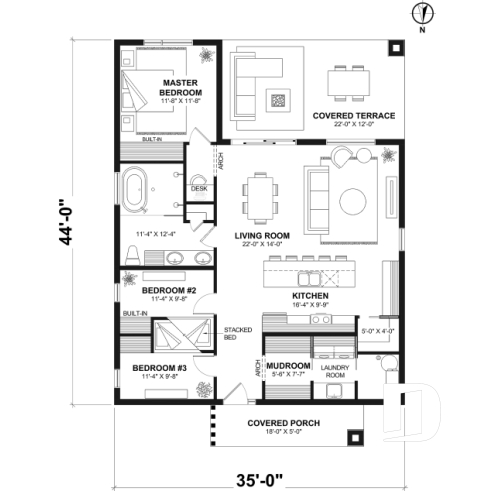

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered deck | 22'0" x 12'0" | ~ 8'8" |
| Bedroom | 11'8" x 11'8" | ~ 9'0" |
| Activity room | 22'0" x 14'0" | ~ 9'0" |
| Kitchen | 16'4" x 9'9" | ~ 9'0" |
| Kitchen island | 11'0" x 3'2" | N/A |
| Pantry | 5'0" x 4'0" | N/A |
| Bedroom | 11'4" x 9'8" | ~ 9'0" |
| Bedroom | 11'4" x 9'8" | ~ 9'0" |
| Foyer | 5'6" x 8'0" | ~ 9'0" |
| Mud room | 5'6" x 7'7" | ~ 9'0" |
| Mechanical room | 5'0" x 5'5" | ~ 9'0" |
| Covered porch | 18'6" x 5'0" | ~ 8'8" |
| Bathroom | 11'4" x 12'4" | ~ 9'0" |
| Linen | 2'4" x 1'10" | N/A |
| Enclosed toilet space | 3'0" x 6'0" | ~ 9'0" |
| Shower room or three quarter bath | 7'4" x 6'0" | ~ 9'0" |
| Closet | 3'4" x 2'0" | ~ 9'0" |
| Laundry room | 5'0" x 7'7" | ~ 9'0" |

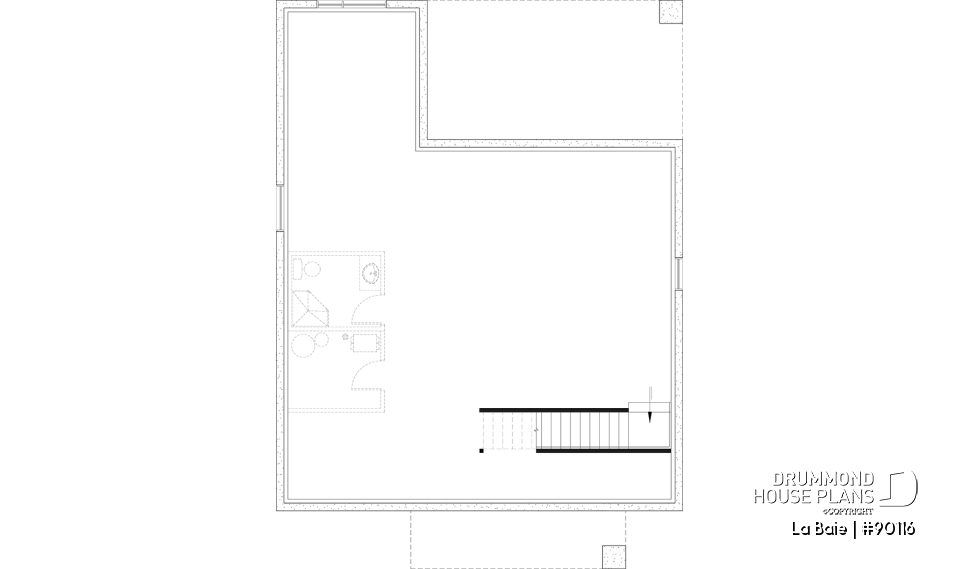

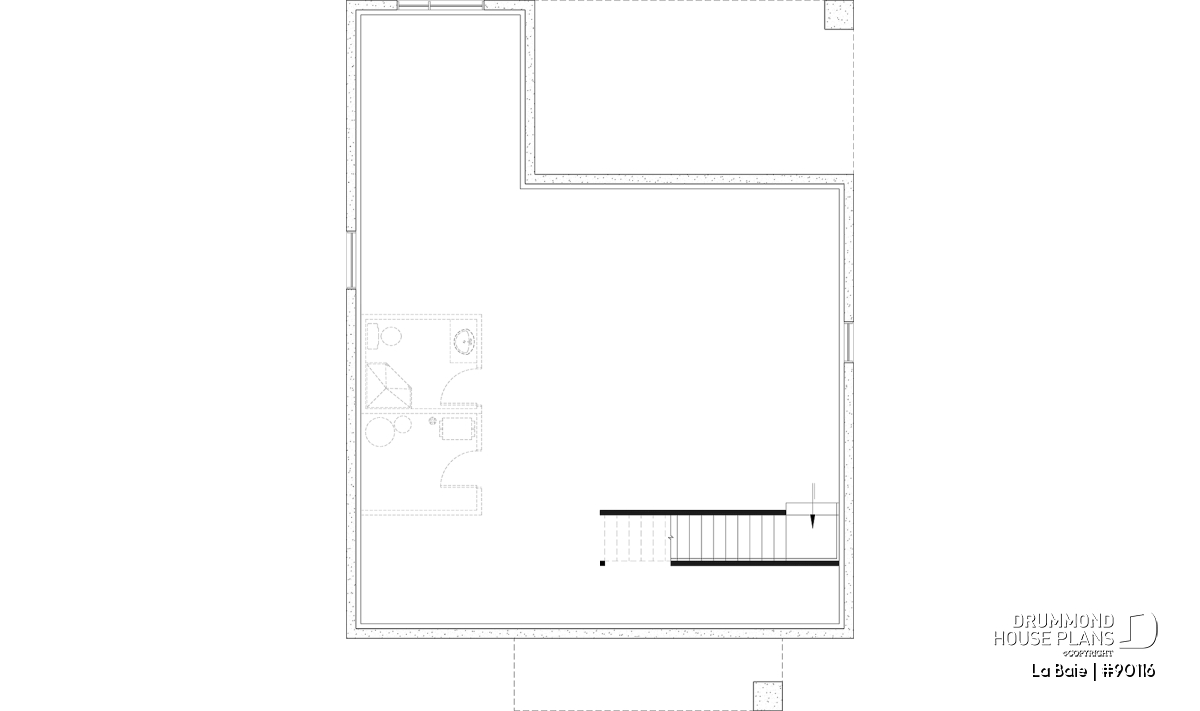

| Unfinished basement |
|---|

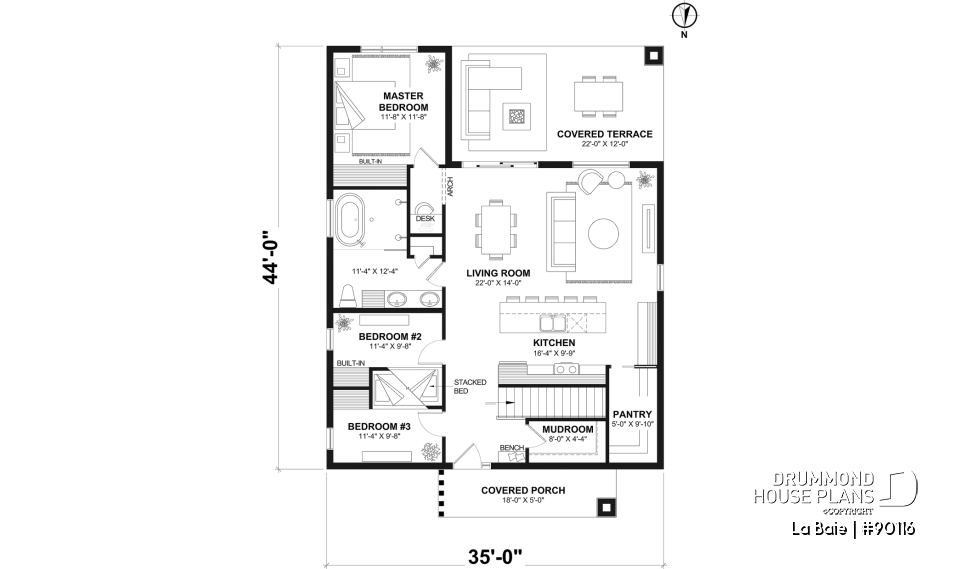

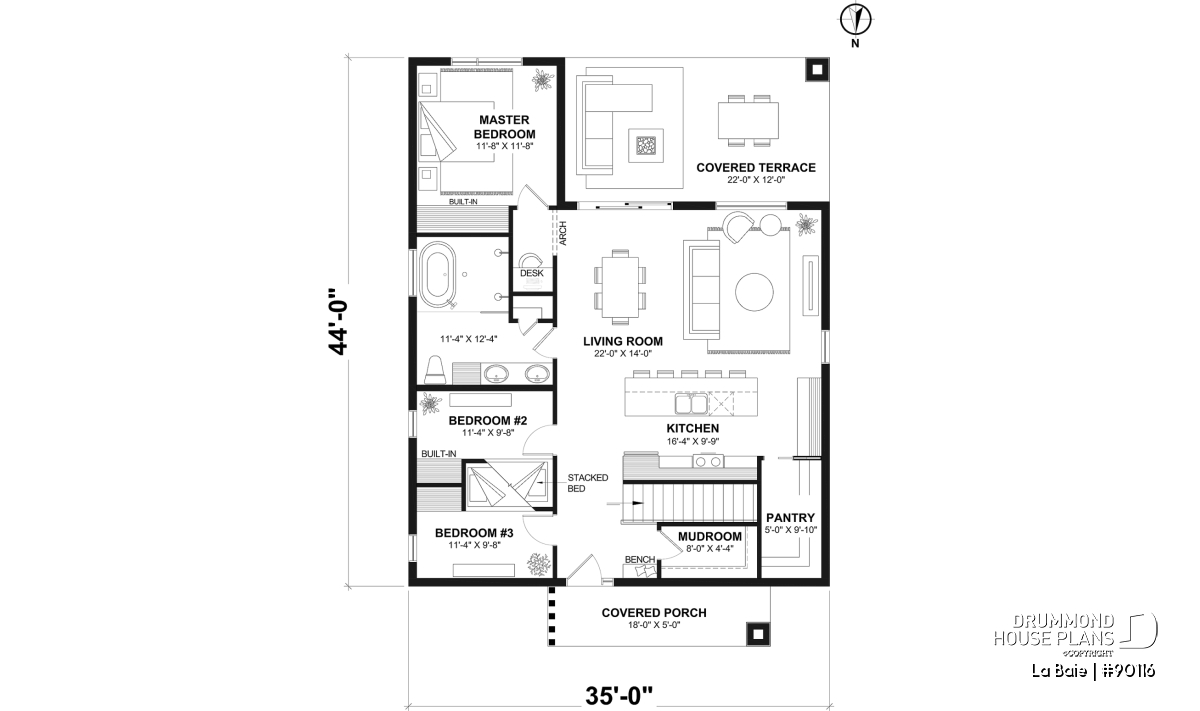

| 1st level option 1 |
|---|
General specifications
| Total living area | 1276 sq.ft. |
| 1st level | 1276 sq.ft. |
| Unfinished basement | 1276 sq.ft. |
| 1st level option 1 | 1276 sq.ft. |
| Width | 35'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 20'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Unfinished Basement, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

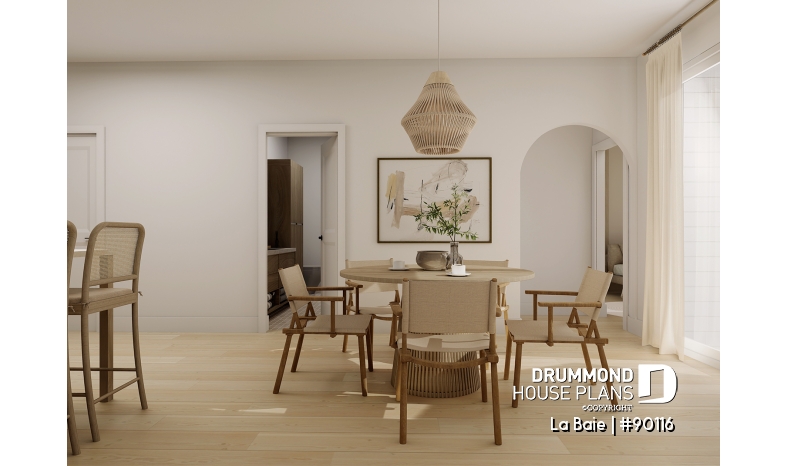

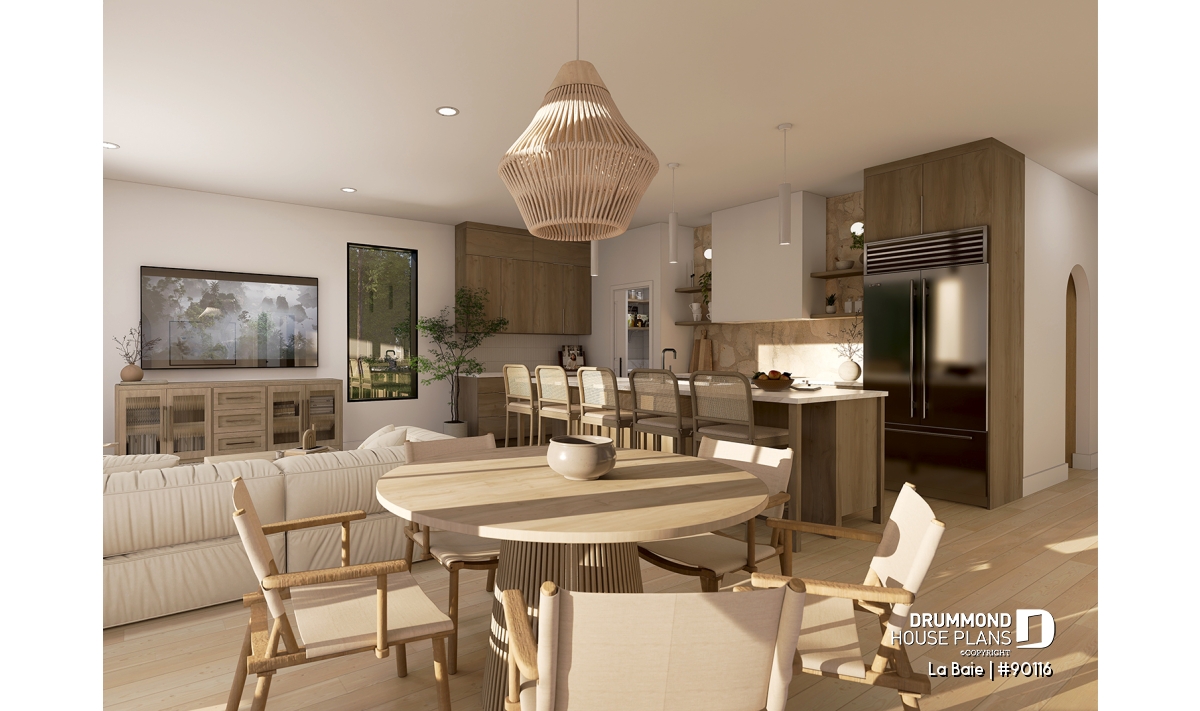

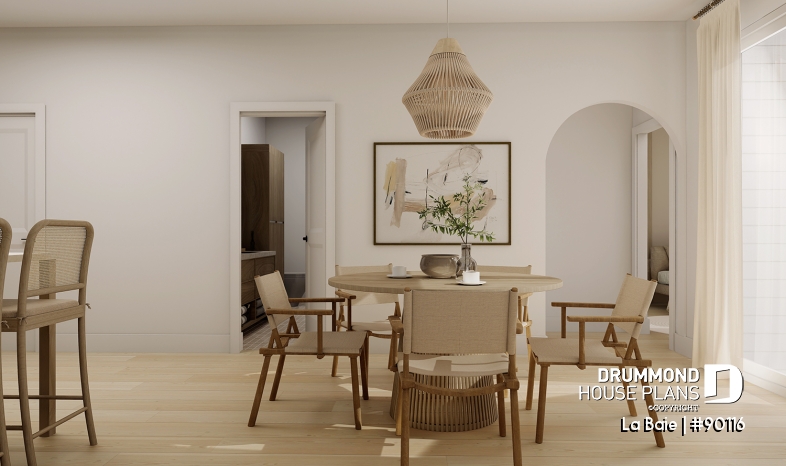

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

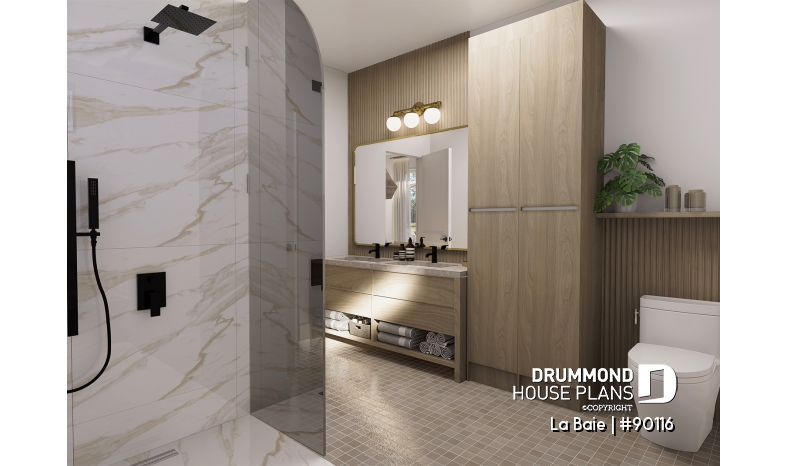

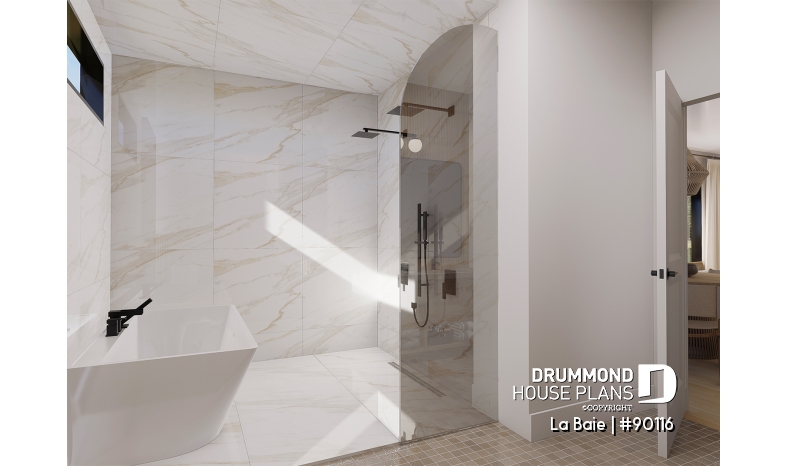

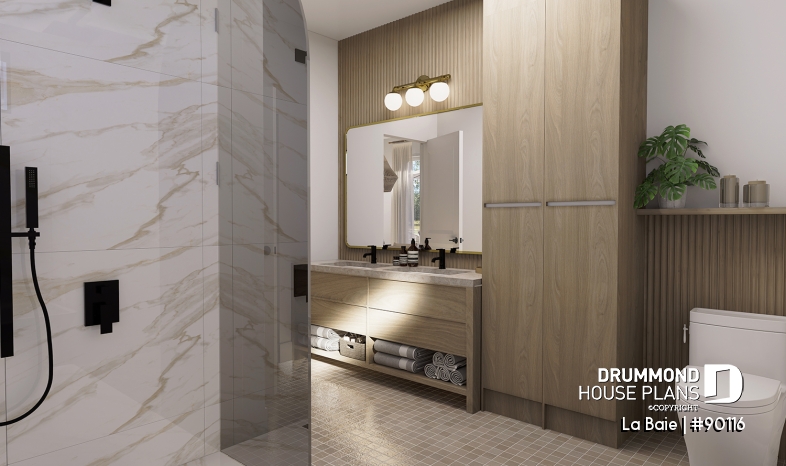

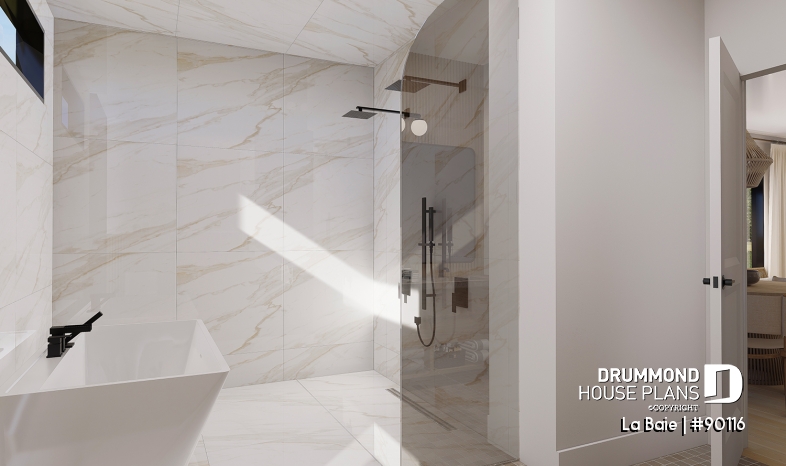

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

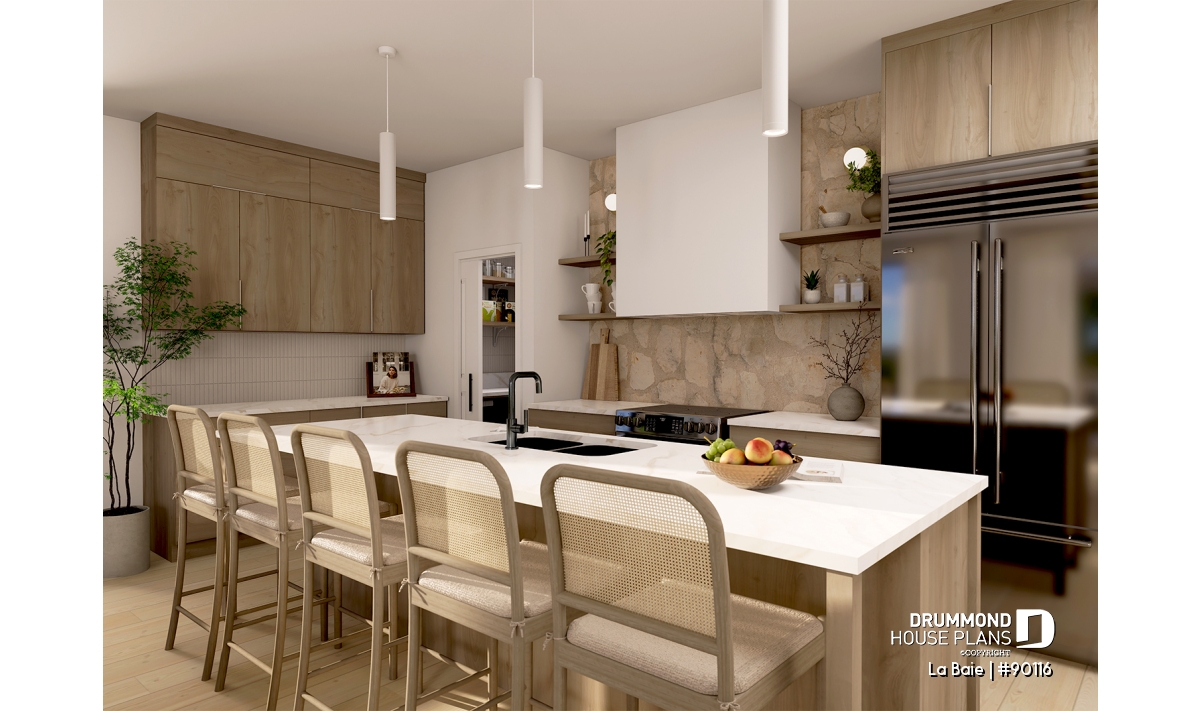

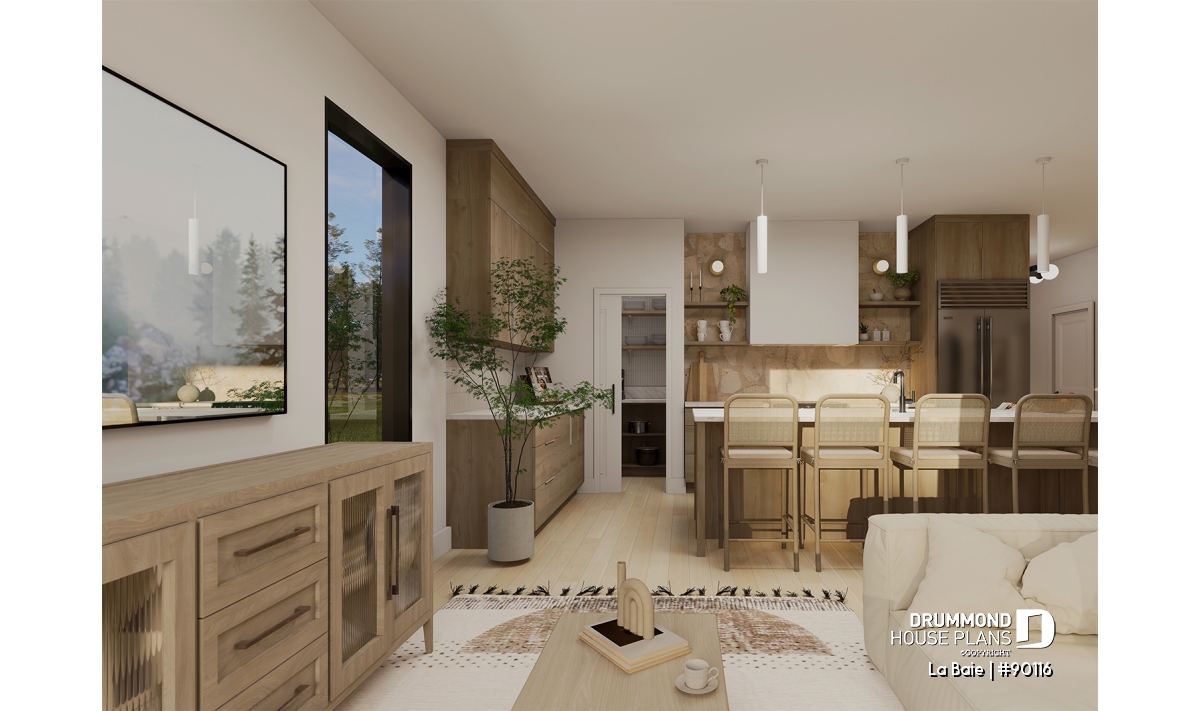

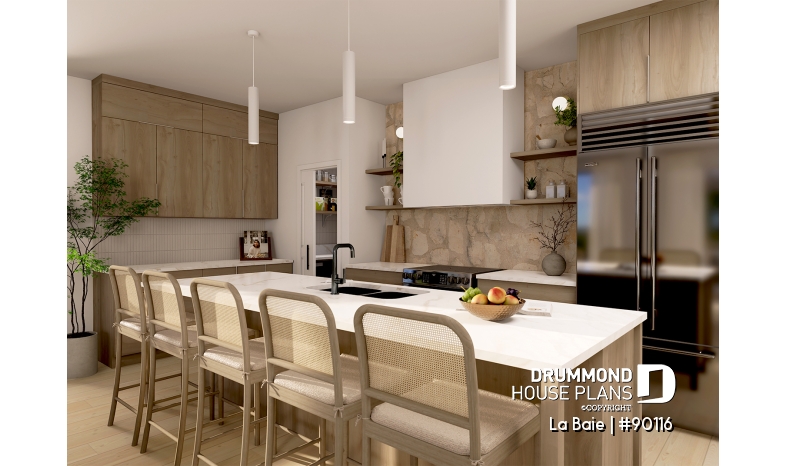

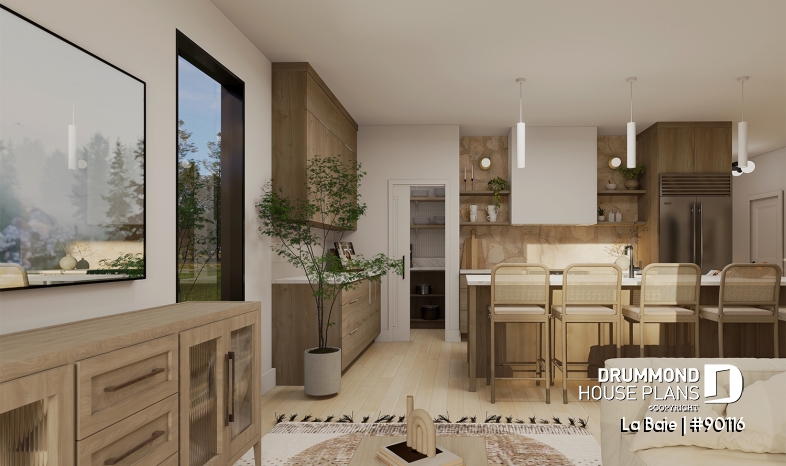

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

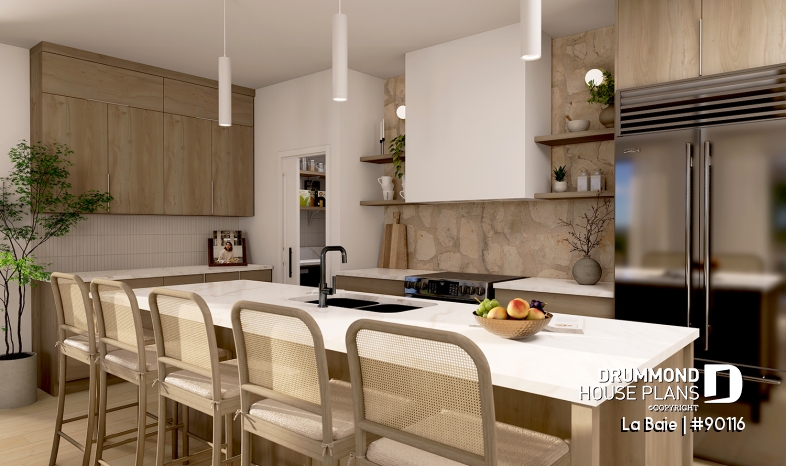

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

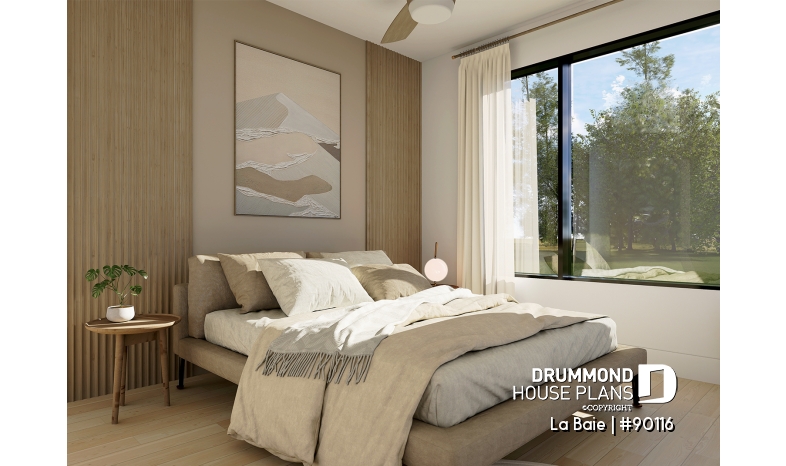

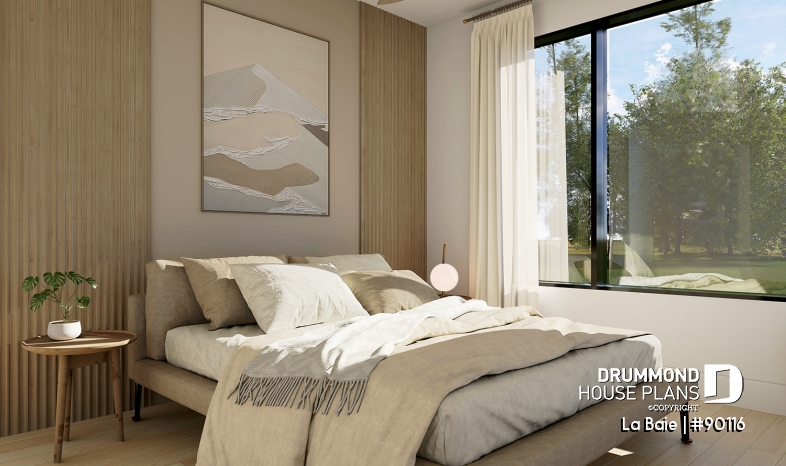

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

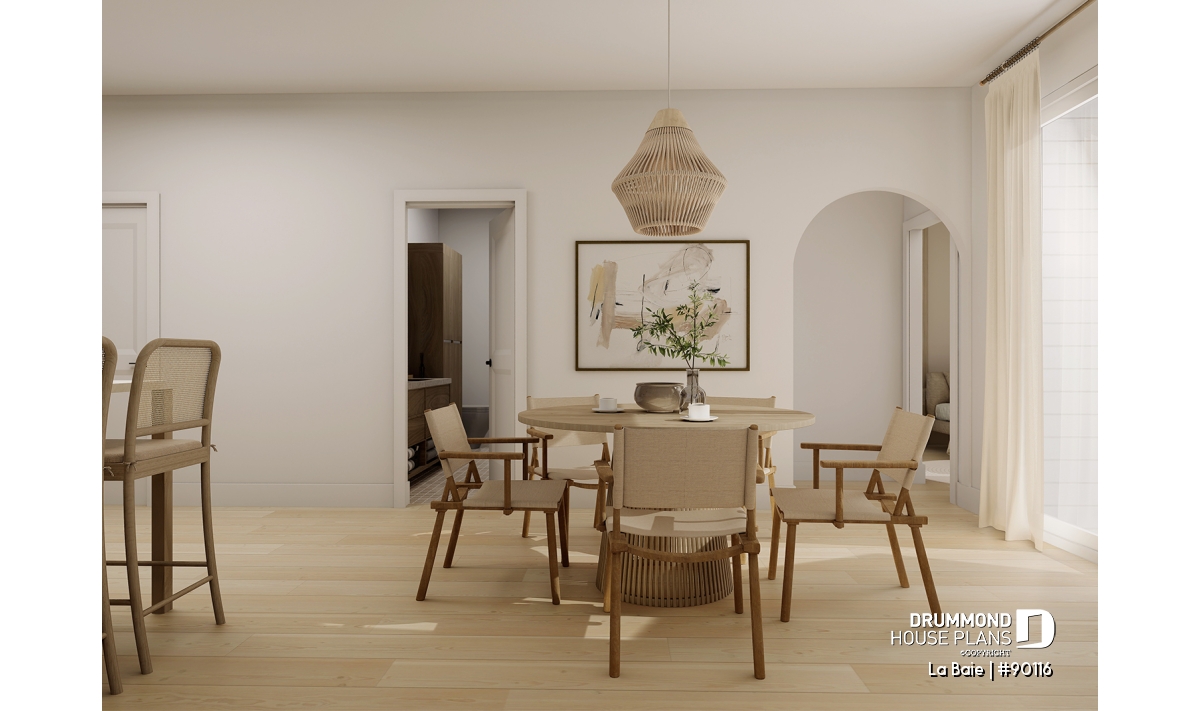

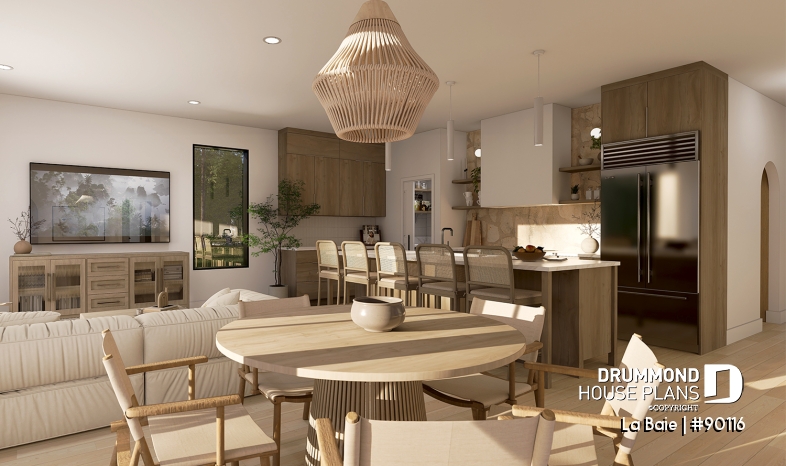

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

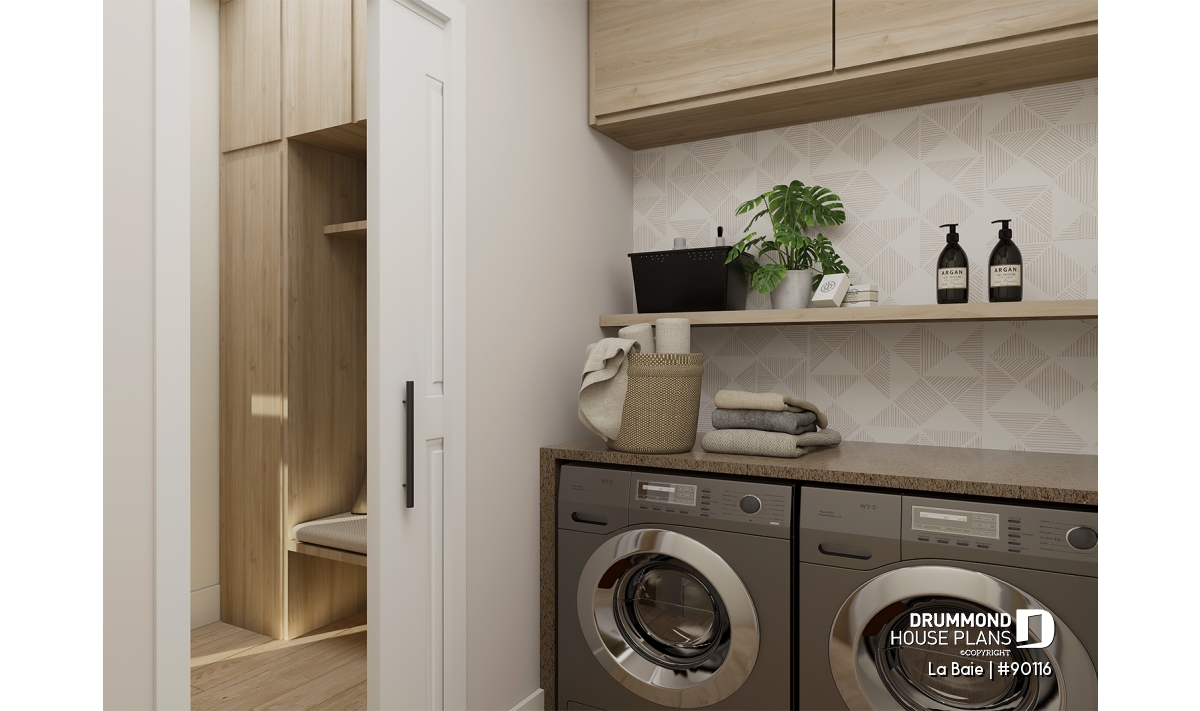

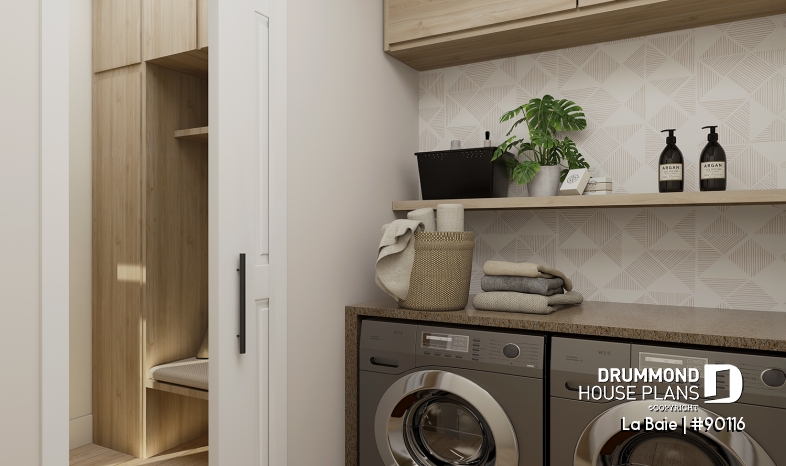

Utility room/laundry room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

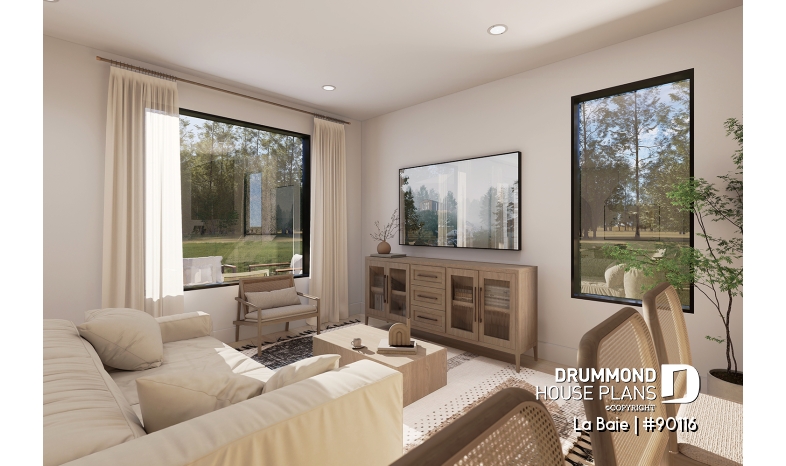

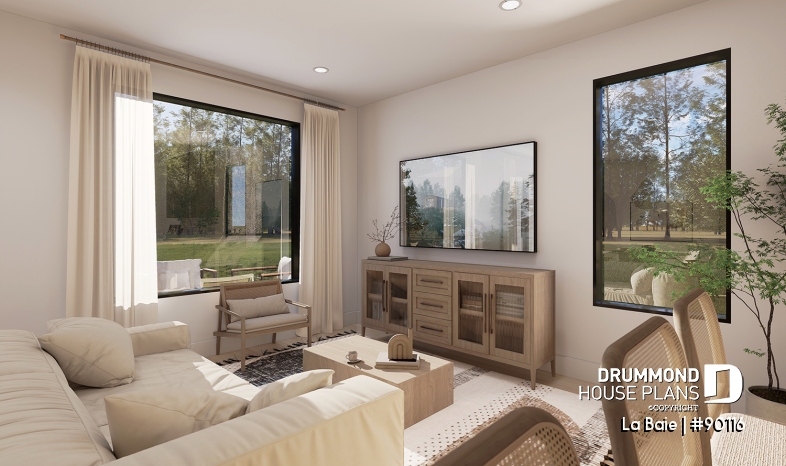

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan

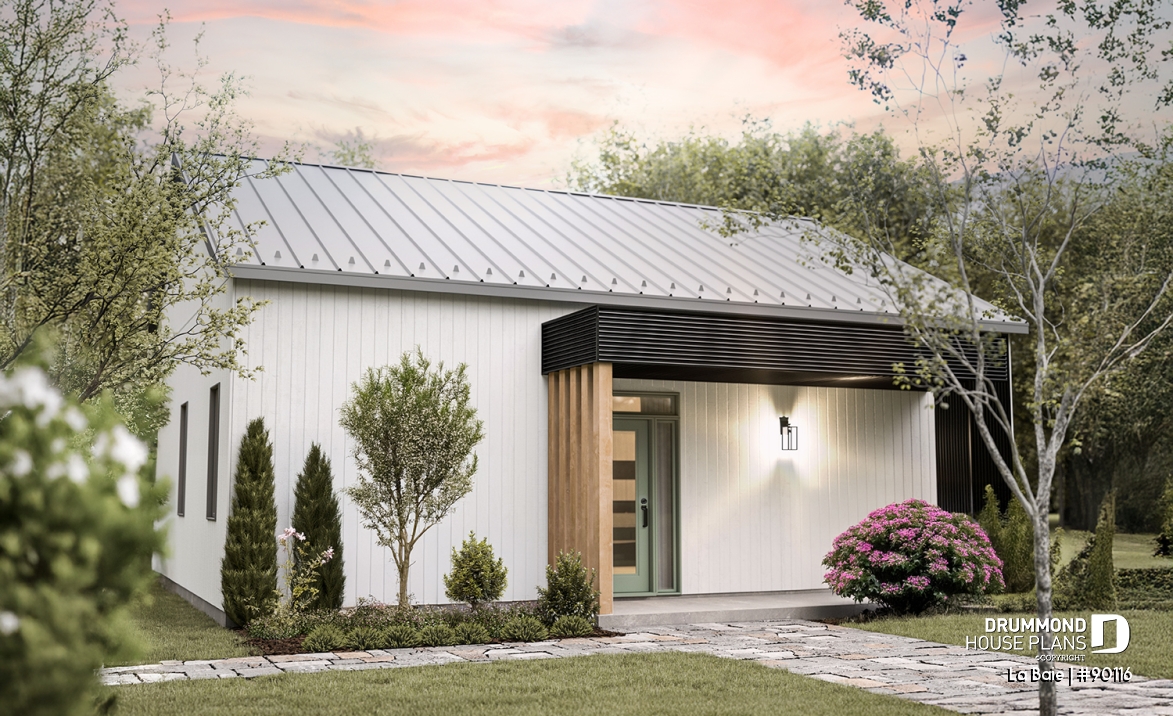

Do you want to feel like you're on vacation every day? The abundance of natural light, the optimal organization of spaces and the lightness of this eco-friendly house will certainly give you this feeling!
Created to be on a lot with the south facing at the back, the La Baie house (plan #90116) offers you everything a family needs in a maximized space. With its 9'-0'' high ceilings, you will never feel cramped in this house. At the entrance, you will find on your right the mudroom which includes a space for the washer and dryer. At the back of this room is the access to the mechanical room. Heading towards the back of the house, you will enter the open area which will be bathed in natural light. A large island will allow you to receive your family and friends while being the center of the action. From the dining room you can access the large covered terrace at the back of the house.
On the entire left side of the house, so to the east, you will find the bedrooms and the bathroom. The two children's bedrooms have a rather interesting particularity since they are designed to have a bunk bed, where each of the beds belongs to a different bedroom. You therefore benefit from all the advantages of the bunk bed while maintaining the privacy of each room. Then there is the full bathroom which is organized to allow several people to use it at the same time. And finally, the master bedroom is located at the back of the house with a large window overlooking the backyard.
This house also offers the possibility of adding a garage possibly on the right of the house. It would be possible to add a door from the mechanical room to access it. Also, you could decide to add a greenhouse adjacent to the living room on the right side of the house. By replacing the window with a door, you could access the greenhouse and enjoy fresh vegetables all year round.
ECO-FRIENDLY HOUSE PLAN
This house plan is part of our “Eco-friendly house plan collection” and here is what distinguishes all the plans included in this selection:
Sun:
The orientation of the house according to the sun’s daily path, combined with the thermal capture of the sun's rays using optimal fenestration, minimizing heating costs and maximizing the presence of natural light.
Simplicity:
A house with modest volumes ensuring simplified construction, while favoring the maximization of interior spaces, to reduce the number of square feet and the construction cost.
Sound Mind & Body:
A home designed to promote the well-being and health of its occupants by being well ventilated, using durable and non-toxic materials (steel, wood, lightweight cladding, fiber cement, among others) and maximizing natural light.
Distinctive elements
**Scandinavian style and eco-friendly house plan with 9' high ceiling on the entire ground floor.
The orientation proposal favors the entry of natural light throughout the day.
The layout of the mudroom room includes a washer and dryer.
The two secondary bedrooms, although compact, offer an original arrangement of single bunk beds, where each of the children has their own bedroom.
Beautiful large window in the parents' bedroom.
The organization of the bathroom is practical for a family.
The kitchen contains a 5' by 4' deep pantry, as well as a large central island.
The sheltered terrace is of good size.
This plan is designed to eventually receive a garage and a greenhouse, depending on what might suit the future needs of your family.
The foundation included in the plan is a floating slab. *Other foundation types are available for this plan.
--

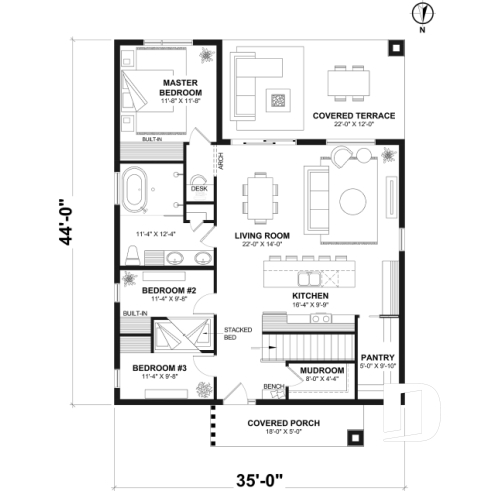

*Unfinished Basement (optional $):
*If you wish to purchase the unfinished basement plan option ($), please select this option in the shopping cart, in the "Select your foundation" section. If you do not select this option, you will receive a floating slab as your foundation.
--
**This house plan is part of our “Eco-friendly house plan’ collection” and here is what distinguishes all the plans included in this selection:
SUN:
The orientation of the house according to the sun’s daily path, combined with the thermal capture of the sun's rays using optimal fenestration, minimizing heating costs and maximizing the presence of natural light.
SIMPLICITY:
A house with modest volumes ensuring simplified construction, while favoring the maximization of interior spaces, to reduce the number of square feet and the construction cost.
SOUND MIND & BODY:
A home designed to promote the well-being and health of its occupants by being well ventilated, using durable and non-toxic materials (steel, wood, lightweight cladding, fiber cement, among others) and maximizing natural light.
Plan feature(s)
Built-ins, Mud room, Open floor layout, Deck, Island, Arch, Gound floor laundry room, Planning desk, Bath in the shower, Double sinks, Pantry, Ceiling over 8', Self-Build, Builder
Plan architectural style(s)
. Scandinavian, . Contemporary, . Cottage, chalet, cabin, . Ranch, . Modern / Design
