Tidewell (3276)
Modern 3 bedroom house plan adapted for wheel chair, open floor plan, fireplace, garage, laundry room
View the size of the rooms and height of the ceilings

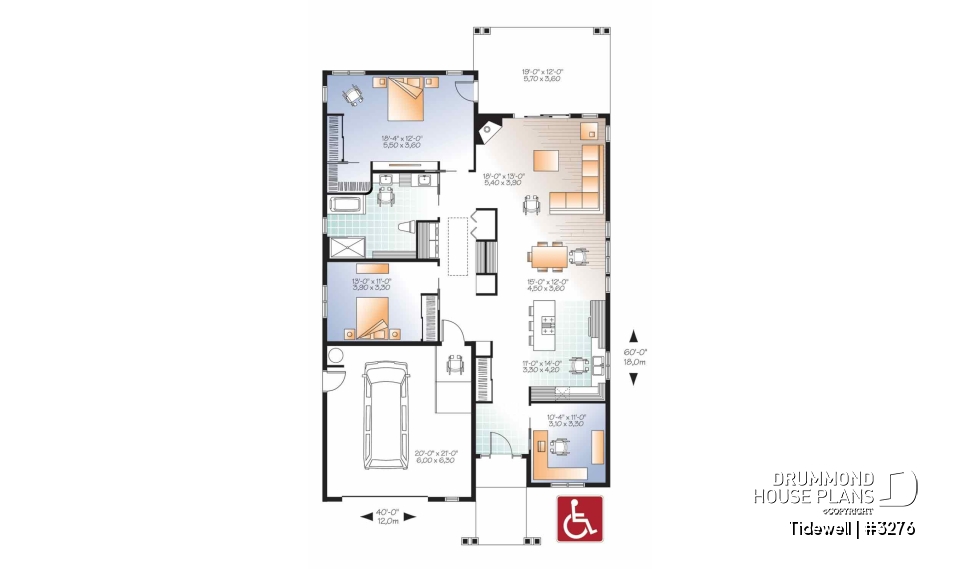

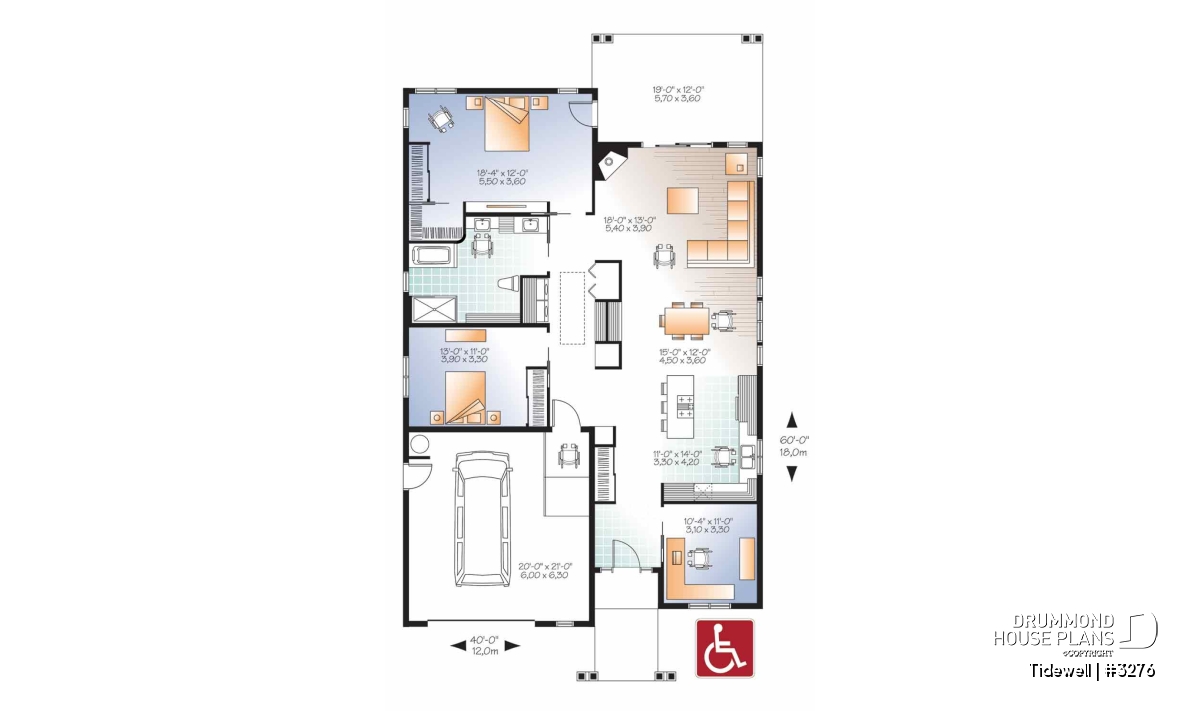

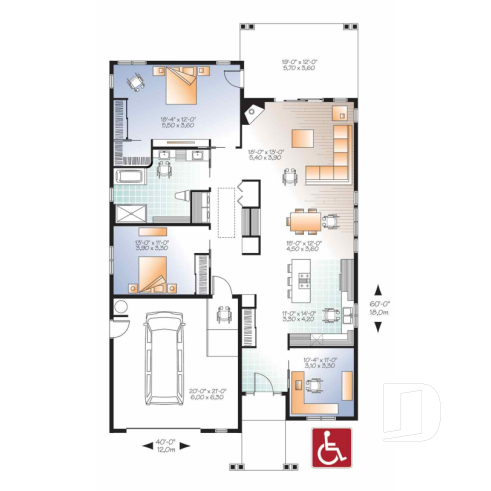

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'4" x 7'0" | ~ 9'0" |
| Closet | 2'0" x 6'0" | ~ 9'0" |
| Bedroom | 10'4" x 11'0" | ~ 9'0" |
| Kitchen/dinette | 11'0" x 14'0" | ~ 9'0" |
| Pantry | 3'4" x 2'0" | N/A |
| Dining room | 15'8" x 12'0" | ~ 9'0" |
| Living room | 18'0" x 13'0" | ~ 9'0" |
| Bedroom | 18'0" x 12'0" | ~ 9'0" |
| Closet | 2'0" x 6'4" | ~ 9'0" |
| Walk-in closet | 6'0" x 4'0" | ~ 9'0" |
| Bedroom | 13'0" x 11'0" | ~ 9'0" |
| Closet | 2'0" x 6'4" | ~ 9'0" |
| Bathroom/laundry room | 15'4" x 12'0" | ~ 9'0" |
| Linen | 1'8" x 1'10" | N/A |
| Linen | 6'0" x 1'0" | N/A |
| Storage | 2'8" x 2'6" | ~ 9'0" |
| Storage | 2'6" x 4'0" | ~ 9'0" |
| Storage | 2'0" x 2'0" | ~ 9'0" |

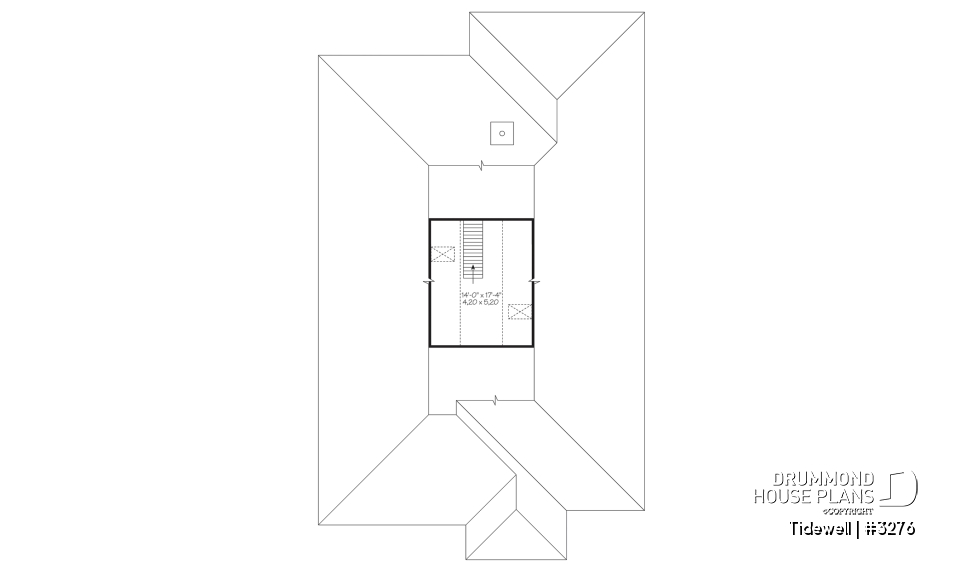

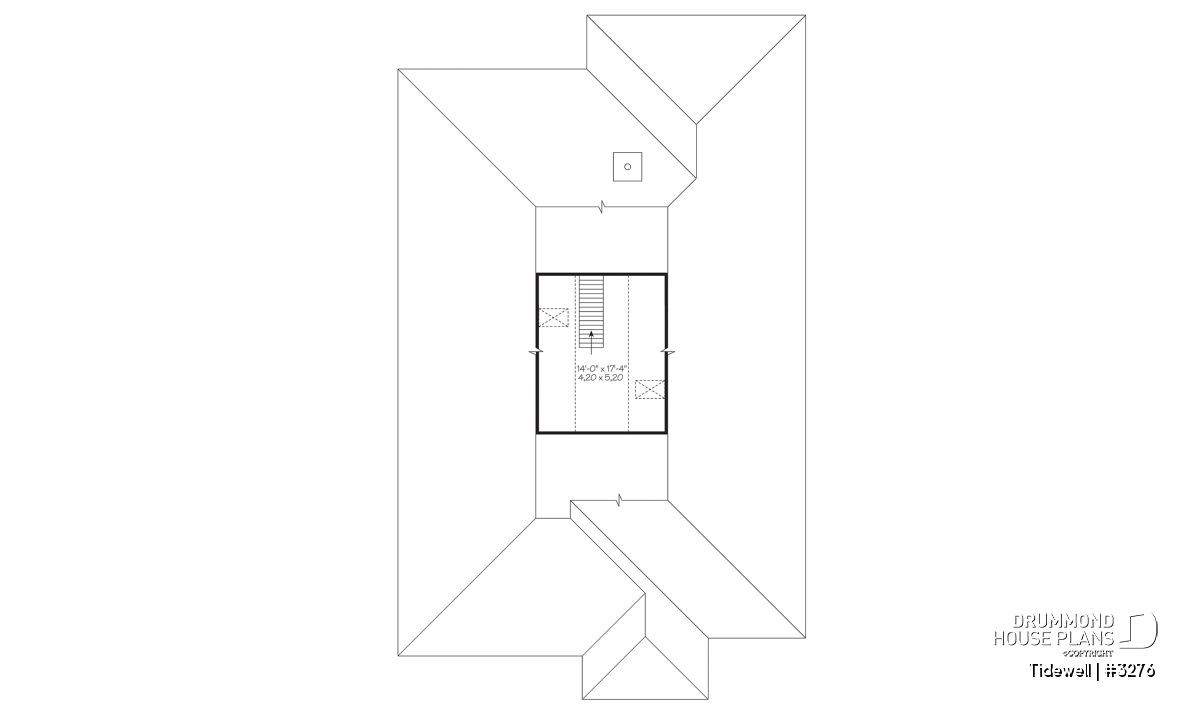

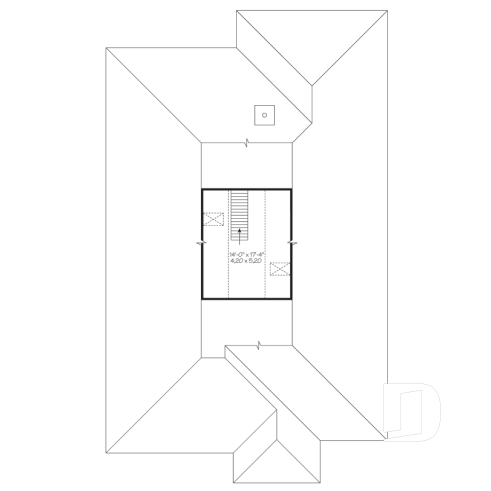

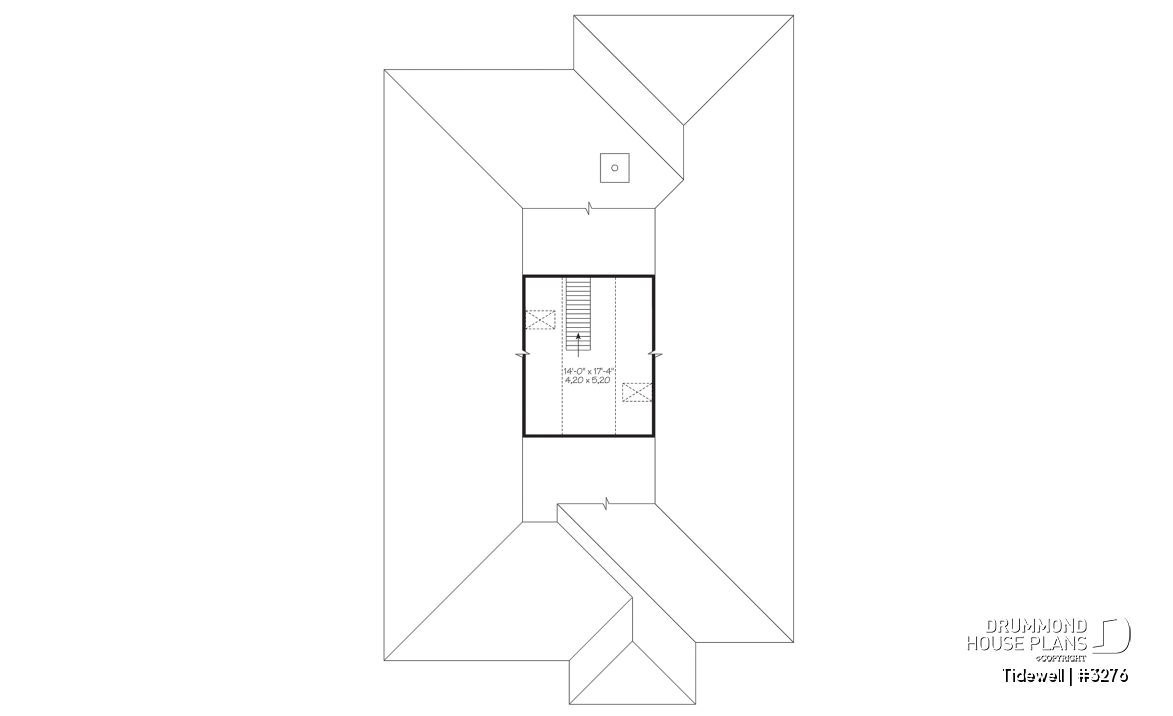

| Bonus storage |
|---|
General specifications
| Total living area | 1773 sq.ft. |
| 1st level | 1773 sq.ft. |
| Bonus storage | 0 sq.ft. |
| Width | 40'0" |
| Depth | 60'0" |
| Ridge height from top of foundation | 21'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Fabulous 2 to 3 bedroom floor plan for limited-mobility residents
Following a survey on our website with close to 500 respondents, consensus was a desire for available universal access or wheelchair-modified plans. We are pleased to unveil a second accessible plan. Accessible homes are not only for the comfort of the residents but also ensure visitability of the home, allowing enjoyment of the home by all!

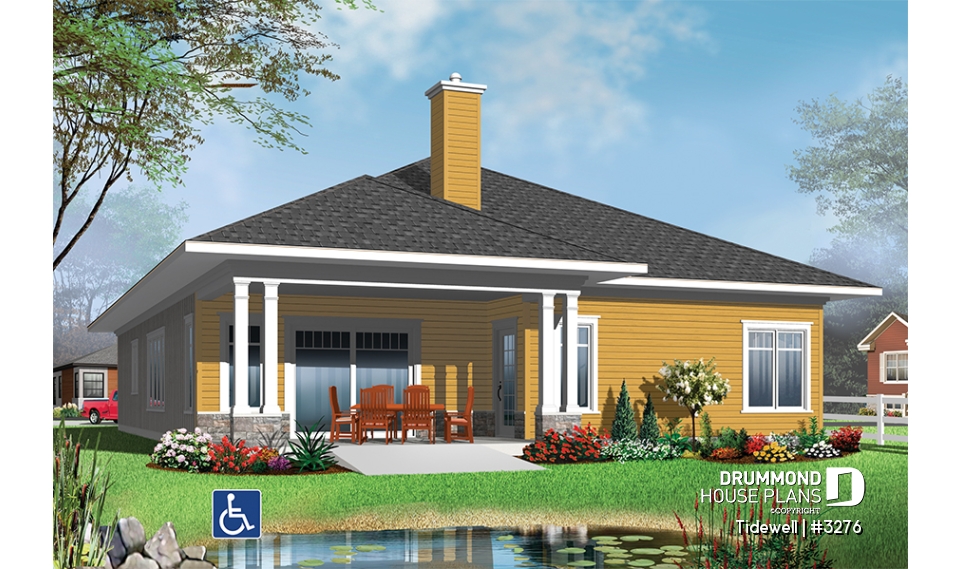

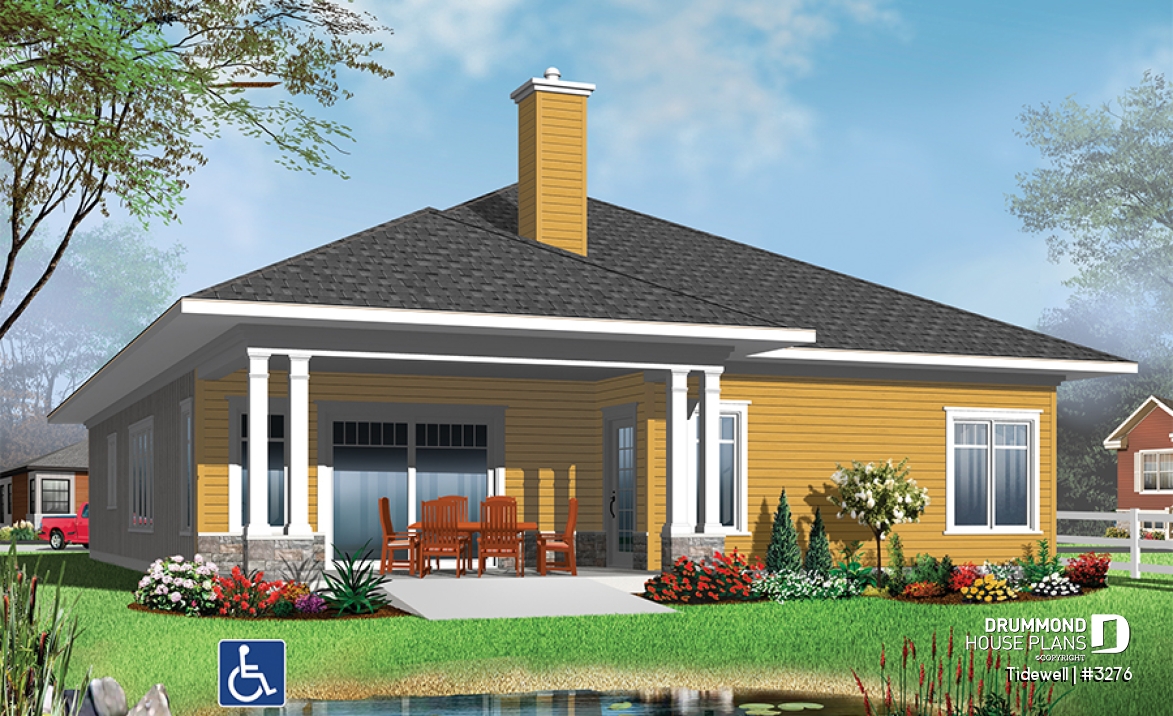

Like plan 3275, it proposes easy access via gentle ramps at the front and rear and barrier-free thresholds. A sheltered rear 12ft x 18ft terrace is sure to extend the season for outdoor enjoyment.
Inside, the house is characterized by pleasing in-floor heating of the concrete slab floor, abundant natural light in the activities areas and 9ft ceilings throughout the ground floor. A dual-height kitchen island allows inclusive casual meals and kitchen prep areas. The bathroom is similarly appointed with dual-height vanities. Even the toilet and bathtub and shower have been carefully considered, allowing space for a wheelchair or walker and reinforced points for grab-rail support. All halls are 5 feet wide and wider doors facilitate access and movement in different rooms.
The key differences between this model and 3275: three bedrooms instead of two with bedroom one and two being larger, a larger attached garage and classical exterior rather than contemporary treatment.
Homes of this type are exceptionally comfortable for all residents and sure to provide a home for graceful aging-in-place.
Distinctive elements
Interior adapted for a person in a wheelchair or with mobility limitations includes expanded circulation spaces, partially lowered counters in the kitchen and the bathroom, wider interior and exterior doors and barrier-free thresholds. 9ft ceiling on the entire ground floor. Lunch island in the kitchen. Built-in unit in the dining room and a fireplace in the living room. Master bedroom has two closets including a walk-in and access to a 19' x 12' covered terrace at the back. Well-organized dual height bathroom vanity, lever handled bath and shower, toilet with ample space on both sides.
Plan feature(s)
Ceiling over 8', Office / Study / Den, Fireplace, Island, Gound floor laundry room, Open floor layout, Deck, Walk-in master bed.
Plan architectural style(s)
. Contemporary, . Traditional, . Country
Previously Viewed Plans
Questions and comments
June 28 2018
moses ochieng
I hav liked this plan but i wanted it with out agarage . can you design for me
June 29 2015
Kathlynn Kellogg
Would it be possible to modify this plan to include a basement, an elevator and a two car garage?
June 29 2015
Customer service
Hello,
These changes are possible. If you would like to get your free estimate for the plan changes, please send detailed information about your modifications along with your contact info (incl. day phone).
Send this to: [email protected]
Have a great day!
Marie
August 13 2012
C. R. Lane
Could room for a half-bath 4X6 inside dimensions be found in this plan without altering roofline?
August 13 2012
Service à la clientele
Good day and thank you for your interest in our plans.
The best way to get information on the addition of a half-bath to this plan is to fill in our on line modification form.
I have attached the link below
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1003111.html
We will be pleased to respond to your request within the two business days that follow its receipt.
Please let me know if I can further assist you.
Regards
Deborah
