House plan Hampshire (6107)

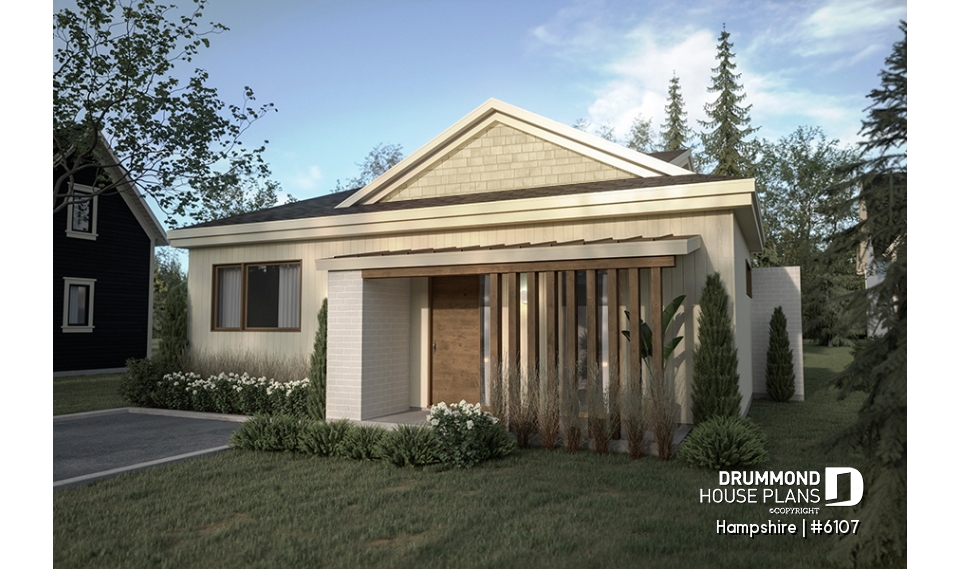

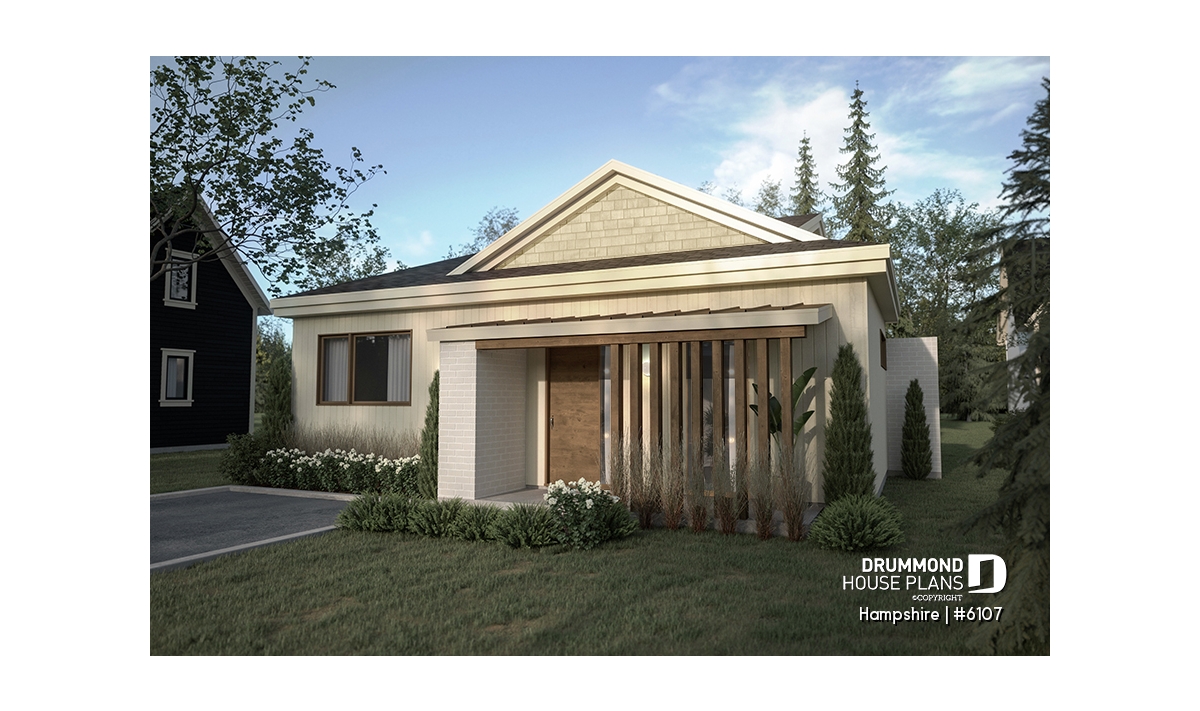

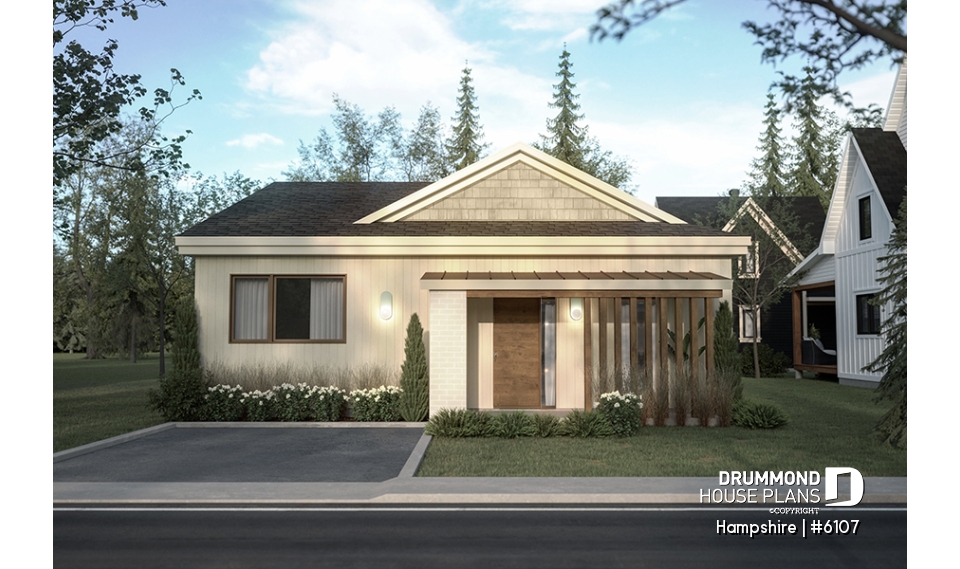

Mid-Century Modern Inspired 3 Bedroom House Model with Concrete Slab Foundation

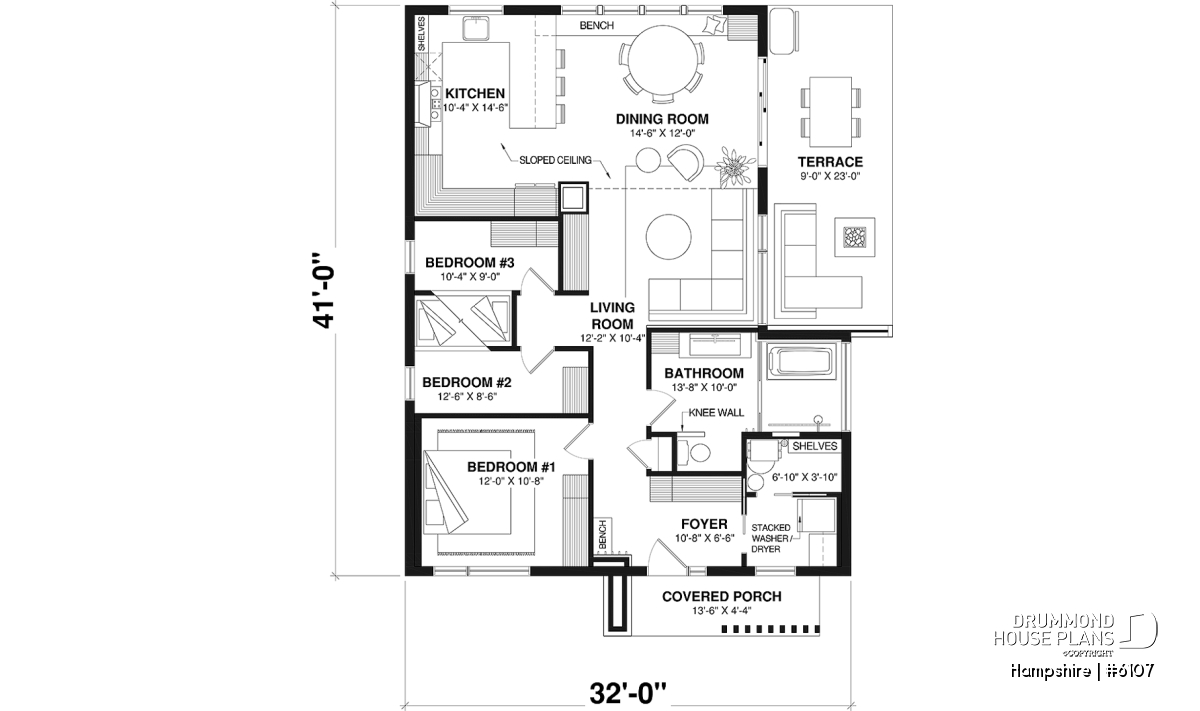

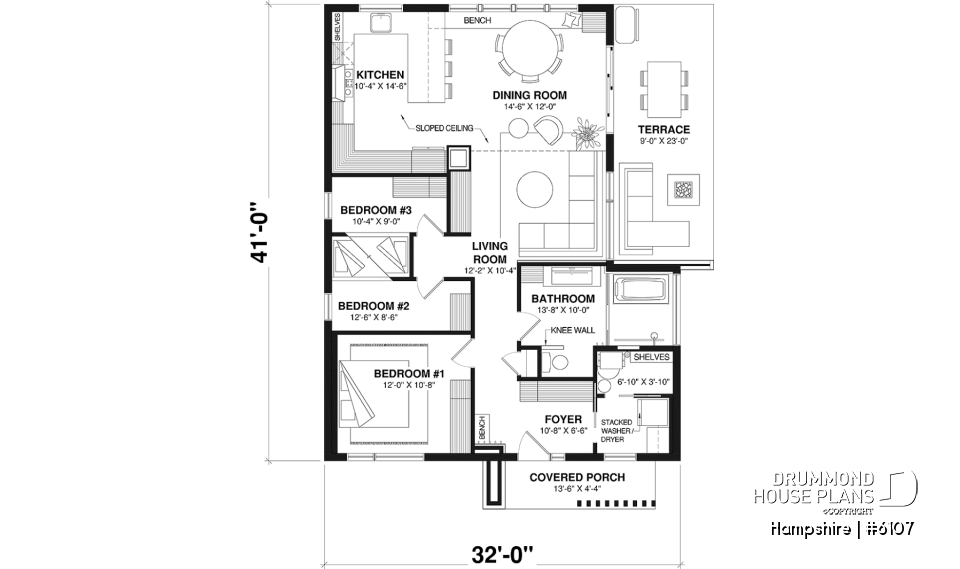

View the size of the rooms and height of the ceilings

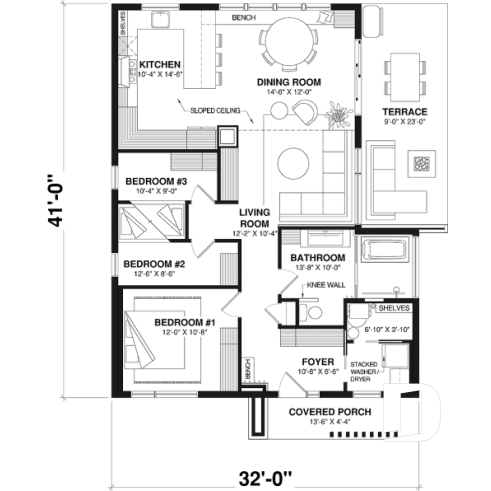

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'4" x 14'6" | ~ 12'0" |
| Kitchen island | 8'2" x 3'4" | N/A |
| Bedroom | 12'0" x 10'8" | ~ 9'0" |
| Foyer | 10'8" x 6'6" | ~ 9'0" |
| Bedroom | 12'6" x 8'6" | ~ 9'0" |
| Bedroom | 10'4" x 9'0" | ~ 9'0" |
| Dining room | 14'6" x 12'0" | ~ 11'4" |
| Living room | 12'2" x 10'4" | ~ 9'0" |
| Deck | 9'0" x 23'0" | N/A |
| Bathroom | 13'8" x 10'0" | ~ 9'0" |
| Shower | 6'6" x 6'0" | ~ 9'0" |
| Linen | 2'0" x 1'6" | N/A |
| Laundry space | 5'0" x 6'6" | ~ 9'0" |
| Mechanical room | 6'10" x 3'10" | ~ 9'0" |
| Closet | 2'6" x 1'6" | ~ 9'0" |
| Covered porch | 13'6" x 4'4" | ~ 7'8" |
General specifications
| Total living area | 1174 sq.ft. |
| 1st level | 1174 sq.ft. |
| Width | 32'0" |
| Depth | 41'0" |
| Ridge height from top of foundation | 17'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | B |
Rooms specifications

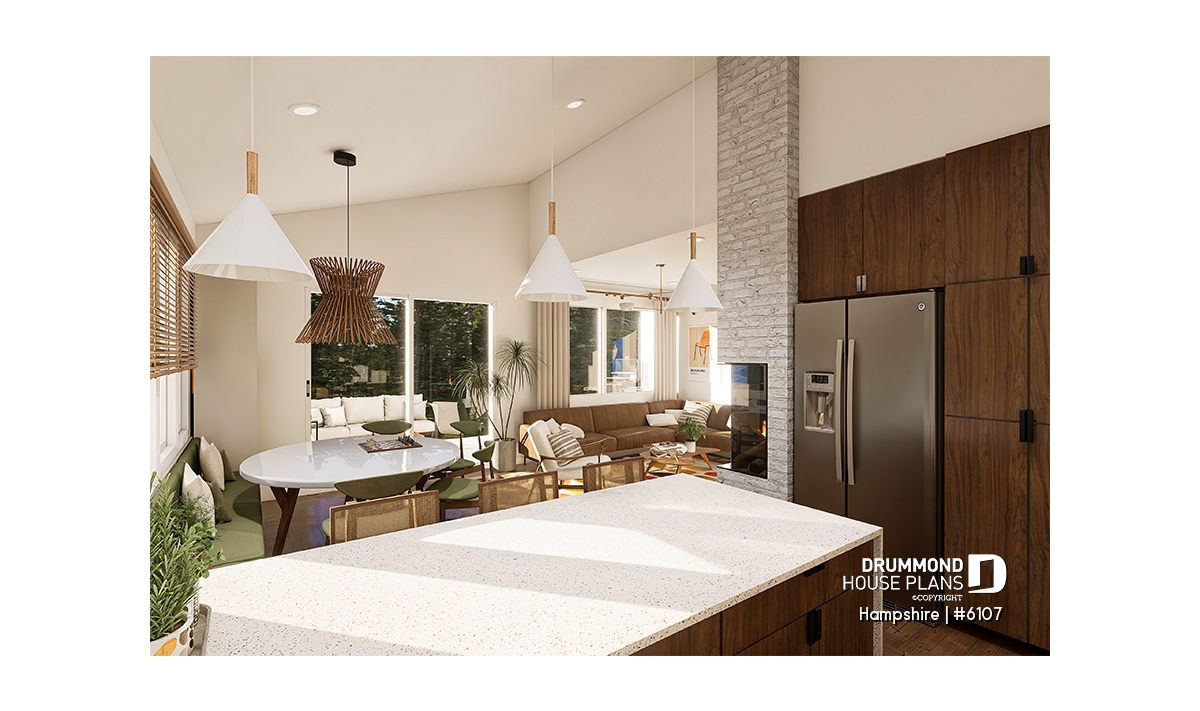

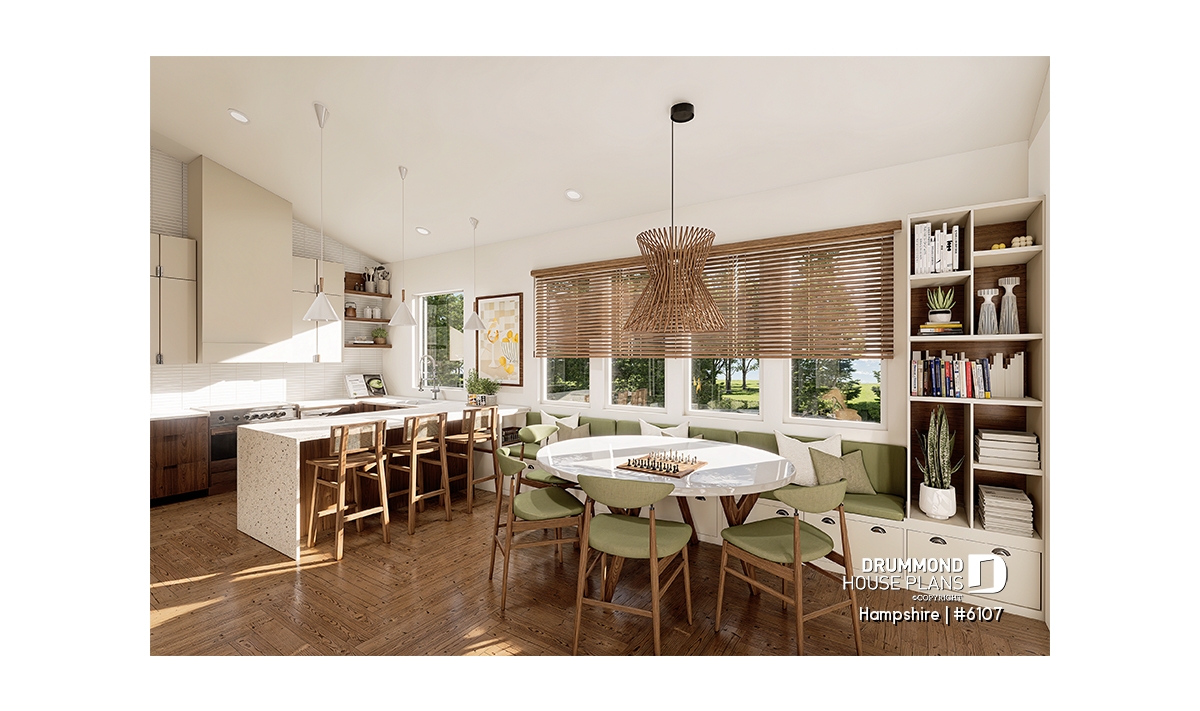

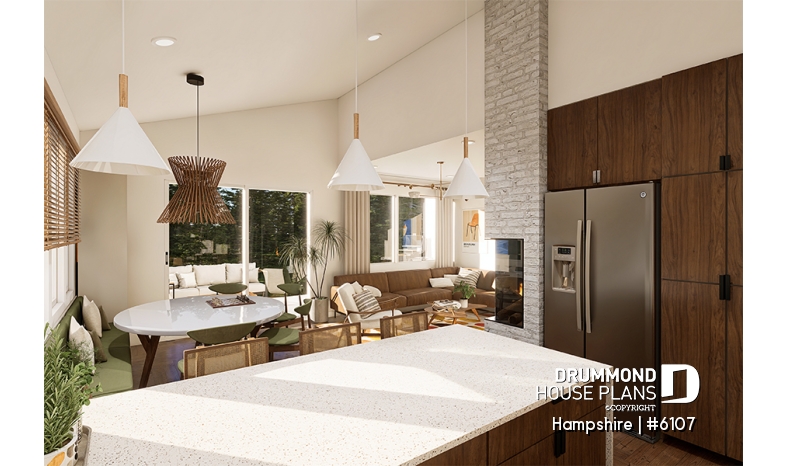

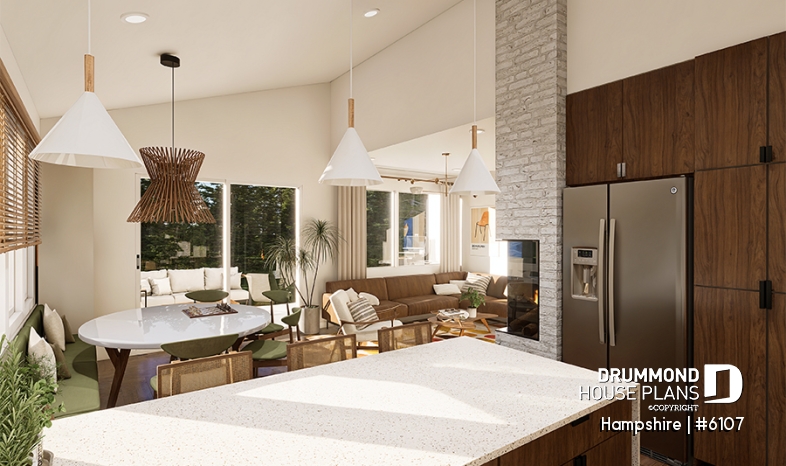

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

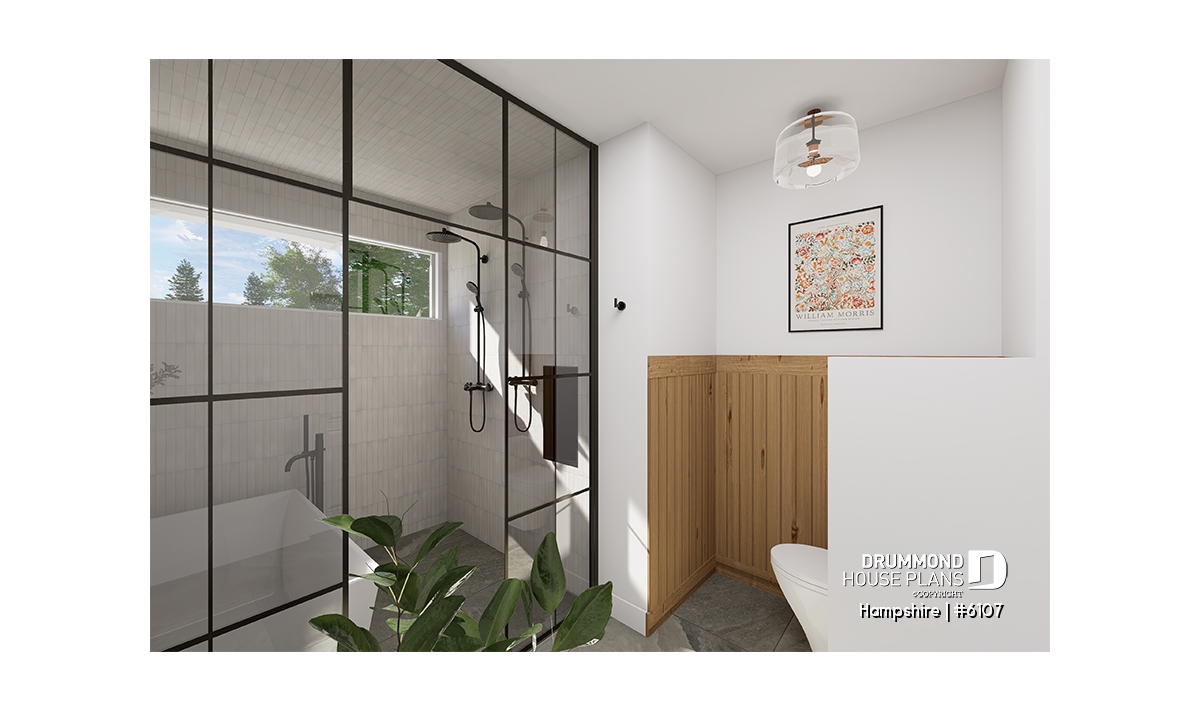

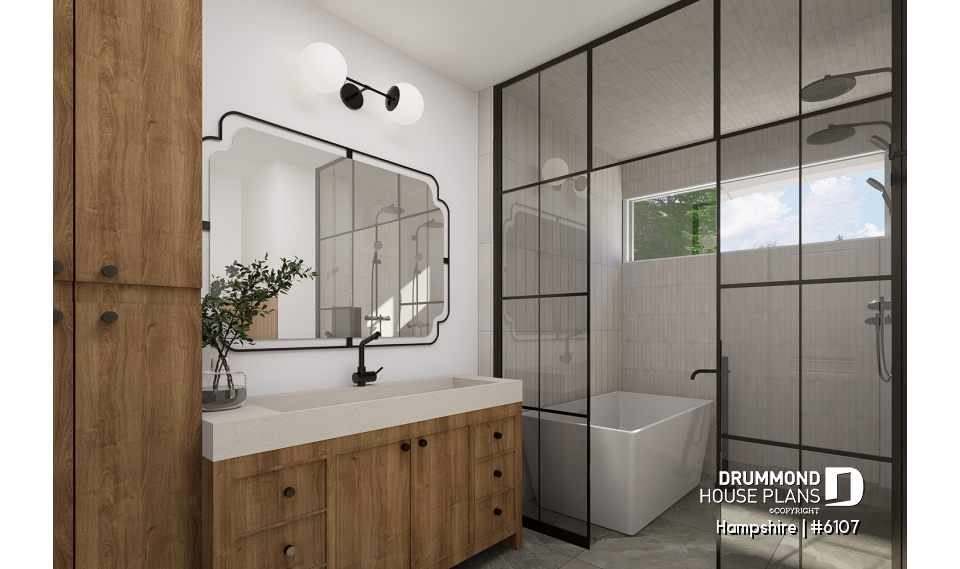

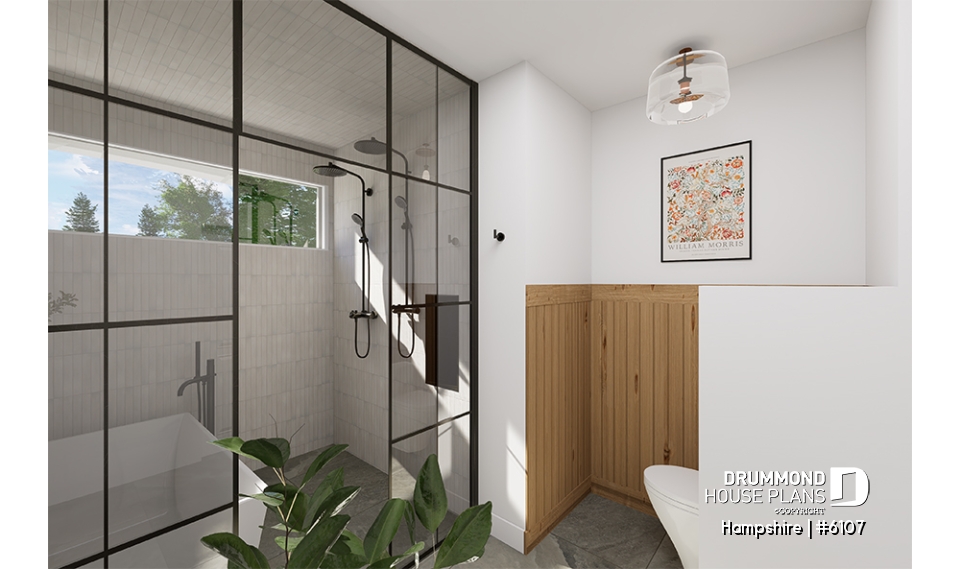

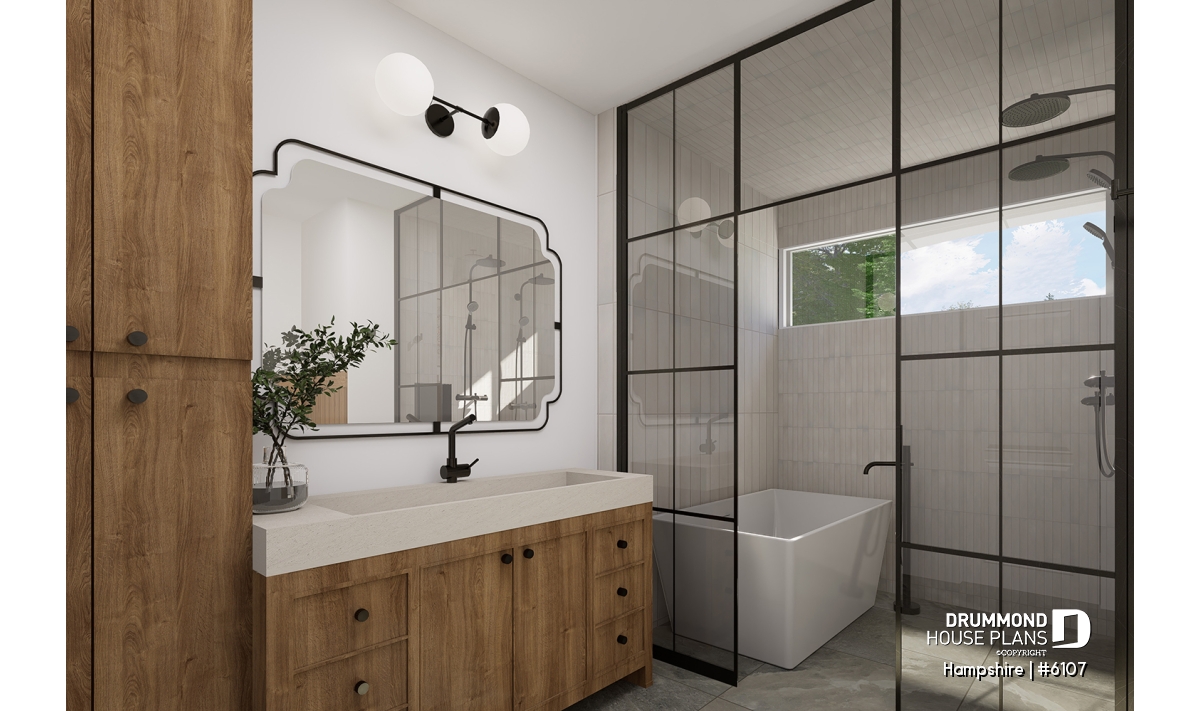

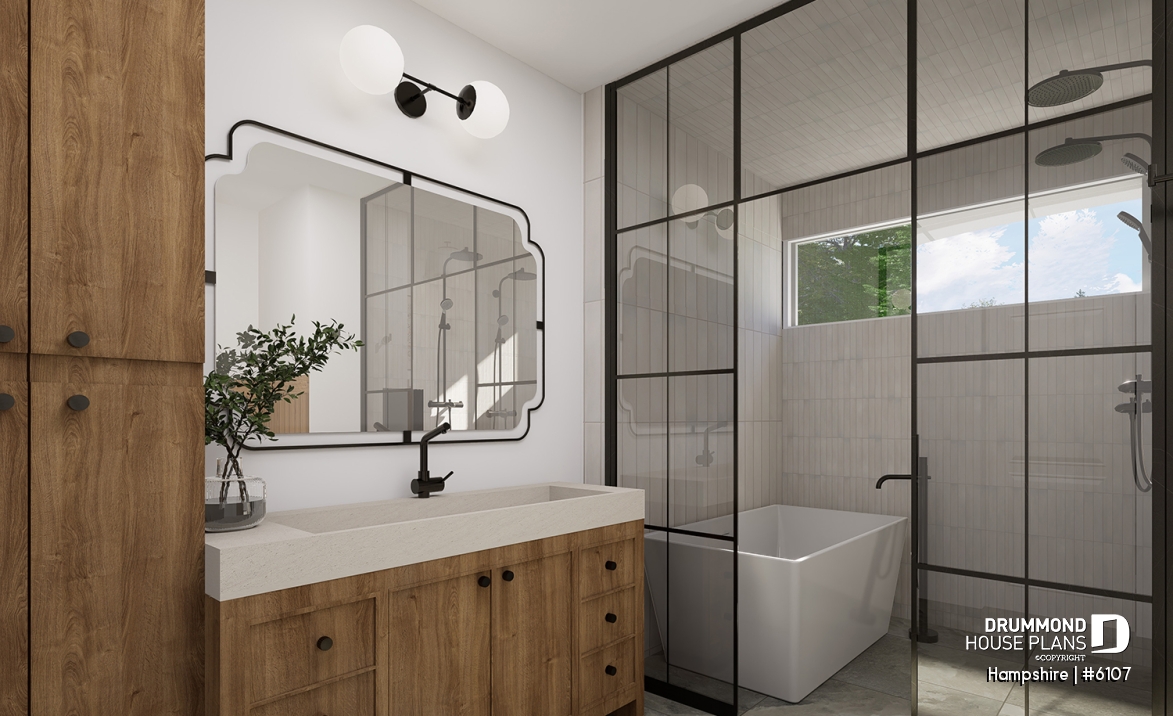

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

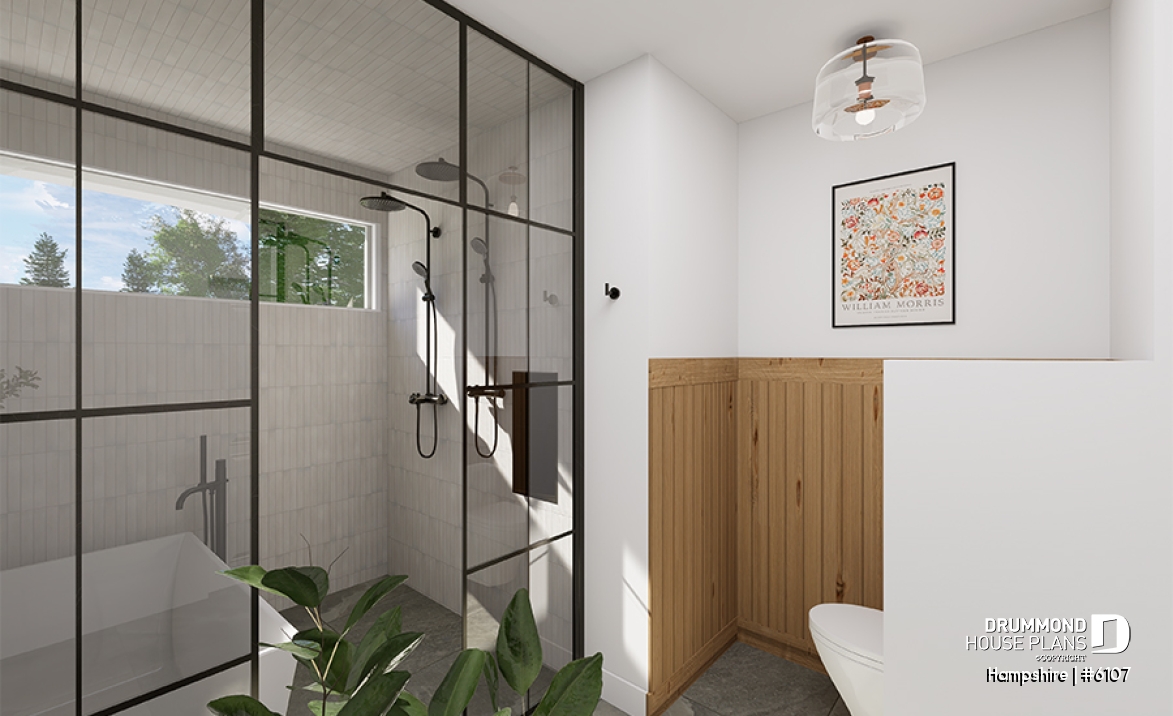

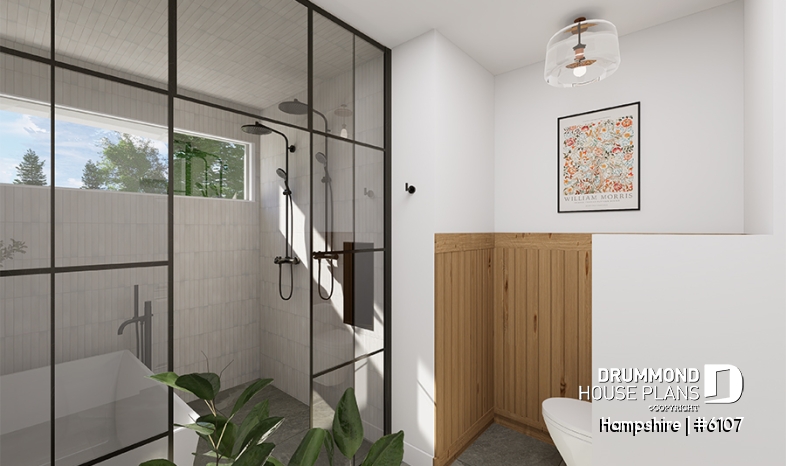

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

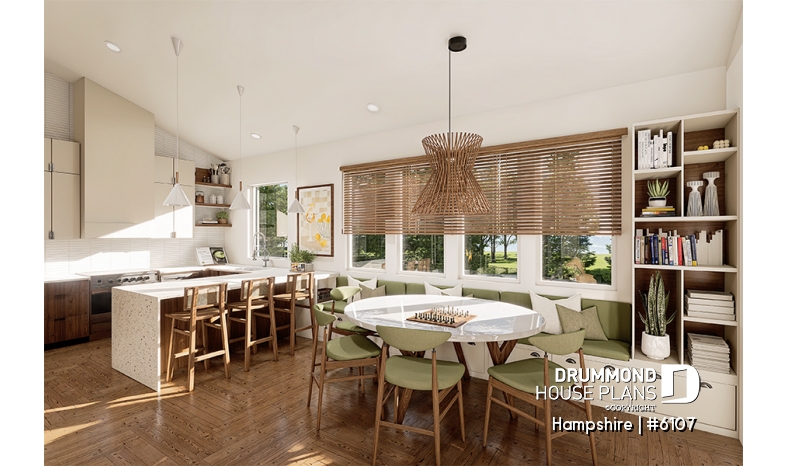

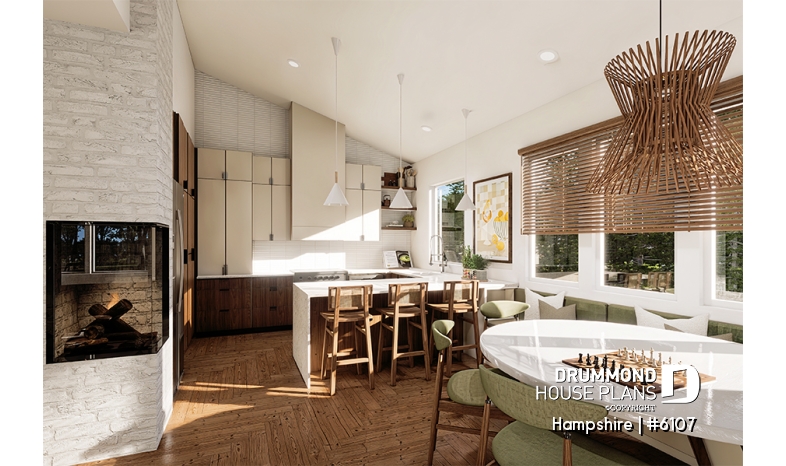

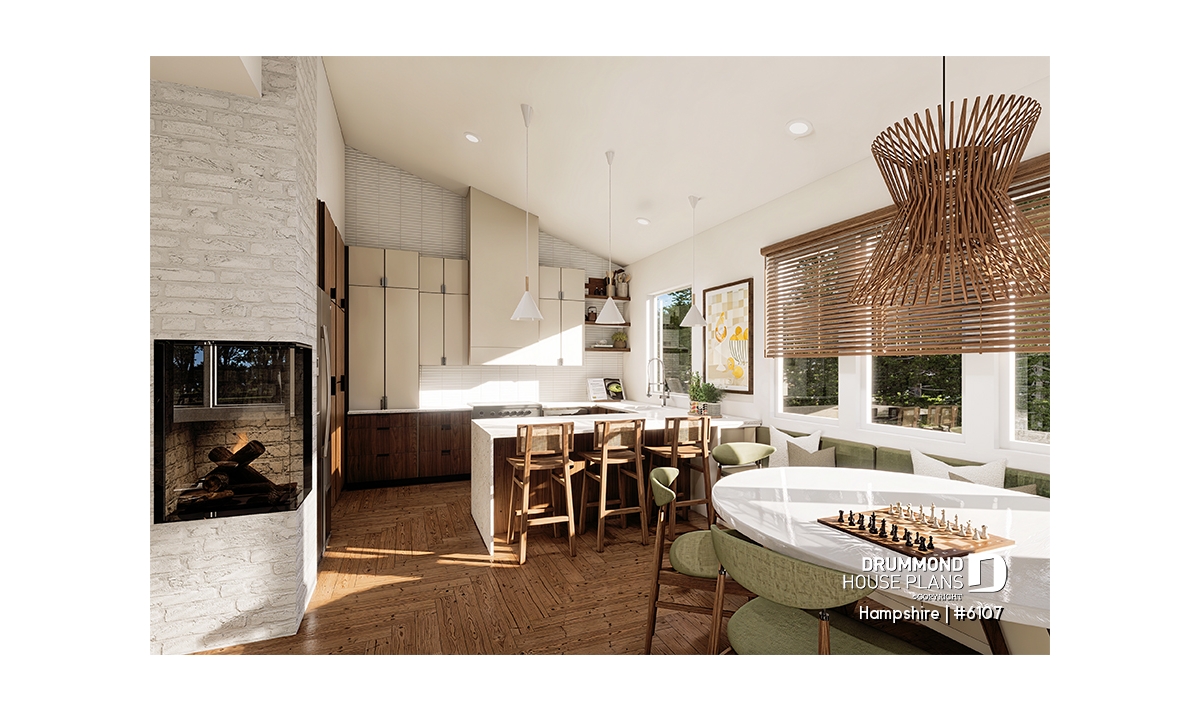

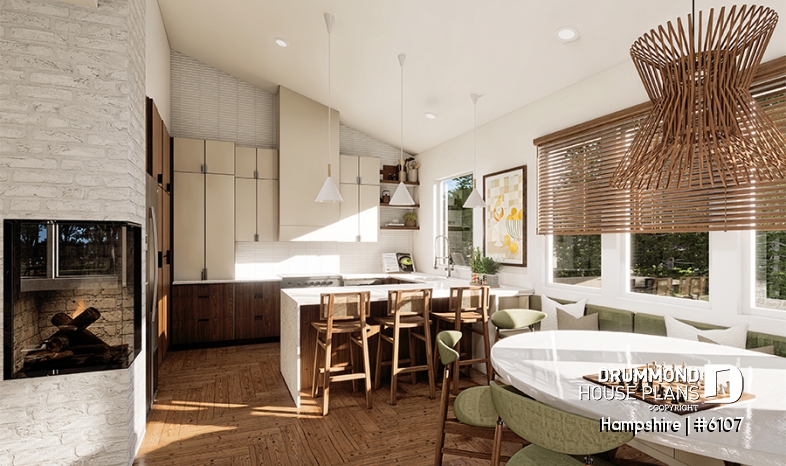

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

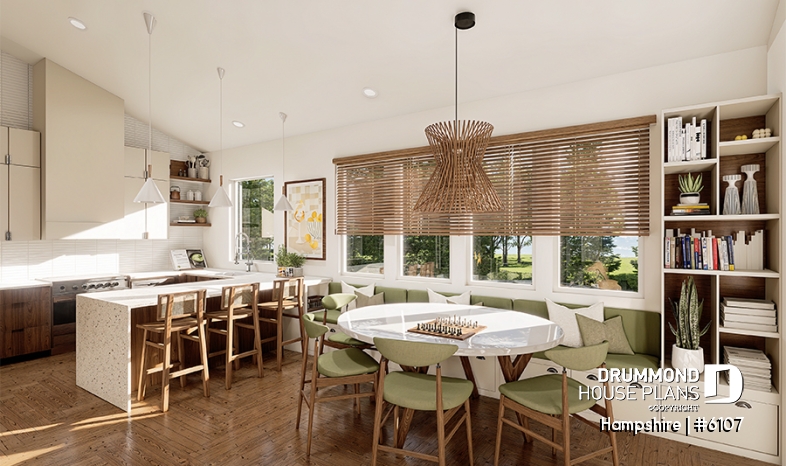

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

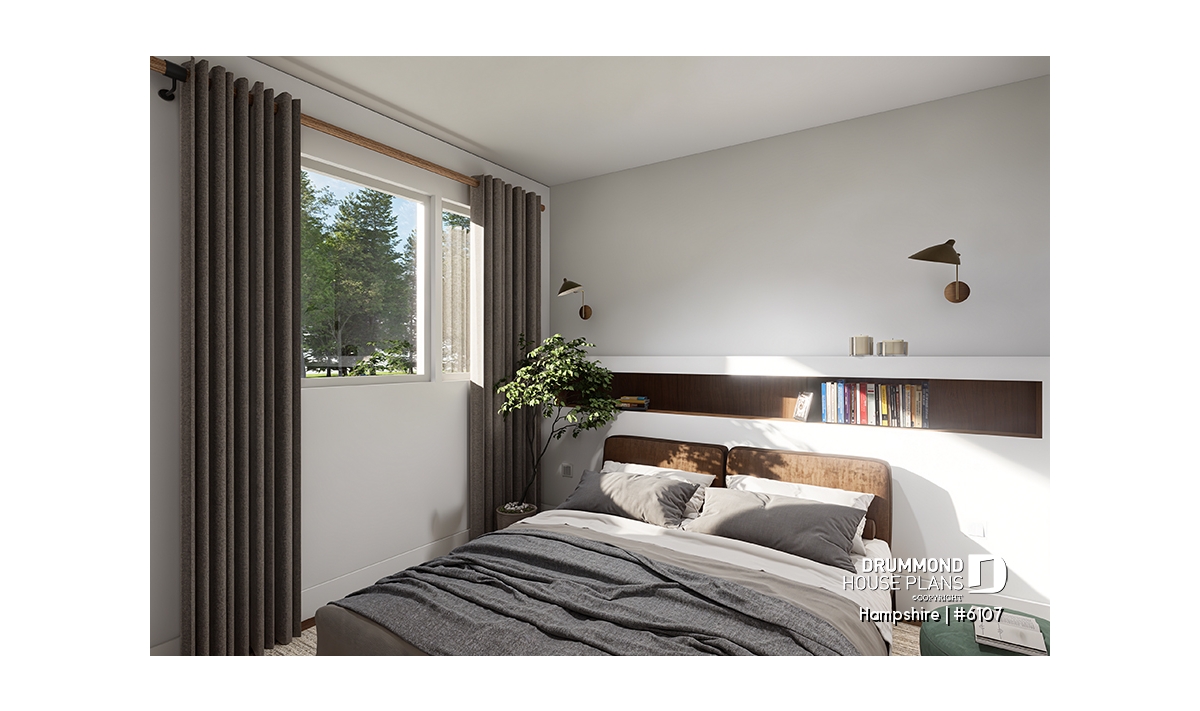

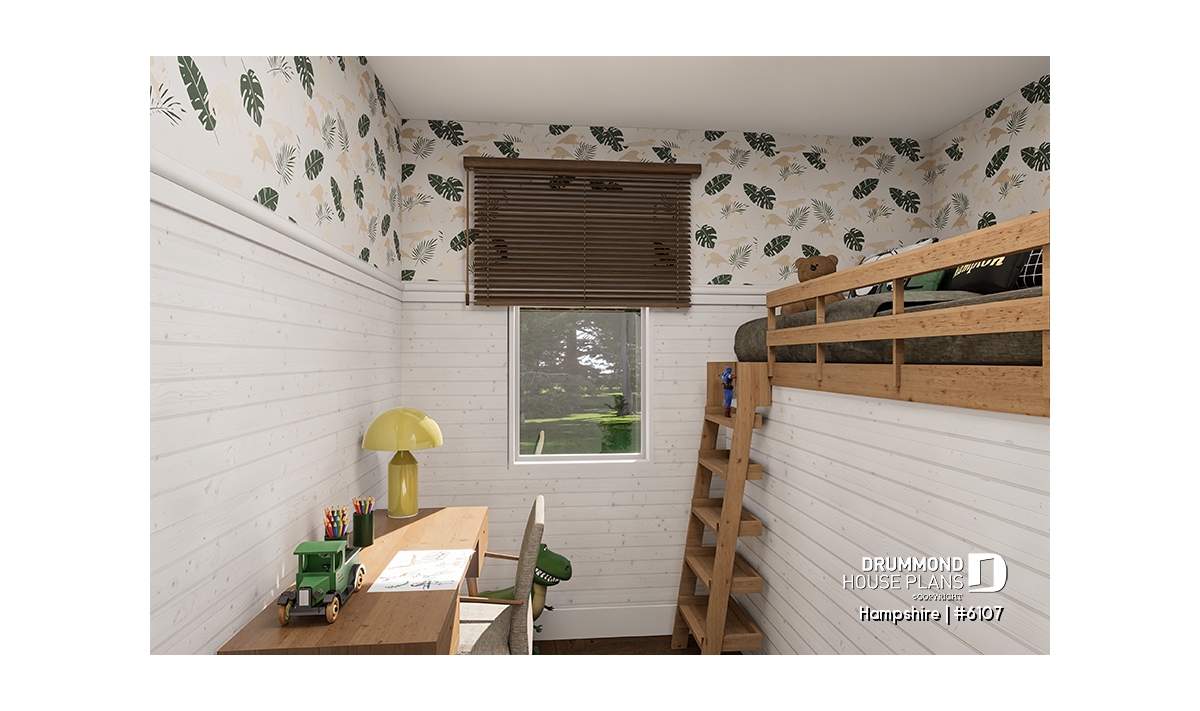

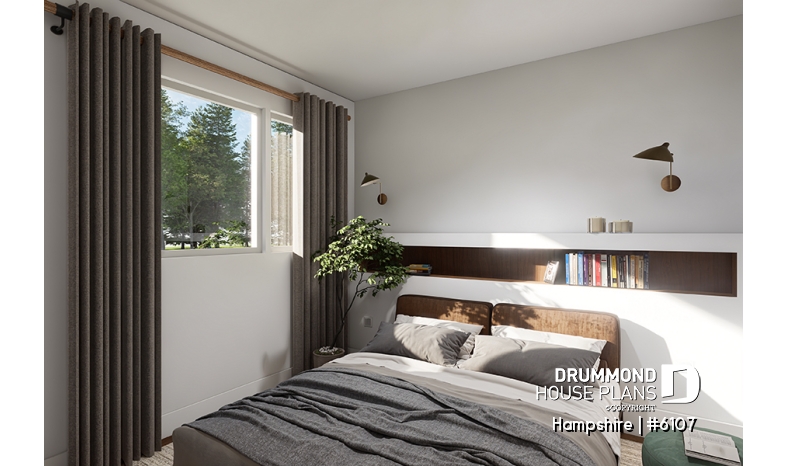

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

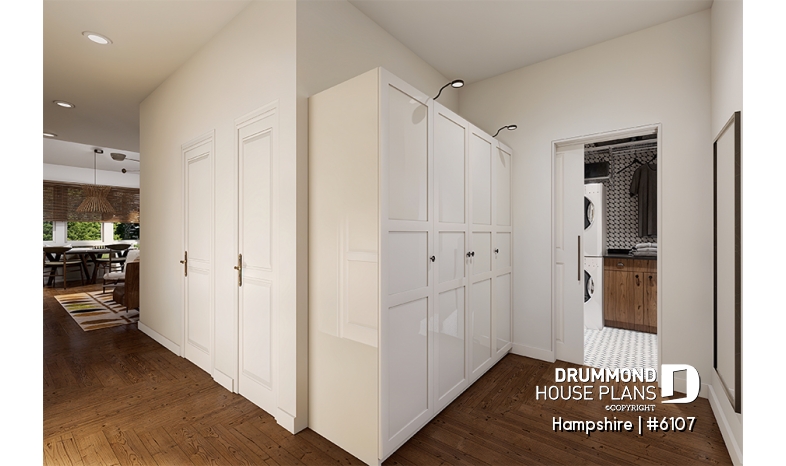

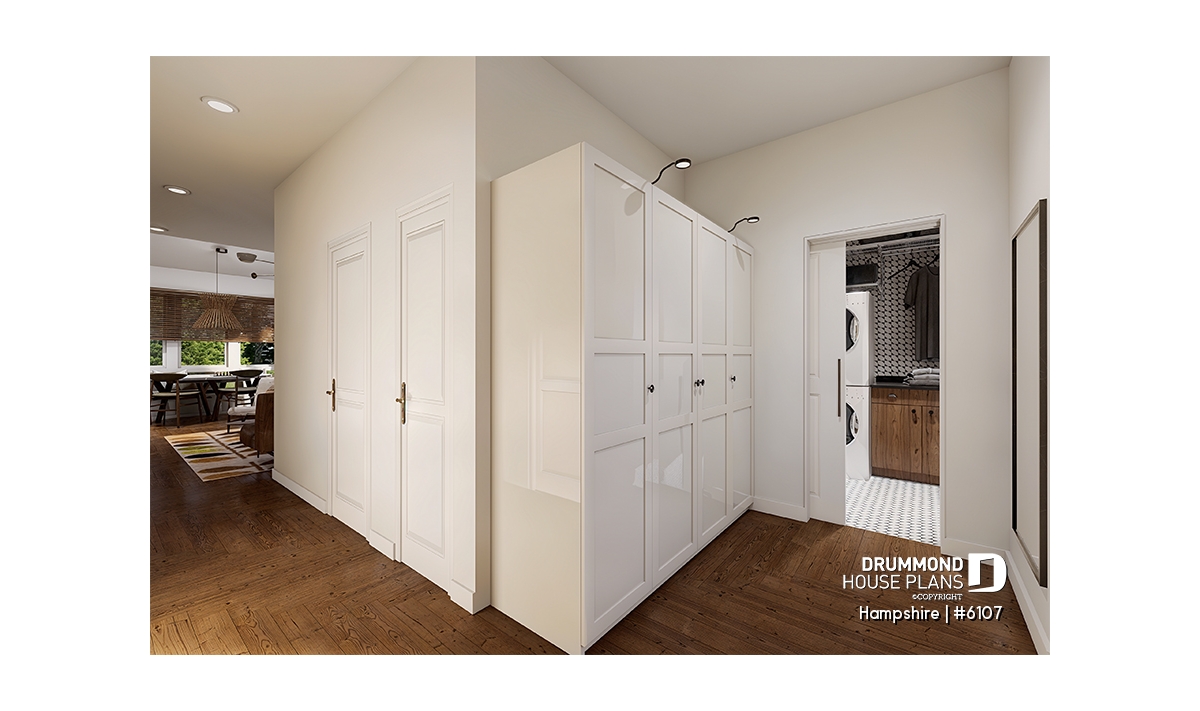

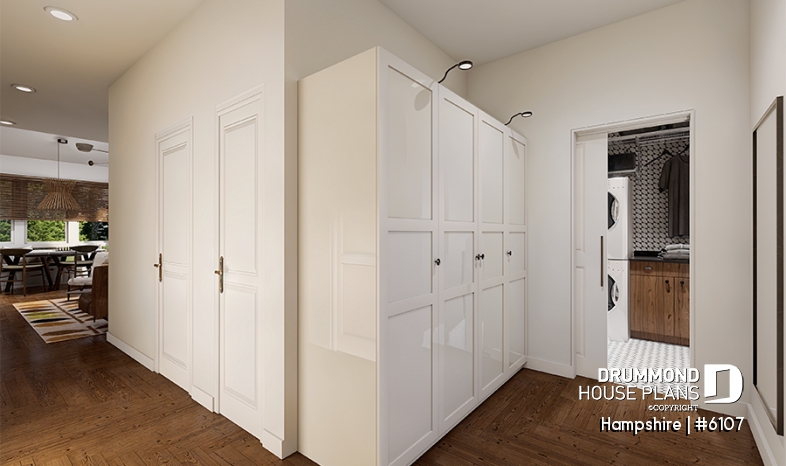

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

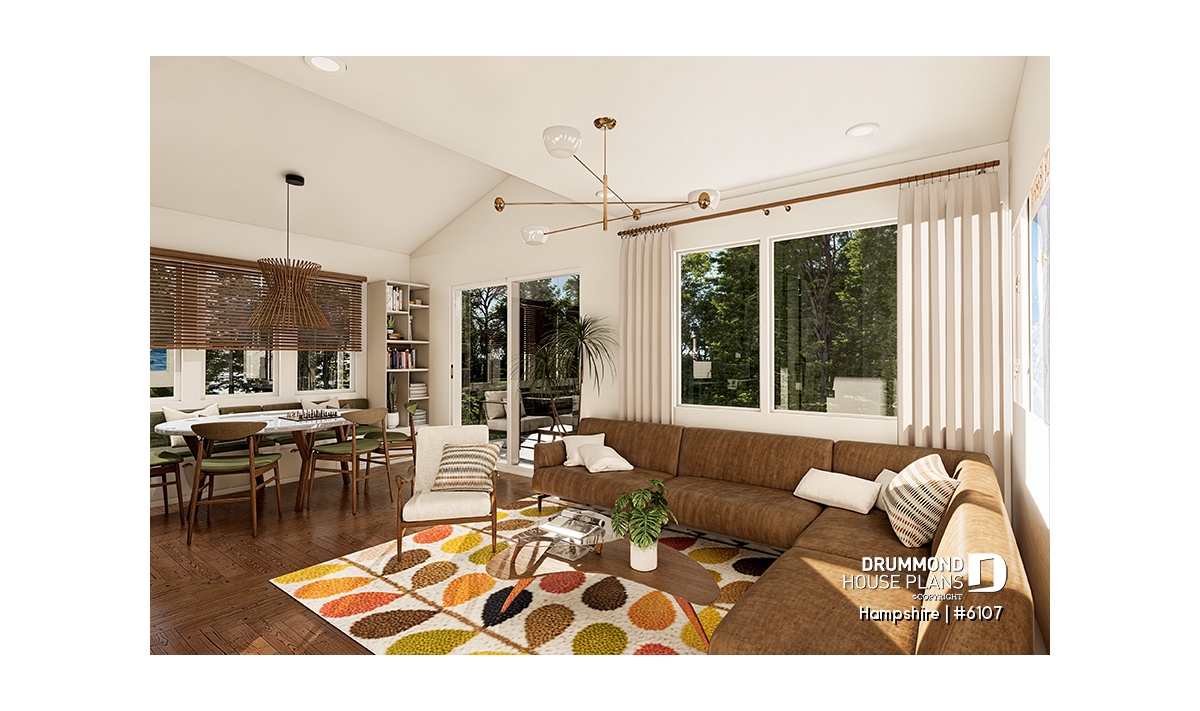

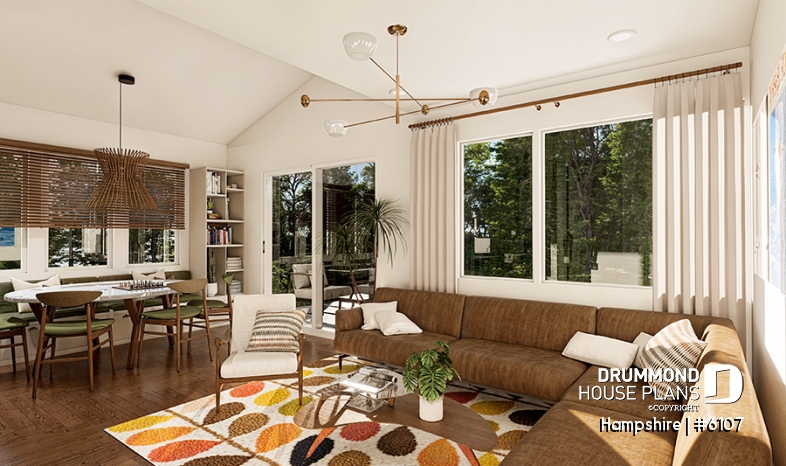

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Compact house with optimal interior layout for plenty of storage and 3 bedrooms!
.
Distinctive elements
Mid-century vintage inspired modern house plan.
Compact and well thought out floor for a family of 4.
9' ceiling in the bedroom and bathroom areas, and sloping ceiling at the back of the house.
Beautiful open area and brightness throughout the common area.
Small laundry room with stacked washer and dryer near the entrance.

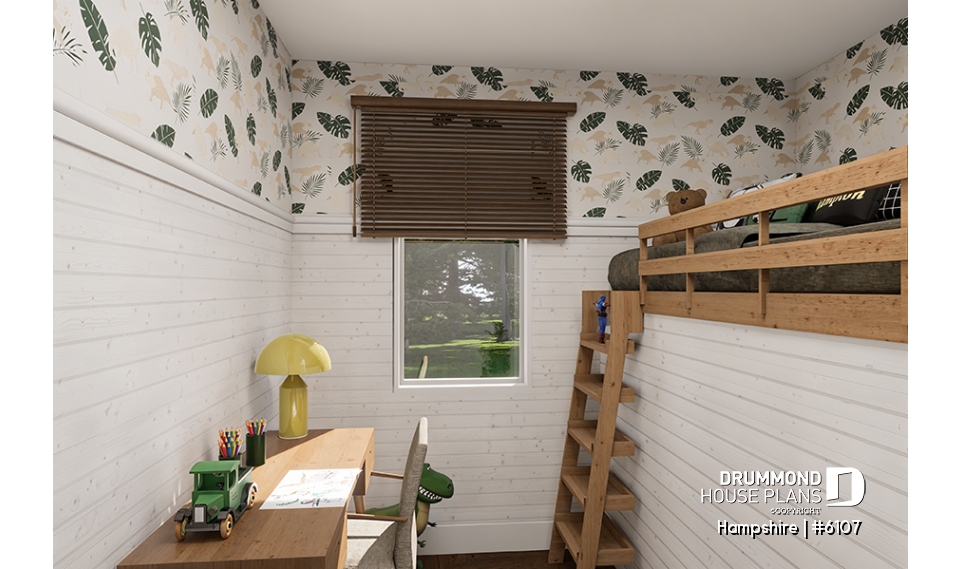

Rooms #2 and #3 share a bunk bed but are private to each room. Each room therefore has a private twin size bed, one on the ground level and the other upstairs.
Family bathroom with large sink and the popular "bath in shower" combo.
Central fireplace and open to the living room, dining room and kitchen.
Bench seating area in the dining room to save space.
Plan feature(s)
Sloped ceiling, Bench seat(s), Bath in the shower, Ceiling over 8', Shelves, Built-ins, Lunch counter, Open floor layout, Fireplace, Bath in the shower
Plan architectural style(s)
. Mid-century, . Contemporary, . European, . Cottage, chalet, cabin, . Modern / Design, . Modern rustic
