House plan Lombard (3960)
Lakefront modern cottage house plan, walkout basement, 3 to 4 bedrooms, 2 family rooms, 2 fireplaces, storage
Virtual visit
View the size of the rooms and height of the ceilings

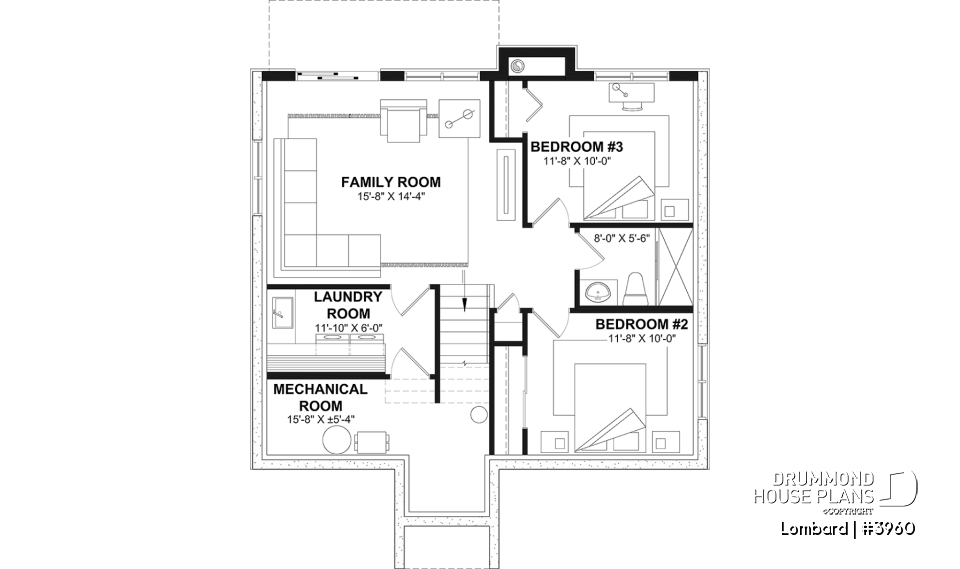

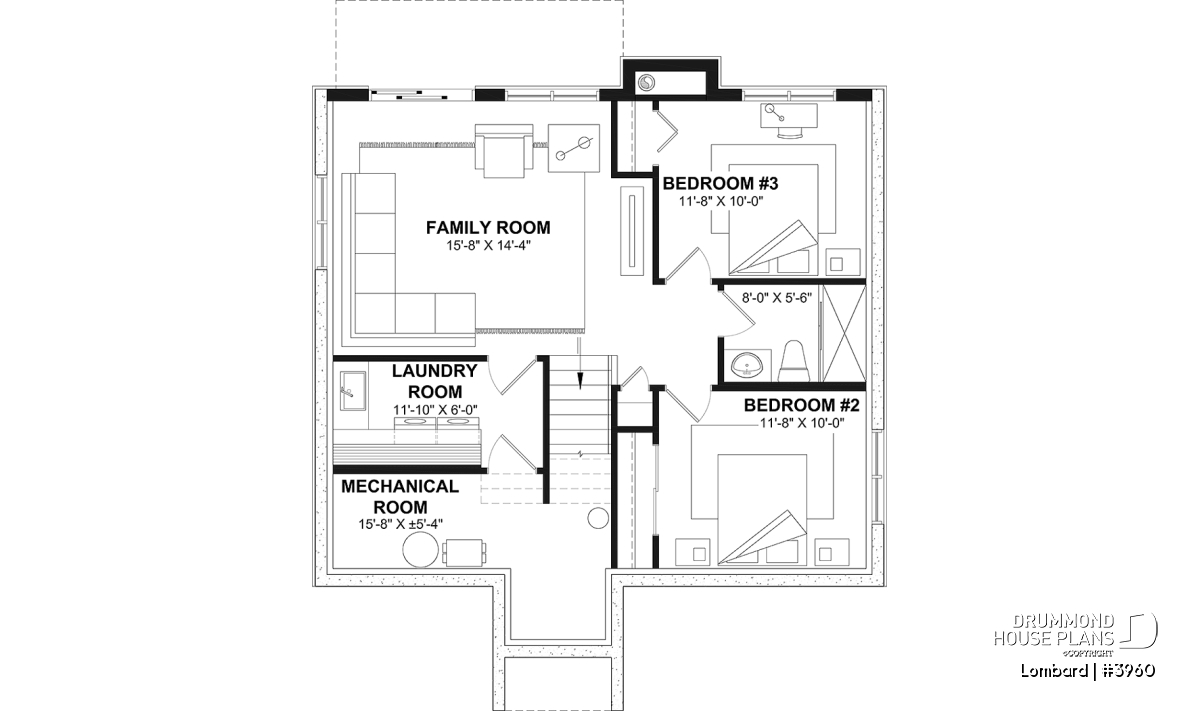

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 8'0" x 5'6" | ~ 8'0" |
| Bedroom | 11'8" x 10'0" | ~ 8'0" |
| Bedroom | 11'8" x 10'0" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Great room or Family room | 15'8" x 14'4" | ~ 8'0" |
| Laundry room | 11'10" x 6'0" | ~ 8'0" |
| Mechanical room | 15'8" x 5'4" | ~ 8'0" |

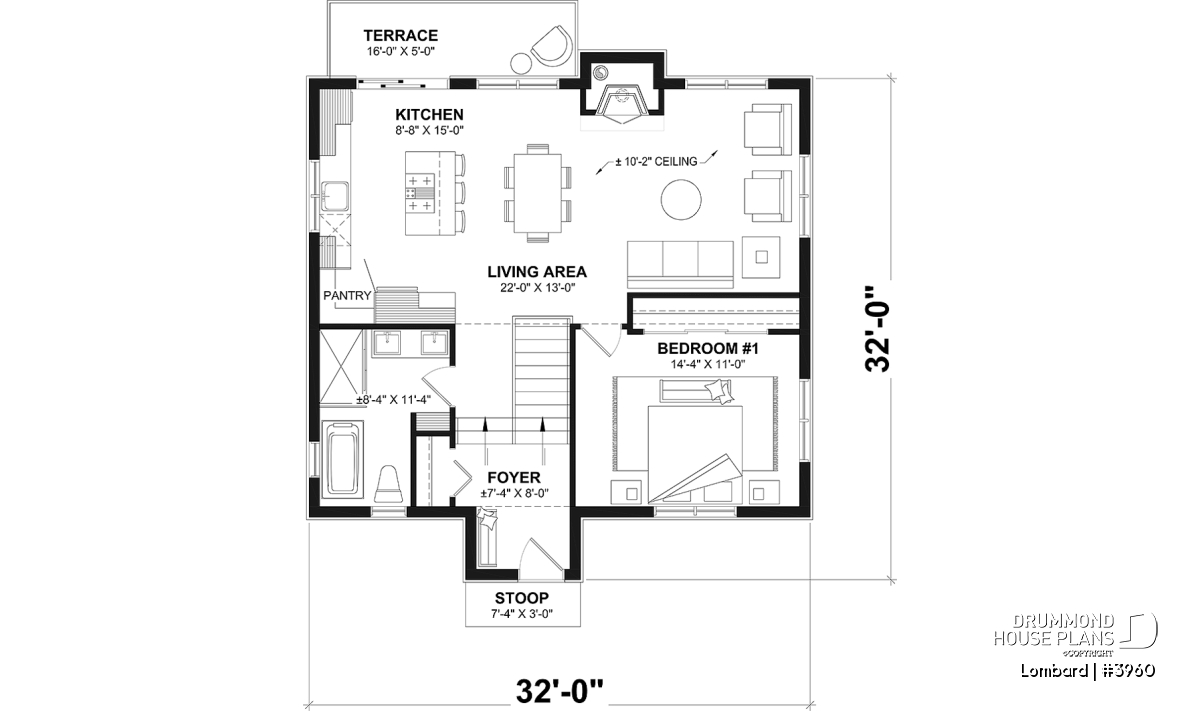

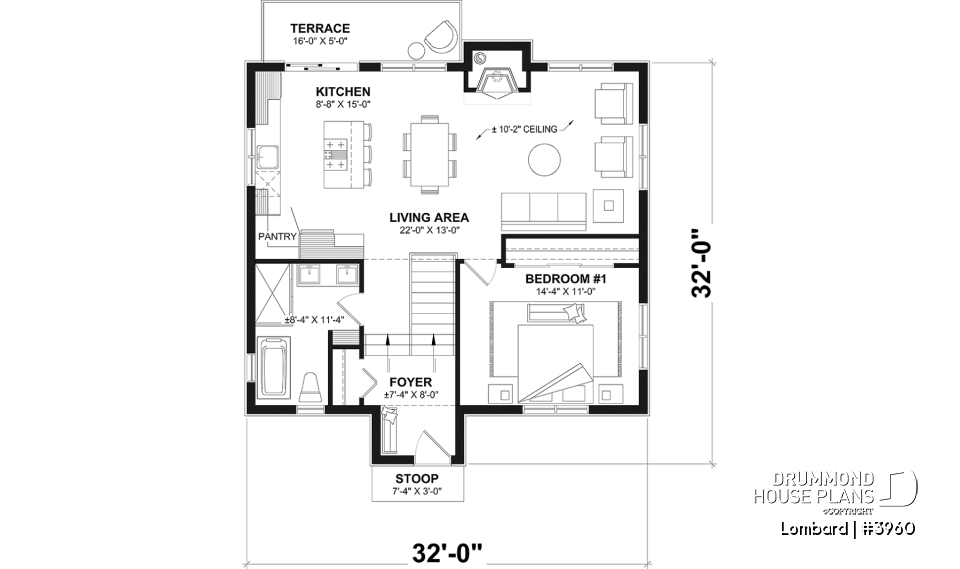

| 1st level | ||
|---|---|---|

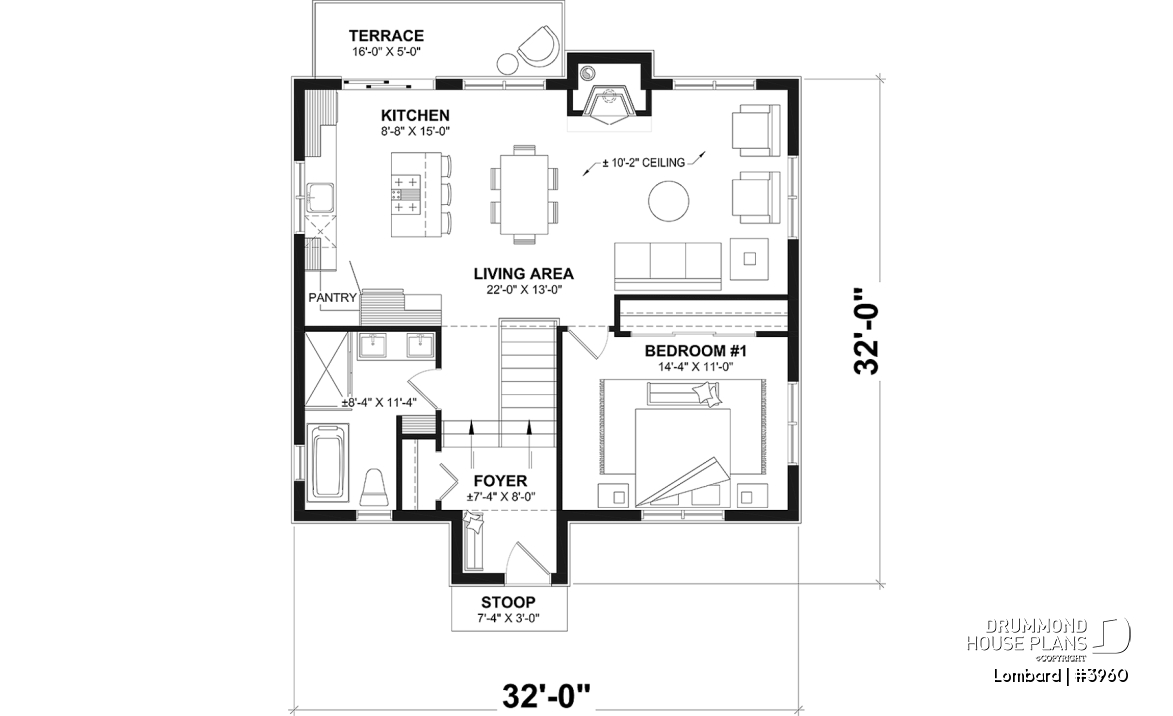

| Rooms | Sizes | Ceiling |
| Bedroom | 14'4" x 11'0" | ~ 8'0" |
| Balcony | 16'0" x 5'0" | N/A |
| Porch | 7'4" x 3'0" | N/A |
| Full bathroom | 8'4" x 11'4" | ~ 8'0" |
| Foyer | 7'4" x 8'0" | ~ 9'0" |
| Kitchen | 8'8" x 15'0" | ~ 10'0" |
| Living room/dining room | 22'0" x 13'0" | ~ 10'0" |
General specifications
| Total living area | 1759 sq.ft. |
| Basement | 834 sq.ft. |
| 1st level | 925 sq.ft. |
| Width | 32'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 25'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Lakefront Cottage house plan with 3 to 4 bedrooms, 2 fireplaces and 2 family rooms
Developed with "green thinking" similar to model 3950 to create a budget friendly alternative. This plan provides a well designed floor plan with an abundance of windows in back whose facade can be given a south orientation to enhance passive energy from the sun. Eco-friendly choice of materials includes a steel roof for enhanced longevity and superior performance.
Living space is maximized throughout the two story plan and ecological enhancements include fireplaces on the two levels for substantial savings on heating costs. The main foyer in front can be completely closed off from the living area to keep the outside temperatures, either too hot or too cold, from entering.
The main level has an open floor plan with 10' ceilings throughout and a master suite, a full bathroom and well appointed kitchen with an island. Two additional bedrooms in the basement along with a shower room and a separate laundry/mechanical area and a second living room help to maximize the interior space for enhanced enjoyment!
Distinctive elements
10' ceiling in the activity area, entirely opened to the back. Kitchen with centered lunch-island and corner pantry. Fireplace in living room on first floor and in the game room on lower level. South oriented rear elevation in a passive solar approach, including solar pannels for an active solar approach.
Plan feature(s)
Open floor layout, Inverted living, Panoramic view, Fireplace, Island, Sloped ceiling, Separate bath and shower
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Modern / Design, . Modern rustic, . Contemporary, . Ski chalets, . Scandinavian, . Transitional, . Mountain
