1905 (Kingfisher)

Small country cabin plan with 2 bedrooms, open kitchen family room, shower room, covered porch

Bedrooms

2

Bathroom(s)

1

Living area

540 sq.ft.

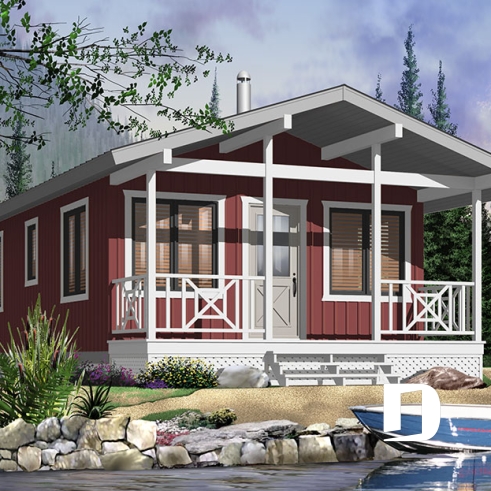

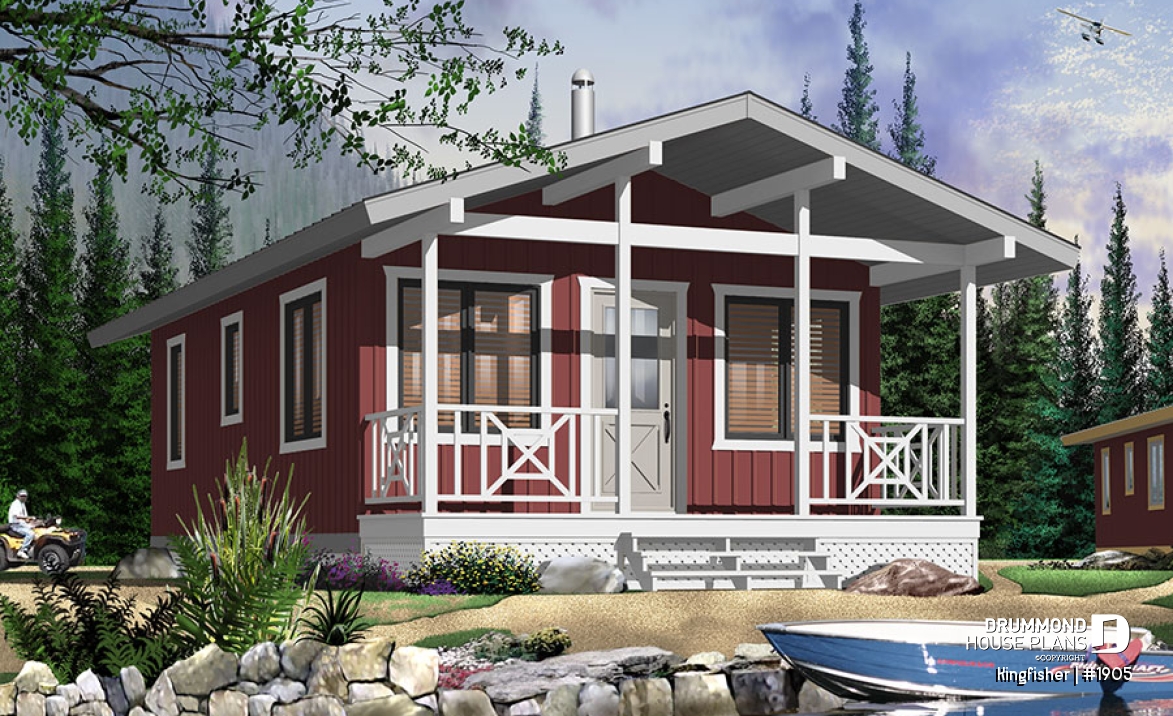

  • Color version 3 - Front - Small country cabin plan with 2 bedrooms, open kitchen family room, shower room, covered porch - Kingfisher

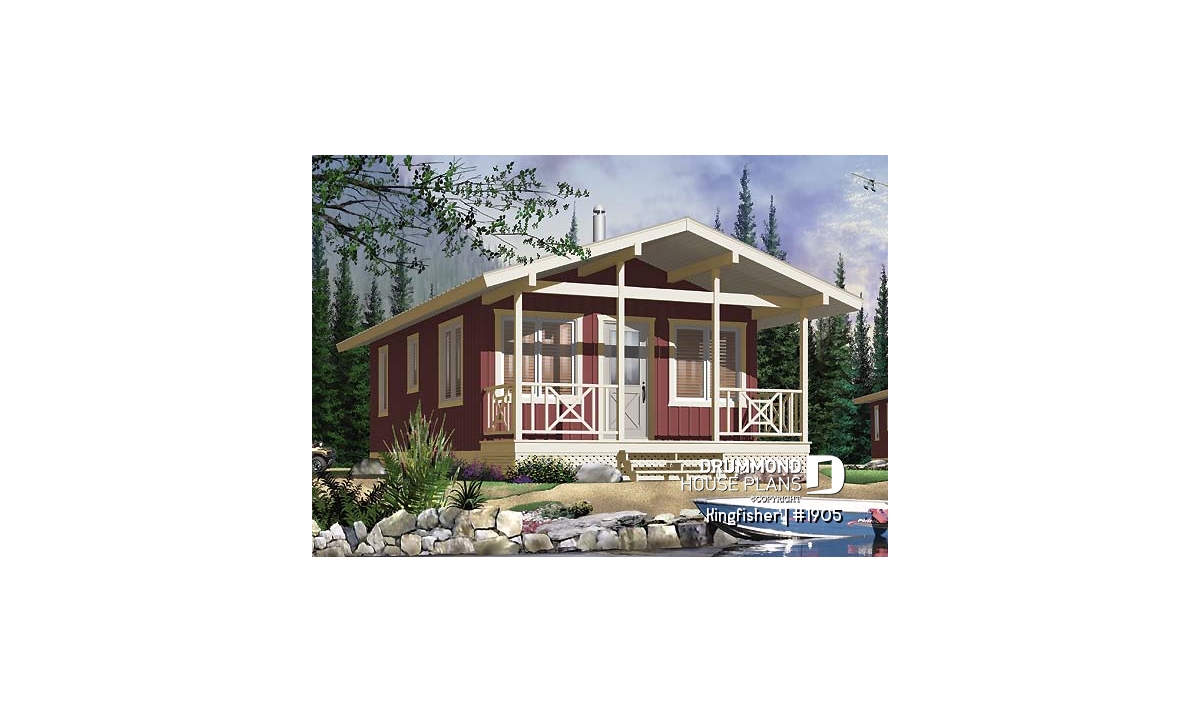

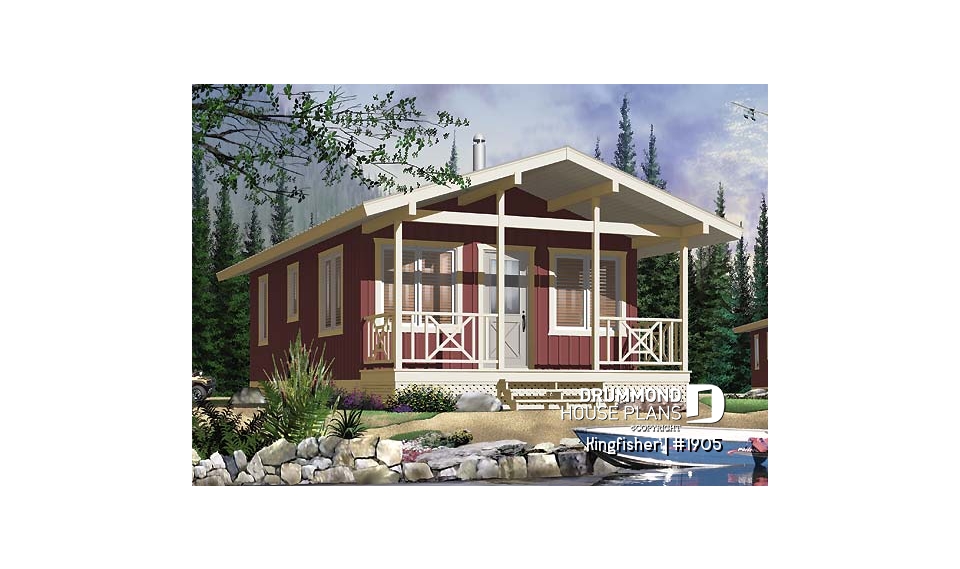

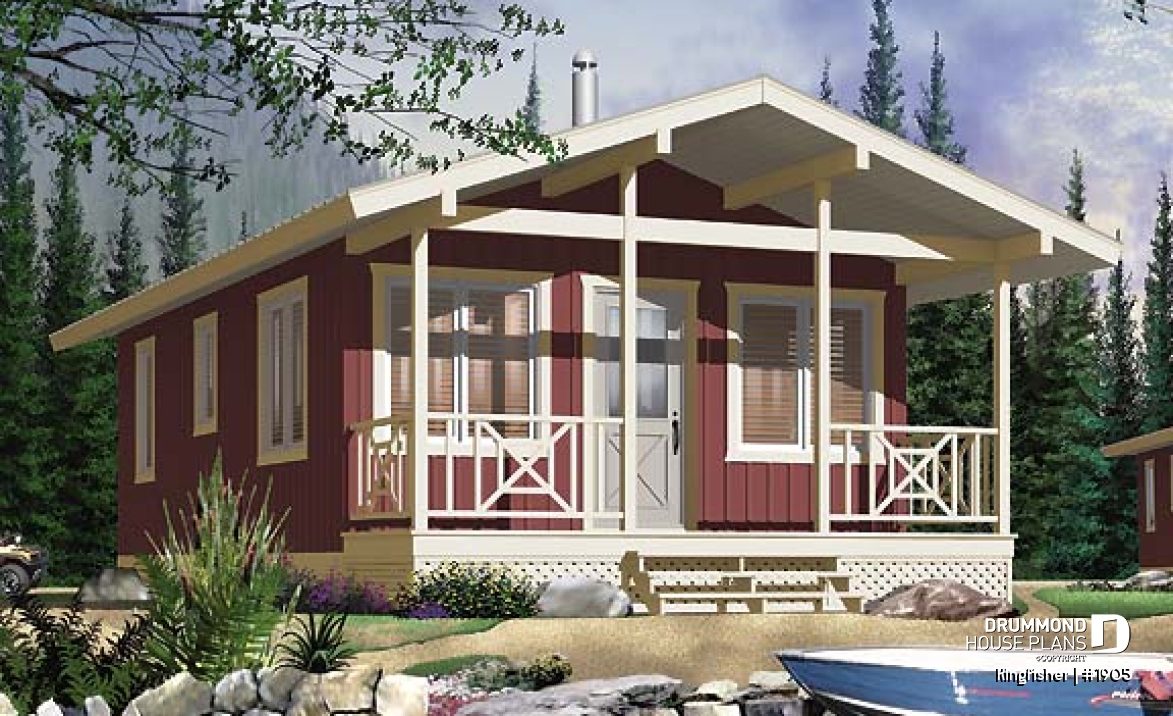

  • front - ORIGINAL MODEL - Kingfisher

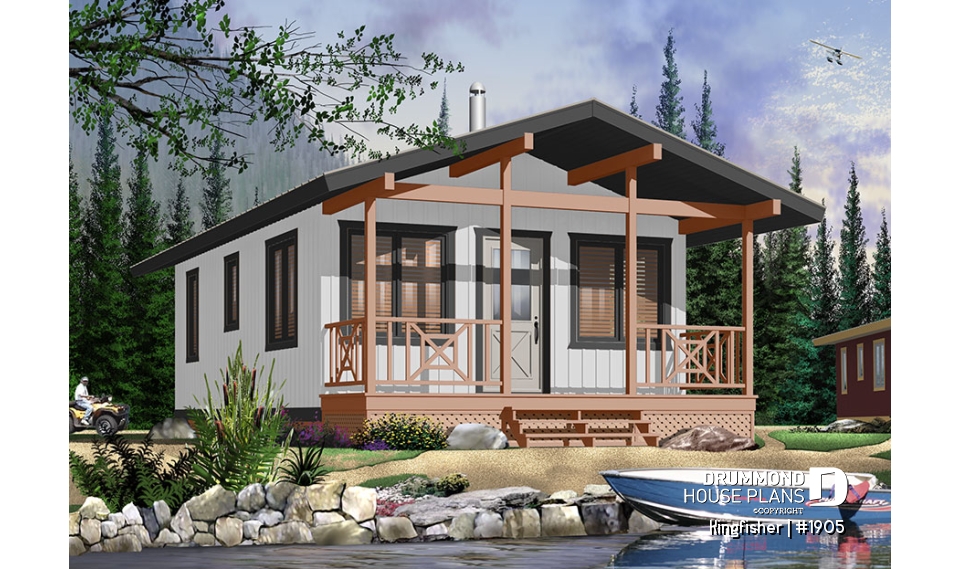

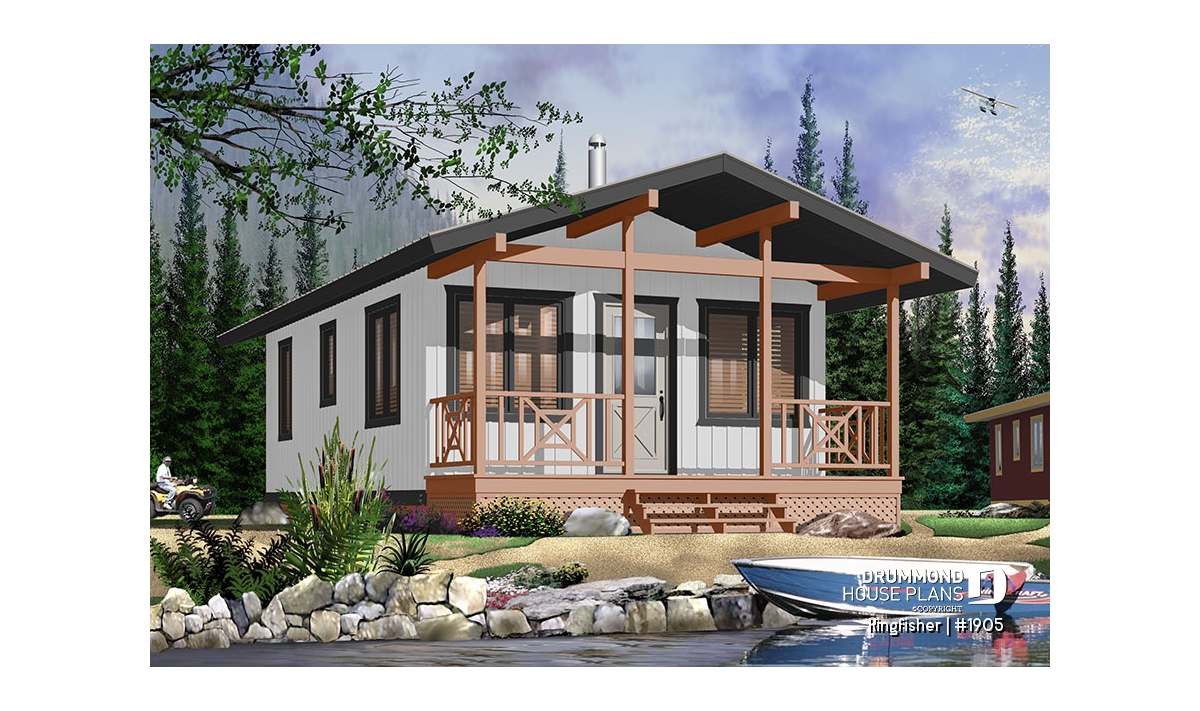

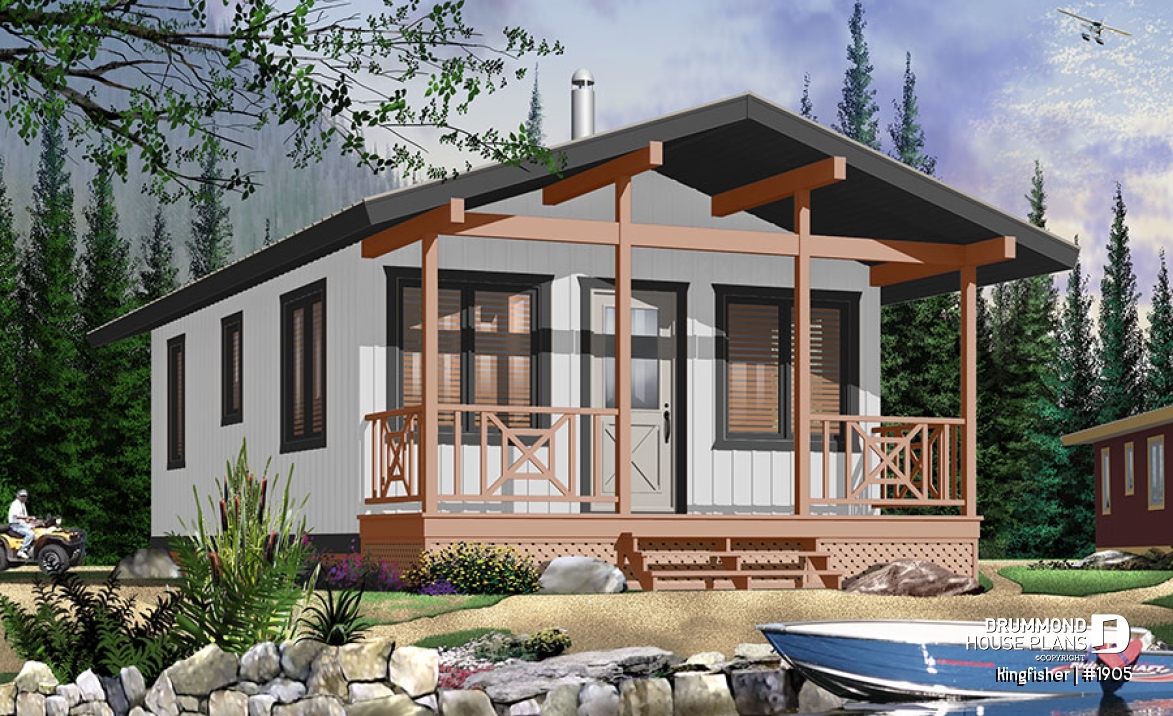

  • front - BASE MODEL - Kingfisher

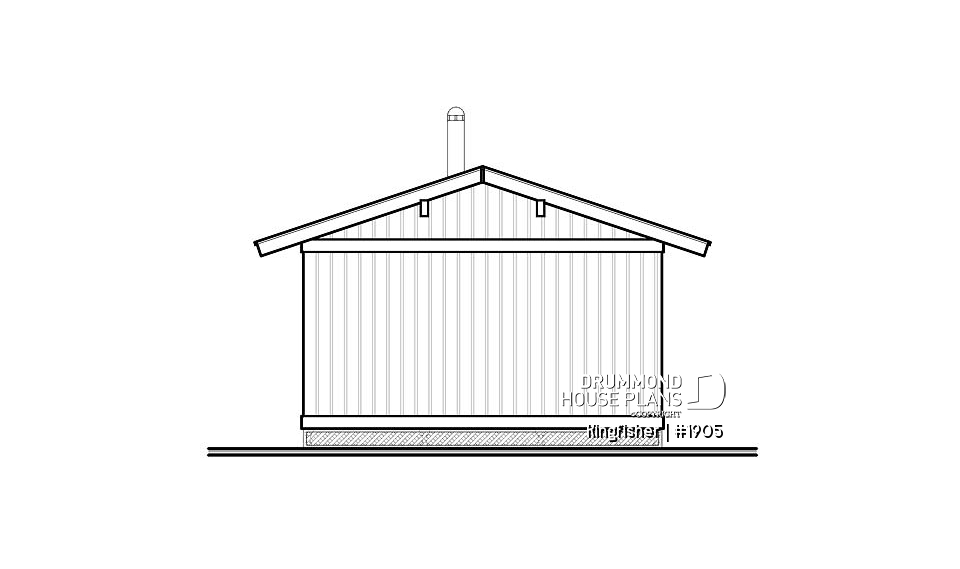

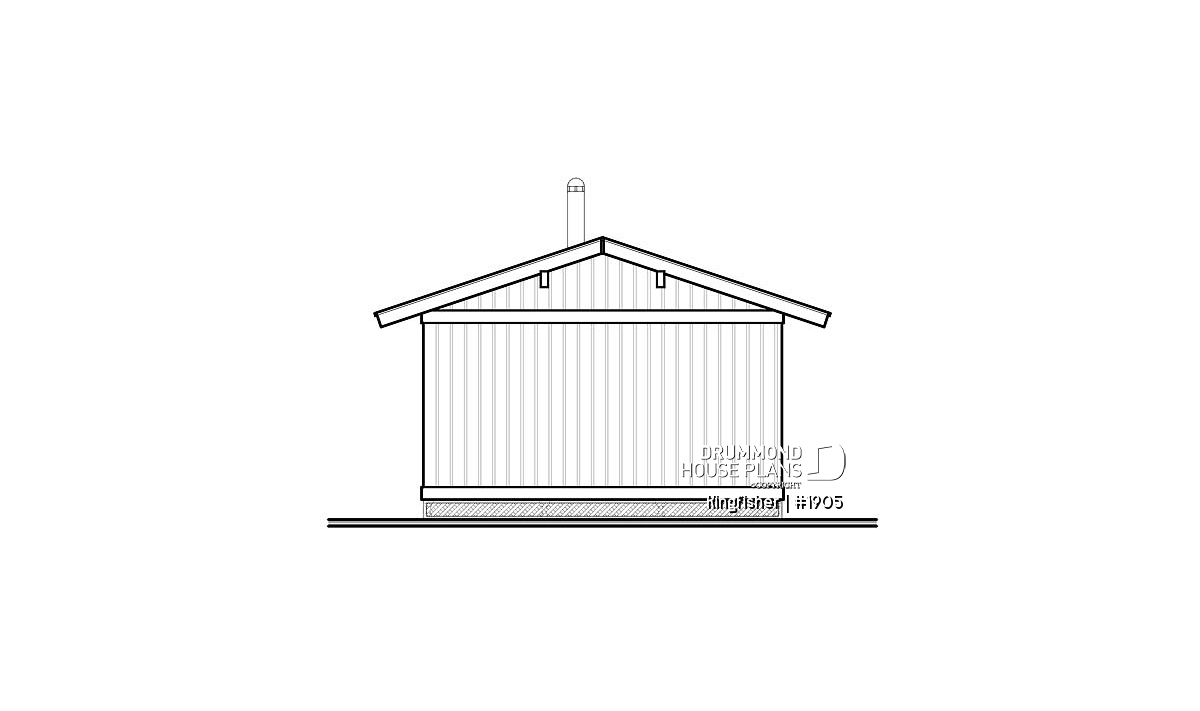

  • rear elevation - Kingfisher

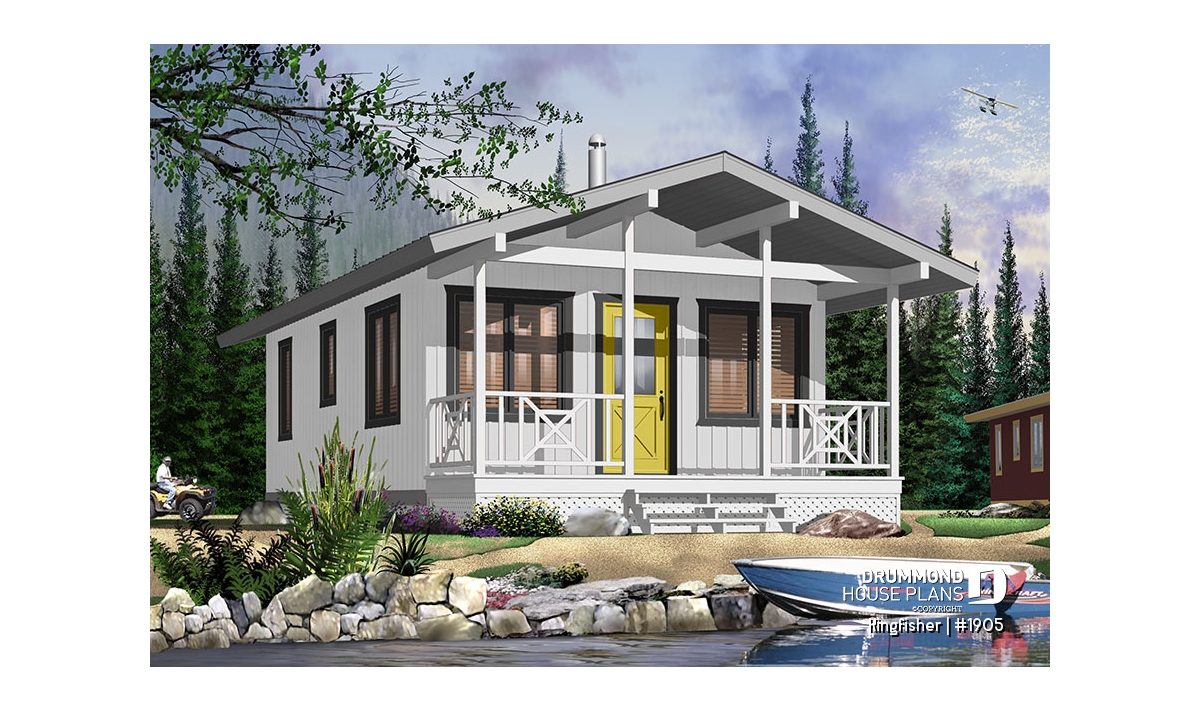

  • Color version 1 - Front - Kingfisher

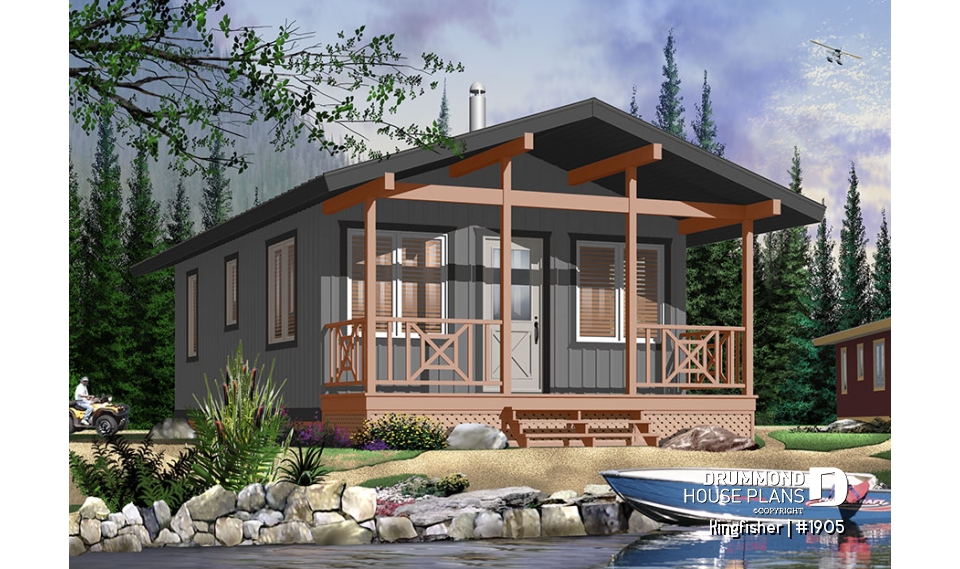

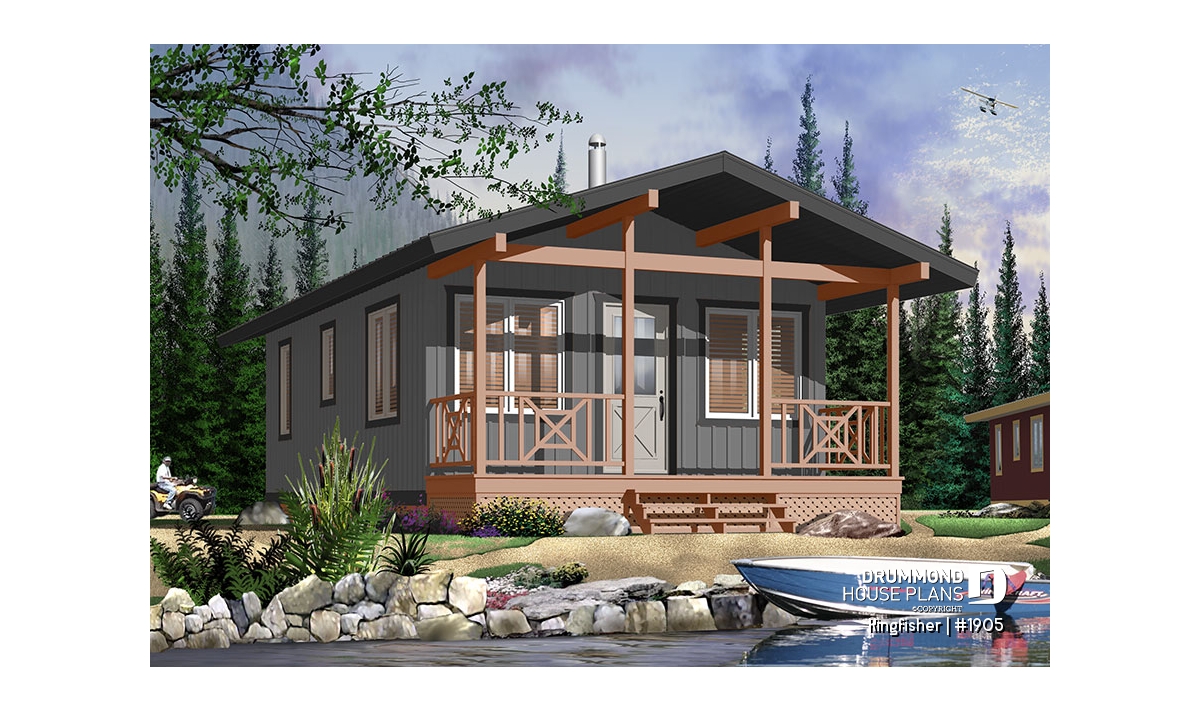

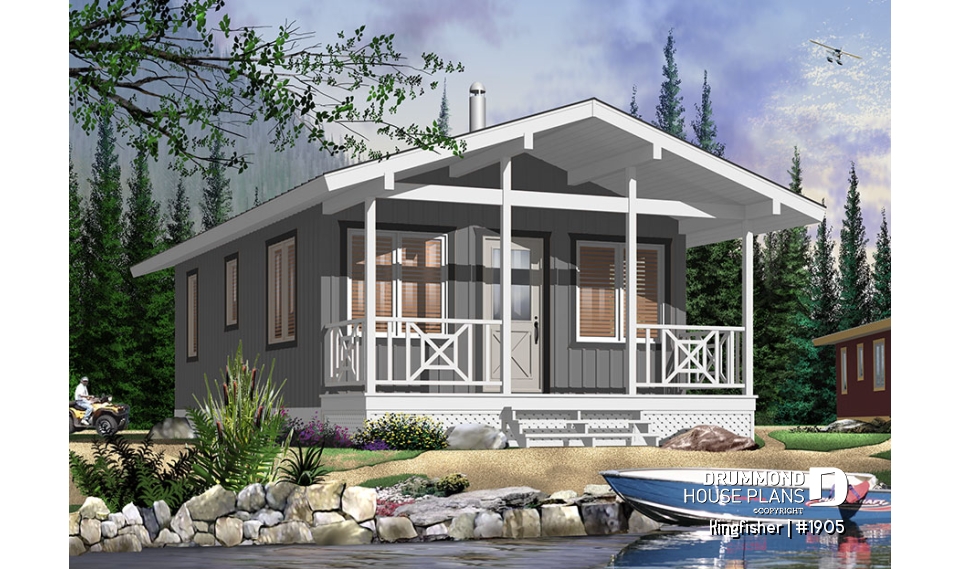

  • Color version 2 - Front - Kingfisher

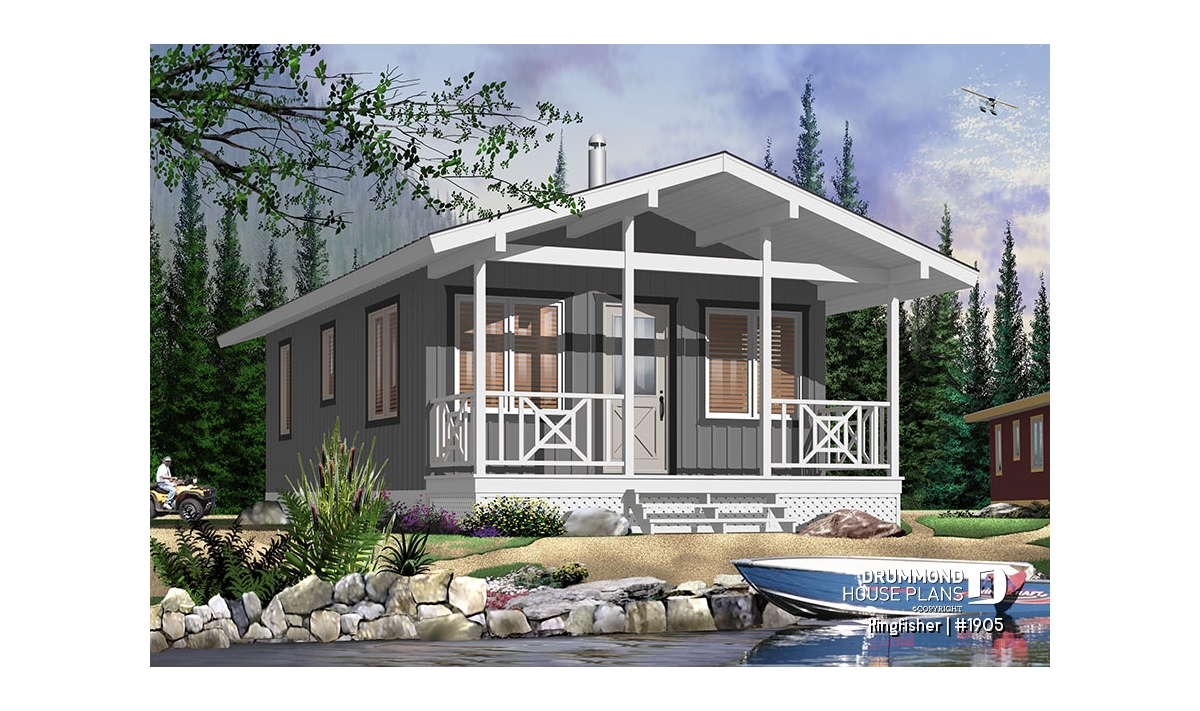

  • Color version 2 - Front - Kingfisher

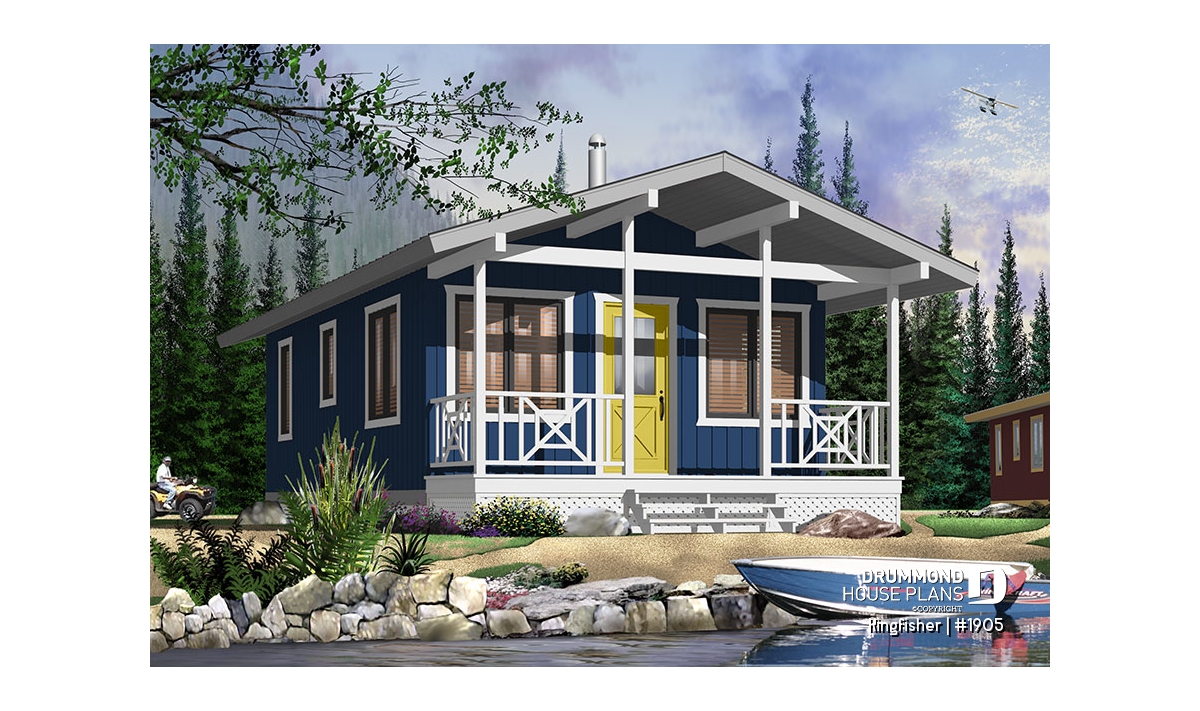

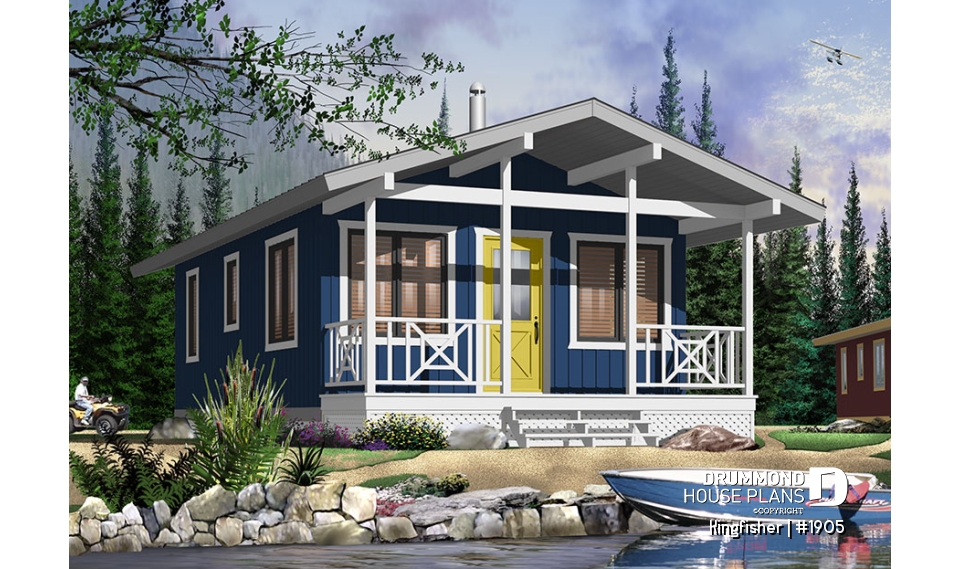

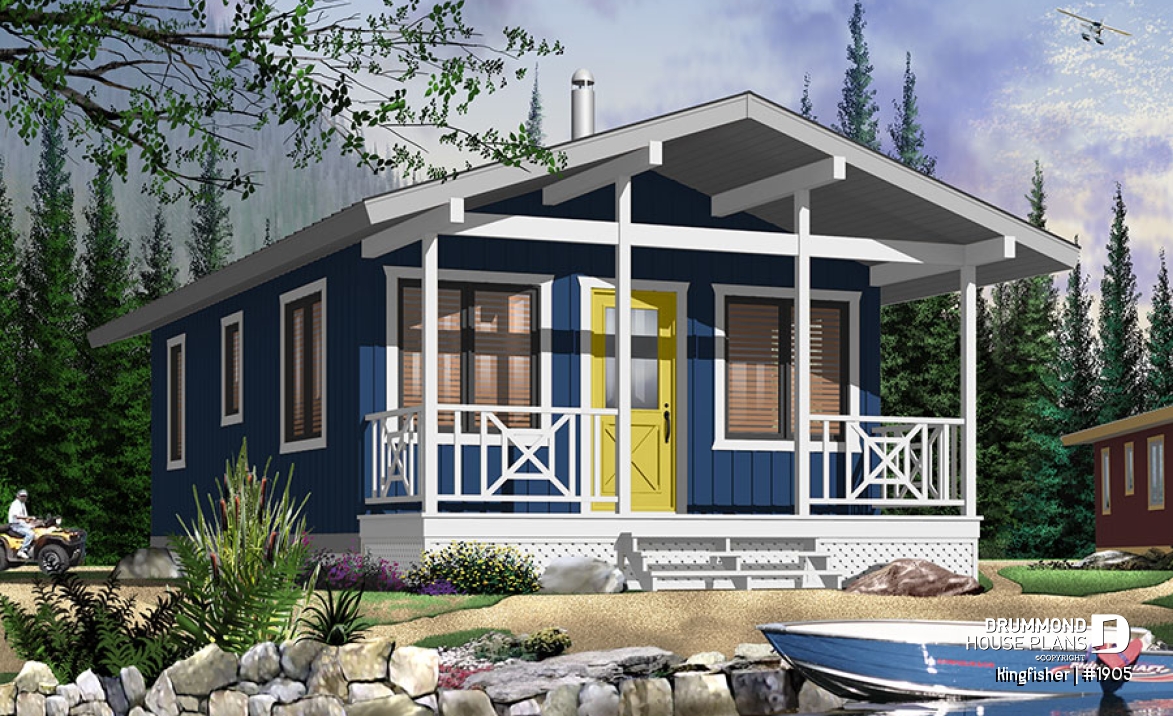

  • Color version 4 - Front - Kingfisher
  • Color version 4 - Front - Kingfisher

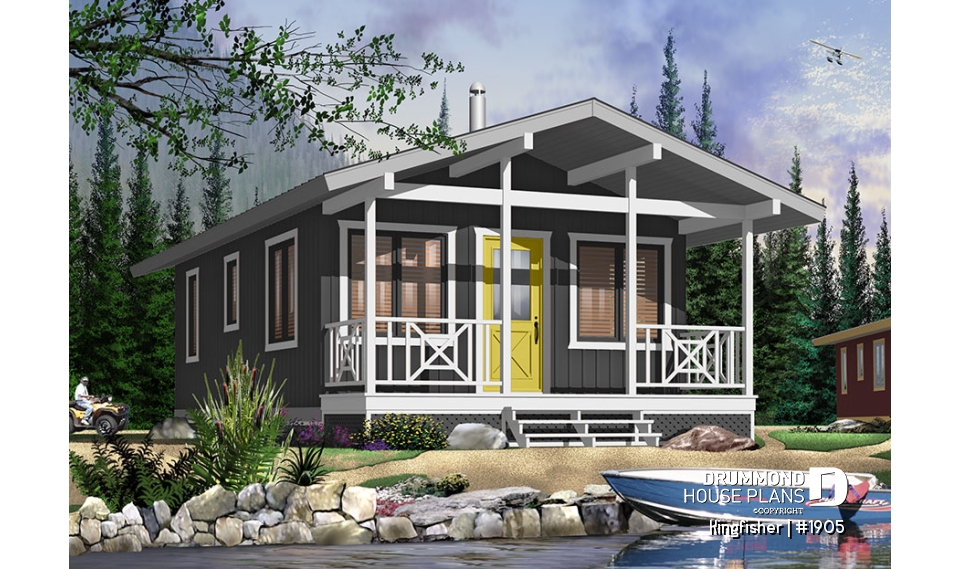

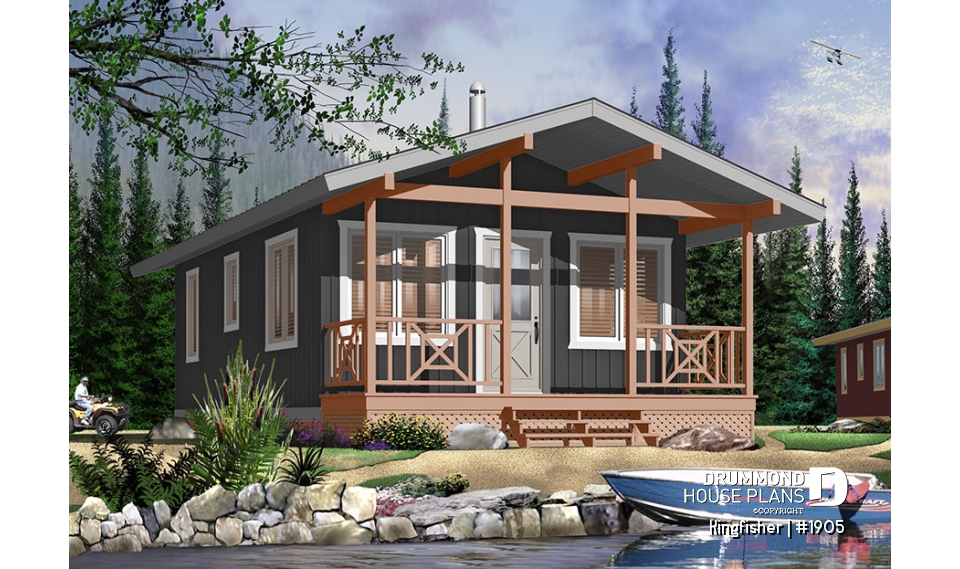

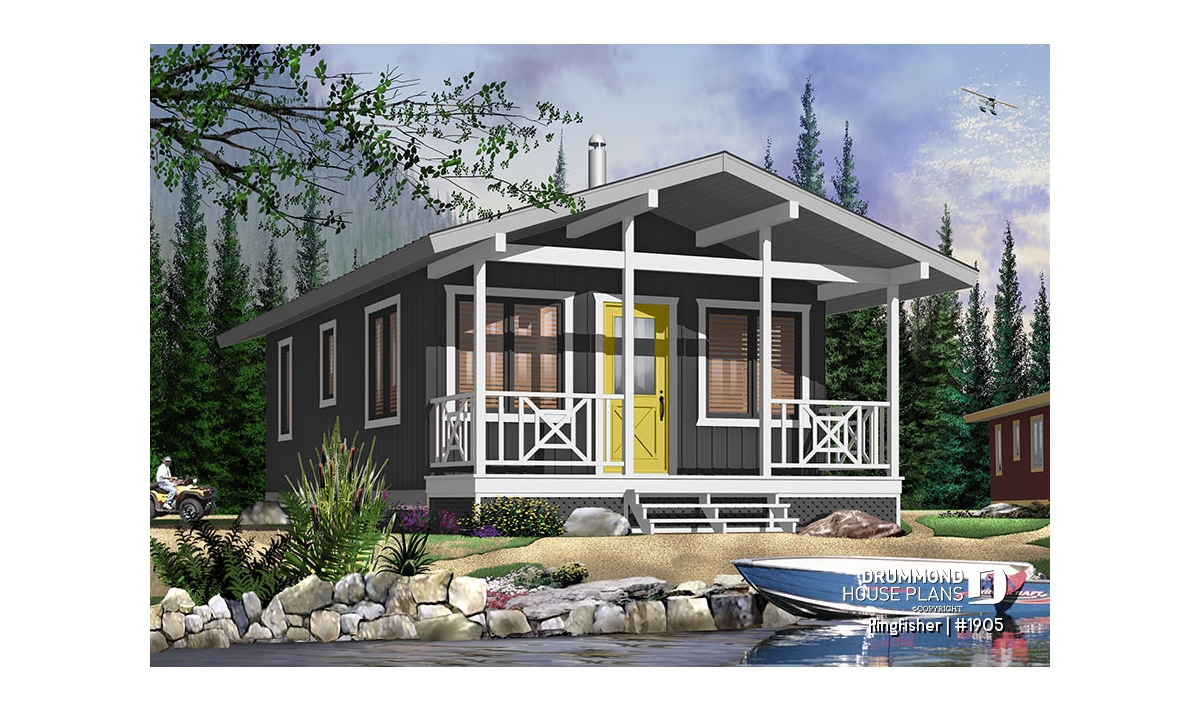

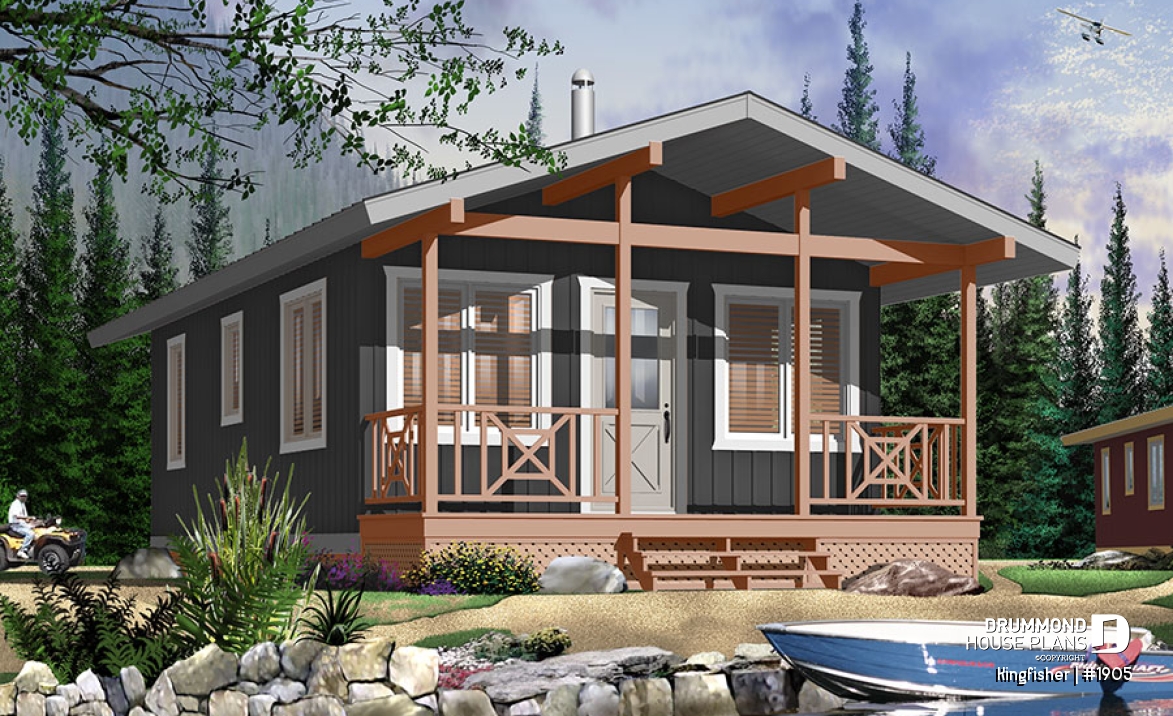

  • Color version 5 - Front - Kingfisher

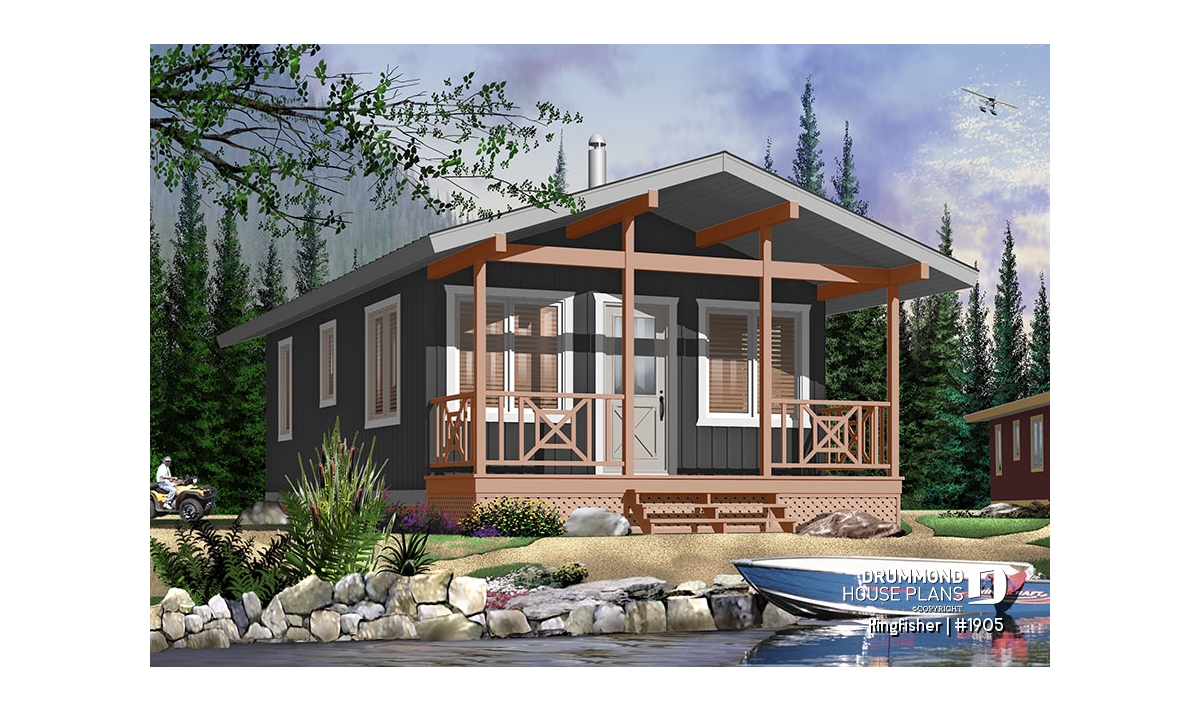

  • Color version 5 - Front - Kingfisher

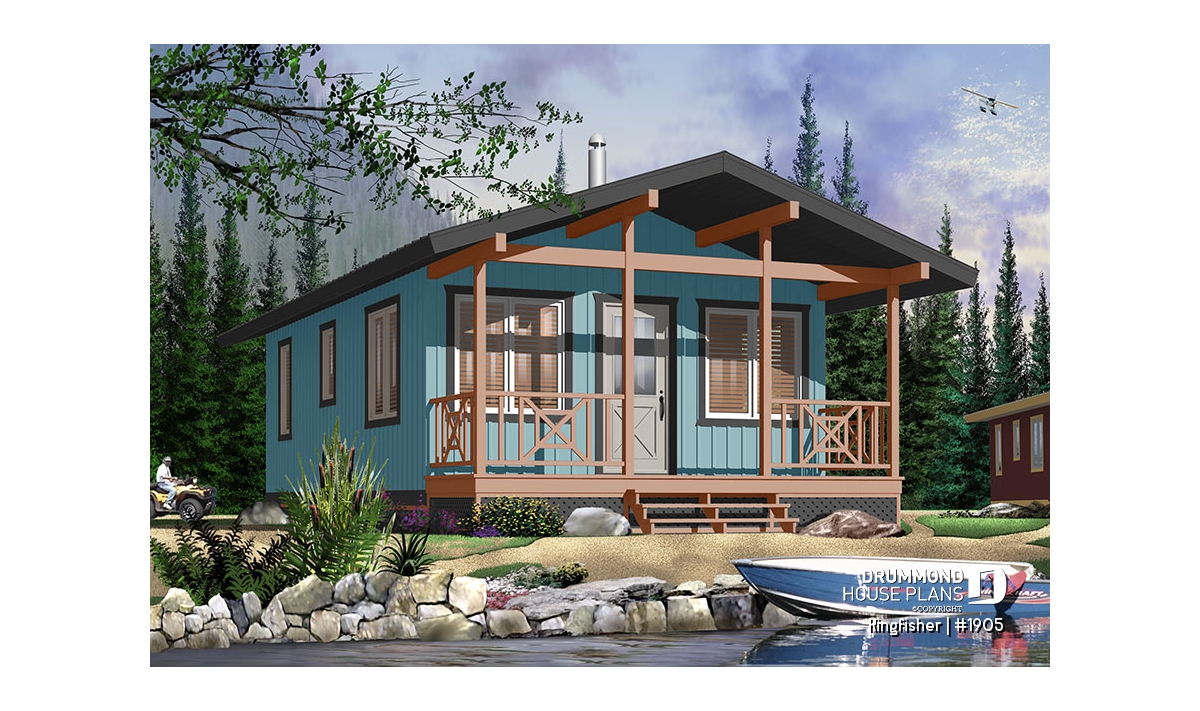

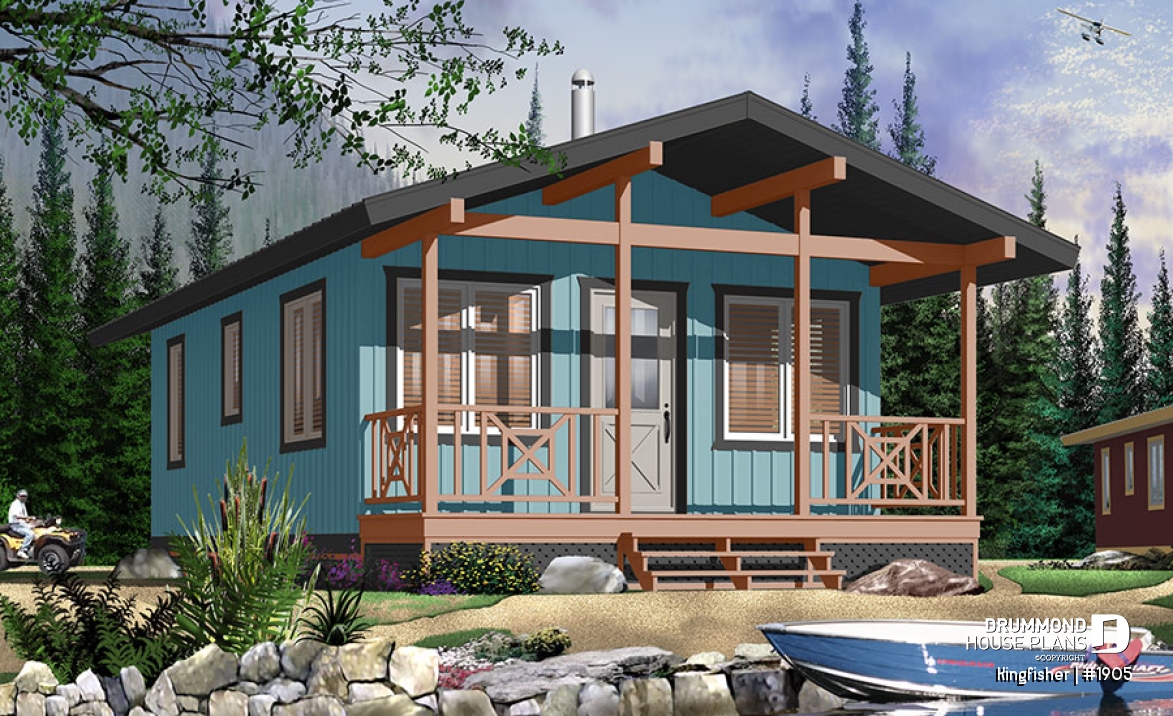

  • Color version 6 - Front - Kingfisher

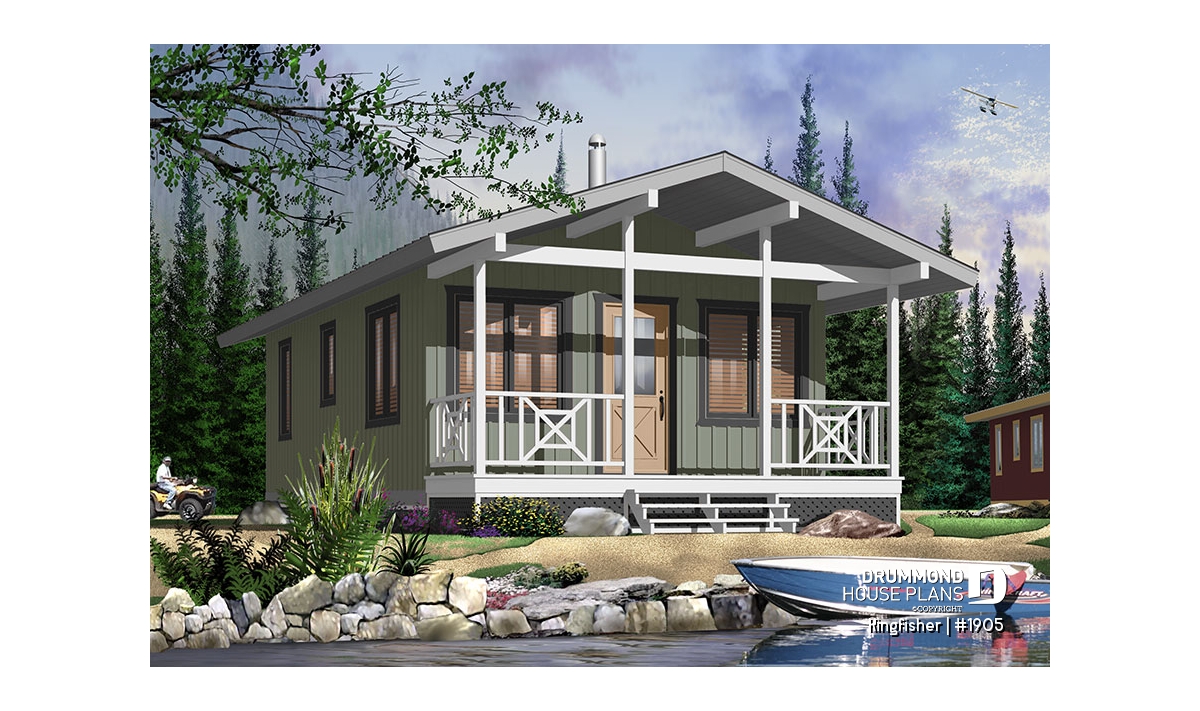

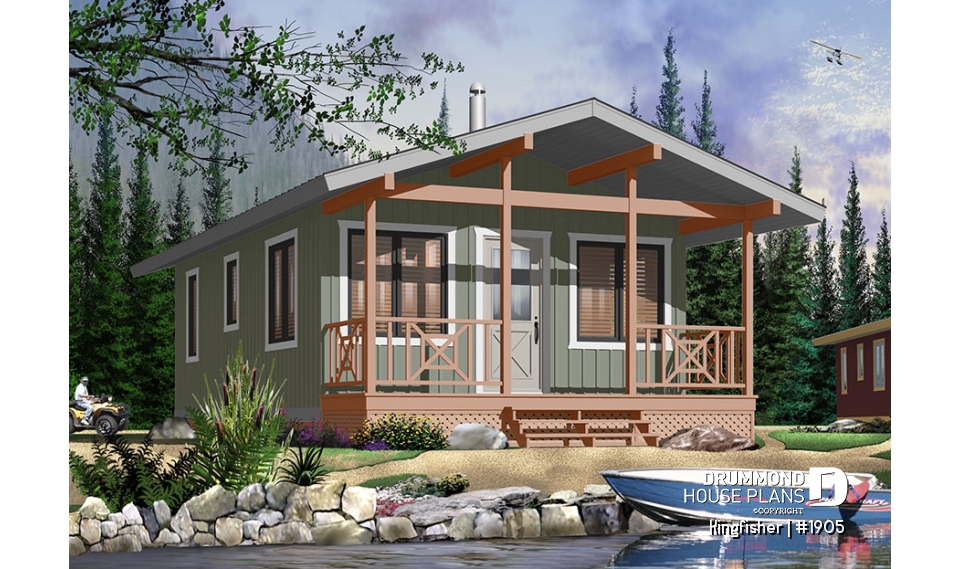

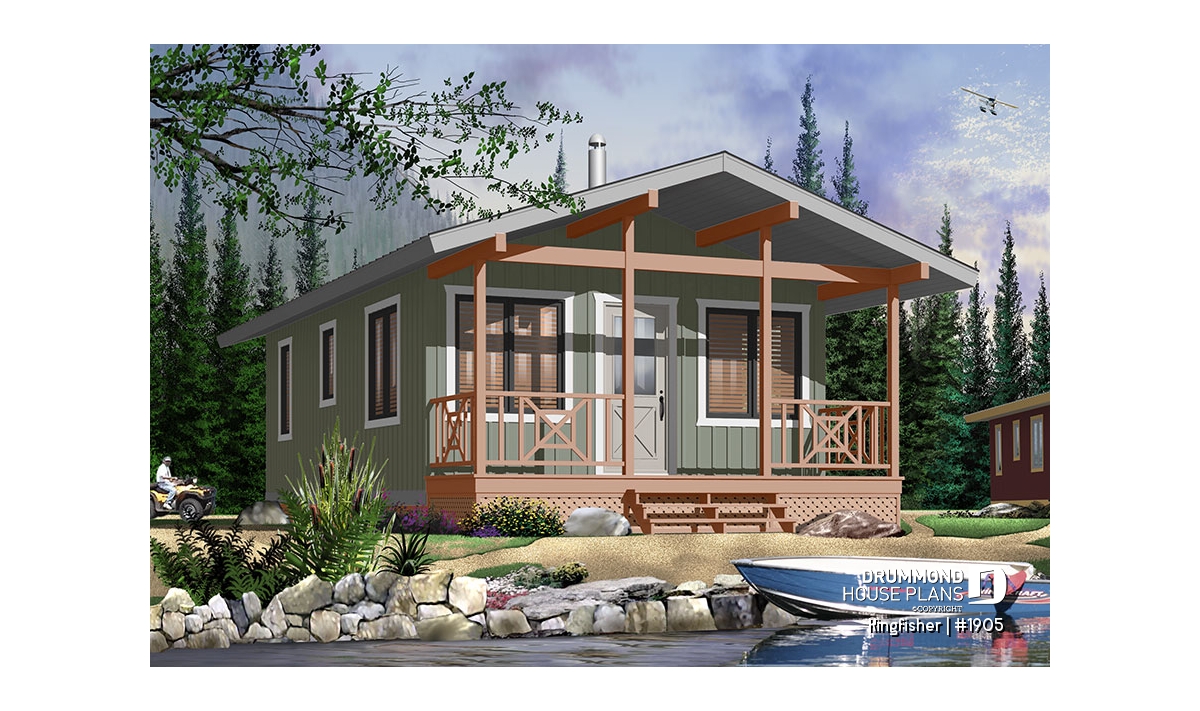

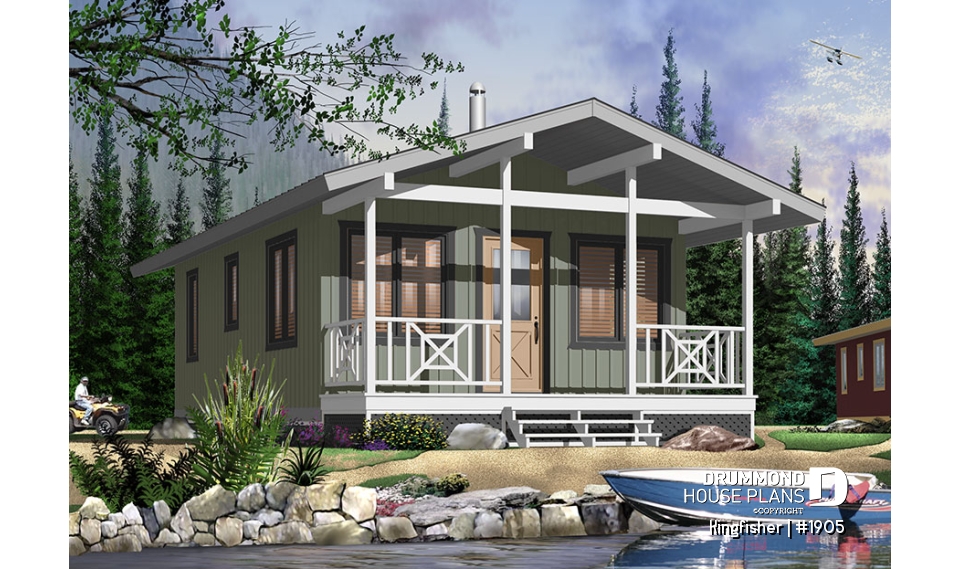

  • Color version 7 - Front - Kingfisher
  • Color version 7 - Front - Kingfisher

Color version 3 - Front

front - ORIGINAL MODEL

front - BASE MODEL

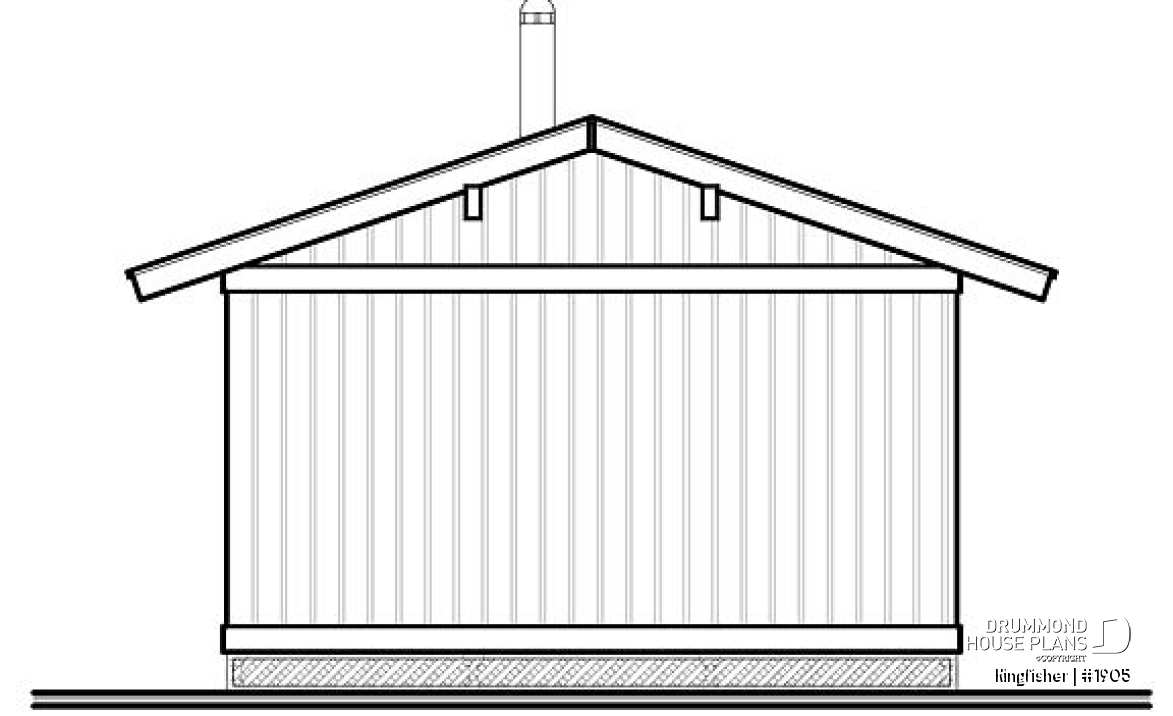

rear elevation

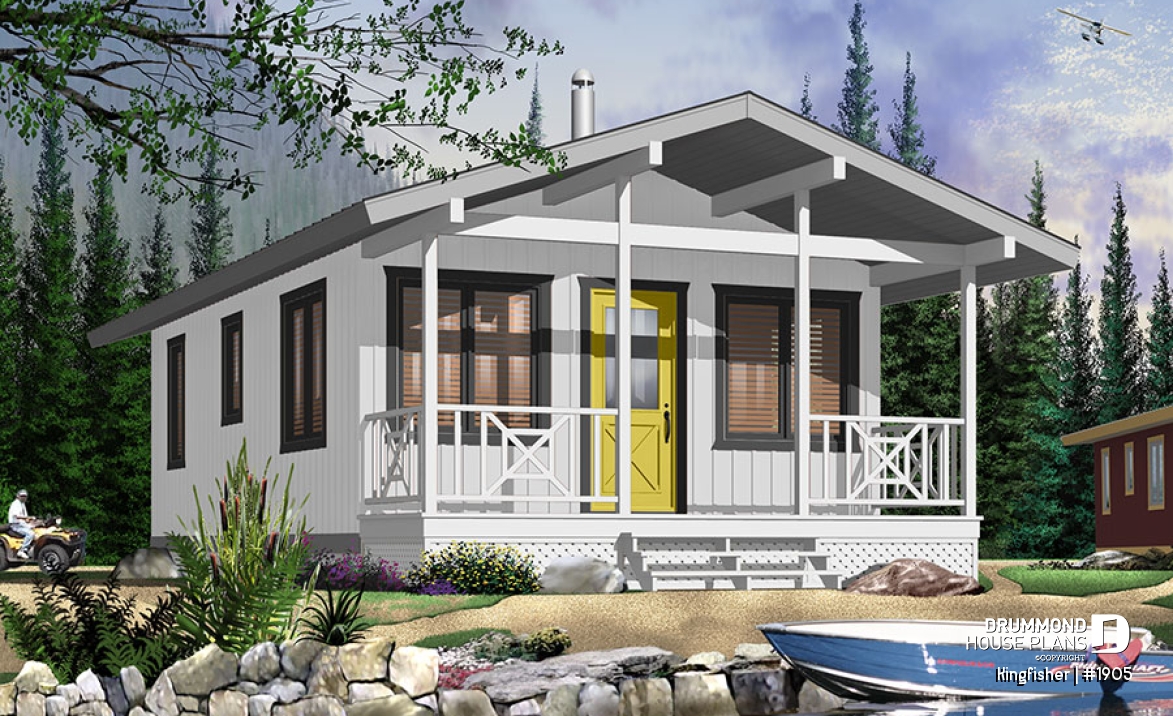

Color version 1 - Front

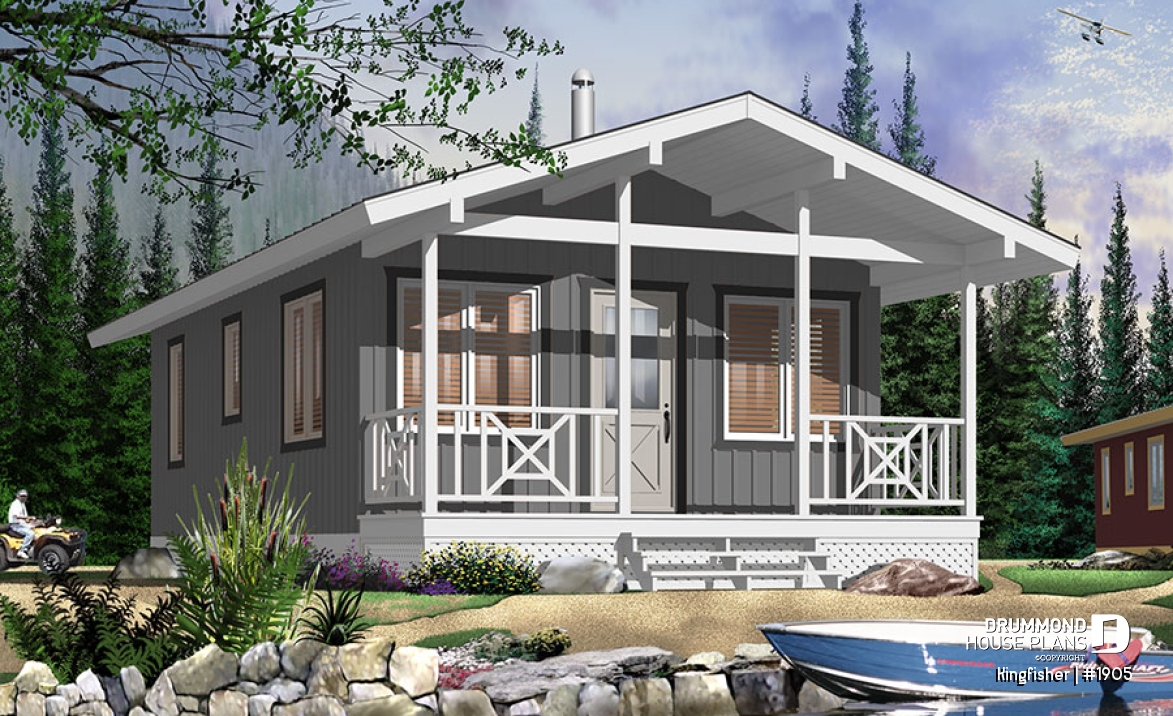

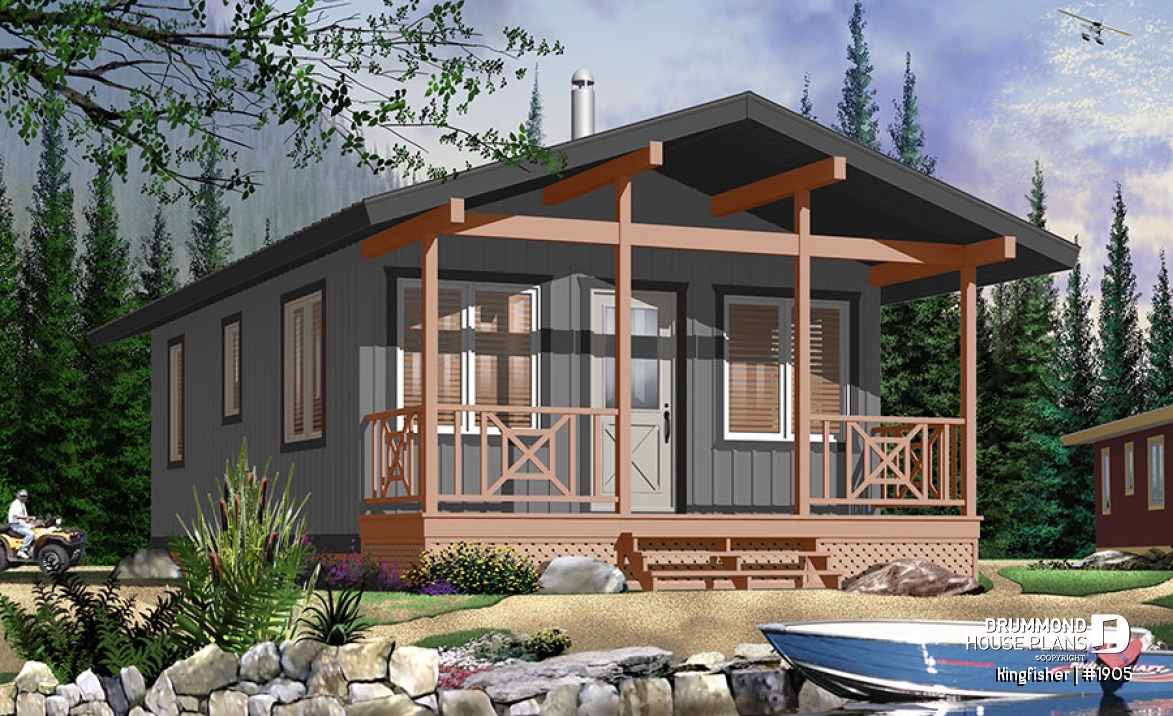

Color version 2 - Front

Color version 2 - Front

Color version 4 - Front

Color version 4 - Front

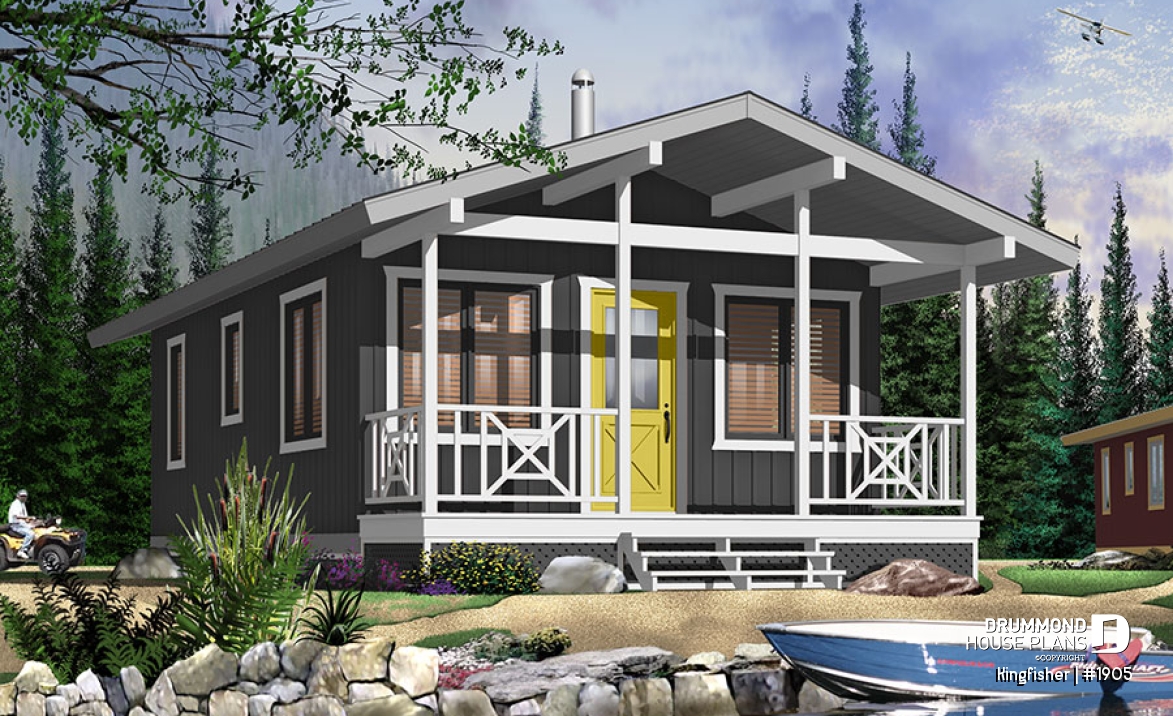

Color version 5 - Front

Color version 5 - Front

Color version 6 - Front

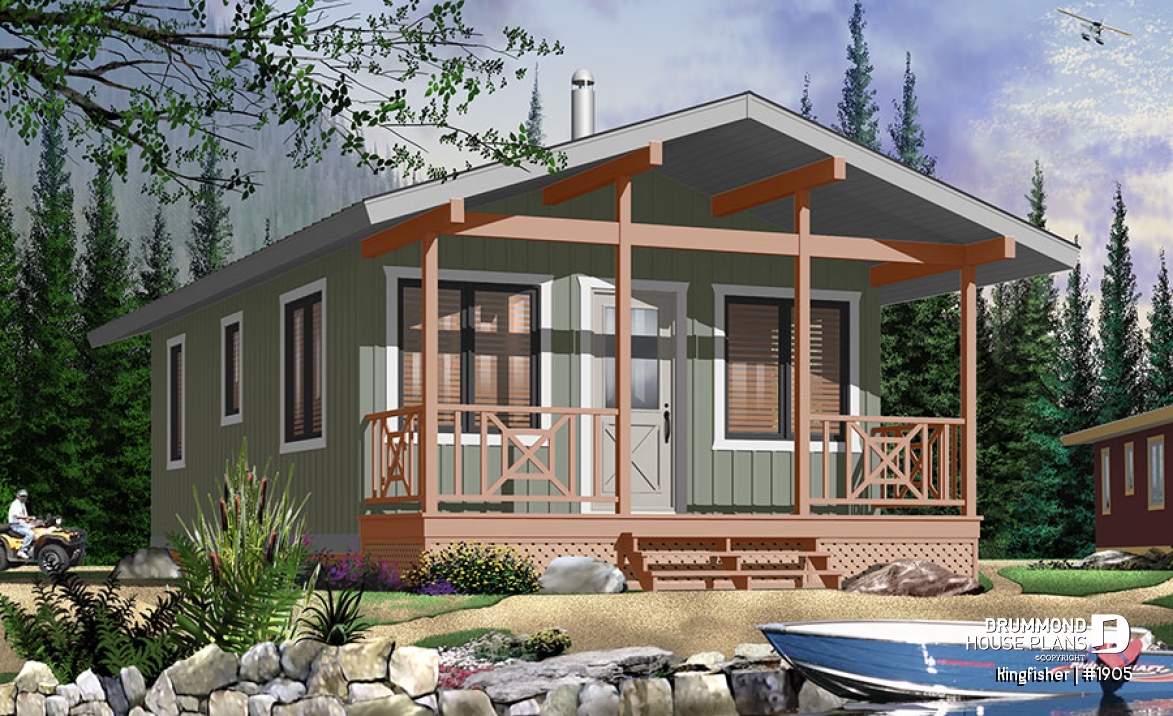

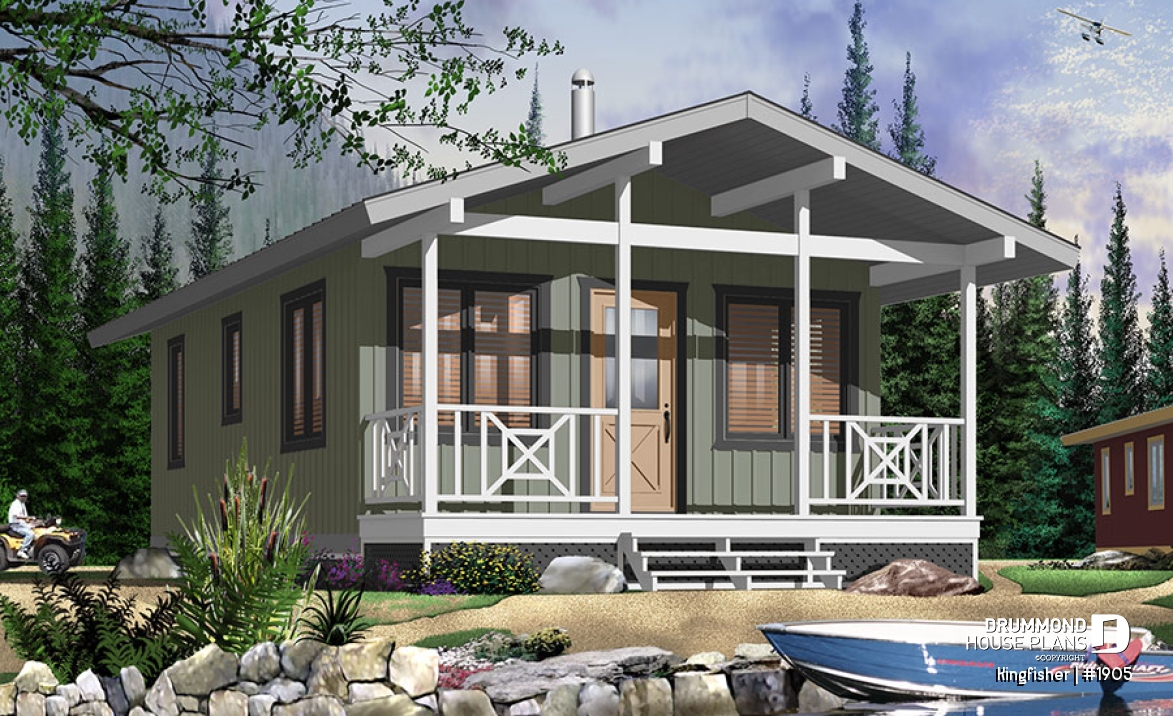

Color version 7 - Front

Color version 7 - Front

Vignette Color version 3 - Front - 1905
Vignette front - ORIGINAL MODEL - 1905
Vignette front - BASE MODEL - 1905
Vignette rear elevation - 1905
Vignette Color version 1 - Front - 1905
Vignette Color version 2 - Front - 1905
Vignette Color version 2 - Front - 1905
Vignette Color version 4 - Front - 1905
Vignette Color version 4 - Front - 1905
Vignette Color version 5 - Front - 1905
Vignette Color version 5 - Front - 1905
Vignette Color version 6 - Front - 1905
Vignette Color version 7 - Front - 1905
Vignette Color version 7 - Front - 1905

View by floor

  • 1st level

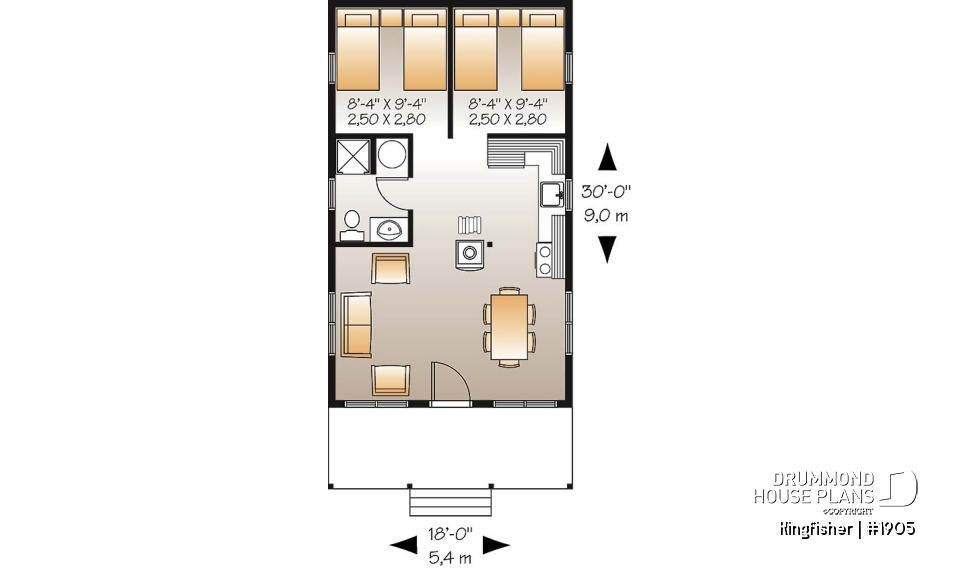

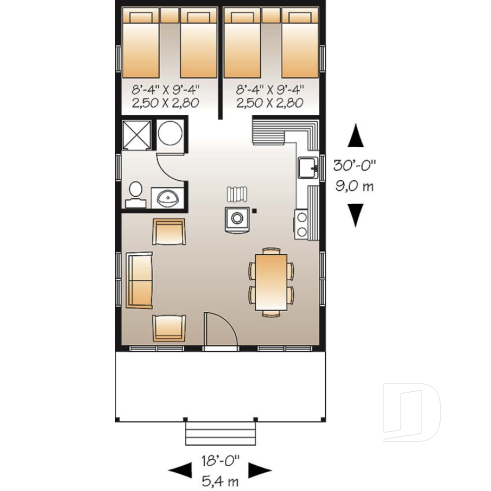

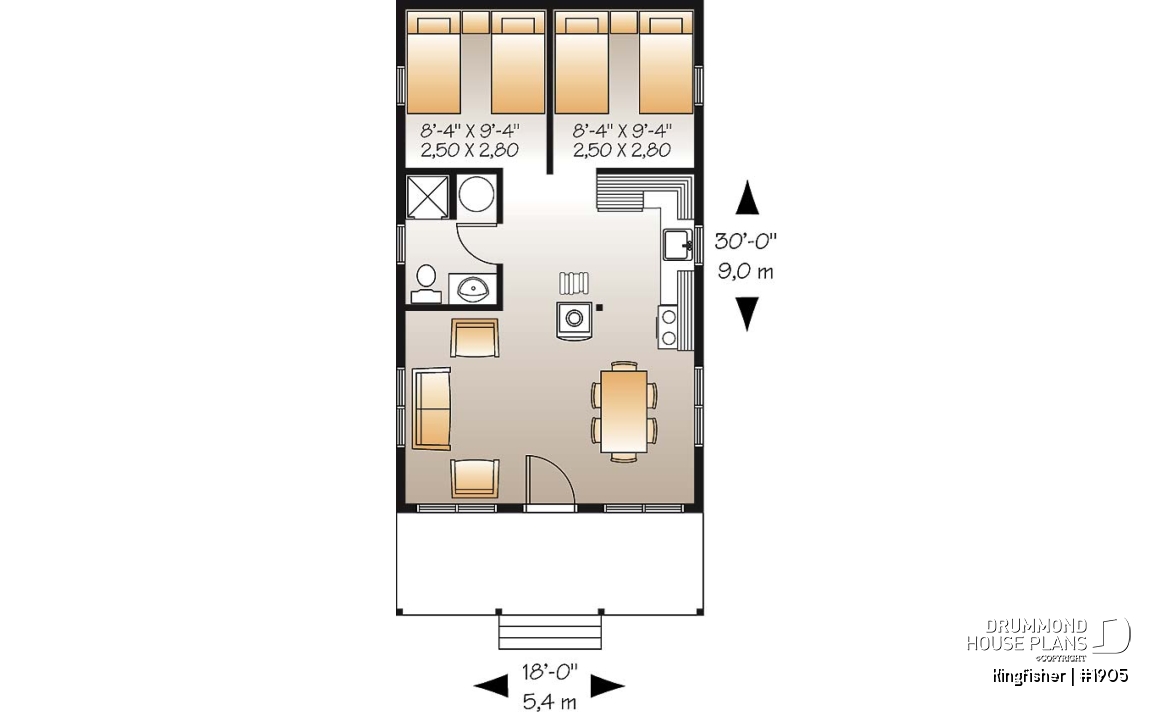

    1st level - Small country cabin plan with 2 bedrooms, open kitchen family room, shower room, covered porch - Kingfisher
Vignette 1st level - 1905

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Porch 18'0" x 6'0" ~ 0'0"
Bedroom 8'4" x 9'4" ~ 8'2"
Bedroom 8'4" x 9'4" ~ 8'2"
Full bathroom 5'5" x 7'8" ~ 8'2"
Activity room 17'0" x 19'4" ~ 8'2"

General specifications

Total living area 540 sq.ft.
1st level 540 sq.ft.
Width 18'0"
Depth 30'0"
Ridge height from top of foundation 13'2"
Exterior wall 2 X 4 , 2 X 6
Foundation type included in the plan Screw pile
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code AA

Rooms specifications

Bedroom(s) 2
Full baths 1
Half baths -
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 540 sq.ft.
1st level 540 sq.ft.
Width 18'0"
Depth 30'0"
Ridge height from top of foundation 13'2"
Exterior wall 2 X 4 , 2 X 6
Foundation type included in the plan Screw pile i
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code AA

Rooms specifications

Bedroom(s) 2
Full baths 1
Half baths -
Garage type -
Living bonus space - i
Bonus storage - i

Buy this plan

From : 640$

Modify this plan

Get a quote

Description

Main level: Kitchen, dining and sitting area, shower room (optional), two bedrooms. Foundation: screw pile. Other foundation options may be available, please contact us for more details.

Other useful information on this plan

2 Bedroom country cabin plan with covered front balcony (3-season and 4-season options included to the plan)

This simple woodland getaway meets the expectations of simplified construction and simplified living.

Maximizing interior space is important with compact getaways and this model, includes two bedrooms and a shower room (optional in the 3-season house plan option) on the back and can accommodate up to eight people if arranged creatively.

Hikers, fishermen, hunters and vacationers greatly appreciate an open activities area with sloping ceiling rafters and windows galore for provide a panoramic view. The forward porch provides the best seat out of the house.

In order to respect the building code and also meet the multiple needs of our customers, you will have two (2) versions of the cottage design included in your plan.

A first version will include an uninsulated and unheated version for seasonal use only (3 seasons). The walls are 2 '' x 4 '', the floor joists are 2 '' x 8 '' and the rafters are 2 '' x 8 '' for the roof.

The second version is an isolated and heated version for permanent occupation (4 seasons). For this one the walls are 2 '' x 6 '', the floor joists are 2 '' x 10 '' and the roof is designed with roof trusses.

Both versions are provided on screw piles to ensure stability. However we can design other types of foundation for this plan to better suit your needs if necessary. You need simply contact us for details.

The cost of the estimated materials is for the seasonal version and not the isolated version. Except for the screwed piles that are included in our cost, our cost of the estimated materials excludes the expenses related to the foundation specified in the details of the chosen plan (in the line "Type of foundation"), electricity, plumbing, heating and labor. In addition, the price of materials represents a provincial average that can vary from 10% to 30%, depending on the region, the construction season and the quality of your materials. It is also based on the use of everyday quality materials that most contractors use.

Distinctive elements

Affordable 2 bedroom cabin plan.
3-season (not heated) and 4-season (heated) construction options included in the house plan.
Kitchen and family room open concept.
Can accomodate up to 8 people.
Ceiling sloping from 8 'to 11'4.
Balcony sheltered at the front of the chalet.
Panoramic view chalet.

Plan feature(s)

Stove, Shower room, Open floor layout, Cathedral ceiling

Other useful information on this plan

Full description

2 Bedroom country cabin plan with covered front balcony (3-season and 4-season options included to the plan)

This simple woodland getaway meets the expectations of simplified construction and simplified living.

Maximizing interior space is important with compact getaways and this model, includes two bedrooms and a shower room (optional in the 3-season house plan option) on the back and can accommodate up to eight people if arranged creatively.

Hikers, fishermen, hunters and vacationers greatly appreciate an open activities area with sloping ceiling rafters and windows galore for provide a panoramic view. The forward porch provides the best seat out of the house.

In order to respect the building code and also meet the multiple needs of our customers, you will have two (2) versions of the cottage design included in your plan.

A first version will include an uninsulated and unheated version for seasonal use only (3 seasons). The walls are 2 '' x 4 '', the floor joists are 2 '' x 8 '' and the rafters are 2 '' x 8 '' for the roof.

The second version is an isolated and heated version for permanent occupation (4 seasons). For this one the walls are 2 '' x 6 '', the floor joists are 2 '' x 10 '' and the roof is designed with roof trusses.

Both versions are provided on screw piles to ensure stability. However we can design other types of foundation for this plan to better suit your needs if necessary. You need simply contact us for details.

The cost of the estimated materials is for the seasonal version and not the isolated version. Except for the screwed piles that are included in our cost, our cost of the estimated materials excludes the expenses related to the foundation specified in the details of the chosen plan (in the line "Type of foundation"), electricity, plumbing, heating and labor. In addition, the price of materials represents a provincial average that can vary from 10% to 30%, depending on the region, the construction season and the quality of your materials. It is also based on the use of everyday quality materials that most contractors use.

Distinctive elements

Affordable 2 bedroom cabin plan.
3-season (not heated) and 4-season (heated) construction options included in the house plan.
Kitchen and family room open concept.
Can accomodate up to 8 people.
Ceiling sloping from 8 'to 11'4.
Balcony sheltered at the front of the chalet.
Panoramic view chalet.

Plan feature(s)

Stove, Shower room, Open floor layout, Cathedral ceiling

Questions and comments on this plan

January 21 2013

jennifer pearson

I am looking to build in the Muskoka region of Ontario and I need to know about snow load certification for plans # W1903 , Wi904, W1905

January 21 2013

Customer service

Good day Ms. Pearson and thank you for your interest in our plans.

We calculate our snow load at 75 pound per sq.ft.

As for the certification this will need to be done by the local truss manufacturer that will build the roof trusses.

Please let me know if I you have any other questions or comments.

Regards

Deborah

Questions and comments

January 21 2013

jennifer pearson

I am looking to build in the Muskoka region of Ontario and I need to know about snow load certification for plans # W1903 , Wi904, W1905

January 21 2013

Customer service

Good day Ms. Pearson and thank you for your interest in our plans.

We calculate our snow load at 75 pound per sq.ft.

As for the certification this will need to be done by the local truss manufacturer that will build the roof trusses.

Please let me know if I you have any other questions or comments.

Regards

Deborah
