House plan Summit (90109)
Modern eco-friendly house plan with a greehouse and a private master bedroom and home office on second floor
View the size of the rooms and height of the ceilings

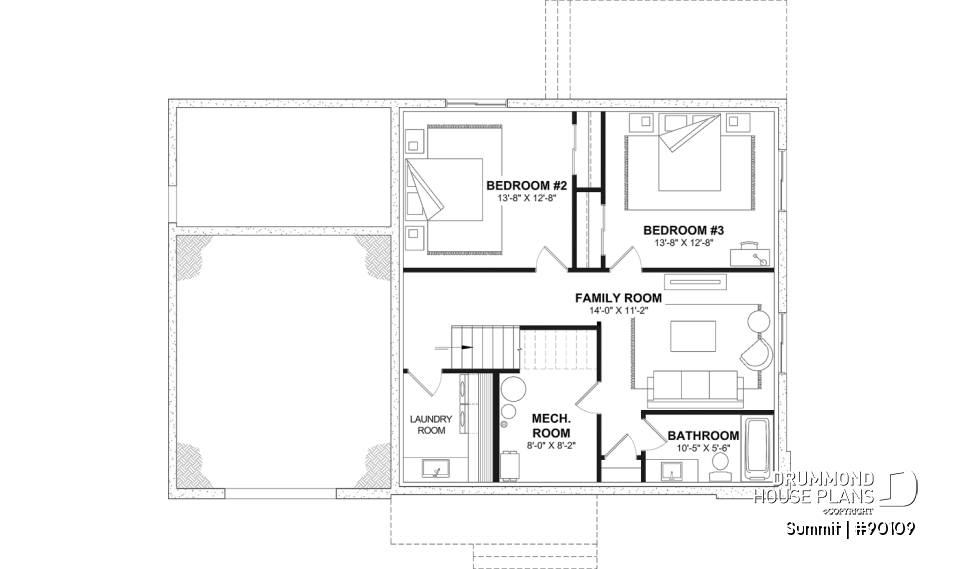

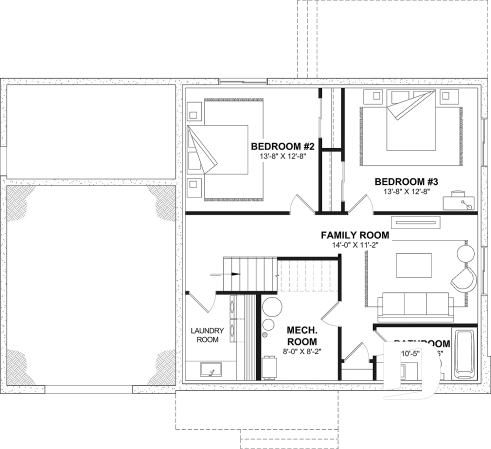

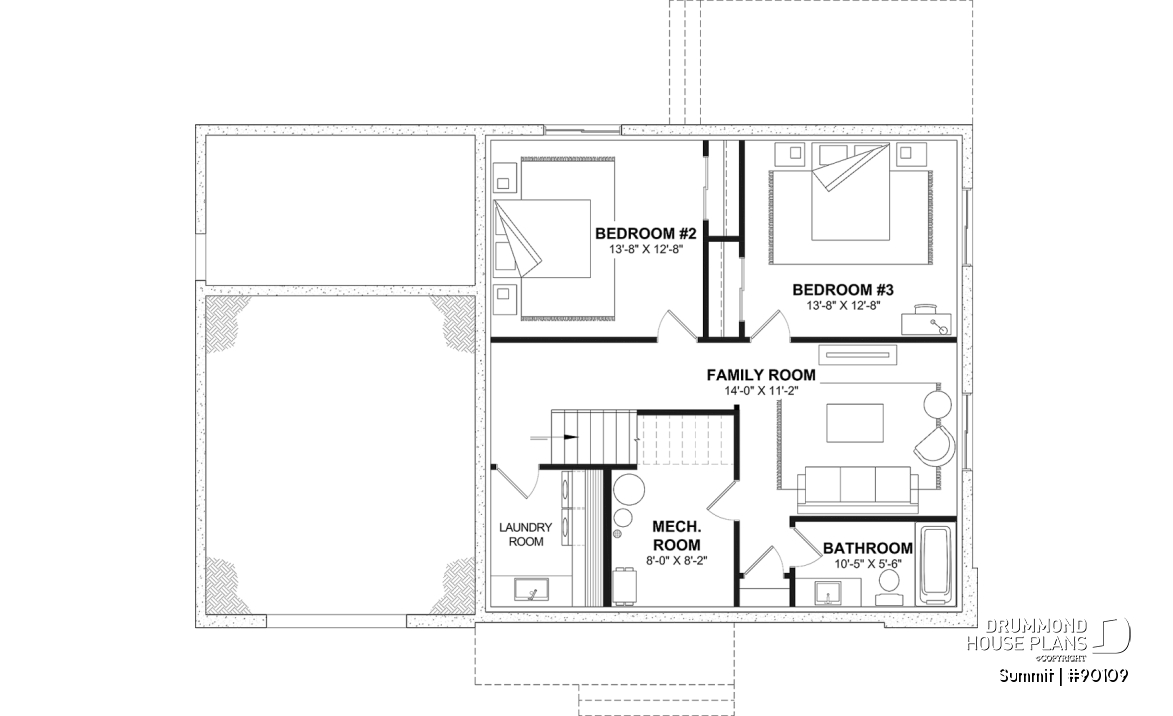

| Finished basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'8" x 12'8" | ~ 8'0" |
| Walk-in closet | 3'0" x 5'0" | ~ 8'0" |
| Closet | 6'2" x 2'0" | ~ 8'0" |
| Bedroom | 13'8" x 12'8" | ~ 8'0" |
| Walk-in closet | 3'0" x 5'0" | ~ 8'0" |
| Closet | 6'2" x 2'0" | ~ 8'0" |
| Great room or Family room | 14'0" x 11'2" | ~ 8'0" |
| Bathroom | 10'5" x 5'6" | ~ 8'0" |
| Shower | 3'0" x 3'0" | N/A |
| Linen | 2'8" x 2'0" | N/A |
| Laundry room | 7'3" x 8'10" | ~ 8'0" |
| Storage | 3'3" x 1'10" | ~ 8'0" |
| Mechanical room | 8'0" x 8'2" | ~ 8'0" |

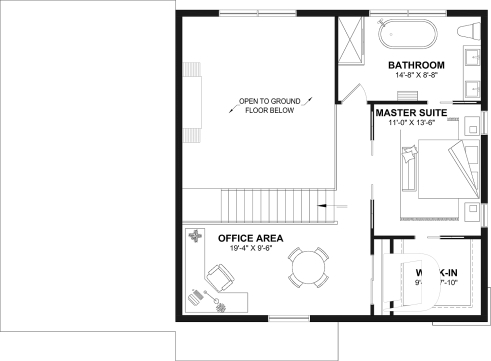

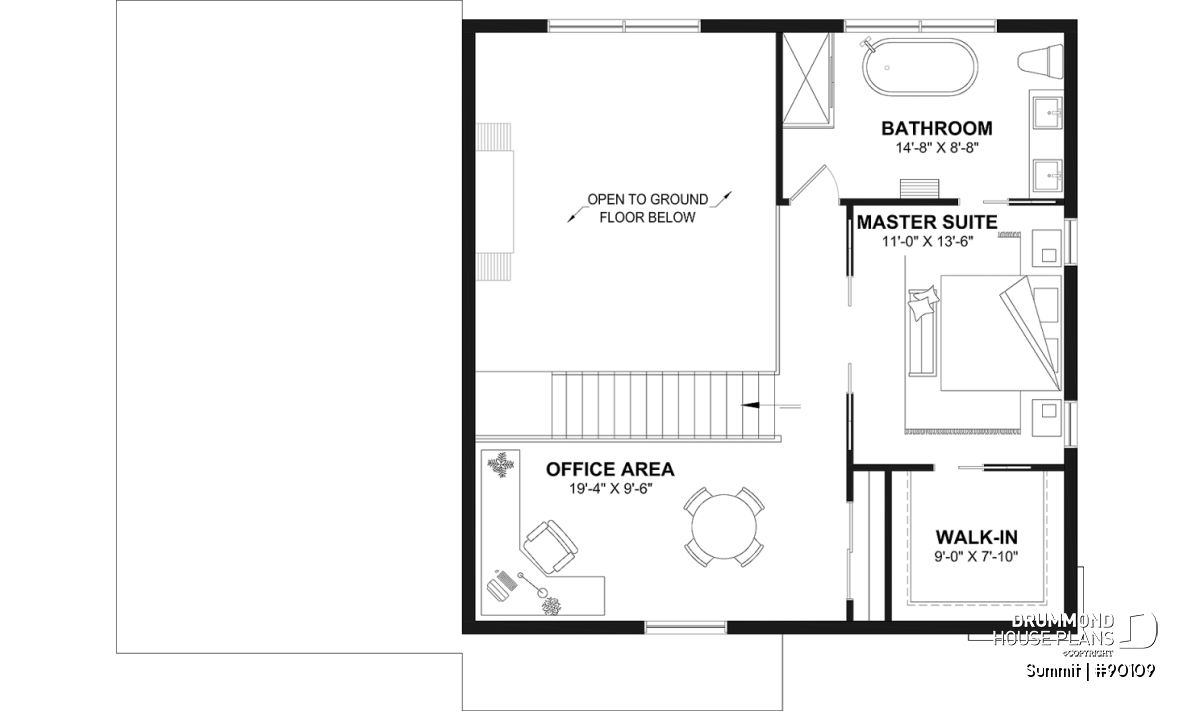

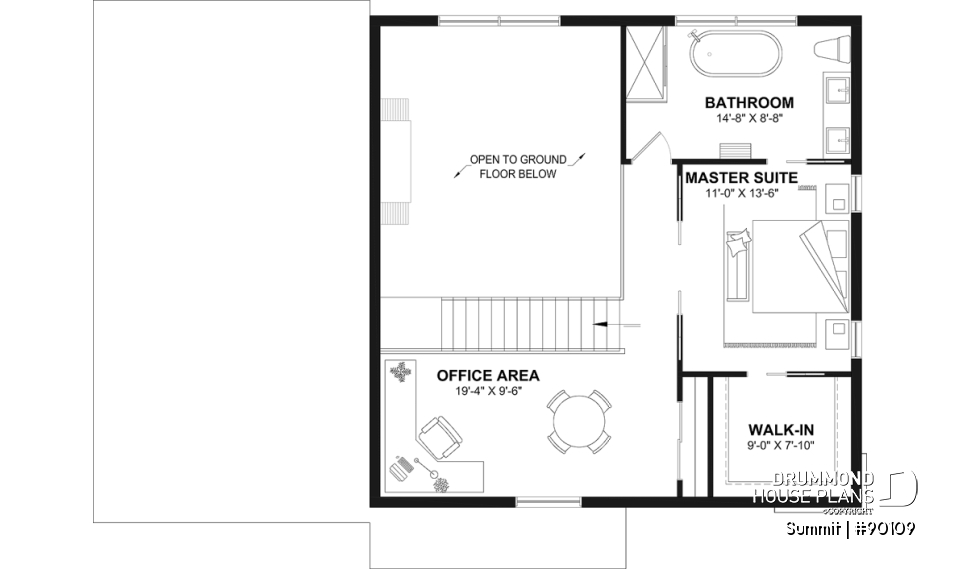

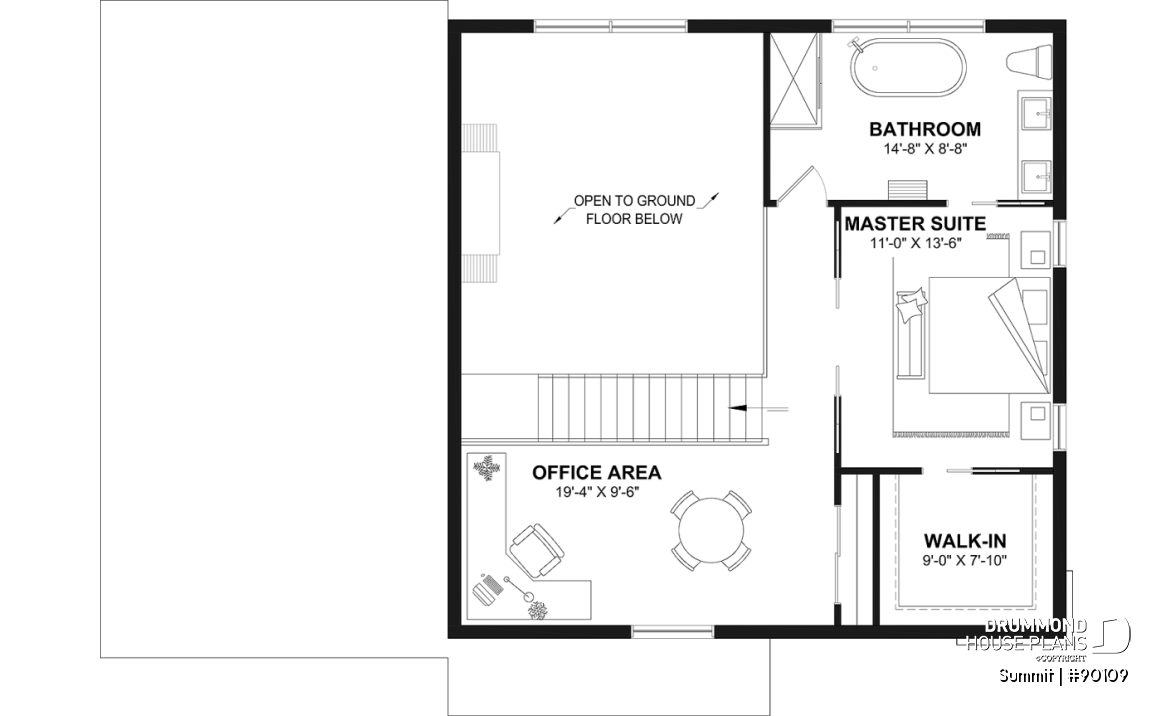

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 11'0" x 13'6" | ~ 8'0" |
| Walk-in closet | 9'0" x 7'10" | ~ 9'0" |
| Shower room or three quarter bath | 16'0" x 9'0" | ~ 9'0" |
| Shower room or three quarter bath | 16'0" x 9'0" | ~ 9'0" |
| Shower | 3'6" x 5'0" | N/A |
| Enclosed toilet space | 3'2" x 5'4" | ~ 9'0" |
| Full bathroom | 14'8" x 8'8" | ~ 8'0" |
| Shower | 5'0" x 2'8" | N/A |
| Linen | 2'0" x 1'0" | N/A |
| Office | 19'4" x 9'6" | ~ 8'0" |
| Closet | 7'10" x 1'8" | ~ 8'0" |

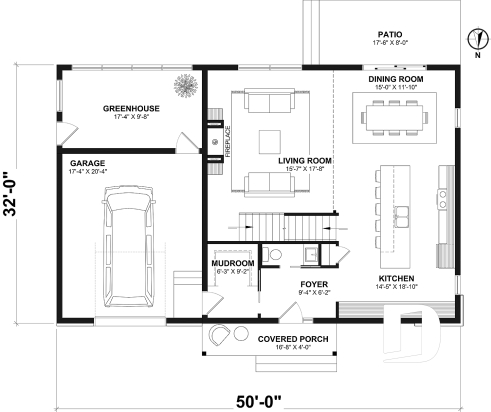

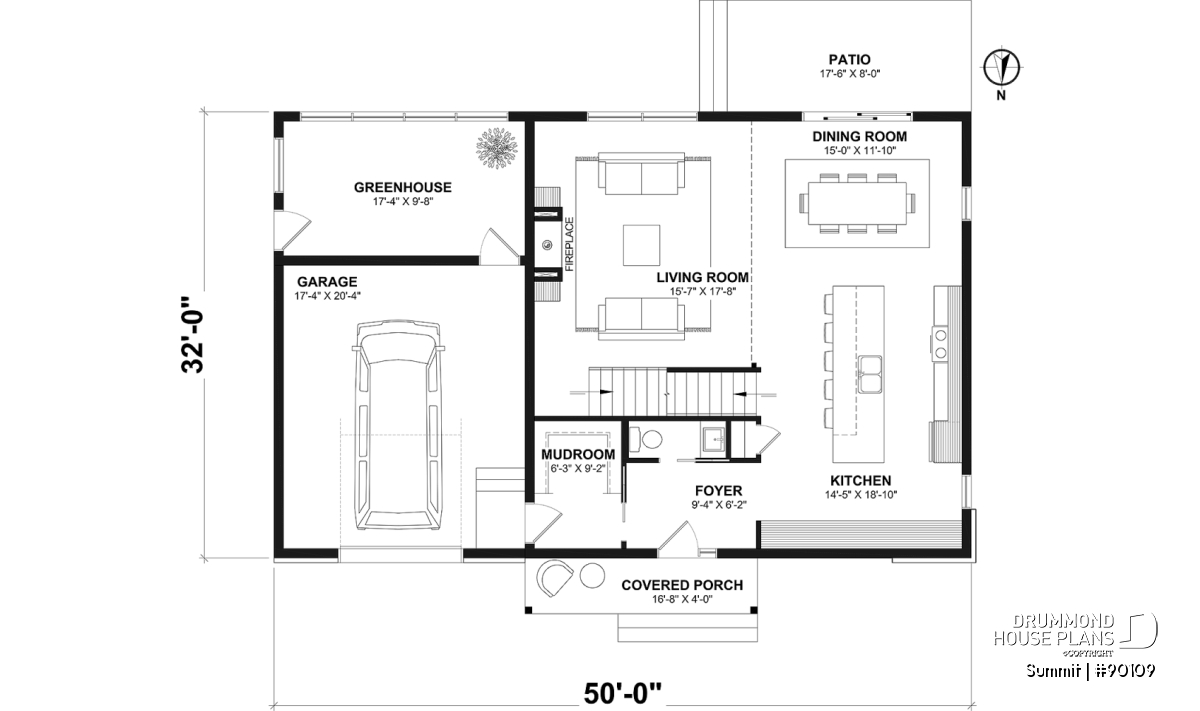

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 17'4" x 20'4" | ~ 9'4" |
| Foyer | 9'4" x 6'2" | ~ 8'0" |
| Kitchen | 14'5" x 18'10" | ~ 8'0" |
| Kitchen island | 3'8" x 12'8" | N/A |
| Mud room | 6'3" x 9'2" | ~ 8'0" |
| Living room | 16'0" x 12'4" | ~ 18'0" |
| Dining room | 15'0" x 11'10" | ~ 8'0" |
| Interior garden | 17'4" x 9'8" | ~ 12'0" |
| Linen | 2'8" x 1'10" | ~ 8'0" |
| Powder room | 2'8" x 7'0" | ~ 8'0" |
| Covered porch | 16'8" x 4'0" | ~ 8'8" |
| Terrace | 17'6" x 8'0" | N/A |

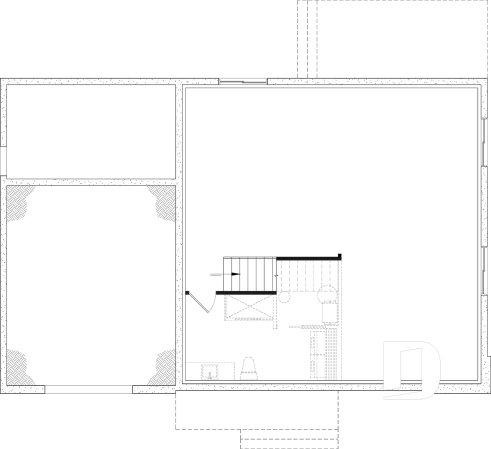

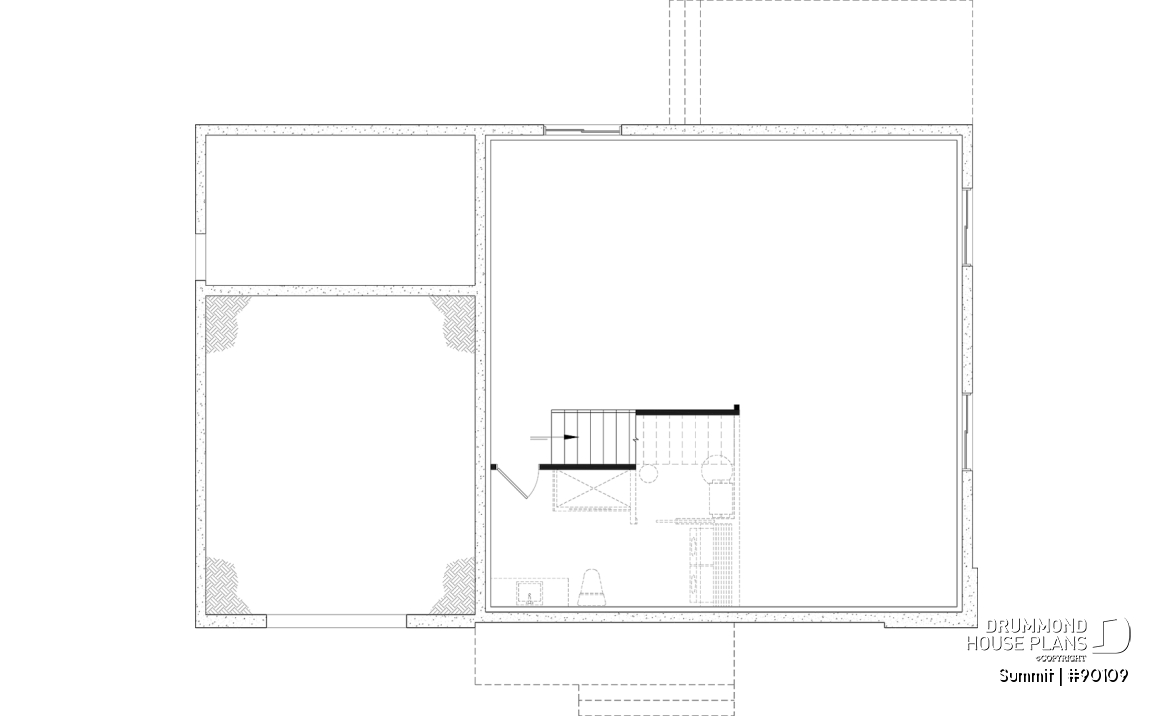

| Unfinished basement |
|---|
General specifications
| Total living area | 1691 sq.ft. |
| Finished basement | 1024 sq.ft. |
| 2nd level | 667 sq.ft. |
| 1st level | 1024 sq.ft. |
| Unfinished basement | 1024 sq.ft. |
| Width | 50'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 27'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Finished basement, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Eco-friendly home with an exhilarating summit

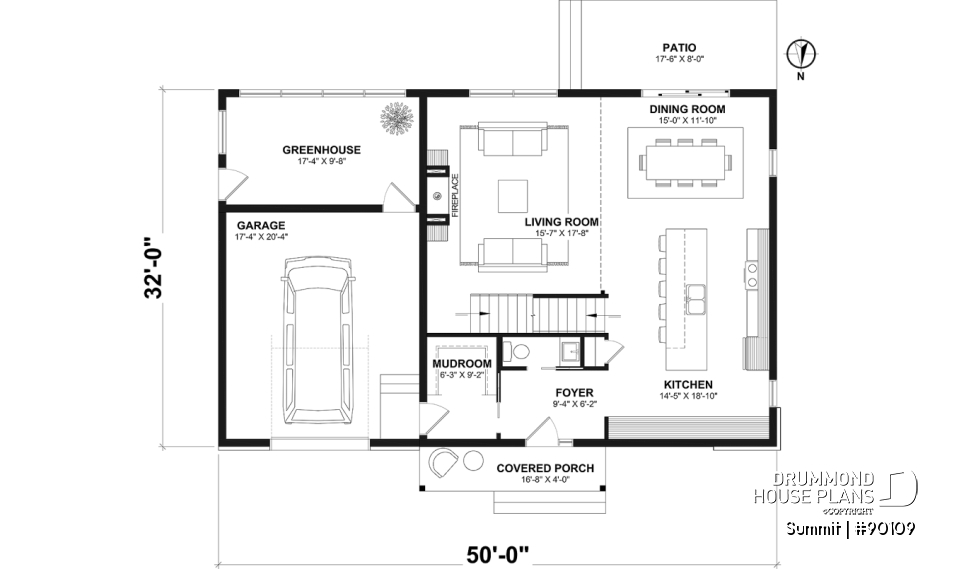

The design of the SUMMIT house (plan #90109) was carried out on a plot of land whose facade is located to the north. When entering the house, we find ourselves in an entrance which communicates with that of the garage and which gives access to a “walk-in” type cloakroom. On this floor there is also a powder room, a very large kitchen perfect for entertaining, a double height living room and a dining room.
Arrived at the top, we find ourselves on a mezzanine which could very well serve as an office. There is also the master suite with private bathroom and a large walk-in closet.

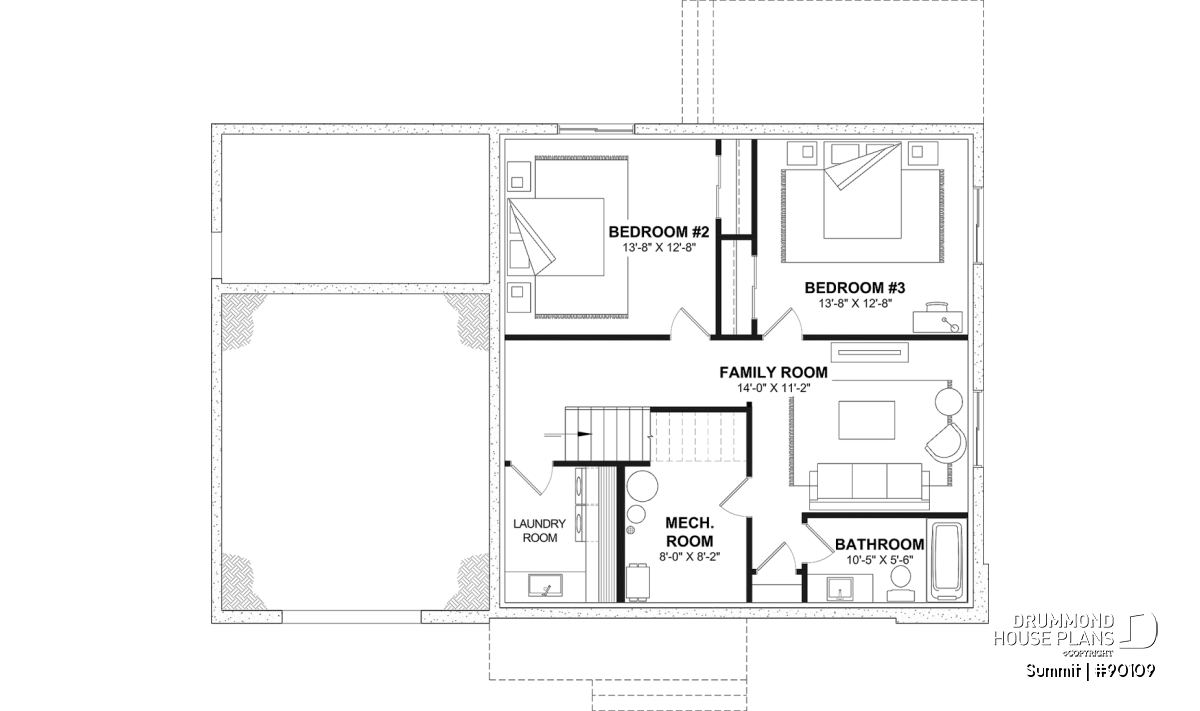

In the *optional finished basement, there are two large bedrooms with storage, a practical family room and a full bathroom. There are also technical parts such as the laundry room, the mechanical room and storage.
Additionally, although the original plan included a garage and greenhouse, this section could be added a few years after the house was built. This way you will save costs up front and can invest in higher quality materials.
Like a hike, when you reach the top of this house you will discover a whole other place. SUMMIT perfectly integrates fun with functionality as well as privacy.
*If you wish to purchase the finished basement plan, please select this option in the shopping cart, in the "Selection of foundation type" section. If you do not select this option, you will receive the unfinished full basement option, at no extra charge.
ECO-FRIENDLY HOUSE PLAN
This house plan is part of our “Eco-friendly house plan collection” and here is what distinguishes all the plans included in this selection:
Sun:
The orientation of the house according to the sun’s daily path, combined with the thermal capture of the sun's rays using optimal fenestration, minimizing heating costs and maximizing the presence of natural light.
Simplicity:
A house with modest volumes ensuring simplified construction, while favoring the maximization of interior spaces, to reduce the number of square feet and the construction cost.
Sound Mind & Body:
A home designed to promote the well-being and health of its occupants by being well ventilated, using durable and non-toxic materials (steel, wood, lightweight cladding, fiber cement, among others) and maximizing natural light.
Distinctive elements

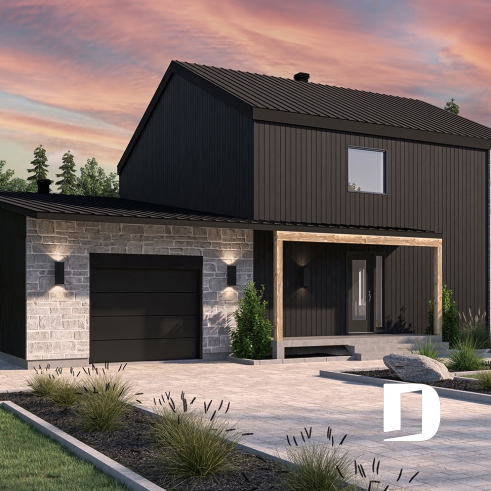

**Contemporary and eco-friendly 2-storey house plan with garage.

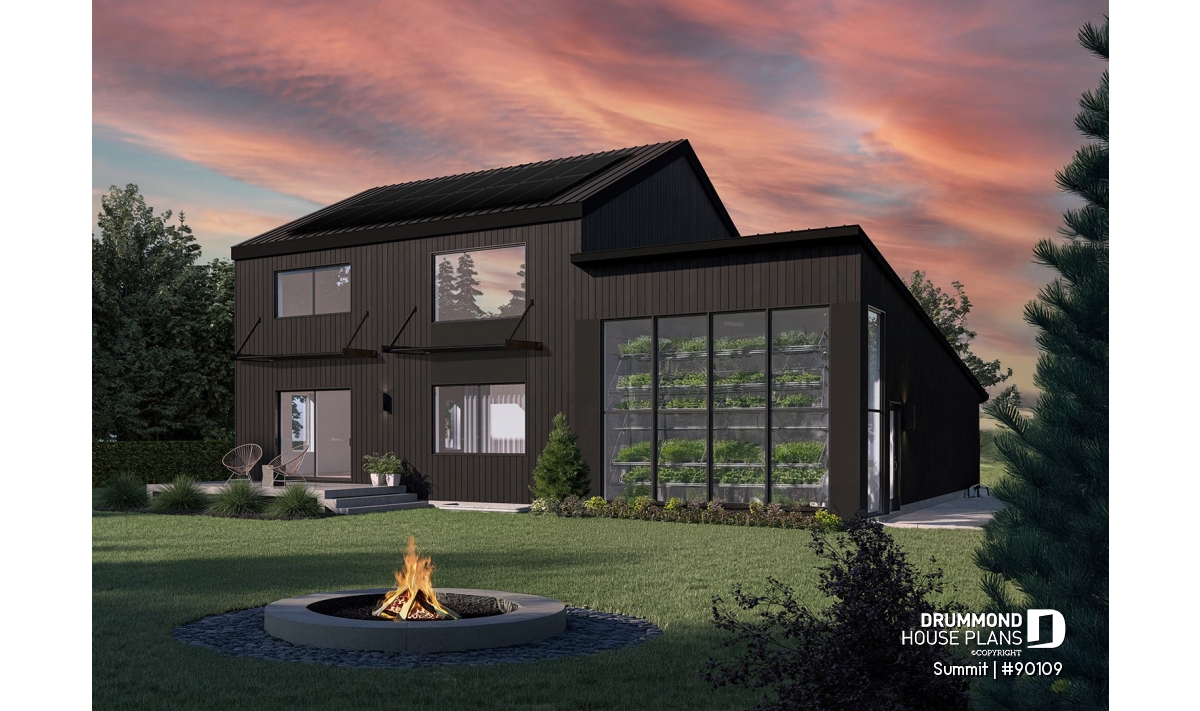

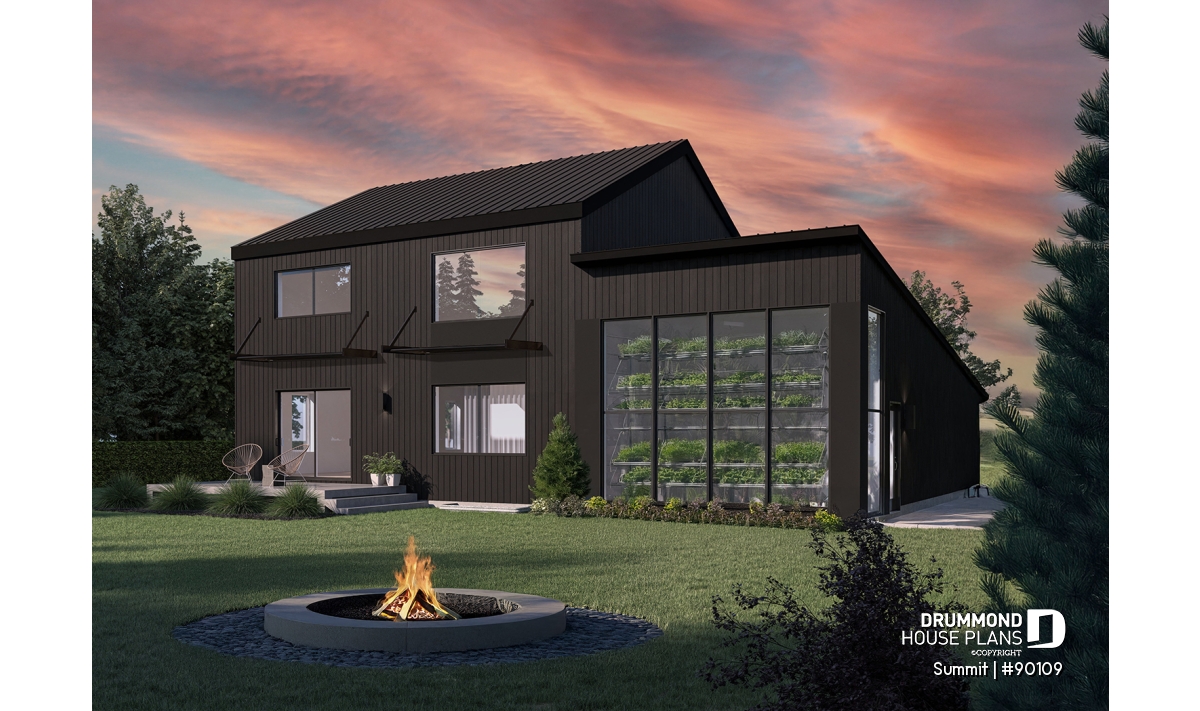

A beautiful greenhouse is set up at the back of the house.
Very large island in the kitchen.
Living room with fireplace and open on 2 floors.
Mezzanine upstairs leading to a large open office.
Master bedroom with private ensuite and large walk-in closet, on second floor.
*Optional finished basement designed for families with teenagers offering 2 to 3 bedrooms, a full bathroom, the laundry room and a cozy family room (or bedroom #4).
---
*If you wish to purchase the finished basement plan, please select this option in the shopping cart, in the "Selection of foundation type" section. If you do not select this option, you will receive the unfinished full basement option, at no extra charge.
---
**This house plan is part of our “Eco-friendly house plan’ collection” and here is what distinguishes all the plans included in this selection:
SUN:
The orientation of the house according to the sun’s daily path, combined with the thermal capture of the sun's rays using optimal fenestration, minimizing heating costs and maximizing the presence of natural light.
SIMPLICITY:
A house with modest volumes ensuring simplified construction, while favoring the maximization of interior spaces, to reduce the number of square feet and the construction cost.
SOUND MIND & BODY:
A home designed to promote the well-being and health of its occupants by being well ventilated, using durable and non-toxic materials (steel, wood, lightweight cladding, fiber cement, among others) and maximizing natural light.
Plan feature(s)
Split bedrooms, Island, Greenhouse, Master suite upstairs, Mud room, Planning desk, Mezzanine, Fireplace, Open floor layout, Panoramic view, Master suite upstairs, Walk-in master bed., Separate bath and shower, Double sinks
Plan architectural style(s)
. Contemporary, . Modern / Design, . Rustic, . Modern rustic
