House plan Aldana (3470)
Modern home plan, master suite, 4 bedrooms, 3 bathrooms, covered deck, home office, open floor concept
View the size of the rooms and height of the ceilings

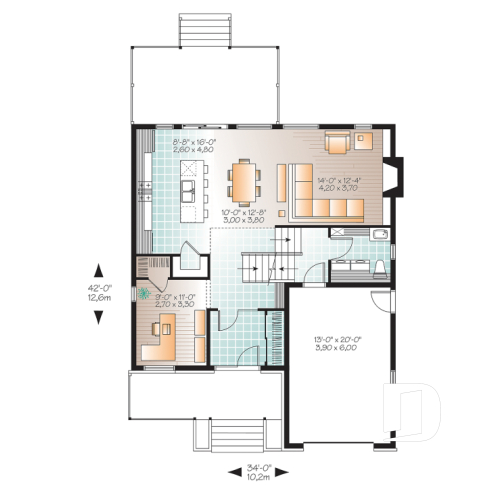

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'0" x 7'0" | ~ 8'0" |
| Closet | 2'2" x 7'0" | ~ 8'0" |
| Home office | 9'0" x 11'0" | ~ 8'0" |
| Closet | 4'4" x 2'8" | ~ 8'0" |
| Kitchen/dinette | 8'8" x 16'0" | ~ 8'0" |
| Pantry | 4'6" x 2'8" | ~ 8'0" |
| Dining room | 10'0" x 12'8" | ~ 8'0" |
| Living room | 14'0" x 12'4" | ~ 8'0" |
| Laundry room | 7'8" x 7'0" | ~ 8'0" |
| Storage | 1'2" x 3'4" | ~ 8'0" |
| Half bath or powder room | 2'8" x 7'0" | ~ 8'0" |
| Linen | 5'0" x 1'0" | N/A |
| Porch | 19'8" x 6'0" | N/A |
| Covered deck | 19'0" x 10'0" | N/A |
| Garage | 13'0" x 20'0" | ~ 8'7" |

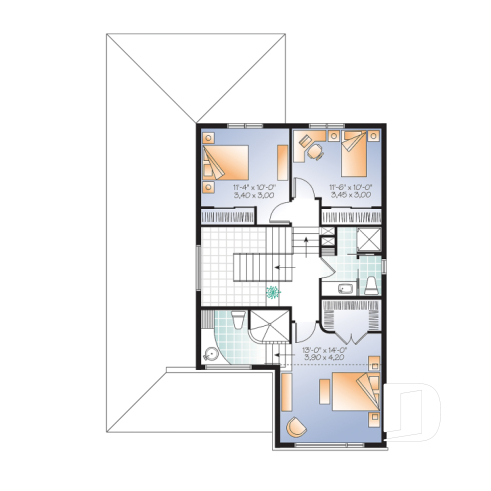

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 7'8" x 8'10" | ~ 11'0" |
| Linen | 1'8" x 1'0" | N/A |
| Bedroom | 13'0" x 14'0" | ~ 8'0" |
| Walk-in closet | 7'8" x 4'0" | ~ 11'0" |
| Bedroom | 11'4" x 10'0" | ~ 8'0" |
| Closet | 6'10" x 2'0" | ~ 8'0" |
| Bedroom | 11'6" x 10'0" | ~ 8'0" |
| Closet | 7'8" x 2'0" | ~ 8'0" |
| Shower room or three quarter bath | 9'10" x 7'2" | ~ 8'0" |
| Linen | 1'8" x 2'4" | N/A |
General specifications
| Total living area | 1788 sq.ft. |
| 1st level | 938 sq.ft. |
| 2nd level | 850 sq.ft. |
| Width | 34'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 26'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | D |
Rooms specifications

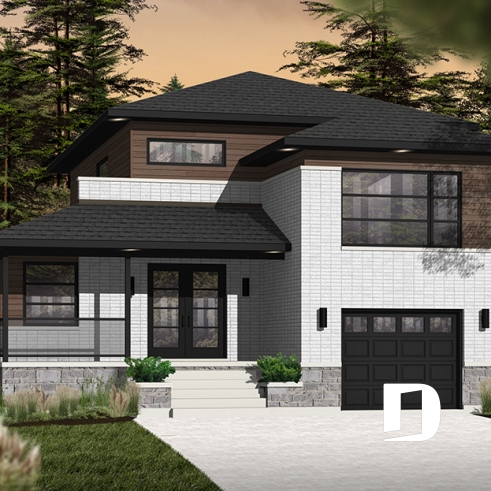

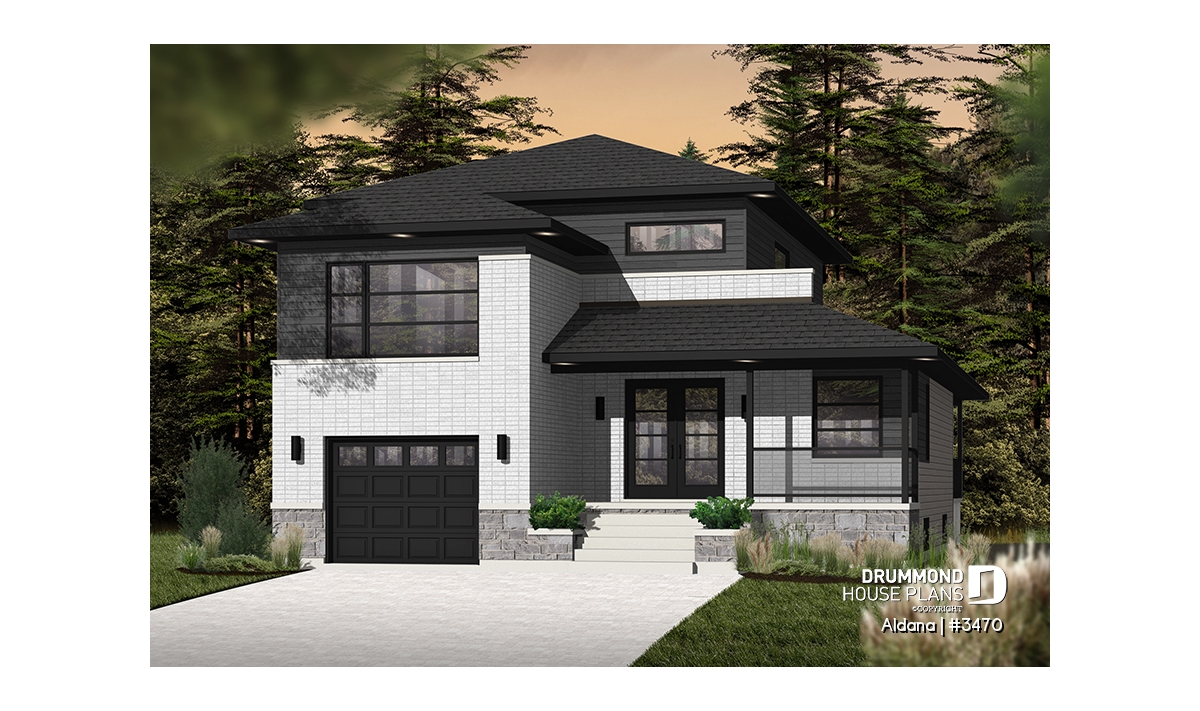

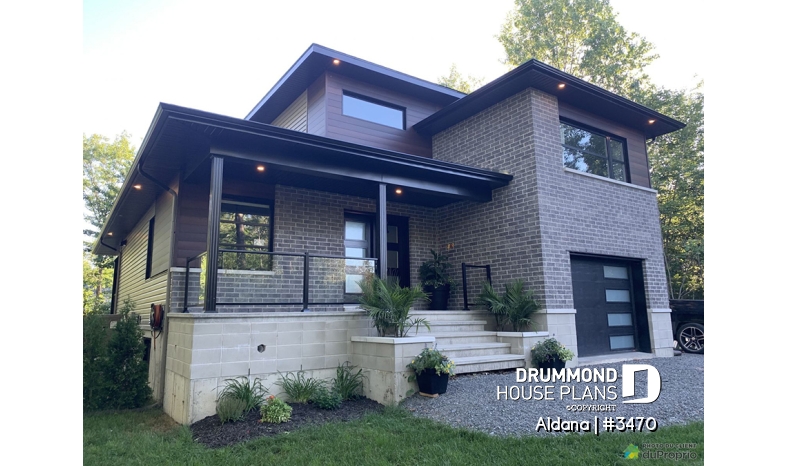

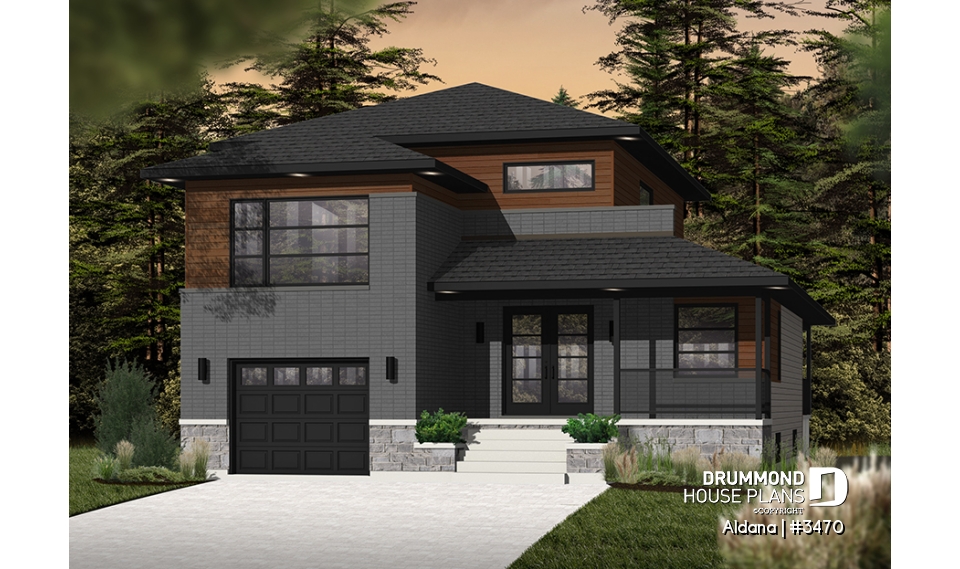

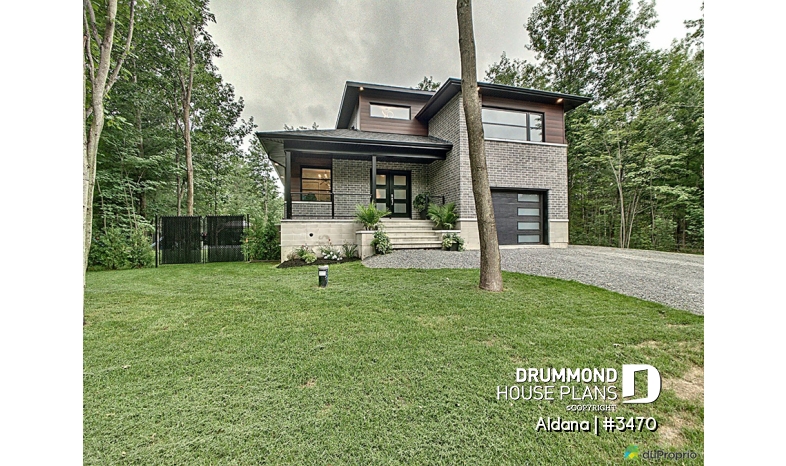

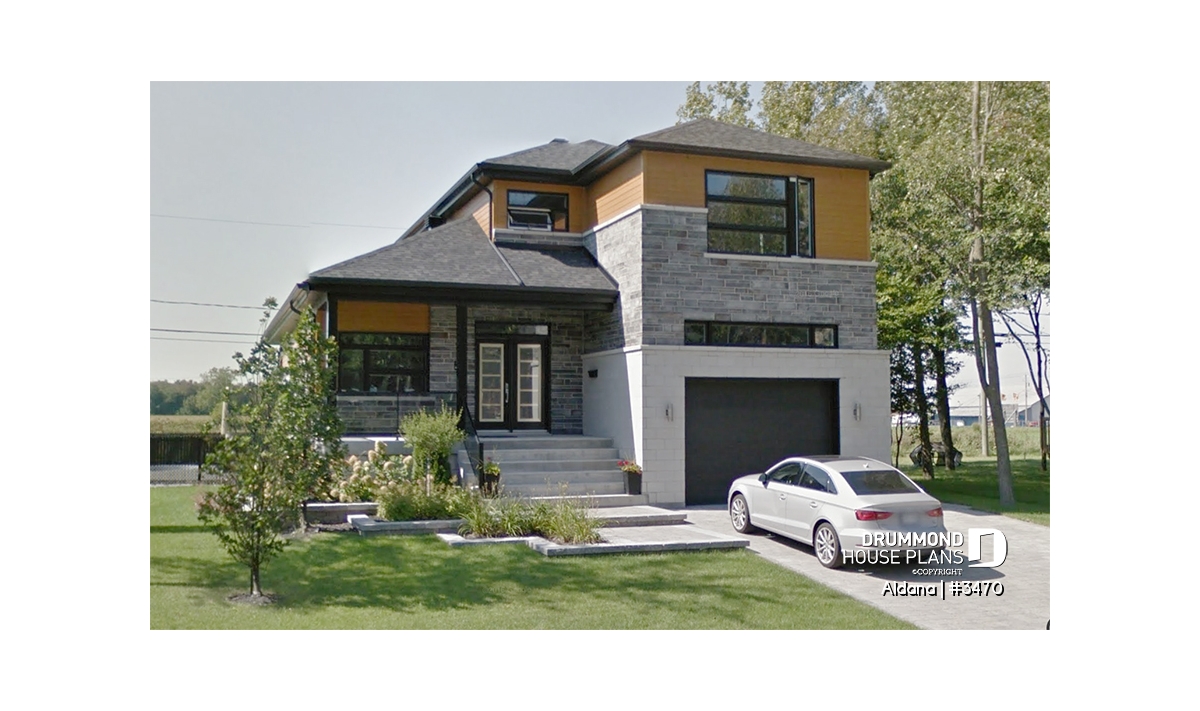

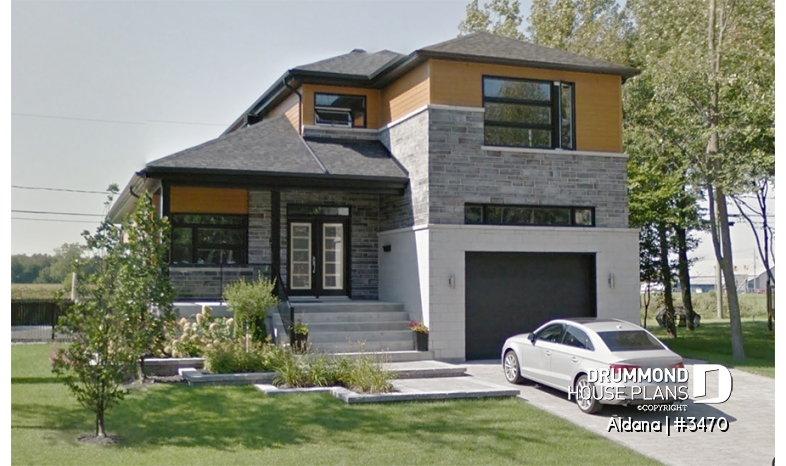

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

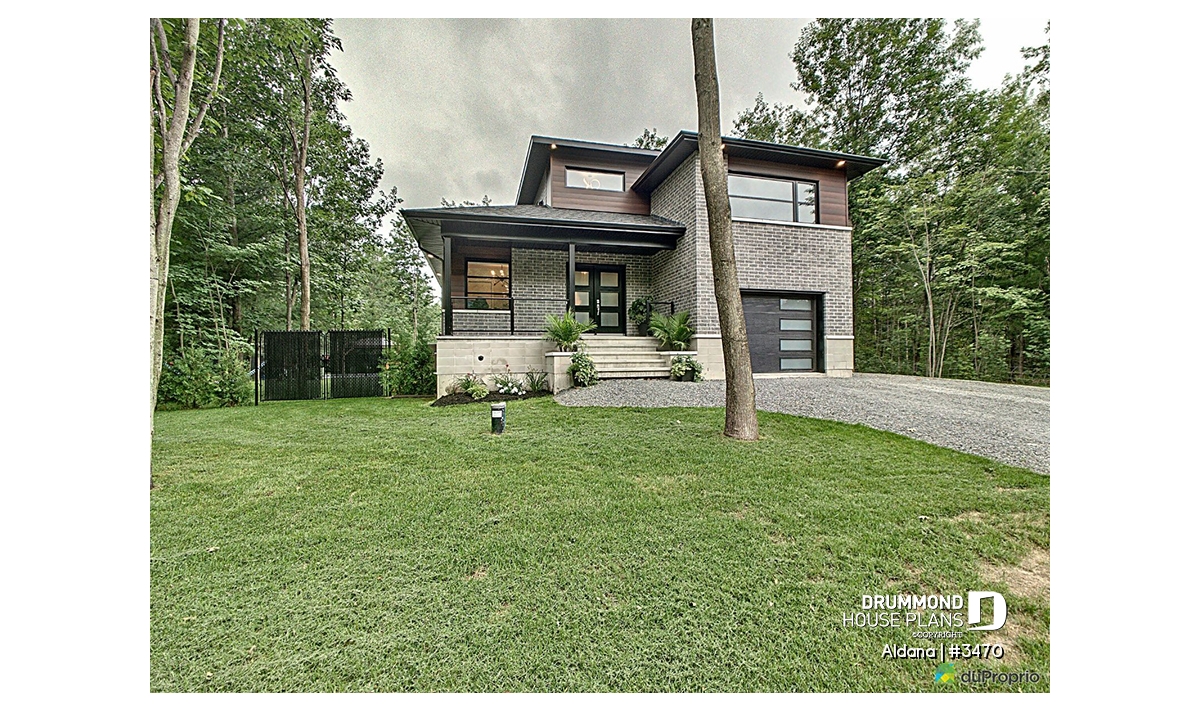

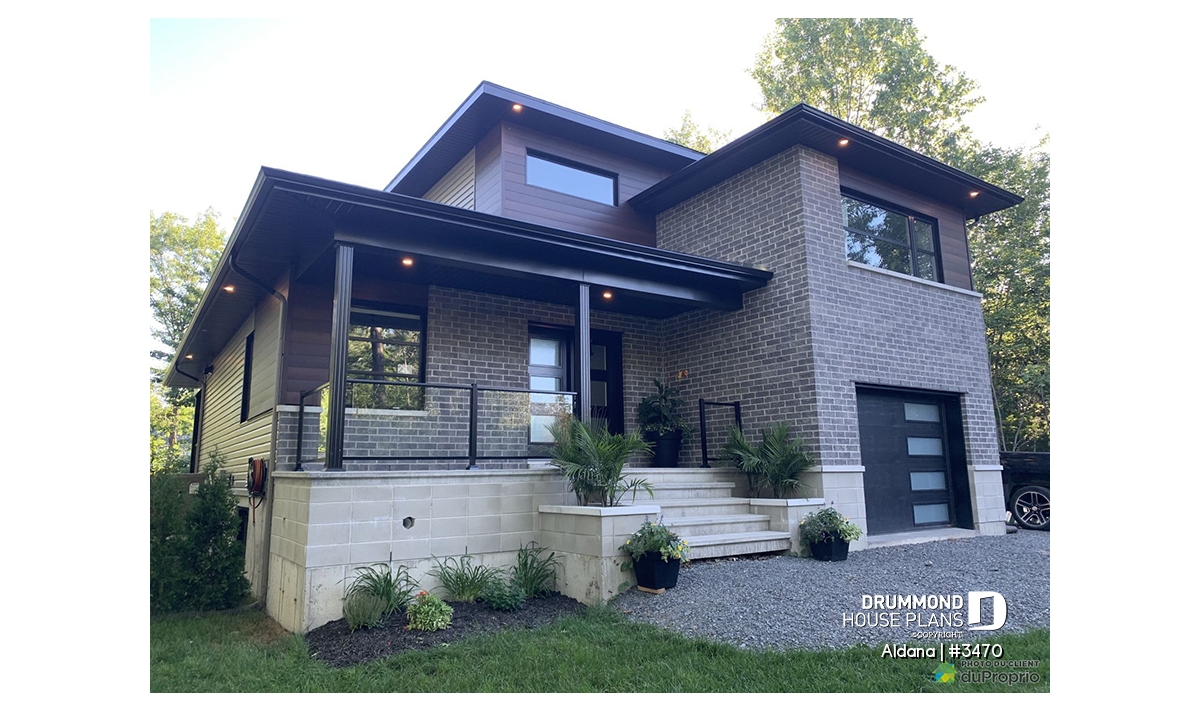

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

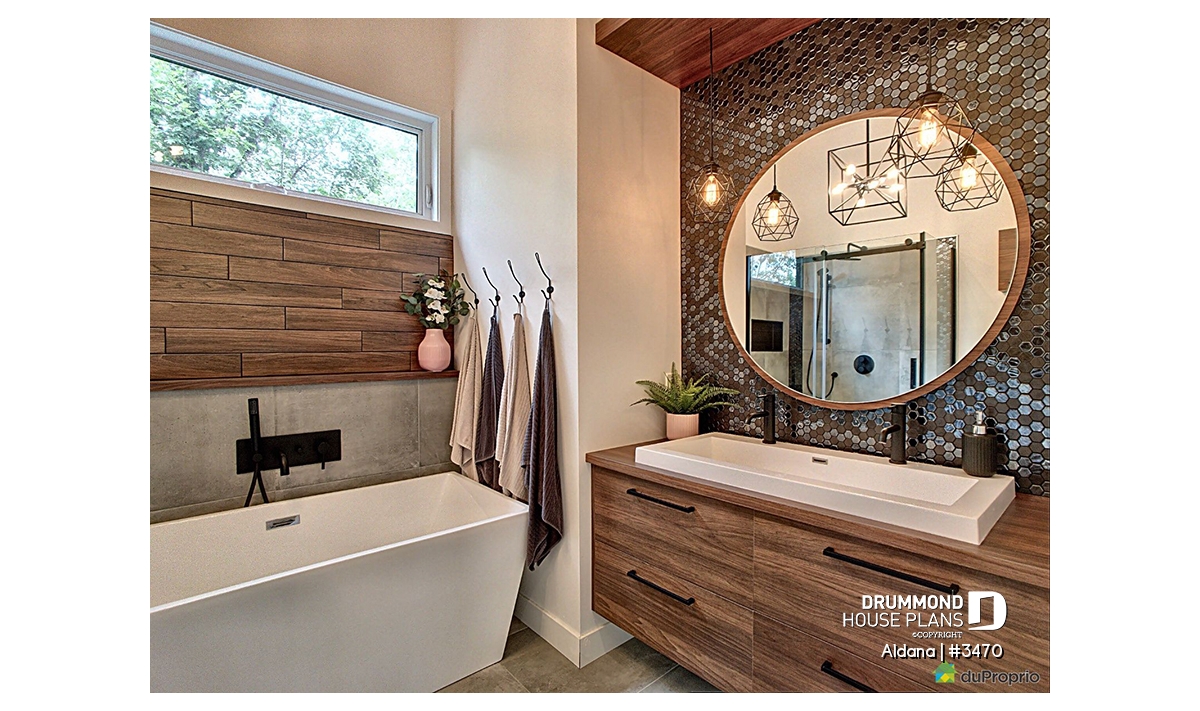

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

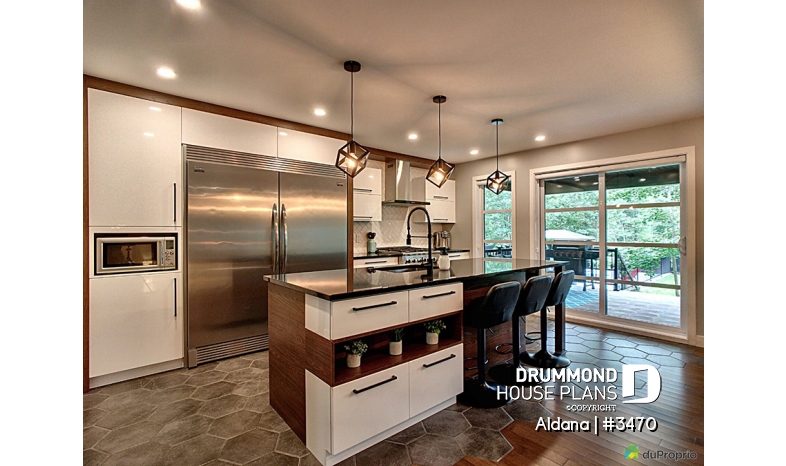

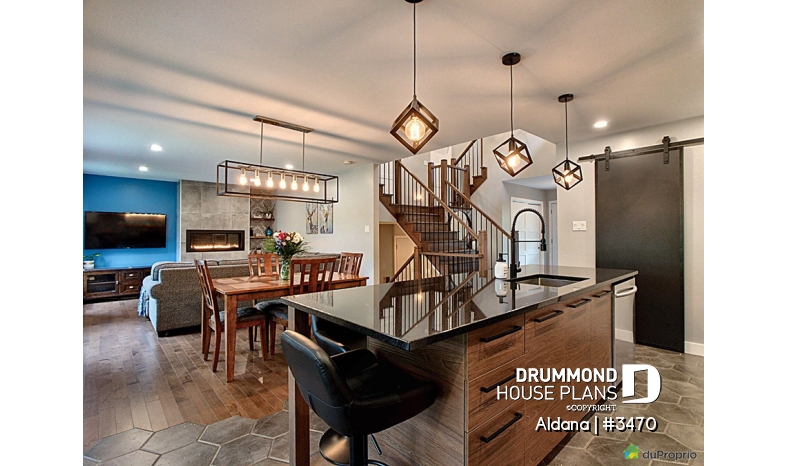

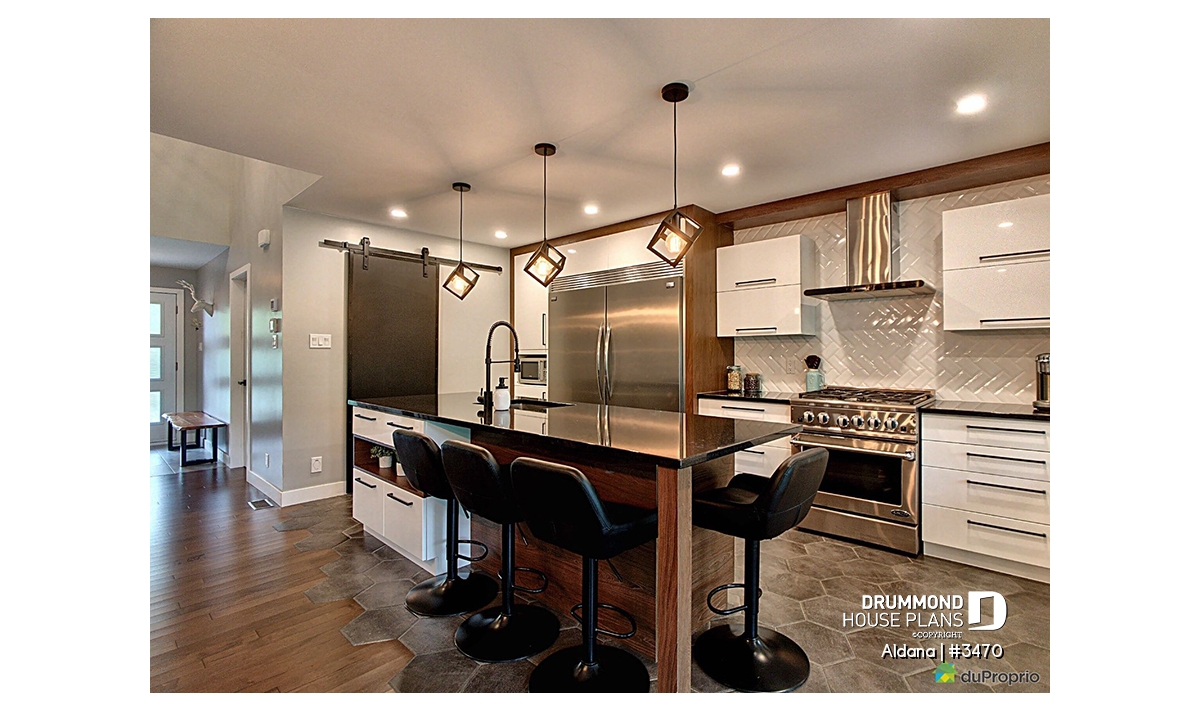

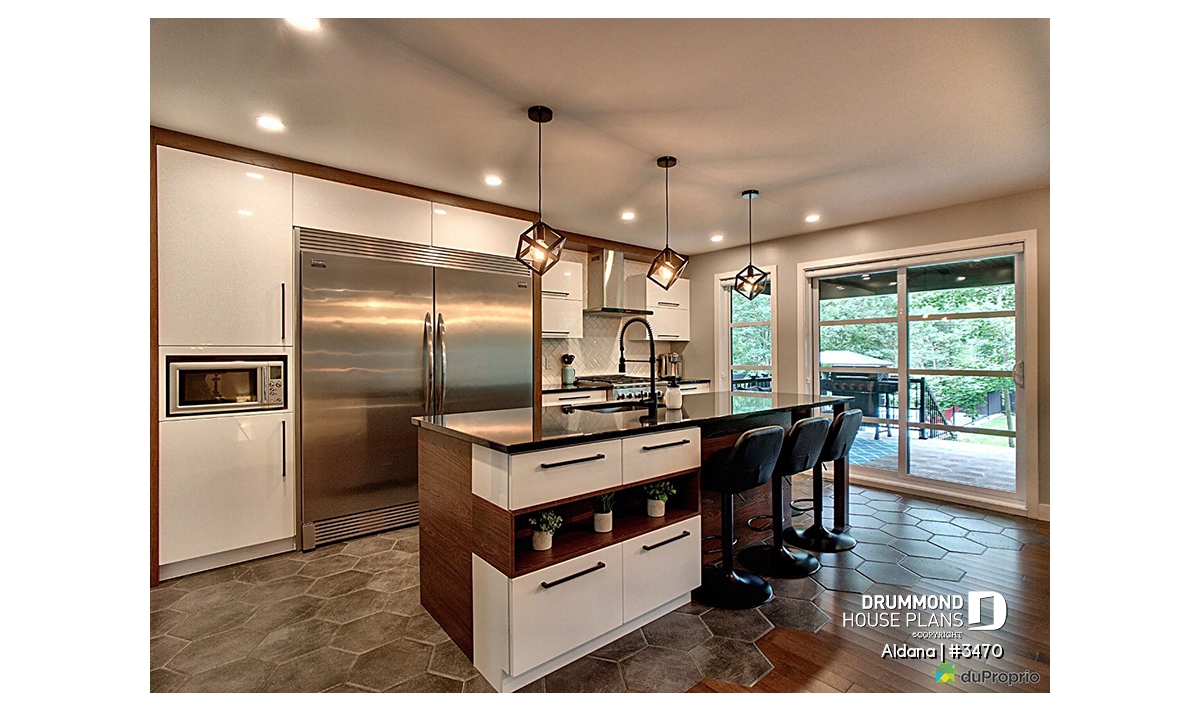

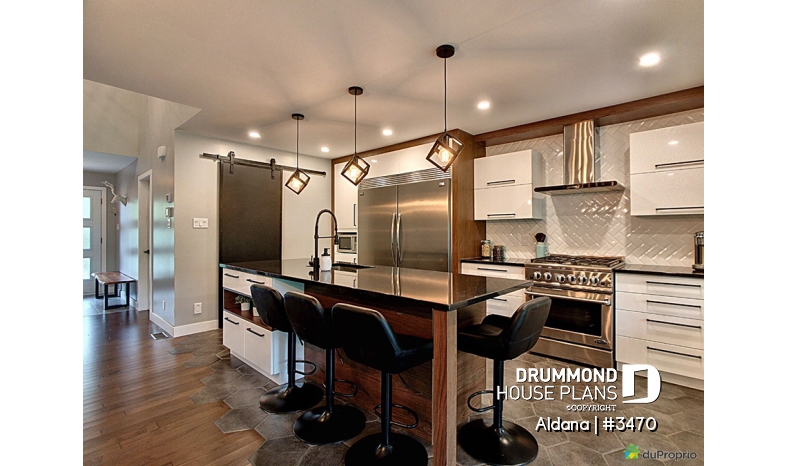

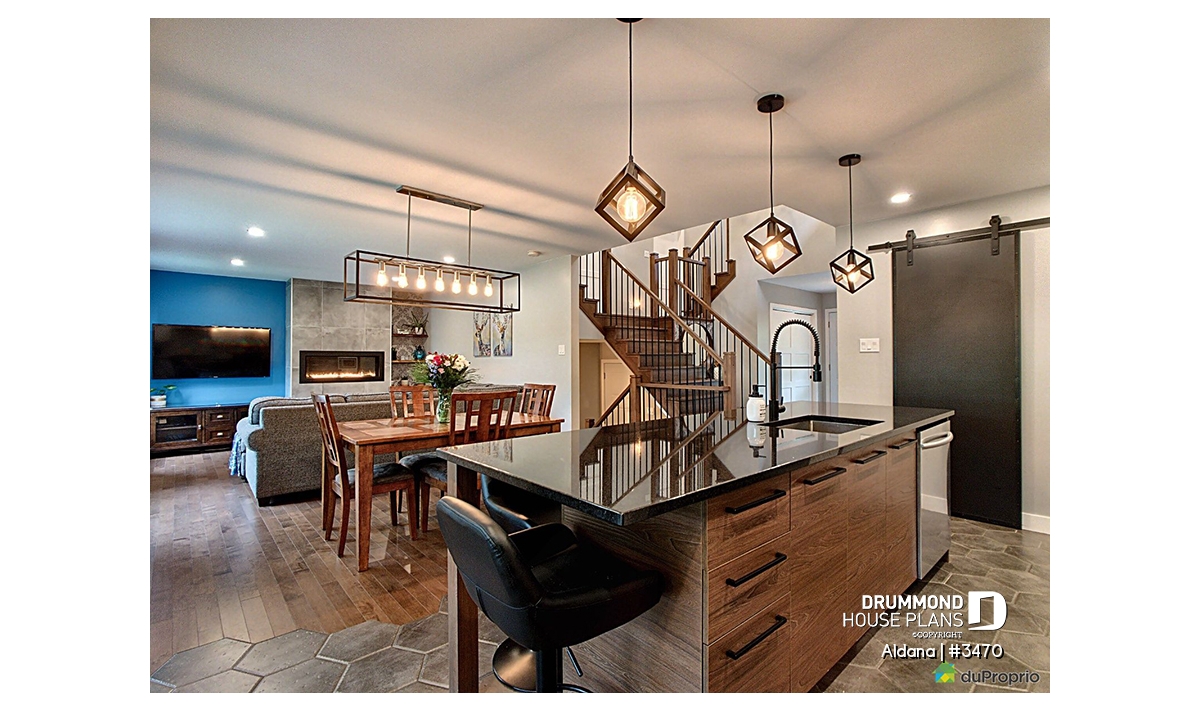

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

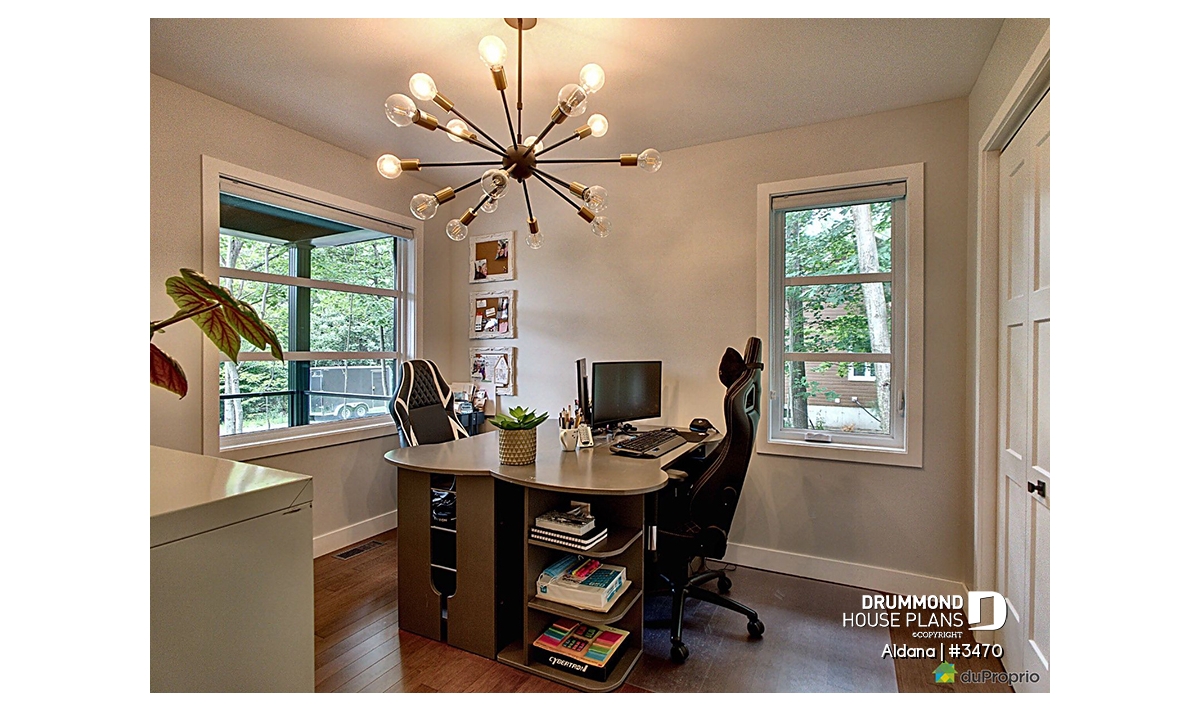

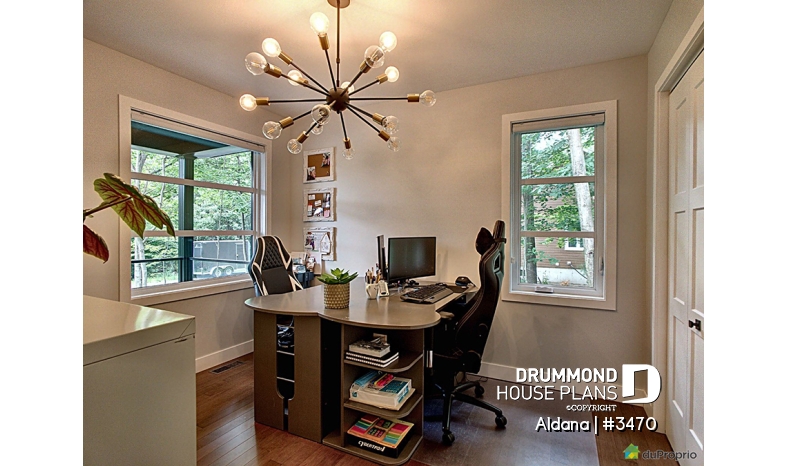

Home office
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

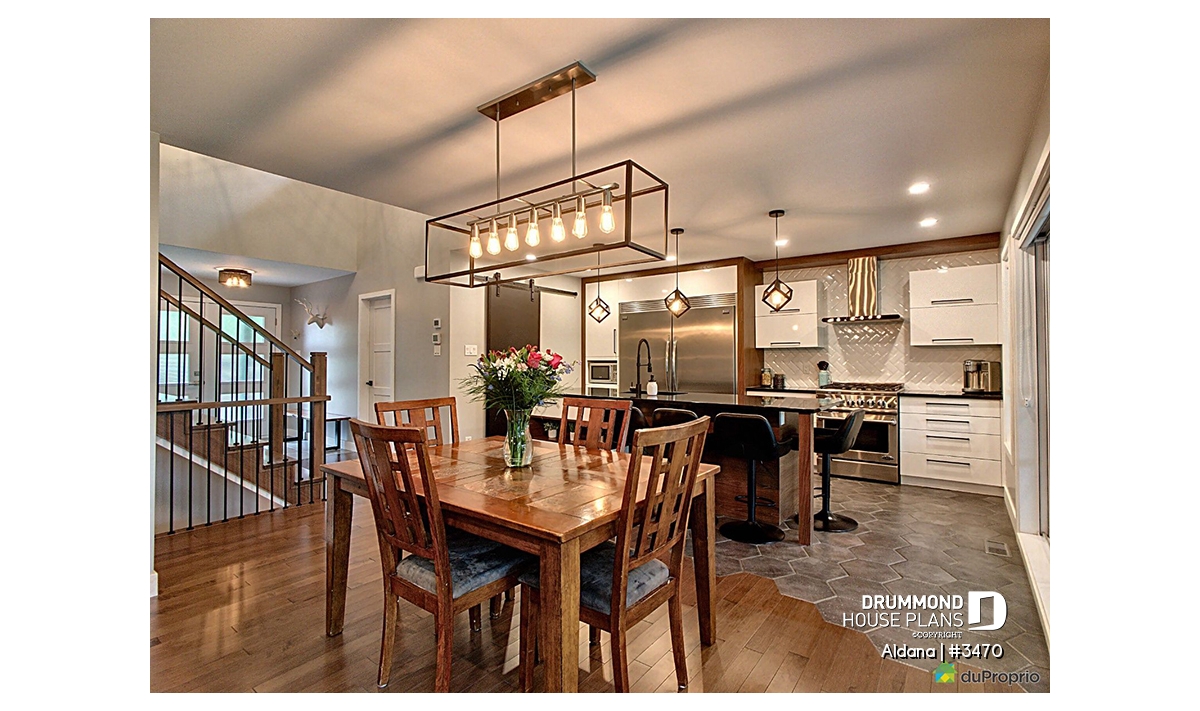

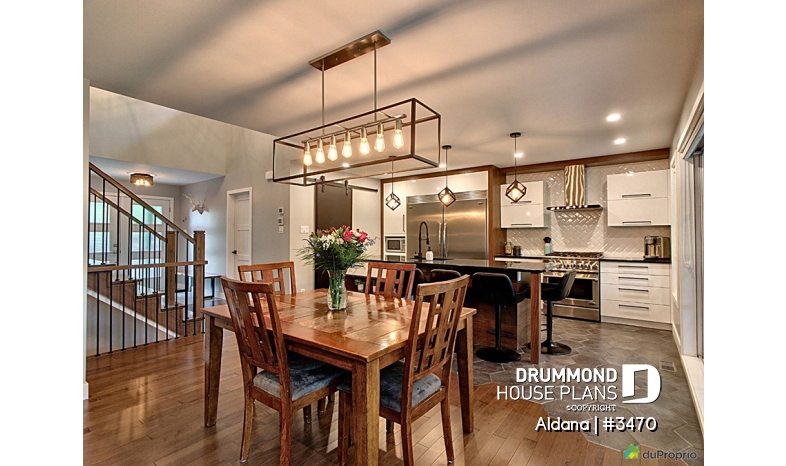

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

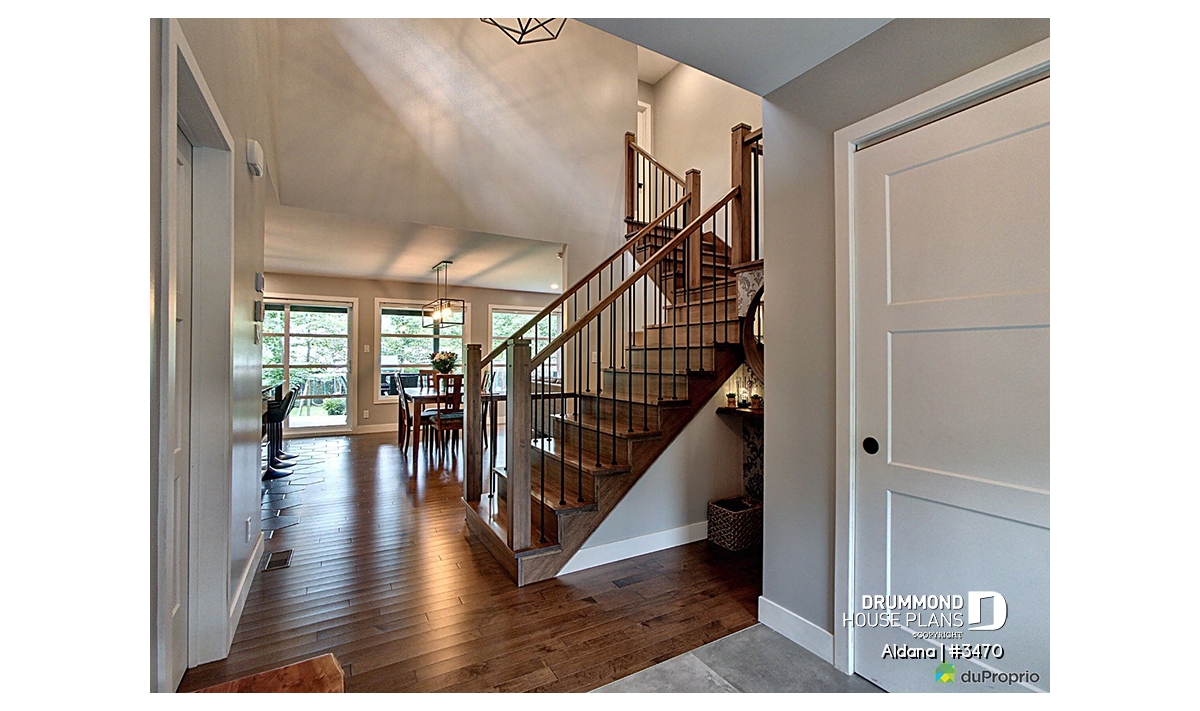

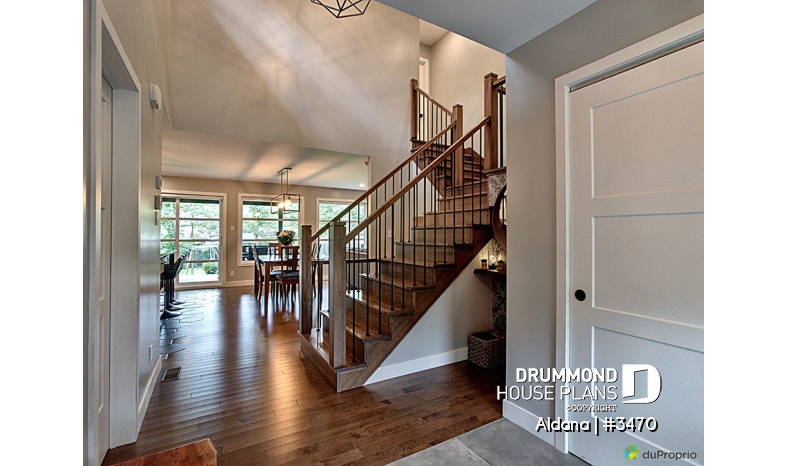

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

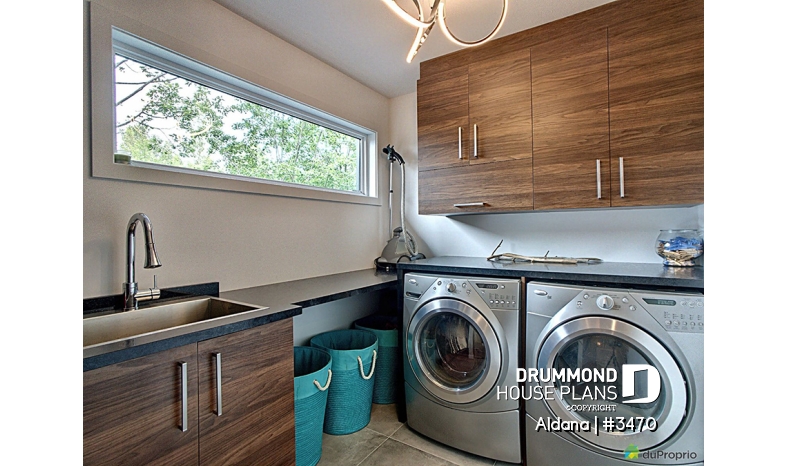

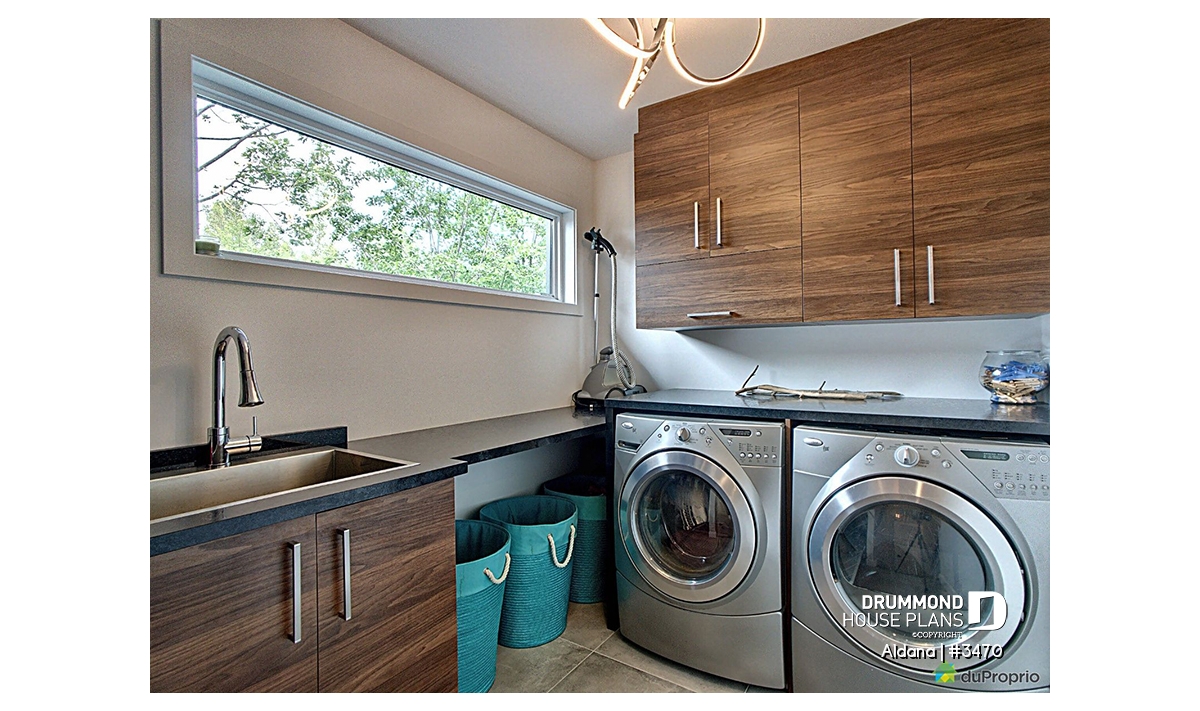

Utility room/laundry room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Contemporary Two-Story House Plan With Garage, Open Living Layout And Covered Rear Terrace – ALDANA (#3470)
The ALDANA house plan (#3470) delivers a modern two-story design that combines functionality, natural light and family-focused comfort in a well-balanced layout. Offering a total of 1,788 sq.ft. across the first and second floors, excluding the basement, this home plan is designed to meet today’s lifestyle needs while allowing flexibility for future growth.
A large covered front porch creates an inviting first impression and adds architectural character to the façade. Upon entry, a functional foyer with a coat closet provides everyday organization and a smooth transition into the main living areas. The main floor layout is both practical and versatile, featuring a dedicated office space at the front of the home that can also function as a fourth bedroom, depending on household needs.
At the heart of the ALDANA (#3470) layout is a bright open-concept living area that brings together the kitchen, dining space and living room. This configuration encourages interaction and makes daily living more fluid. The kitchen stands out with a large 3' x 8' central island, offering generous prep space and casual seating, along with a walk-in pantry that keeps everything well organized. Abundant rear-facing windows flood the living areas with natural light, while the family room fireplace adds warmth and a welcoming atmosphere.
A thoughtfully designed landing-style staircase provides quick access to both the laundry room and the powder room, enhancing daily efficiency. Upstairs, the primary suite serves as a private retreat, featuring a walk-in closet and a private bathroom with a 5' x 4' walk-in shower. Two well-sized secondary bedrooms share a full bathroom, and a laundry chute adds a practical touch for everyday convenience.

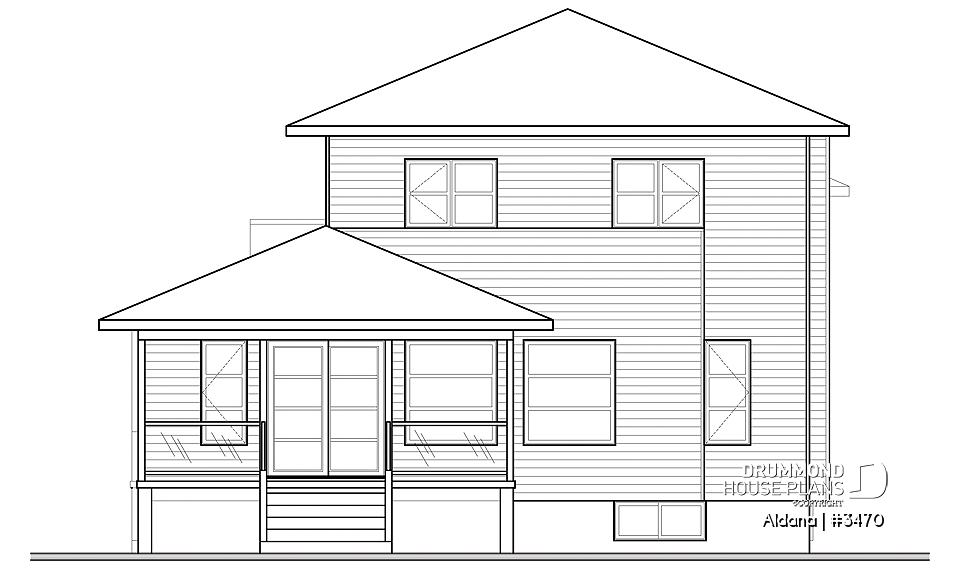

At the rear of the home, a covered terrace measuring 19' x 10' extends the living space outdoors, ideal for relaxing or dining outside in various seasons. The attached single-car garage offers direct access to the home, while the unfinished basement provides valuable potential for future development.
With its 1,788 sq.ft. of living space, modern design and efficient layout, the ALDANA house plan (#3470) offers a comfortable, light-filled and adaptable home environment perfectly suited for contemporary family living in the U.S. market.
Distinctive elements
Contemporary two-story home with an attached garage, featuring a modern and functional design.
Large covered front porch offering a warm and welcoming entrance.
Main entry foyer with a practical coat closet for everyday storage.
Dedicated office space on the main floor, which may also serve as a fourth bedroom if needed.
Spacious kitchen with a 3 ft x 8 ft central island and a walk-in pantry.
Abundant windows in the main living areas, oriented toward the rear for optimal natural light.
Open-concept layout bringing together the kitchen, dining area and living room for smooth circulation.
Family room enhanced by a fireplace, creating a cozy and inviting atmosphere.
Landing-style staircase providing quick and convenient access to the laundry room and powder room.
Primary suite featuring a walk-in closet and a private bathroom with a 5 ft x 4 ft shower.
Two well-proportioned secondary bedrooms sharing a full bathroom.
Laundry chute on the upper level for added everyday convenience.
Covered rear terrace measuring 19 ft x 10 ft, ideal for enjoying outdoor living year-round.
Attached single-car garage offering practical and functional access to the home.
Unfinished basement providing excellent potential for future living space.
Plan feature(s)
Pantry, Office / Study / Den, Island, Fireplace, Built-ins, Master suite upstairs, Walk-in master bed., Gound floor laundry room, Open floor layout, Laundry chute, Panoramic view, Entrance hall, Deck
Plan architectural style(s)
. Contemporary, . Modern / Design, . Transitional
