Oak Lane (2889)
Narrow lot Traditional 3 to 4 bedroom home plan with 2-car garage, breakfast nook, sunken living room
View the size of the rooms and height of the ceilings

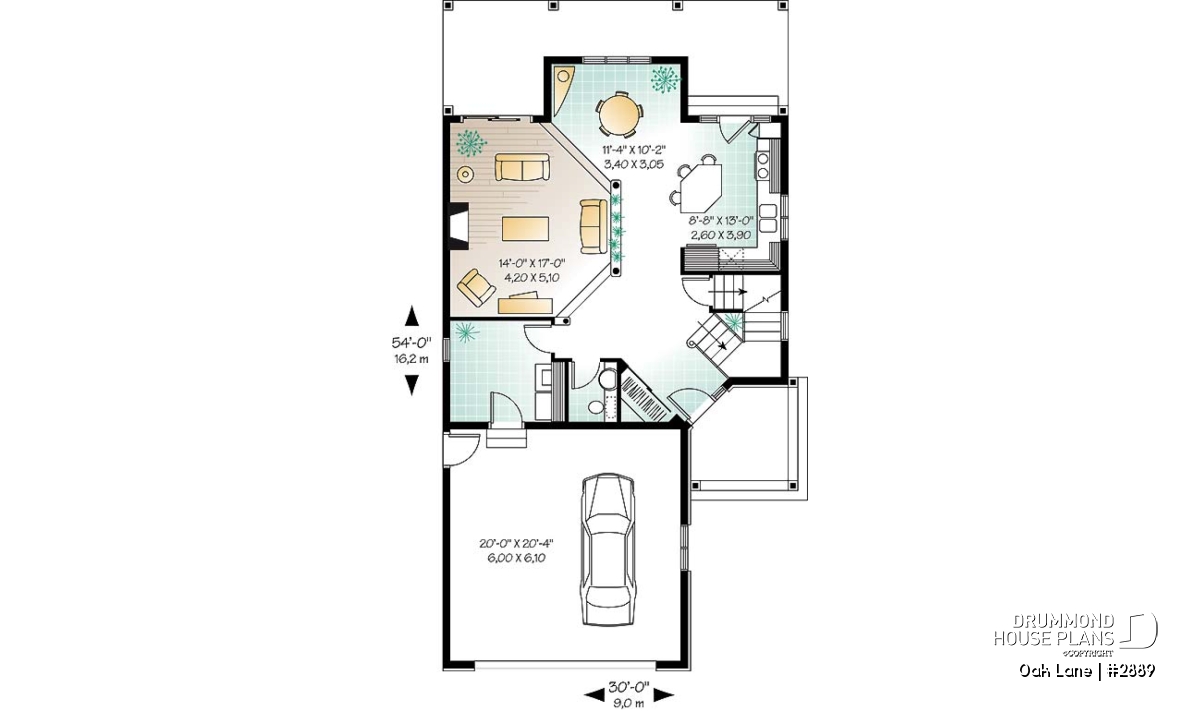

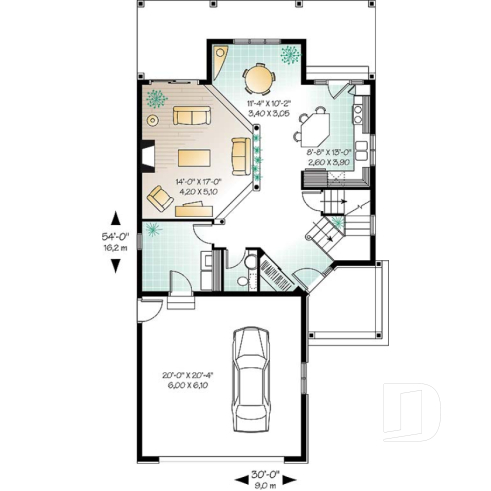

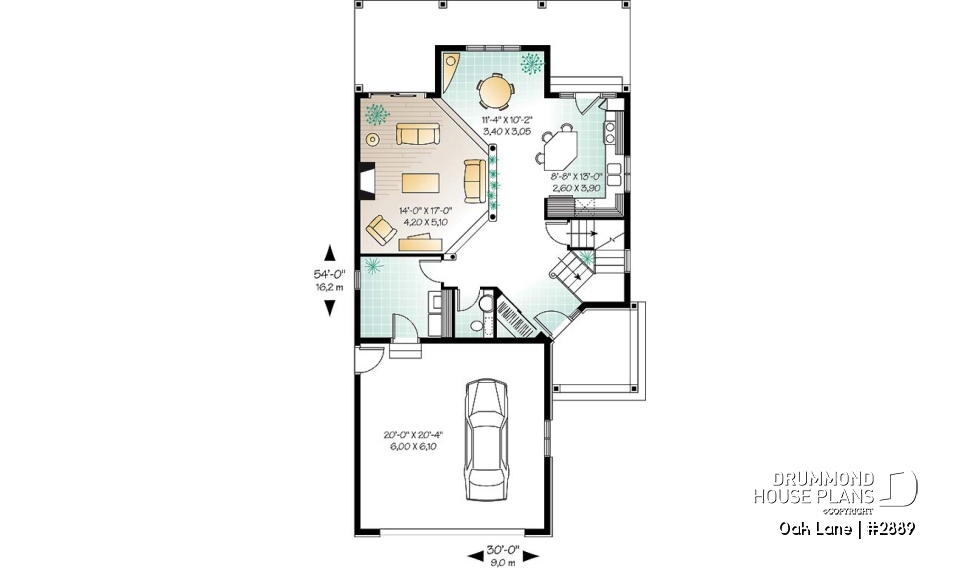

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 8'8" x 13'0" | ~ 8'0" |
| Dining room | 11'4" x 10'0" | ~ 8'0" |
| Living room | 14'0" x 17'0" | ~ 8'0" |
| Utility room | 10'0" x 10'8" | ~ 8'0" |
| Garage | 20'0" x 20'4" | ~ 9'4" |
| Closet | 3'8" x 3'8" | ~ 8'0" |
| Porch | 8'4" x 8'0" | N/A |
| Terrace | 30'0" x 10'0" | N/A |
| Half bath or powder room | 4'2" x 5'4" | ~ 8'0" |

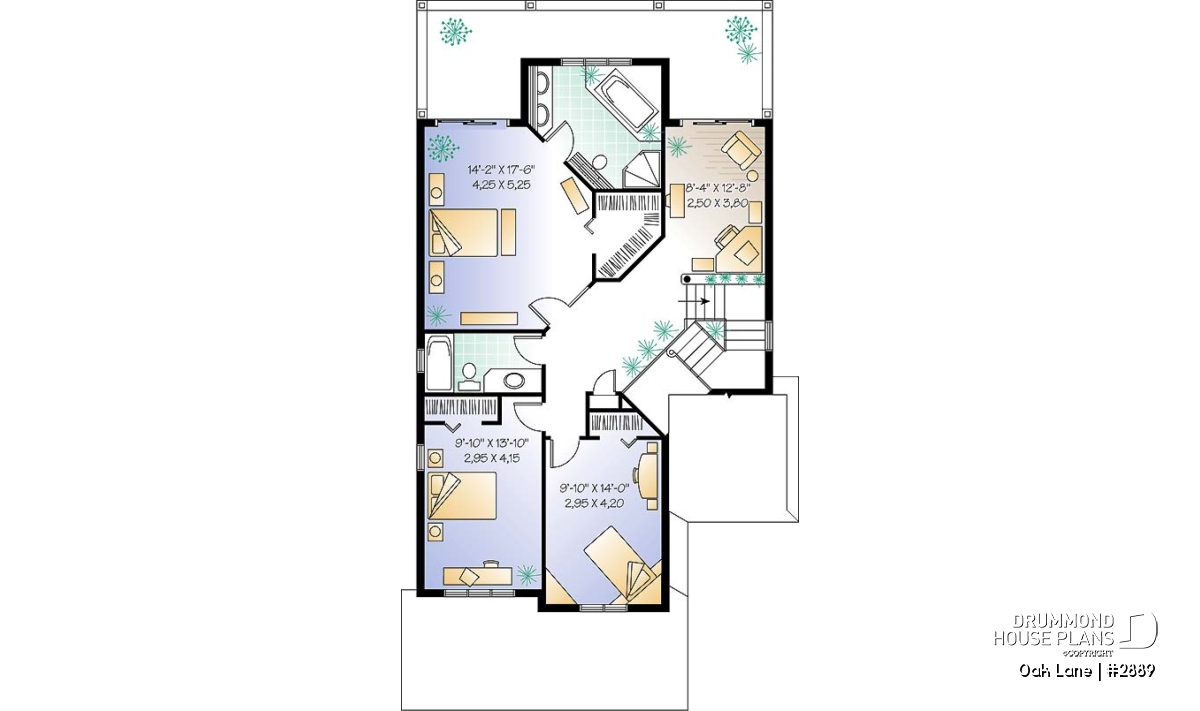

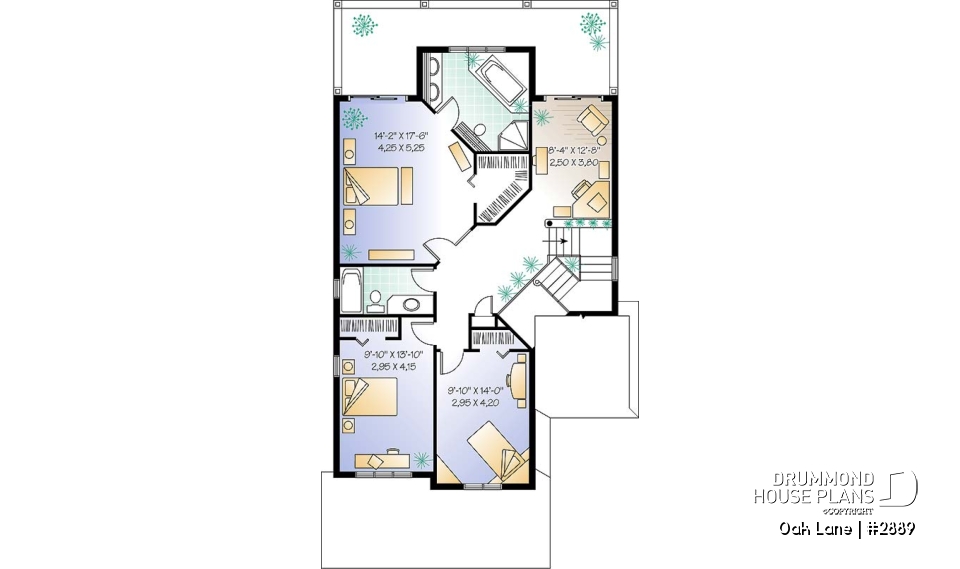

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'10" x 5'0" | ~ 8'0" |
| Bedroom | 9'10" x 14'0" | ~ 8'0" |
| Bedroom | 9'10" x 14'0" | ~ 8'0" |
| Linen | 2'6" x 1'2" | ~ 8'0" |
| Master suite | 14'2" x 17'6" | ~ 8'0" |
| Den | 8'4" x 12'8" | ~ 8'0" |
General specifications
| Total living area | 2005 sq.ft. |
| 1st level | 870 sq.ft. |
| 2nd level | 1135 sq.ft. |
| Width | 30'0" |
| Depth | 54'0" |
| Ridge height from top of foundation | 28'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

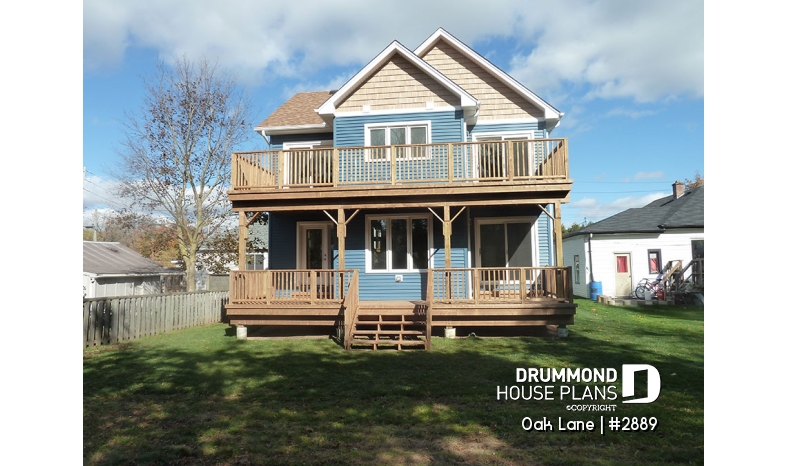

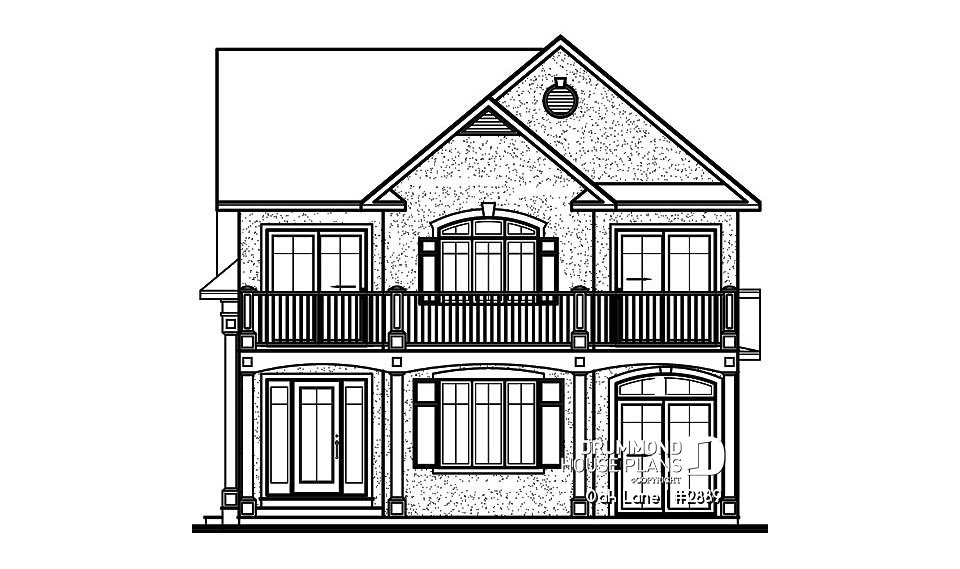

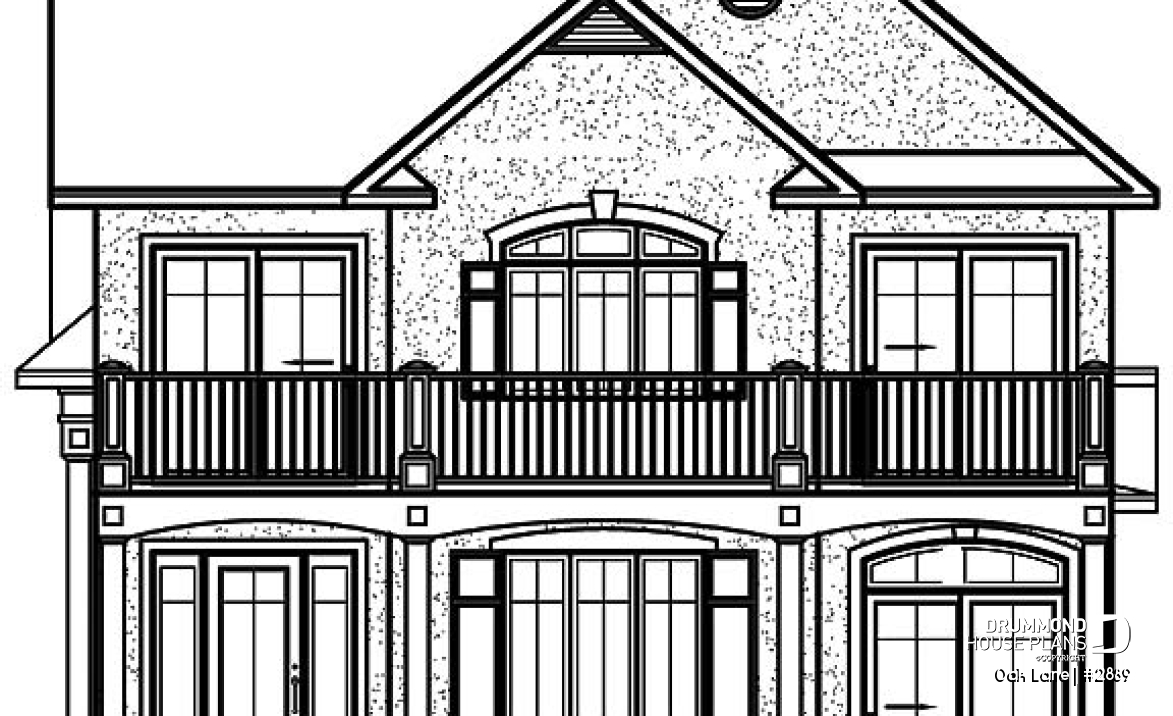

back
This color version might have decorative elements that are not available on base plan.

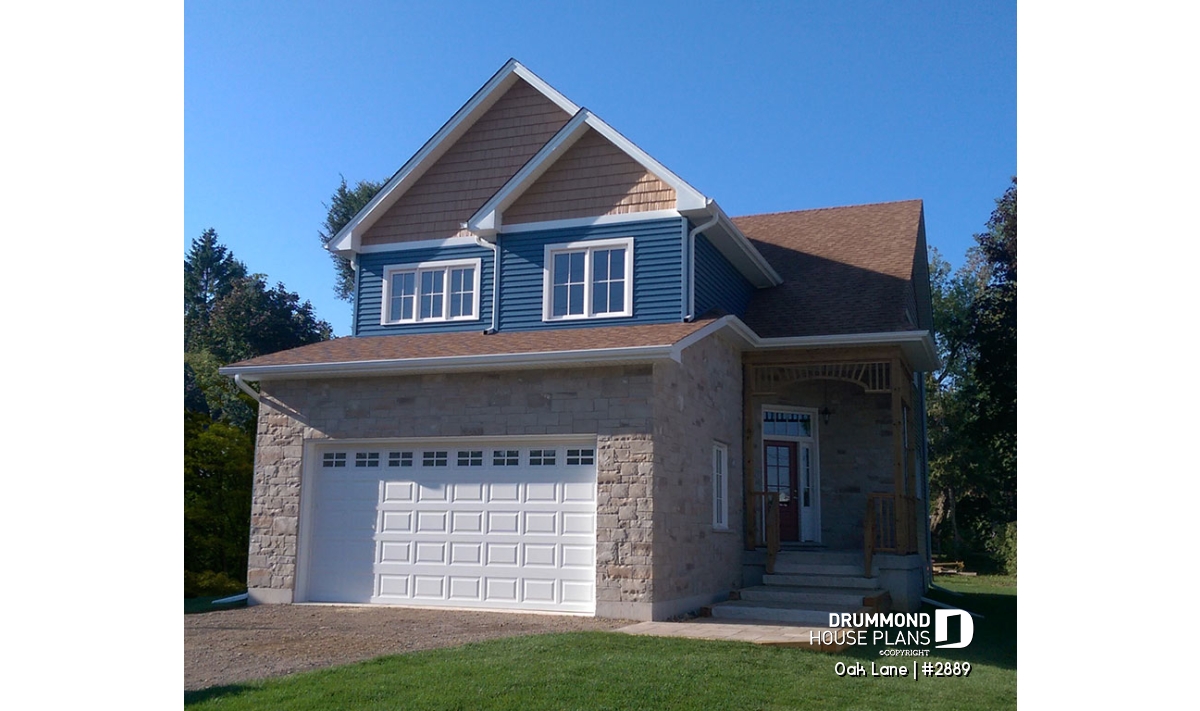

front
This color version might have decorative elements that are not available on base plan.

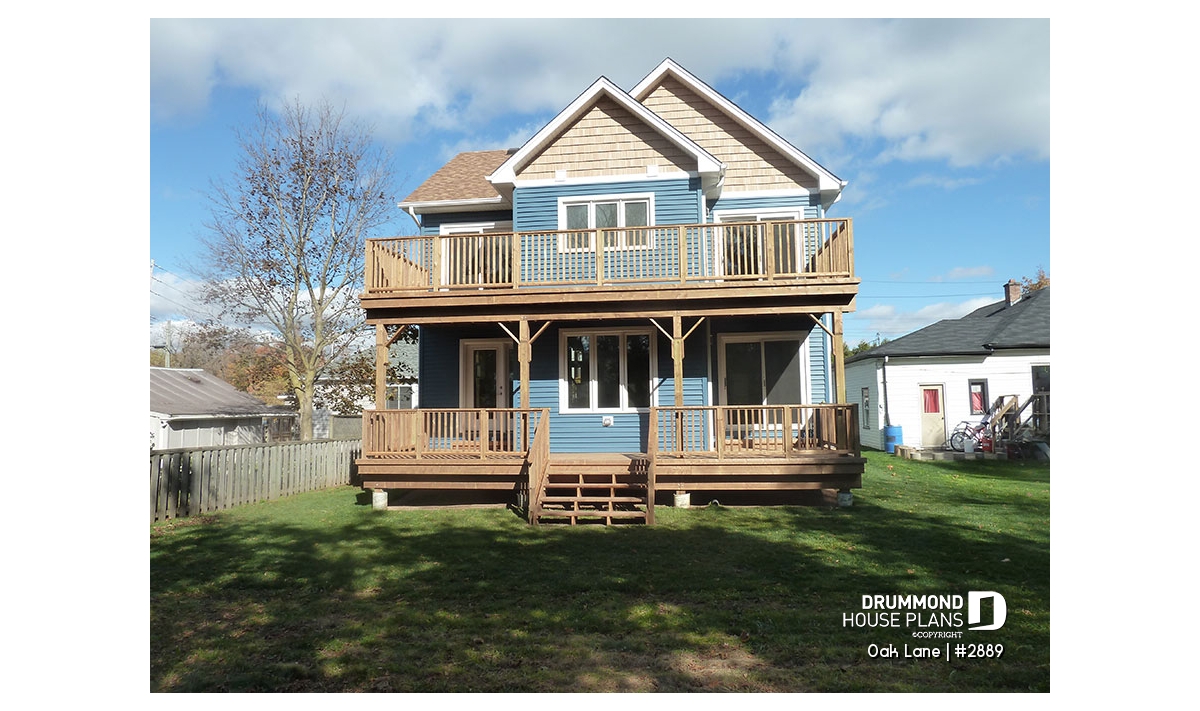

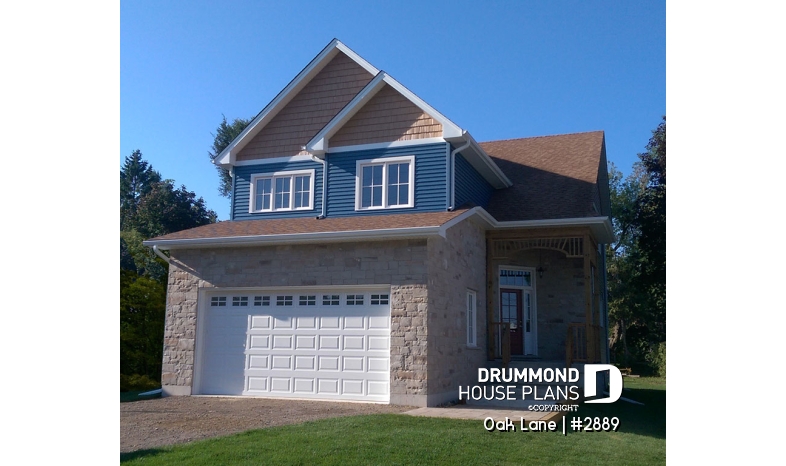

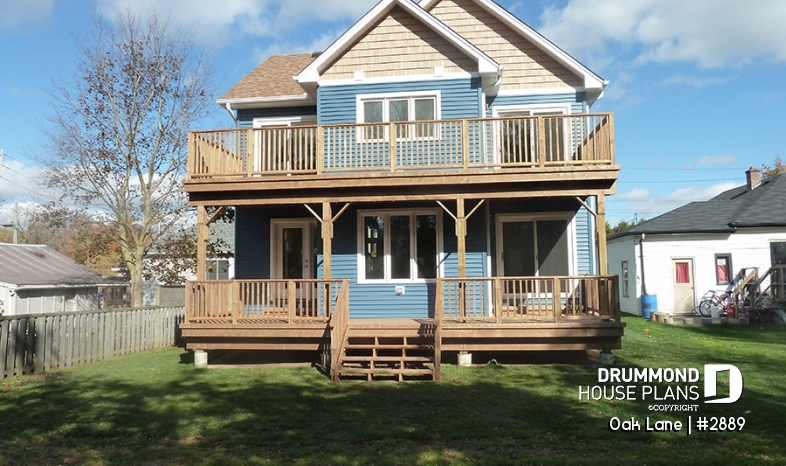

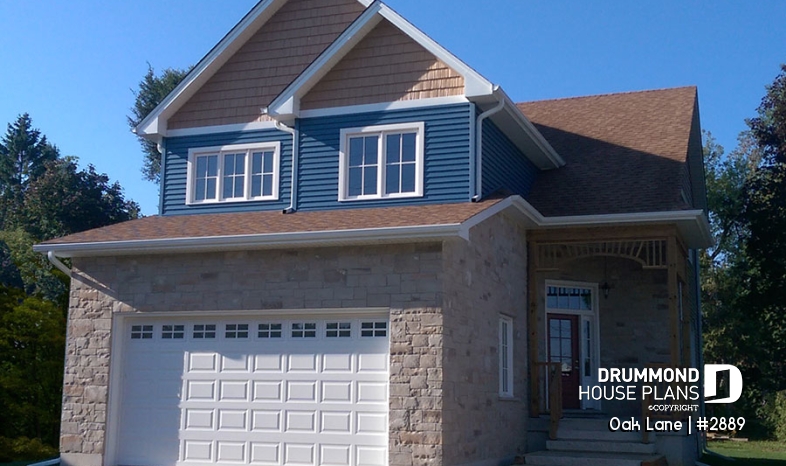

Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Elegance, depth and full of potential! Narrow lot house plan with 2-car garage and 3 to 4 beds
Despite a double garage in the front of its 30’ width, this cottage offers distinctly elegant styling due to the volume of the double dormers above the garage and the covered porch that raises the entrance and adds emphasis to the right side of the house.
The understated elegance of this home’s exterior is enhanced by the terrace on the second level that spans the width of the rear to cover the patio below. This beautiful patio is accessible from the main level through the family room or the kitchen and the terrace upstairs is accessible through the master bedroom and the 4th bedroom or home office.
Inside, the 30’ width does not hinder the floor plan due to strategic placement of the open stairwell bathed in natural light. A sunken living room, complete with fireplace, also serves to enhance the visual effect upon entering this beautiful home.
Upstairs the 4th bedroom/home office space off of the mezzanine and the three other bedrooms which include a master suite that has double glass doors out to the terrace and a walk-in closet are features that are sure to please the owners of this home.
Distinctive elements
Shuttered windows, sunken familiy foom, home office on 2nd level or bedroom #4, covered front porch, flower boxes, corner bath and dual sinks in master bathroom, back deck.
Plan feature(s)
Fireplace, Gound floor laundry room, Master suite upstairs, Balcony 2nd floor, Deck, Walk-in master bed., Office / Study / Den, Island, Sunken living room, Separate bath and shower, Double sink vanity
Plan architectural style(s)
. American, . Traditional, . Vacation and waterfront, . Cottage, chalet, cabin, . Craftsman / Northwest
