House plan Danforth (3878)

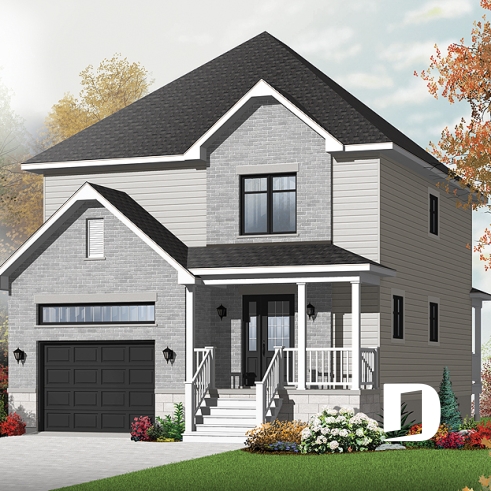

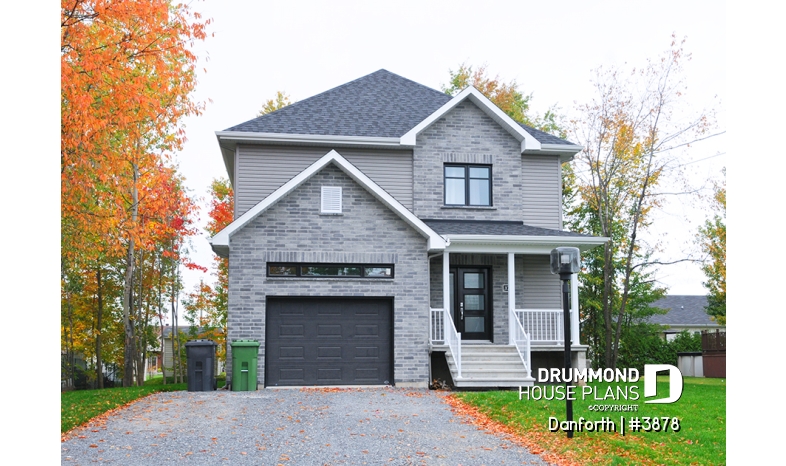

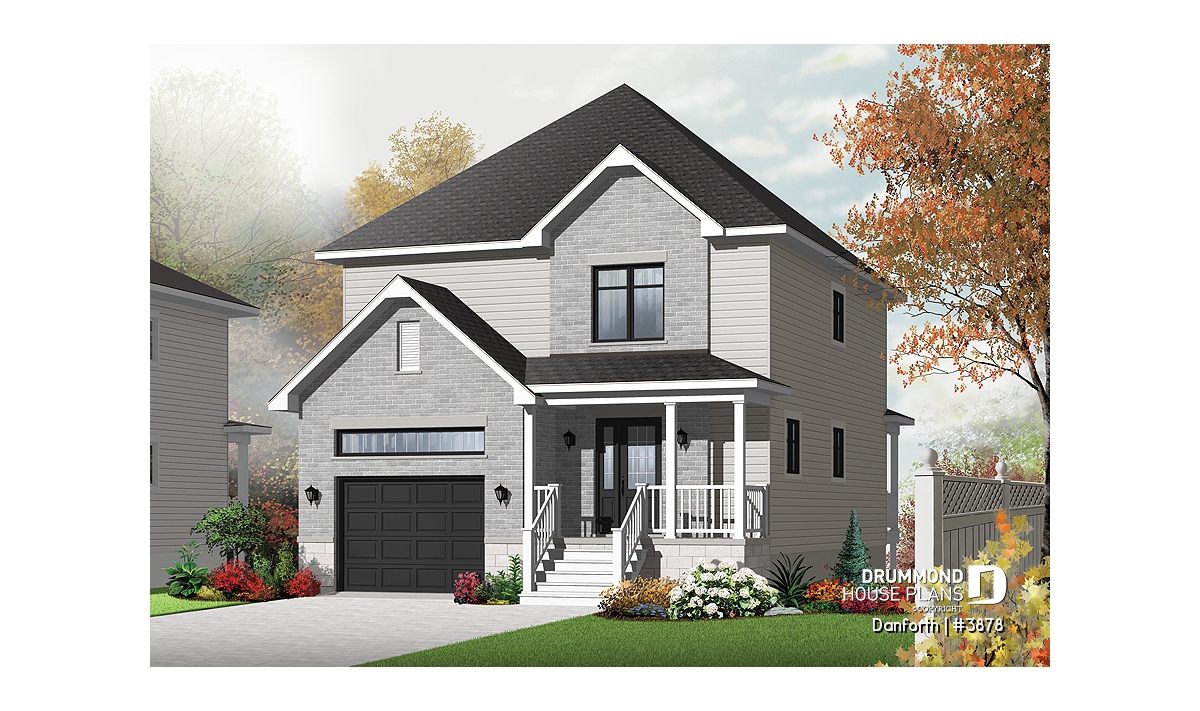

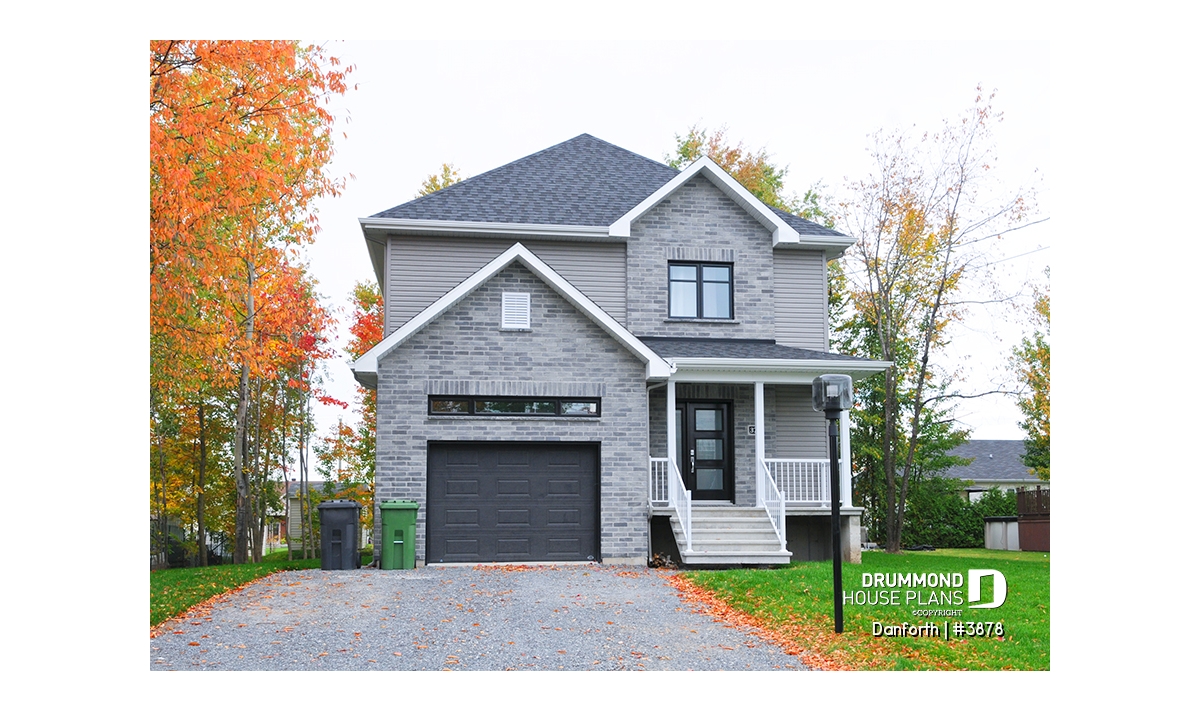

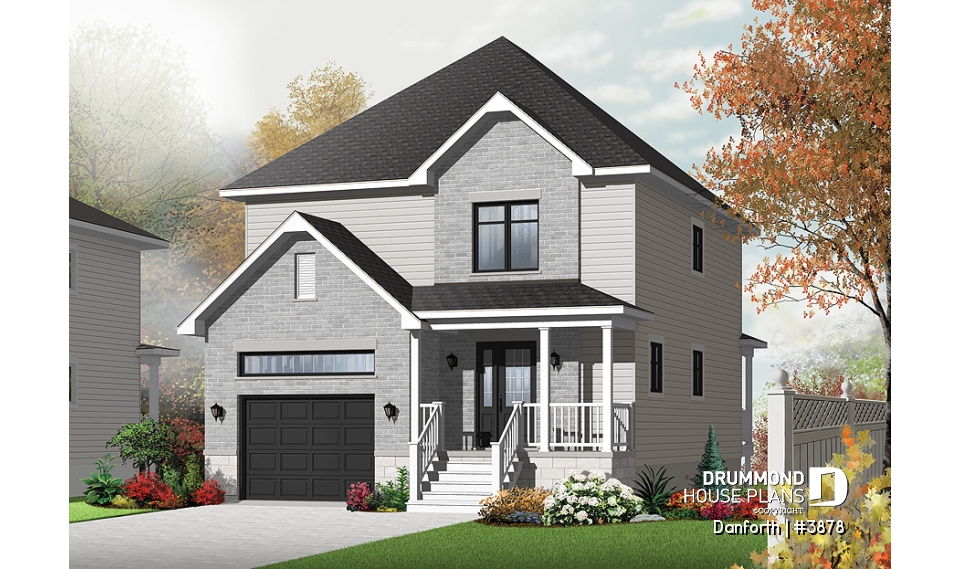

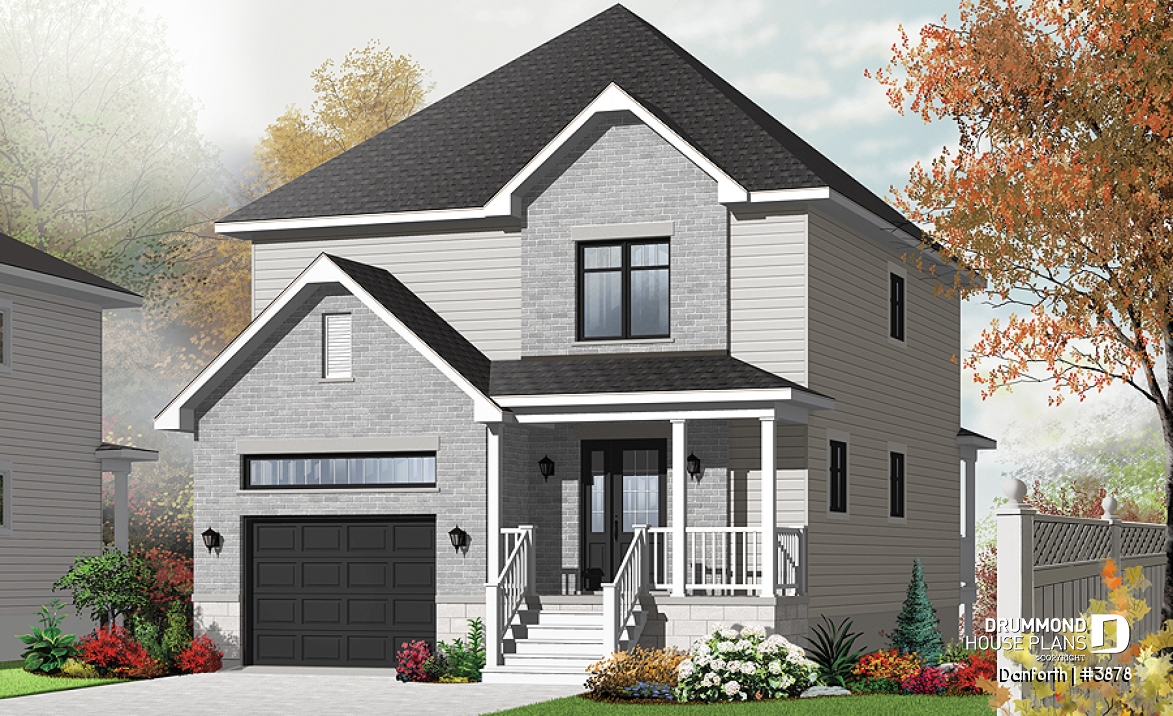

Modern 2 storey house plan, 3 bedroom, rear covered terrace, mezzanine and garage
View the size of the rooms and height of the ceilings

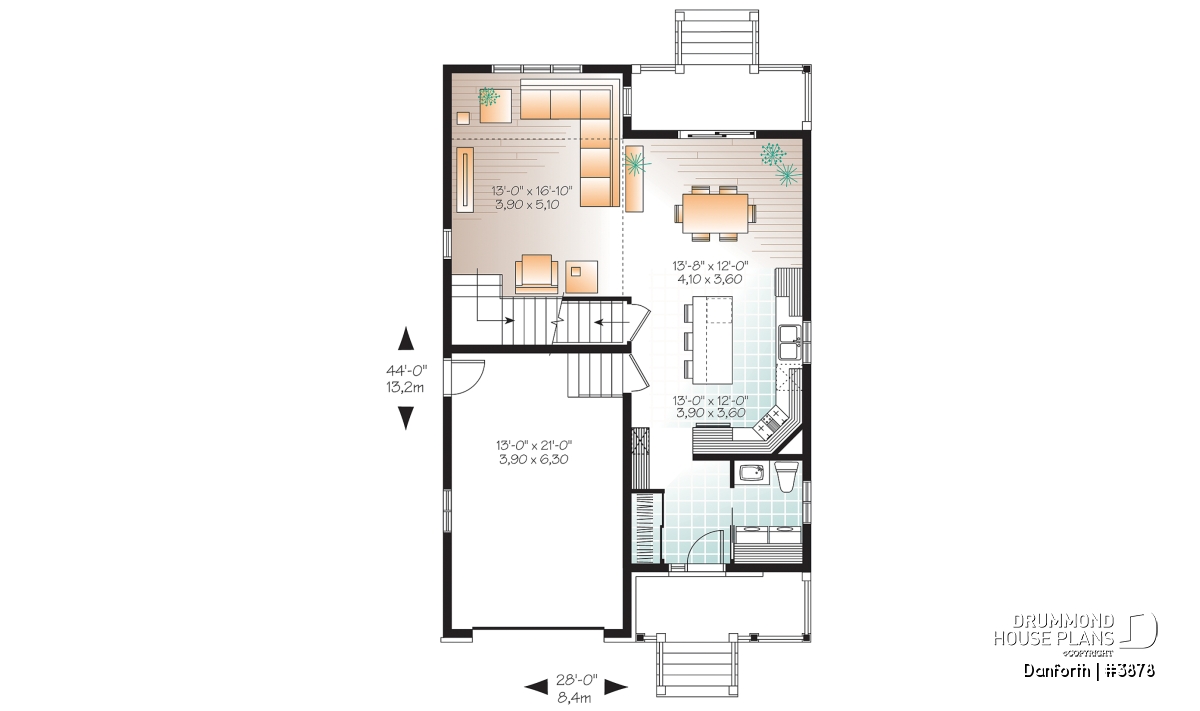

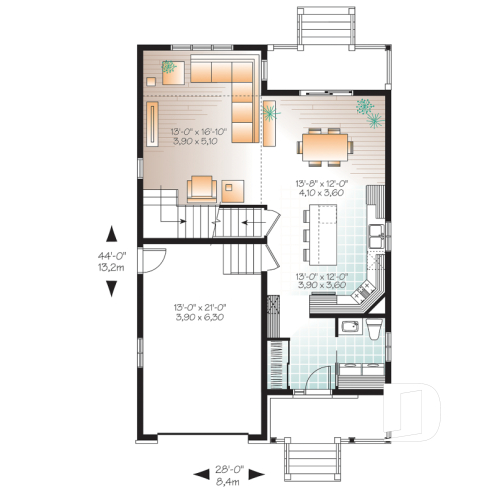

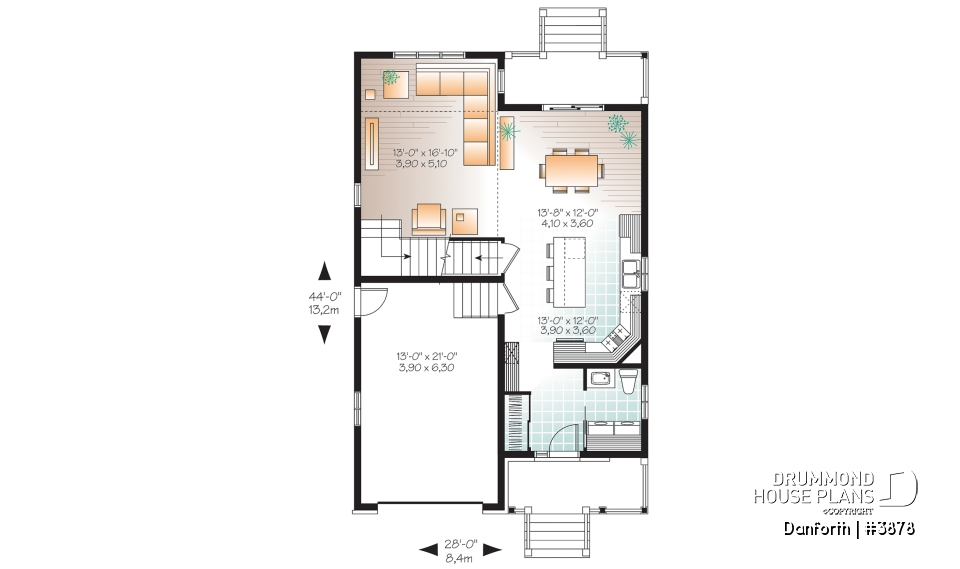

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Powder/laundry room | 5'2" x 7'10" | ~ 8'0" |
| Foyer | 5'0" x 7'10" | ~ 8'0" |
| Closet | 2'2" x 5'4" | ~ 8'0" |
| Kitchen/dinette | 13'0" x 12'0" | ~ 8'0" |
| Dining room | 13'8" x 12'0" | ~ 8'0" |
| Living room | 13'0" x 17'0" | ~ 17'2" |
| Covered porch | 13'4" x 5'4" | N/A |
| Covered deck | 13'8" x 5'0" | N/A |
| Garage | 13'0" x 21'0" | ~ 11'0" |

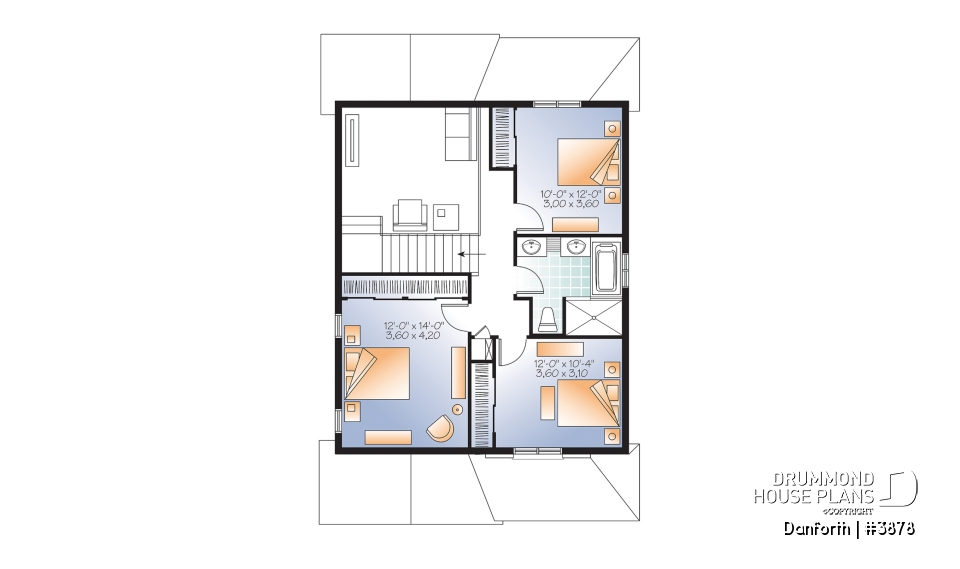

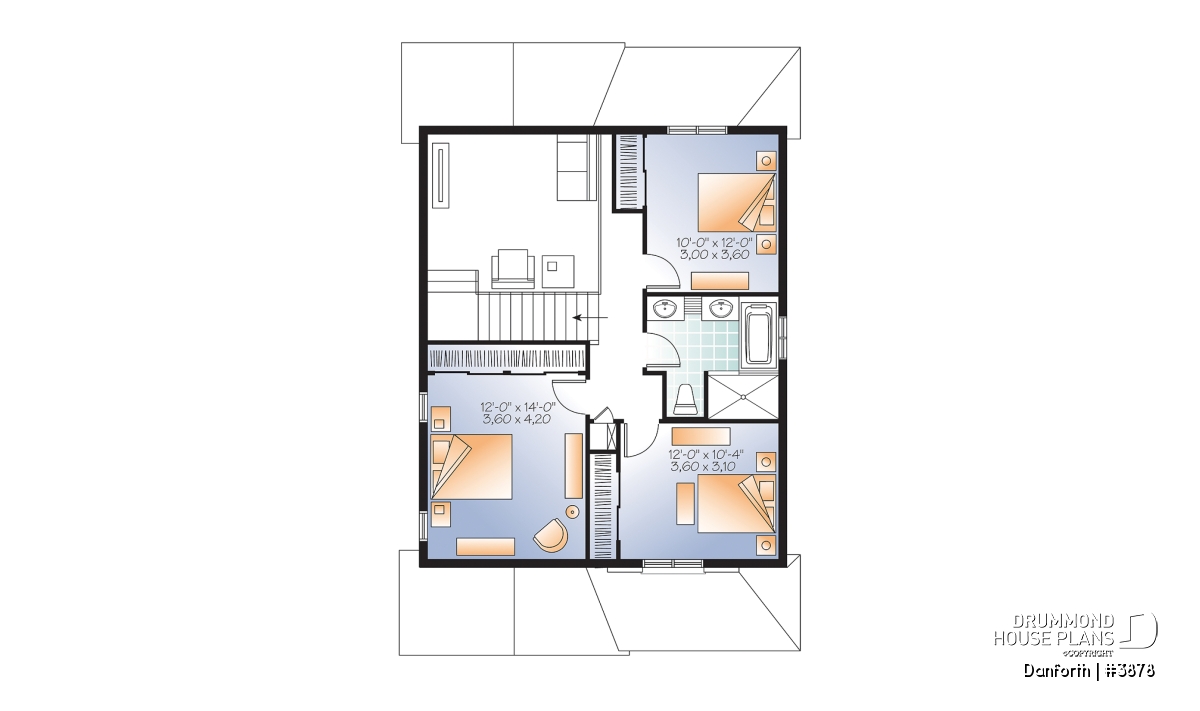

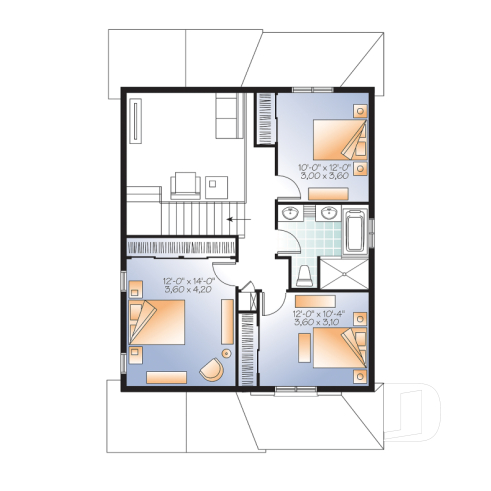

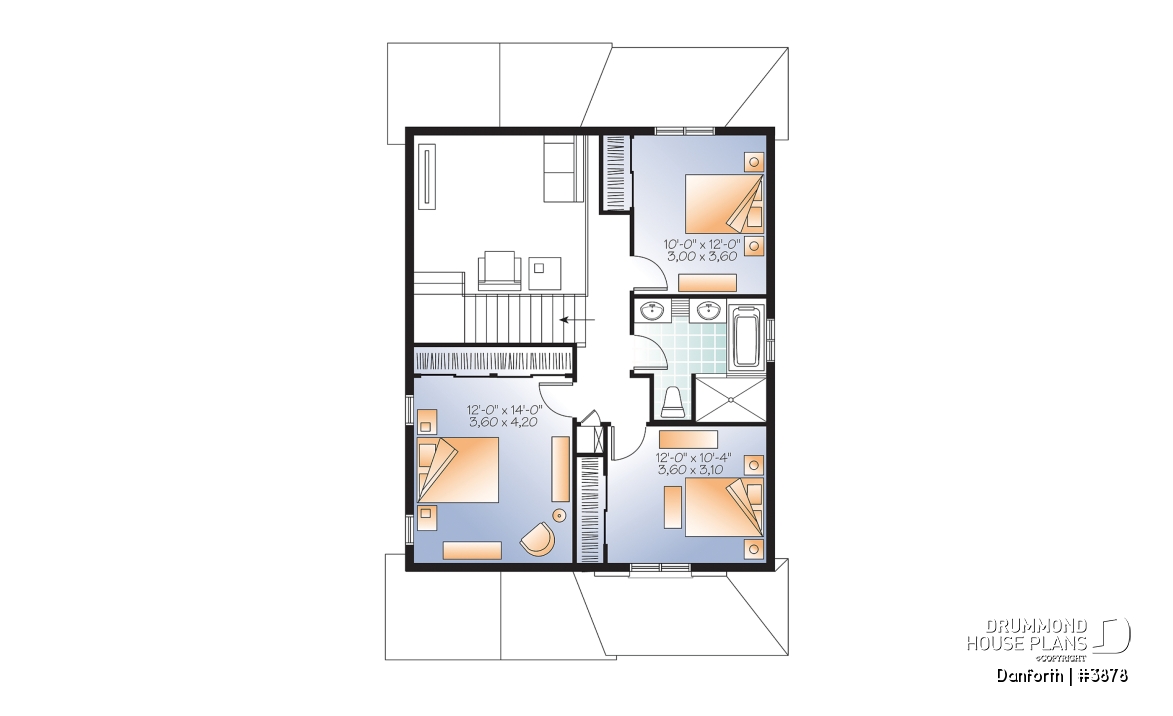

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'0" x 14'0" | ~ 8'0" |
| Closet | 12'0" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 10'4" | ~ 8'0" |
| Closet | 2'0" x 8'0" | ~ 8'0" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 5'8" | ~ 8'0" |
| Full bathroom | 10'0" x 9'4" | ~ 8'0" |
General specifications
| Total living area | 1580 sq.ft. |
| 1st level | 790 sq.ft. |
| 2nd level | 790 sq.ft. |
| Width | 28'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 33'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Modern 3 bedroom house plan, garage, cathedral + mezzanine in living room
With many lot sizes becoming narrower, this pretty little home has all the features desired but accomplishes this with a 28 foot wide footprint.
Whether greeting guests at the charming covered porch or bringing in groceries from the attached garage, you will love the flow of this home. A discreet half bathroom is combined with a laundry for space saving and convenience. The kitchen with island flows seamlessly to the dining area with easy access to a rear covered porch ideal for year-round grilling. The living room is defined by a two-storey vaulted ceiling for most of its volume.
Upstairs, we find a master bedroom with a full wall of closet space and two secondary bedrooms and a 5 piece bathroom.
The plan includes an unfinished basement that can be finished to suit your needs.
Distinctive elements
Ideal for narrow lots. Covered porch at the front and rear. Living room with 2-storey vaulted ceilings for 2/3 of the room. Three bedrooms upstairs, master large enough for king-sized bed and secondary bedrooms can easily fit double beds.Bathroom with separate 64” x 64”shower.
Plan feature(s)
Island, Deck, Mezzanine, Cathedral ceiling, Gound floor laundry room, Open floor layout, Separate bath and shower, Double sinks
Plan architectural style(s)
. Contemporary, . English, . Transitional, . Modern / Design
