House plan Stanton 2 (3877-V1)
Modern house plan with garage, narrow lot design, great master suite, open layout, laundry on second floor
View the size of the rooms and height of the ceilings

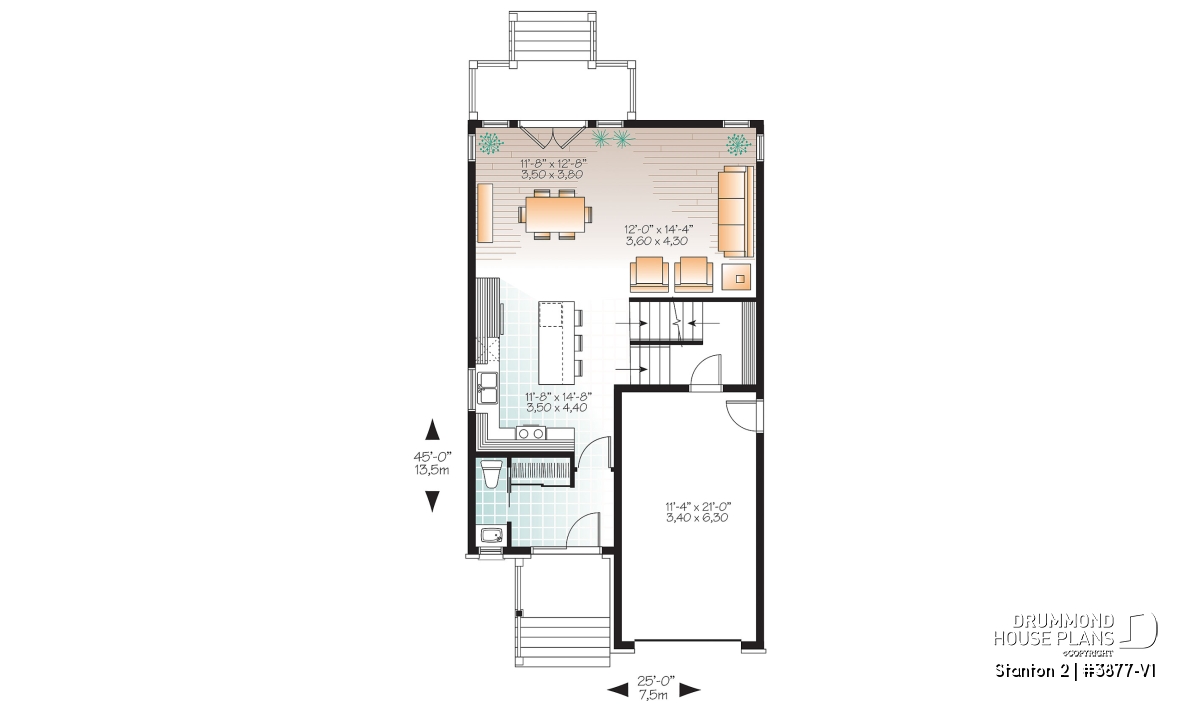

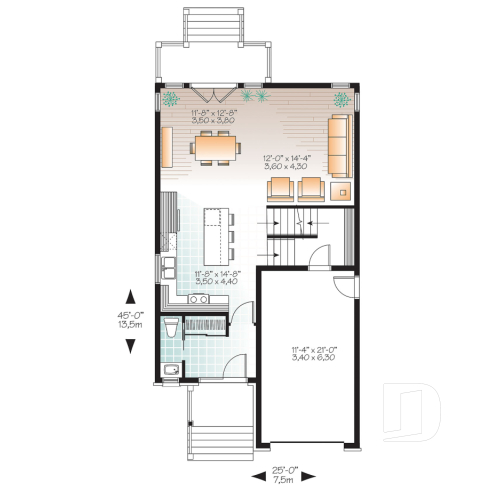

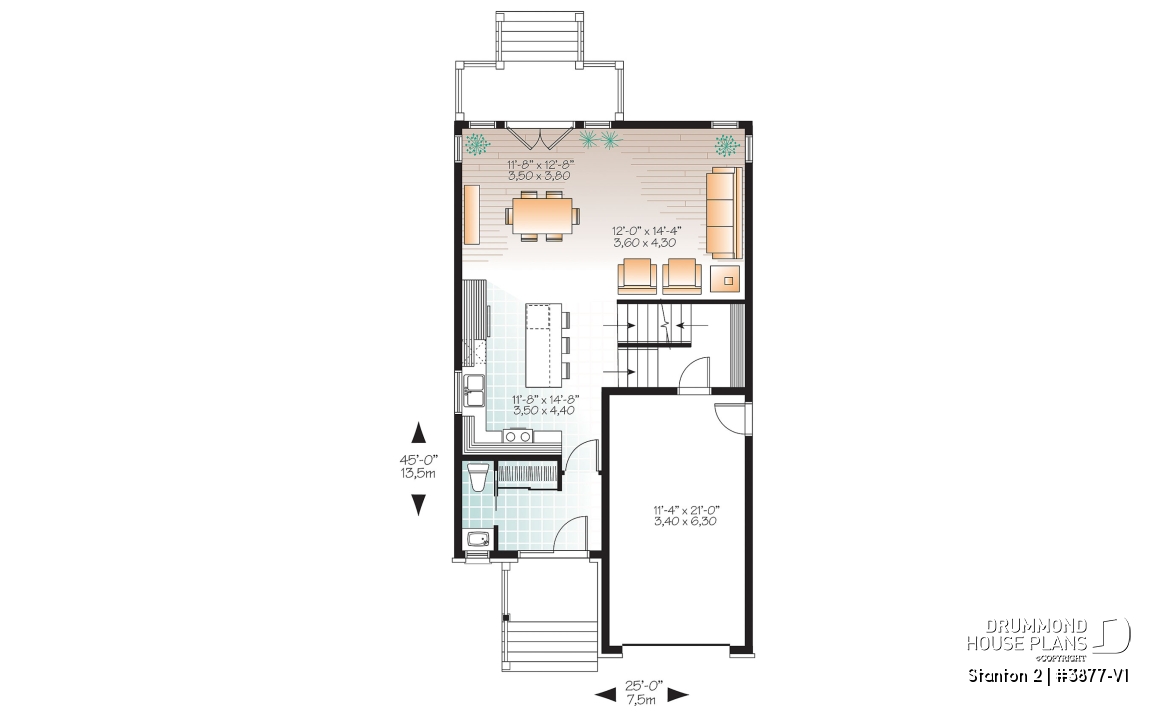

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'8" x 14'8" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | ~ 8'0" |
| Half bath or powder room | 2'8" x 7'6" | ~ 8'0" |
| Foyer | 8'8" x 5'0" | ~ 8'0" |
| Pantry | 5'0" x 2'0" | ~ 8'0" |
| Garage | 11'4" x 21'0" | ~ 11'0" |
| Porch | 8'0" x 5'0" | N/A |
| Dining room | 11'8" x 12'8" | ~ 8'0" |
| Living room | 12'0" x 14'4" | ~ 8'0" |
| Deck | 14'0" x 5'0" | N/A |

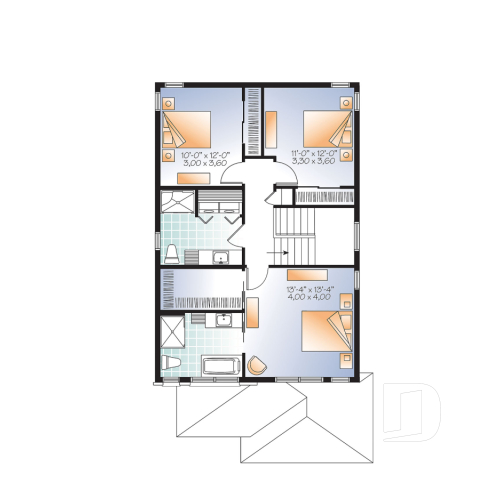

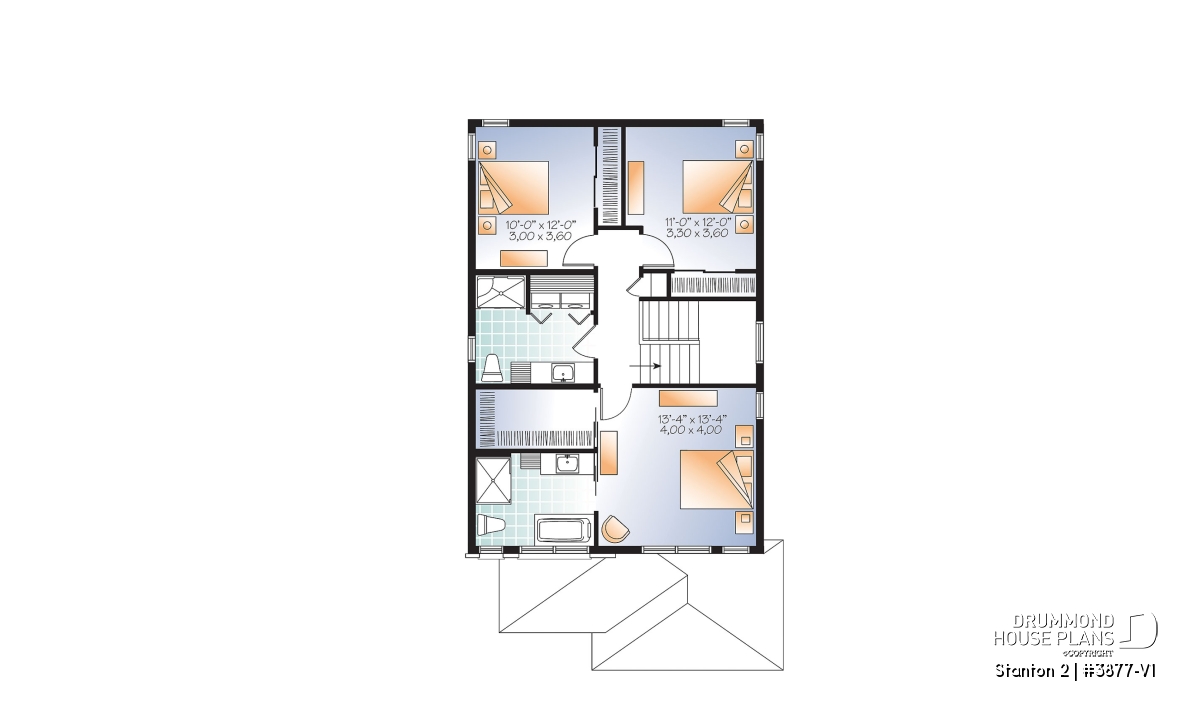

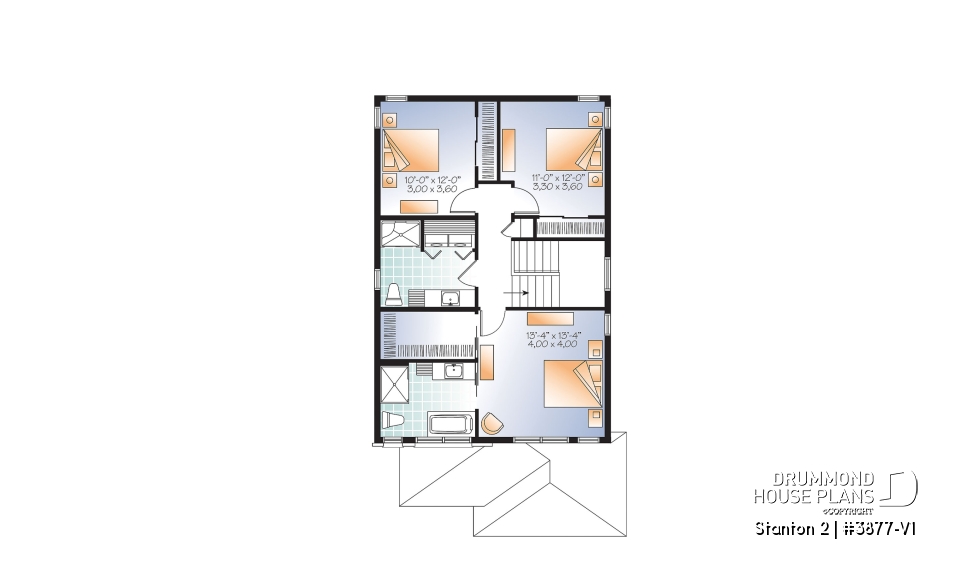

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 5'5" x 3'4" | ~ 8'0" |
| Master suite | 13'4" x 13'4" | ~ 8'0" |
| Walk-in closet | 10'0" x 5'0" | ~ 8'0" |
| Full bathroom | 10'0" x 7'10" | ~ 8'0" |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Closet | 7'2" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 8'4" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Shower/laundry room | 10'0" x 9'2" | ~ 8'0" |
General specifications
| Total living area | 1679 sq.ft. |
| 1st level | 757 sq.ft. |
| 2nd level | 922 sq.ft. |
| Width | 25'0" |
| Depth | 45'0" |
| Ridge height from top of foundation | 29'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | D |
Rooms specifications

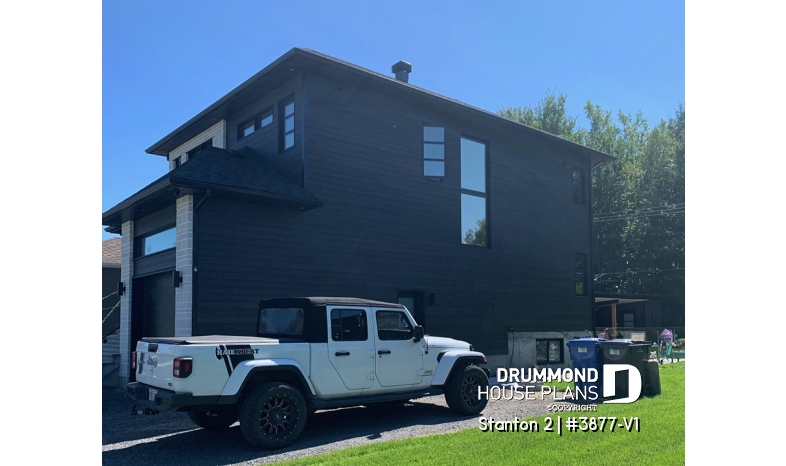

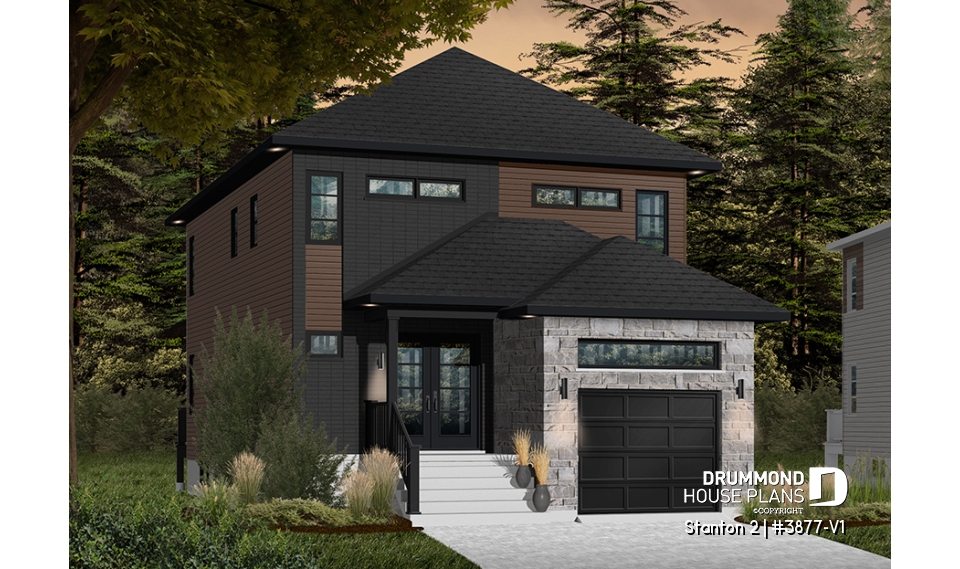

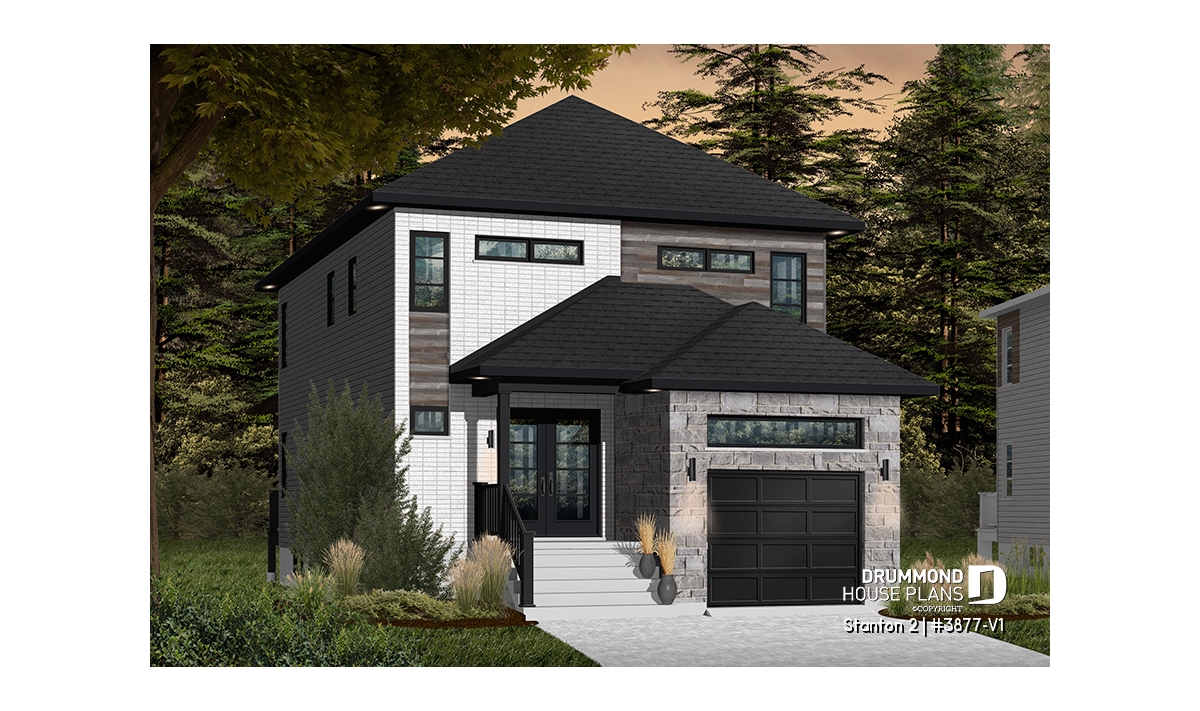

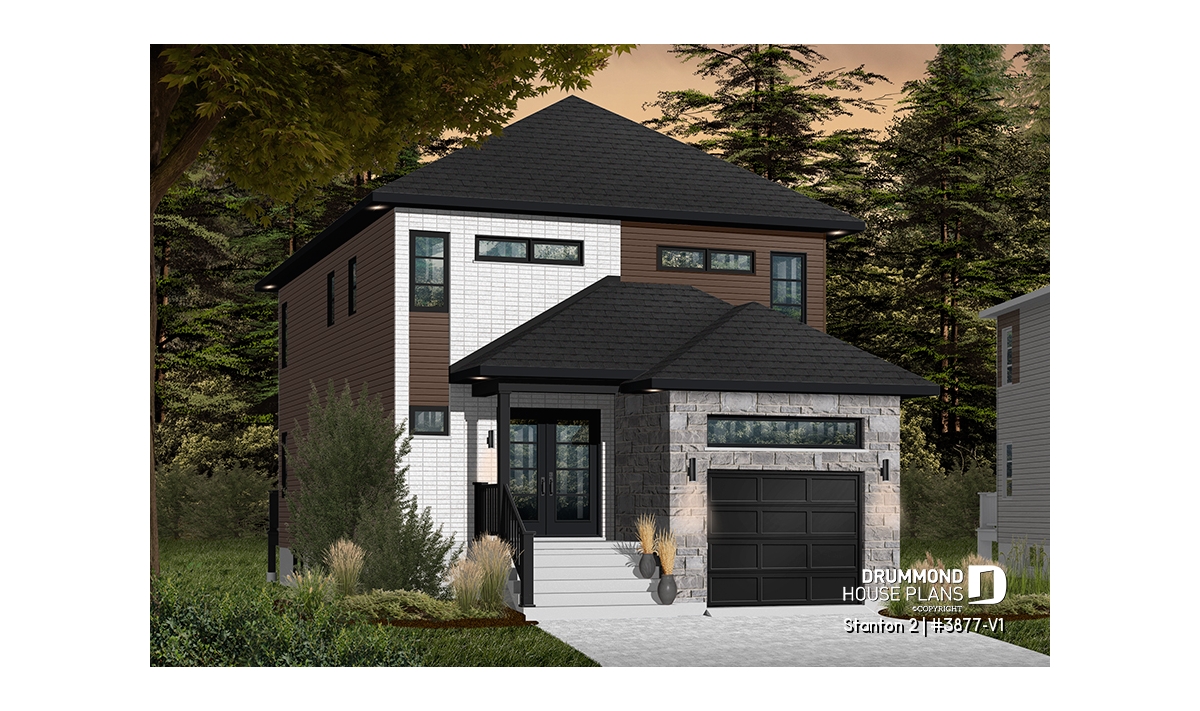

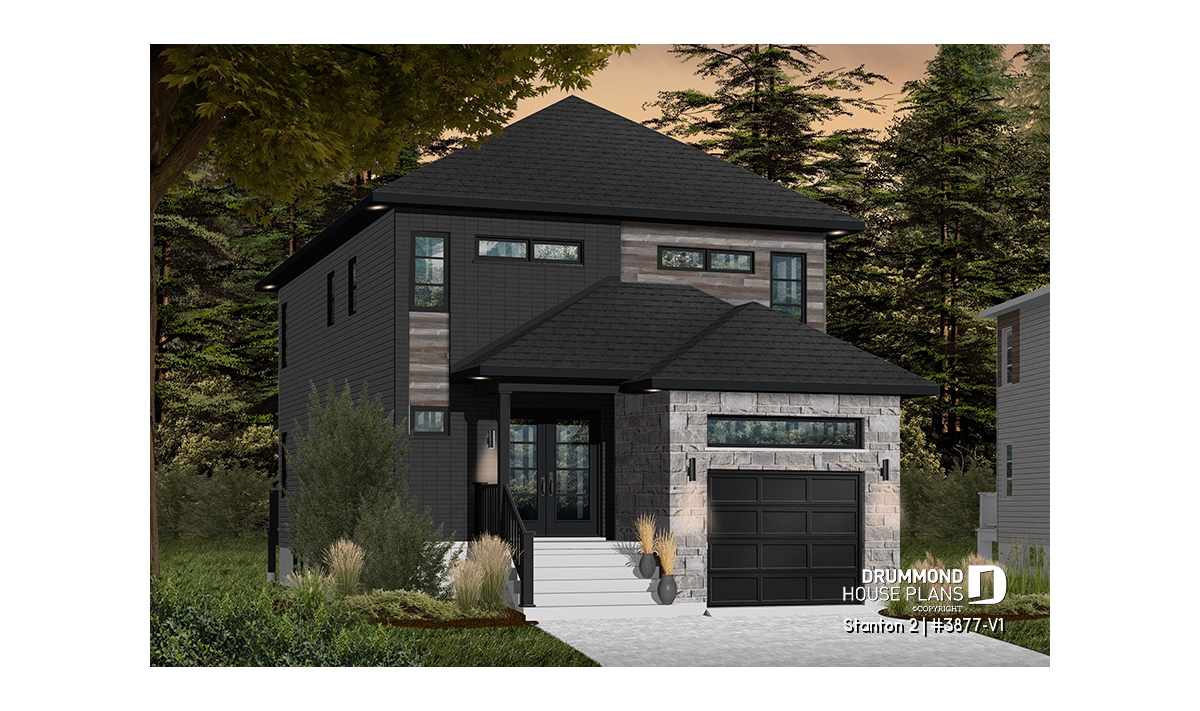

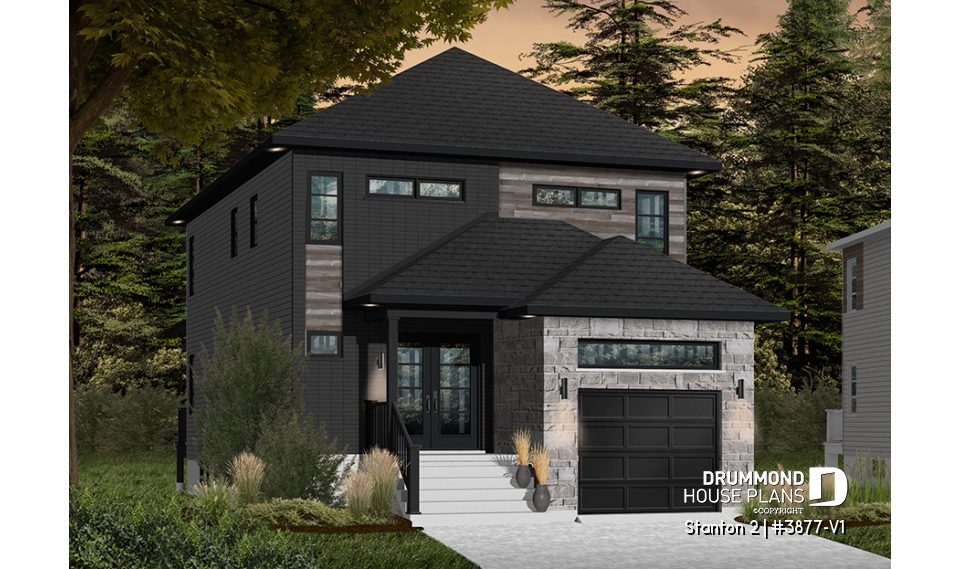

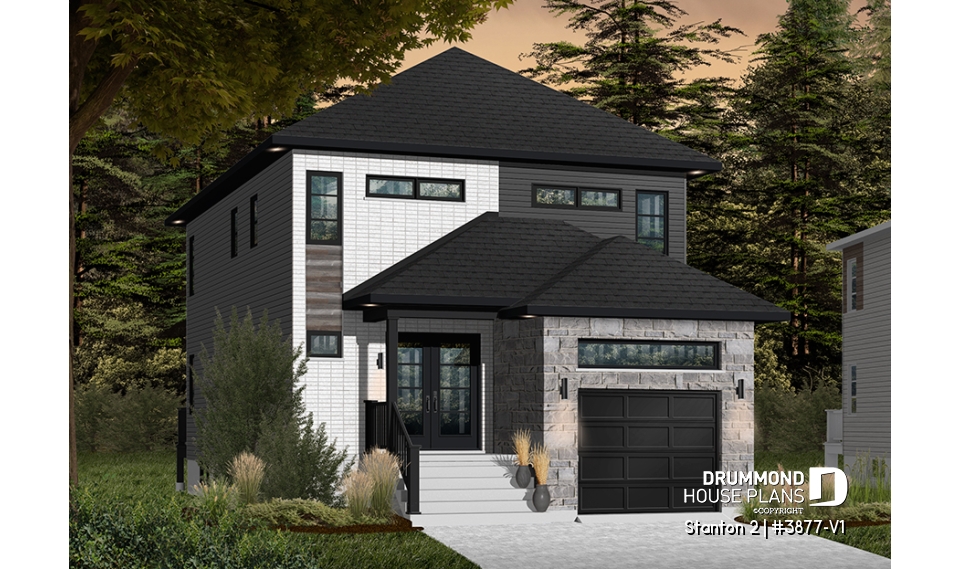

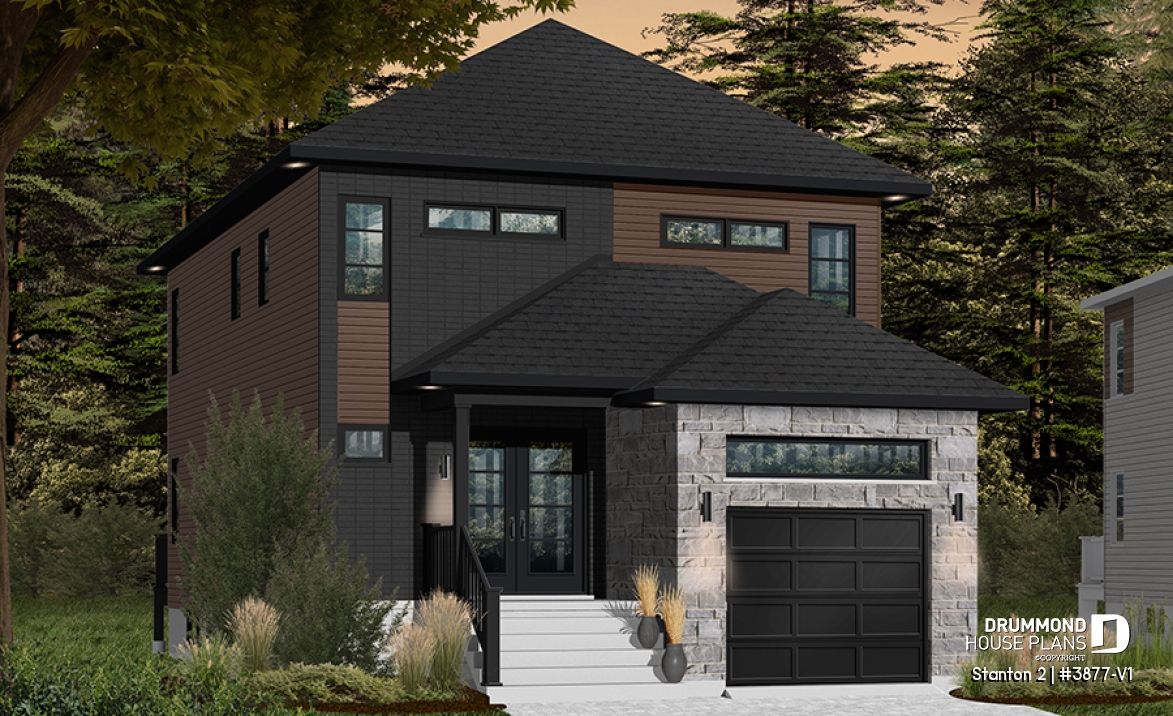

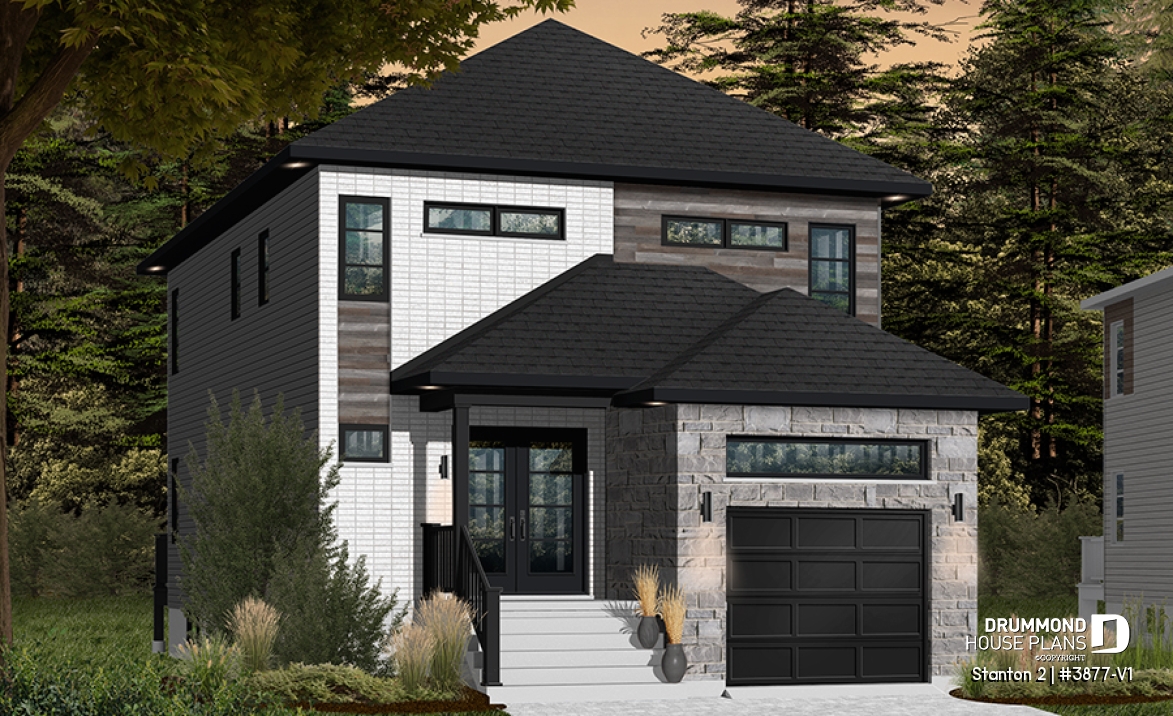

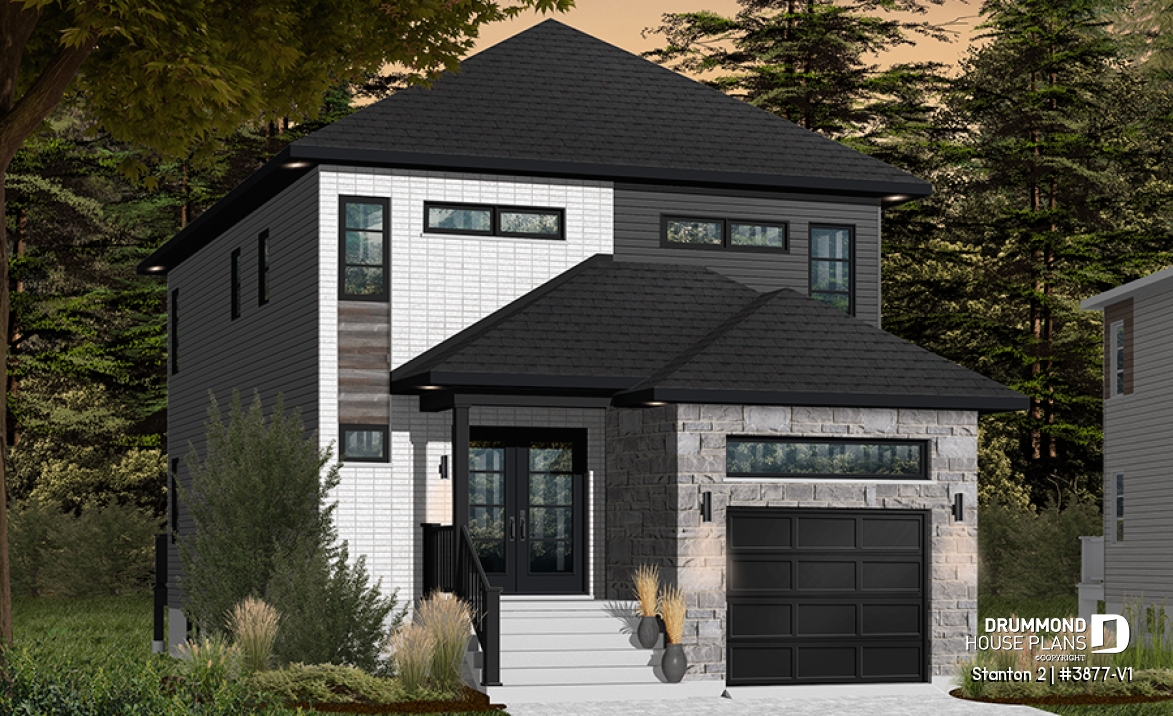

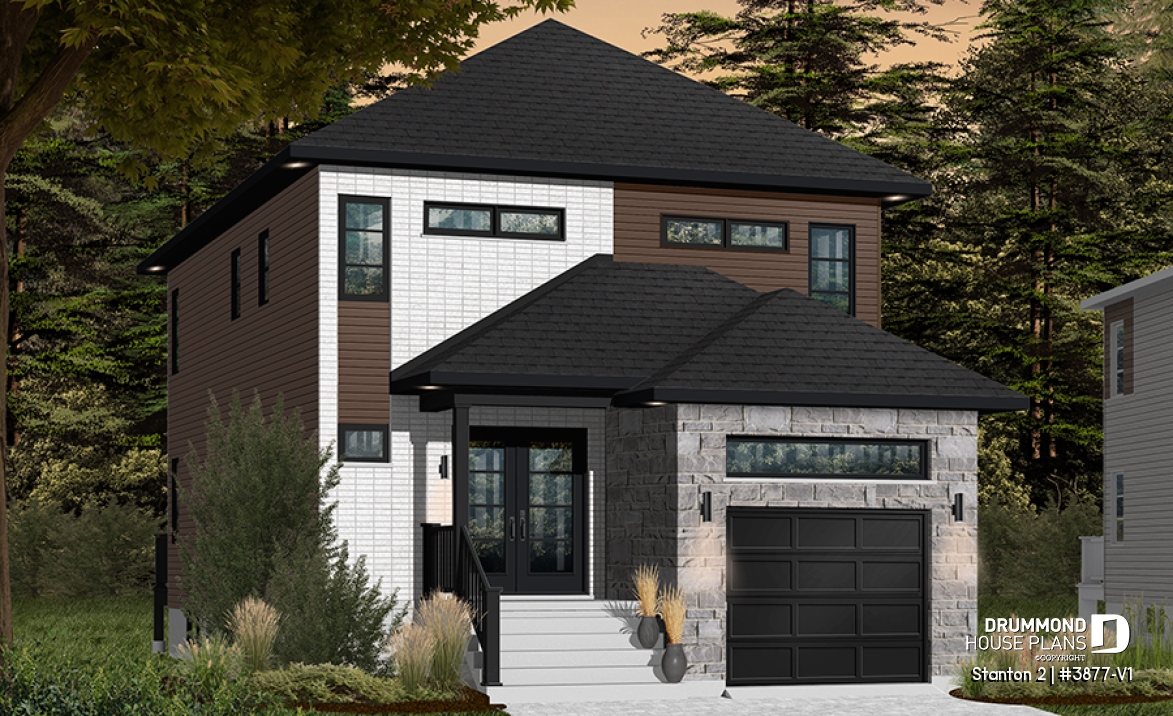

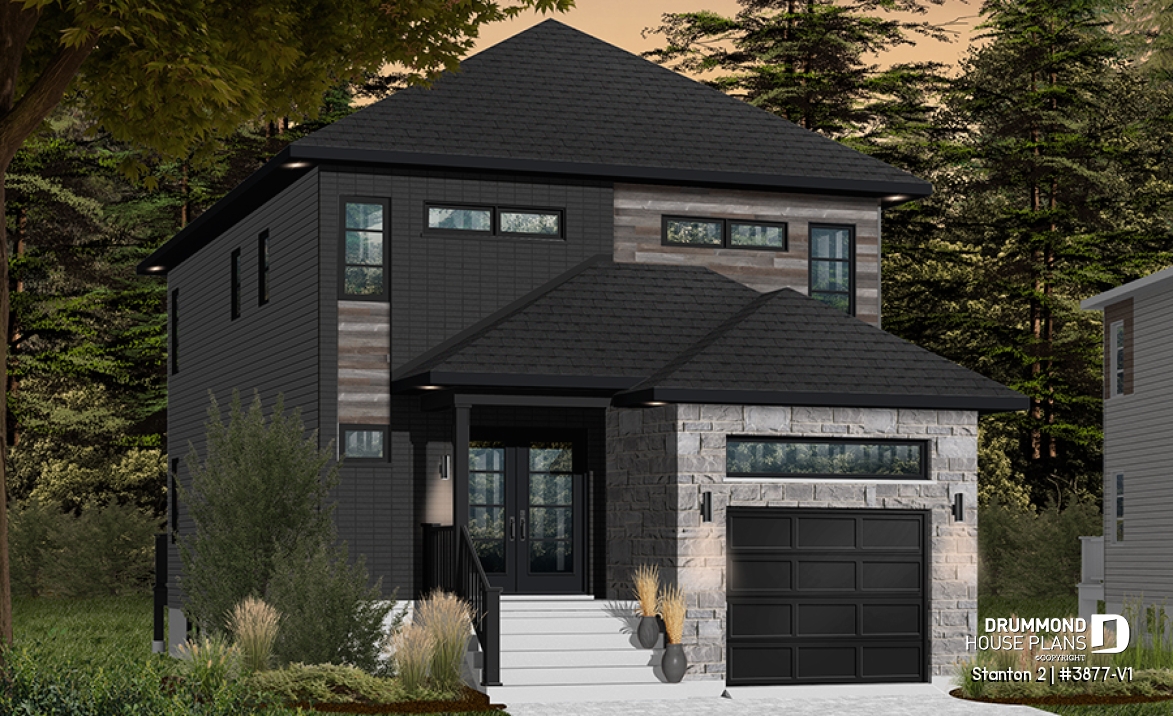

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

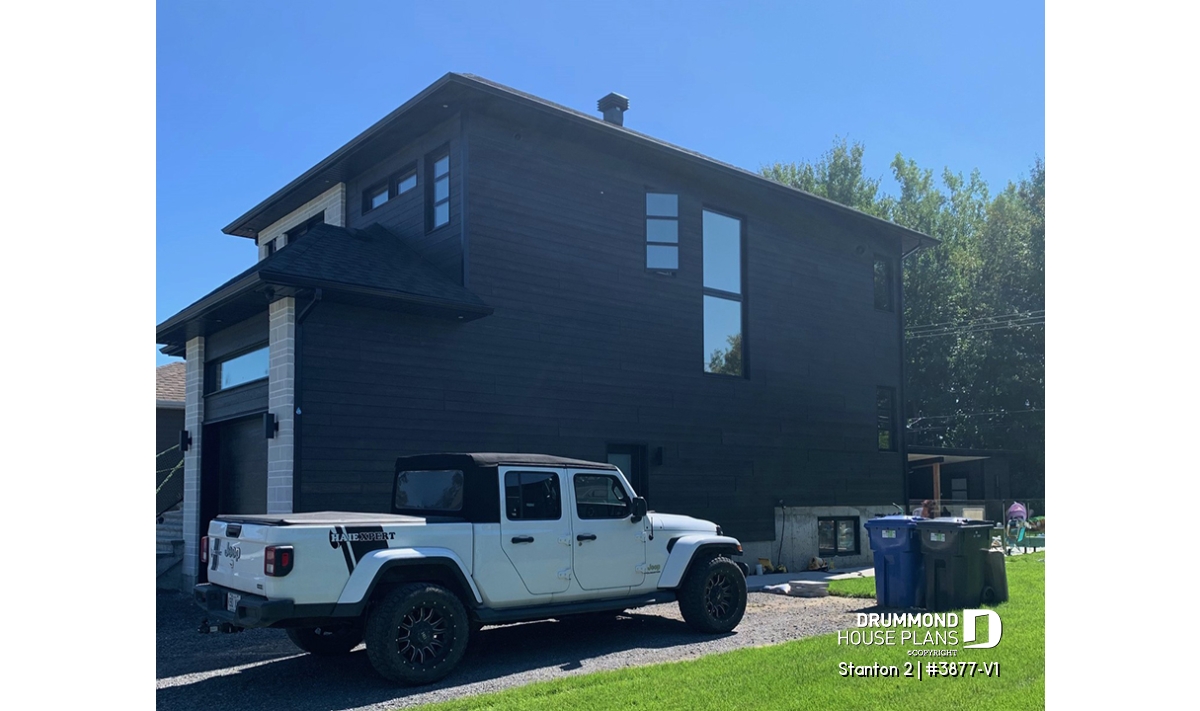

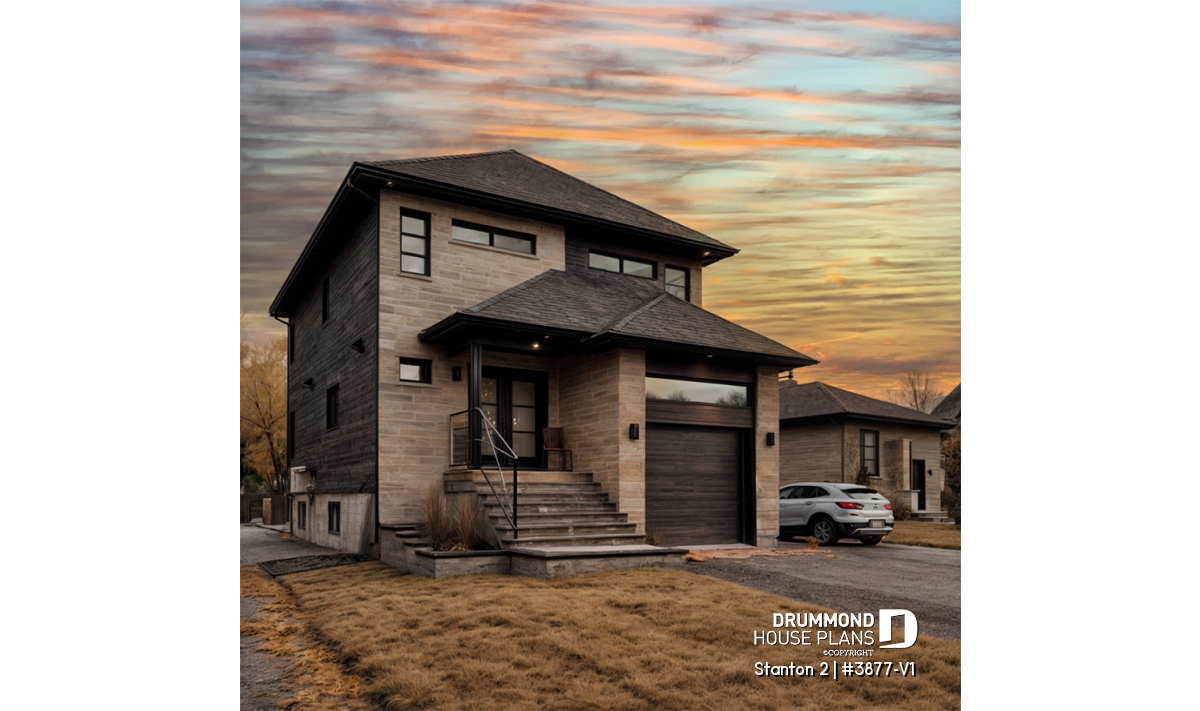

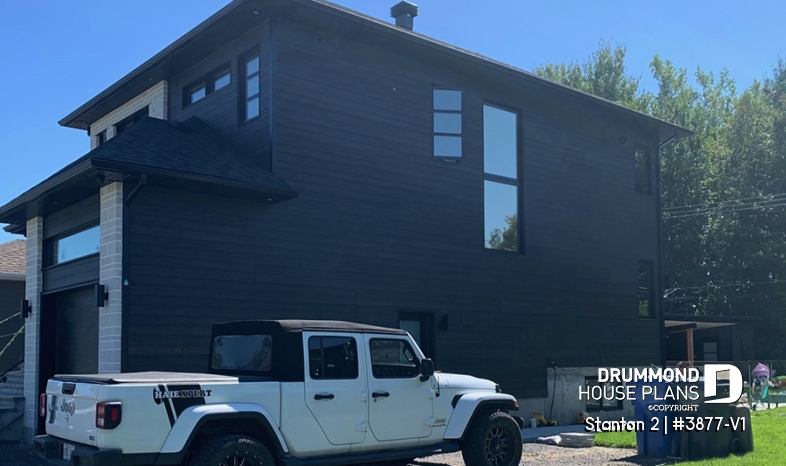

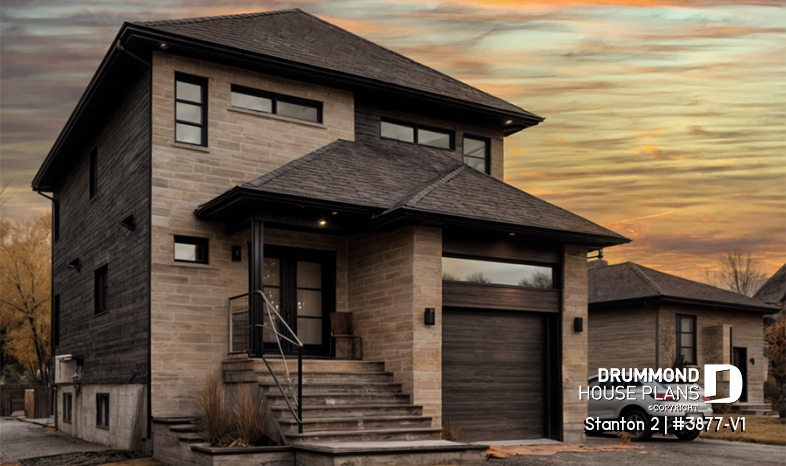

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

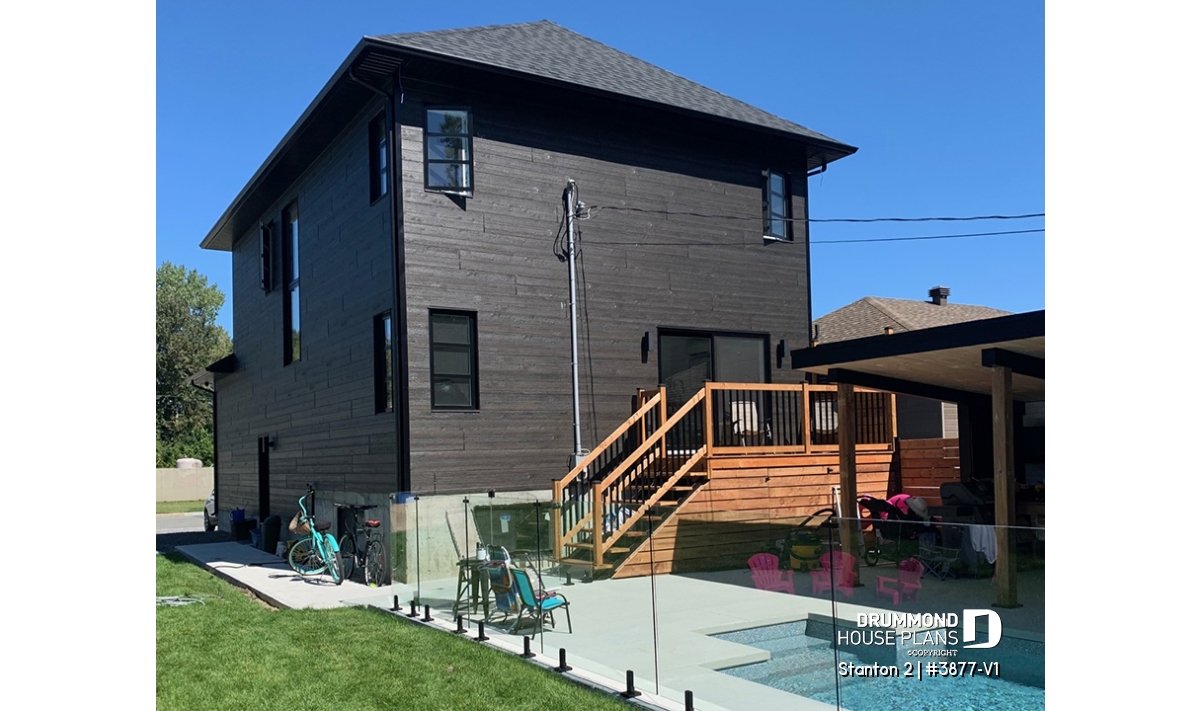

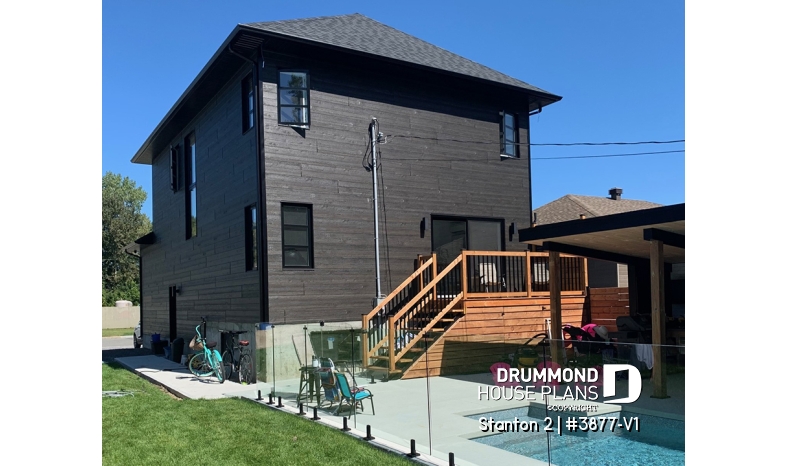

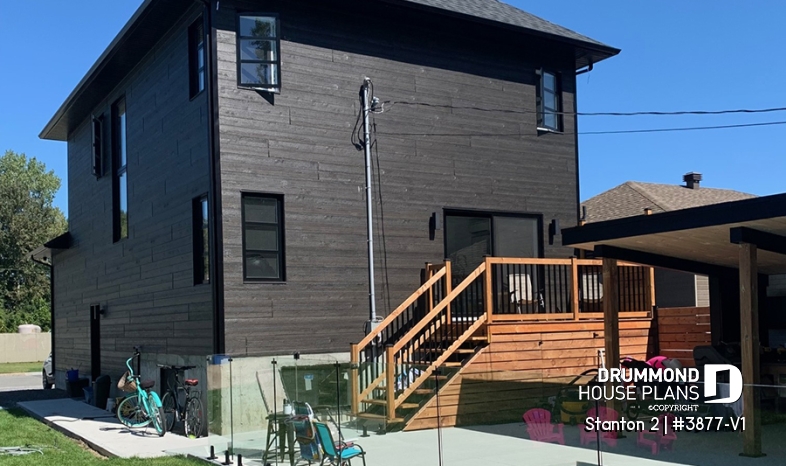

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

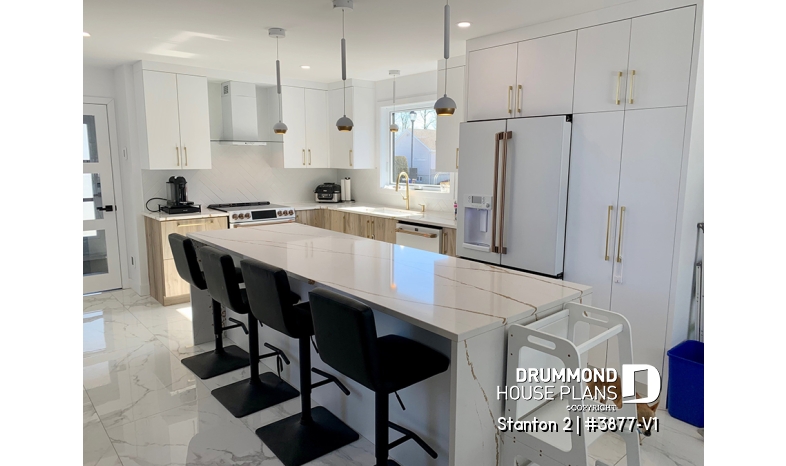

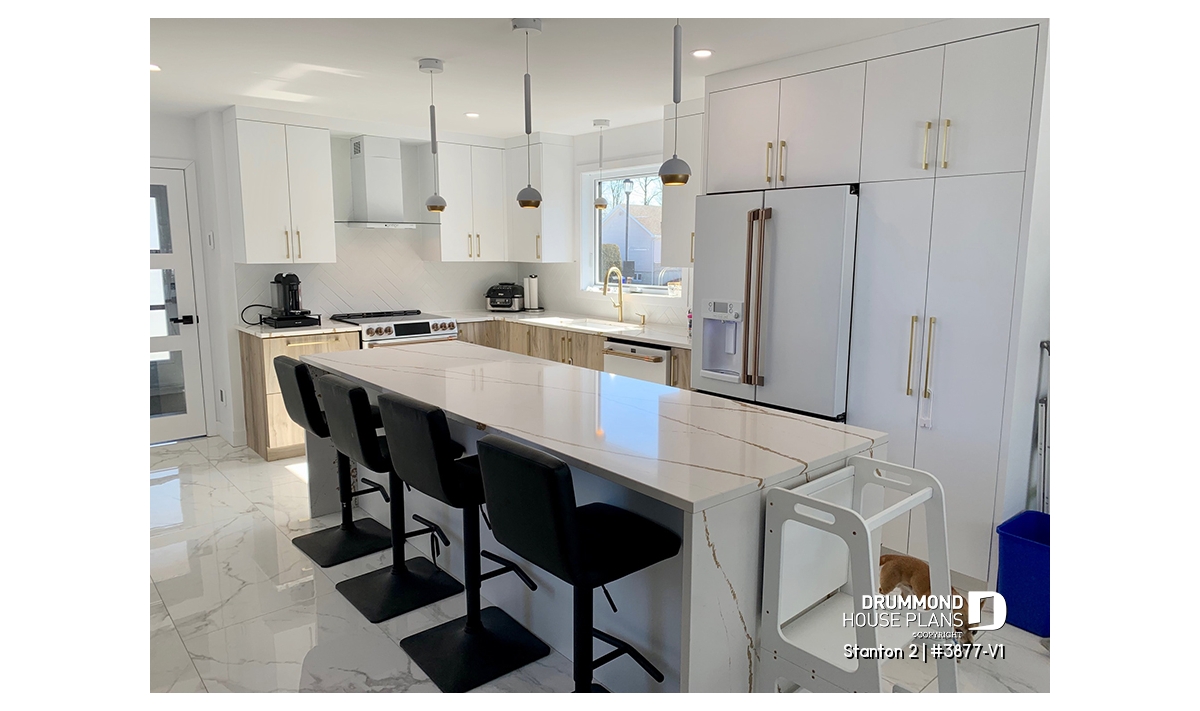

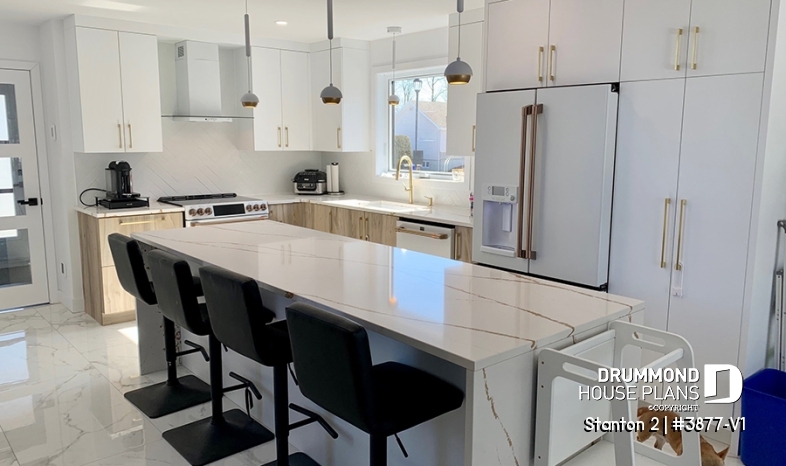

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Narrow lot modern house plan with garage and laundry room on second floor
This contemporary home with integrated garage is a mere 25 feet wide and therefore ideal for narrow lots. Still there is no need to sacrifice curb appeal!
Greet your guests in comfort in a good-sized foyer with generous closet. The powder room is located by the entrance for convenience of arriving guests or discretion when visiting the very open activity areas.
A contemporary kitchen features generous storage and 7’x3’ island for light meals or social mingling. The open kitchen flows to a wonderfully windowed dining room which then flows to the adjoining living room. All of the social areas benefit from backyard vistas allowing for a private social oasis.
The entrance from the garage allows 7’ of flexible wall space that could be used for a closet, laundry or occasional storage.
Upstairs, careful use of space allows a master bedroom with ample room for a queen sized bed and, adjoining walk-in closet and private bathroom. Two secondary bedrooms are generous enough to accommodate double beds. The family bathroom includes a laundry for easy access.
Related models, 3877, 3876 and 3876-V1 are other attractive options for narrow lots.
Distinctive elements
Plan designed for narrow lots. Fully open activities area. Kitchen with 3'x7' island. Secondary bedrooms large enough for double beds. Master suite with walk-in closet and private bathroom.
Plan feature(s)
Second floor laundry room, Master suite upstairs, Walk-in master bed., Island, Open floor layout, Panoramic view, Entrance hall, Separate bath and shower, Builder
Plan architectural style(s)
. Contemporary, . Modern / Design, . Transitional, . Modern rustic
Similar plans
Previously Viewed Plans
Questions and comments
February 10
Darlene
Is it 2 levels plus basement or is level one the basement
February 10
Customer service
Good day and thank you for your interest in this plan.
There are 2 levels, the main floor which has 757 sq.ft. of living space and the upstairs which has 922 sq.ft. of living space but there is also a full, unfinished basement with 8' ceilings that can be finished with the divisions required to meet your needs and thus add extra living space.
The square footage of the actual, unfinished basement is not calculated as living space at this point but is spans the width and depth of the first floor minus the garage.
I hope that my answer has been helpful. Please let me know if you have any other questions or comments.
Regards
Deb
