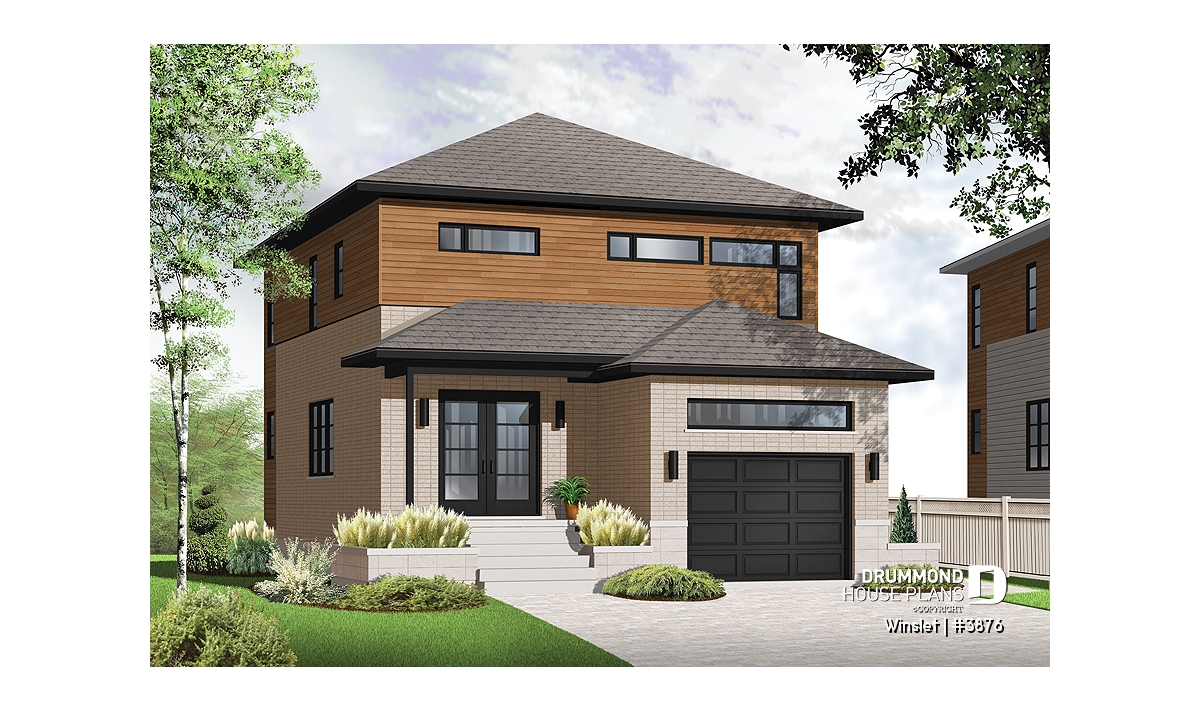

front - BASE MODEL

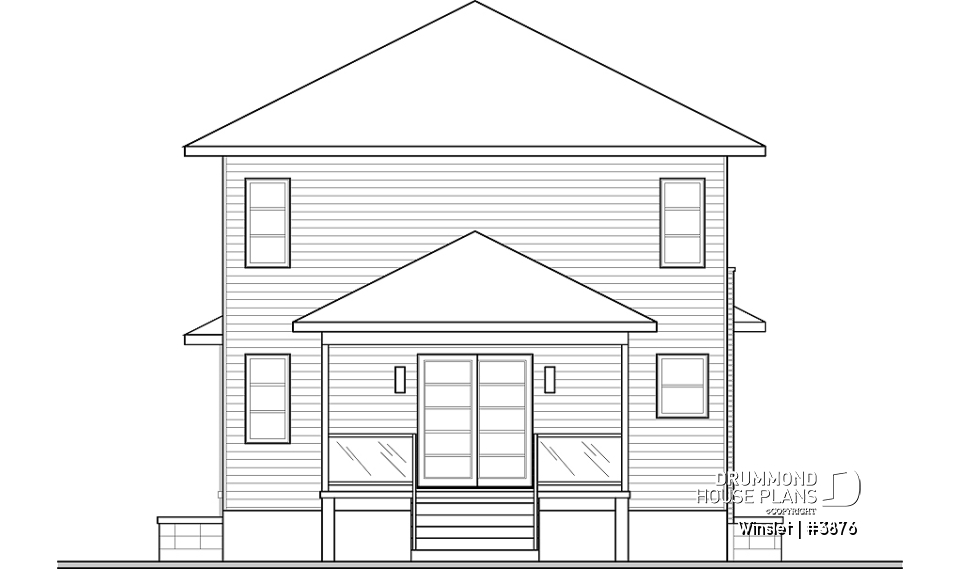

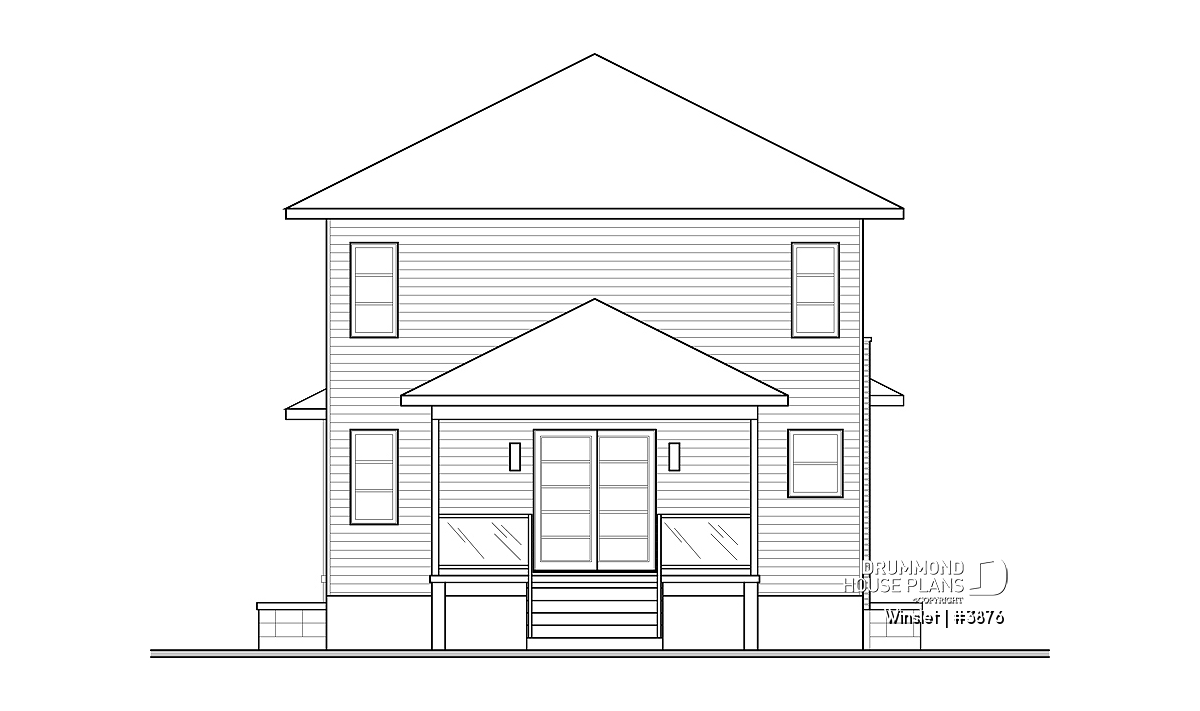

rear elevation

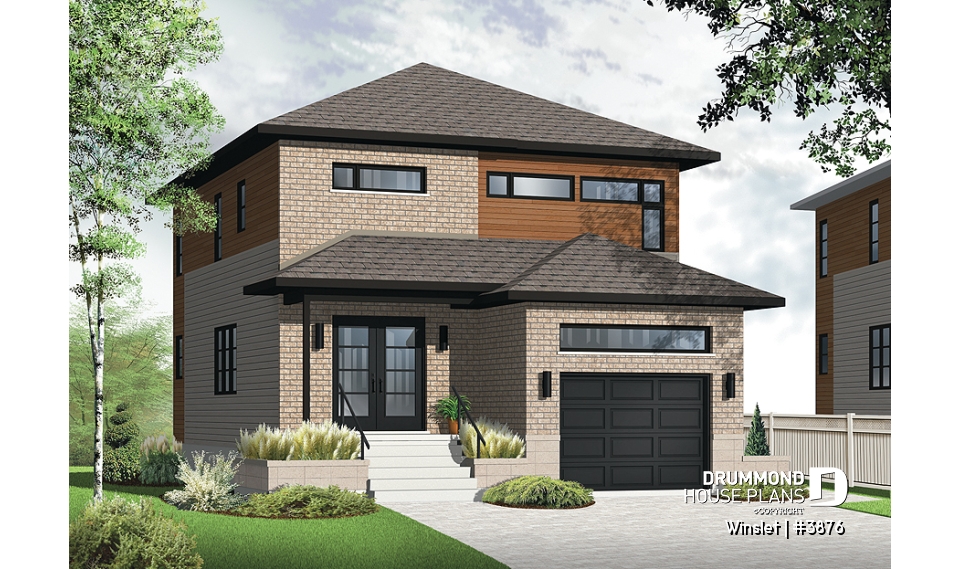

Color version 1 - Front

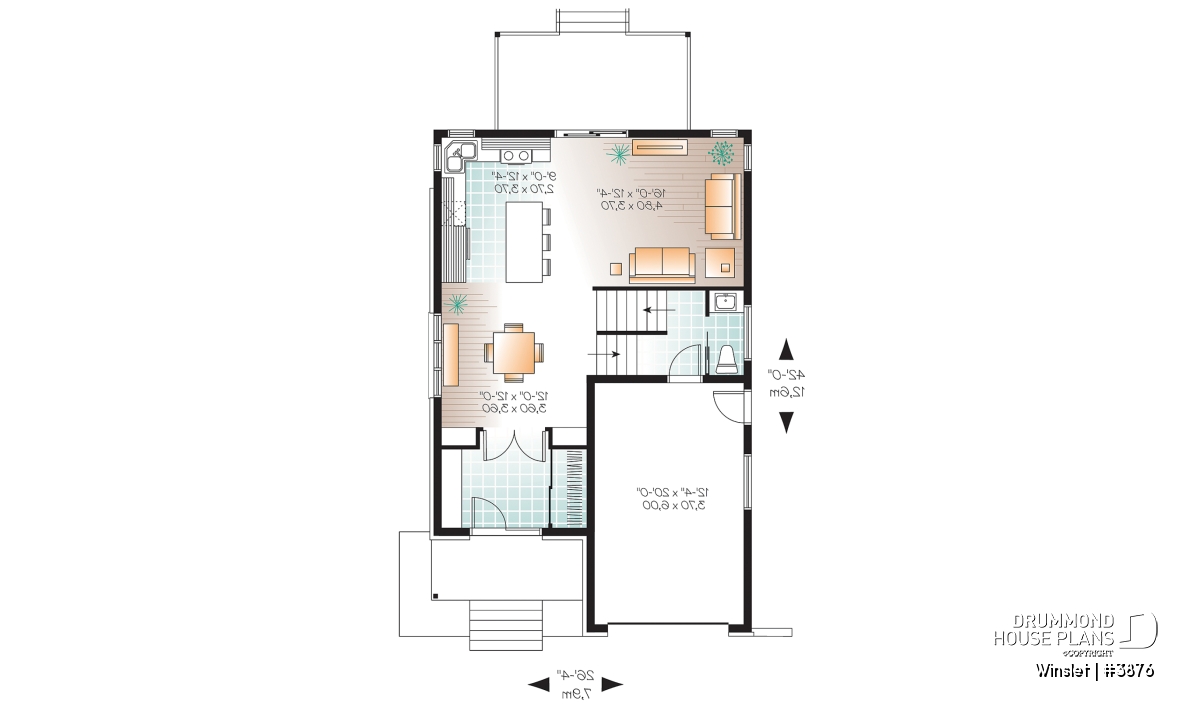

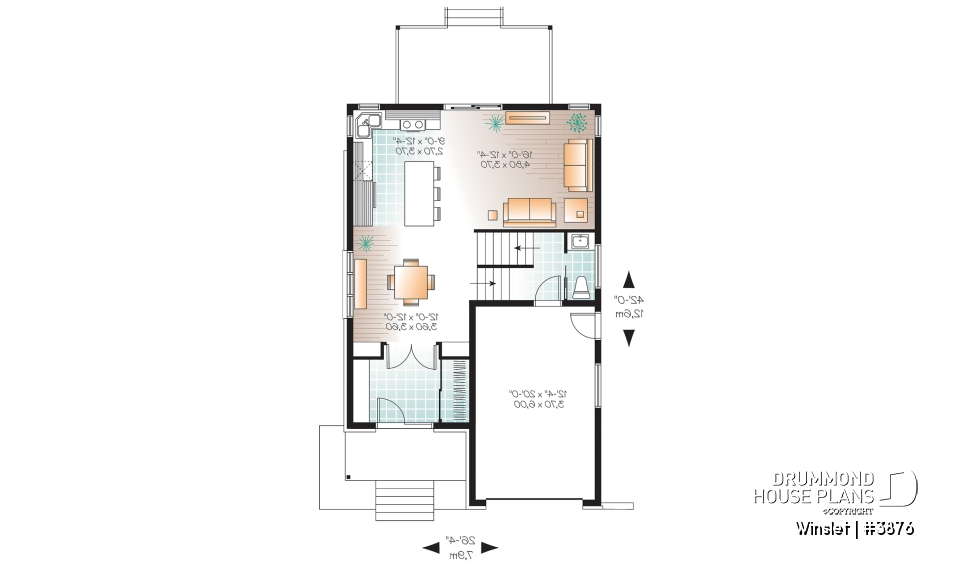

1st level

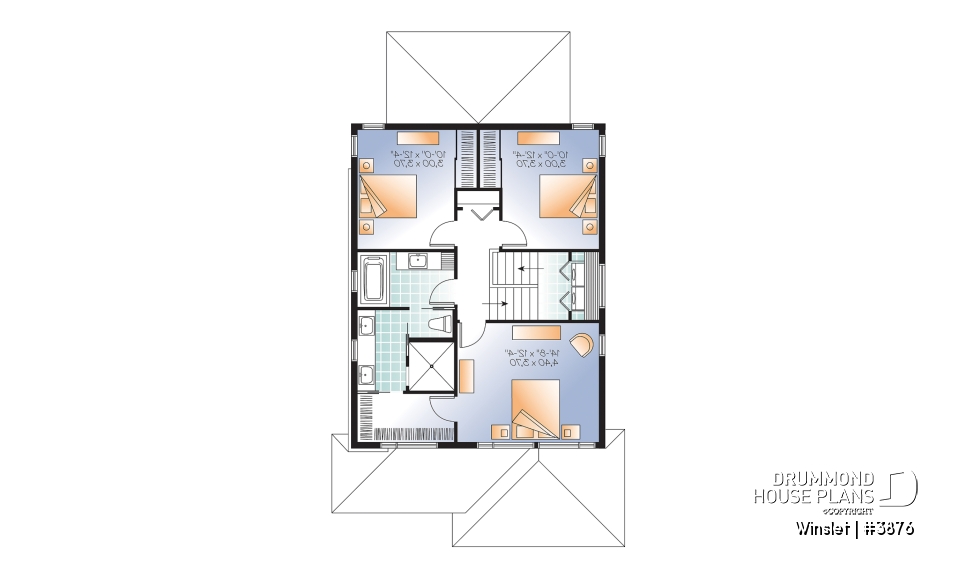

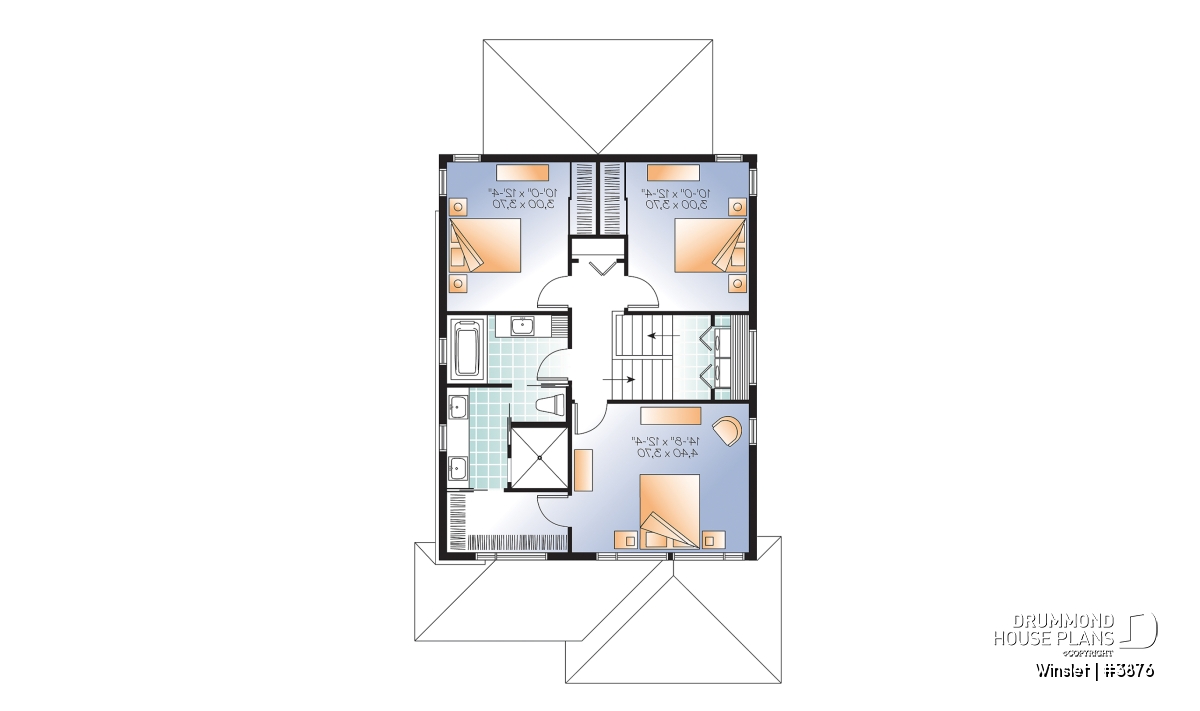

2nd level

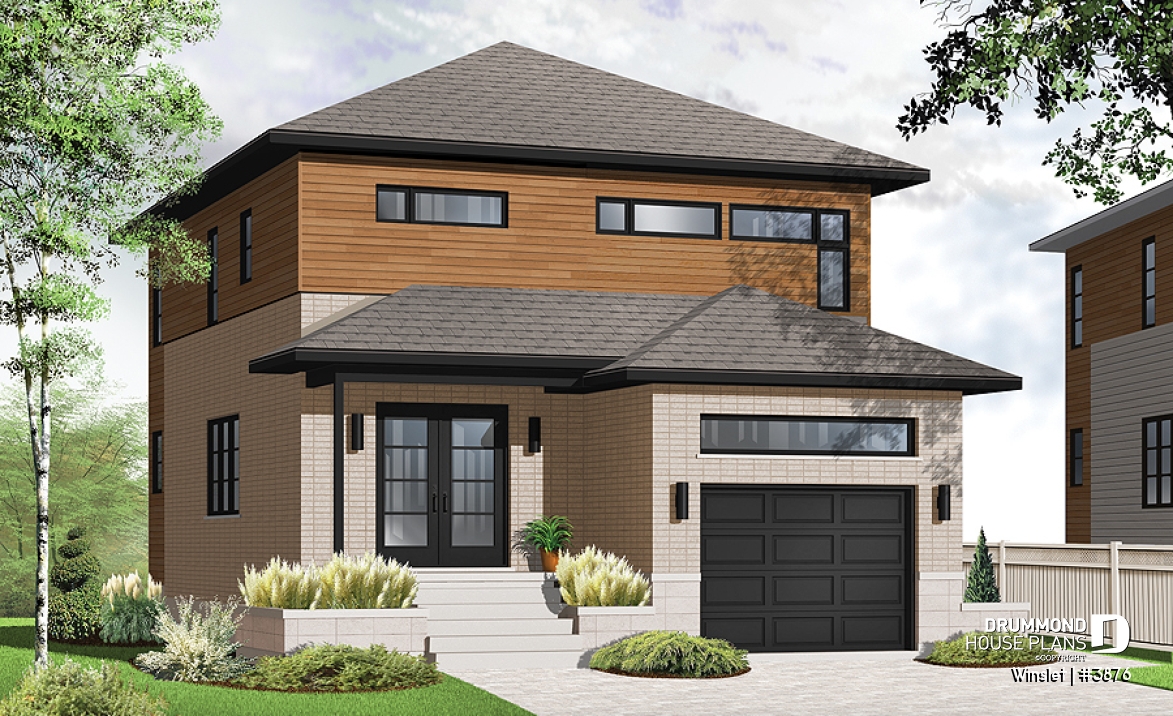

front - BASE MODEL

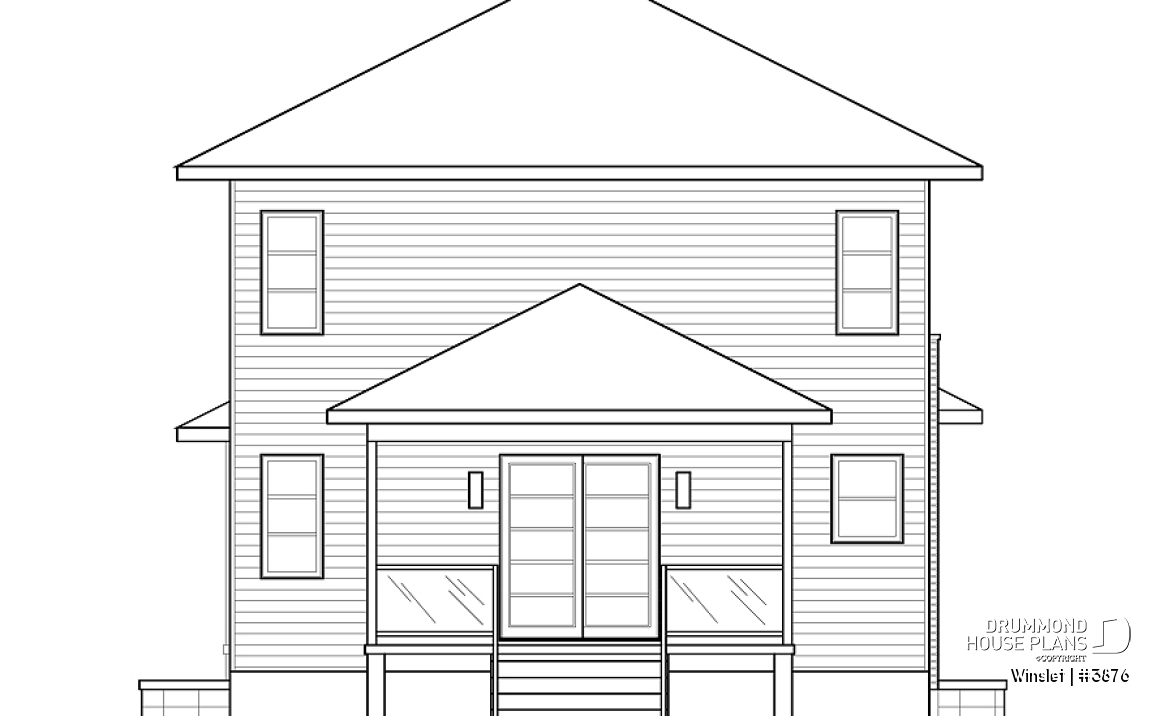

rear elevation

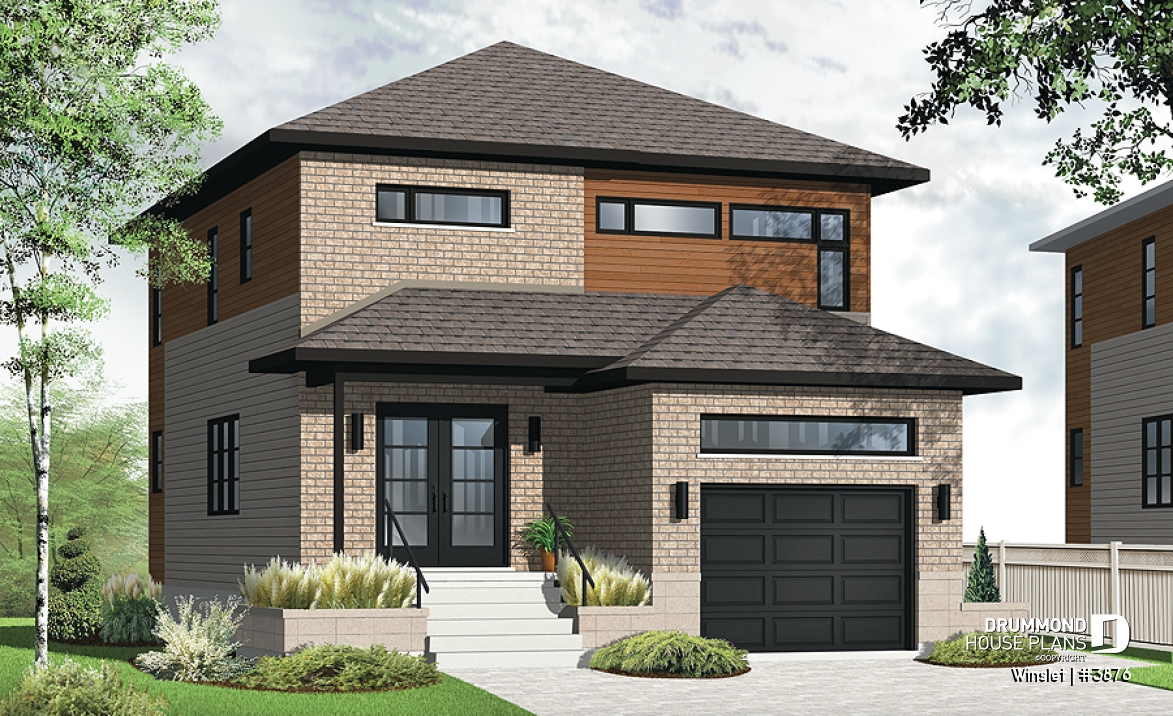

Color version 1 - Front

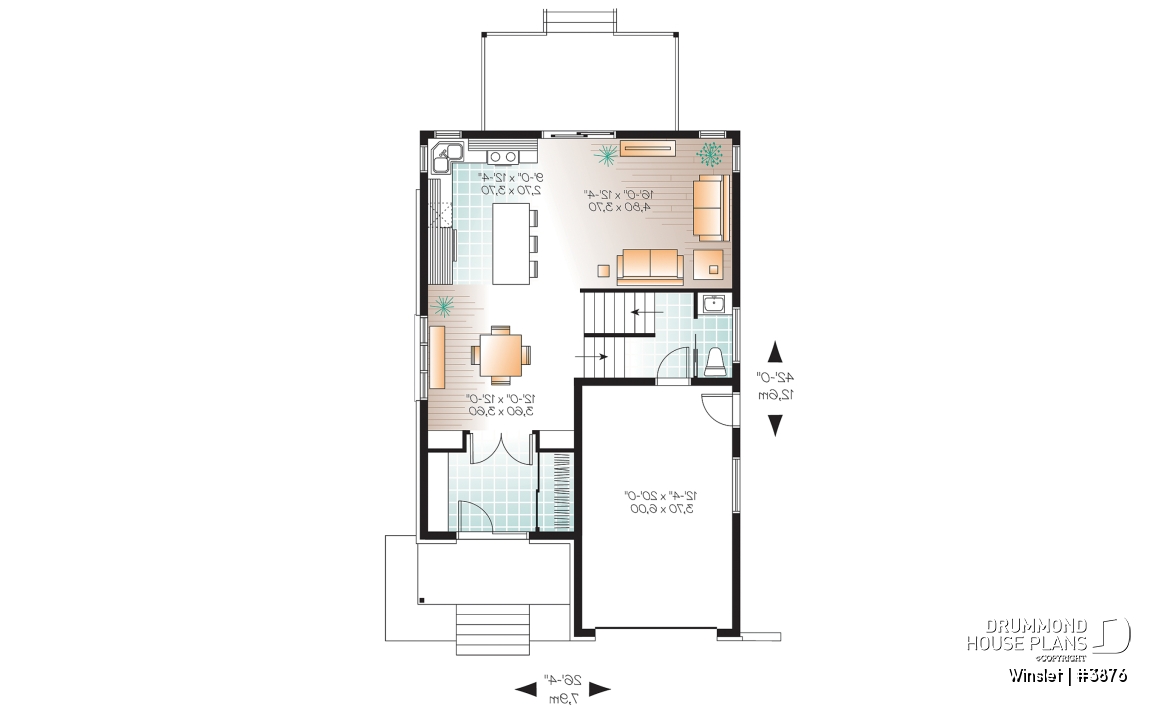

1st level

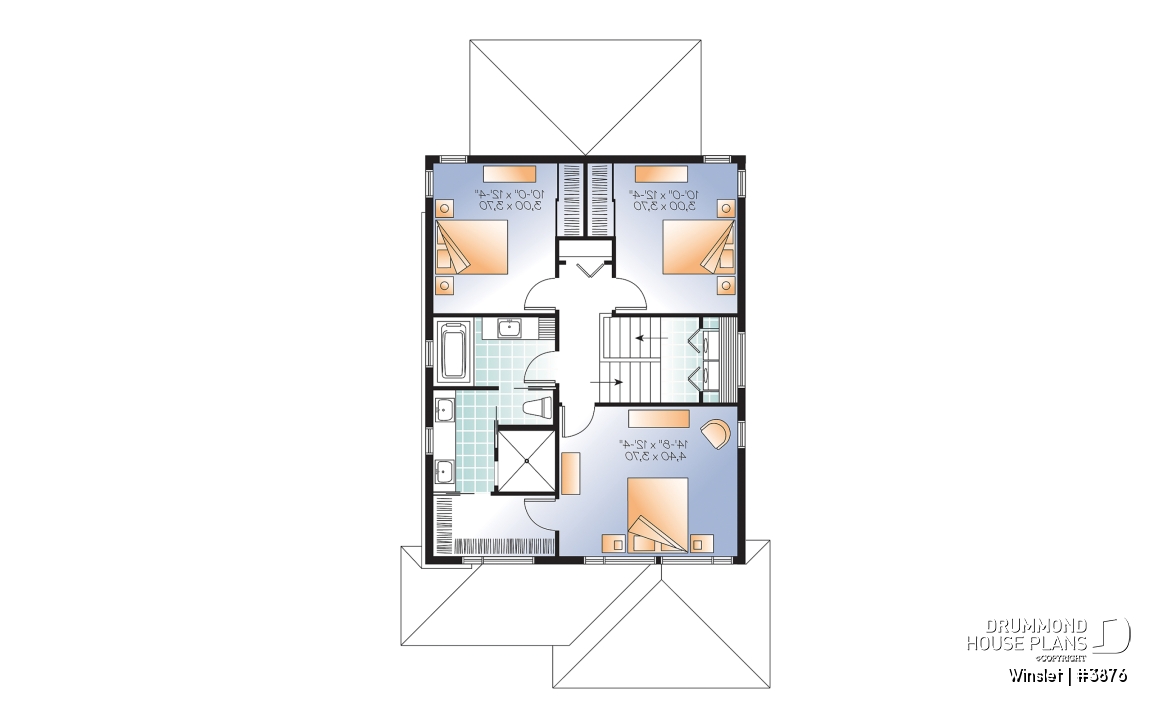

2nd level
House plan Winslet (# 3876) Modern narrow lot house plan with garage, large kitchen, 3 bedrooms, master with ensuite, covered terrace
3
1.5
1617 sq.ft.
One-car garage
Starting from
1680$
Additional details
General specifications
Total living area
1617 sq.ft.
1st level
726 sq.ft.
2nd level
891 sq.ft.
Width
26'4"
Depth
42'0"
Ridge height from top of foundation
28'7"
Exterior wall
2 X 6
Unfinished Basement
Builder price code
D
Rooms specifications
Bedroom(s)
3
Full baths
1
Half baths
1
Garage type
One-car garage (281 sq.ft.)
Covered porch area
-
1st level
Rooms
Sizes
Ceiling
Kitchen/dinette
9'0" x 12'4"
~ 8'0"
Pantry
1'8" x 2'0"
N/A
Half bath or powder room
2'10" x 7'0"
~ 8'0"
Foyer
8'10" x 6'6"
~ 8'0"
Closet
3'0" x 6'6"
~ 8'0"
Garage
12'4" x 20'0"
~ 11'0"
Living room
16'0" x 12'4"
~ 8'0"
Dining room
12'0" x 12'0"
~ 8'0"
2nd level
Rooms
Sizes
Ceiling
Bedroom
14'8" x 12'4"
~ 8'0"
Closet
10'0" x 5'0"
~ 8'0"
Shower room or three quarter bath
10'0" x 8'4"
~ 8'0"
Bedroom
10'0" x 12'4"
~ 8'0"
Closet
2'0" x 6'0"
~ 8'0"
Bedroom
10'0" x 12'4"
~ 8'0"
Closet
2'0" x 6'0"
~ 8'0"
Linen
4'4" x 1'8"
~ 8'0"
Full bathroom
10'0" x 14'4"
~ 8'0"
Laundry room
2'10" x 7'0"
~ 8'0"
Modern amenities for narrow lot Modern house plan, master suite, garage and more!
Produced in the wake of some other models designed for narrow lots , this model also incorporates contemporary style , providing a very attractive solution for narrow lots.
A generous covered entry leads to an enclosed foyer flanked by a generous closet and a built-in bench. A beautifully flowing activities area begins at the brightly windowed dining area which flows on to an L-shaped kitchen with large island. The adjoining family room enjoys easy access to a covered 16’ x 8’ outdoor room, ideal for lounging or grilling.A discreet powder room is located down a half-flight of stairs, adjacent to the garage entrance.
Upstairs, the master bedroom enjoys a private corner of the level, walk-in closet, and private bathroom access. Two additional bedrooms boast generous space and large closets. A shared compartmentalized bathroom allows private bathing and grooming spaces. A laundry closet is ideally located between the levels.
A generous covered entry leads to an enclosed foyer flanked by a generous closet and a built-in bench. A beautifully flowing activities area begins at the brightly windowed dining area which flows on to an L-shaped kitchen with large island. The adjoining family room enjoys easy access to a covered 16’ x 8’ outdoor room, ideal for lounging or grilling.A discreet powder room is located down a half-flight of stairs, adjacent to the garage entrance.
Upstairs, the master bedroom enjoys a private corner of the level, walk-in closet, and private bathroom access. Two additional bedrooms boast generous space and large closets. A shared compartmentalized bathroom allows private bathing and grooming spaces. A laundry closet is ideally located between the levels.
Distinctive elements
Foyer with 36"x78" coat closet and integrated bench.Dining room with built-in furniture. Kitchen with 36"x80" eating island. Three bedrooms upstairs including the master with walk-in closet and access to a well-organized bathroom including a 56"x60" shower and two separate vanities. 16'x8' covered rear deck.
Plan feature(s)
Open floor layout, Separate bath and shower, Island, Double sinks, Second floor laundry room, Master suite upstairs, Covered patios, Entrance hall, Walk-in master bed.
Plan architectural style(s)
The plan Winslet is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
