House plan Bellcast (3905)
Reverse floor plan waterfront chalet house plan with 3 to 4 bedrooms, open floor plan layout on second floor
View the size of the rooms and height of the ceilings

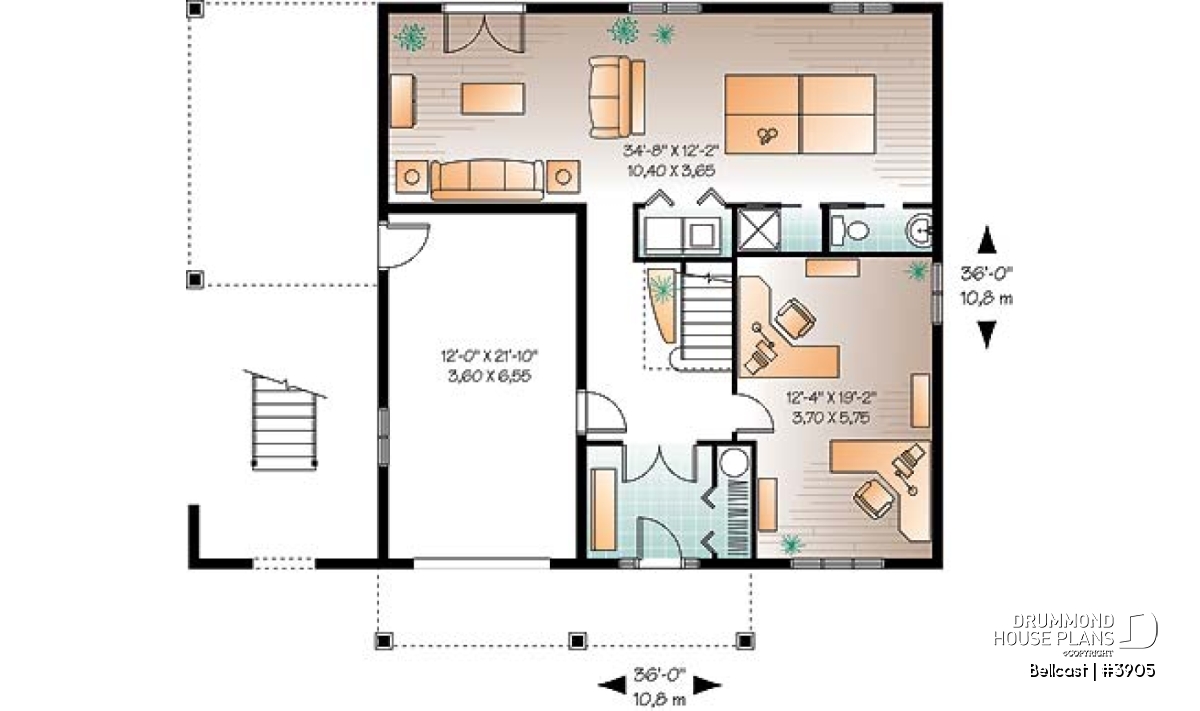

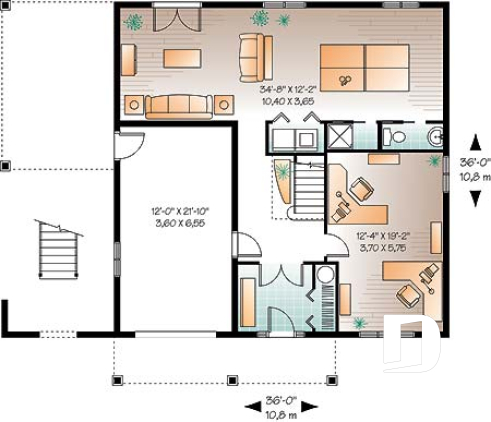

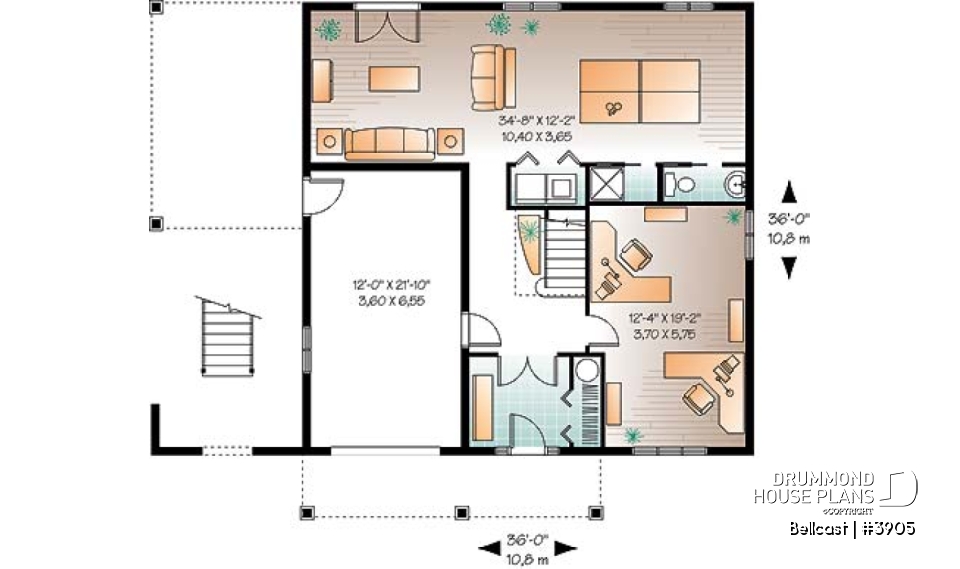

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Home office | 12'4" x 22'2" | ~ 8'0" |
| Foyer | 8'2" x 6'0" | ~ 8'0" |
| Garage | 12'0" x 21'10" | ~ 8'0" |
| Living bonus room | 34'8" x 12'2" | ~ 8'0" |

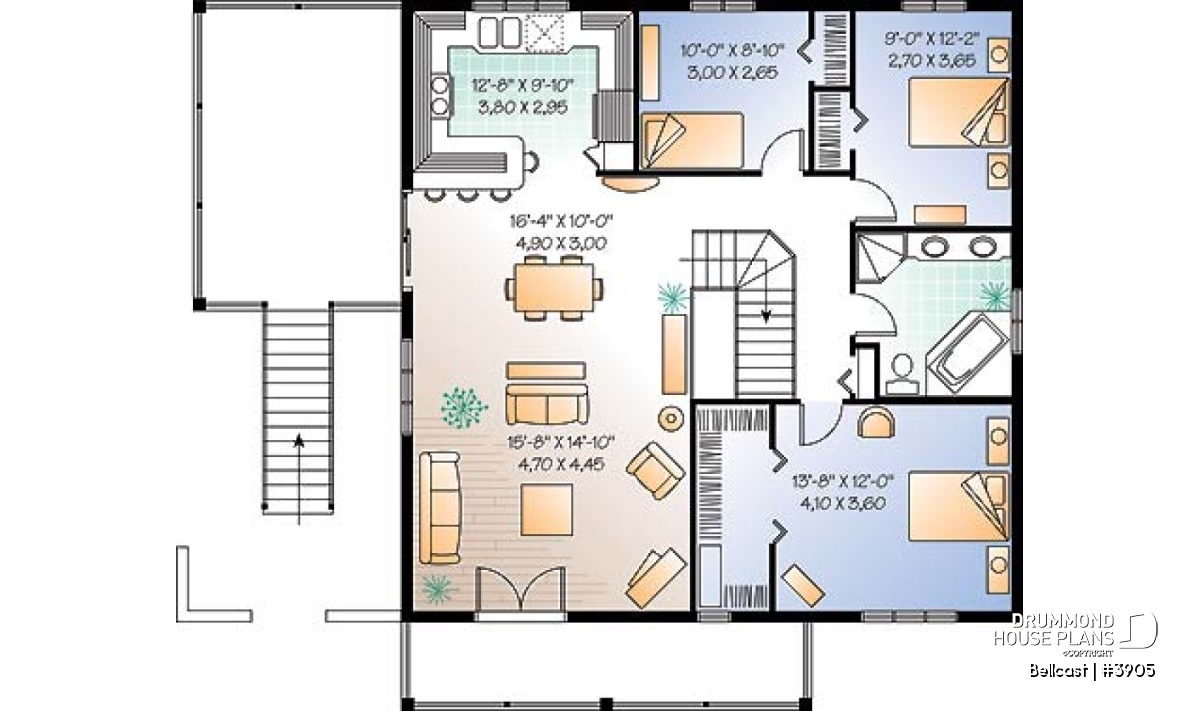

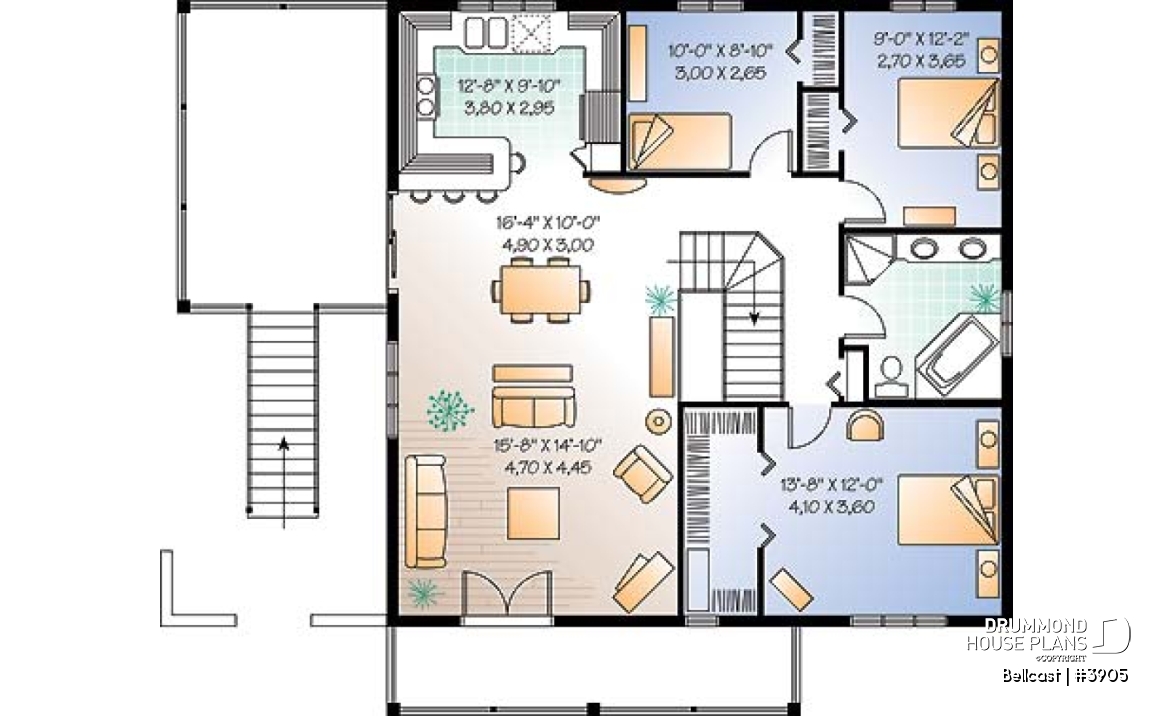

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'0" x 9'10" | ~ 9'0" |
| Kitchen | 12'8" x 10'0" | ~ 9'0" |
| Dining room | 16'4" x 10'0" | ~ 9'0" |
| Living room | 15'8" x 14'10" | ~ 9'0" |
| Bedroom | 13'8" x 12'0" | ~ 9'0" |
| Bedroom | 9'0" x 12'2" | ~ 9'0" |
| Bedroom | 10'0" x 8'10" | ~ 9'0" |
| Linen | 1'0" x 3'0" | ~ 9'0" |
| Balcony | 23'8" x 5'0" | N/A |
| Terrace | 12'0" x 18'0" | N/A |
General specifications
| Total living area | 2307 sq.ft. |
| 1st level | 1011 sq.ft. |
| 2nd level | 1296 sq.ft. |
| Width | 36'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 28'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications
front

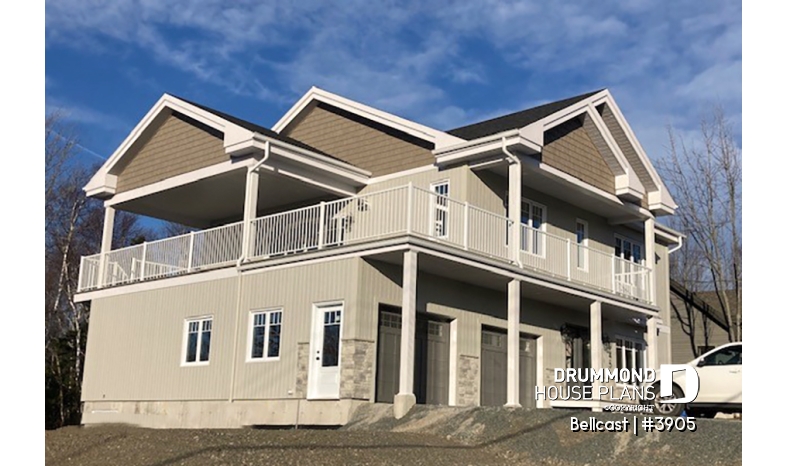

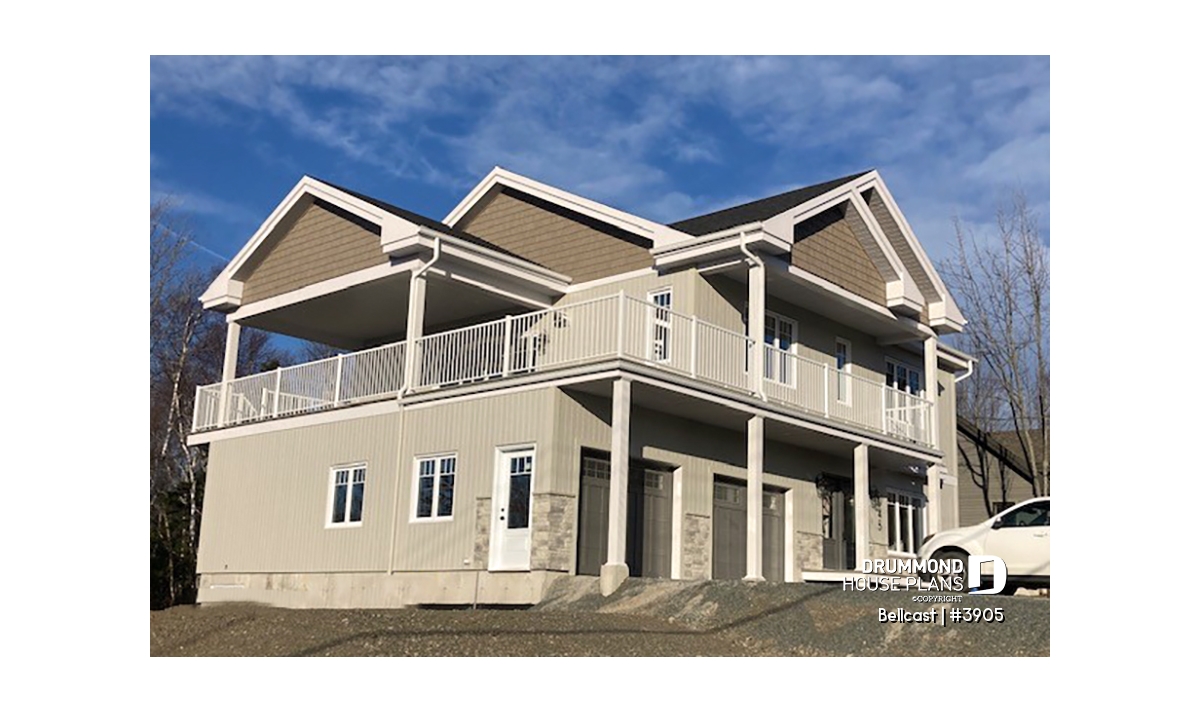

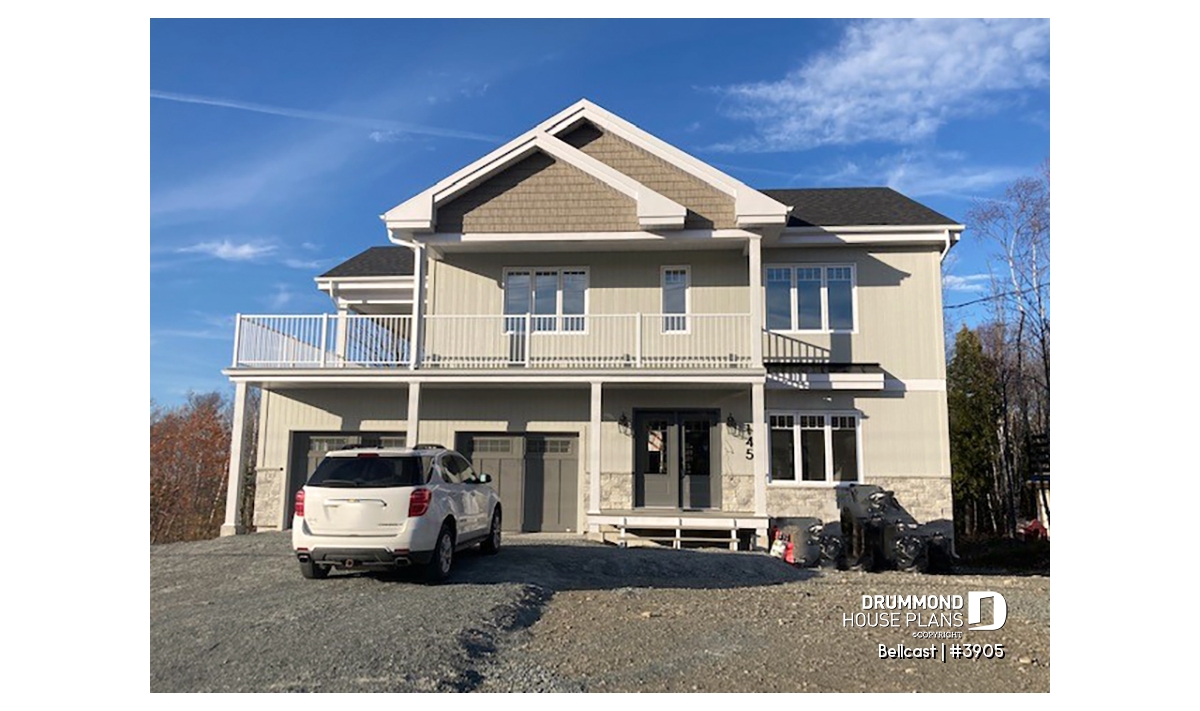

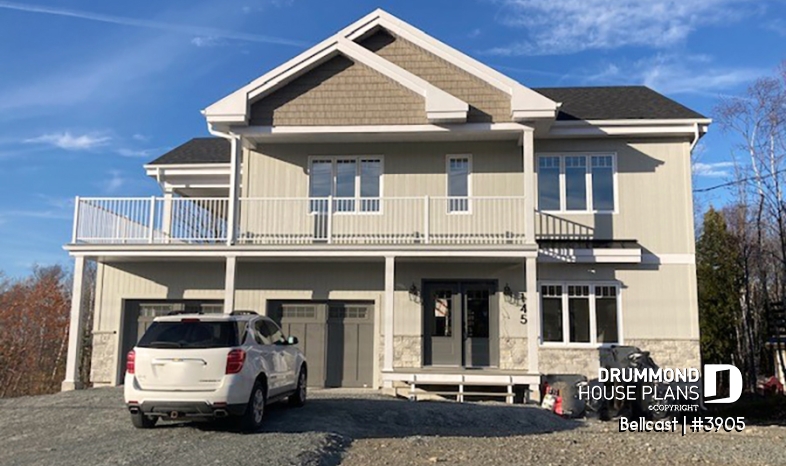

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front

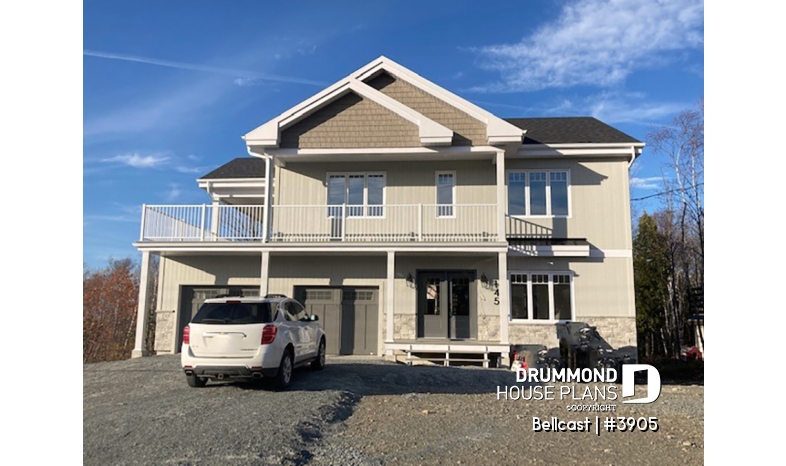

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

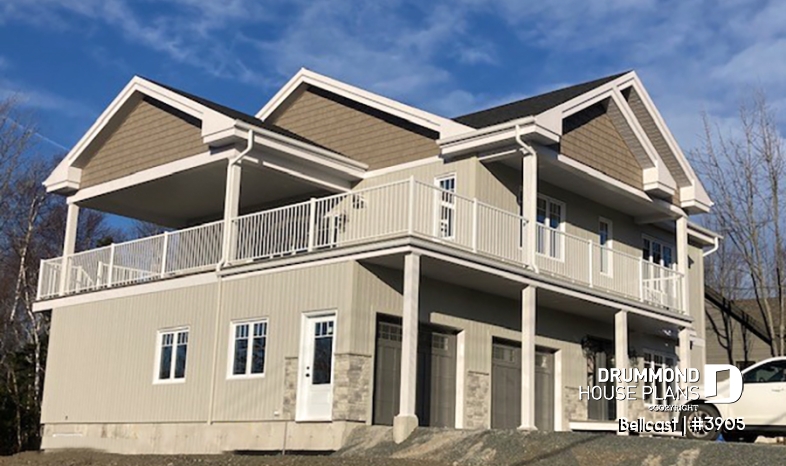

Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Reverse floor plans ski chalet with 3 to 4 bedrooms.
.
Distinctive elements
9' Ceiling on second level. Large office space and a large family room / game room on main level. Three bedrooms on second level, one of which is master bedroom with large walk-in closet. Dual sinks, corner bath and independant shower in bathroom.
Plan feature(s)
Deck, Walk-in master bed., Gound floor laundry room, Inverted living, Balcony 2nd floor, Ceiling over 8', Office / Study / Den, Game room
Plan architectural style(s)
. Country, . Rustic, . Traditional, . Ski chalets, . Vacation and waterfront, . Cottage, chalet, cabin, . Mountain
