Reverse floor plan waterfront chalet house plan with 3 to 5 bedrooms, open floor plan layout on second floor
View the size of the rooms and height of the ceilings
|Home office||12'4" x 22'2"||~ 8'0"|
|Foyer||8'2" x 6'0"||~ 8'0"|
|Garage||12'0" x 21'10"||~ 8'0"|
|Living bonus room||34'8" x 12'2"||~ 8'0"|
|Full bathroom||9'0" x 9'10"||~ 9'0"|
|Kitchen||12'8" x 10'0"||~ 9'0"|
|Dining room||16'4" x 10'0"||~ 9'0"|
|Living room||15'8" x 14'10"||~ 9'0"|
|Bedroom||13'8" x 12'0"||~ 9'0"|
|Bedroom||9'0" x 12'2"||~ 9'0"|
|Bedroom||10'0" x 8'10"||~ 9'0"|
|Linen||1'0" x 3'0"||~ 9'0"|
|Balcony||23'8" x 5'0"||N/A|
|Terrace||12'0" x 18'0"||N/A|
|Total living area||2307 sq.ft.|

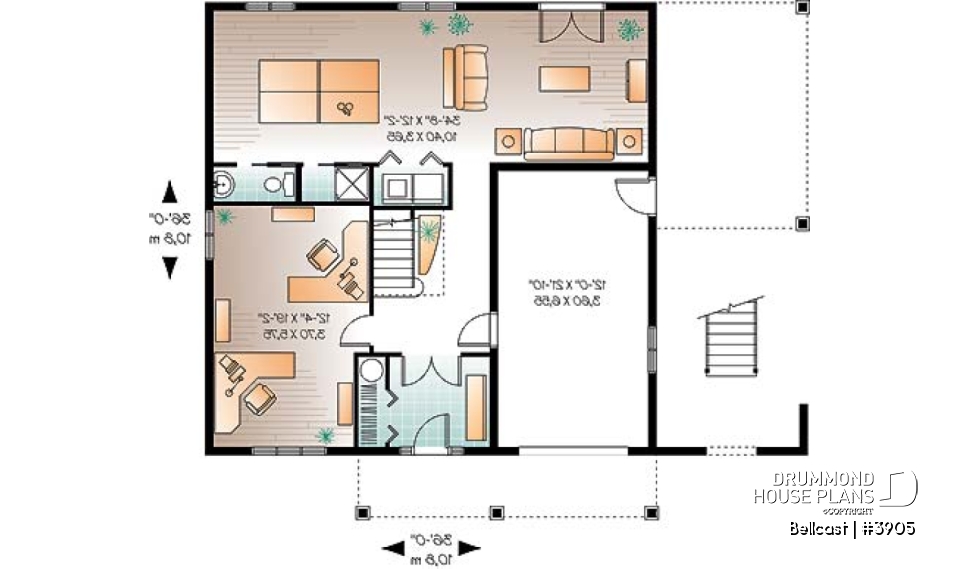

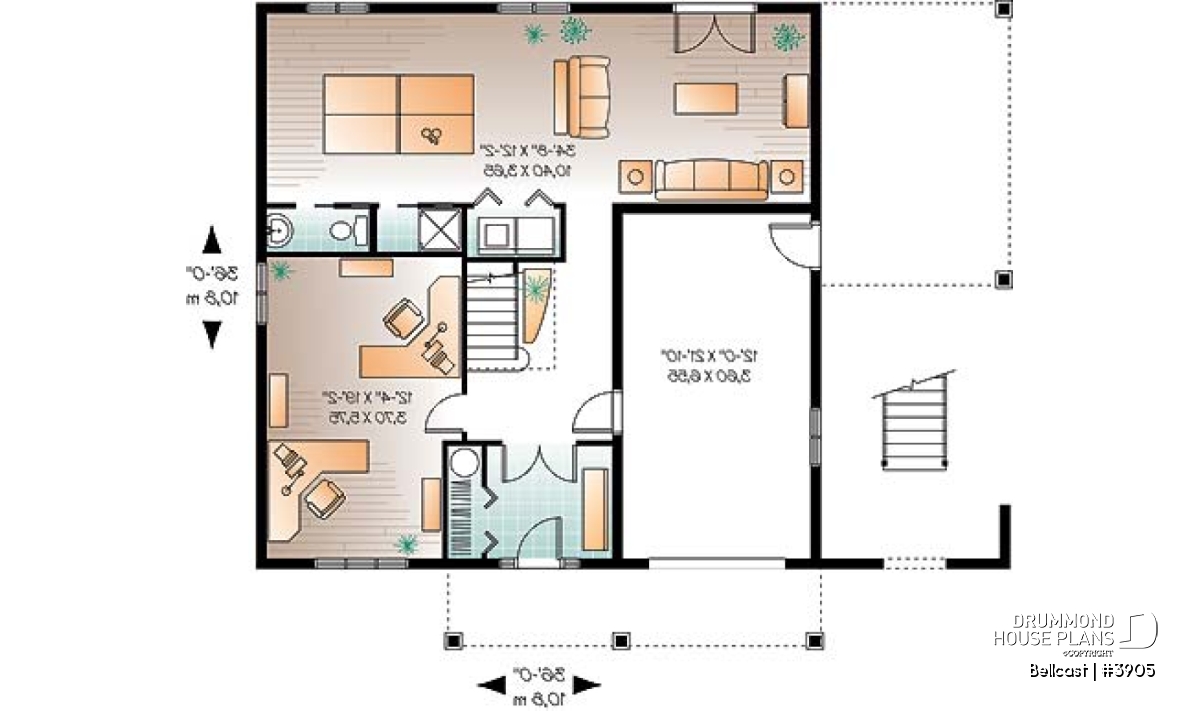

|1st level||1011 sq.ft.|

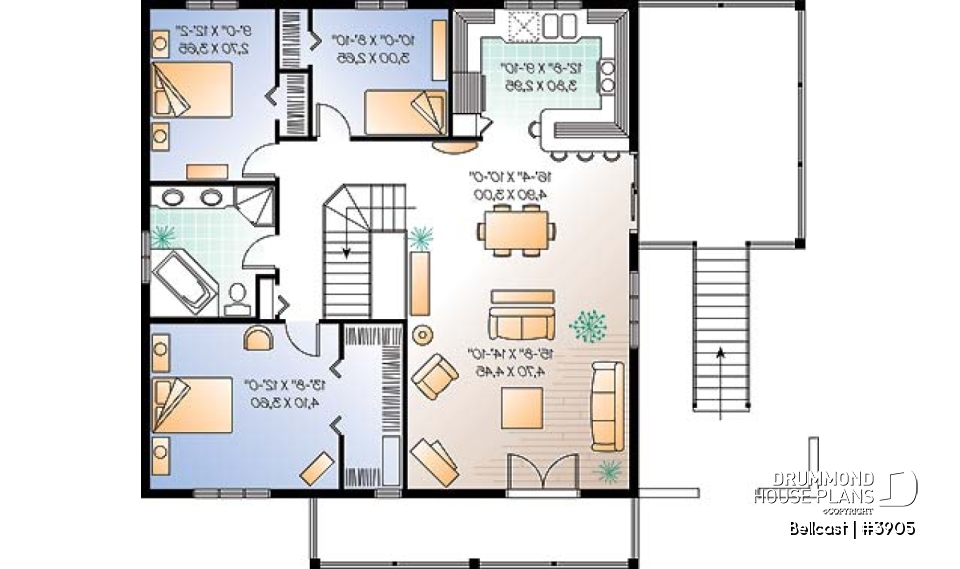

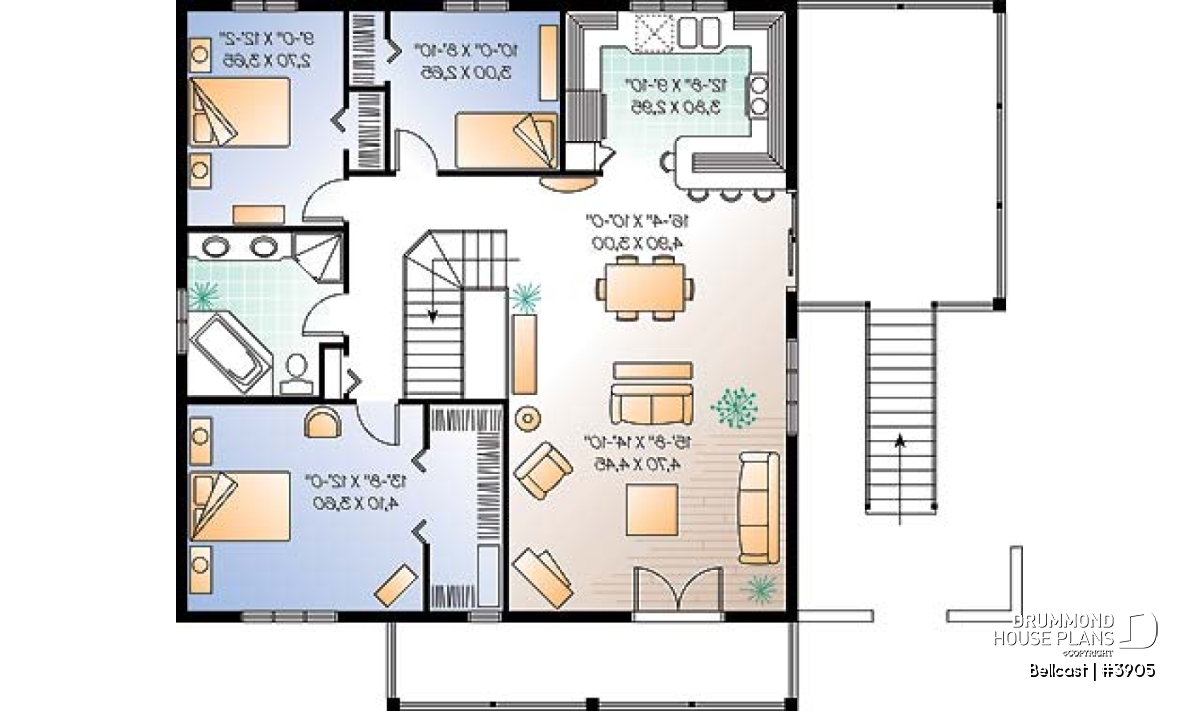

|2nd level||1296 sq.ft.|
|Ridge height from top of foundation||28'10"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Floating Slab|
|Other available foundations (a fee may apply)||Crawl space, Monolithic Slab|
|Builder price code||F|
|Bedroom(s)||3, 4, 5|
|Garage type||One-car garage (285 sq.ft.)|
|Living bonus space||-|
