Contemporary cottage plan, 3-4 beds, 2 family rooms large balcony, main living on second floor
View the size of the rooms and height of the ceilings

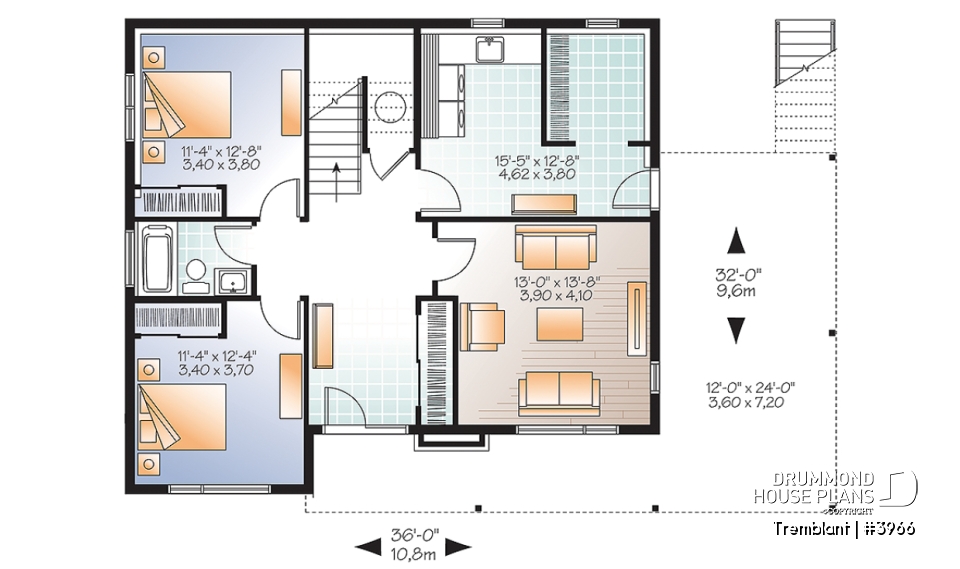

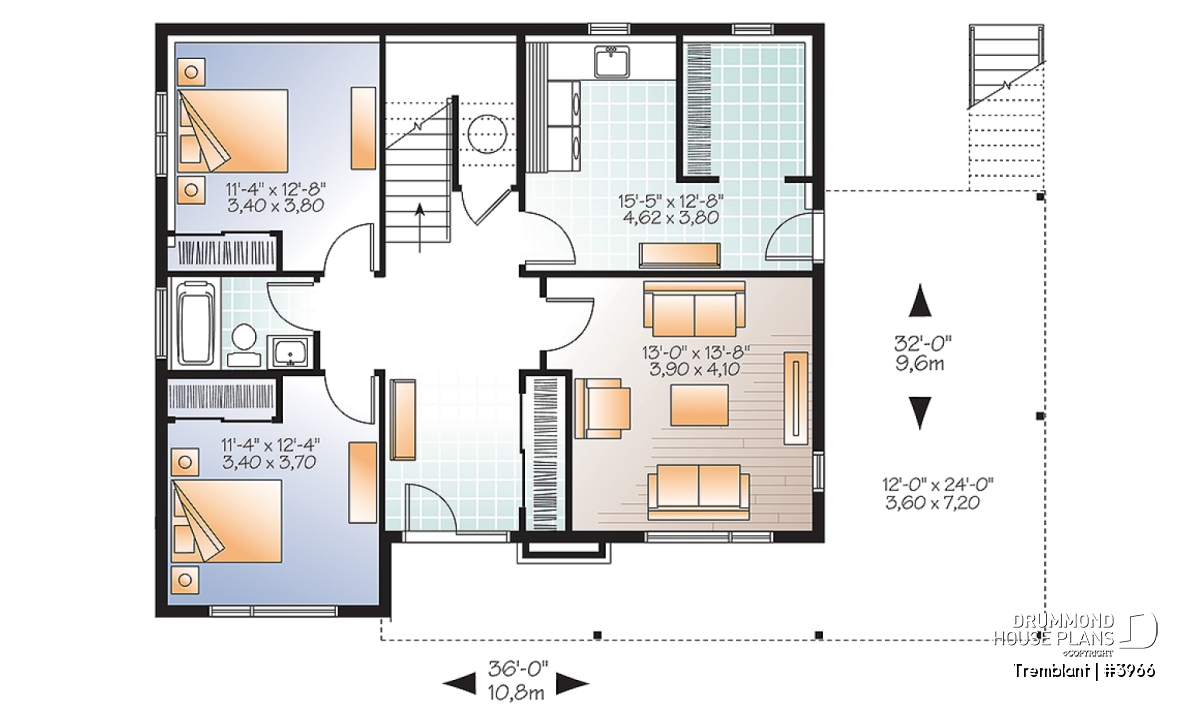

|Foyer||7'1" x 8'8"||~ 8'0"|
|Closet||2'2" x 8'4"||~ 8'0"|
|Utility room||15'5" x 12'8"||~ 8'0"|
|Bedroom||11'4" x 12'4"||~ 8'0"|
|Closet||5'10" x 2'0"||~ 8'0"|
|Bedroom||11'4" x 12'8"||~ 8'0"|
|Closet||5'10" x 2'0"||~ 8'0"|
|Bathroom||7'10" x 5'0"||~ 8'0"|
|Carport||12'0" x 24'0"||~ 8'11"|

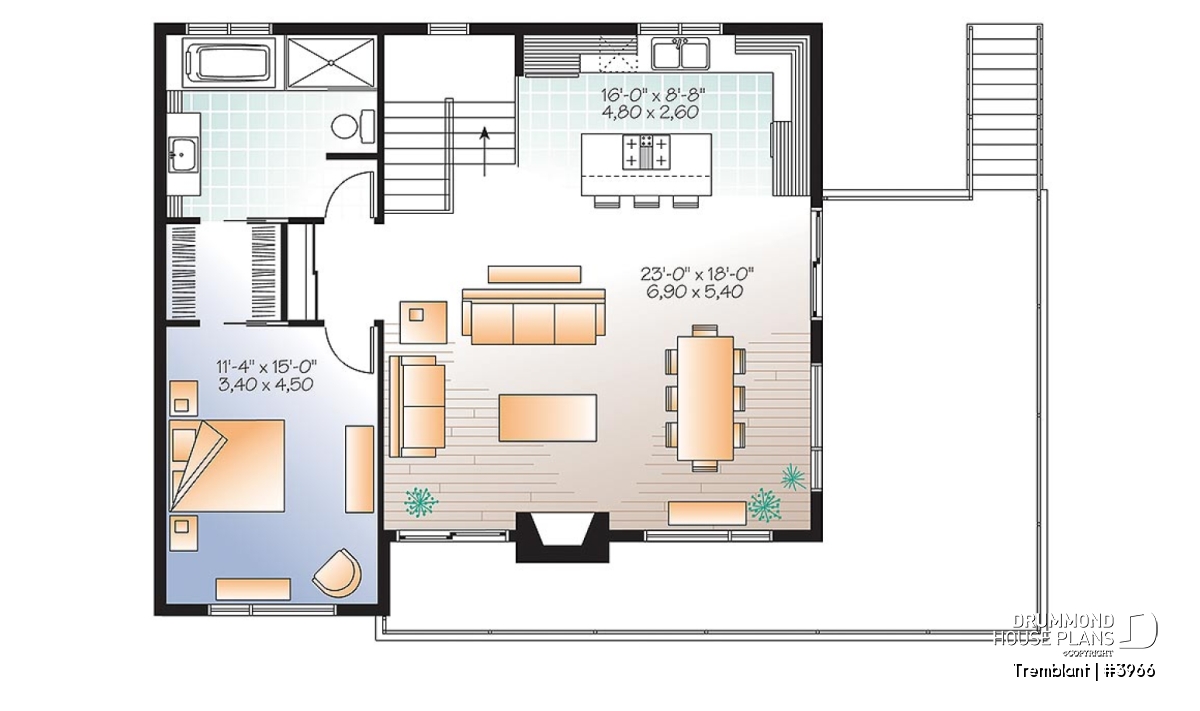

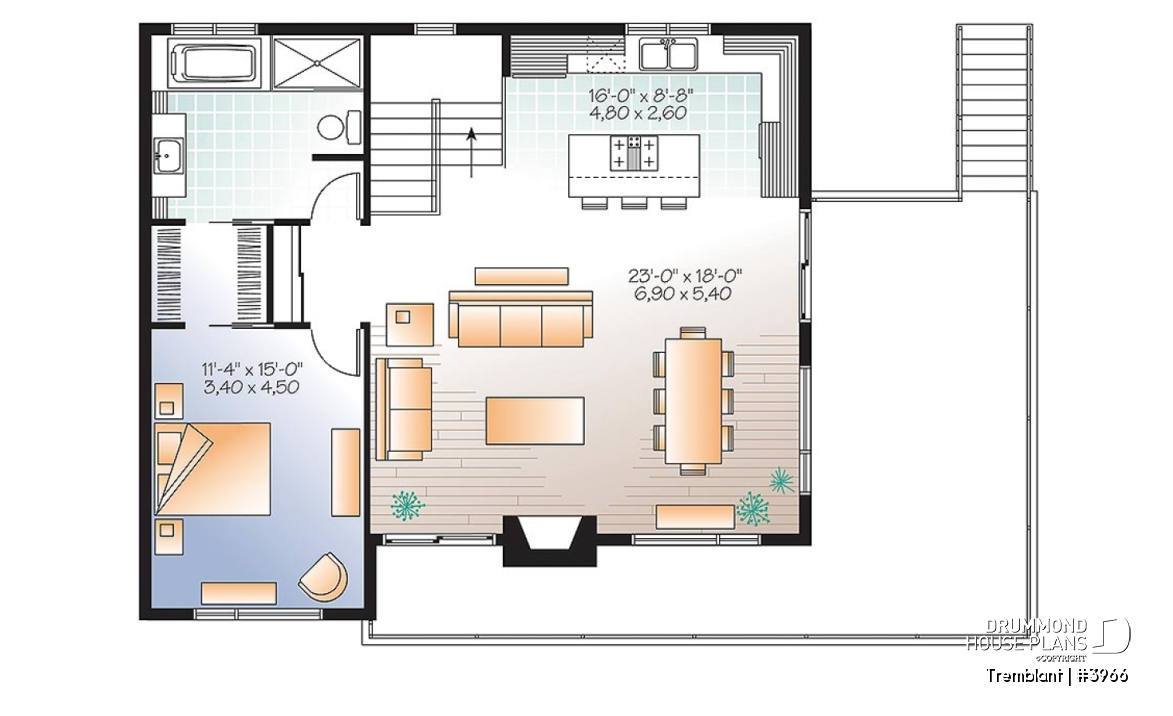

|Kitchen/dinette||16'0" x 8'8"||~ 9'0"|
|Living room/dining room||23'0" x 18'0"||~ 9'0"|
|Bedroom||11'4" x 15'0"||~ 9'0"|
|Walk-in closet||6'2" x 5'2"||~ 9'0"|
|Bathroom||11'4" x 9'10"||~ 9'0"|
|Storage||1'4" x 5'2"||~ 9'0"|
|Total living area||2118 sq.ft.|

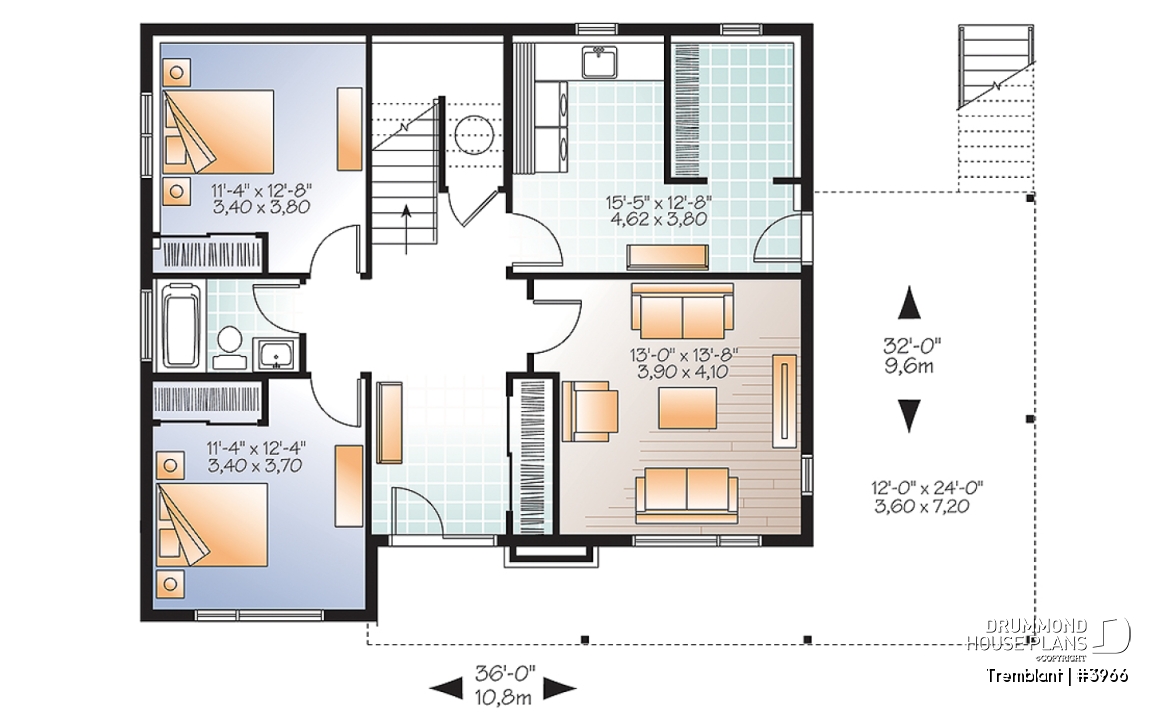

|1st level||1059 sq.ft.|

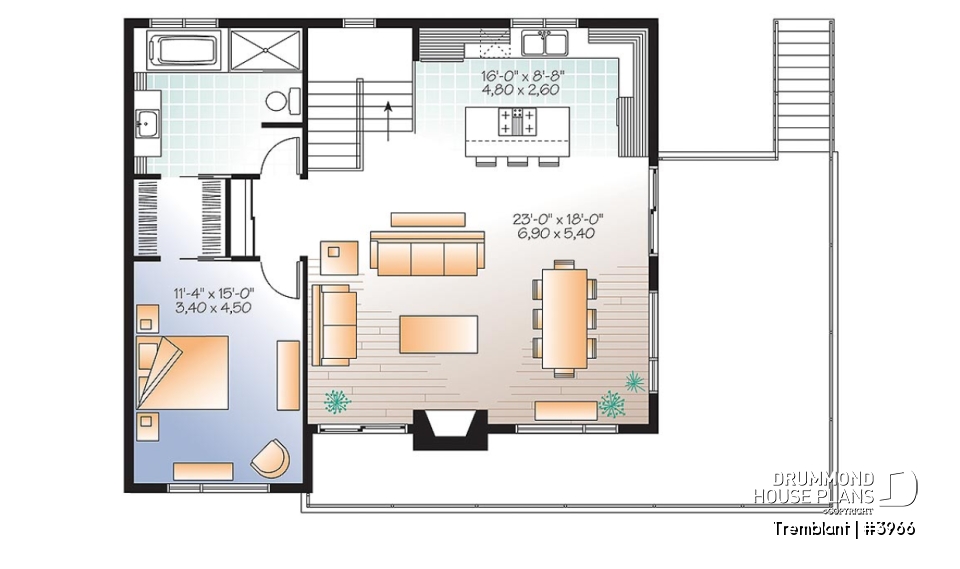

|2nd level||1059 sq.ft.|
|Ridge height from top of foundation||27'10"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Floating Slab|
|Other available foundations (a fee may apply)||Crawl space, Monolithic Slab|
|Builder price code||E|
|Living bonus space||-|
Other useful information on this plan
