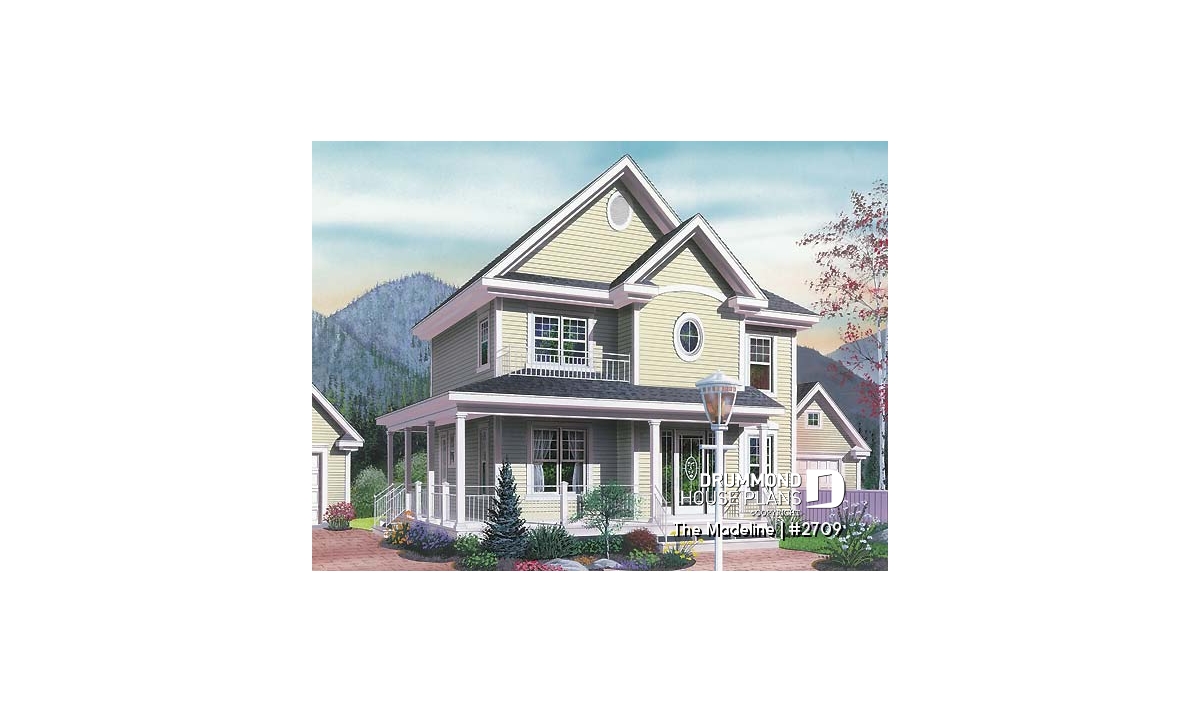

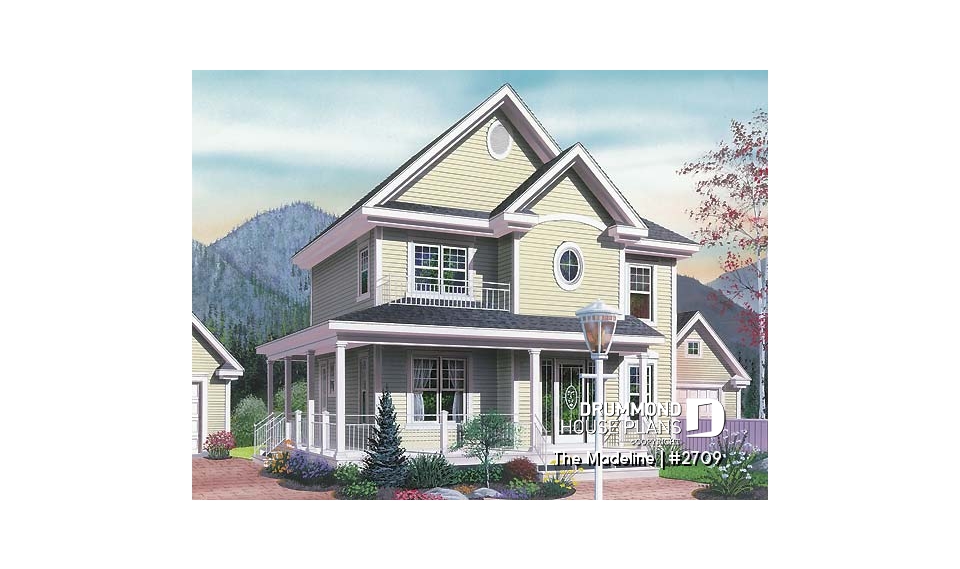

House plan The Madeline (2709)
Traditional 2-story plan with 3 bedroom, formal dining room, computer space on second floor, breakfast nook
View the size of the rooms and height of the ceilings

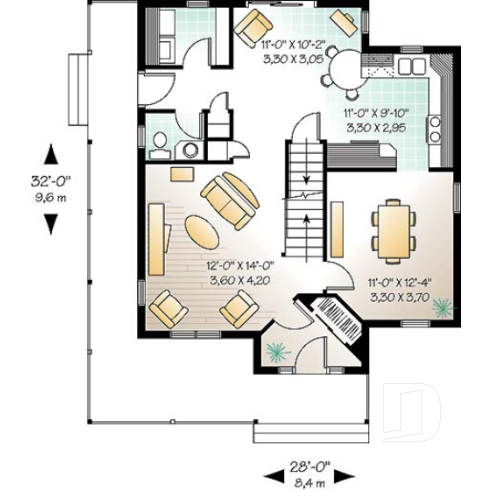

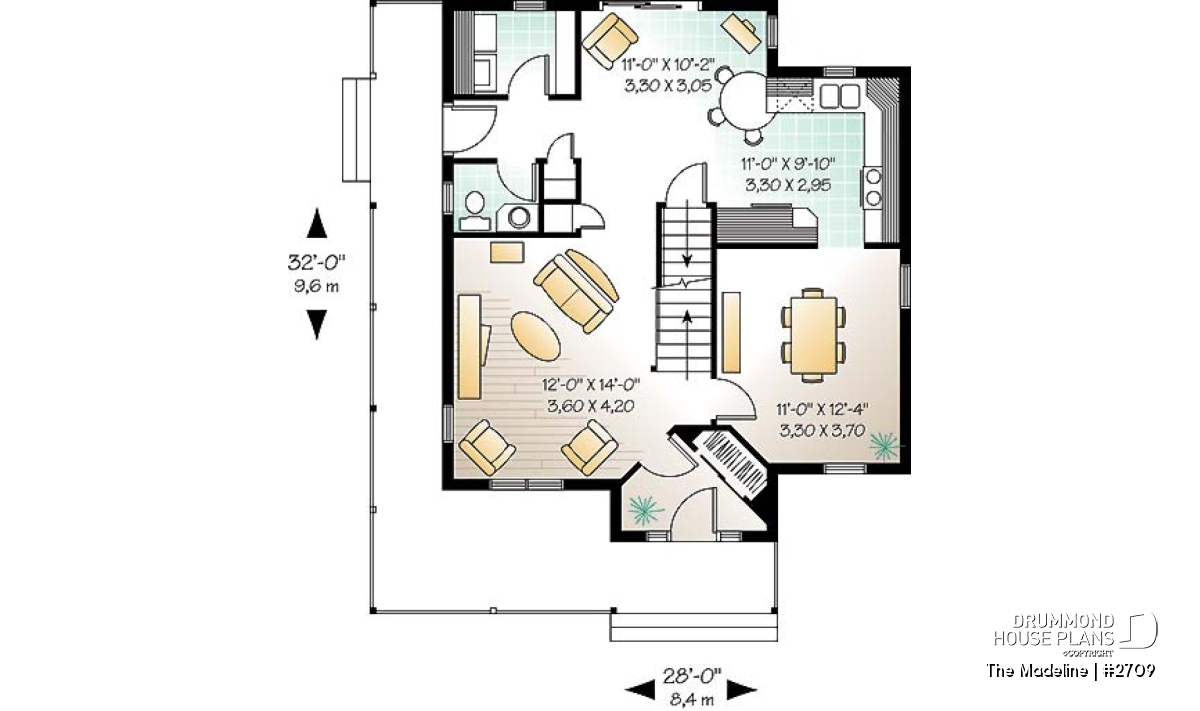

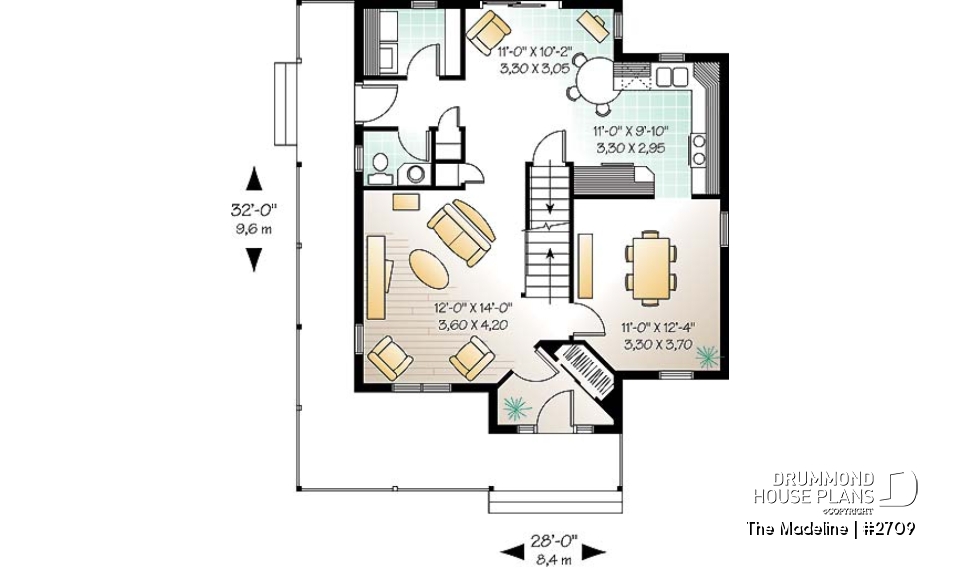

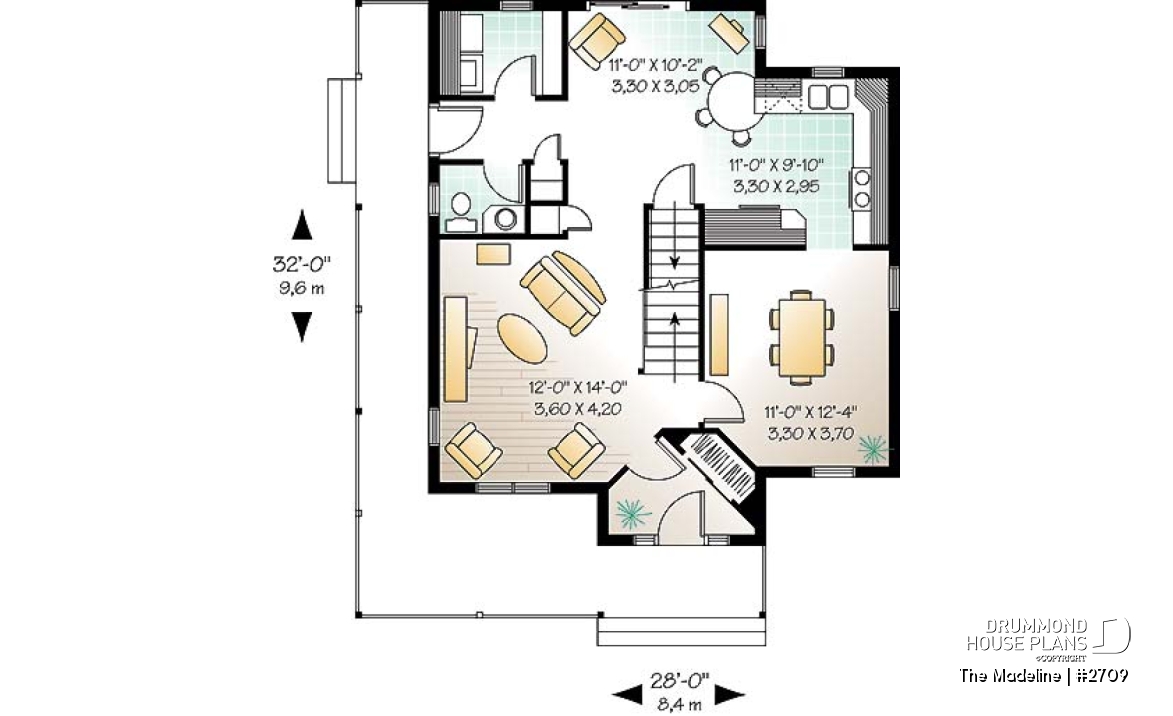

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'0" x 9'10" | ~ 8'0" |
| Dining room | 11'0" x 12'4" | ~ 8'0" |
| Living room | 12'0" x 15'0" | ~ 8'0" |
| Foyer | 8'8" x 5'8" | ~ 8'0" |
| Porch | 24'4" x 7'4" | N/A |
| Porch | 4'4" x 29'0" | N/A |
| Half bath or powder room | 5'0" x 4'0" | ~ 8'0" |
| Utility room | 7'4" x 5'0" | ~ 8'0" |

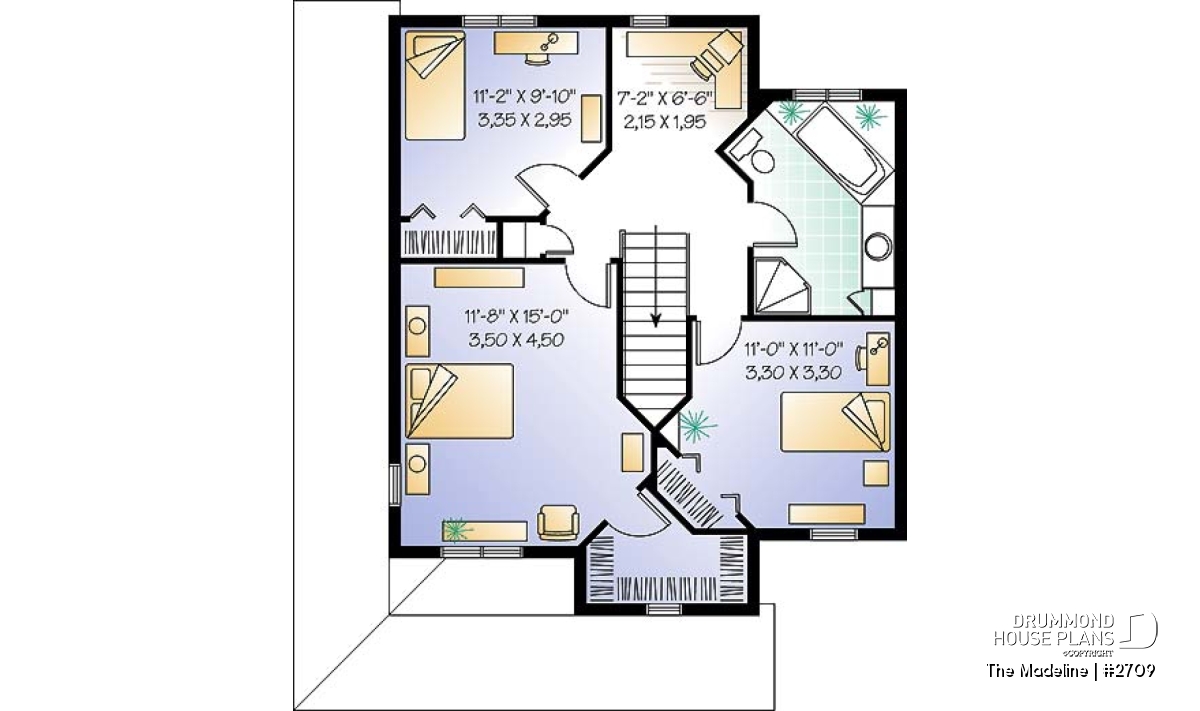

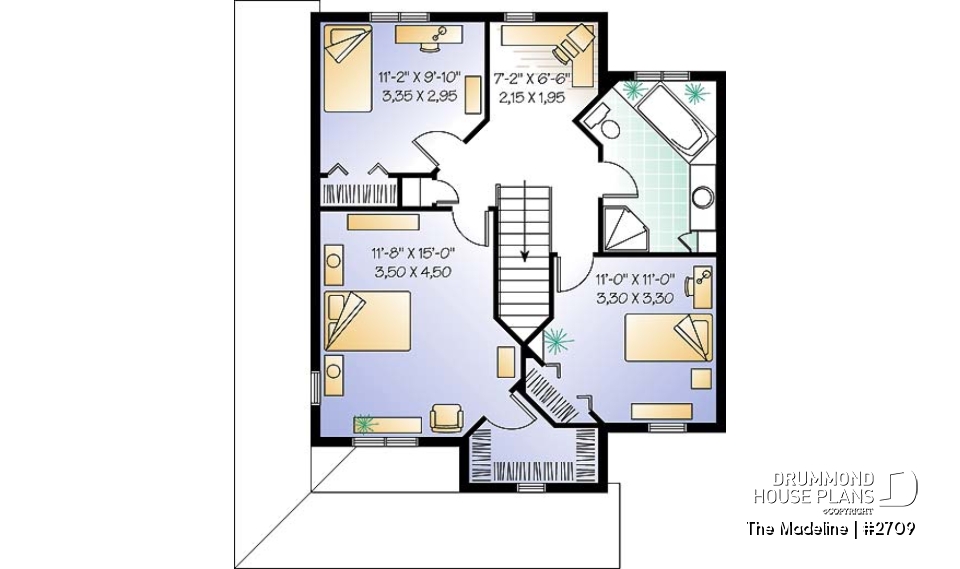

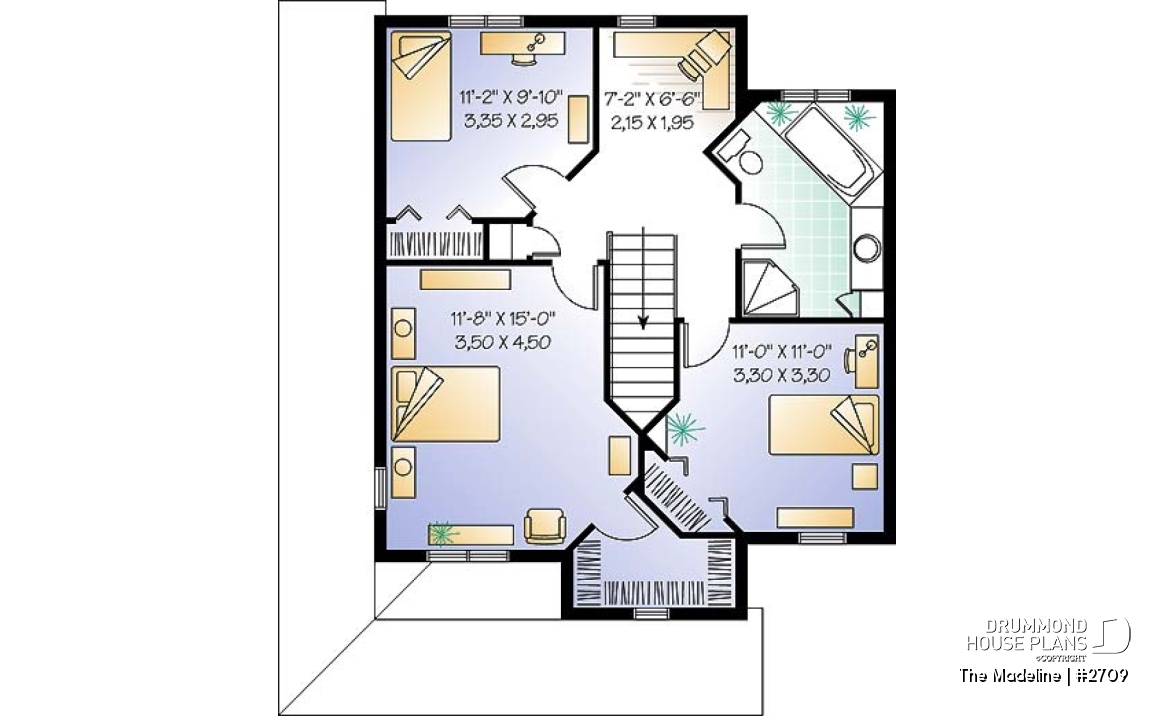

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'8" x 11'4" | ~ 8'0" |
| Reading/computer area | 7'2" x 6'6" | ~ 8'0" |
| Bedroom | 11'8" x 15'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'2" x 10'0" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1604 sq.ft. |
| 1st level | 802 sq.ft. |
| 2nd level | 802 sq.ft. |
| Width | 28'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 30'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Country 3 bedroom 2 bathroom small house plan with wraparound porch
.
Distinctive elements
Wraparound porch on front and left, walk-in closet in master bedroom, study or computer area on 2nd level, abundant and special fenestration.
Plan feature(s)
Gound floor laundry room, Walk-in master bed., Office / Study / Den, Separate bath and shower, Breakfast nook, Entrance hall, Formal dining room
Plan architectural style(s)
. Country, . Traditional
