Wentworth 2 (2947)
Charming country rustic cottage with 3 bedrooms and master suite with private balcony
View the size of the rooms and height of the ceilings

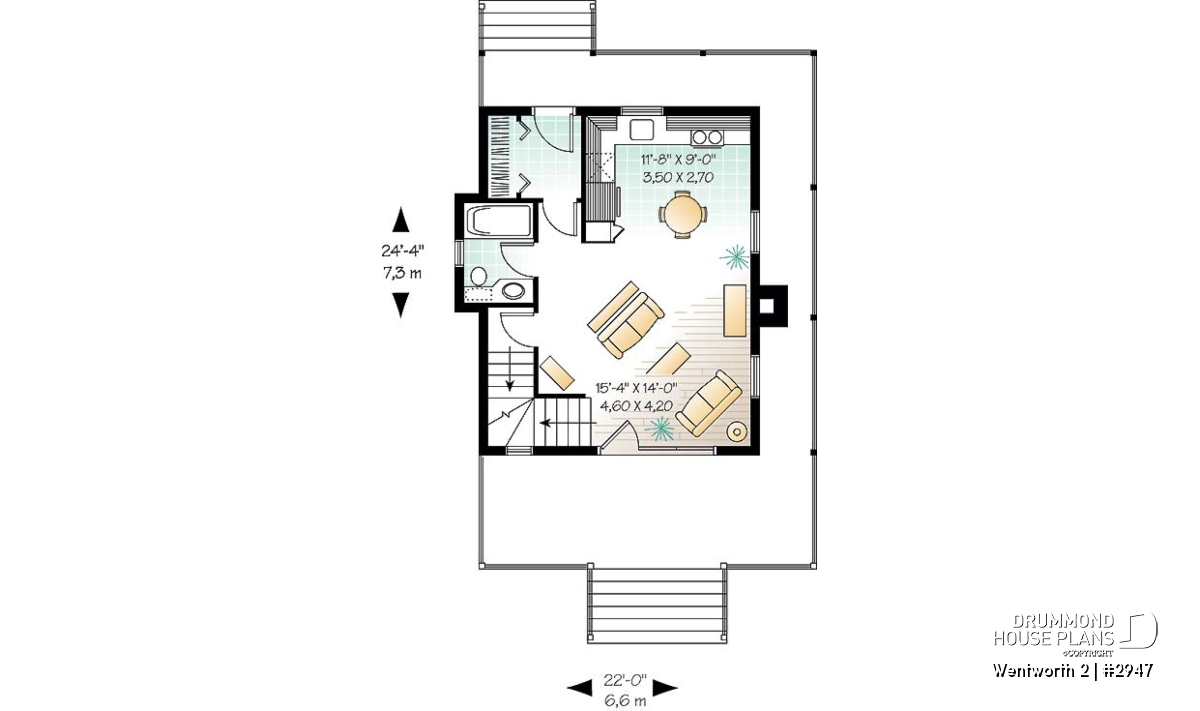

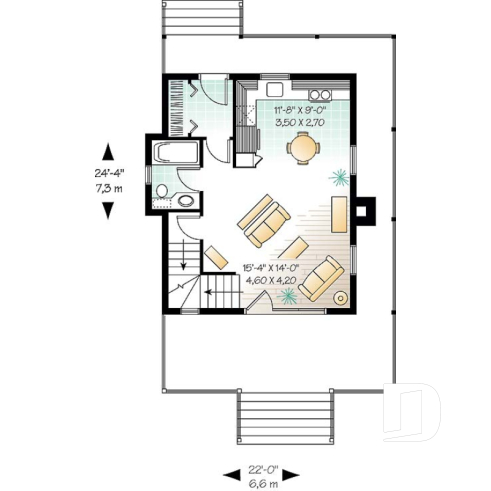

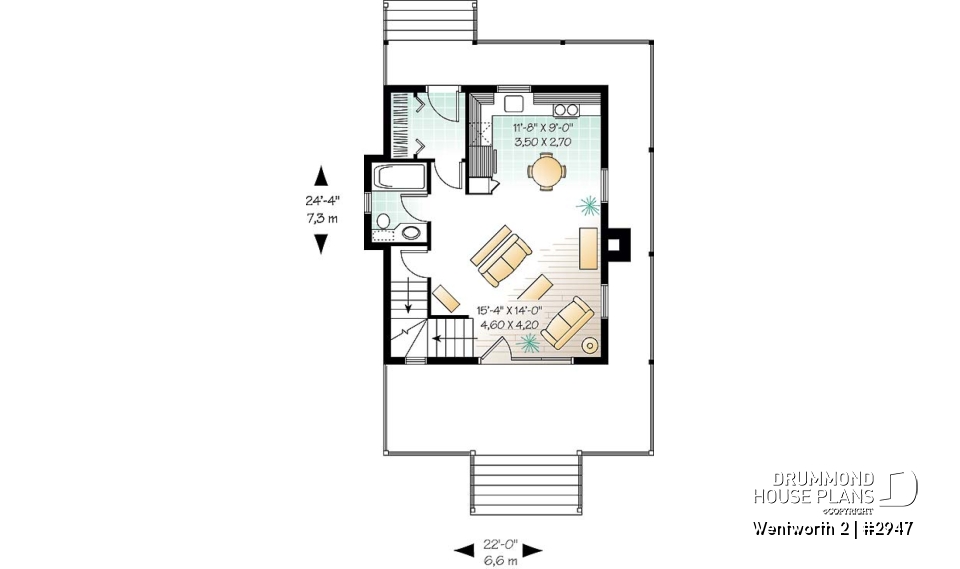

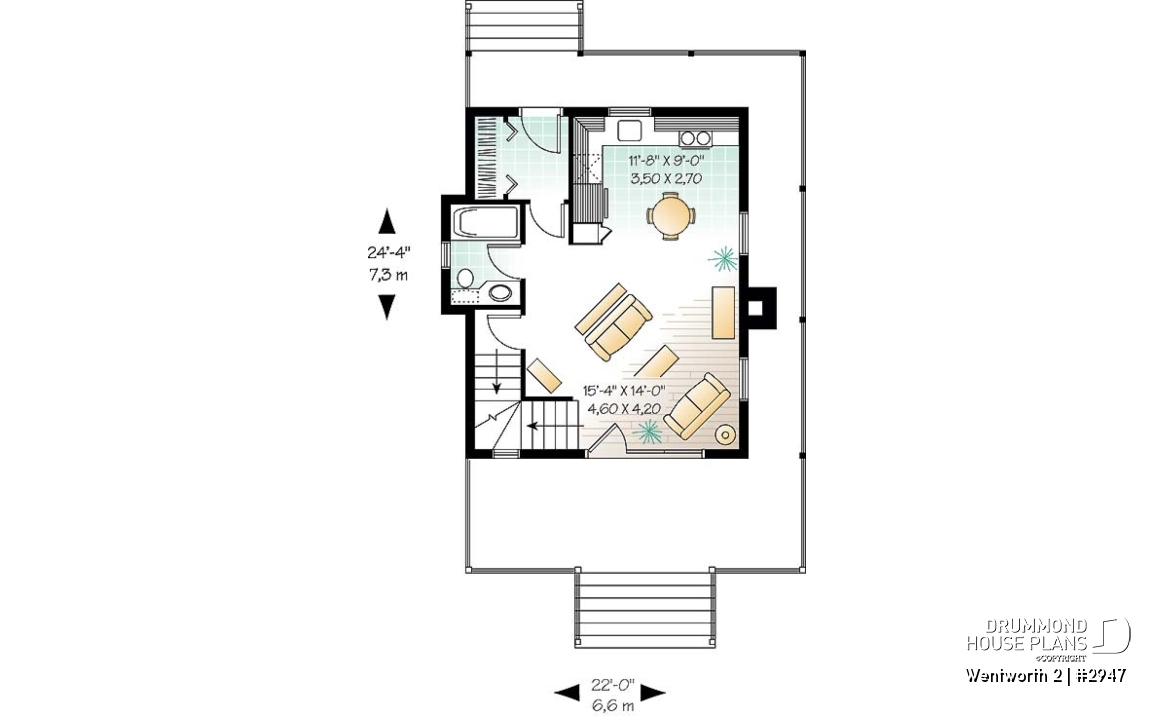

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'0" x 7'0" | ~ 8'0" |
| Kitchen | 11'8" x 11'0" | ~ 8'0" |
| Living room | 15'4" x 12'0" | ~ 8'0" |
| Foyer | 4'8" x 5'6" | ~ 8'0" |
| Deck | 24'4" x 4'0" | N/A |
| Deck | 24'4" x 8'0" | N/A |
| Deck | 4'0" x 24'4" | N/A |

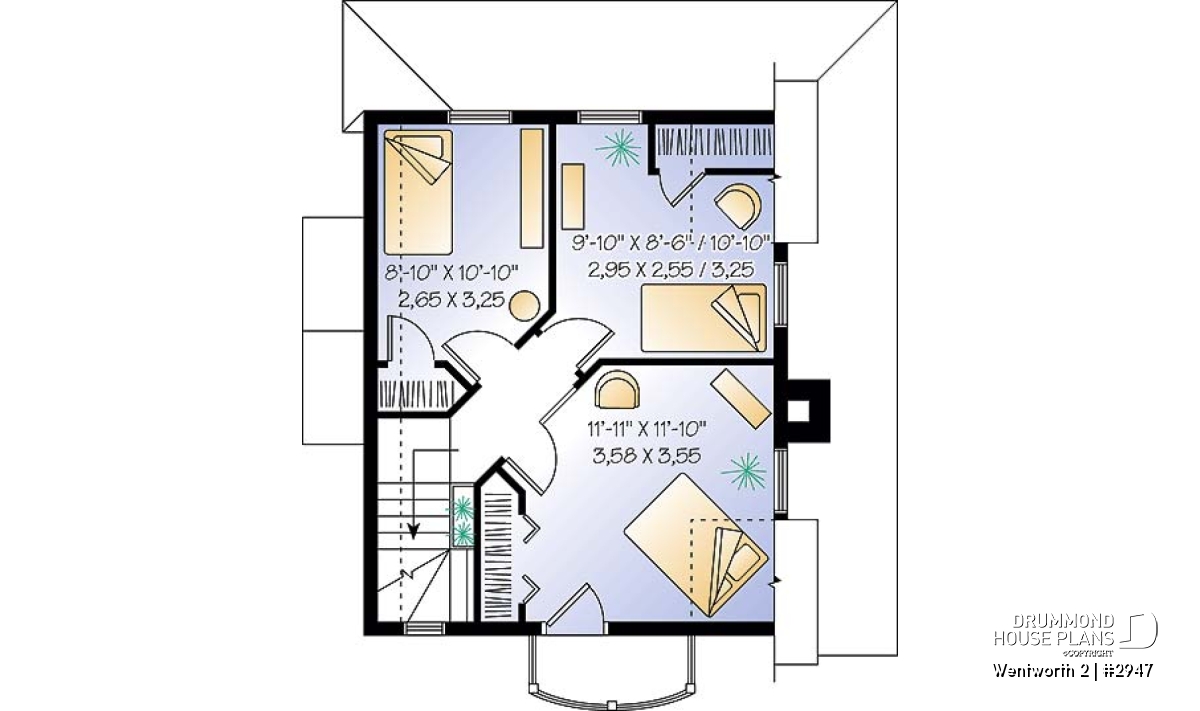

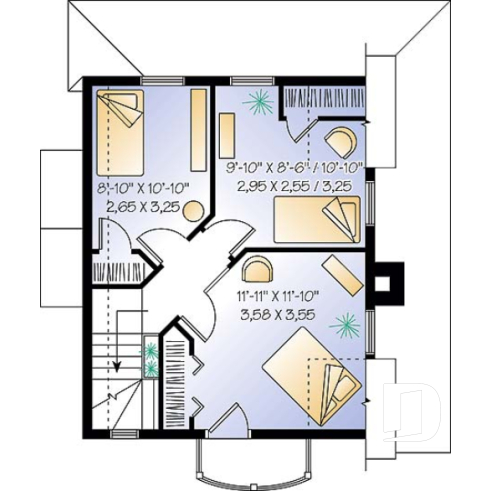

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'11" x 11'10" | ~ 8'0" |
| Bedroom | 8'10" x 10'10" | ~ 8'0" |
| Bedroom | 9'10" x 8'6" | ~ 8'0" |
General specifications
| Total living area | 995 sq.ft. |
| 1st level | 509 sq.ft. |
| 2nd level | 486 sq.ft. |
| Width | 22'0" |
| Depth | 24'4" |
| Ridge height from top of foundation | 27'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | A |
Rooms specifications

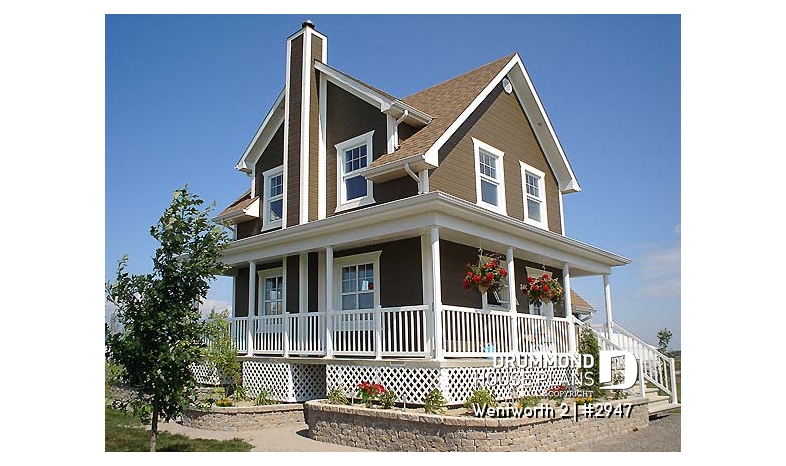

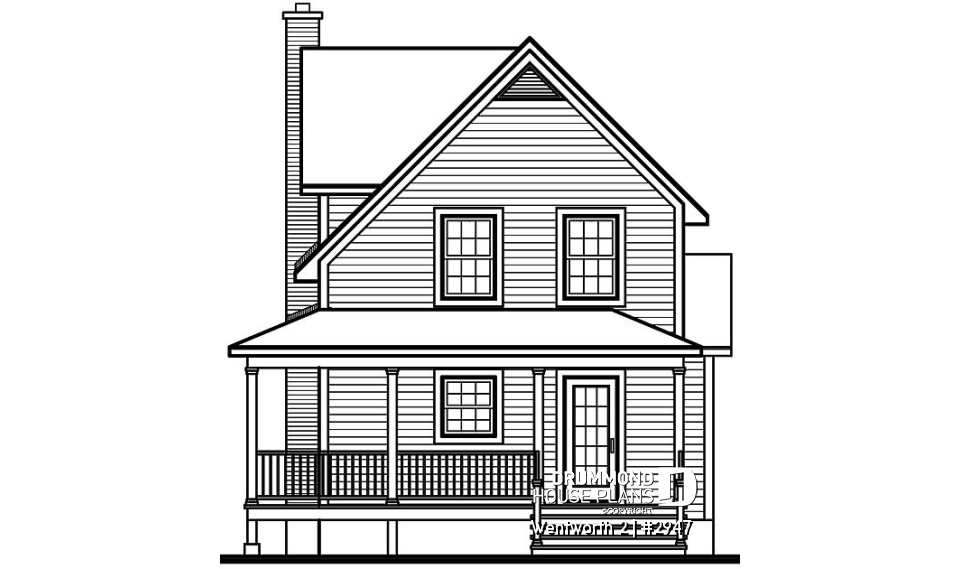

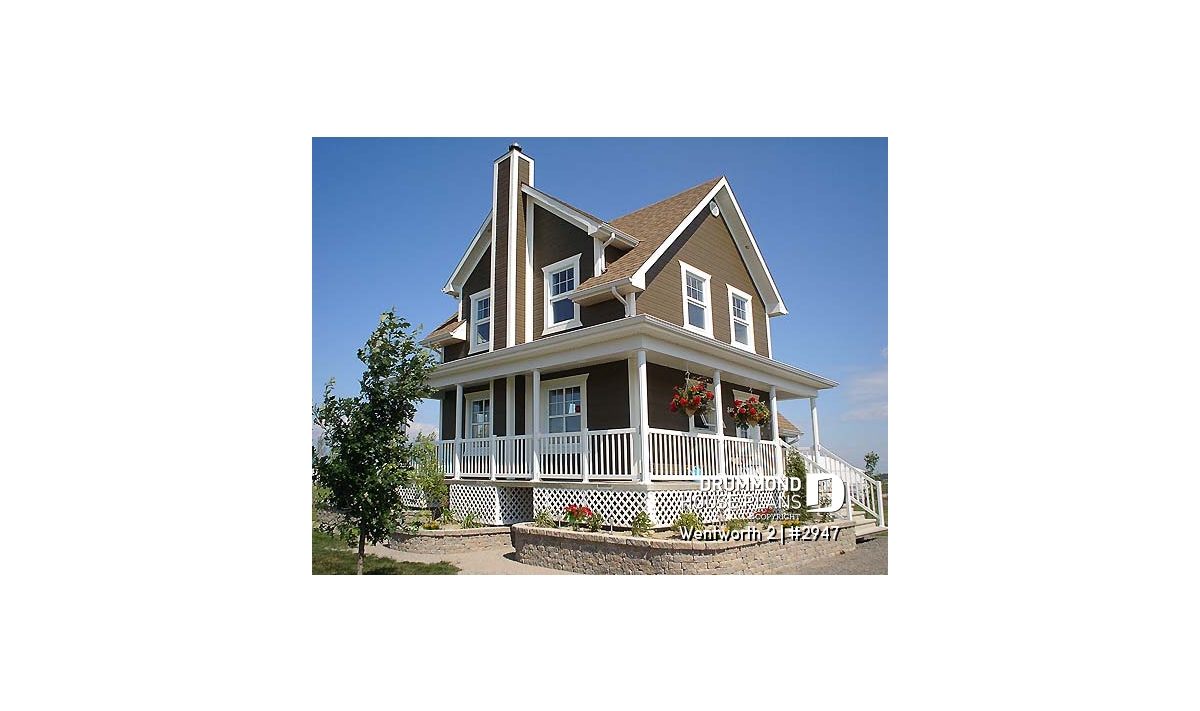

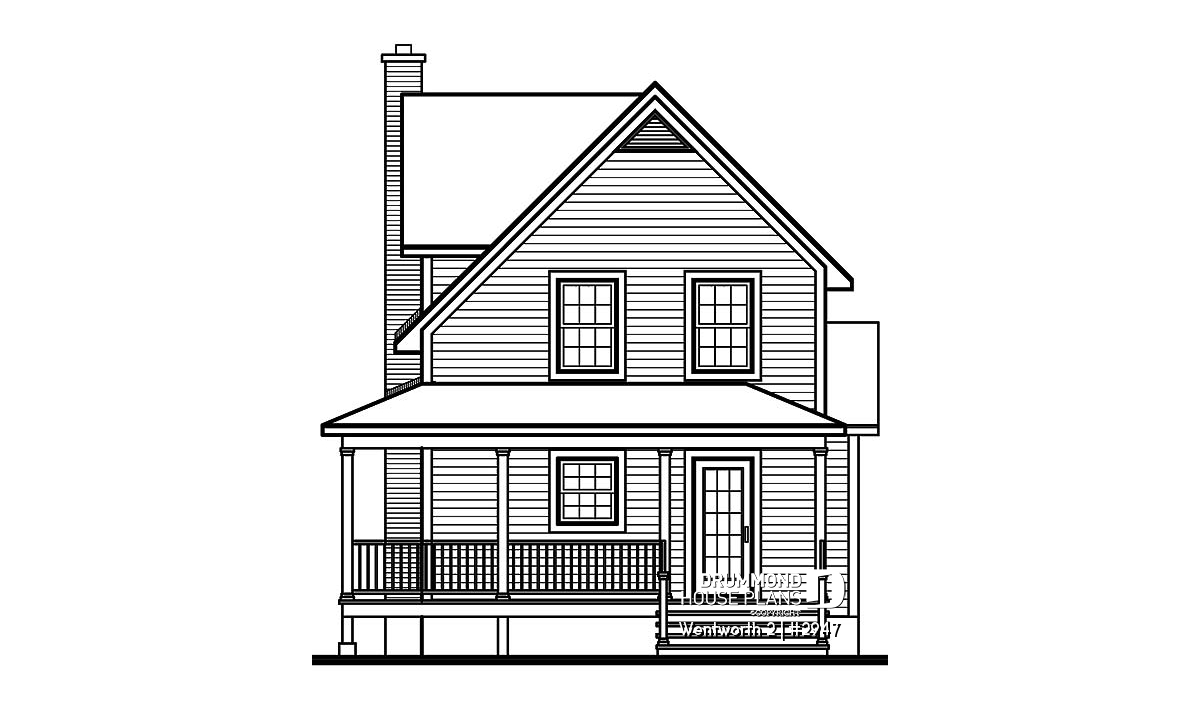

front
This color version might have decorative elements that are not available on base plan.

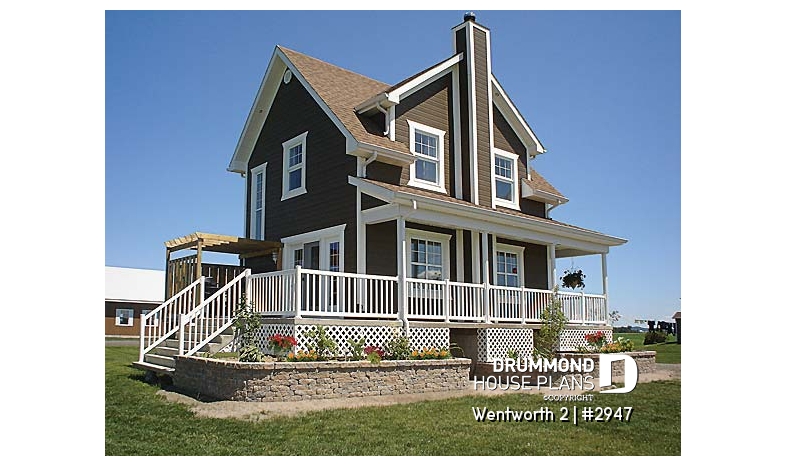

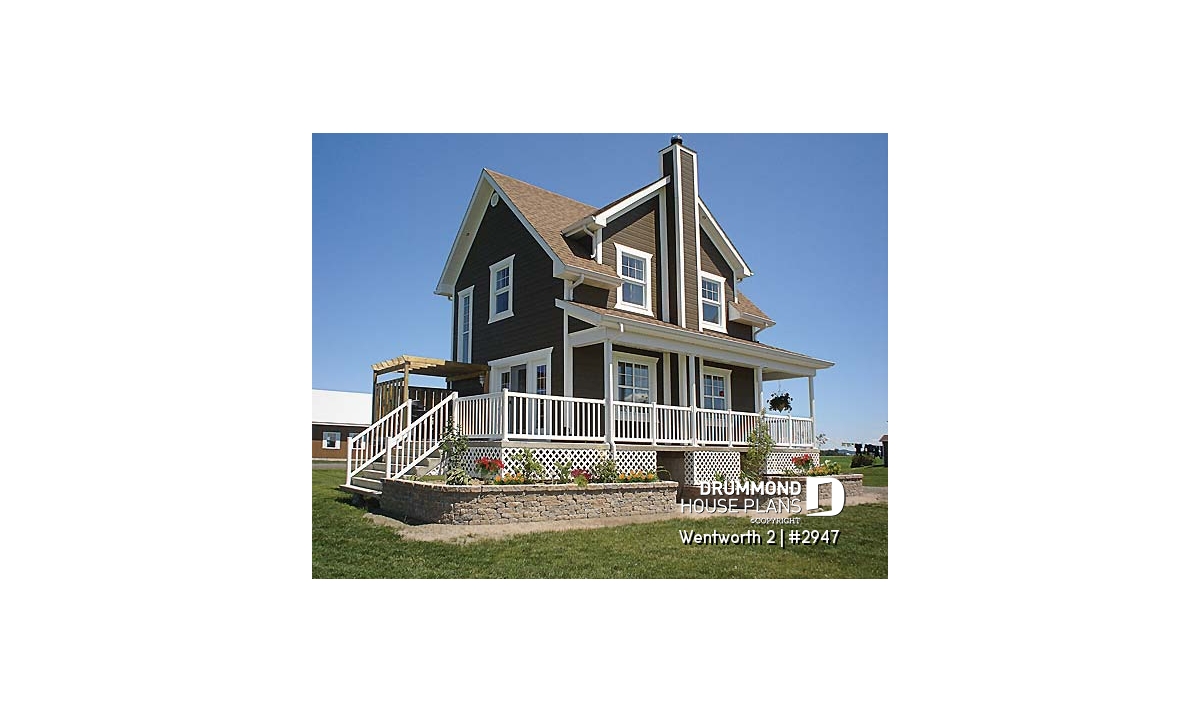

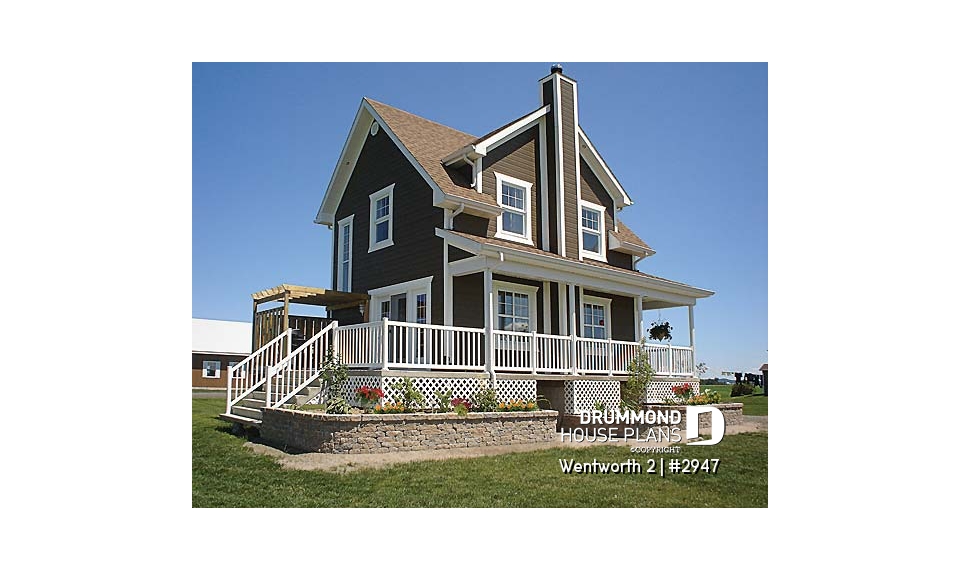

back
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
From popular renovation design to a plan for all!
This chalet-style house is the result of a renovation plan made for owners wishing to improve their home. Following the excitement generated by this renovation design on the Drummond website, we decided to make this design available as a standard plan. Some adjustments had to be made to de-personalize it a little to meet the expectations of a wider audience.
The final result? A country cottage which can be built at an attractive cost with a charming wraparound veranda, a main entrance hall with large closet, an open activities area and ample windows. A corner staircase of classic vintage style is decorated with a long window. Finally, the upstairs houses three bedrooms including the master with access to a balcony overlooking the rear.
An elegant chimney allows the construction of a fireplace or wood stove in the basement, on the ground floor or even on the upper floor!
Distinctive elements
Wraparound veranda, private balcony in master bedroom, special ceiling treatments.
Plan feature(s)
Open floor layout, Entrance hall, Sloped ceiling, Warparound, Balcony 2nd floor, Deck, Fireplace
Plan architectural style(s)
. Country, . Rustic, . Cottage, chalet, cabin, . Vacation and waterfront
