House plan Brookside (3942)
Lakefront house plan, cathedral ceiling, 4 bedrooms, 3 bathrooms, 2 master suites, large terrace

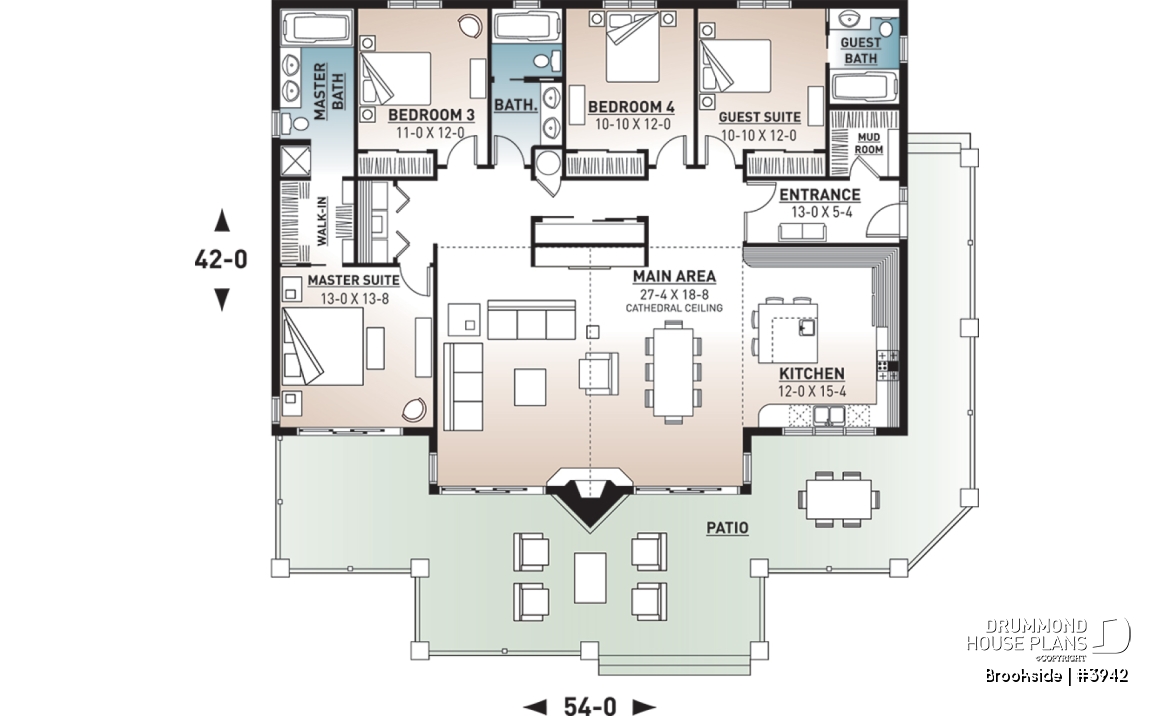

View the size of the rooms and height of the ceilings

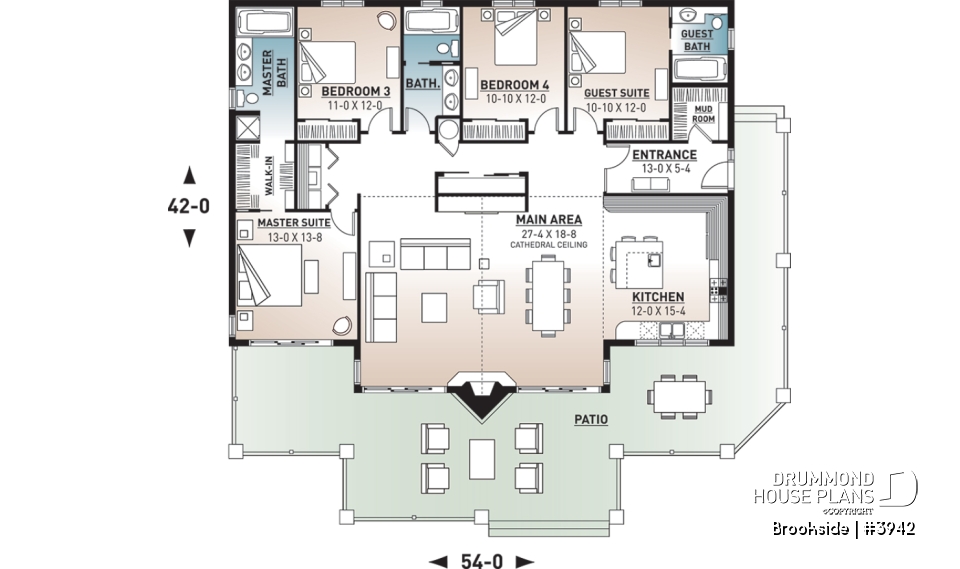

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'0" x 15'4" | ~ 9'0" |
| Dining room | 27'4" x 18'8" | ~ 15'8" |
| Foyer | 13'0" x 5'4" | ~ 9'0" |
| Full bathroom | 6'0" x 13'4" | ~ 9'0" |
| Master suite | 13'0" x 13'8" | ~ 9'0" |
| Bedroom | 11'0" x 12'0" | ~ 9'0" |
| Bedroom | 10'10" x 12'0" | ~ 9'0" |
| Bedroom | 10'10" x 12'0" | ~ 9'0" |
| Laundry room | 3'0" x 7'0" | ~ 9'0" |
| Linen | 9'4" x 1'10" | ~ 9'0" |
| Storage | 2'4" x 2'4" | ~ 9'0" |
| Porch | 19'0" x 24'0" | N/A |
| Porch | 13'8" x 28'6" | N/A |
| Porch | 11'8" x 13'0" | N/A |
General specifications
| Total living area | 2146 sq.ft. |
| 1st level | 2146 sq.ft. |
| Width | 54'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 22'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Crawl space i |
| Other available foundations (a fee may apply) | Full Basement, Floating Slab, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan

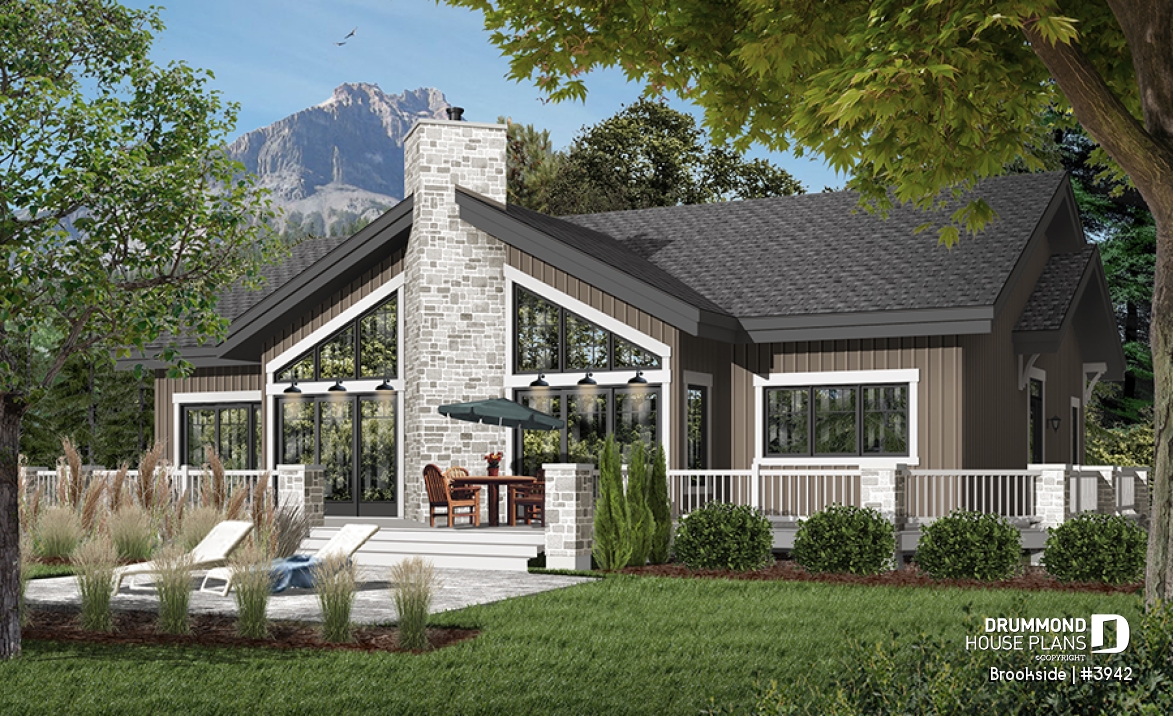

Family Vacation Fun! 4 bedrooms, 3 bathrooms waterfront house plan

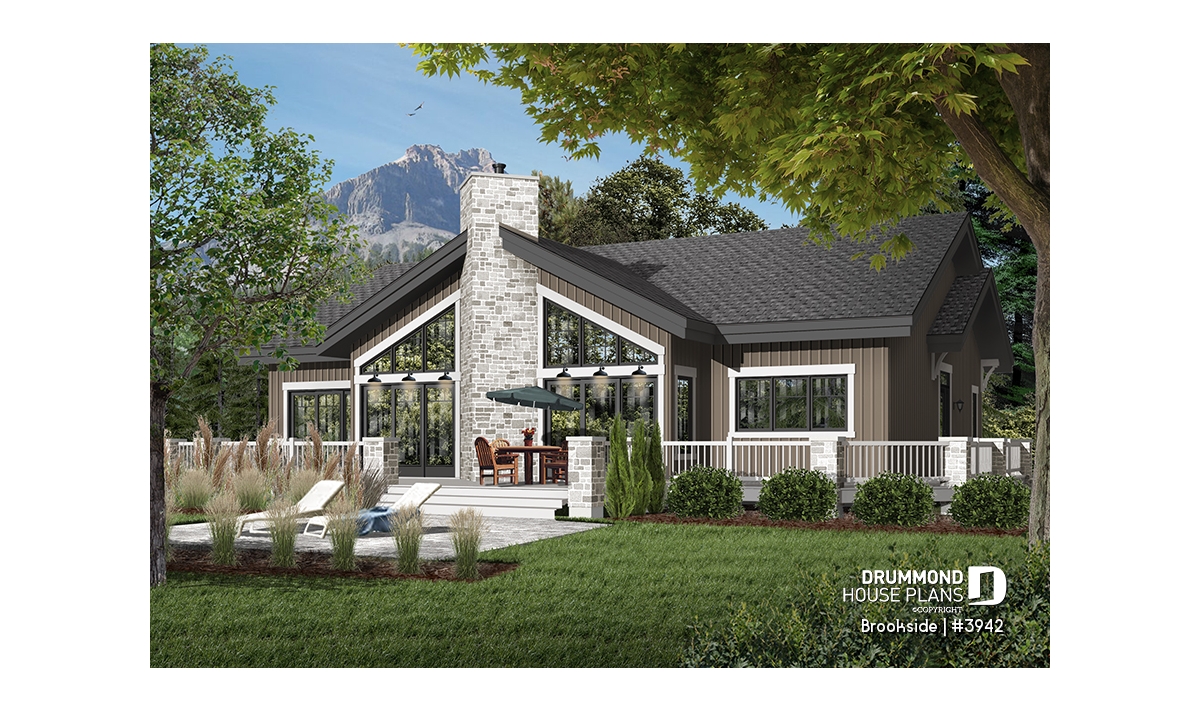

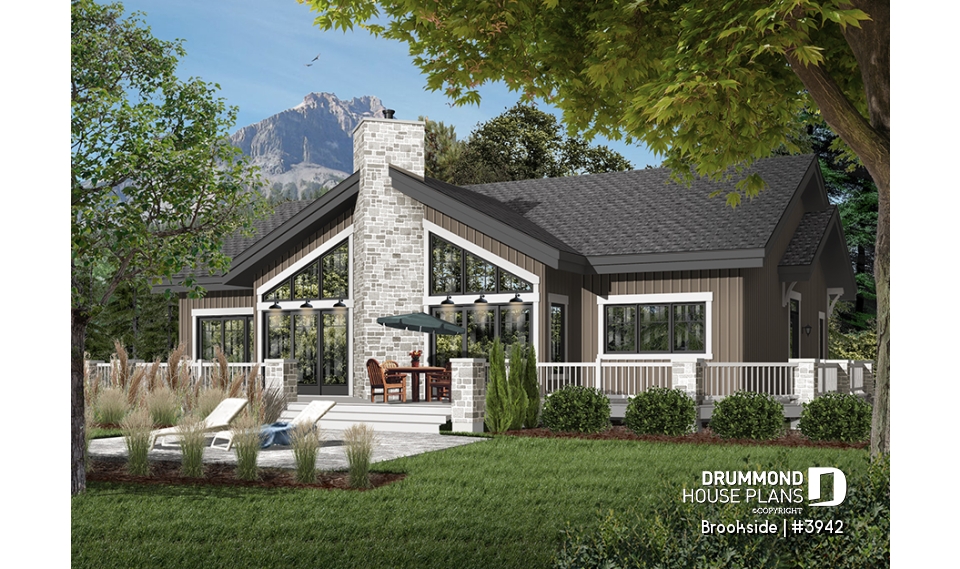

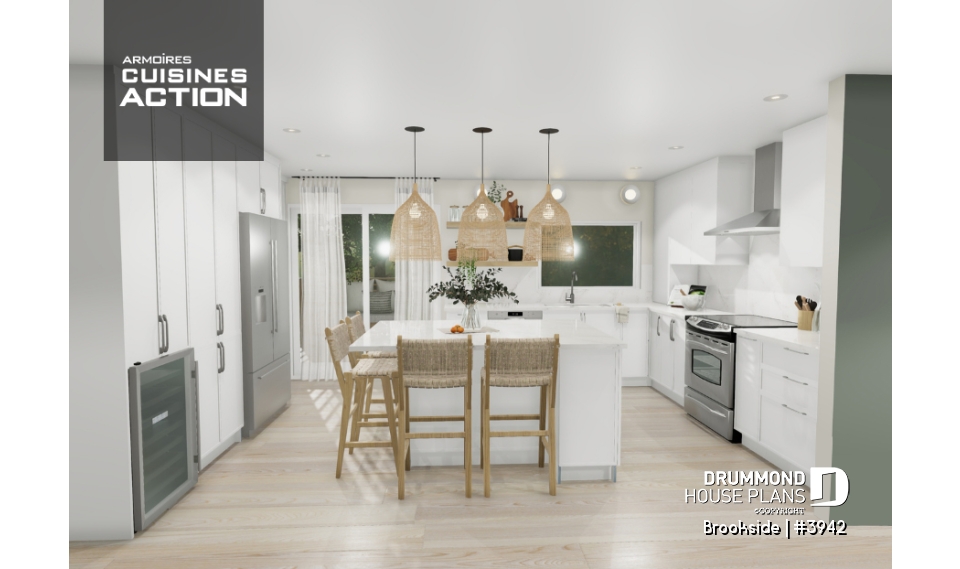

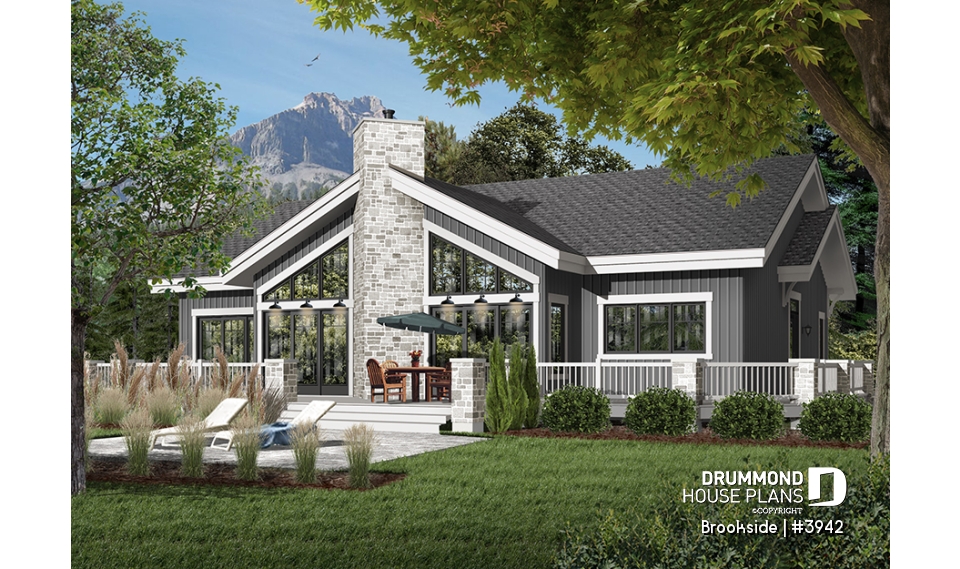

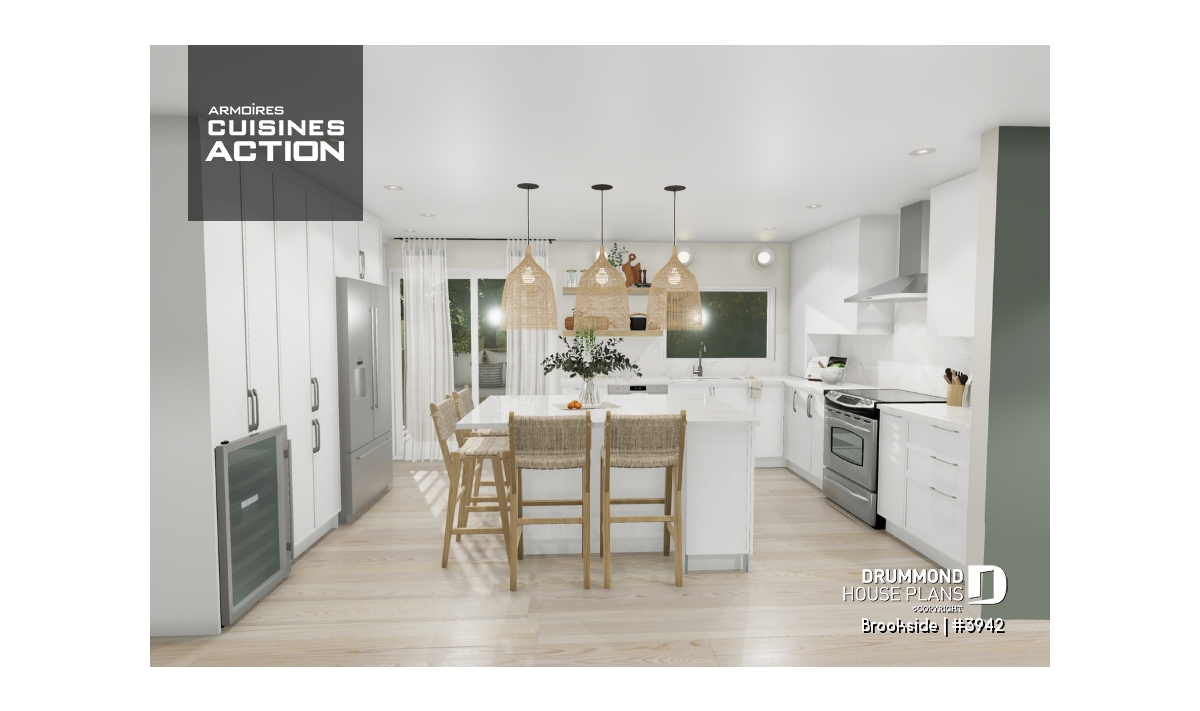

9’ ceilings throughout with a vaulted living and dining room create a airy feeling in this lovely vacation home. A kitchen with central island flows to the living and dining rooms. Triple patio doors provide easy access to a full-span deck. The angled fireplace is a unique exterior feature and is easily enjoyed by the entire open area.
The master bedroom boasts walk-in closet and a 5-fixture bathroom. Another guest suite enjoys its own private bath and bedroom 3 and 4 are separated by a shared bathroom.

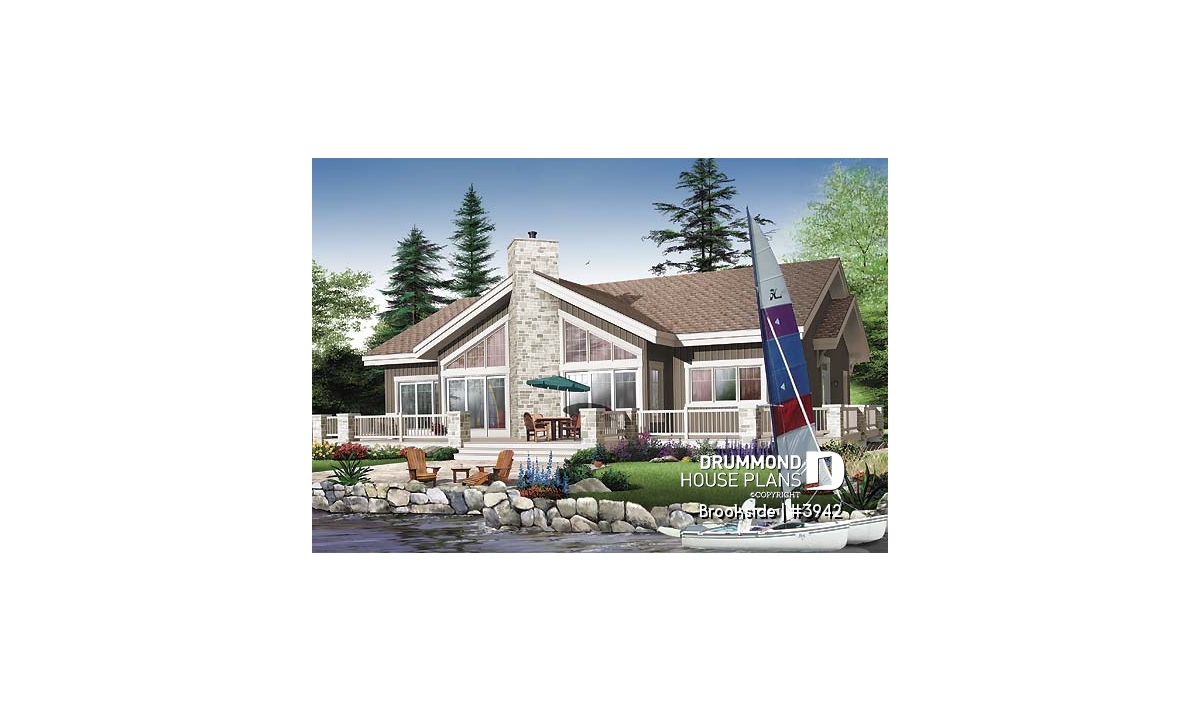

Ample glass and full-width deck make this an attractive home for any season.
Distinctive elements

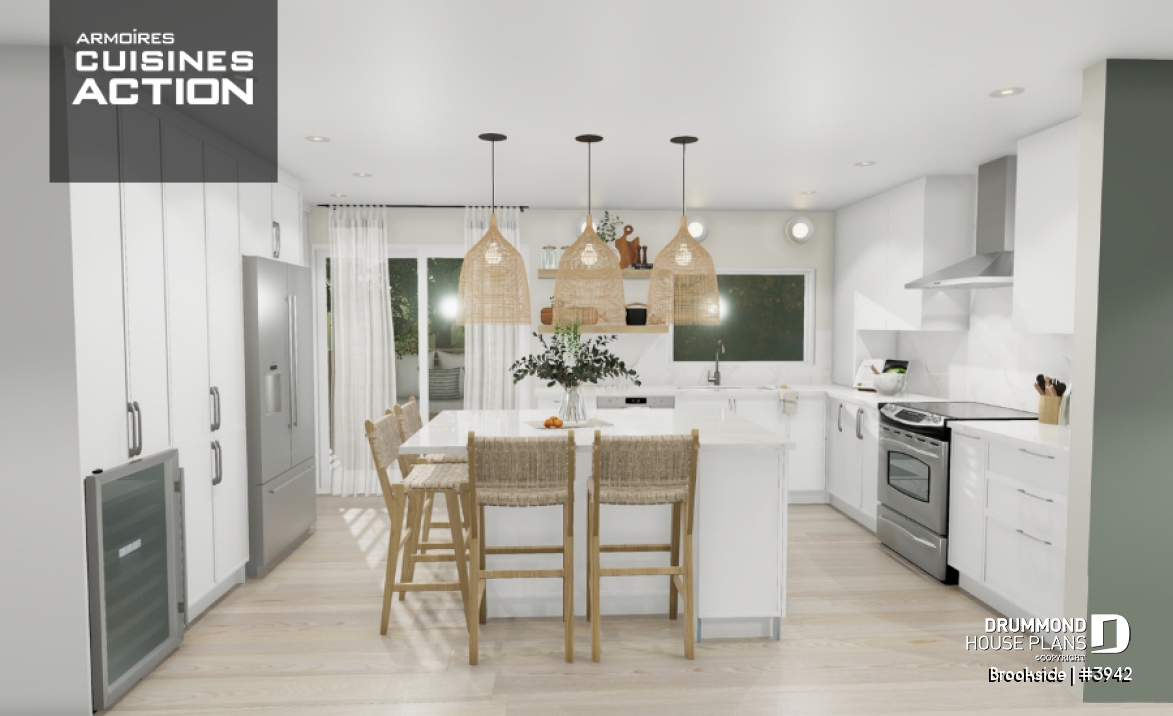

9' ceiling throughout the main level. Lovely kitchen with central island/lunch counter and plenty of space for storage. Other storage space in the hallway combined with integrated storage space in the living room including two trios of patio doors. Four bedrooms one of which is a master suite with triple patio doors and one guest suite. Three full bathrooms. Large attractive front terrace.
Plan feature(s)
Open floor layout, Warparound, Panoramic view, Fireplace, Island, Cathedral ceiling, Mud room, Gound floor laundry room, Walk-in master bed., Ceiling over 8', Separate bath and shower, Double sinks
Plan architectural style(s)
. Mountain, . Country, . Vacation and waterfront, . Craftsman / Northwest, . Ski chalets, . Rustic, . American, . A-Frame, . Modern rustic, . Cottage, chalet, cabin, . Ranch
Similar plans
Previously Viewed Plans
Questions and comments
January 22
Dr. John Maloy
Do you have this plan with an attached garage and/or three bedrooms?
January 23
Marie
Hello Mr. Maloy,
Unfortunately we do not have it with a garage and 3 beds instead of 4.
However we can adjust the house plan to your specific needs. Please fill up this form to get you free plan modification estimate:
drummondhouseplans.com/plan-modification-request-form/1002387
If you have more questions please contact us:
Phone: 1-800-567-5267 ext. 109
Email: [email protected]
May 04
Nick Willmot
Are the dimensions above the building only or is the width and depth including the deck as well?
May 04
Customer service
Hello Mr Willmot,
Thank you for your question!
Actually, the dimensions do not include the deck. It?s the dark black lines only seeing as there is no foundation under the deck.
I hope this helps and feel free to contact me if you have any other questions!
Jessica
1-800-567-5267 x 109
June 15
Gerald Slan
Can the master bedroom be reconfigured so you don't have to walk through the closet to get to the washroom?
June 15
Customer service
Good morning Mr. Slan,
most changes are possible. Being the actual designers of this plan and knowing them as we do, it is easier for us to assist you directly with your project. Plus, we offer a 30% discount on the base plan and free priority shipping.
Let us know if you would like to get a free cost estimate for you plan changes, by sending your contact info, and requested modifications.
Send to: [email protected]
Don?t hesitate to contact us if you have more questions or to place your order!
Regards,
Marie
DrummondHousePlans.com
Phone : 1-800-567-5267
March 02
Lorenzo Reid
Wondering about a full basement with this plan
March 02
Customer service
Good day Mr. Reid and thank you for taking the time to write.
We would be happy to provide a free estimate for a full basement foundation within two business days after receipt of this on line form.
Please let me know if I can further assist you
Regards
Deb
November 20
Tim O'Malley
Hi. Same question as Deborah above.
We are in Quebec(Outaouais)and are seriously considering this plan. Can you give me a cost per sq estimate, based on your current assesments.
Merci à l'avance.
November 20
Customer service
Good day Mr. O'Malley and thank you for your interest in our plans.
Since you are building in Quebec, we do have a global cost estimate for the constrution of this model available.
All you need to do is to click on "French" at the top, right hand corner of the screen which will bring you into our French site with the cost estimate located on the top line of the technincal data.
The highest of the two represents a turn key project in which the contractor takes care of everything. It does not include the cost of land, taxes or hook ups to municipal services but can serve as a ballpark idea.
Unfortunalteley, we do not have detailed, per square foot, estimates for the construction of any of our models.
Please let me know if you have any other questions or comments.
Regards
Deborah
