House plan Journey's Edge (2603)
Panoramic view cottage, 2-car garage, 3 to 4 bedrooms, ensuite with french doors
View the size of the rooms and height of the ceilings

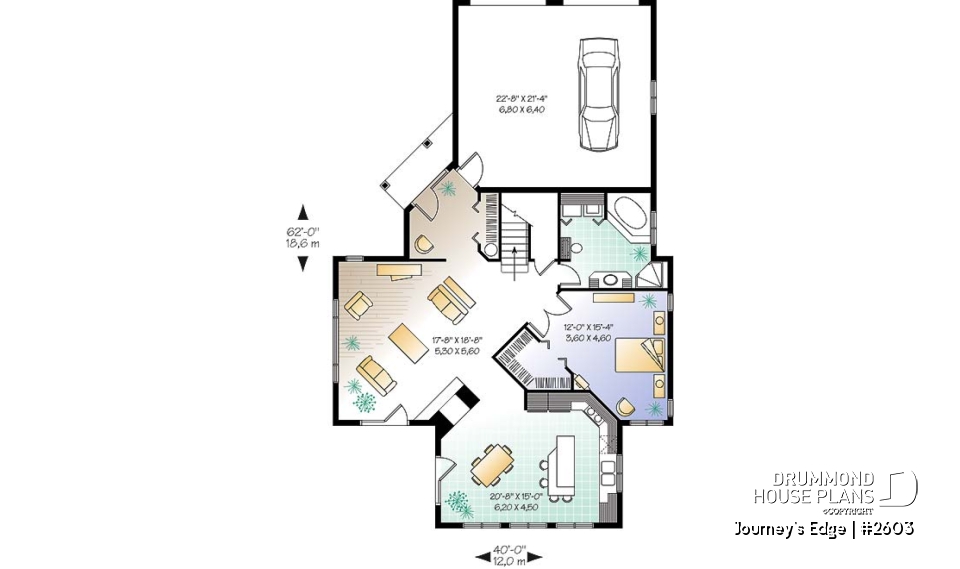

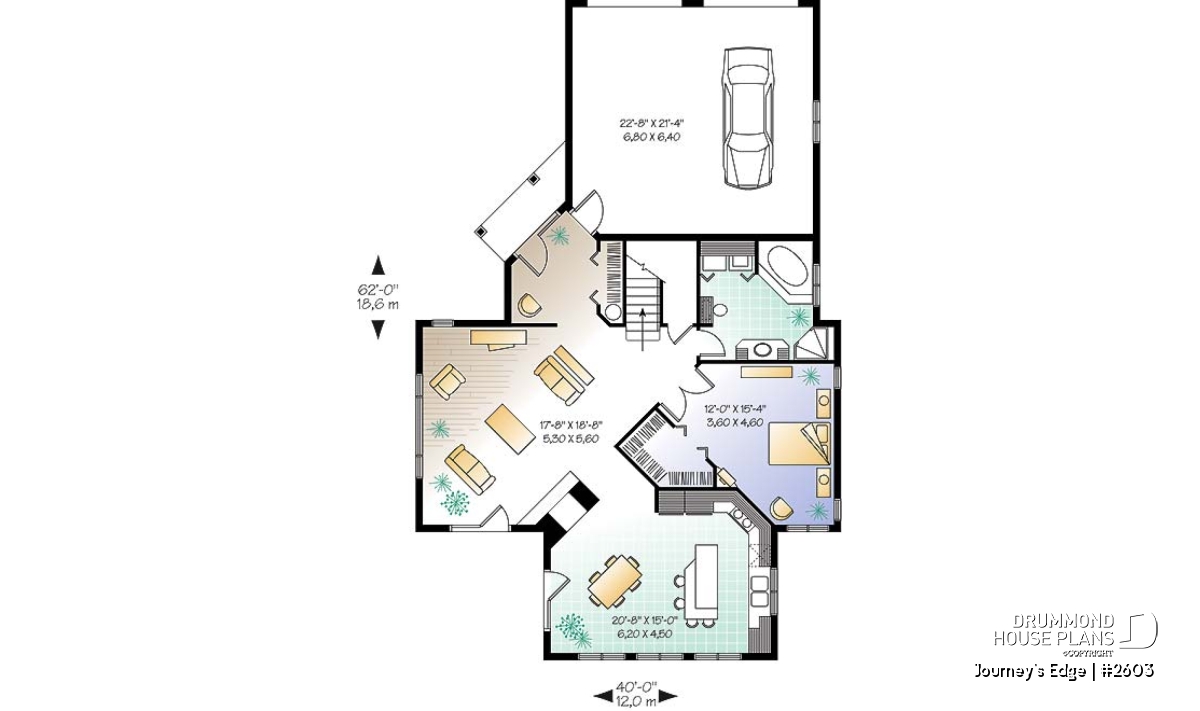

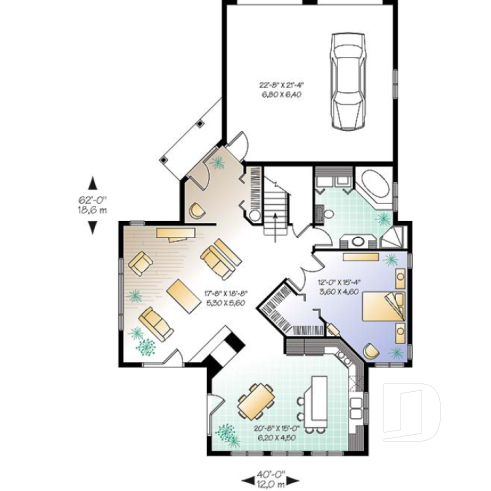

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'4" x 11'0" | ~ 8'0" |
| Kitchen/dining room | 20'8" x 15'0" | ~ 8'0" |
| Living room | 18'0" x 18'8" | ~ 8'0" |
| Bedroom | 12'0" x 15'0" | ~ 8'0" |
| Foyer | 10'7" x 7'11" | ~ 8'0" |
| Garage | 22'8" x 21'4" | ~ 8'4" |
| Covered porch | 4'0" x 9'0" | N/A |
| Deck | 12'0" x 12'0" | N/A |

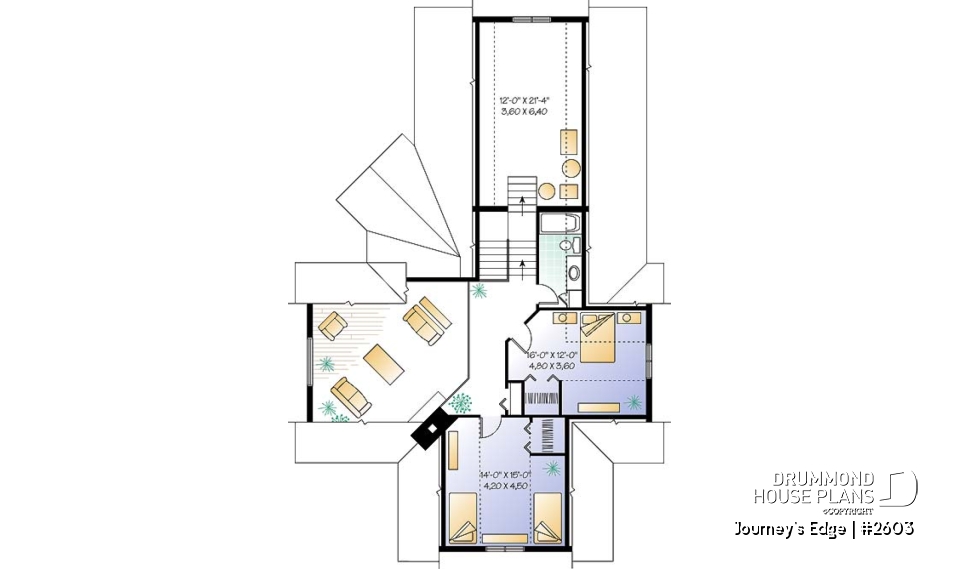

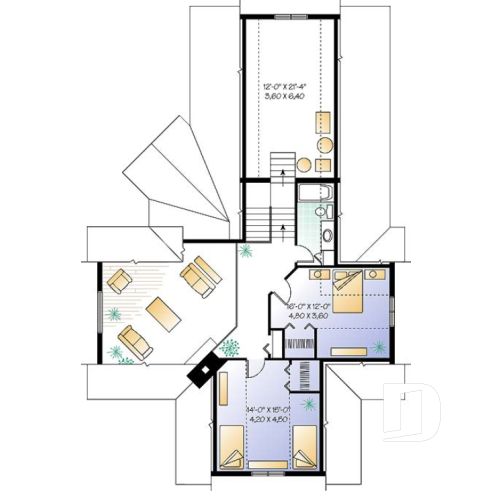

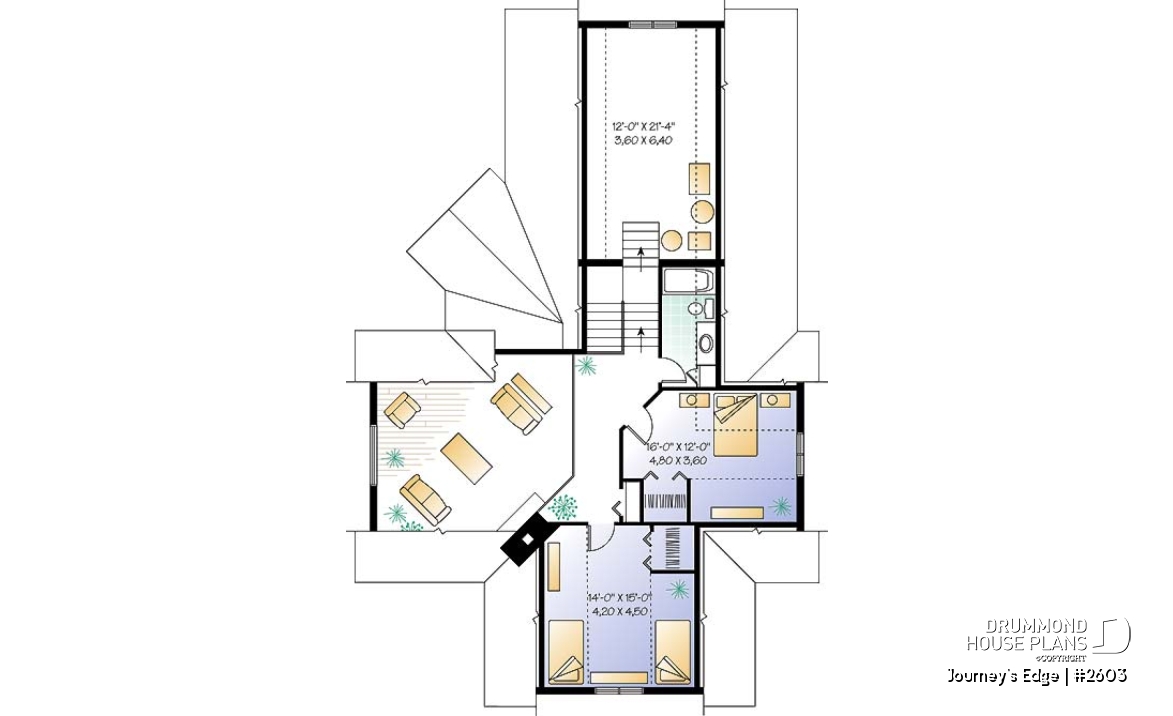

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'0" x 11'0" | ~ 8'0" |
| Bedroom | 14'0" x 15'0" | ~ 8'0" |
| Bedroom | 16'0" x 12'0" | ~ 8'0" |
| Linen | 1'8" x 3'8" | ~ 8'0" |
| Living bonus room | 12'0" x 21'4" | ~ 9'4" |
General specifications
| Total living area | 1969 sq.ft. |
| 1st level | 1304 sq.ft. |
| 2nd level | 665 sq.ft. |
| Width | 40'0" |
| Depth | 62'0" |
| Ridge height from top of foundation | 26'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Unfinished Basement, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
back

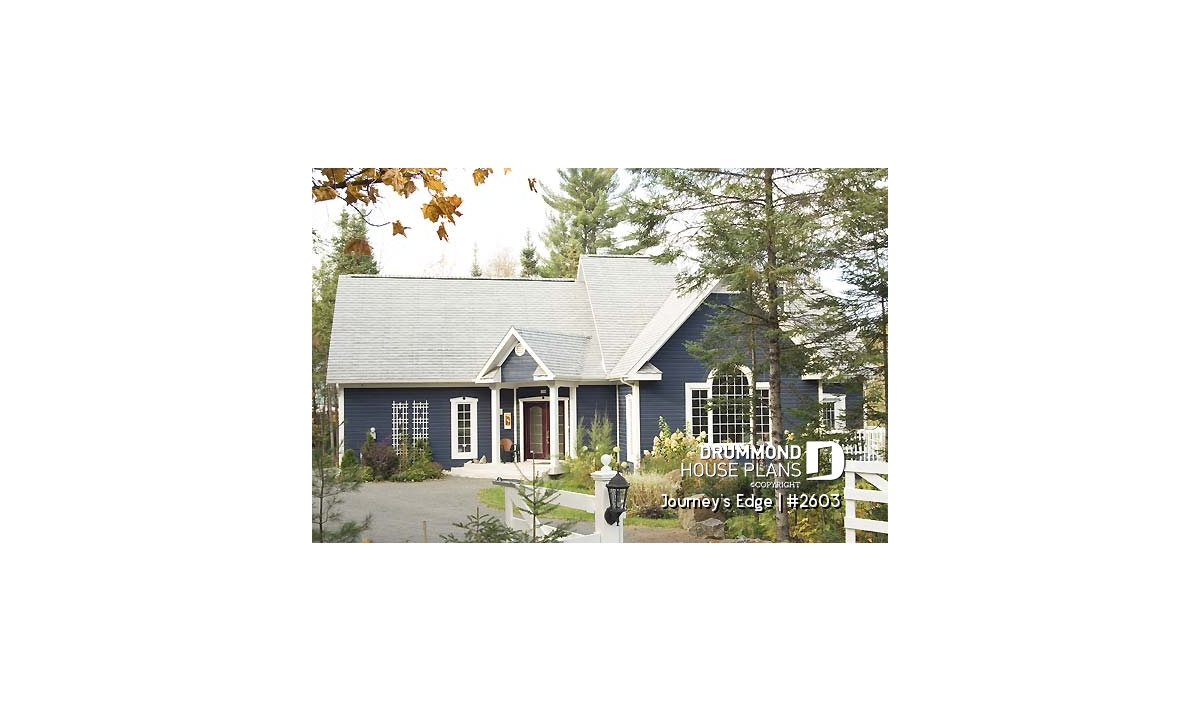

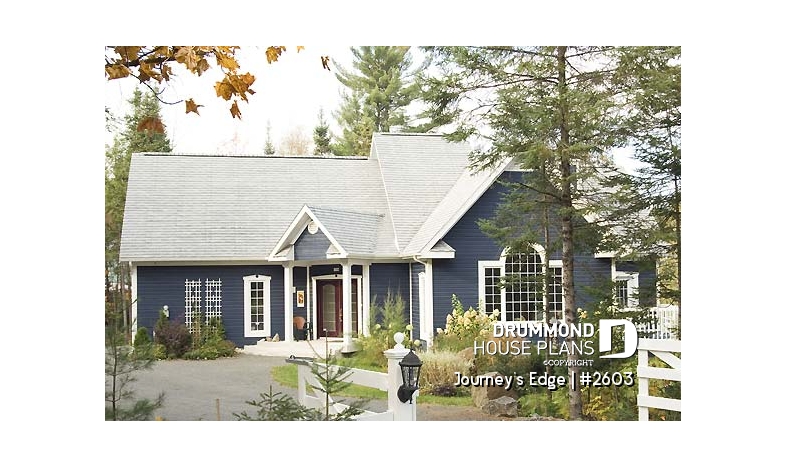

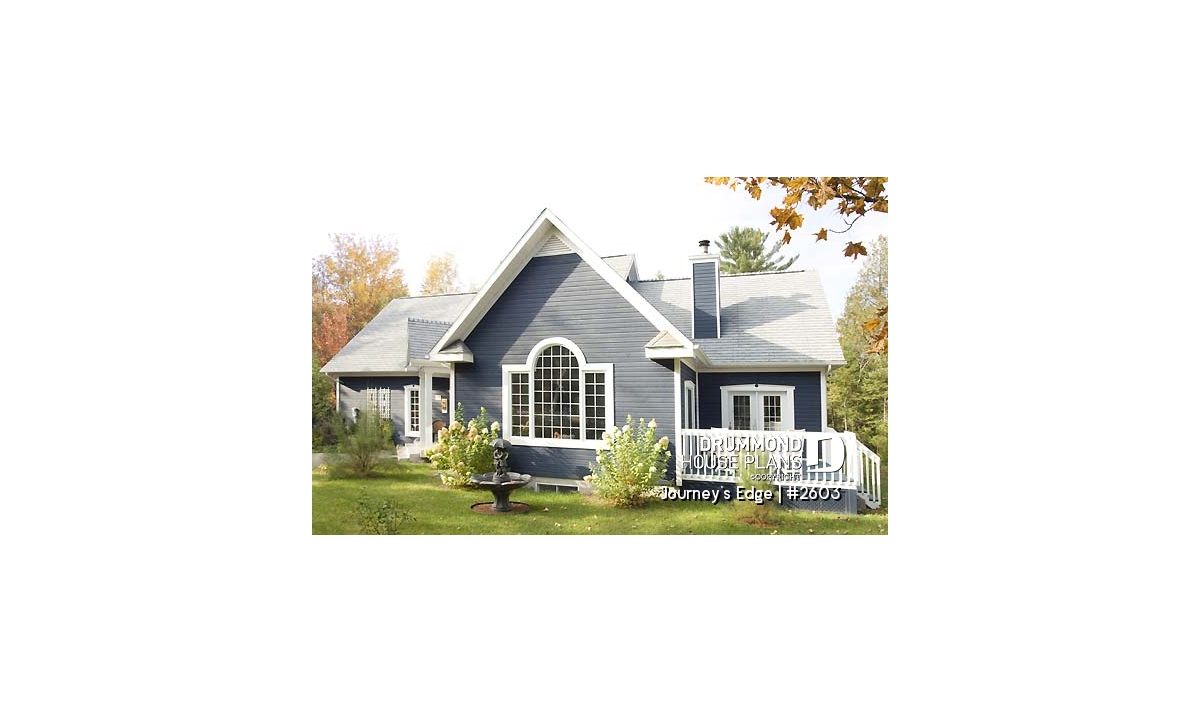

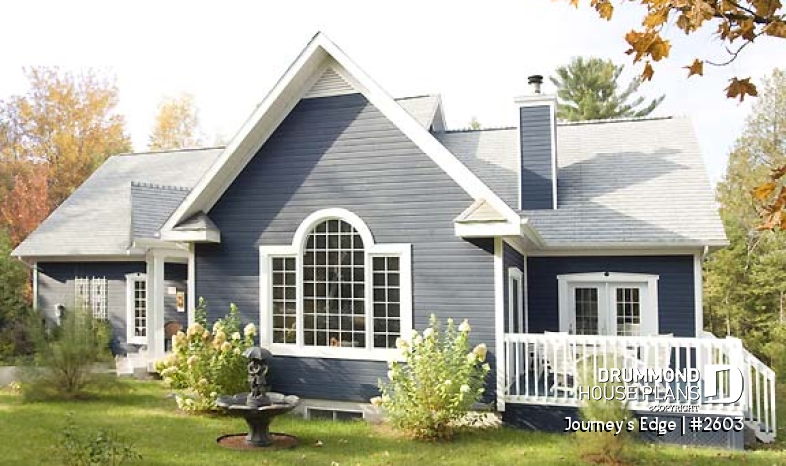

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back

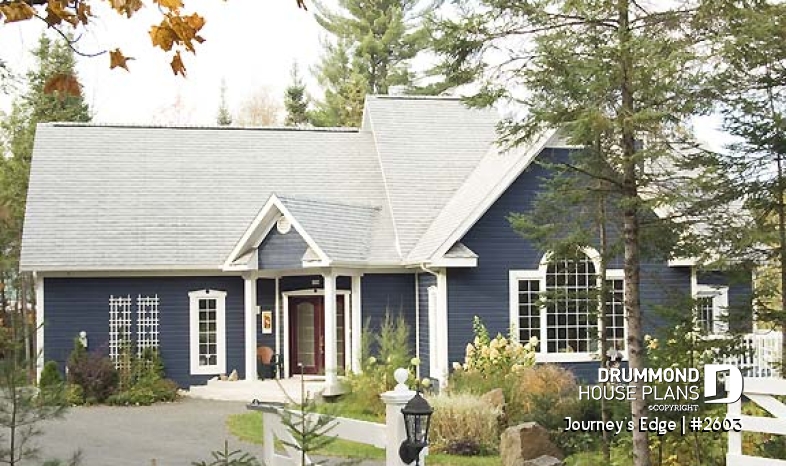

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan

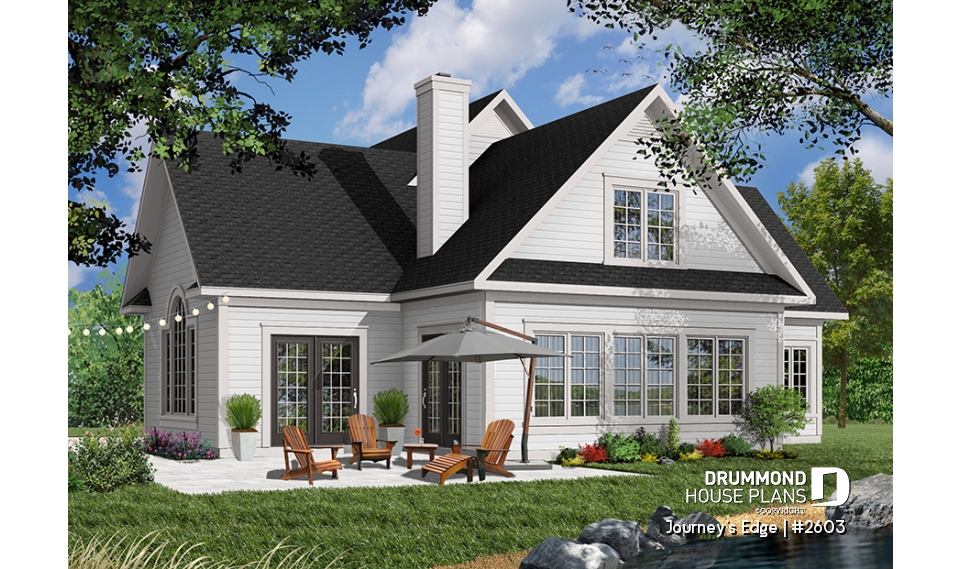

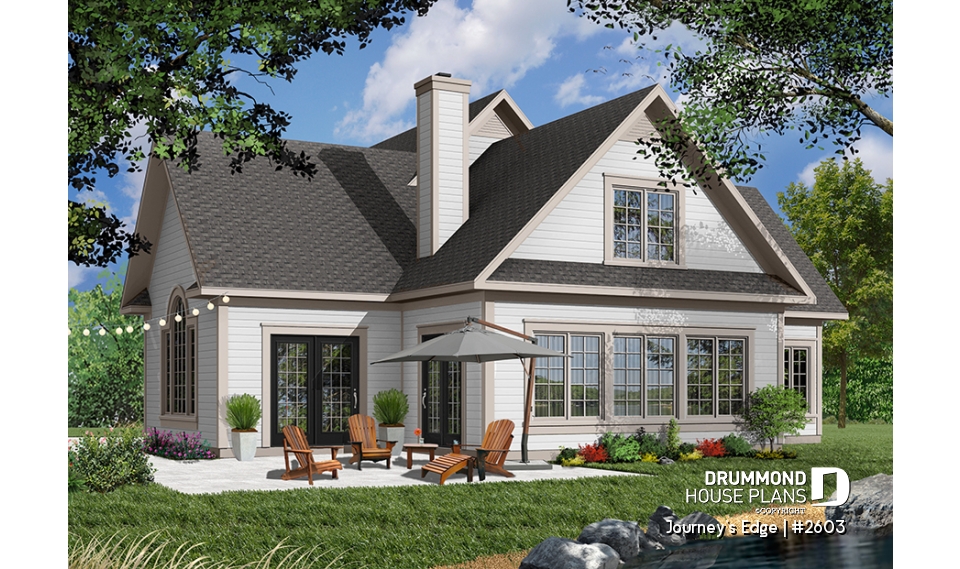

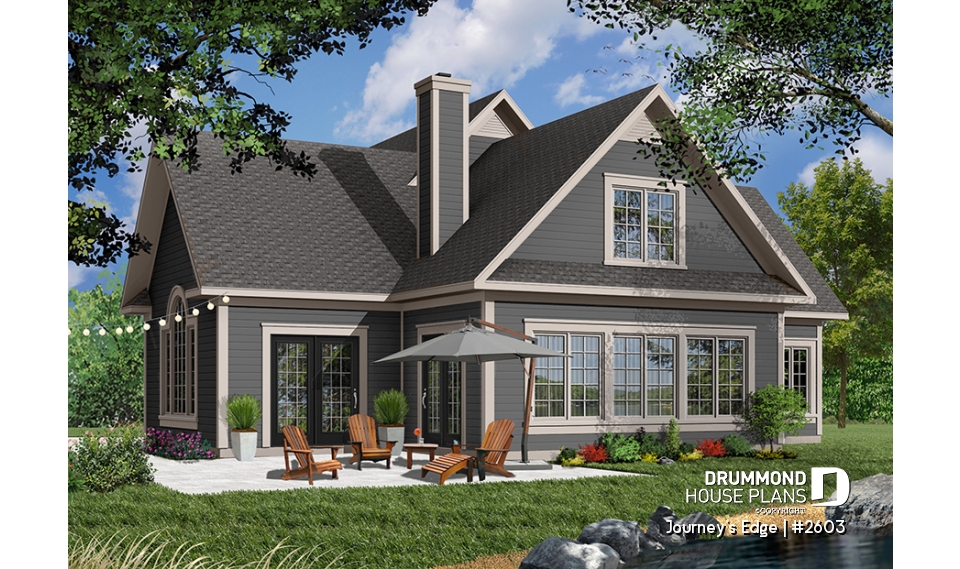

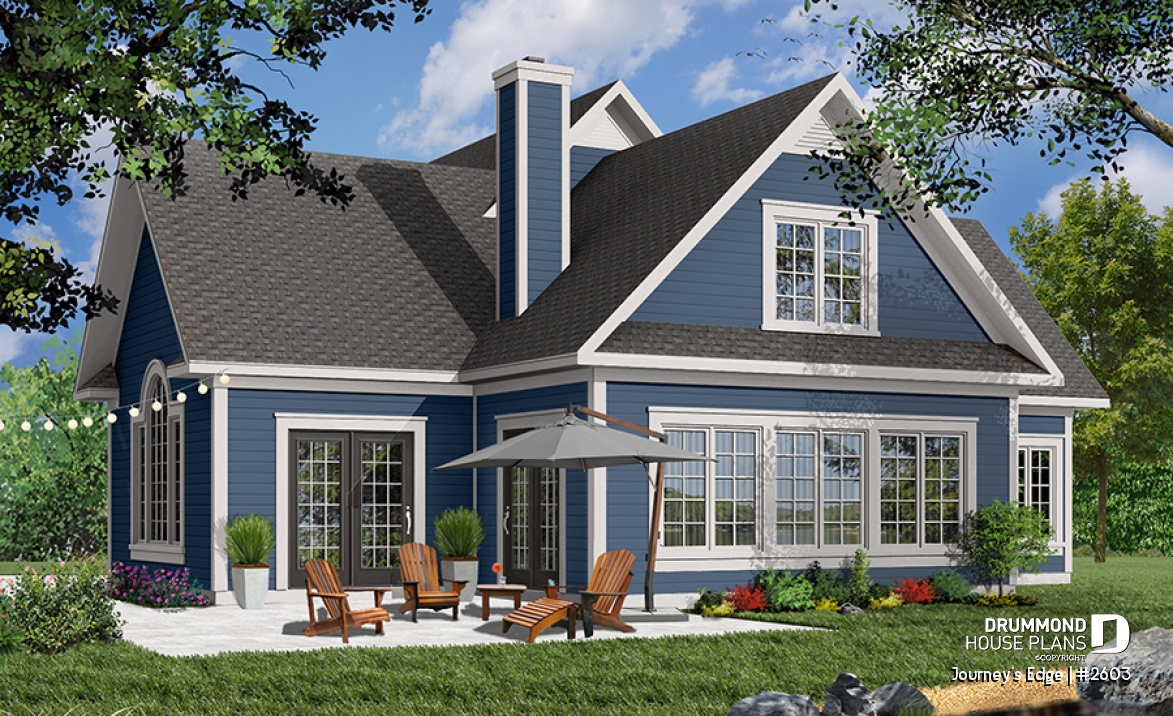

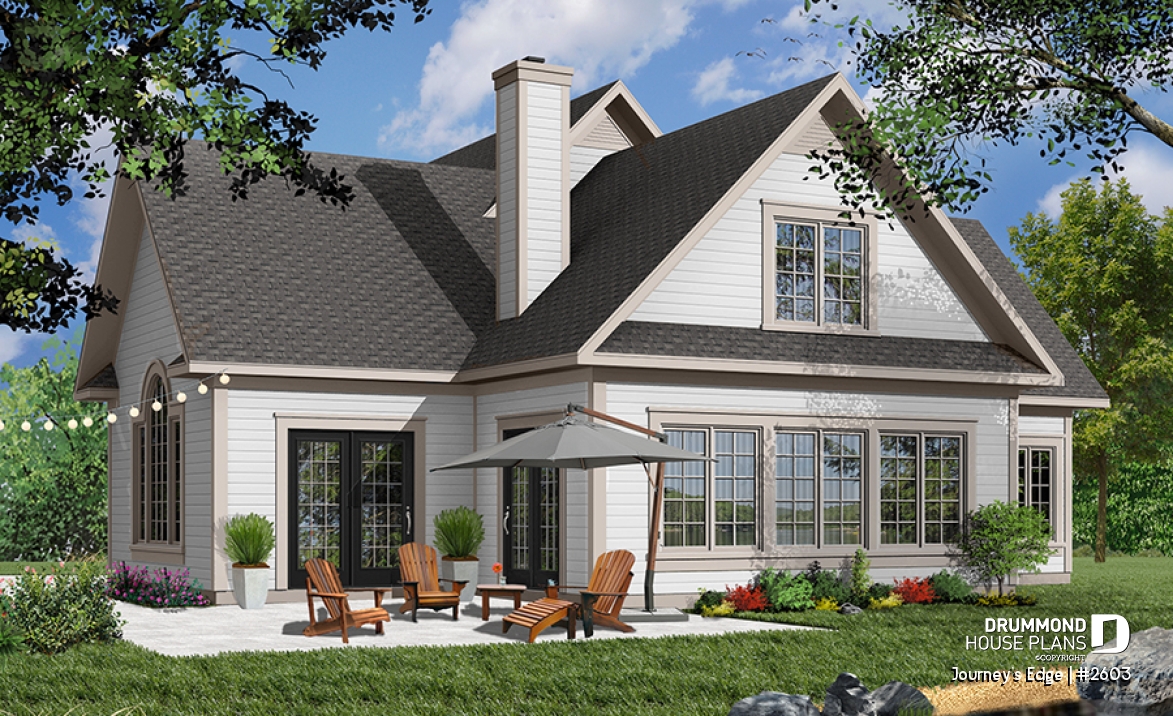

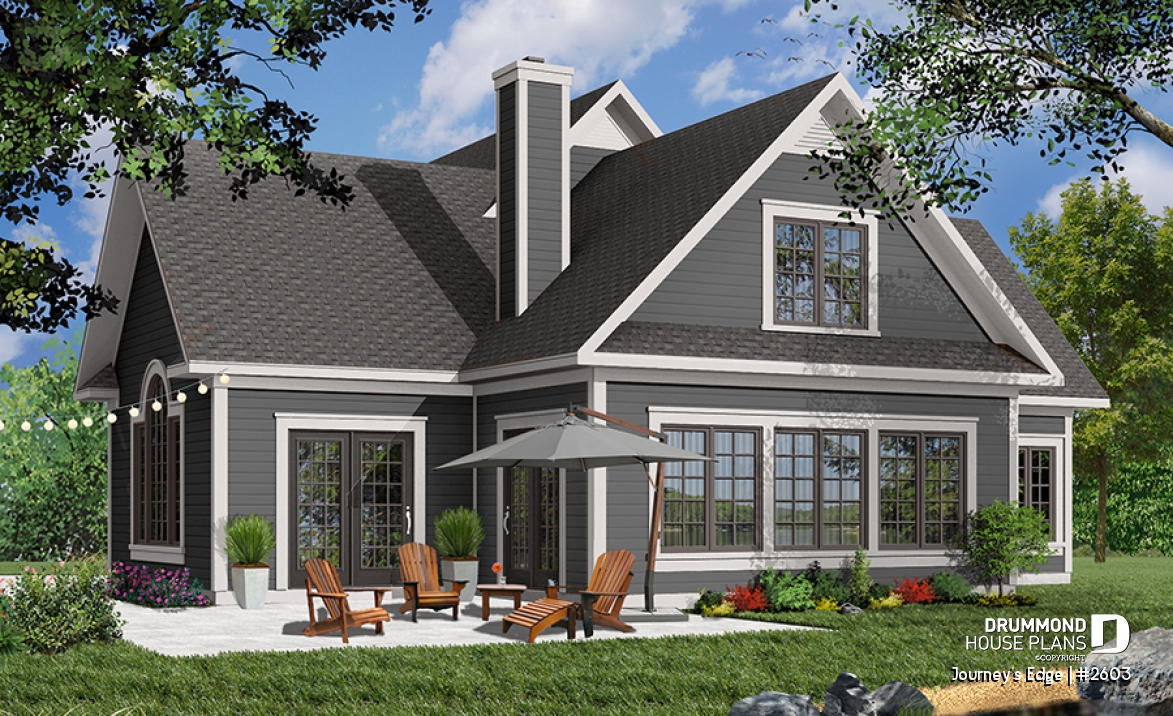

Panoramic Views & Versatile Site Placement
Originally designed for requests for panoramic rear views on narrow lots, this model has the added benefit of pleasing vistas from all sides and versatility for lot placement.
If sited with the double garage facing forward, this model sits tidily on a narrow lot and still provides a dramatic angled entry. Turn ninety degrees and the entry is equally dramatic, but the garage virtually disappears as a side entry!
The interior provides plenty of drama as well, including a spacious and functional angled entry which opens to a living room enhanced by a cathedral ceiling. A two-sided fireplace provides gentle separation of the living and dining areas while casting a pleasing glow on both.
The island kitchen and adjoining dining area ensure casual and inclusive meals. The main level is completed by a comfortable master bedroom with walk-in closet and conveniently located bathroom complete with laundry.
Upstairs, discover two bedrooms which share a bathroom and a bonus room which could serve as an additional bedroom, media room or studio. The abundant windows ensure fabulous views from all rooms and a light and pleasant interior. The model includes a slab foundation but, as with all DrummondHousePlans, this can be modified to suit at your request.
Distinctive elements
Master bedroom with French doors, located on main level. Abundant windows. Cathedral ceiling in family room. Mezzanine.
Plan feature(s)
Fireplace, Mezzanine, Living bonus space, Master suite on main, Island, Cathedral ceiling, Gound floor laundry room, Separate bath and shower, Sloped ceiling
Plan architectural style(s)
. Country, . Traditional, . Vacation and waterfront, . American, . Cottage, chalet, cabin
Similar plans
Previously Viewed Plans
Questions and comments
February 09
Rose
I am very nterested in this plan for a future lake front home ....but am very concerned that there apparently is no avialble option for a basement or even better a walkout basement?
February 09
Customer service
Good day and thank you for your interest in this plan.
The basement foundation, with or without walkout, is available for this plan and we would be happy to respond with a free estimate within two business days after receipt of this on line form for the plan that you require.
Please let me know if I can further assist you
Regards
Deb
March 04
TJ
Do you have any interior pictures of w2603?
March 04
Customer service
Good day and thank you for taking the time to write.
Since we do no actual construction, the only photos that we have are those which our clients have so generously shared with us. Unfortunately, we have no additional photos of this home on file at the present time but will post any as soon as they become available.
Please let me know if you have any other questions or comments.
Regards
Deb
February 12
Viera
I love this plan and I believe it would work for our needs. However I have these questions: #1. would it be possible to have nice size pantry included in the kitchen area or somewhere near the kitchen? #2. could there be powder room for guests on main floor? #3. can the plans have a change as to the separate laundry room? #4. Can the doors be moved on the master bedroom for the master bathroom, so the bathroom would be accessible only from the master bedroom? #5. Could the outside appearance be changed so it looks more modern? Thank you very much.
February 12
Customer service
Good day and thank you for you for your interest in this plan.
The changes that you require to this plan are possible and we would be happy to send you a free estimate for the customization within two business days after receipt of this on line form.
Please let me know if I can further assist you
Regards
Deb
February 03
anne frary
We love this house plan.
February 03
Customer service
Thank you!
October 20
Tom Reid
Plan W2603. I currently live in a drummond house design ( multi generational) We are looking at building again since we no longer need the granny suite. I have a question about W2603; when I look at the first floor layout, I cannot visualize the floor joist layout for the 2nd floor, unless it is a floorjoist/roof truss design;all in one. Then my question is whether or not, I can put duct work in the floor/roof design to accomodate a heat pump and a air exchange unit. Thanks for any assistance. Tom
October 20
Customer service
Dear Mr Reid,
Thank you for your interest in Drummond House Plans.
All of our plans are designed with electric baseboards for heating. You will need to consult your contractor and figure out with him where he thinks the ducts could go depending on their size. Ducts are normally placed in bulkheads in the ceiling or are installed in closets, for instance.
If you need further information, please contact me again.
Sincerely,
France, Customer Service Department
