House plan Willingdon 2 (3403)
Classic 2-storey 3 bedrooms, large sunken family room with fireplace, garage, home office
View the size of the rooms and height of the ceilings

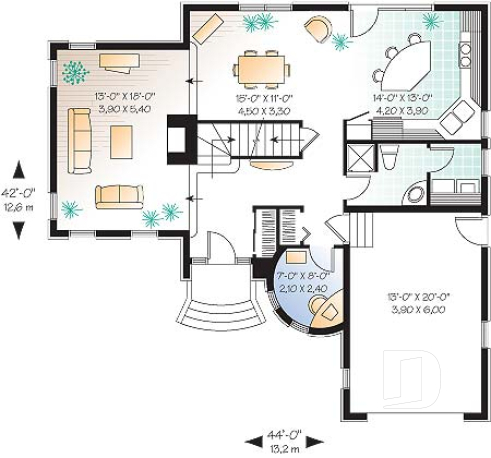

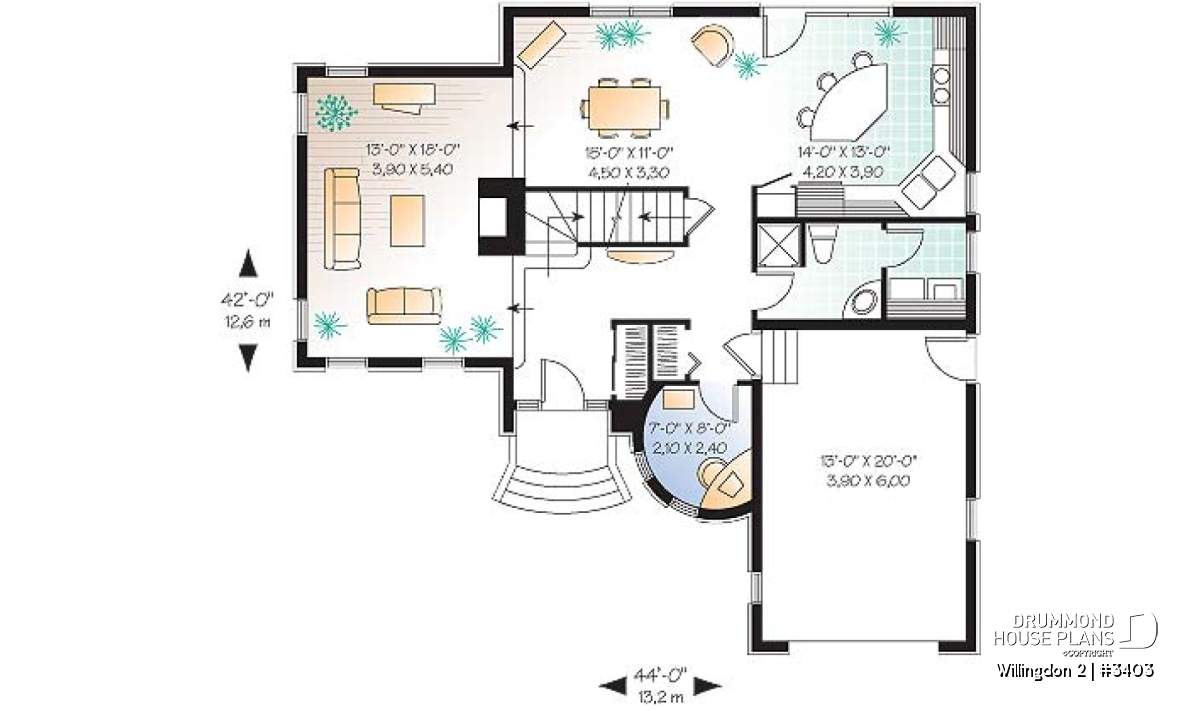

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 15'0" x 11'0" | ~ 9'0" |
| Living room | 13'0" x 18'0" | ~ 12'0" |
| Home office | 7'0" x 8'0" | ~ 9'0" |
| Utility room | 5'0" x 6'0" | ~ 9'0" |
| Garage | 13'0" x 20'0" | ~ 10'0" |
| Porch | 5'8" x 3'0" | N/A |
| Terrace | 10'0" x 6'0" | N/A |
| Full bathroom | 8'0" x 6'0" | ~ 9'0" |
| Kitchen | 13'4" x 13'0" | ~ 9'0" |
| Foyer | 6'4" x 5'4" | ~ 9'0" |

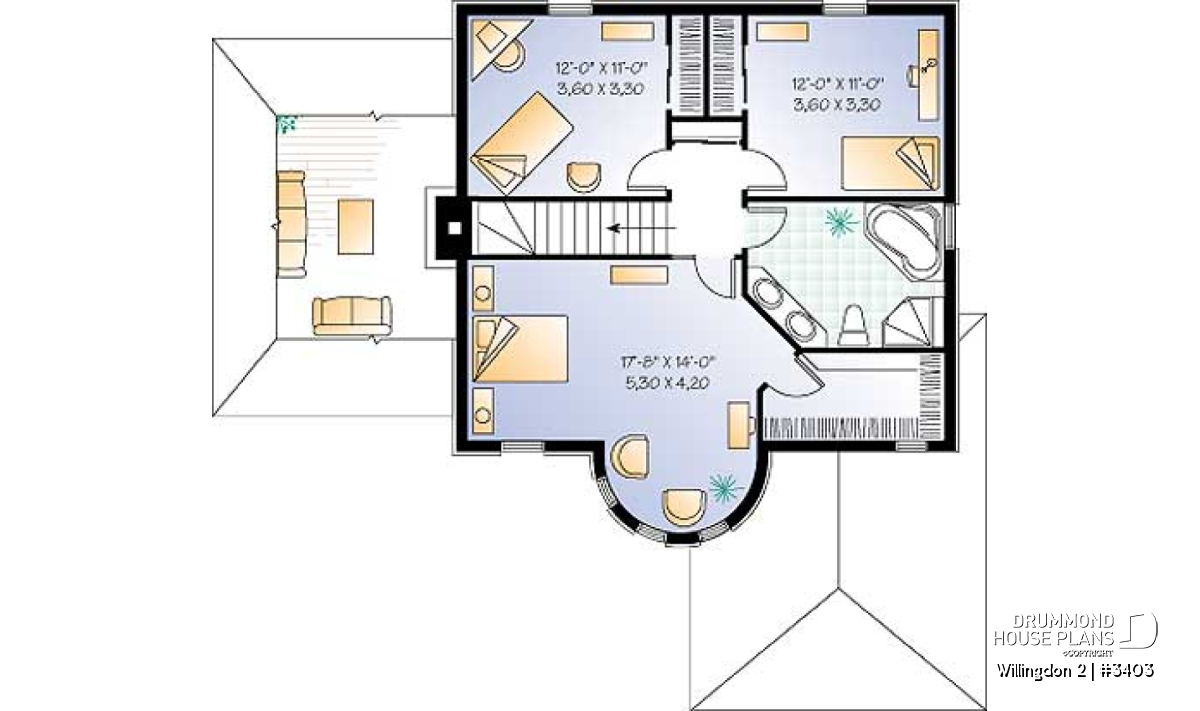

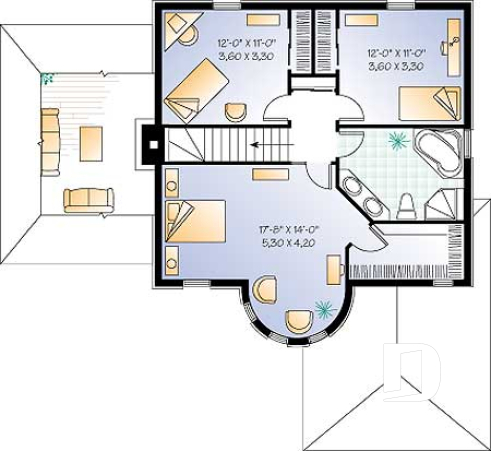

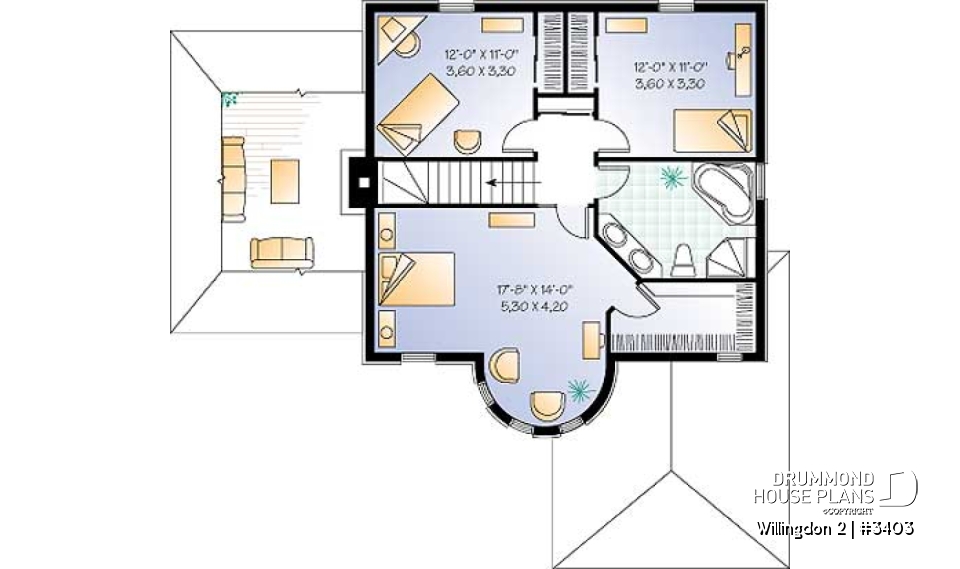

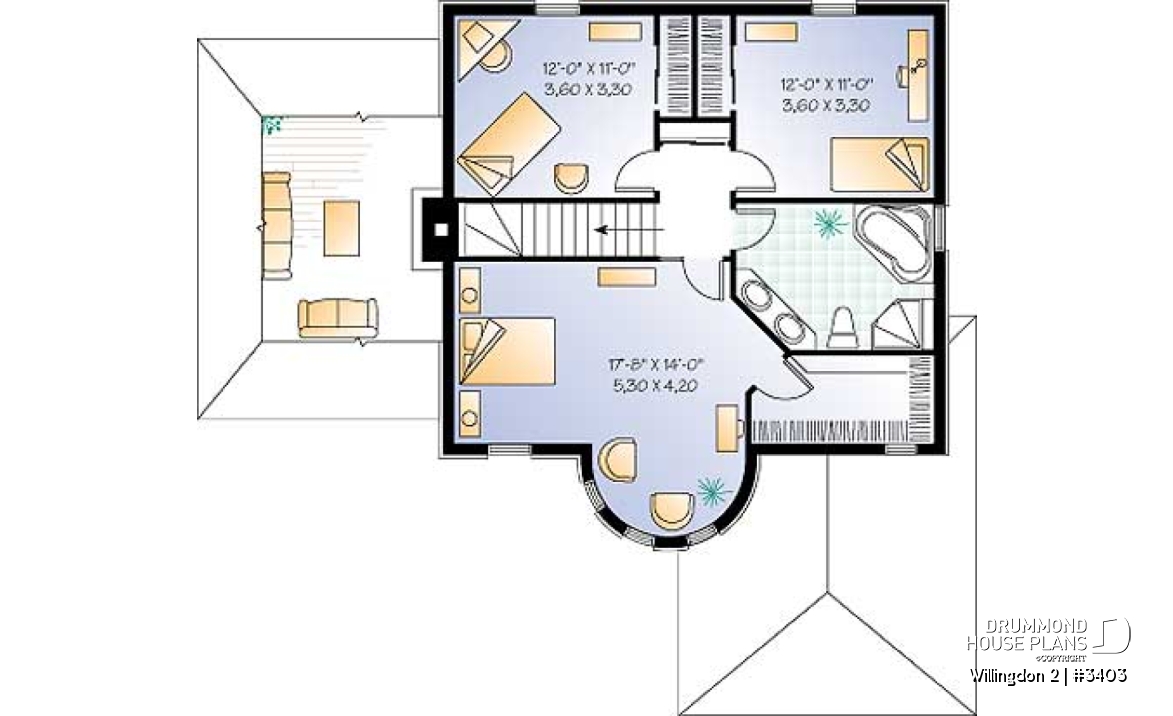

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 17'8" x 14'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'0" | ~ 8'0" |
| Linen | 4'4" x 1'2" | ~ 8'0" |
| Full bathroom | 12'0" x 9'0" | ~ 8'0" |
General specifications
| Total living area | 1972 sq.ft. |
| 1st level | 1062 sq.ft. |
| 2nd level | 910 sq.ft. |
| Width | 44'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 34'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Grand Manor Features, 3 bedrooms, garage and sunken living room with 12' celing and fireplace!

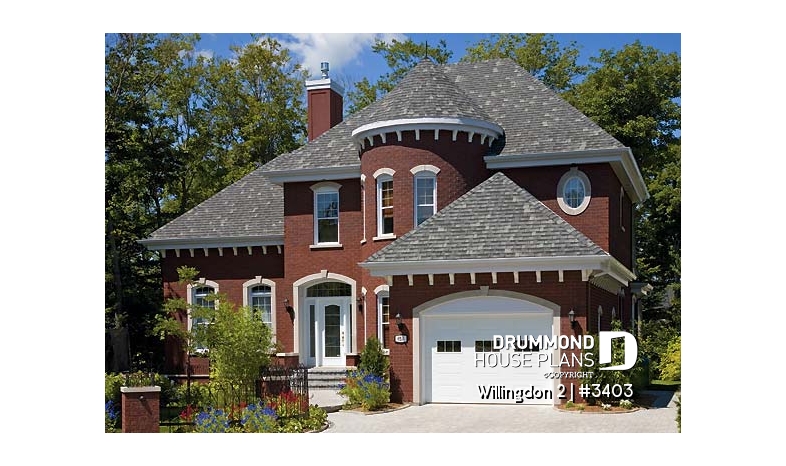

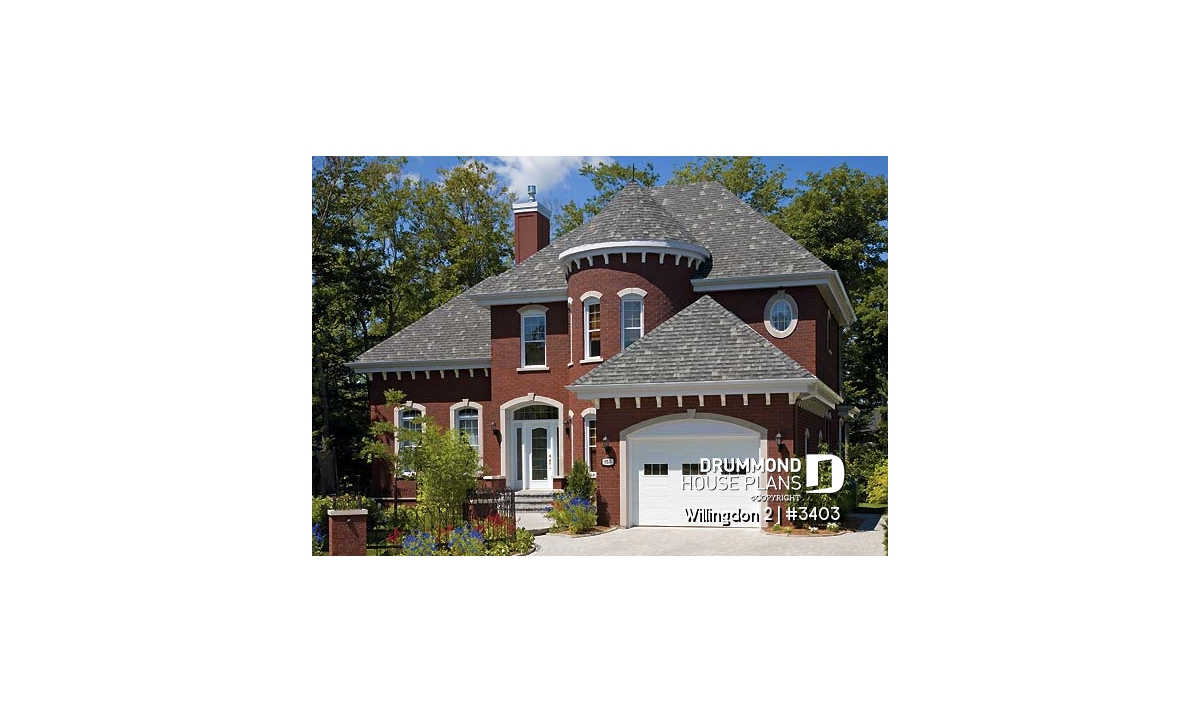

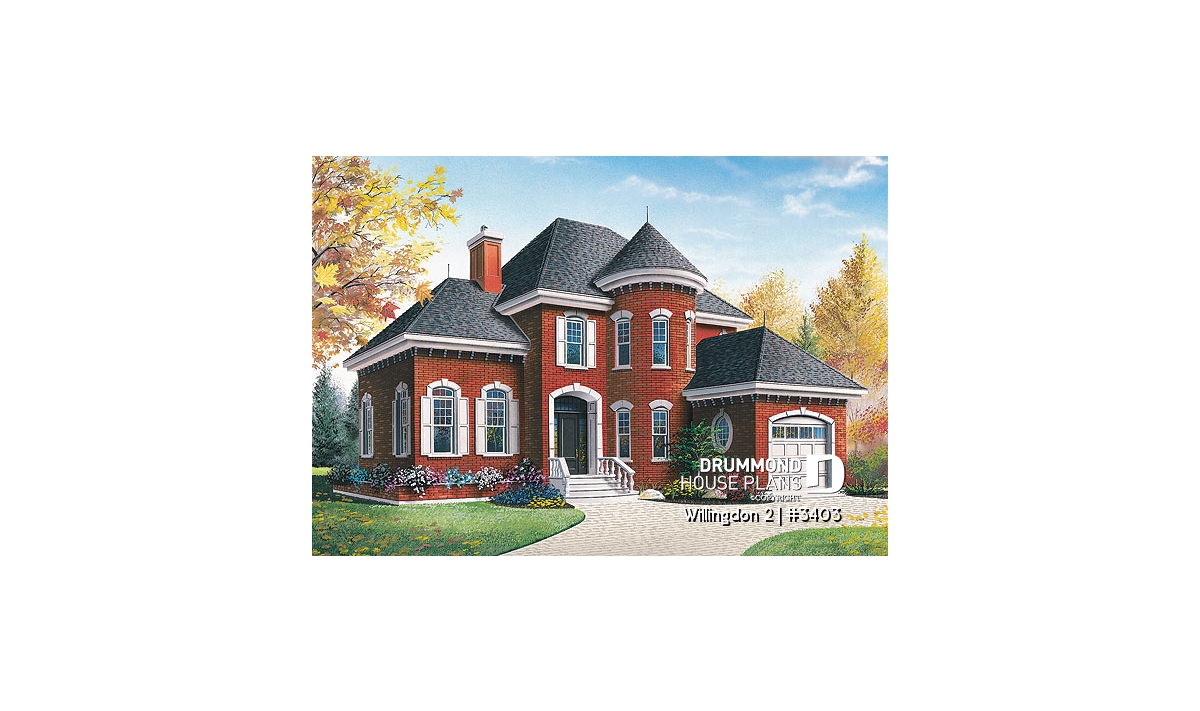

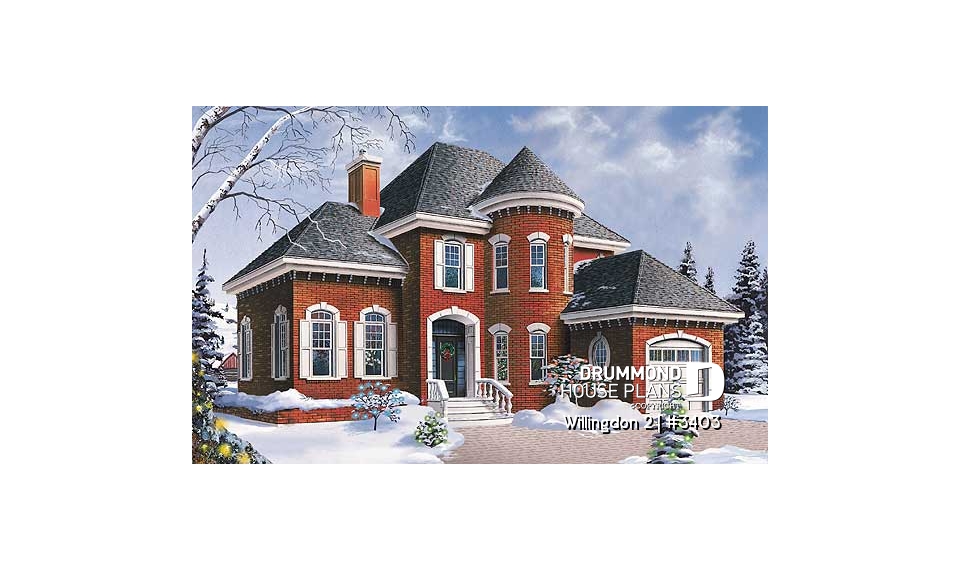

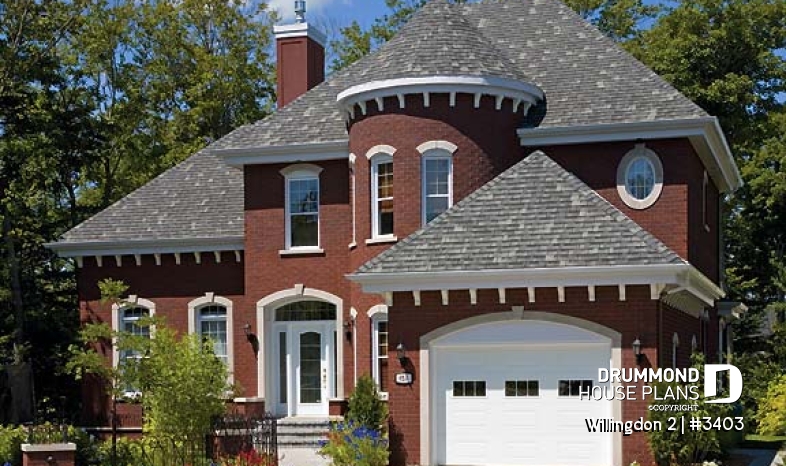

Inspired by the architectural elements of the grand manors including brickwork on the ledges, the turret on the main façade, a recessed main entrance and lateral panels and balusters on the front porch. This model generated a lot of interest from the moment it appeared on our Internet site and in our magazines.
Inspiring with 9-foot ceilings throughout the main level vaulting to a peak of 12 feet in the living room. This grand space is warmed by the glow of a beautiful hearth.
An intimate home office nestles in the turret of the main level and all of the rooms are of good volumes with ample storage.
The large master bedroom offers an additional reading/television corner in the turret as well as a large walk in closet. Two comfortable secondary bedrooms and spacious bathroom featuring corner tub, separate shower and dual sinks add to the comfort of this home.
Drummond Designs proposes variations of this model offering among other things a most impressive garage. We invite you to visit models 3420 and 3422 to appreciate their particular features.
Distinctive elements
Fireplace in family room.
12 foot ceiling in the family room
9 foot ceilings on the rest of the floor.
Plan feature(s)
Fireplace, Island, Office / Study / Den, Gound floor laundry room, Walk-in master bed., Ceiling over 8', Separate bath and shower, Double sinks, Sitting area, Sunken living room
Plan architectural style(s)
. European, . Manors and small castles, . English
