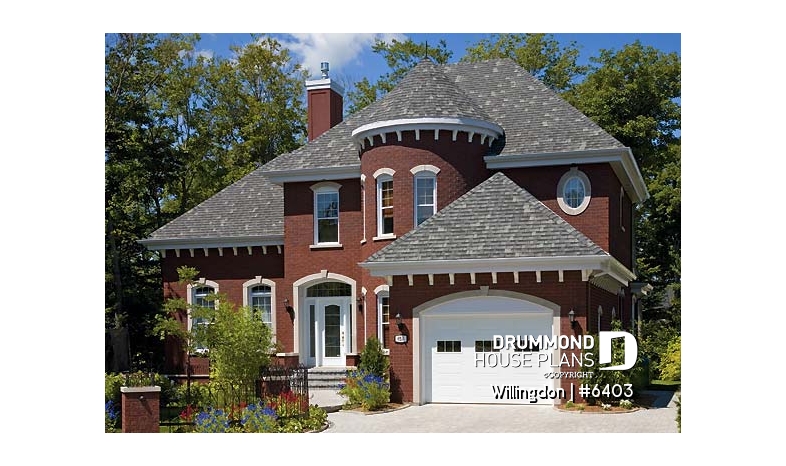

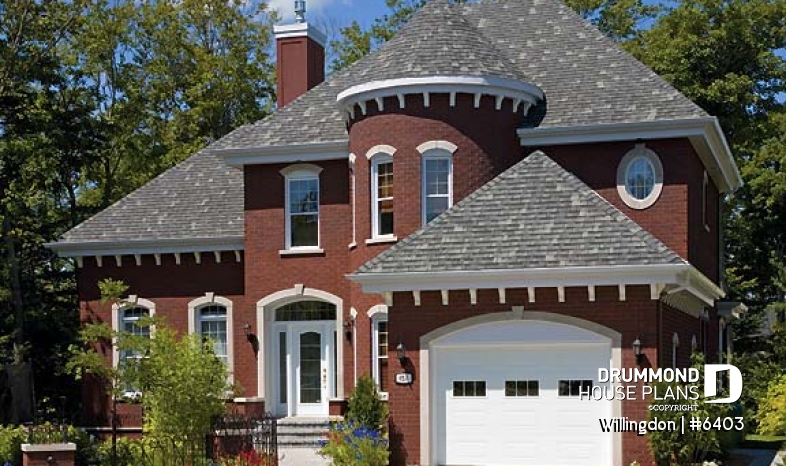

Willingdon (6403)
European style 3 bedroom house plan, home office, large sunken living room, garage, walk-in in master
View the size of the rooms and height of the ceilings

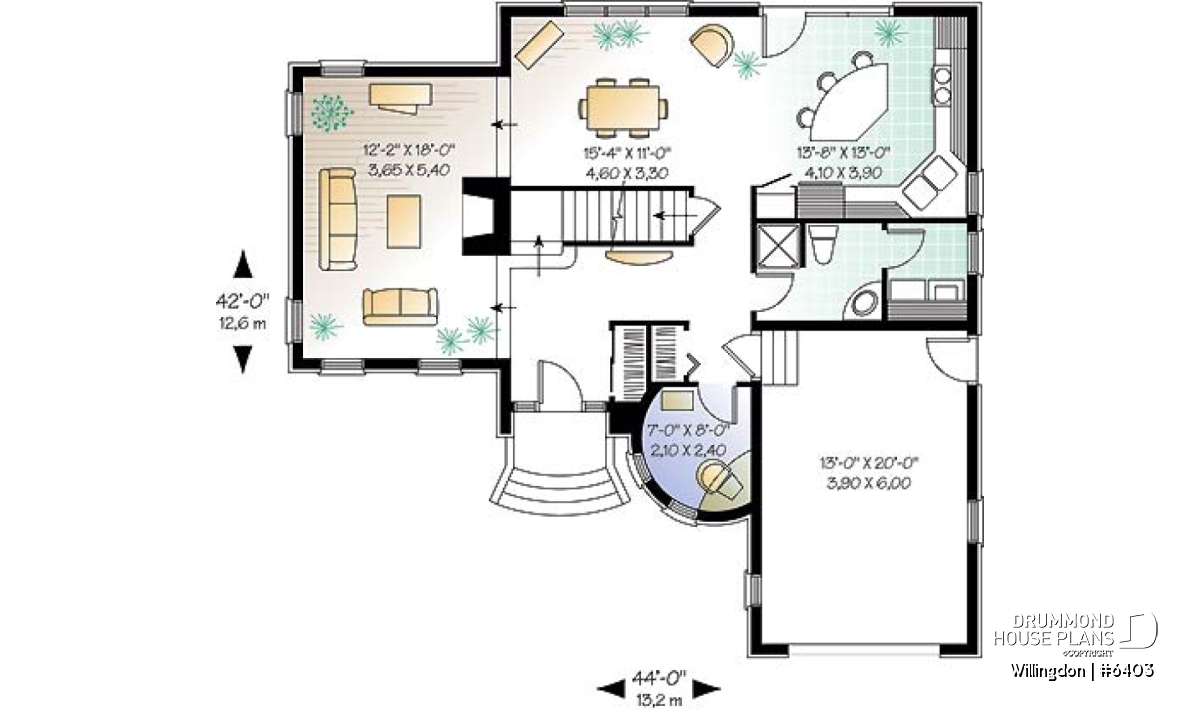

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'0" x 5'10" | ~ 9'0" |
| Closet | 3'8" x 2'0" | ~ 9'0" |
| Dining room | 15'4" x 11'0" | ~ 9'0" |
| Foyer | 6'4" x 5'4" | ~ 9'0" |
| Garage | 13'0" x 20'0" | ~ 10'6" |
| Home office | 7'0" x 8'0" | ~ 9'0" |
| Kitchen | 13'8" x 13'0" | ~ 9'0" |
| Living room | 12'2" x 18'0" | N/A |
| Pergola | 5'8" x 3'7" | N/A |
| Terrace | 10'0" x 6'0" | N/A |
| Utility room | 5'0" x 6'0" | ~ 9'0" |

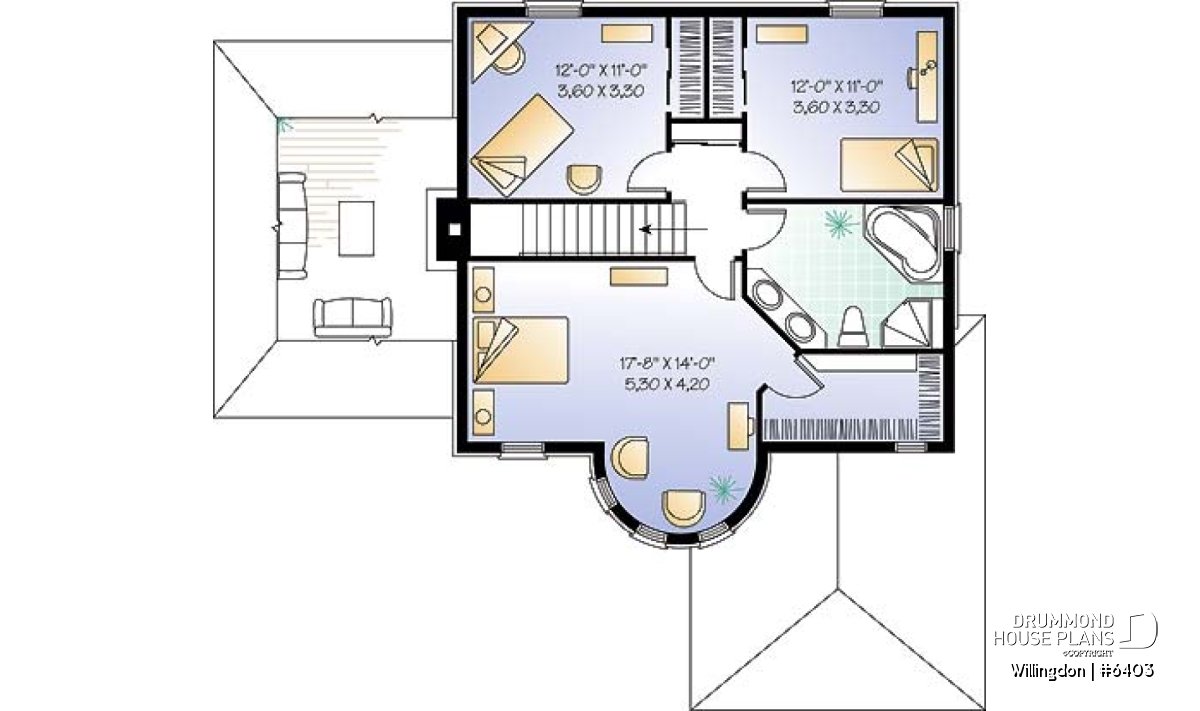

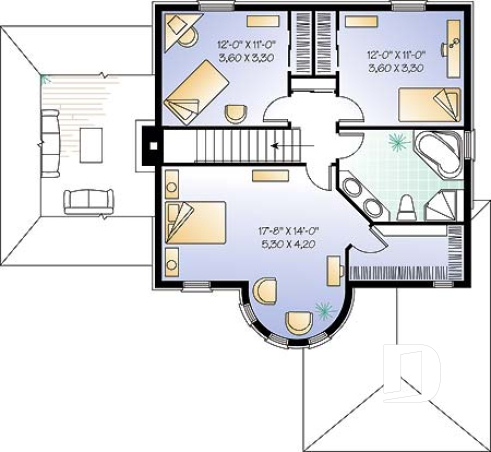

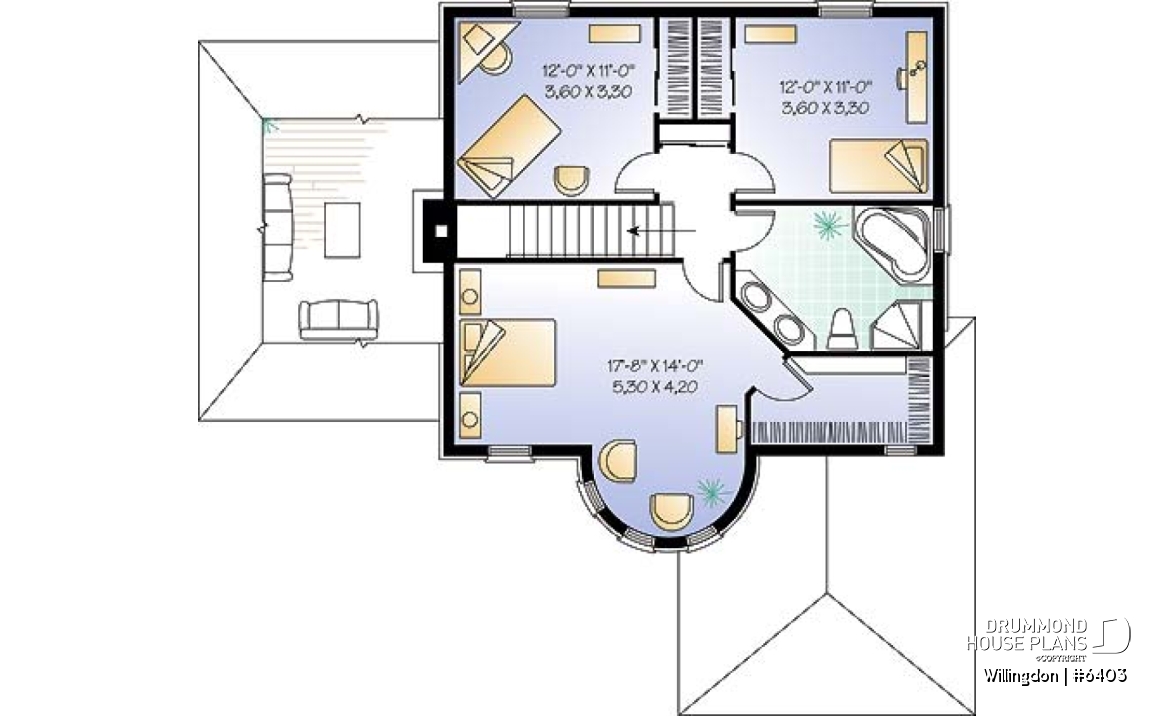

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'0" x 9'0" | ~ 8'0" |
| Bedroom | 17'8" x 14'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'0" | ~ 8'0" |
| Bedroom | 12'0" x 11'0" | ~ 8'0" |
| Linen | 4'4" x 1'2" | ~ 8'0" |
General specifications
| Total living area | 1972 sq.ft. |
| 1st level | 1062 sq.ft. |
| 2nd level | 910 sq.ft. |
| Width | 44'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 34'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Manor style 3 bedroom house plan with garage, home office and large sunken living room
.
Distinctive elements
Fireplace in family room.
12 foot ceiling in the family room
9 foot ceilings on the rest of the floor.
Plan feature(s)
Fireplace, Sloped ceiling, Gound floor laundry room, Office / Study / Den, Island, Walk-in master bed., Separate bath and shower, Double sink vanity, Sunken living room, Sitting area, Ceiling over 8'
Plan architectural style(s)
Previously Viewed Plans
Questions and comments
October 15 2014
wani king
good looking house. a slight modification is to be needed. A hall above the gerage is needed and the roof as gable roof. I wana a modified picture of the same house as i suggested.
October 15 2014
Customer service
Good day and thank you for taking the time to write.
Since we do no actual construction and that we have no photos of homes using this modified plan, I am unfortunately unable to provide a picture of the same house with the suggested changes but we would be happy to return a free estimate for the modification to the plan within two business days after receipt of this on line form.
Please let me know if I can further assist you
Regards
Deb
April 11 2013
Bryon
printable pdf set for client possible review
April 11 2013
Customer service
Good day and thank you for your interest in this plan.
Although we do offer the PDF version of this plan in printable form, we do not offer study sets and no charge PDF versions for review prior to purchase.
Regards
Deborah
