House plan Dynasty 3 (3314)
Affordable, Simple four bedroom bungalow house plan, ideal for narrow lot, open floor plan
View the size of the rooms and height of the ceilings

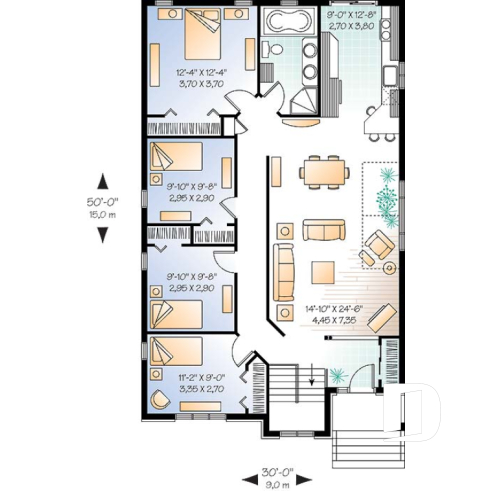

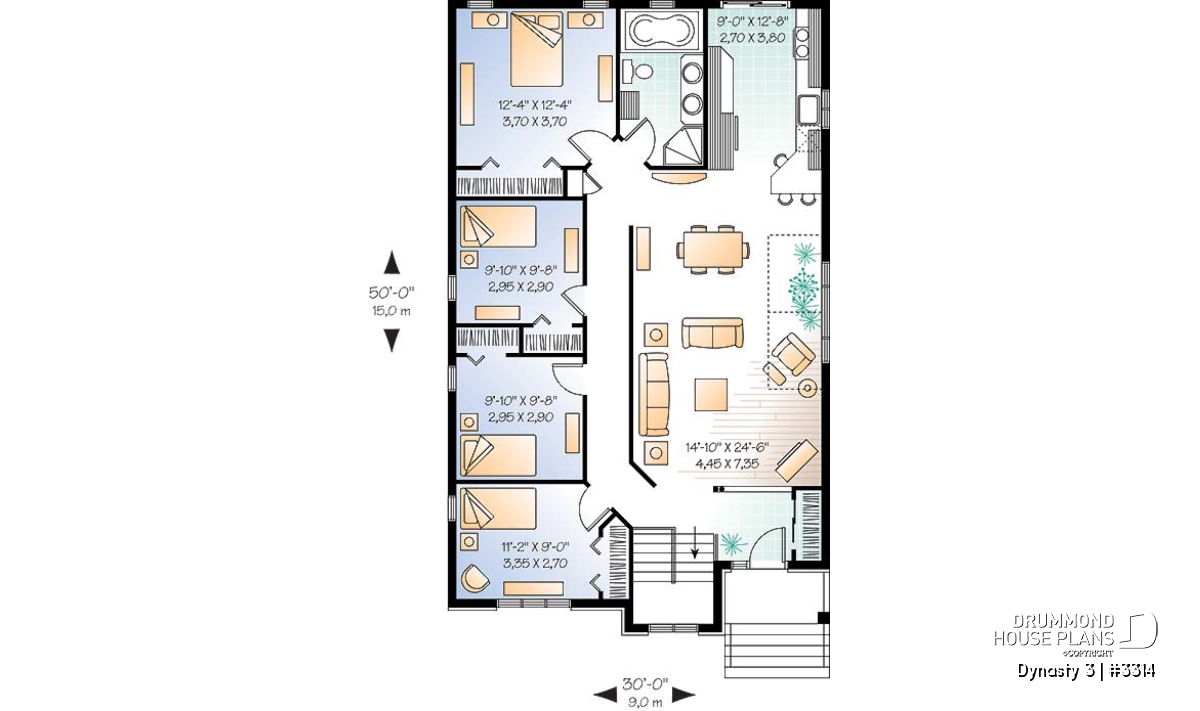

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'8" x 12'4" | ~ 8'0" |
| Kitchen | 9'0" x 12'8" | ~ 8'0" |
| Living room | 14'10" x 24'10" | ~ 8'0" |
| Bedroom | 12'4" x 12'4" | ~ 8'0" |
| Bedroom | 9'10" x 9'8" | ~ 8'0" |
| Bedroom | 9'10" x 9'8" | ~ 8'0" |
| Bedroom | 11'2" x 9'0" | ~ 8'0" |
| Linen | 1'2" x 2'0" | ~ 8'0" |
| Porch | 8'0" x 4'0" | N/A |
| Terrace | 7'0" x 3'0" | N/A |
| Foyer | 6'0" x 5'8" | ~ 8'0" |
General specifications
| Total living area | 1433 sq.ft. |
| 1st level | 1433 sq.ft. |
| Width | 30'0" |
| Depth | 50'0" |
| Ridge height from top of foundation | 22'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Simple 4 bedroom bungalow house plan with open floor plan
.
Distinctive elements
Bungalow with 4 bedrooms on main floor.
Galley kitchen design with patio door.
Family room and dining room open floor plan concept.
Good size master bedroom.
Large family bathroom with separate bath & shower.
Plan feature(s)
Lunch counter, Open floor layout, Separate bath and shower, Double sinks, Cathedral ceiling
Plan architectural style(s)
. European, . Country, . Traditional, . Ranch, . Craftsman / Northwest
