House plan Dynasty (3312)

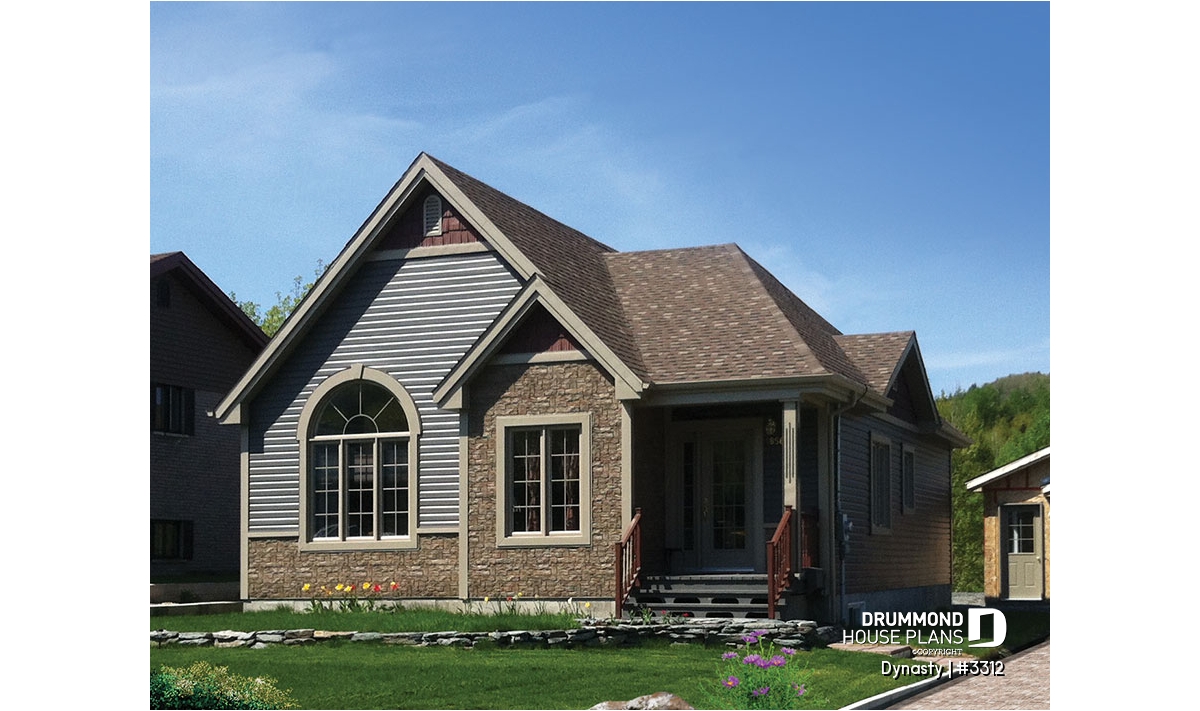

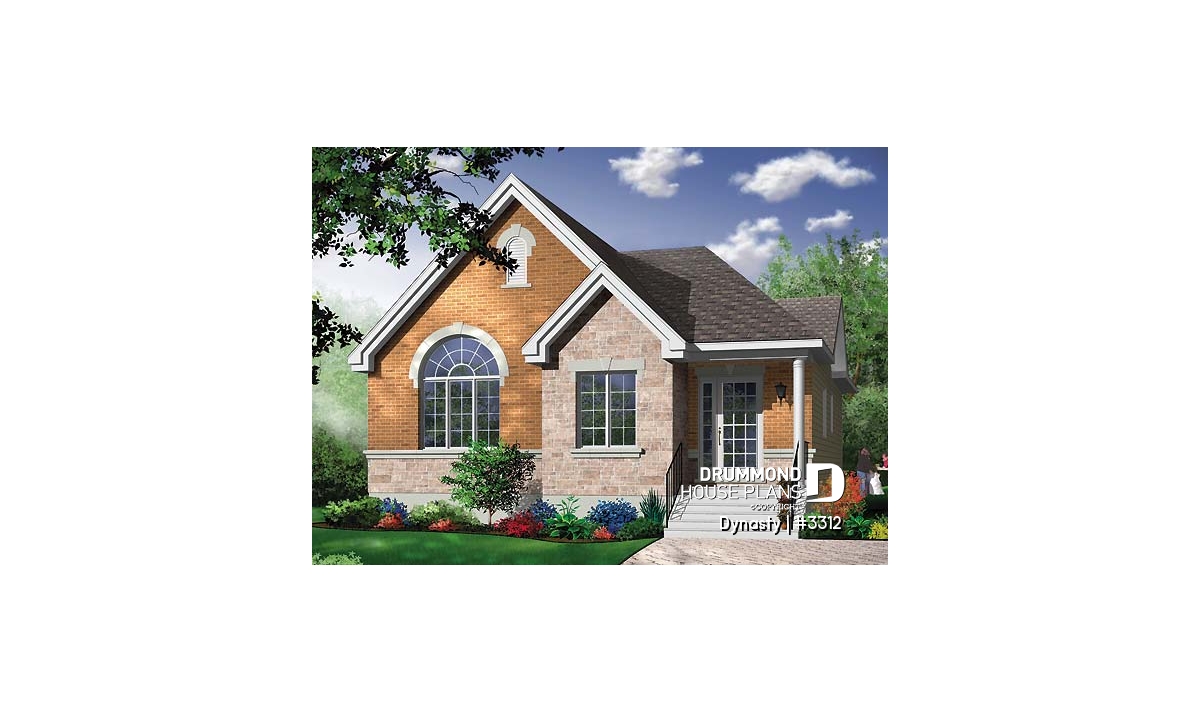

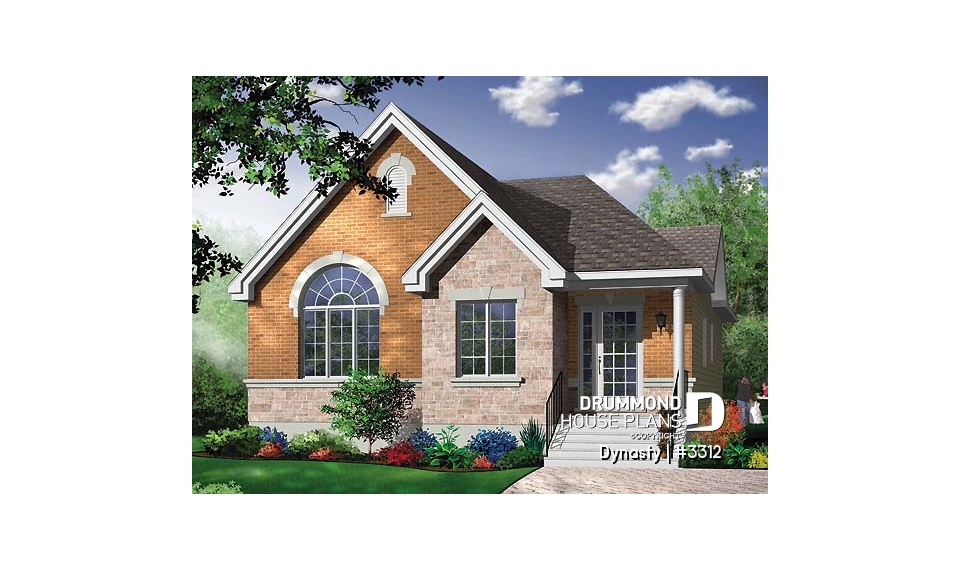

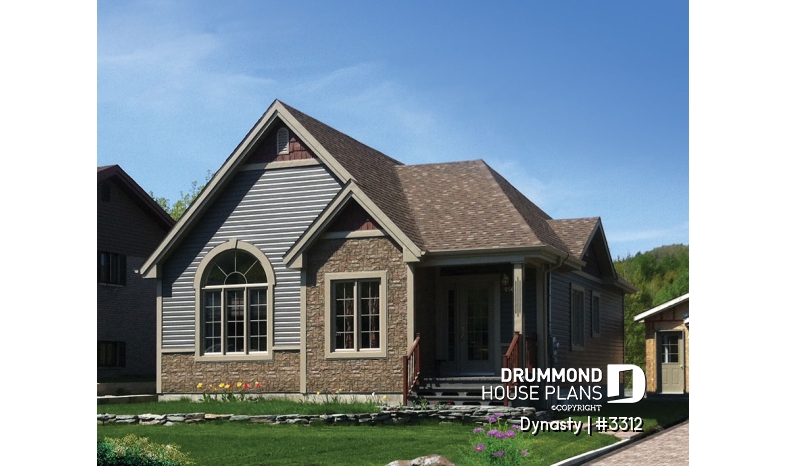

european style bungalow with two large bedrooms and open floor plan concept, ideal for narrow lot

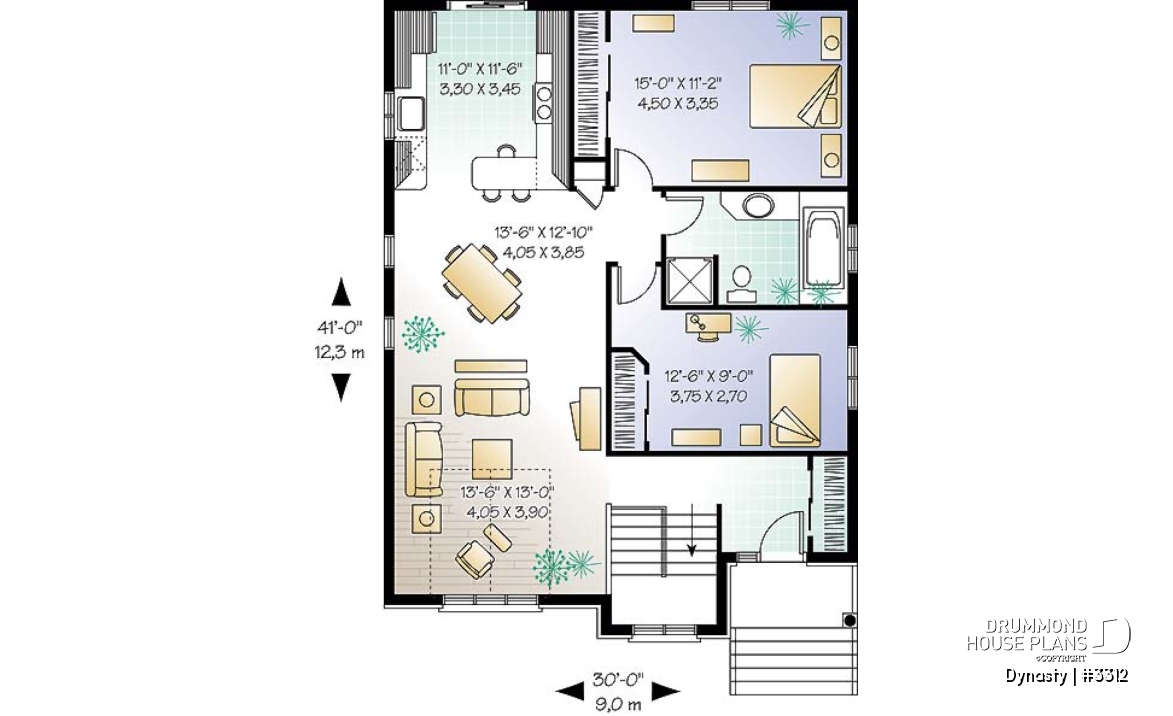

View the size of the rooms and height of the ceilings

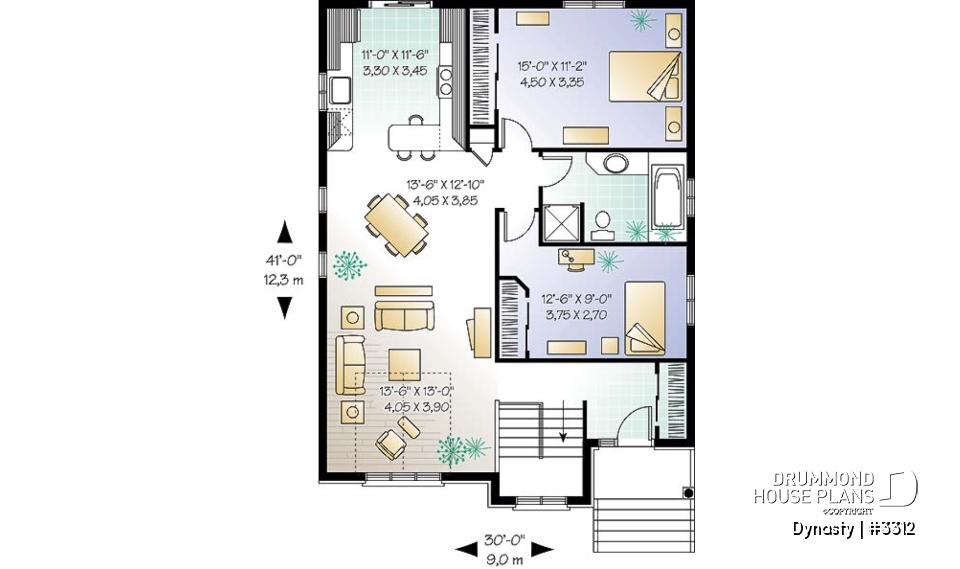

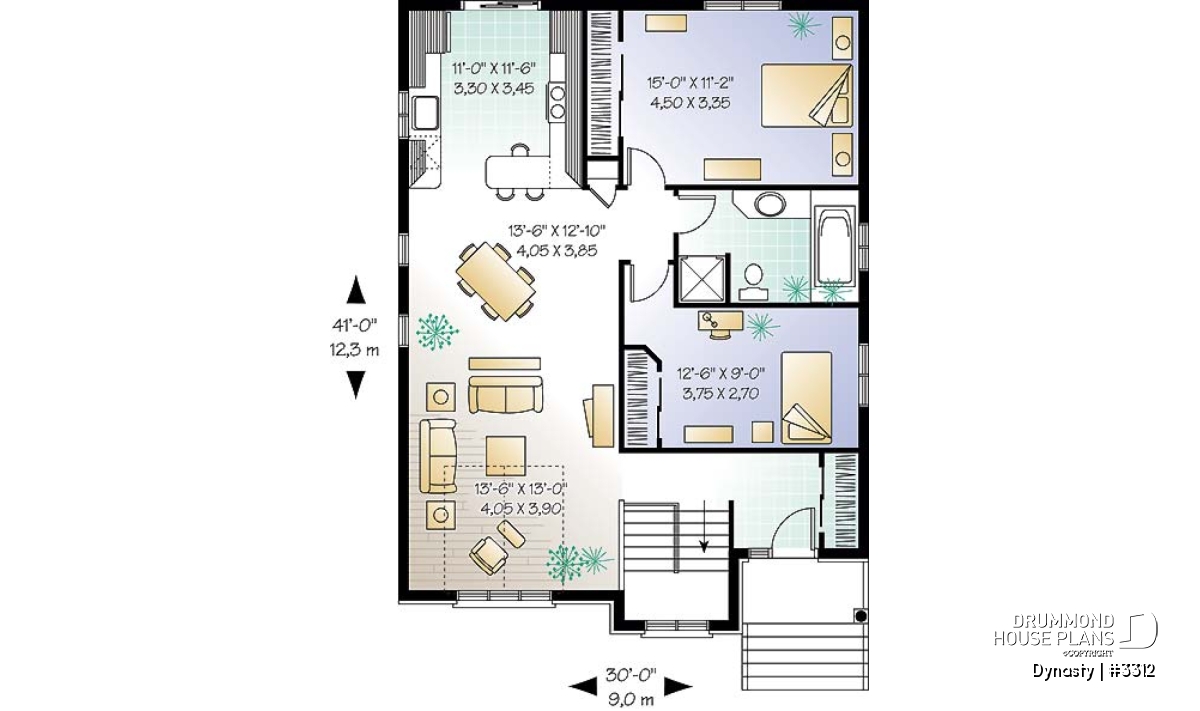

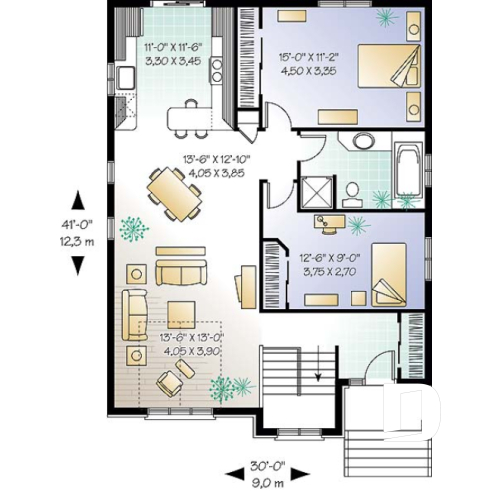

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'6" x 7'4" | ~ 8'0" |
| Kitchen | 11'0" x 11'6" | ~ 8'0" |
| Dining room | 13'6" x 12'10" | ~ 8'0" |
| Living room | 13'6" x 13'0" | ~ 8'0" |
| Bedroom | 15'0" x 11'2" | ~ 8'0" |
| Bedroom | 12'6" x 9'0" | ~ 8'0" |
| Linen | 2'0" x 1'6" | ~ 8'0" |
| Foyer | 5'8" x 5'10" | ~ 8'0" |
| Porch | 8'0" x 4'0" | N/A |
| Porch | 8'0" x 5'0" | N/A |
General specifications
| Total living area | 1163 sq.ft. |
| 1st level | 1163 sq.ft. |
| Width | 30'0" |
| Depth | 41'0" |
| Ridge height from top of foundation | 21'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Two-bedroom bungalow with open floor plan concept and ideal for narrow lot
.
Distinctive elements
Bungalow with two bedrooms on main floor.
Galley kitchen design with patio door.
Family room and dining room open floor plan concept.
Good size master bedroom.
Large family bathroom with separate bath & shower, that could be converted into 2 bathrooms.
Plan feature(s)
Open floor layout, Lunch counter, Cathedral ceiling, Separate bath and shower
Plan architectural style(s)
. European, . Country, . Ranch, . Traditional
