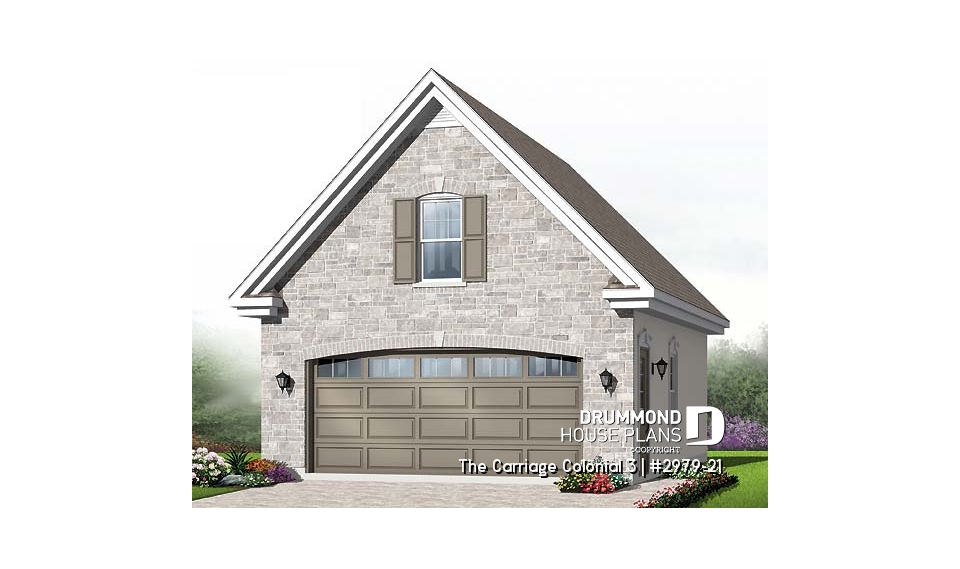

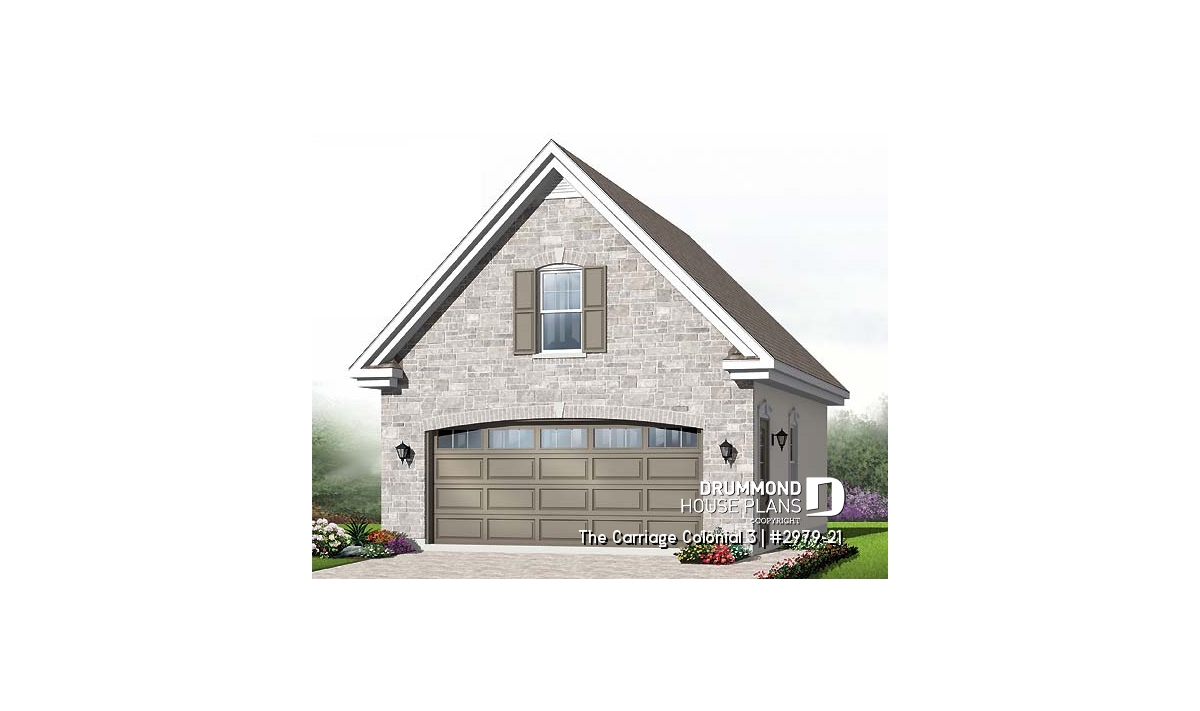

Garage plan The Carriage Colonial 3 (2979-21)
Traditional two-car garage plan with storage on second floor
View the size of the rooms and height of the ceilings

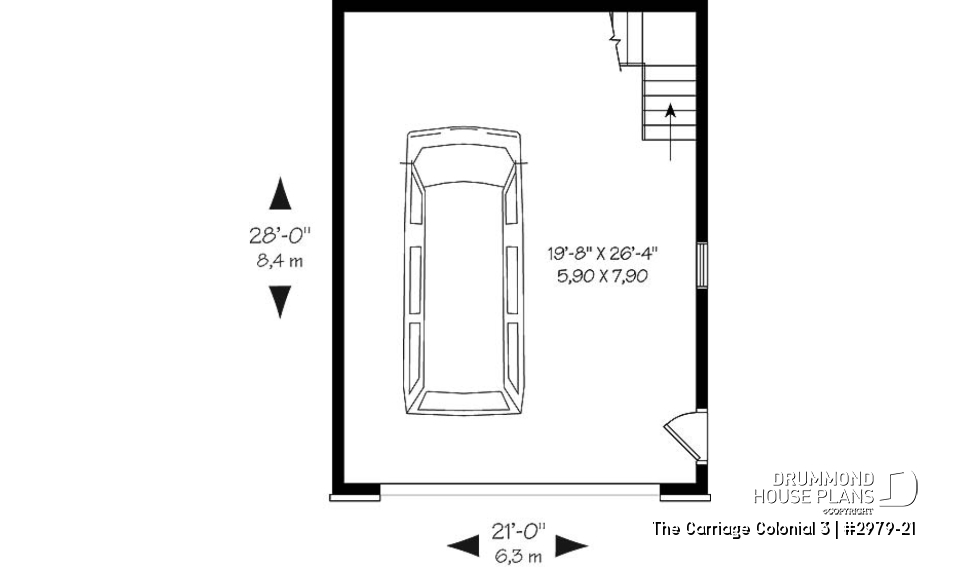

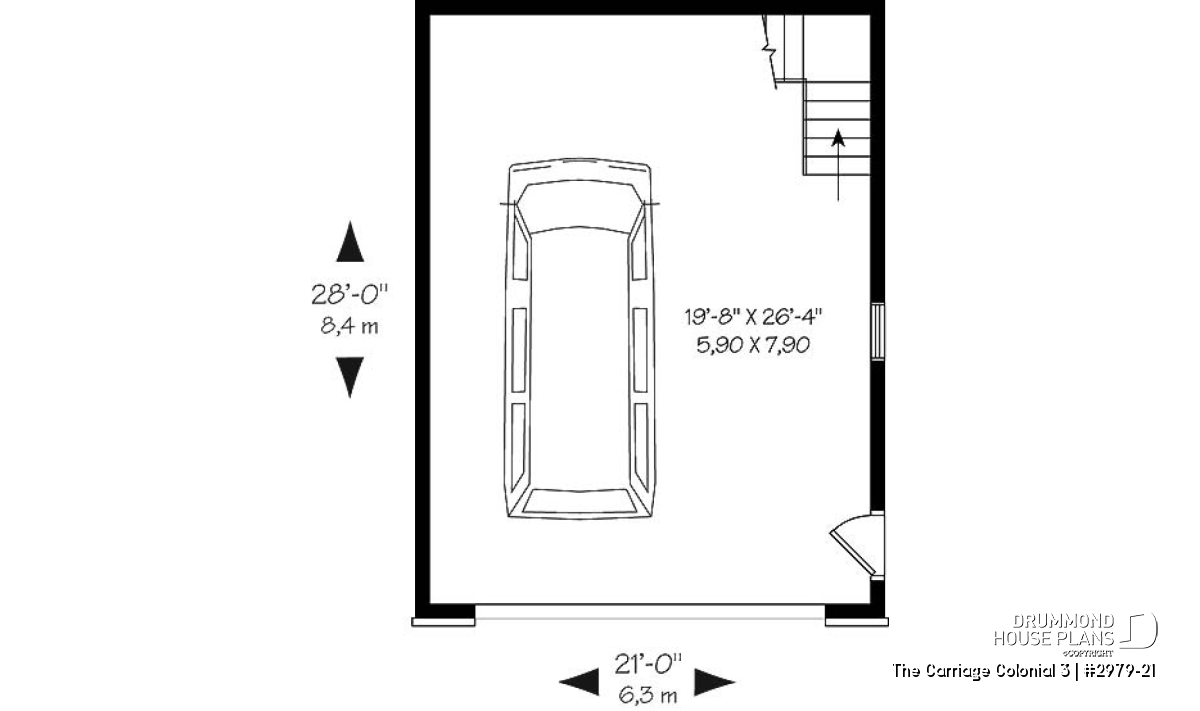

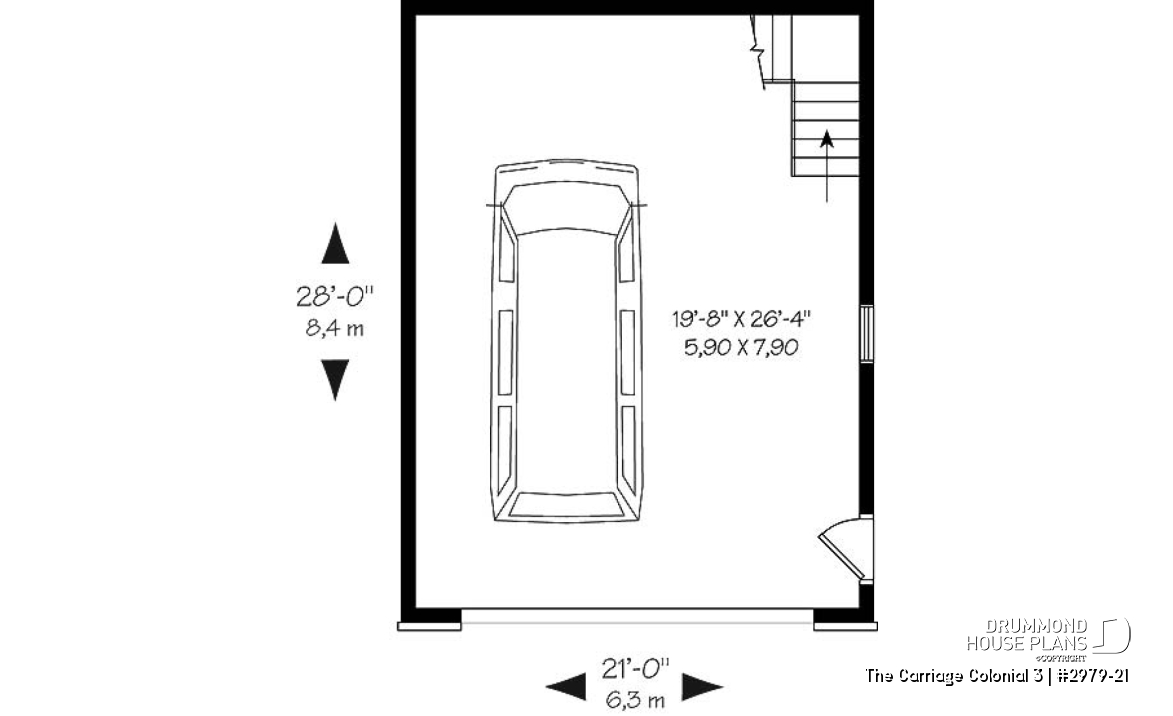

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 19'8" x 26'4" | ~ 8'6" |

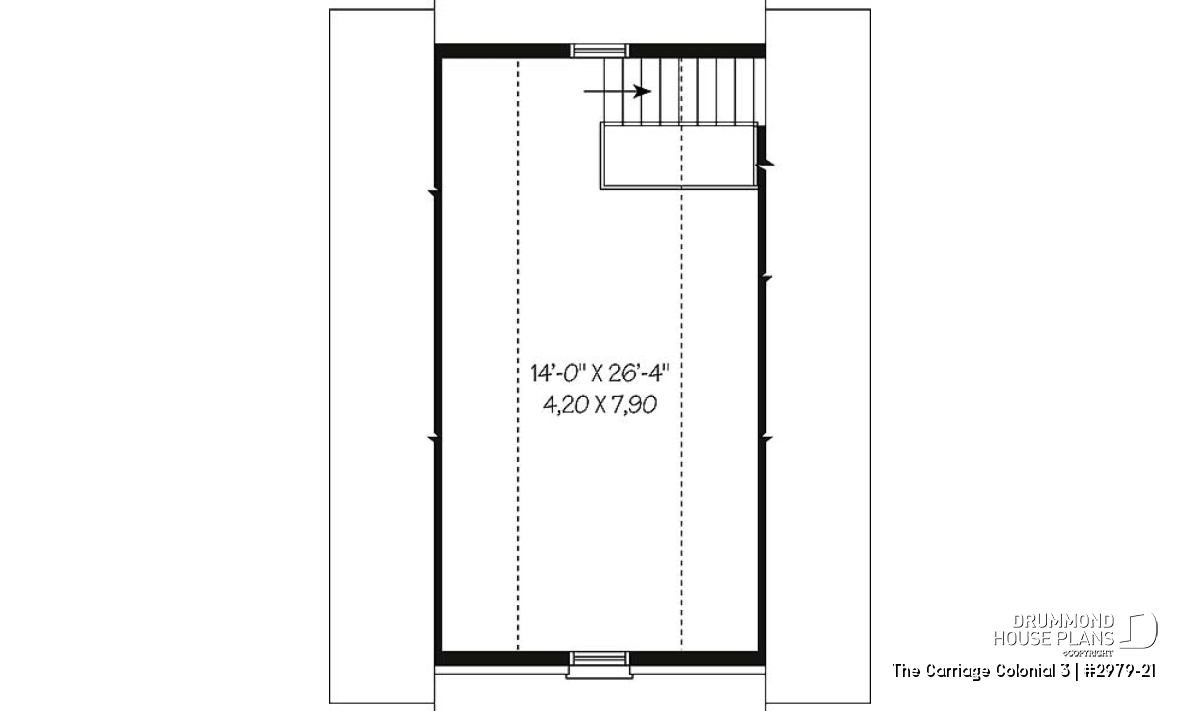

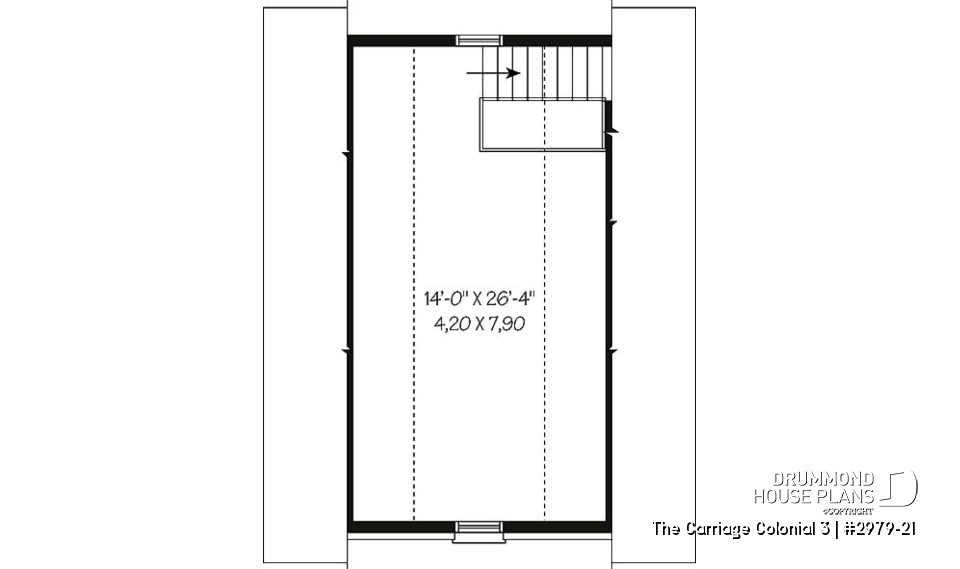

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 14'0" x 26'4" | ~ 7'0" |
General specifications
| Total living area | 953 sq.ft. |
| 1st level | 588 sq.ft. |
| 2nd level | 365 sq.ft. |
| Width | 21'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 21'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2B |
Rooms specifications
Note: The photos of this house differ from the original plan, from which they come.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Traditional two-car garage plan with storage on second floor
.
Distinctive elements
Decorative moldings and shutters.
Second level storage area of 365 sq.ft.
Plan architectural style(s)
. American, . European, . Traditional, Classic
