House plan Theodore (3940)

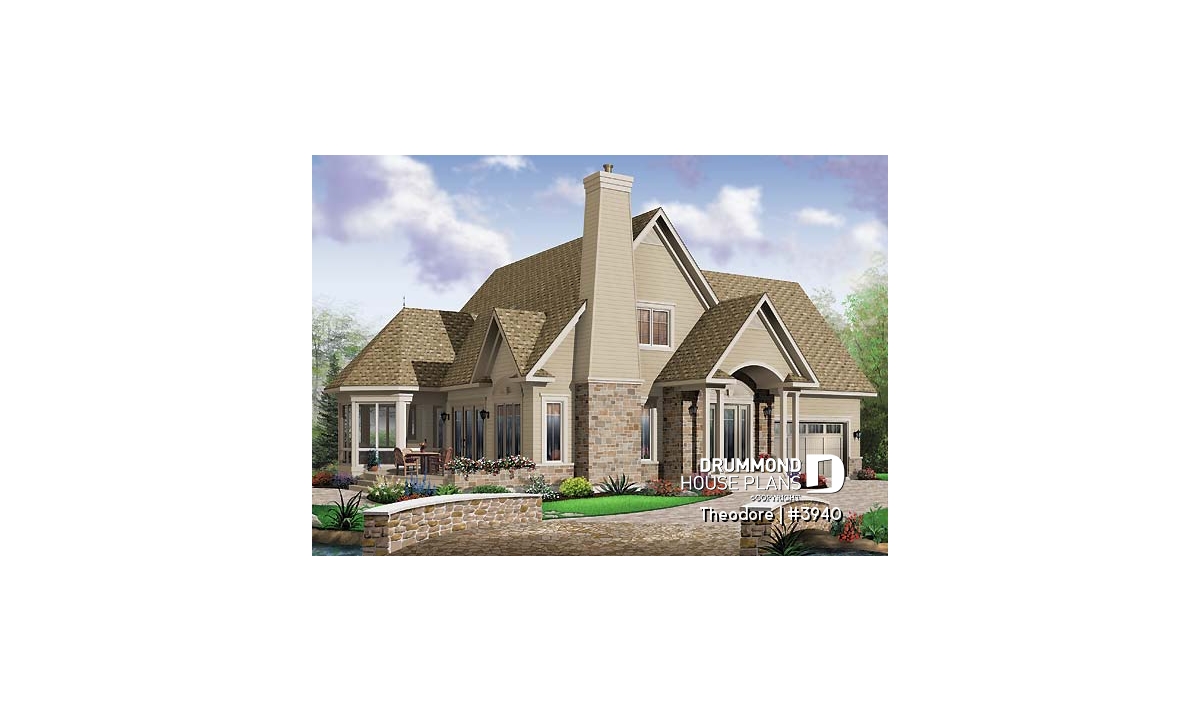

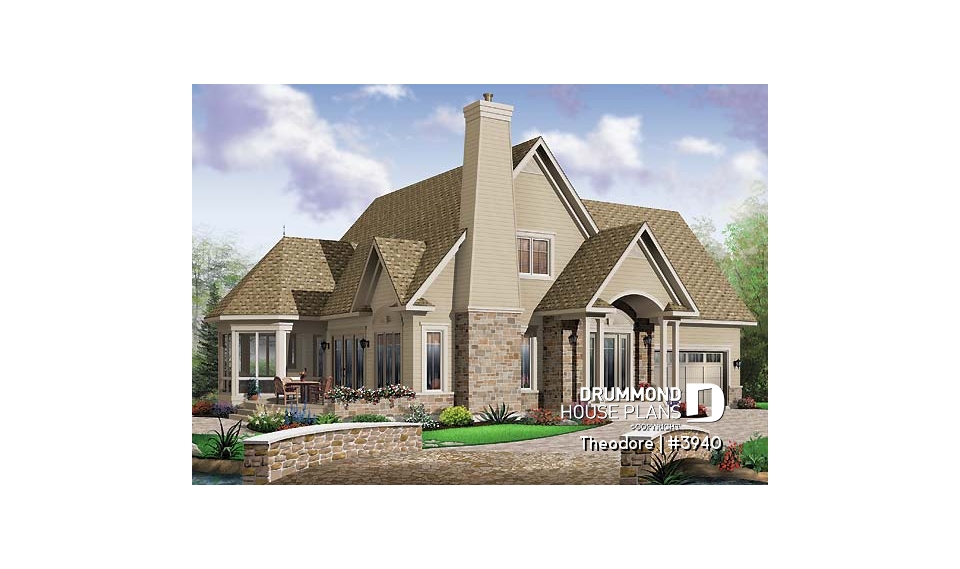

Panoramic 3 bedroom manor with screened porch, garage & bonus space
View the size of the rooms and height of the ceilings

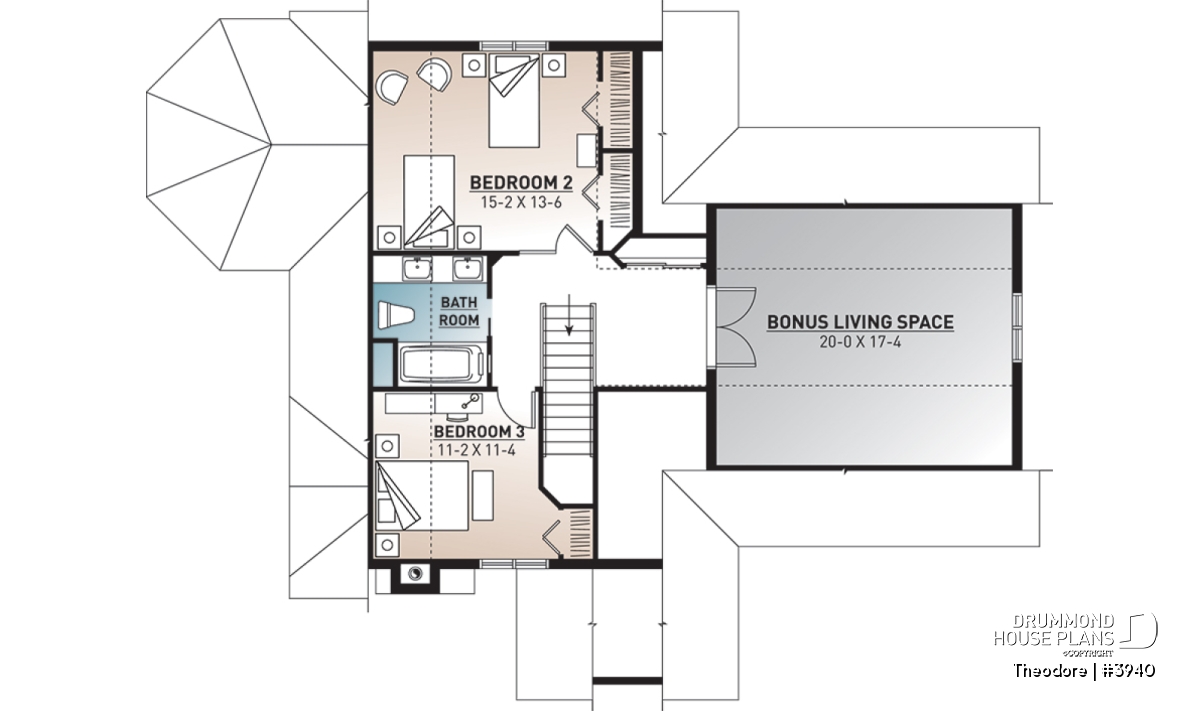

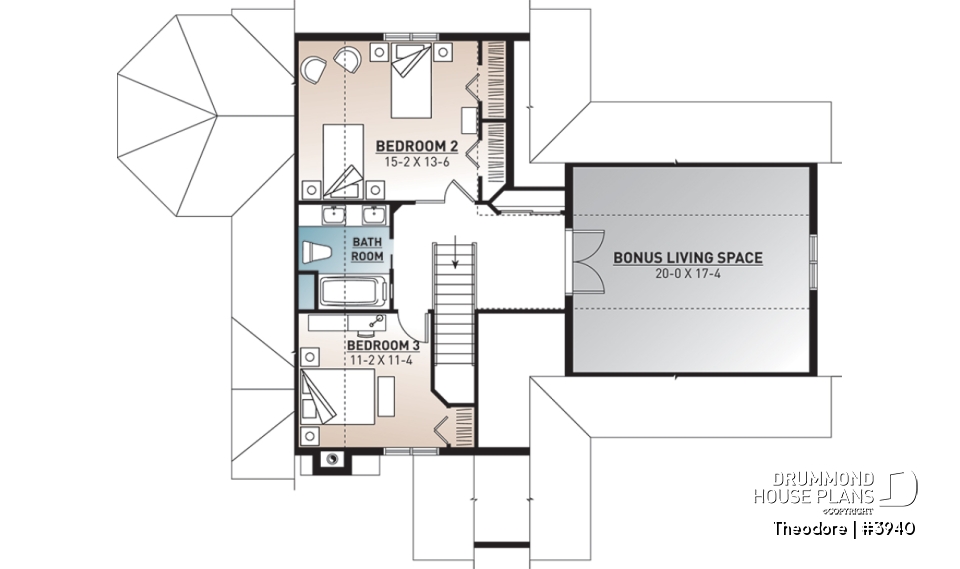

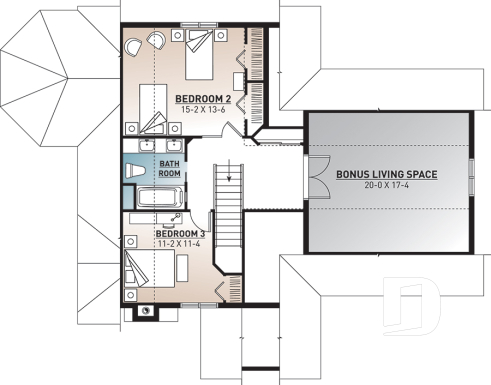

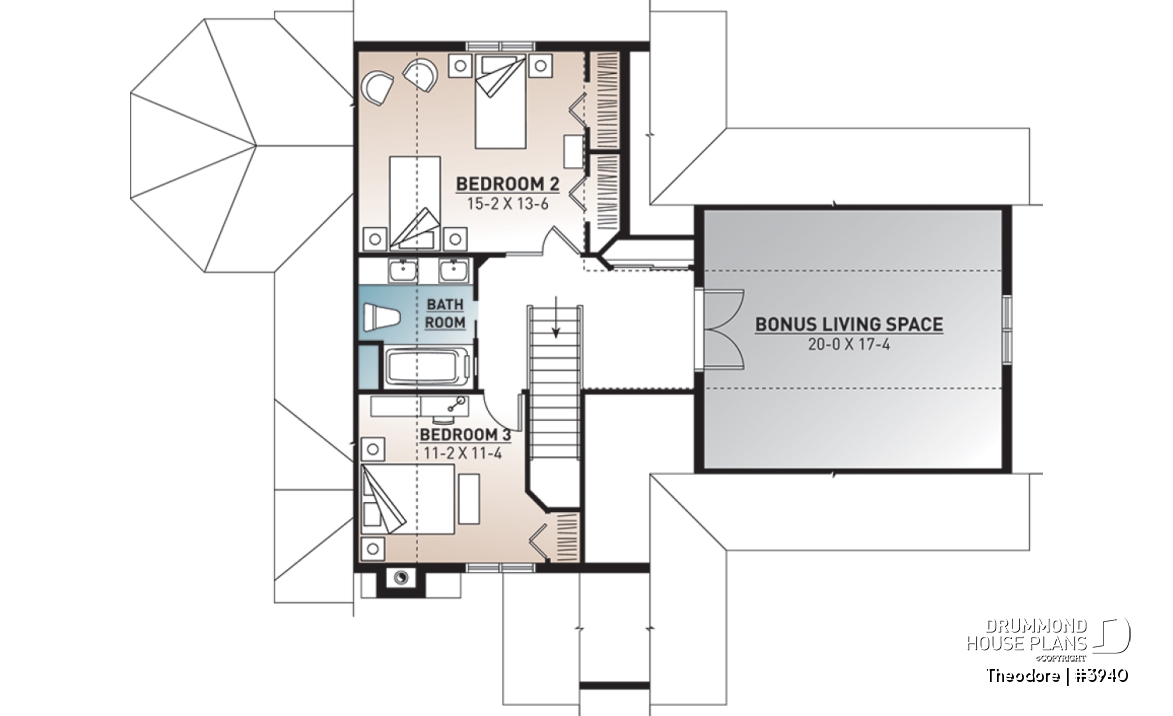

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'8" x 8'10" | ~ 8'0" |
| Bedroom | 15'2" x 14'4" | ~ 8'0" |
| Closet | 2'0" x 6'7" | ~ 8'0" |
| Closet | 2'0" x 6'7" | ~ 8'0" |
| Bedroom | 11'2" x 11'4" | ~ 8'0" |
| Closet | 2'0" x 3'5" | ~ 8'0" |
| Linen | 5'8" x 1'8" | ~ 8'0" |
| Living bonus room | 20'0" x 16'0" | ~ 8'0" |

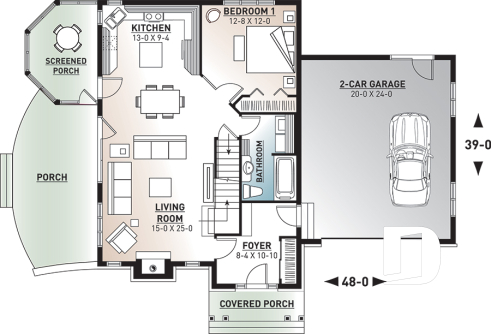

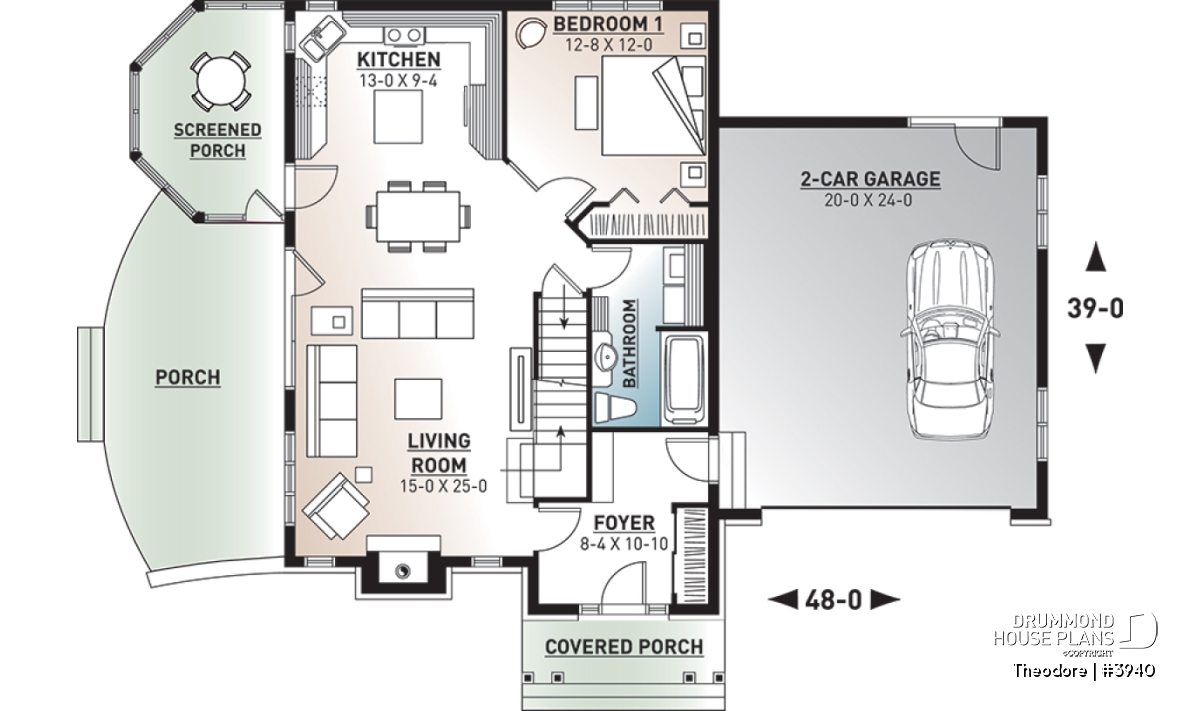

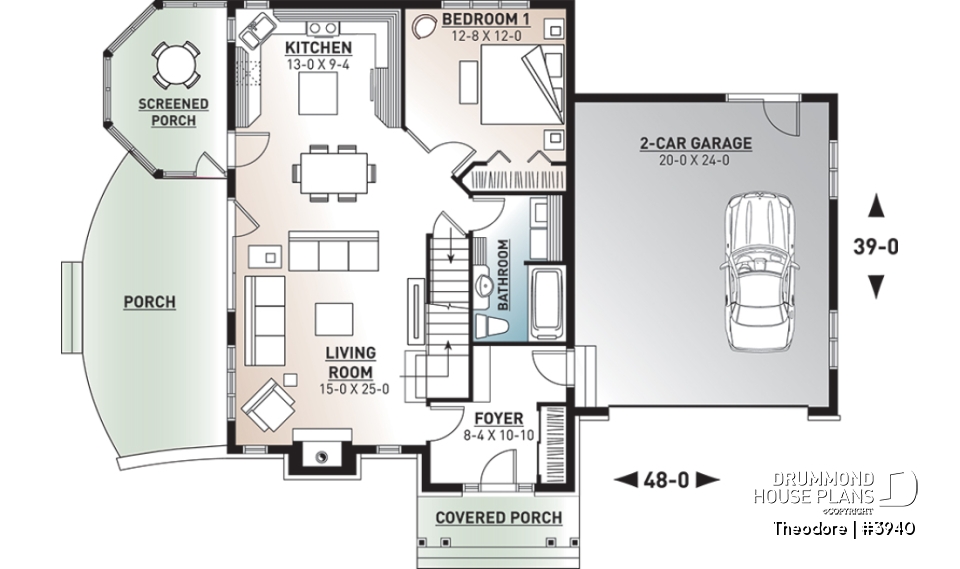

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'0" x 9'4" | ~ 8'6" |
| Pantry | 2'10" x 2'0" | N/A |
| Dining room | 15'0" x 25'0" | ~ 8'6" |
| Foyer | 8'4" x 10'10" | ~ 8'6" |
| Closet | 2'0" x 6'1" | ~ 8'6" |
| Full bathroom | 7'4" x 11'6" | ~ 8'6" |
| Bedroom | 12'8" x 12'0" | ~ 8'6" |
| Closet | 7'6" x 2'0" | ~ 8'6" |
| Garage | 20'0" x 22'8" | ~ 9'0" |
| Covered porch | 12'0" x 4'0" | N/A |
| Deck | 11'4" x 21'8" | N/A |
General specifications
| Total living area | 1697 sq.ft. |
| 2nd level | 673 sq.ft. |
| 1st level | 1024 sq.ft. |
| Width | 48'0" |
| Depth | 39'0" |
| Ridge height from top of foundation | 28'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Bright cottage house plan with screened in porch and a 2-car garage
.
Distinctive elements
Covered front stoop. Kitchen with access to covered screened-in porch. Large foyer entrance with access from garage. Lateral entrance to dining/family rooms. Main floor laundry. Dual vanities in second level bathroom. Fireplace in family room.
Plan feature(s)
Screened porch, Fireplace, Living bonus space, Entrance hall, Gound floor laundry room, Island, Sloped ceiling
Plan architectural style(s)
. Country, . Traditional, . Vacation and waterfront, . Manors and small castles, . A-Frame, . American, . Mountain
