House plan Pocono 5 (3914-V3)
A-Frame Rustic Country Cottage plan, 4 bedrooms, 3 bathrooms, screened-in porch, unfinished walkout basement
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'8" x 13'4" | ~ 9'0" |
| Dining room | 11'0" x 16'0" | ~ 9'0" |
| Living room | 13'8" x 14'8" | ~ 9'0" |
| Master suite | 14'2" x 18'4" | ~ 9'0" |
| Full bathroom | 7'8" x 12'0" | ~ 9'0" |
| Walk-in closet | 7'2" x 8'0" | ~ 9'0" |
| Shower room or three quarter bath | 8'2" x 5'0" | ~ 9'0" |
| Foyer | 7'6" x 8'0" | ~ 9'0" |
| Laundry room | 5'10" x 8'0" | ~ 9'0" |
| Mosquito Shelter | 12'0" x 16'0" | ~ 8'0" |
| Deck | 26'0" x 9'0" | N/A |
| Deck | 12'0" x 16'0" | N/A |
| Deck | 12'0" x 16'0" | N/A |
| Covered porch | 18'0" x 4'0" | N/A |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 16'4" x 12'0" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Bedroom | 12'0" x 13'0" | ~ 8'0" |
| Closet | 3'4" x 13'0" | ~ 8'0" |
| Bedroom | 11'10" x 10'4" | ~ 8'0" |
| Shower | 2'0" x 5'0" | ~ 8'0" |
| Closet | 2'0" x 5'0" | ~ 8'0" |
| Bathroom | 5'0" x 13'0" | ~ 8'0" |
General specifications
| Total living area | 2184 sq.ft. |
| 1st level | 1362 sq.ft. |
| 2nd level | 822 sq.ft. |
| Width | 38'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 25'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
http://www.ladouceurpaysagiste.com/realisations/modernisme-dans-un-decor-champetre/
Deck
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
http://www.ladouceurpaysagiste.com/realisations/modernisme-dans-un-decor-champetre/
Deck
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
http://www.ladouceurpaysagiste.com/realisations/modernisme-dans-un-decor-champetre/
Other useful information on this plan
Unobstructed views for this beautiful Vacation house plan with 4 bedrooms and 3 bathrooms

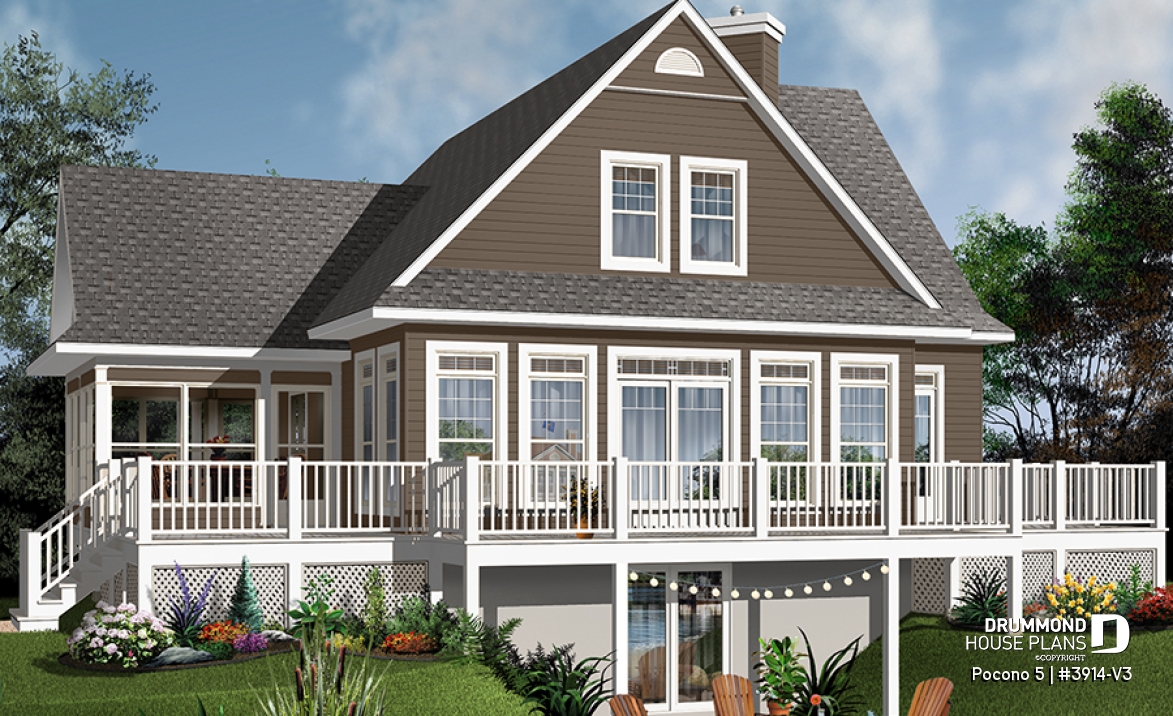

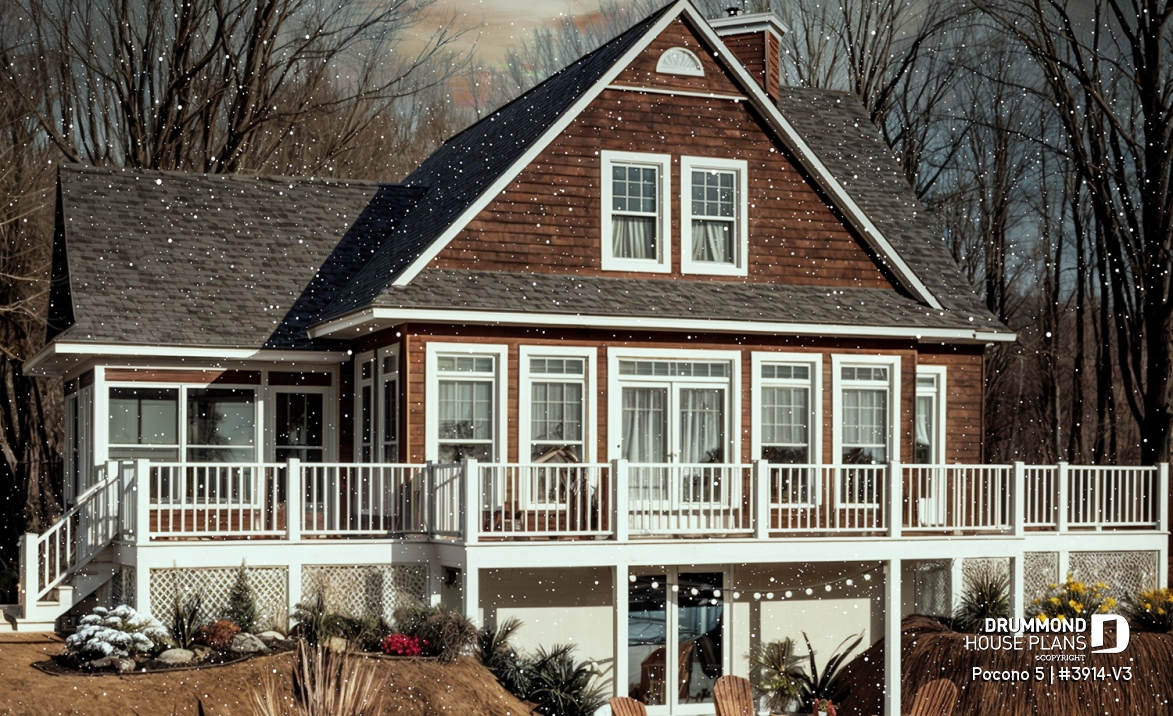

If you are looking for a home to capture a view, this model is sure to please. Simple and elegant lines, abundant windows, a screened veranda and wraparound deck... These are only the exterior allures of this model. A further benefit is a front facade just as attractive as the rear thus allowing great flexibility for a wide variety of lot styles.
Inside, a well-positioned staircase allows for panoramic views and casual access to the wraparound deck. The master bedroom is conveniently found on the main level adorned by a veranda access, a walk-in closet, master bathroom vaulted ceiling and a two-sided fireplace which is shared with the family room. A guest bathroom and laundry complete the main level comforts.
Upstairs, we find three bedrooms and a full bathroom.
Distinctive elements
9' ceiling in the activity area. Fireplace shared between master suite and living room. Remarkable kitchen with island counter. Master suite with private bathroom and walk-in closet. Three nice bedrooms on 2nd level share a full bathroom.
Plan feature(s)
Screened porch, Fireplace, Island, Open floor layout, Walk-in master bed., Panoramic view, Ceiling over 8', Sloped ceiling, Gound floor laundry room, Master suite on main, Separate bath and shower, Double sinks, Entrance hall
Plan architectural style(s)
. Cottage, chalet, cabin, . Country, . A-Frame, . American, . Vacation and waterfront, . Rustic, . Traditional, . Ski chalets
Similar plans
Previously Viewed Plans
Questions and comments
October 06
Murray Crane
Does plan for #V3914-V3 come with 9' basement and 1st level? Any basement layout?
October 06
Customer service
Good day Mr. Crane and thank you for your interest in this plan.
Although the full basement of this plan includes ceilings 8' high and a walk-out, the layout is limited to a dotted line which indicates a possible future bathroom the first floor layout is complete and does have 9' ceilings.
We would, however, be happy to return a free estimate within two business days after receipt of this on line form for an increase in the basement ceiling height to 9' as well as any divisions that you require or other changes required to make this plan conform to your specific needs.
Please let me know if I can further assist you
Regards
Deb
September 09
Tyler
On your last question above, is the head height in the 2nd floor bathroom all 8' for that room or at least in the shower? Even at 5' at the eaves, that doesn't leave much room for movement? Thanks
September 09
Customer service
Good day and thank you for taking the time to write.
The maximum height is to the left of the dotted line and the ceiling slopes to a knee wall height of 5' but if this is insufficient and you need to make any changes, we would be happy to return a free estimate for plan customization according to your requirements within 48 (business) hours.
Regards
Deb
September 02
Jaymes
Regarding plan W3914V3: I like the 2nd and 3rd floor layout of this design but I would prefer a full basement/garage with three stalls, storage and a workbench area). Do you have versions of this plan with these modifications?
Thanks
September 02
Customer service
Good day and thank you for your interest in this plan.
Since we do not have a stock plan that meets your needs, I invite you to request a free quote for the changes and we would be happy to respond within two business days after receipt of this on line form.
Please let me know if I can further assist you.
Regards
Deb
August 13
Dan Barr
When ordering blueprints how long does it take to receive them?
August 13
Customer service
Good day Mr. Barr and thank you for taking the time to write.
The lead time for you to receive paper copies of our plans is 3 to 5 business days and 24 to 48 business hours for electronic files such as PDF or CAD.
If changes, such as right reading reverse or a different foundation, are required there is an additional delay that is usually fror 2 to 7 business days.
Please let me know if you have any other questions or comments.
Regards
Deb
August 08
Judy
Upstairs, what is the wall height under the eaves (dashed line on plan)? Want bathroom to have a shower/tub combo and wonder if there is standing head room.
August 08
Customer service
Good day and thank you for your interest in this plan.
The lowest height in the room is 5' towards the outside extremity of the wall. There is already a tub/shower combo and there is enough headroom.
Please let me know if I can further assist you
Regards
Deb
