House plan Louisiana (2433)
Cottage house plan, 3 bedrooms with ensuite, open floor layout with double-sided fireplace, large deck
View the size of the rooms and height of the ceilings

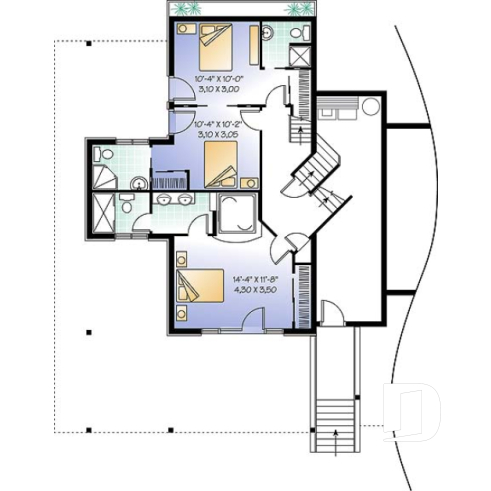

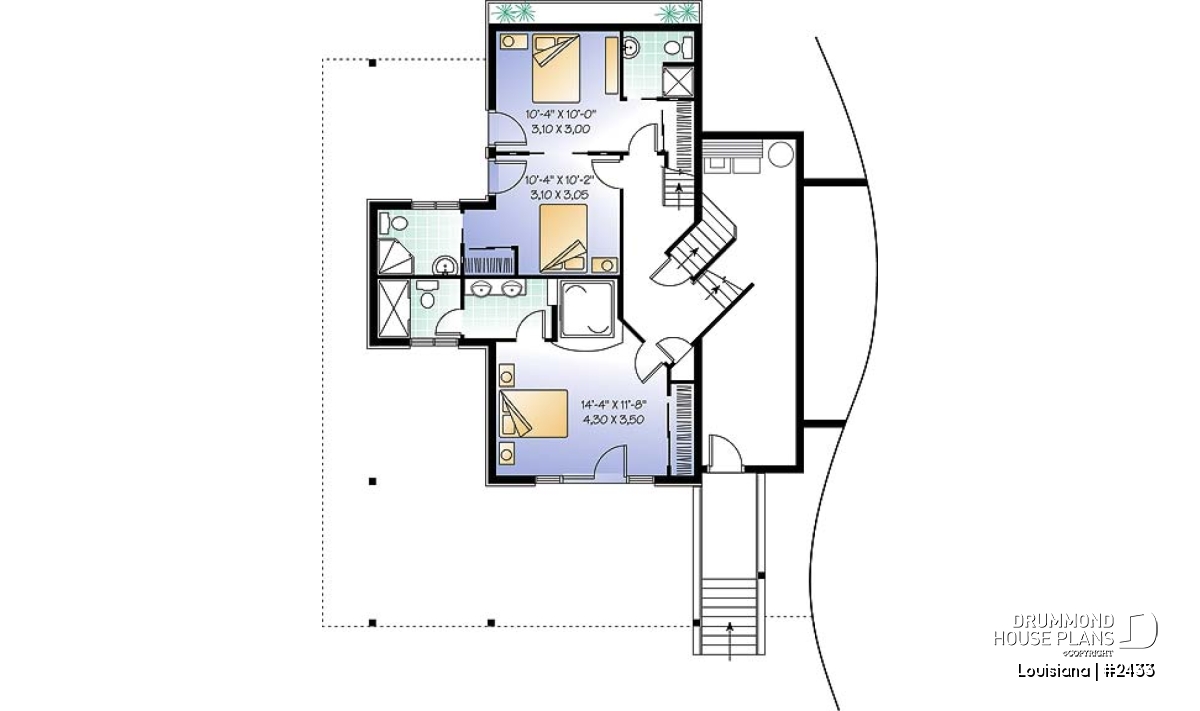

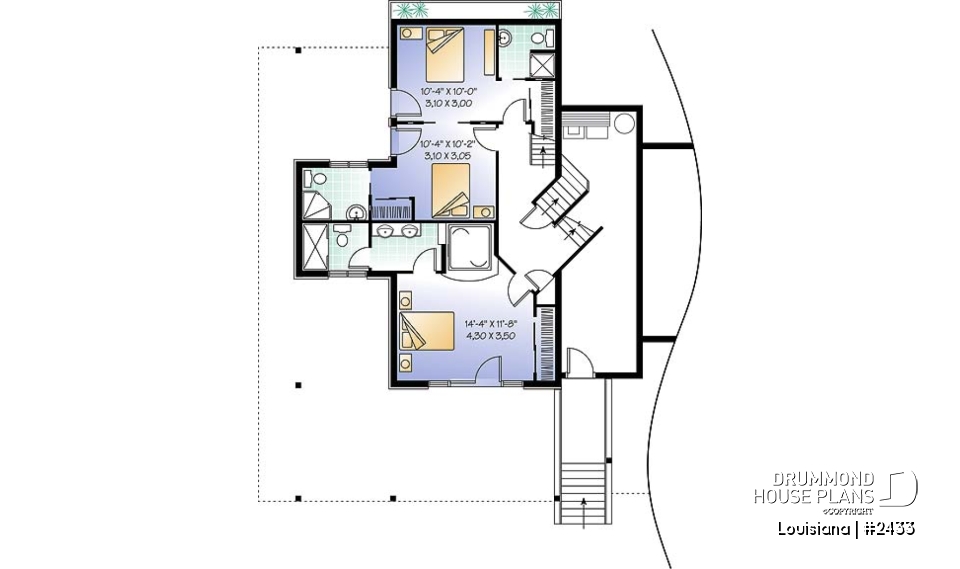

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 14'4" x 11'8" | ~ 8'0" |
| Bedroom | 10'4" x 10'2" | ~ 8'0" |
| Bedroom | 10'4" x 10'0" | ~ 8'0" |

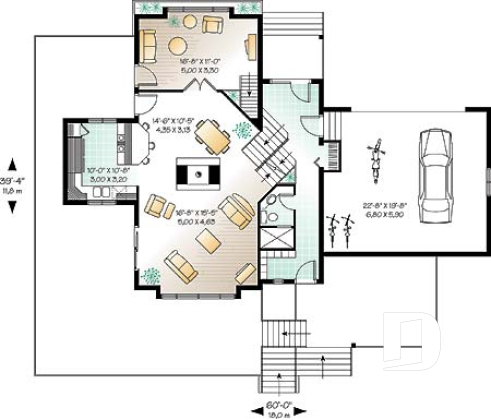

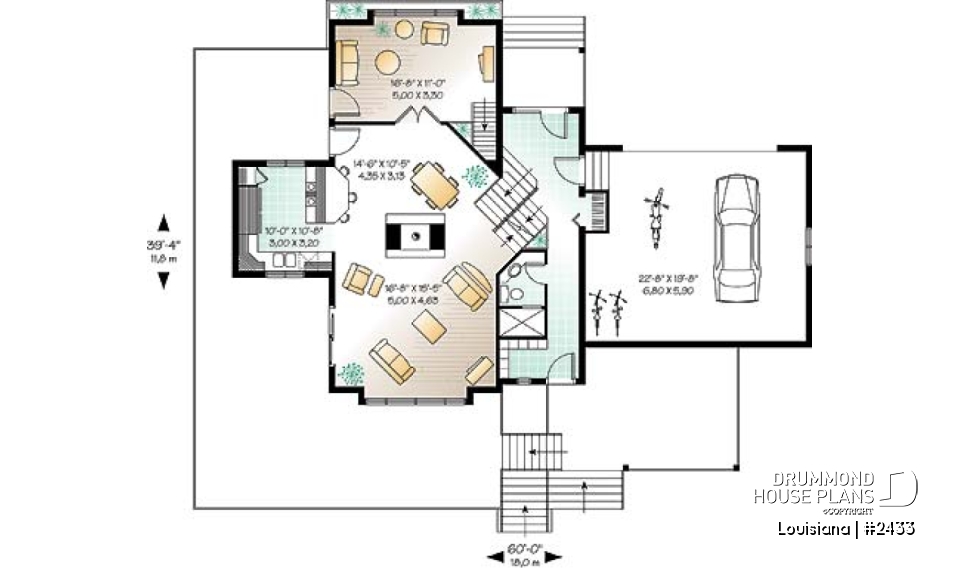

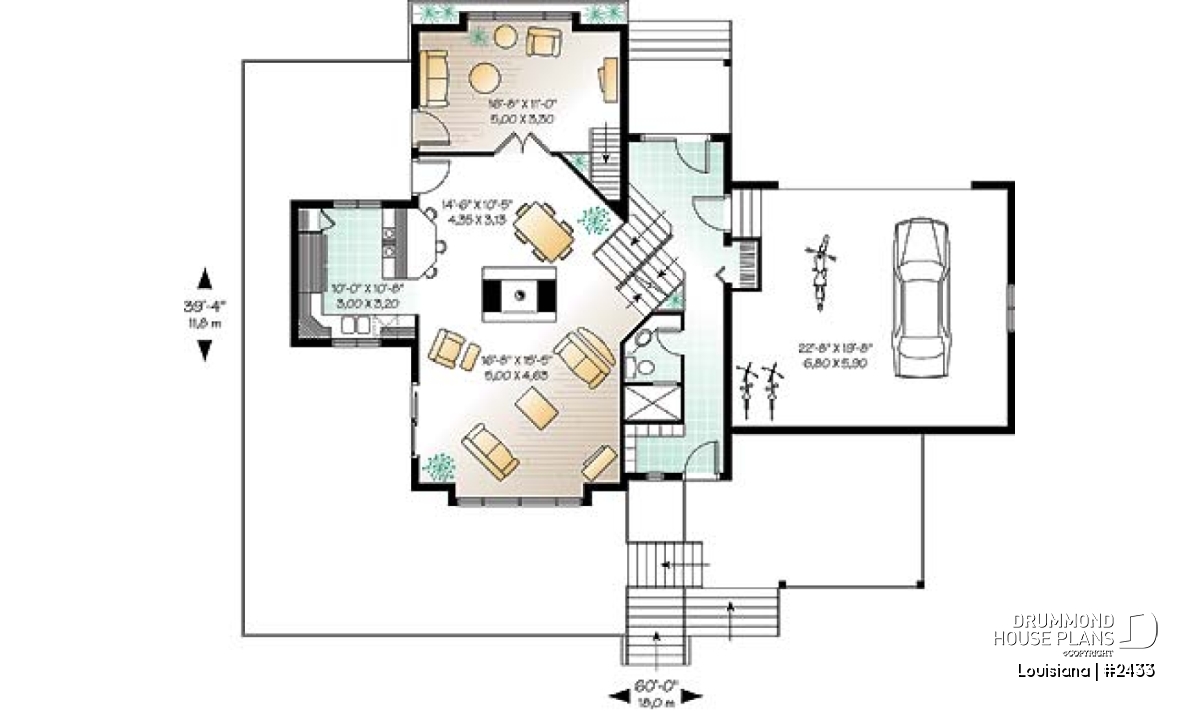

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'0" x 10'8" | ~ 9'0" |
| Dining room | 14'6" x 10'5" | ~ 9'0" |
| Great room or Family room | 16'8" x 15'5" | ~ 9'0" |
| Living room | 16'8" x 11'0" | ~ 9'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Covered porch | 8'8" x 6'0" | N/A |
| Porch | 32'0" x 12'0" | N/A |
| Porch | 14'0" x 12'0" | N/A |
| Porch | 4'0" x 12'0" | N/A |
| Foyer | 8'0" x 14'4" | ~ 8'0" |
| Covered deck | 20'5" x 13'0" | N/A |
| Shower room or three quarter bath | 4'8" x 8'8" | ~ 9'0" |

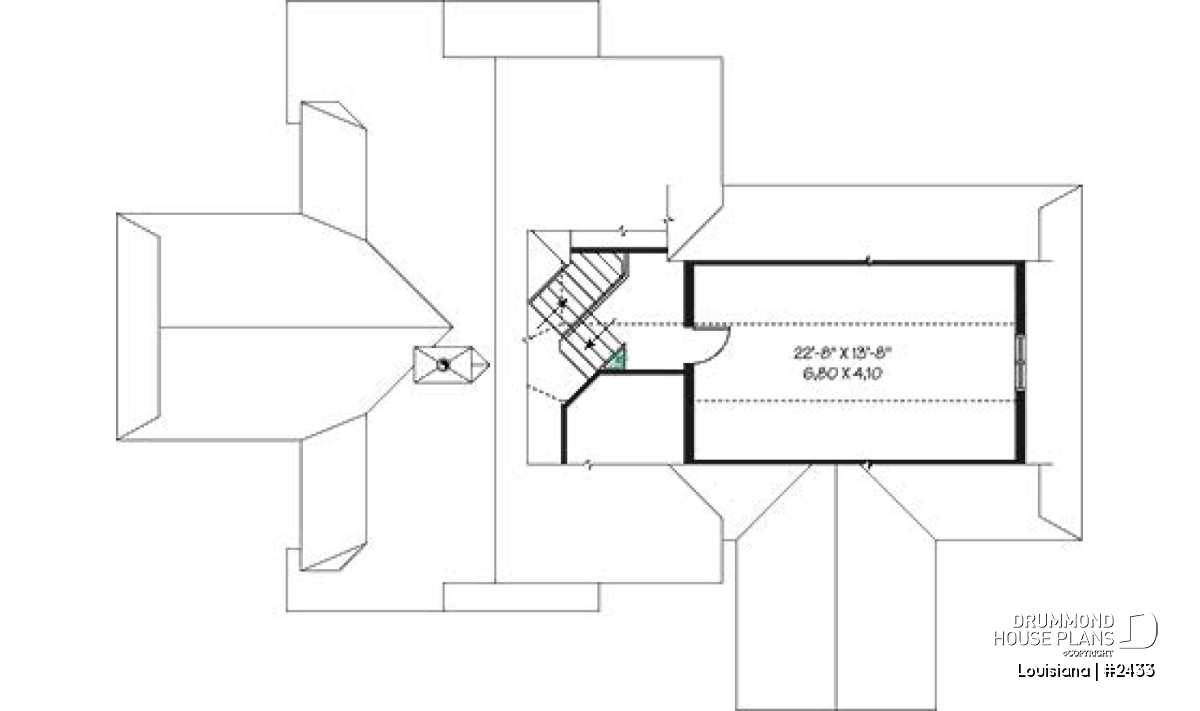

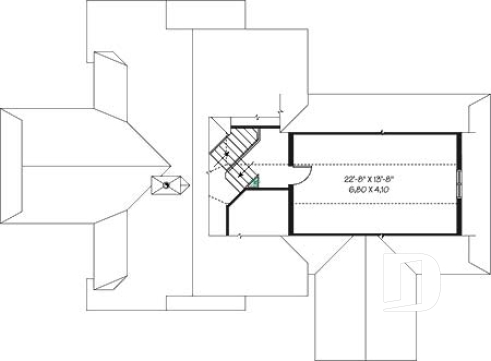

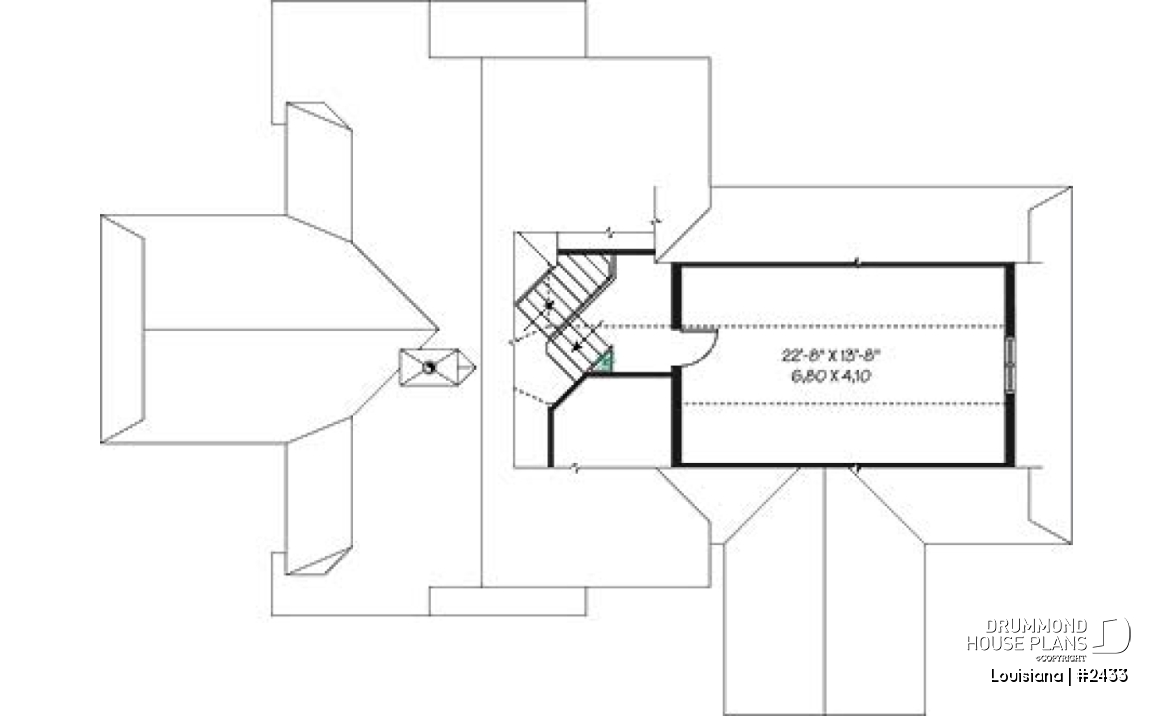

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

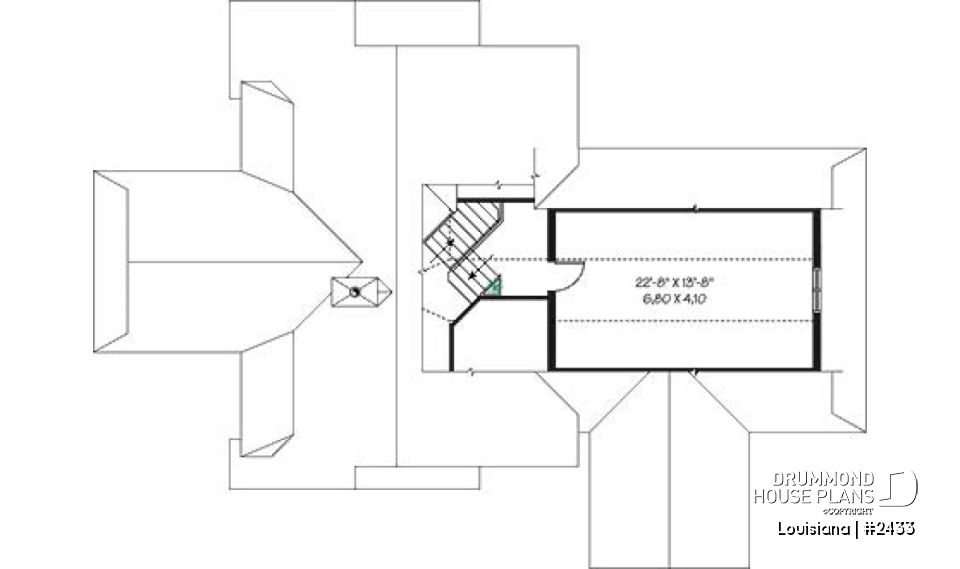

| Living bonus room | 22'8" x 13'8" | ~ 8'0" |
General specifications
| Total living area | 1932 sq.ft. |
| Basement | 822 sq.ft. |
| 1st level | 1110 sq.ft. |
| 2nd level | 0 sq.ft. |
| Width | 60'0" |
| Depth | 41'0" |
| Ridge height from top of foundation | 30'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Distinctive elements
Abundant windowing, wraparound porch. Snack-bar in kitchen. Whirlpool bath in master bedroom. Cathedral ceiling. Special ceiling treatments.
Plan feature(s)
Cathedral ceiling, Living bonus space, Access to basement from exterior, Panoramic view, Fireplace, Inverted living
Plan architectural style(s)
. Vacation and waterfront, . Ski chalets, . American, . A-Frame, . Traditional, . Ranch, . Cottage, chalet, cabin
