The Clearview 2 (4934)
A-France style lakefront vacation house plan, 3 bedrooms, 2 family rooms, mezzanine, garage
View the size of the rooms and height of the ceilings

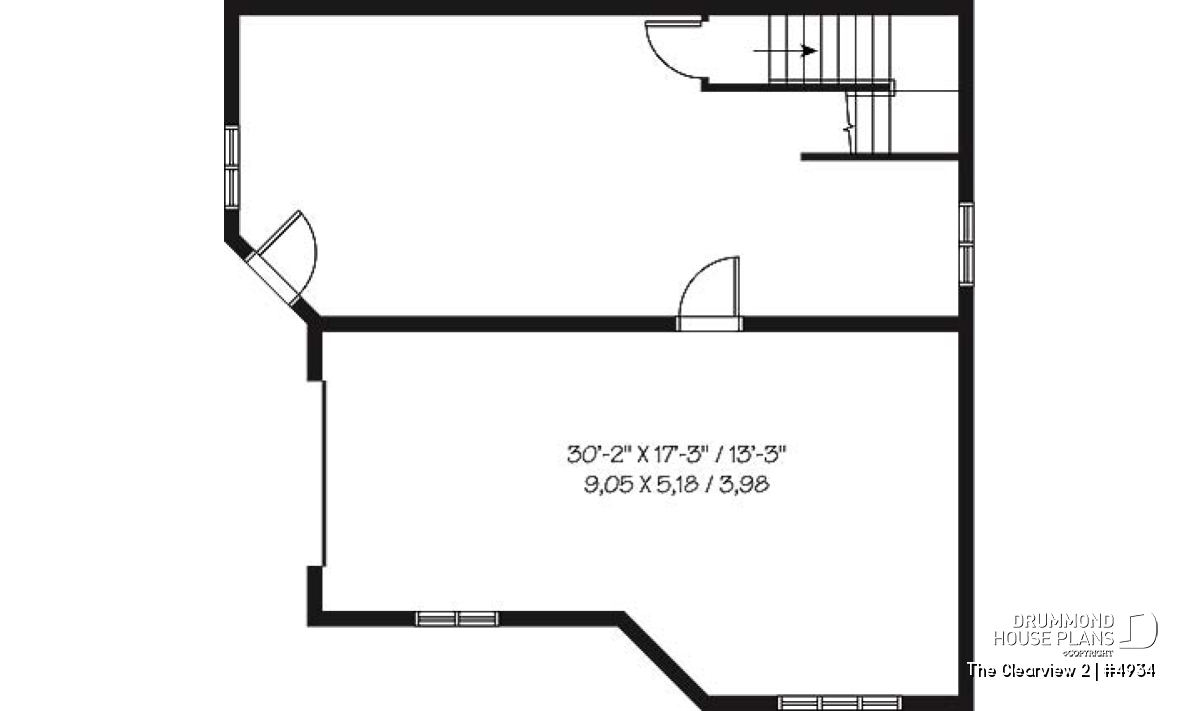

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 30'2" x 13'3" | ~ 8'8" |

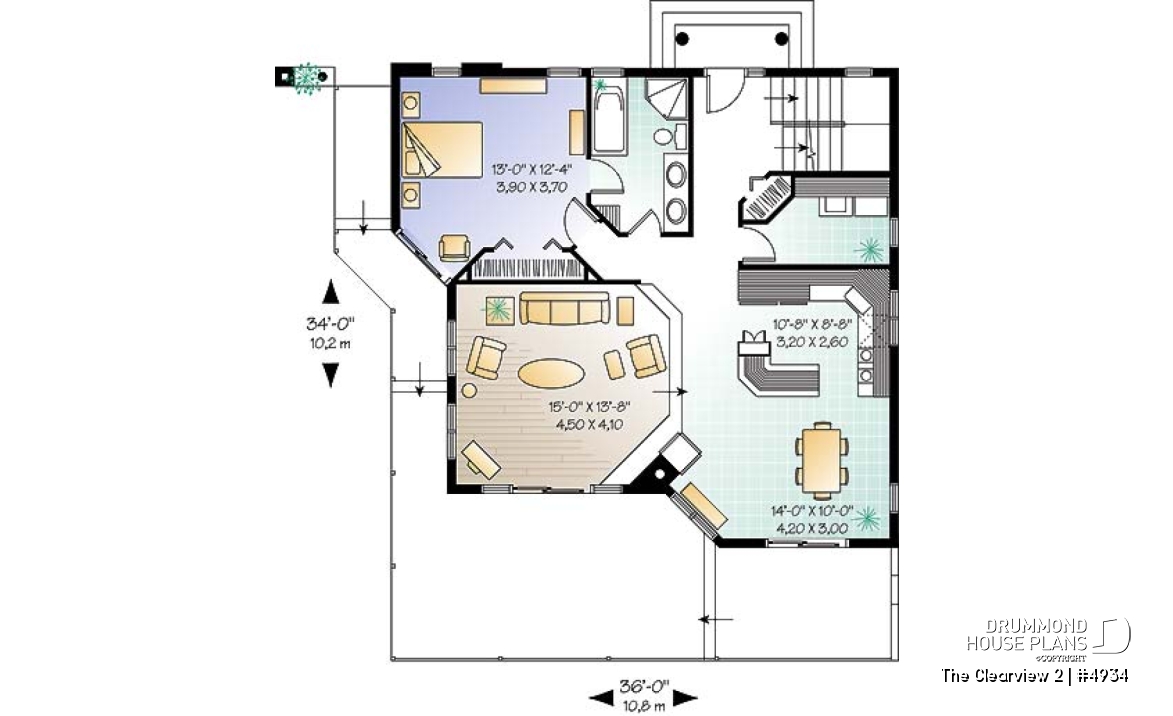

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'8" x 8'8" | ~ 8'0" |
| Dining room | 14'10" x 10'0" | ~ 8'0" |
| Living room | 15'0" x 13'8" | ~ 17'4" |
| Terrace | 13'0" x 8'0" | N/A |
| Terrace | 23'0" x 12'0" | N/A |
| Bedroom | 13'0" x 12'4" | ~ 8'0" |
| Full bathroom | 7'0" x 11'4" | ~ 8'0" |
| Foyer | 5'7" x 6'8" | ~ 8'0" |
| Closet | 4'0" x 2'0" | ~ 8'0" |
| Utility room | 10'4" x 6'6" | ~ 8'0" |
| Porch | 8'0" x 3'0" | N/A |

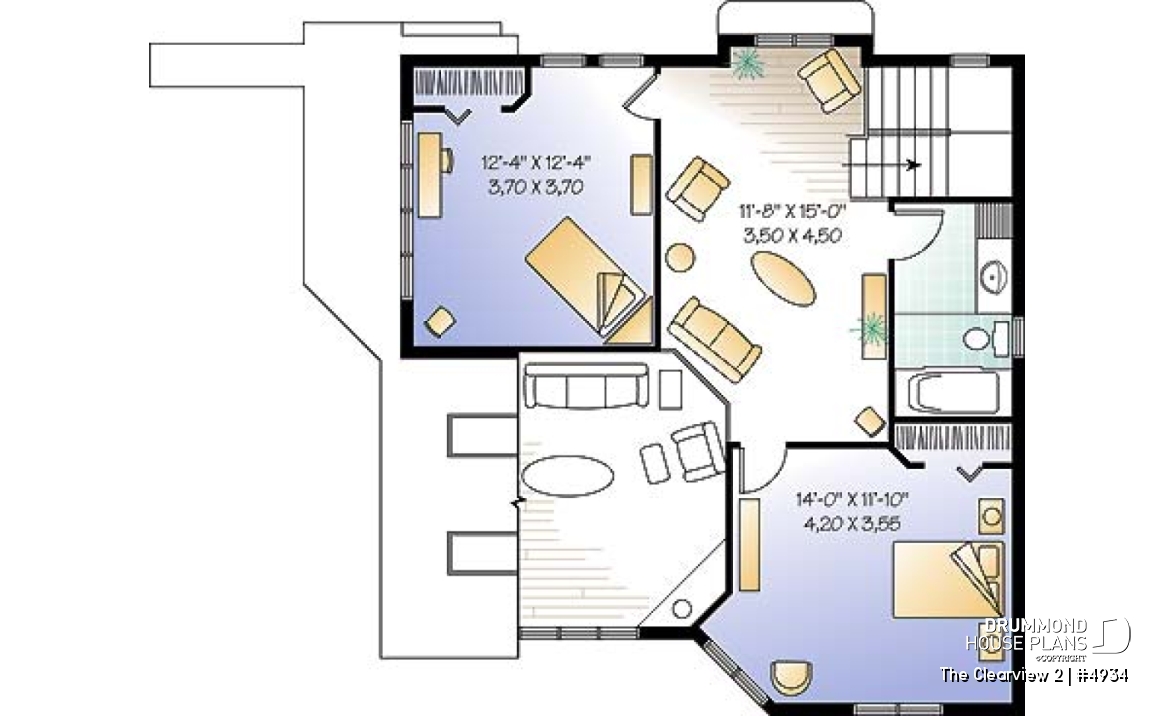

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 14'0" x 11'10" | ~ 8'0" |
| Full bathroom | 6'0" x 11'0" | ~ 8'0" |
| Great room or Family room | 11'8" x 15'0" | ~ 8'0" |
| Bedroom | 12'4" x 12'4" | ~ 8'0" |
General specifications
| Total living area | 1872 sq.ft. |
| Basement | 0 sq.ft. |
| 1st level | 1078 sq.ft. |
| 2nd level | 794 sq.ft. |
| Width | 36'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 24'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Contemporary vacation home plan with 3 bedrooms, mezzanine and large deck
Family and guests will enjoy great views from every room in this contemporary vacation house through a multitude of full-length windows. A fireplace and soaring ceiling enhance the light-filled sunken living room. The adjacent dining room and open kitchen further enhance the open living area. Step onto the spacious wraparound deck from either the kitchen or dining room. A master bedroom is conveniently on the main floor and enjoys a walk-in closet and private bathroom access.
Upstairs, two additional bedrooms share a bathroom and their own mezzanine family room.
Distinctive elements
Master bedroom on first floor, fireplace, large porch, abundant windowing.
Plan feature(s)
Fireplace, Mezzanine, Side entry garage, Basement access from garage, Gound floor laundry room, Island
Plan architectural style(s)
. Vacation and waterfront, . Ski chalets, . European, . A-Frame, . American, . Cottage, chalet, cabin
Similar plans
Previously Viewed Plans
Questions and comments
July 12 2013
Rick
can you combine clearview 2 and clearview one interior wall plans and make the width 36'6" and depth 34'6" to add 6" width and depth to the first floor bath?
July 12 2013
Customer service
Good day and thank you for taking the time to write.
We would be happy to provide a free estimate for the changes that you require to combine the best of both of these plans.
I invite you to complete the following on line modification form
We will respond within two business days after receipt of your request with details about the cost and the lead time to make the changes.
Please let me know if you have any other questions or comments.
Regards
Deborah
January 10 2013
twink.
what is the length?
January 11 2013
Customer service
Good day and thank you for your interest in our plans.
I am not really sure as to which dimension you are referring by length.
The width of the foundation at its widest point, from the left wall of the bedroom to the right wall on which the kitchen and laudry rooms are located is 36'
The foundation depth from front to back starting at the wall with the window in the dining room and going back to the rear wall on which the bathroom is located is 34'
The terrace to the left is 8' wide and extends 13' from front to back.
The terrace in front is 23' wide and 12' deep.
Please let me know if I can further assist you.
Regards
Deborah
