House plan The Clearview (3934)
Beach house plan with large deck, cape hatteras style, mezzanine, open floor plan, garage, fireplace
View the size of the rooms and height of the ceilings

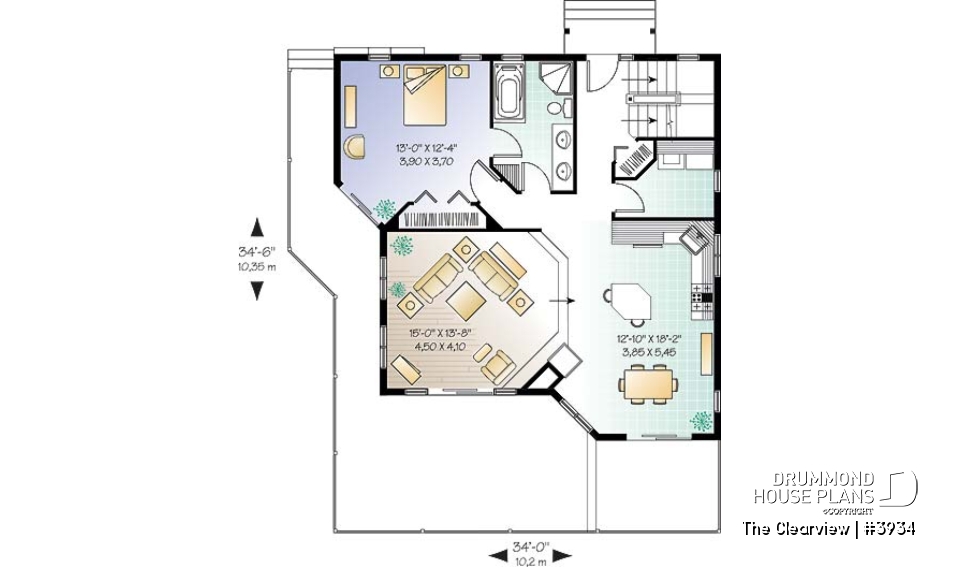

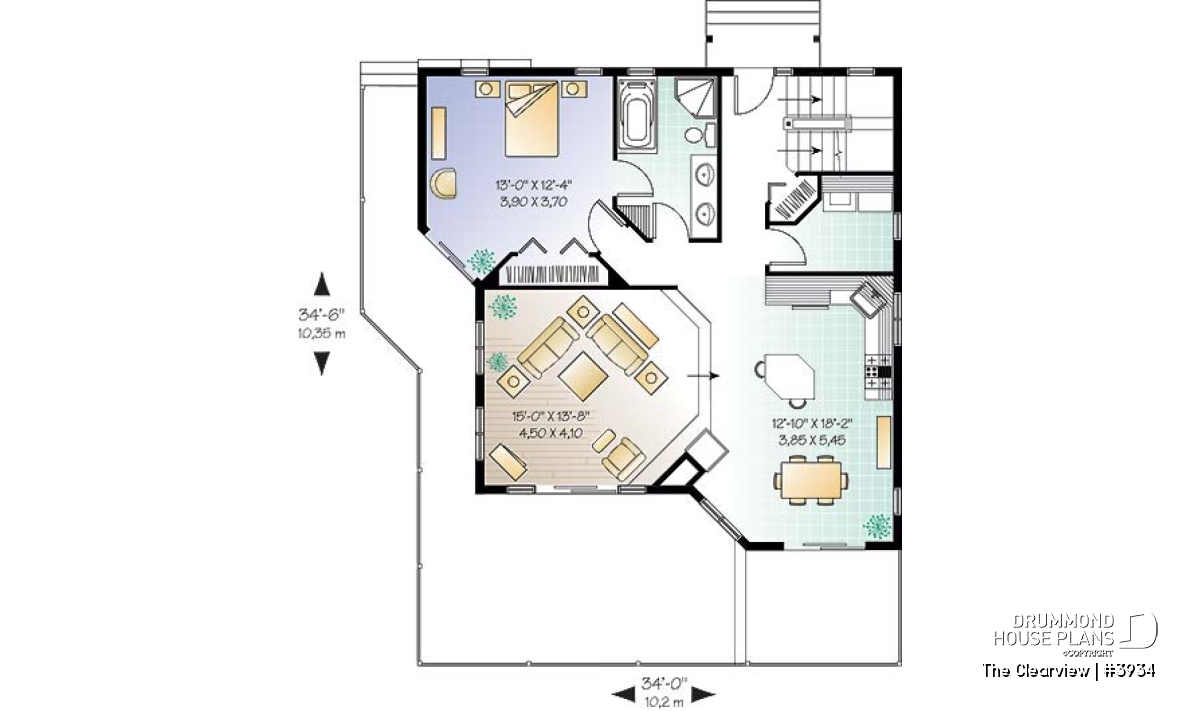

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'0" x 11'4" | ~ 8'0" |
| Kitchen | 12'10" x 18'2" | ~ 8'0" |
| Living room | 15'8" x 13'8" | ~ 8'0" |
| Bedroom | 13'0" x 12'4" | ~ 8'0" |
| Foyer | 4'6" x 7'4" | ~ 8'0" |
| Utility room | 6'10" x 6'6" | ~ 8'0" |
| Garage | 28'2" x 13'3" | ~ 8'8" |
| Porch | 8'0" x 3'0" | N/A |
| Terrace | 11'0" x 8'0" | N/A |
| Terrace | 23'0" x 12'0" | N/A |

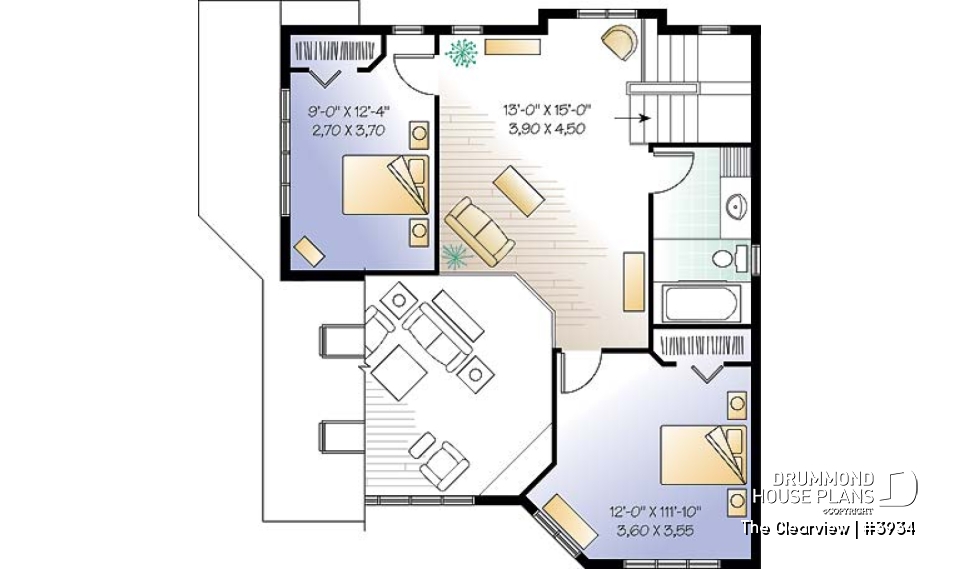

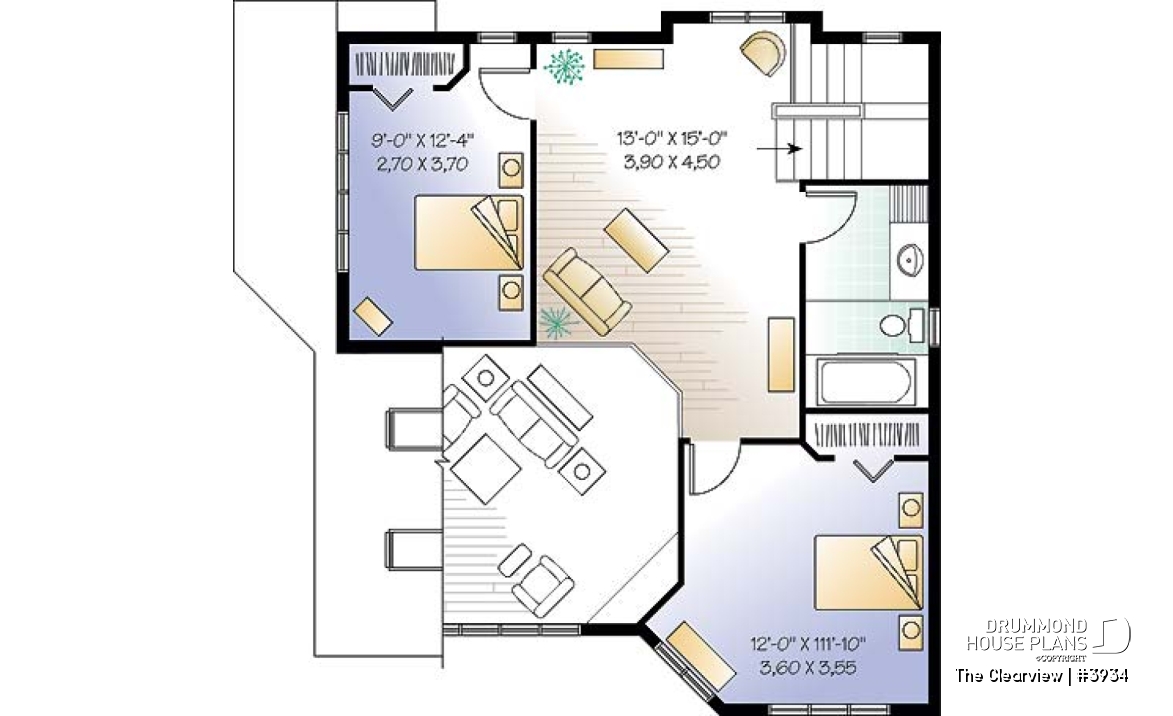

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 11'0" | ~ 8'0" |
| Great room or Family room | 13'0" x 15'0" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Bedroom | 9'0" x 12'4" | ~ 8'0" |

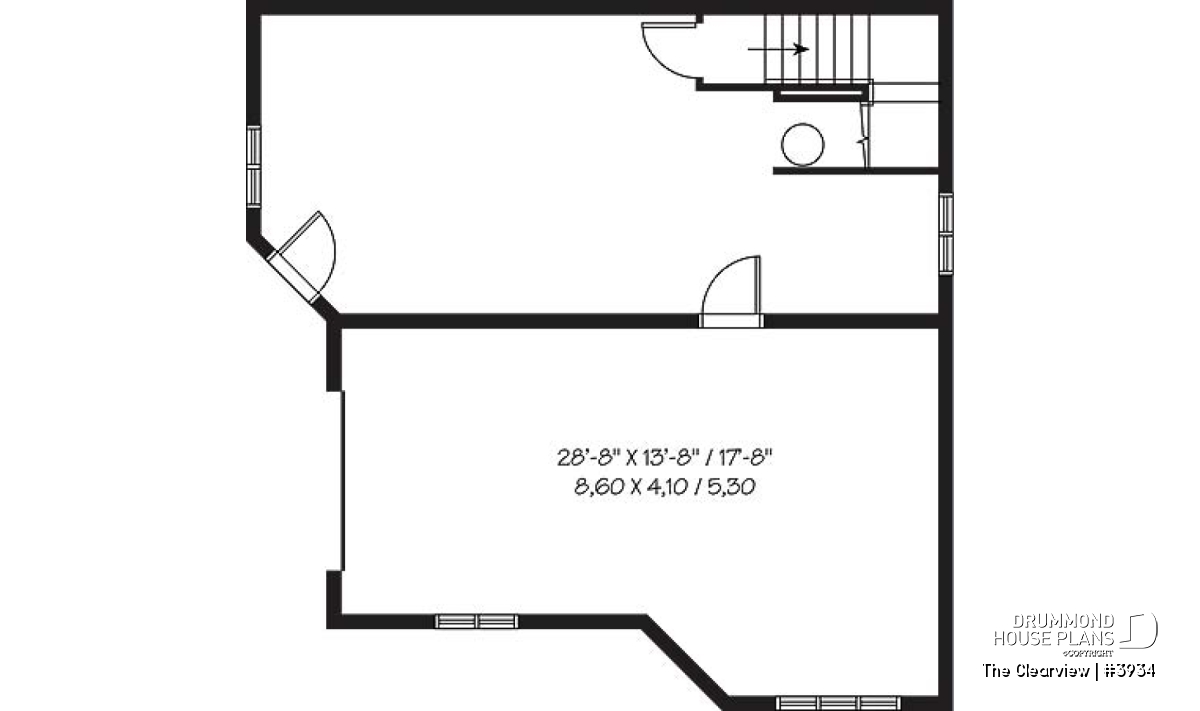

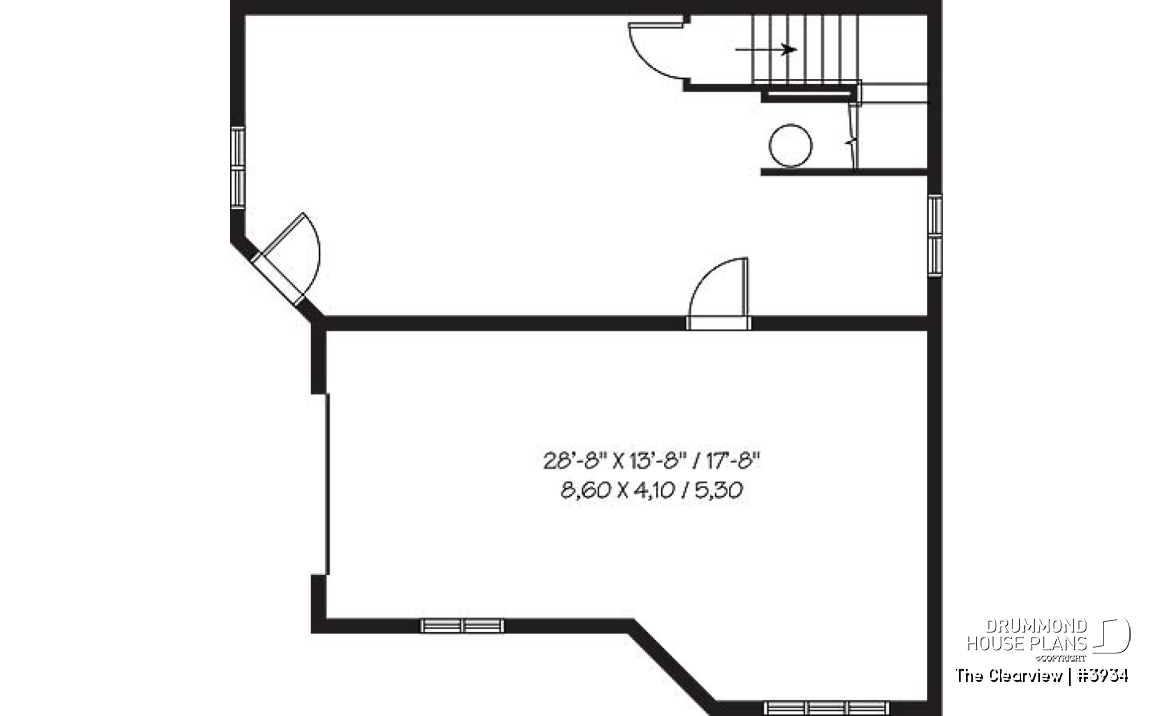

| Basement |
|---|
General specifications
| Total living area | 1737 sq.ft. |
| 1st level | 1010 sq.ft. |
| 2nd level | 727 sq.ft. |
| Basement | 0 sq.ft. |
| Width | 34'0" |
| Depth | 34'6" |
| Ridge height from top of foundation | 24'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
It’s all about the view with this Cape Hatteras style house plan
Full length windows ensure that family and guests will enjoy fabulous views from any room in this contemporary vacation house. Access the wrap-around deck from the kitchen or the family room and drink in the views or enjoy the sun. A vaulted ceiling and fireplace enhance the light-filled sunken living room and the adjacent dining room and island kitchen complete the open floor plan. The master bedroom enjoys a walk-in closet and 5-fixture bathroom.
Upstairs, find two additional bedrooms, full bathroom and a family room with mezzanine view of the family room below.
Distinctive elements
Abundant windowing, particularly in family and dining room, very comfortable mezzanine, possible garage foreseen in basement.
Plan feature(s)
Fireplace, Mezzanine, Gound floor laundry room, Side entry garage, Island, Open floor layout, Sunken living room, Master suite on main, Cathedral ceiling, Sitting area
Plan architectural style(s)
. Vacation and waterfront, . Craftsman / Northwest, . Ski chalets, . Florida, . A-Frame, . American, . Cottage, chalet, cabin
