House plan La Hacienda 1 (2819)
4 bedroom mediterranean style home, 2.5 baths, formal dining room, nice private terrace in master bedroom

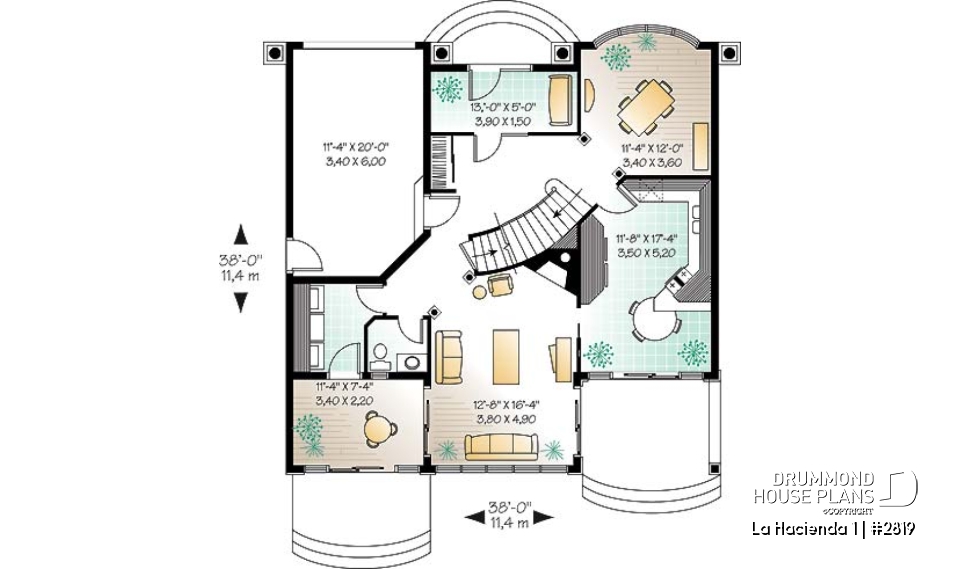

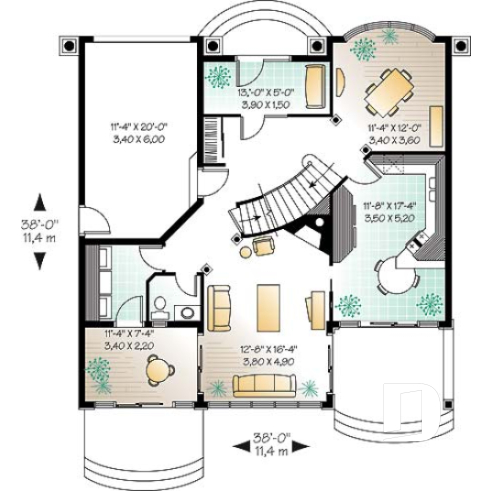

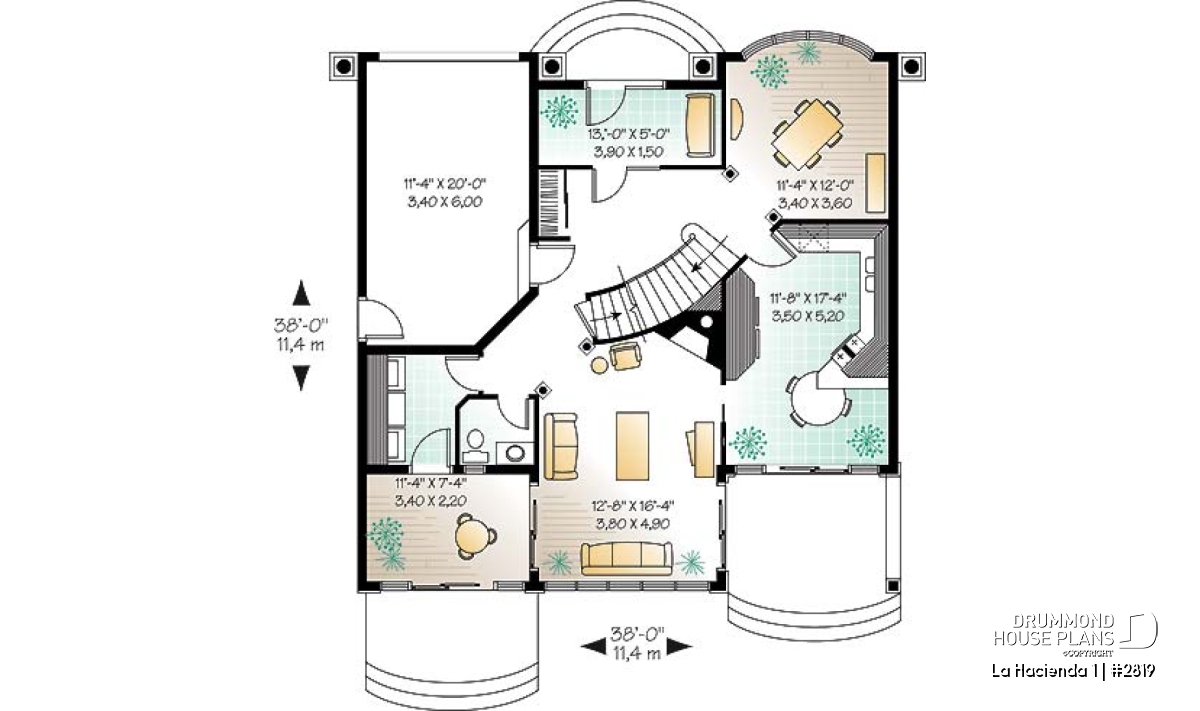

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'8" x 17'4" | ~ 9'0" |
| Dining room | 11'4" x 12'0" | ~ 9'0" |
| Living room | 12'8" x 16'4" | ~ 9'0" |
| Foyer | 13'0" x 5'0" | N/A |
| Utility room | 6'0" x 8'0" | ~ 9'0" |
| Garage | 11'4" x 20'0" | ~ 10'4" |
| Porch | 8'8" x 3'8" | ~ 9'0" |
| Terrace | 11'2" x 8'0" | N/A |
| Balcony | 11'0" x 7'2" | N/A |
| Sunroom | 11'4" x 7'4" | ~ 9'0" |
| Half bath or powder room | 5'2" x 4'8" | ~ 9'0" |

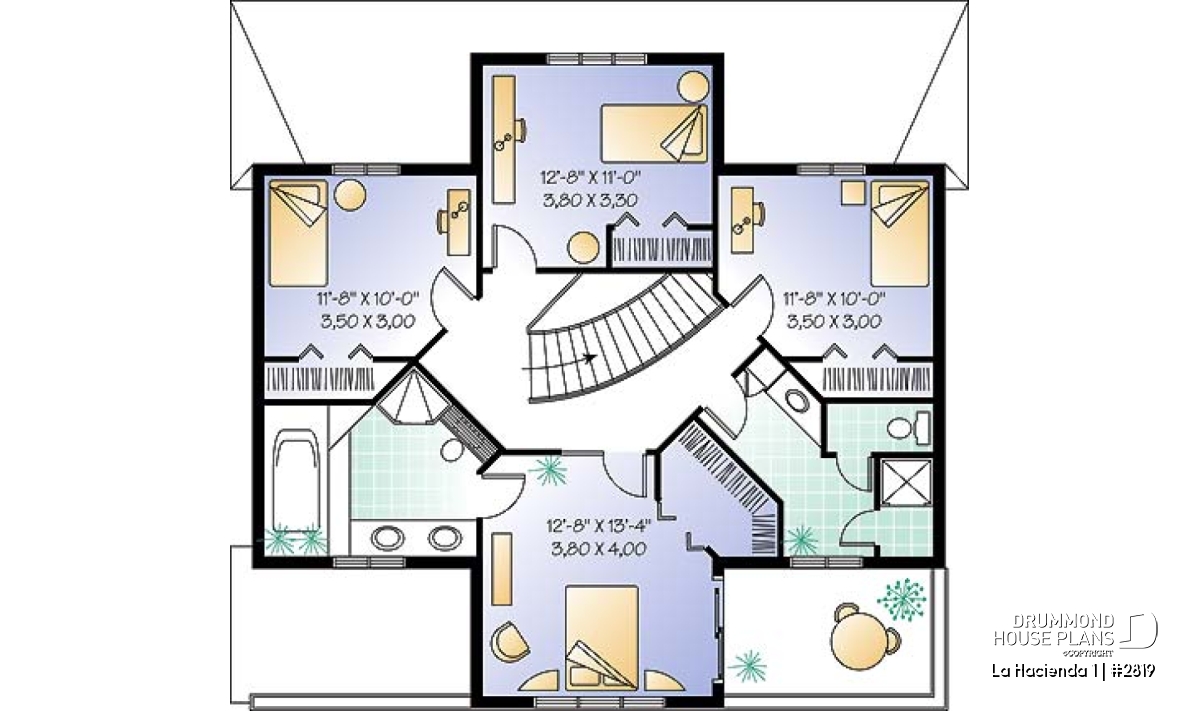

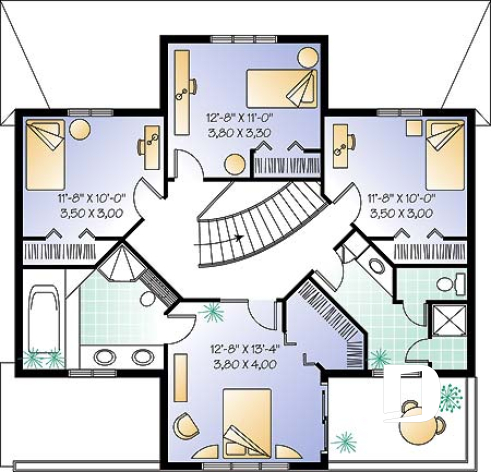

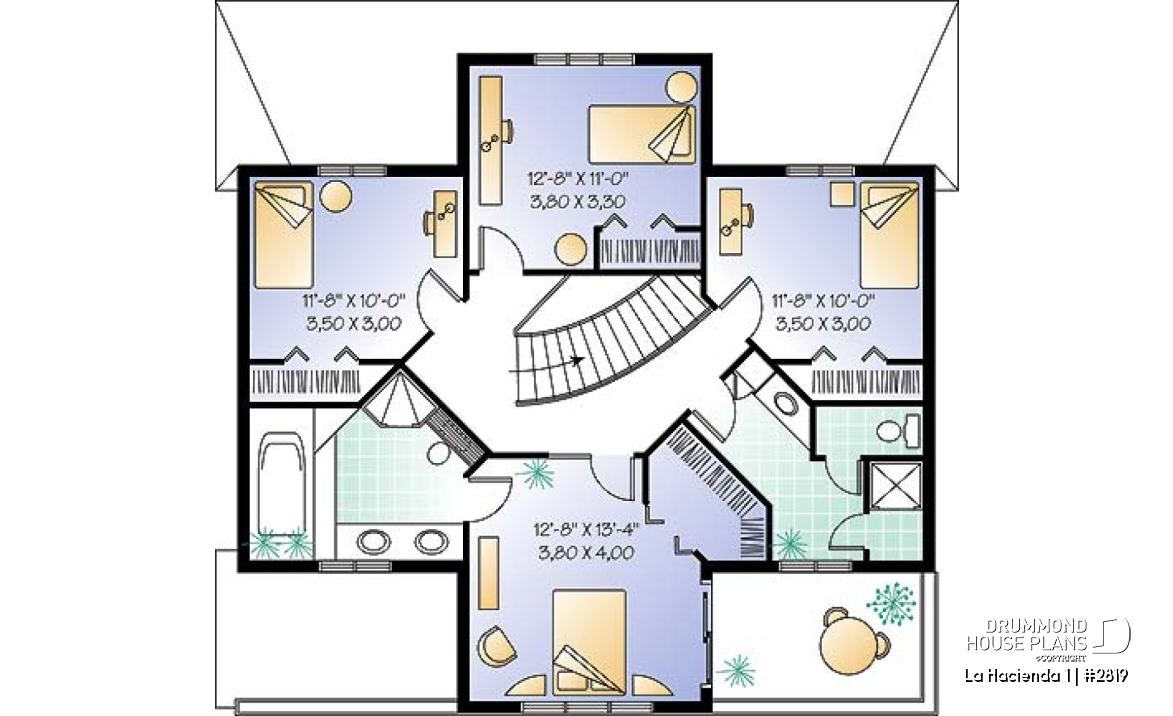

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'6" x 8'0" | ~ 8'0" |
| Bedroom | 12'8" x 11'0" | ~ 9'0" |
| Bedroom | 11'8" x 10'0" | ~ 8'0" |
| Bedroom | 11'8" x 10'0" | ~ 8'0" |
| Master suite | 12'8" x 13'4" | ~ 9'0" |
General specifications
| Total living area | 2119 sq.ft. |
| 1st level | 1087 sq.ft. |
| 2nd level | 1032 sq.ft. |
| Width | 38'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 26'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Life of Luxury!
Your family deserves it-- 2119 sq.ft. of luxurious living. First level opens with 9' ceilings, formal dining, easy-going family room with gas fireplace, and sensational kitchen where the lunch counter feeds into the bright breakfast area and atrium. Upstairs, the master bedroom suite takes a private bathroom and airy balcony. Three grand-size secondary bedrooms enjoy an expansive shower room.
Distinctive elements
Abundant fenestration, 9 foot ceiling on main level, atrium, special ceiling treatments, dual sinks in master bathroom.
Plan feature(s)
Fireplace, Gound floor laundry room, Lunch counter, Panoramic view, Ceiling over 8', Master suite upstairs, Walk-in master bed., Separate bath and shower, Double sinks, Balcony 2nd floor, Entrance hall, Formal dining room
